现代地质 ›› 2019, Vol. 33 ›› Issue (05): 1025-1035.DOI: 10.19657/j.geoscience.1000-8527.2019.05.09
张倩1,2,3(), 吴湘滨1,2, 杨牧1,2, 钱美平3, 刁谦3, 孟斐斯3
收稿日期:
2018-05-27
修回日期:
2018-11-11
出版日期:
2019-10-26
发布日期:
2019-10-28
通讯作者:
张倩
作者简介:
张 倩,女,硕士研究生,工程师,1987年出生,地质工程专业,主要从事成岩成矿作用研究。Email: 531200435@qq.com。基金资助:
ZHANG Qian1,2,3(), WU Xiangbin1,2, YANG Mu1,2, QIAN Meiping3, DIAO Qian3, MENG Feisi3
Received:
2018-05-27
Revised:
2018-11-11
Online:
2019-10-26
Published:
2019-10-28
Contact:
ZHANG Qian
摘要:
华南中生代花岗岩成因研究对指示华南岩石圈演化机制具有重要意义,也是成岩成矿作用研究的重要内容。利用原位LA-ICP-MS锆石U-Pb年代学、微量元素及Hf同位素组成分析,对紫金山矿田内浸铜湖铜钼矿床发育的花岗斑岩开展研究,获得其成岩年龄为 (101.1±1.9) Ma,属早白垩世。浸铜湖花岗斑岩锆石Hf同位素εHf(t=101 Ma) 为-6.1 ~ 0.7, 两阶段Hf模式年龄(
中图分类号:
张倩, 吴湘滨, 杨牧, 钱美平, 刁谦, 孟斐斯. 福建紫金山矿集区浸铜湖花岗斑岩的成因及构造意义[J]. 现代地质, 2019, 33(05): 1025-1035.
ZHANG Qian, WU Xiangbin, YANG Mu, QIAN Meiping, DIAO Qian, MENG Feisi. Petrogenesis and Tectonic Implications of the Jintonghu Granitic Porphyry in Zijinshan Orefield, Fujian Province[J]. Geoscience, 2019, 33(05): 1025-1035.
图2 福建西南部区域构造图(a)及紫金山矿集区地质图(b)[9-10] 1.矿床;2.断裂;3.罗卜岭花岗闪长斑岩(K1);4.英安玢岩(K1);5.隐爆角砾岩(K1);6.凝灰岩(K1);7.四方花岗闪长岩(K1);8.才溪二长花岗岩(J3);9.紫金山复式岩体(J2-J3);10.第四系沉积;11.石帽山群(白垩纪);12.林地组(石炭纪);13.天瓦岽组(泥盆纪);14.楼子坝群(新元古代)
Fig.2 Regional tectonic framework of the Zijinshan region(a) and Geologic map of the Zijinshan Cu-Au orefield, showing the clustering of porphyry Cu-Mo and porphyry-epithermal Au-Cu deposits (b)(modified after Ref. [9-10] )
图4 浸铜湖花岗岩的典型锆石CL图像(实线圆圈代表年龄测试点,圆圈直径代表分析测试直径25 μm;虚线圆圈代表锆石Hf同位素测试点,圆圈直径代表分析测试直径45 μm)
Fig.4 Zircon cathodoluminescence (CL) images and analysis spots of the Jintonghu granite (solid-line circles denote the U-Pb dating spots (spot size: 25 μm); dash-line circles denote the Lu-Hf isotopic analysis spots (spot size: 45 μm))
图5 浸铜湖花岗斑岩(ZK23201-7)的LA-ICP-MS 锆石U-Pb谐和曲线图(a)与微量元素含量球粒陨石标准化图(b) (标准化值据文献[16])
Fig.5 LA-ICP-MS zircon U-Pb concordia diagram (a) and chondrite-normalized REE patterns (b) of representative zircon grains from the Jintonghu granite (ZK23201-7) (normalizing values from Ref. [16])
测点 | w/10-6 | w(Th)/ w(U) | Ti | 同位素比值 | 年龄/Ma | ||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Pb | Th | U | w/10-6 | TTi/℃ | 206Pb/238U | ±1σ | 207Pb/235U | ±1σ | 207Pb/206Pb | ±1σ | 206Pb/238U | ±1σ | 207Pb/235U | ±1σ | 207Pb/206Pb | ±1σ | |||||||||||
23201-7-2 | 6.86 | 257 | 301 | 0.85 | 2.88 | 642 | 0.016 4 | 0.000 4 | 0.121 0 | 0.006 7 | 0.054 6 | 0.003 1 | 105 | 2 | 116 | 6 | 394 | 128 | |||||||||
23201-7-4 | 10.63 | 858 | 371 | 2.31 | 23.7 | 823 | 0.015 3 | 0.000 3 | 0.124 4 | 0.007 8 | 0.059 2 | 0.003 7 | 98 | 2 | 119 | 7 | 576 | 137 | |||||||||
23201-7-5 | 7.52 | 76 | 399 | 0.19 | 18.8 | 800 | 0.016 2 | 0.000 3 | 0.115 8 | 0.005 4 | 0.052 1 | 0.002 4 | 103 | 2 | 111 | 5 | 300 | 103 | |||||||||
23201-7-6 | 19.76 | 259 | 661 | 0.39 | 0.025 8 | 0.000 5 | 0.173 2 | 0.006 6 | 0.048 9 | 0.001 8 | 164 | 3 | 162 | 6 | 143 | 87 | |||||||||||
23201-7-7 | 18.25 | 27 | 78 | 0.35 | 0.191 5 | 0.003 0 | 2.021 2 | 0.066 9 | 0.076 9 | 0.002 7 | 1 129 | 16 | 1 123 | 22 | 1 118 | 66 | |||||||||||
23201-7-8 | 10.17 | 414 | 456 | 0.91 | 0.016 2 | 0.000 3 | 0.108 6 | 0.005 0 | 0.049 0 | 0.002 5 | 104 | 2 | 105 | 5 | 146 | 114 | |||||||||||
23201-7-9 | 4.25 | 115 | 137 | 0.84 | 0.022 8 | 0.000 6 | 0.158 4 | 0.011 6 | 0.053 4 | 0.004 5 | 146 | 4 | 149 | 10 | 346 | 191 | |||||||||||
23201-7-12 | 4.35 | 402 | 147 | 2.74 | 5.33 | 688 | 0.015 1 | 0.000 8 | 0.119 6 | 0.013 7 | 0.059 0 | 0.006 3 | 97 | 5 | 115 | 12 | 569 | 231 | |||||||||
23201-7-13 | 11.13 | 333 | 562 | 0.59 | 31.0 | 851 | 0.014 9 | 0.000 4 | 0.116 9 | 0.009 1 | 0.057 3 | 0.004 4 | 95 | 3 | 112 | 8 | 502 | 172 | |||||||||
23201-7-14 | 74.01 | 333 | 875 | 0.38 | 0.070 4 | 0.000 8 | 0.552 1 | 0.011 0 | 0.056 6 | 0.001 1 | 438 | 5 | 446 | 7 | 476 | 43 | |||||||||||
23201-7-16 | 8.54 | 322 | 403 | 0.80 | 15.6 | 782 | 0.015 5 | 0.000 3 | 0.116 2 | 0.006 4 | 0.056 5 | 0.003 3 | 99 | 2 | 112 | 6 | 472 | 127 | |||||||||
23201-7-17 | 7.50 | 302 | 353 | 0.86 | 12.6 | 762 | 0.016 3 | 0.000 4 | 0.105 9 | 0.005 3 | 0.049 0 | 0.002 6 | 104 | 2 | 102 | 5 | 146 | 122 | |||||||||
23201-7-18 | 17.28 | 1 510 | 583 | 2.59 | 47.7 | 900 | 0.015 7 | 0.000 2 | 0.119 2 | 0.005 6 | 0.055 2 | 0.002 6 | 100 | 1 | 114 | 5 | 420 | 101 | |||||||||
23201-7-19 | 15.87 | 1 148 | 532 | 2.16 | 16.6 | 787 | 0.016 7 | 0.000 3 | 0.121 5 | 0.005 5 | 0.053 8 | 0.002 6 | 107 | 2 | 116 | 5 | 361 | 107 | |||||||||
23201-7-20 | 6.37 | 168 | 193 | 0.87 | 0.024 6 | 0.000 5 | 0.162 7 | 0.008 9 | 0.049 5 | 0.002 9 | 157 | 3 | 153 | 8 | 172 | 137 | |||||||||||
23201-7-22 | 7.06 | 456 | 288 | 1.58 | 39.0 | 877 | 0.015 4 | 0.000 3 | 0.112 8 | 0.006 2 | 0.055 3 | 0.003 3 | 98 | 2 | 109 | 6 | 433 | 133 | |||||||||
23201-7-23 | 9.60 | 258 | 274 | 0.94 | 0.024 8 | 0.000 5 | 0.179 5 | 0.010 1 | 0.053 2 | 0.003 3 | 158 | 3 | 168 | 9 | 339 | 141 | |||||||||||
23201-7-25 | 27.80 | 1843 | 1 107 | 1.66 | 7.05 | 711 | 0.015 6 | 0.000 2 | 0.101 8 | 0.003 4 | 0.047 2 | 0.001 5 | 100 | 1 | 98 | 3 | 61 | 139 |
表1 浸铜湖花岗斑岩LA-ICP-MS锆石U-Pb定年结果
Table 1 LA-ICP-MS zircon U-Pb data for the Jintonghu granite
测点 | w/10-6 | w(Th)/ w(U) | Ti | 同位素比值 | 年龄/Ma | ||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Pb | Th | U | w/10-6 | TTi/℃ | 206Pb/238U | ±1σ | 207Pb/235U | ±1σ | 207Pb/206Pb | ±1σ | 206Pb/238U | ±1σ | 207Pb/235U | ±1σ | 207Pb/206Pb | ±1σ | |||||||||||
23201-7-2 | 6.86 | 257 | 301 | 0.85 | 2.88 | 642 | 0.016 4 | 0.000 4 | 0.121 0 | 0.006 7 | 0.054 6 | 0.003 1 | 105 | 2 | 116 | 6 | 394 | 128 | |||||||||
23201-7-4 | 10.63 | 858 | 371 | 2.31 | 23.7 | 823 | 0.015 3 | 0.000 3 | 0.124 4 | 0.007 8 | 0.059 2 | 0.003 7 | 98 | 2 | 119 | 7 | 576 | 137 | |||||||||
23201-7-5 | 7.52 | 76 | 399 | 0.19 | 18.8 | 800 | 0.016 2 | 0.000 3 | 0.115 8 | 0.005 4 | 0.052 1 | 0.002 4 | 103 | 2 | 111 | 5 | 300 | 103 | |||||||||
23201-7-6 | 19.76 | 259 | 661 | 0.39 | 0.025 8 | 0.000 5 | 0.173 2 | 0.006 6 | 0.048 9 | 0.001 8 | 164 | 3 | 162 | 6 | 143 | 87 | |||||||||||
23201-7-7 | 18.25 | 27 | 78 | 0.35 | 0.191 5 | 0.003 0 | 2.021 2 | 0.066 9 | 0.076 9 | 0.002 7 | 1 129 | 16 | 1 123 | 22 | 1 118 | 66 | |||||||||||
23201-7-8 | 10.17 | 414 | 456 | 0.91 | 0.016 2 | 0.000 3 | 0.108 6 | 0.005 0 | 0.049 0 | 0.002 5 | 104 | 2 | 105 | 5 | 146 | 114 | |||||||||||
23201-7-9 | 4.25 | 115 | 137 | 0.84 | 0.022 8 | 0.000 6 | 0.158 4 | 0.011 6 | 0.053 4 | 0.004 5 | 146 | 4 | 149 | 10 | 346 | 191 | |||||||||||
23201-7-12 | 4.35 | 402 | 147 | 2.74 | 5.33 | 688 | 0.015 1 | 0.000 8 | 0.119 6 | 0.013 7 | 0.059 0 | 0.006 3 | 97 | 5 | 115 | 12 | 569 | 231 | |||||||||
23201-7-13 | 11.13 | 333 | 562 | 0.59 | 31.0 | 851 | 0.014 9 | 0.000 4 | 0.116 9 | 0.009 1 | 0.057 3 | 0.004 4 | 95 | 3 | 112 | 8 | 502 | 172 | |||||||||
23201-7-14 | 74.01 | 333 | 875 | 0.38 | 0.070 4 | 0.000 8 | 0.552 1 | 0.011 0 | 0.056 6 | 0.001 1 | 438 | 5 | 446 | 7 | 476 | 43 | |||||||||||
23201-7-16 | 8.54 | 322 | 403 | 0.80 | 15.6 | 782 | 0.015 5 | 0.000 3 | 0.116 2 | 0.006 4 | 0.056 5 | 0.003 3 | 99 | 2 | 112 | 6 | 472 | 127 | |||||||||
23201-7-17 | 7.50 | 302 | 353 | 0.86 | 12.6 | 762 | 0.016 3 | 0.000 4 | 0.105 9 | 0.005 3 | 0.049 0 | 0.002 6 | 104 | 2 | 102 | 5 | 146 | 122 | |||||||||
23201-7-18 | 17.28 | 1 510 | 583 | 2.59 | 47.7 | 900 | 0.015 7 | 0.000 2 | 0.119 2 | 0.005 6 | 0.055 2 | 0.002 6 | 100 | 1 | 114 | 5 | 420 | 101 | |||||||||
23201-7-19 | 15.87 | 1 148 | 532 | 2.16 | 16.6 | 787 | 0.016 7 | 0.000 3 | 0.121 5 | 0.005 5 | 0.053 8 | 0.002 6 | 107 | 2 | 116 | 5 | 361 | 107 | |||||||||
23201-7-20 | 6.37 | 168 | 193 | 0.87 | 0.024 6 | 0.000 5 | 0.162 7 | 0.008 9 | 0.049 5 | 0.002 9 | 157 | 3 | 153 | 8 | 172 | 137 | |||||||||||
23201-7-22 | 7.06 | 456 | 288 | 1.58 | 39.0 | 877 | 0.015 4 | 0.000 3 | 0.112 8 | 0.006 2 | 0.055 3 | 0.003 3 | 98 | 2 | 109 | 6 | 433 | 133 | |||||||||
23201-7-23 | 9.60 | 258 | 274 | 0.94 | 0.024 8 | 0.000 5 | 0.179 5 | 0.010 1 | 0.053 2 | 0.003 3 | 158 | 3 | 168 | 9 | 339 | 141 | |||||||||||
23201-7-25 | 27.80 | 1843 | 1 107 | 1.66 | 7.05 | 711 | 0.015 6 | 0.000 2 | 0.101 8 | 0.003 4 | 0.047 2 | 0.001 5 | 100 | 1 | 98 | 3 | 61 | 139 |
点 | La | Ce | Pr | Nd | Sm | Eu | Gd | Tb | Dy | Ho | Er | Tm | Yb | Lu | Y | Nb | Hf | Ta | Ce4+/Ce3+ | Ce/Ce* | Eu/Eu* | ||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
23201-7-1 | 0.18 | 39.0 | 0.51 | 6.16 | 12.9 | 5.24 | 52.4 | 16.4 | 163 | 46.6 | 184 | 36.8 | 364 | 69.7 | 1 556 | 5.58 | 10 797 | 2.15 | 25.8 | 30.7 | 0.62 | ||||||||||||||||||
23201-7-2 | 0.081 | 20.8 | 0.31 | 5.68 | 10.8 | 5.46 | 49.9 | 15.8 | 183 | 66.6 | 293 | 63.5 | 619 | 121 | 1 930 | 3.58 | 10 581 | 1.14 | 26.2 | 31.4 | 0.72 | ||||||||||||||||||
23201-7-4 | 0.20 | 126 | 0.83 | 13.9 | 22.7 | 8.27 | 91.5 | 24.1 | 255 | 84.4 | 349 | 69.9 | 630 | 114 | 2 475 | 5.80 | 9 068 | 1.77 | 57.1 | 73.4 | 0.55 | ||||||||||||||||||
23201-7-5 | 0.089 | 8.89 | 0.031 | 0.29 | 0.82 | 0.21 | 4.08 | 1.63 | 23.1 | 9.73 | 53.0 | 13.6 | 163 | 40.0 | 341 | 2.86 | 13 814 | 1.34 | 294 | 40.6 | 0.35 | ||||||||||||||||||
23201-7-10 | 0.11 | 105 | 0.96 | 14.6 | 19.2 | 8.02 | 69.7 | 19.1 | 200 | 68.0 | 293 | 59.9 | 569 | 105 | 2 028 | 3.94 | 8 864 | 1.16 | 60.3 | 77.5 | 0.67 | ||||||||||||||||||
23201-7-12 | 0.18 | 72.3 | 1.22 | 19.9 | 27.4 | 11.7 | 96.7 | 24.9 | 238 | 74.5 | 304 | 59.3 | 532 | 96.5 | 2 199 | 2.53 | 8 593 | 0.78 | 26.0 | 36.9 | 0.70 | ||||||||||||||||||
23201-7-13 | 0.34 | 25.7 | 0.13 | 0.98 | 2.36 | 1.16 | 12.7 | 3.99 | 50.7 | 19.9 | 98.1 | 23.8 | 253 | 55.8 | 649 | 3.47 | 12 141 | 0.93 | 43.1 | 29.7 | 0.65 | ||||||||||||||||||
点 | La | Ce | Pr | Nd | Sm | Eu | Gd | Tb | Dy | Ho | Er | Tm | Yb | Lu | Y | Nb | Hf | Ta | Ce4+/Ce3+ | Ce/Ce* | Eu/Eu* | ||||||||||||||||||
23201-7-15 | 0.10 | 70.4 | 0.85 | 14.80 | 22.2 | 10.60 | 79.5 | 21.80 | 223.0 | 76.4 | 316 | 67.6 | 643 | 116.0 | 2 240 | 2.92 | 8 782 | 1.03 | 42.1 | 57.3 | 0.77 | ||||||||||||||||||
23201-7-16 | 0.26 | 49.5 | 0.12 | 1.29 | 2.56 | 1.10 | 14.7 | 4.95 | 63.0 | 26.5 | 134 | 33.3 | 356 | 77.9 | 882 | 6.18 | 11 981 | 2.03 | 326.0 | 67.2 | 0.55 | ||||||||||||||||||
23201-7-17 | 0.03 | 62.3 | 0.17 | 2.44 | 3.87 | 1.64 | 22.1 | 7.51 | 89.4 | 34.9 | 167 | 38.1 | 381 | 75.9 | 1 114 | 6.28 | 10 890 | 2.10 | 212.0 | 218.0 | 0.54 | ||||||||||||||||||
23201-7-18 | 20.00 | 292.0 | 4.58 | 27.30 | 28.40 | 9.69 | 108.0 | 32.90 | 339.0 | 106.0 | 415 | 79.7 | 695 | 127.0 | 3 255 | 19.90 | 9 380 | 4.19 | 29.7 | 7.3 | 0.54 | ||||||||||||||||||
23201-7-19 | 0.38 | 151.0 | 0.78 | 12.80 | 21.20 | 7.81 | 92.1 | 27.10 | 284.0 | 97.7 | 410 | 82.5 | 753 | 142.0 | 2 905 | 10.90 | 9 996 | 2.49 | 57.4 | 66.9 | 0.54 | ||||||||||||||||||
23201-7-22 | 0.33 | 67.6 | 0.85 | 13.20 | 20.90 | 8.02 | 76.1 | 20.70 | 217.0 | 73.0 | 312 | 63.1 | 589 | 115.0 | 2 193 | 3.55 | 10 021 | 1.26 | 25.1 | 30.6 | 0.62 | ||||||||||||||||||
23201-7-25 | 0.50 | 119.0 | 0.36 | 4.42 | 8.19 | 2.36 | 45.1 | 15.60 | 184.0 | 66.6 | 292 | 60.4 | 556 | 105.0 | 2 020 | 17.90 | 12 746 | 5.62 | 178.0 | 67.5 | 0.38 |
表2 浸铜湖花岗斑岩锆石微量元素含量(wB/10-6)分析结果
Table 2 Zircon trace element contents (10-6) of the Jintonghu granite
点 | La | Ce | Pr | Nd | Sm | Eu | Gd | Tb | Dy | Ho | Er | Tm | Yb | Lu | Y | Nb | Hf | Ta | Ce4+/Ce3+ | Ce/Ce* | Eu/Eu* | ||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
23201-7-1 | 0.18 | 39.0 | 0.51 | 6.16 | 12.9 | 5.24 | 52.4 | 16.4 | 163 | 46.6 | 184 | 36.8 | 364 | 69.7 | 1 556 | 5.58 | 10 797 | 2.15 | 25.8 | 30.7 | 0.62 | ||||||||||||||||||
23201-7-2 | 0.081 | 20.8 | 0.31 | 5.68 | 10.8 | 5.46 | 49.9 | 15.8 | 183 | 66.6 | 293 | 63.5 | 619 | 121 | 1 930 | 3.58 | 10 581 | 1.14 | 26.2 | 31.4 | 0.72 | ||||||||||||||||||
23201-7-4 | 0.20 | 126 | 0.83 | 13.9 | 22.7 | 8.27 | 91.5 | 24.1 | 255 | 84.4 | 349 | 69.9 | 630 | 114 | 2 475 | 5.80 | 9 068 | 1.77 | 57.1 | 73.4 | 0.55 | ||||||||||||||||||
23201-7-5 | 0.089 | 8.89 | 0.031 | 0.29 | 0.82 | 0.21 | 4.08 | 1.63 | 23.1 | 9.73 | 53.0 | 13.6 | 163 | 40.0 | 341 | 2.86 | 13 814 | 1.34 | 294 | 40.6 | 0.35 | ||||||||||||||||||
23201-7-10 | 0.11 | 105 | 0.96 | 14.6 | 19.2 | 8.02 | 69.7 | 19.1 | 200 | 68.0 | 293 | 59.9 | 569 | 105 | 2 028 | 3.94 | 8 864 | 1.16 | 60.3 | 77.5 | 0.67 | ||||||||||||||||||
23201-7-12 | 0.18 | 72.3 | 1.22 | 19.9 | 27.4 | 11.7 | 96.7 | 24.9 | 238 | 74.5 | 304 | 59.3 | 532 | 96.5 | 2 199 | 2.53 | 8 593 | 0.78 | 26.0 | 36.9 | 0.70 | ||||||||||||||||||
23201-7-13 | 0.34 | 25.7 | 0.13 | 0.98 | 2.36 | 1.16 | 12.7 | 3.99 | 50.7 | 19.9 | 98.1 | 23.8 | 253 | 55.8 | 649 | 3.47 | 12 141 | 0.93 | 43.1 | 29.7 | 0.65 | ||||||||||||||||||
点 | La | Ce | Pr | Nd | Sm | Eu | Gd | Tb | Dy | Ho | Er | Tm | Yb | Lu | Y | Nb | Hf | Ta | Ce4+/Ce3+ | Ce/Ce* | Eu/Eu* | ||||||||||||||||||
23201-7-15 | 0.10 | 70.4 | 0.85 | 14.80 | 22.2 | 10.60 | 79.5 | 21.80 | 223.0 | 76.4 | 316 | 67.6 | 643 | 116.0 | 2 240 | 2.92 | 8 782 | 1.03 | 42.1 | 57.3 | 0.77 | ||||||||||||||||||
23201-7-16 | 0.26 | 49.5 | 0.12 | 1.29 | 2.56 | 1.10 | 14.7 | 4.95 | 63.0 | 26.5 | 134 | 33.3 | 356 | 77.9 | 882 | 6.18 | 11 981 | 2.03 | 326.0 | 67.2 | 0.55 | ||||||||||||||||||
23201-7-17 | 0.03 | 62.3 | 0.17 | 2.44 | 3.87 | 1.64 | 22.1 | 7.51 | 89.4 | 34.9 | 167 | 38.1 | 381 | 75.9 | 1 114 | 6.28 | 10 890 | 2.10 | 212.0 | 218.0 | 0.54 | ||||||||||||||||||
23201-7-18 | 20.00 | 292.0 | 4.58 | 27.30 | 28.40 | 9.69 | 108.0 | 32.90 | 339.0 | 106.0 | 415 | 79.7 | 695 | 127.0 | 3 255 | 19.90 | 9 380 | 4.19 | 29.7 | 7.3 | 0.54 | ||||||||||||||||||
23201-7-19 | 0.38 | 151.0 | 0.78 | 12.80 | 21.20 | 7.81 | 92.1 | 27.10 | 284.0 | 97.7 | 410 | 82.5 | 753 | 142.0 | 2 905 | 10.90 | 9 996 | 2.49 | 57.4 | 66.9 | 0.54 | ||||||||||||||||||
23201-7-22 | 0.33 | 67.6 | 0.85 | 13.20 | 20.90 | 8.02 | 76.1 | 20.70 | 217.0 | 73.0 | 312 | 63.1 | 589 | 115.0 | 2 193 | 3.55 | 10 021 | 1.26 | 25.1 | 30.6 | 0.62 | ||||||||||||||||||
23201-7-25 | 0.50 | 119.0 | 0.36 | 4.42 | 8.19 | 2.36 | 45.1 | 15.60 | 184.0 | 66.6 | 292 | 60.4 | 556 | 105.0 | 2 020 | 17.90 | 12 746 | 5.62 | 178.0 | 67.5 | 0.38 |
测点 | 年龄/ Ma | 176Yb/177Hf | 176Lu/177Hf | 176Hf/177Hf | εHf(0) | εHf(t) | 2σ | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
比值 | 2σ | 比值 | 2σ | 比值 | 2σ | ||||||||||
23201-7-02 | 105 | 0.065 834 | 0.002 520 | 0.001 928 | 0.000 087 | 0.282 703 | 0.000 035 | -2.9 | -0.7 | 1.2 | 798 | 1 181 | -0.94 | ||
23201-7-04 | 98 | 0.012 020 | 0.000 211 | 0.000 447 | 0.000 002 | 0.282 577 | 0.000 027 | -7.3 | -5.2 | 1.0 | 941 | 1 459 | -0.99 | ||
23201-7-05 | 103 | 0.070 432 | 0.004 813 | 0.001 876 | 0.000 121 | 0.282 727 | 0.000 038 | -2.1 | 0.1 | 1.3 | 762 | 1 128 | -0.94 | ||
23201-7-06 | 164 | 0.038 420 | 0.000 342 | 0.001 095 | 0.000 016 | 0.282 506 | 0.000 024 | -9.9 | -6.3 | 0.8 | 1 058 | 1 581 | -0.97 | ||
23201-7-08 | 104 | 0.040 636 | 0.000 549 | 0.001 206 | 0.000 025 | 0.282 741 | 0.000 028 | -1.5 | 0.7 | 1.0 | 728 | 1 092 | -0.96 | ||
23201-7-09 | 146 | 0.038 405 | 0.000 697 | 0.001 000 | 0.000 009 | 0.282 585 | 0.000 030 | -7.1 | -3.9 | 1.1 | 944 | 1 416 | -0.97 | ||
23201-7-12 | 97 | 0.052 582 | 0.003 062 | 0.001 424 | 0.000 071 | 0.282 686 | 0.000 035 | -3.5 | -1.4 | 1.3 | 810 | 1 220 | -0.96 | ||
23201-7-13 | 95 | 0.021 715 | 0.000 261 | 0.000 707 | 0.000 004 | 0.282 555 | 0.000 029 | -8.1 | -6.1 | 1.0 | 978 | 1 511 | -0.98 | ||
23201-7-14 | 438 | 0.083 864 | 0.003 456 | 0.002 309 | 0.000 090 | 0.282 332 | 0.000 026 | -16.0 | -6.9 | 0.9 | 1 346 | 1 831 | -0.93 | ||
23201-7-16 | 99 | 0.047 612 | 0.000 972 | 0.001 466 | 0.000 029 | 0.282 600 | 0.000 029 | -6.5 | -4.4 | 1.0 | 934 | 1 411 | -0.96 | ||
23201-7-17 | 104 | 0.050 265 | 0.002 030 | 0.001 427 | 0.000 039 | 0.282 733 | 0.000 033 | -1.8 | 0.4 | 1.2 | 743 | 1 110 | -0.96 | ||
23201-7-18 | 100 | 0.079 498 | 0.001 728 | 0.002 196 | 0.000 068 | 0.282 677 | 0.000 031 | -3.8 | -1.7 | 1.1 | 840 | 1 241 | -0.93 | ||
23201-7-19 | 107 | 0.055 910 | 0.001 582 | 0.001 520 | 0.000 054 | 0.282 623 | 0.000 031 | -5.7 | -3.5 | 1.1 | 903 | 1 356 | -0.95 | ||
23201-7-20 | 157 | 0.025 418 | 0.000 772 | 0.000 675 | 0.000 010 | 0.282 470 | 0.000 027 | -11.1 | -7.7 | 1.0 | 1 096 | 1 663 | -0.98 | ||
23201-7-23 | 158 | 0.054 562 | 0.003 072 | 0.001 449 | 0.000 065 | 0.282 577 | 0.000 032 | -7.4 | -4.0 | 1.1 | 967 | 1 429 | -0.96 | ||
23201-7-25 | 100 | 0.051 579 | 0.001 457 | 0.001 384 | 0.000 029 | 0.282 557 | 0.000 027 | -8.1 | -5.9 | 0.9 | 994 | 1 507 | -0.96 |
表3 浸铜湖花岗斑岩LA-MC-ICP-MS锆石原位Lu-Hf同位素组成分析结果
Table 3 LA-MC-ICP-MS zircon Lu-Hf isotopic compositions of the Jintonghu granite
测点 | 年龄/ Ma | 176Yb/177Hf | 176Lu/177Hf | 176Hf/177Hf | εHf(0) | εHf(t) | 2σ | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
比值 | 2σ | 比值 | 2σ | 比值 | 2σ | ||||||||||
23201-7-02 | 105 | 0.065 834 | 0.002 520 | 0.001 928 | 0.000 087 | 0.282 703 | 0.000 035 | -2.9 | -0.7 | 1.2 | 798 | 1 181 | -0.94 | ||
23201-7-04 | 98 | 0.012 020 | 0.000 211 | 0.000 447 | 0.000 002 | 0.282 577 | 0.000 027 | -7.3 | -5.2 | 1.0 | 941 | 1 459 | -0.99 | ||
23201-7-05 | 103 | 0.070 432 | 0.004 813 | 0.001 876 | 0.000 121 | 0.282 727 | 0.000 038 | -2.1 | 0.1 | 1.3 | 762 | 1 128 | -0.94 | ||
23201-7-06 | 164 | 0.038 420 | 0.000 342 | 0.001 095 | 0.000 016 | 0.282 506 | 0.000 024 | -9.9 | -6.3 | 0.8 | 1 058 | 1 581 | -0.97 | ||
23201-7-08 | 104 | 0.040 636 | 0.000 549 | 0.001 206 | 0.000 025 | 0.282 741 | 0.000 028 | -1.5 | 0.7 | 1.0 | 728 | 1 092 | -0.96 | ||
23201-7-09 | 146 | 0.038 405 | 0.000 697 | 0.001 000 | 0.000 009 | 0.282 585 | 0.000 030 | -7.1 | -3.9 | 1.1 | 944 | 1 416 | -0.97 | ||
23201-7-12 | 97 | 0.052 582 | 0.003 062 | 0.001 424 | 0.000 071 | 0.282 686 | 0.000 035 | -3.5 | -1.4 | 1.3 | 810 | 1 220 | -0.96 | ||
23201-7-13 | 95 | 0.021 715 | 0.000 261 | 0.000 707 | 0.000 004 | 0.282 555 | 0.000 029 | -8.1 | -6.1 | 1.0 | 978 | 1 511 | -0.98 | ||
23201-7-14 | 438 | 0.083 864 | 0.003 456 | 0.002 309 | 0.000 090 | 0.282 332 | 0.000 026 | -16.0 | -6.9 | 0.9 | 1 346 | 1 831 | -0.93 | ||
23201-7-16 | 99 | 0.047 612 | 0.000 972 | 0.001 466 | 0.000 029 | 0.282 600 | 0.000 029 | -6.5 | -4.4 | 1.0 | 934 | 1 411 | -0.96 | ||
23201-7-17 | 104 | 0.050 265 | 0.002 030 | 0.001 427 | 0.000 039 | 0.282 733 | 0.000 033 | -1.8 | 0.4 | 1.2 | 743 | 1 110 | -0.96 | ||
23201-7-18 | 100 | 0.079 498 | 0.001 728 | 0.002 196 | 0.000 068 | 0.282 677 | 0.000 031 | -3.8 | -1.7 | 1.1 | 840 | 1 241 | -0.93 | ||
23201-7-19 | 107 | 0.055 910 | 0.001 582 | 0.001 520 | 0.000 054 | 0.282 623 | 0.000 031 | -5.7 | -3.5 | 1.1 | 903 | 1 356 | -0.95 | ||
23201-7-20 | 157 | 0.025 418 | 0.000 772 | 0.000 675 | 0.000 010 | 0.282 470 | 0.000 027 | -11.1 | -7.7 | 1.0 | 1 096 | 1 663 | -0.98 | ||
23201-7-23 | 158 | 0.054 562 | 0.003 072 | 0.001 449 | 0.000 065 | 0.282 577 | 0.000 032 | -7.4 | -4.0 | 1.1 | 967 | 1 429 | -0.96 | ||
23201-7-25 | 100 | 0.051 579 | 0.001 457 | 0.001 384 | 0.000 029 | 0.282 557 | 0.000 027 | -8.1 | -5.9 | 0.9 | 994 | 1 507 | -0.96 |
图6 浸铜湖花岗斑岩的锆石εHf(t)柱状图解(a)和εHf(t) vs. U-Pb年龄图(b) (阴影代表华夏地块地壳基底演化域[17])
Fig.6 Zircon εHf(t) histogram (a), Zircon εHf(t) vs. U-Pb age diagram (b) for the Jintonghu granite from the Cathaysia Block (Shaded region denotes Hf isotope evolution for the Cathaysia crustal basement[17])

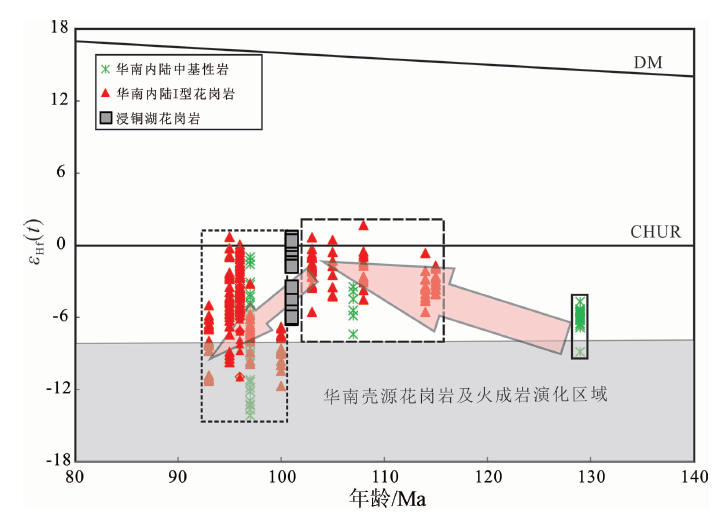

图7 浸铜湖花岗斑岩锆石的εHf(t)及U-Pb年龄与华夏内陆白垩纪时期代表性侵入岩的相互关系图(阴影代表华夏地块纯壳源花岗岩[1,3,10,21]) DM.亏损地幔;CHUR.球粒陨石均一储集库
Fig.7 Zircon Hf isotopes vs.U-Pb age diagram for representative Cretaceous intrusions along the Fujian inland and coastal area, respectively (Hf evolutionary field shown for the crust-derived melts with insignificant juvenile input in Cathaysia Block[1,3,10,21])
图8 浸铜湖花岗斑岩的年龄-εNd(t)(a)及(87Sr/86Sr)i-εNd(t)图(b)[10, 21]
Fig.8 Diagrams of age vs. εNd(t) (a) and initial (87Sr/86Sr)i vs. εNd(t) (b) for the intrusions[10, 21]
[1] | LI Zhen, QIU Jiansheng, YANG Xuemei. A review of the geochronology and geochemistry of Late Yanshanian (Cretaceous) plutons along the Fujian coastal area of southeastern China: Implications for magma evolution related to slab break-off and rollback in the Cretaceous[J]. Earth-Science Reviews, 2014,128(1):232-248. |
[2] | ZHONG Jun, CHEN Yanjing, CHEN Jing. Geology and fluid inclusion geochemistry of the Zijinshan high-sulfidation epithermal Cu-Au deposit, Fujian Province, SE China: Implication for deep exploration targeting[J]. Journal of Geochemical Exploration, 2018,184:49-65. |
[3] | LI Jianhua, ZHANG Yueqiao, DONG Shuwen, et al. Cretaceous tectonic evolution of South China: A preliminary synjournal[J]. Earth-Science Reviews, 2014,134:98-136. |
[4] | WU Liyan, HU Ruizhong, LI Xiaofeng, et al. Mantle volatiles and heat contributions in high sulfidation epithermal deposit from the Zijinshan Cu-Au-Mo-Ag orefield, Fujian Province, China: Evidence from He and Ar isotopes[J]. Chemical Geology, 2018,480:58-65. |
[5] | LI Zhenxiang, LI Xianhua. Formation of the 1300-km-wide intracontinental orogen and postorogenic magmatic province in Mesozoic South China: A flat-slab subduction model[J]. Geology, 2007,35(2):179-182. |
[6] | LI Bin, JIANG Shaoyong, ZHANG Qian, et al. Cretaceous crust-mantle interaction and tectonic evolution of Cathaysia Block in South China: Evidence from pulsed mafic rocks and related magmatism[J]. Tectonophysics, 2015,661:136-155. |
[7] | ZHOU Xinmin, SUN Tao, SHEN Weizhou, et al. Petrogenesis of Mesozoic granitoids and volcanic rocks in South China: A response to tectonic evolution[J]. Episodes, 2006,29(1):26-33. |
[8] | 武丽艳, 胡瑞忠, 齐有强, 等. 福建紫金山矿田浸铜湖矿床石英正长斑岩锆石 U-Pb年代学及其岩石地球化学特征[J]. 岩石学报, 2013,29(12):4151-4166. |
[9] | LI Zhengxiang, LI Xianhua, CHUNG Sunlin, et al. Magmatic switch-on and switch-off along the South China continental margin since the Permian: Transition from an Andean-type to a Western Pacific-type plate boundary[J]. Tectonophysics, 2012,532:271-290. |
[10] | LI Bin, JIANG Shaoyong. A subduction-related metasomatically enriched mantle origin for the Luoboling and Zhongliao Cretaceous granitoids from South China: Implications for magma evolution and Cu-Mo mineralization[J]. International Geology Review, 2015,57(9/10):1239-1266. |
[11] | LI Bin, JIANG Shaoyong. Genesis of the giant Zijinshan epithermal Cu-Au and Luoboling porphyry Cu-Mo deposits in the Zijinshan ore district, Fujian Province, SE China: A multi-isotope and trace element investigation[J]. Ore Geology Reviews, http://dx.doi.org/10.1016/j.oregeorev.2017.02.009. |
[12] | JIANG Sihong, BAGAS L, LIANG Qingling. Pyrite Re-Os isotope systematics at the Zijinshan deposit of SW Fujian, China: Constraints on the timing and source of Cu-Au mineralization[J]. Ore Geology Reviews, 2017,80:612-622. |
[13] | HU Lisha, CAWOOD P A, DU Yuansheng, et al. Late Paleozoic to Early Mesozoic provenance record of Paleo-Pacific subduction beneath South China[J]. Tectonics, 2015,34:986-1008. |
[14] | GUO Feng, FAN Weiming, LI Chaowen, et al. Multi-stage crust-mantle interaction in SE China: Temporal, thermal and compositional constraints from the Mesozoic felsic volcanic rocks in eastern Guangdong-Fujian provinces[J]. Lithos, 2012,150:62-84. |
[15] | ELHLOU S, BELOUSOVA E, GRIFFIN W L, et al. Trace element and isotopic composition of GJ-red zircon standard by laser ablation[J]. Geochimica et Cosmochimica Acta, 2006,70(18):A158. |
[16] | BOYNTON W V. Geochemistry of the rare earth elements: meteorite studies[M] //HENDERSON P. Rare Earth Element Geochemistry. New York: Elsevier, 1984: 63-114. |
[17] | XU Xisheng, O'REILLY S Y, GRIFFIN W L, et al. The crust of Cathaysia: Age, assembly and reworking of two terranes[J]. Precambrian Research, 2007,158:51-78. |
[18] | WANG Guochang, JIANG Yaohui, LIU Zheng. Elemental and Sr-Nd-Hf isotopic constraints on the origin of Late Jurassic adakitic granodiorite in central Fujian Province, southeast China[J]. Mineralogy and Petrology, 2015,109(4):501-518. |
[19] | 王森, 张达, VATUVA Absai, 等. 福建龙岩大洋-莒舟花岗岩地球化学、年代学、铪同位素特征及其地质意义[J]. 地球化学, 2015,44(5):450-468. |
[20] | LI Xianhua, LI Wuxian, LI Zhengxiang. On the genetic classification and tectonic implications of the Early Yanshanian granitoids in the Nanling Range, South China[J]. Chinese Science Bulletin, 2007,52:1873-1885 |
[21] | LIU Lei, XU Xisheng, XIA Yan. Cretaceous Pacific plate movement beneath SE China: Evidence from episodic volcanism and related intrusions[J]. Tectonophysics, 2014,614:170-184. |
[22] | ZHAO Jiaolong, QIU Jiansheng, LIU Liang, et al. The Late Cretaceous I-and A-type granite association of southeast China: Implications for the origin and evolution of post-collisional extensional magmatism[J]. Lithos, 2016,240/243:16-33. |
[23] | 王孝磊. 花岗岩研究的若干新进展与主要科学问题[J]. 岩石学报, 2017,33(5):1445-1458. |
[24] | 罗刚, 瞿泓滢, 肖荣阁, 等. 江西省花山洞钨矿花岗岩锆石U-Pb定年及其地质意义[J]. 现代地质, 2016,30(5):1014-1025. |
[25] | 肖昌浩, 申玉科, 韦昌山, 等. 广西右江褶皱带东南缘西大明山矿集区燕山期酸性岩浆锆石U-Pb年龄、Hf同位素和Ce(Ⅳ)/Ce(Ⅲ)特征[J]. 现代地质, 2018,32(2):289-304. |
[26] | LI Bin, JIANG Shaoyong, LU Anhuai, et al. Petrogenesis of Late Jurassic granodiorites from Gutian, Fujian Province, South China: Implications for multiple magma sources and origin of porphyry Cu-Mo mineralization[J]. Lithos, 2016,264:540-554. |
[27] | LI Bin, JIANG Shaoyong, LU Anhuai, et al. Zircon U-Pb dating, geochemical and Sr-Nd-Hf isotopic characteristics of the Jintonghu monzonitic rocks in western Fujian Province, South China: Implication for Cretaceous crust-mantle interactions and lithospheric extension[J]. Lithos, 2016,260(9):413-428. |
[1] | 朱拓, 何登洋, 黄雅琪, 邱昆峰. 华北克拉通胶莱盆地马山地区粗面英安岩磷灰石U-Pb年代学及其地质意义[J]. 现代地质, 2024, 38(01): 117-127. |
[2] | 何云龙, 张国宾, 杨言辰, 冯玥, 孔金贵, 陈兴凯. 锡霍特—阿林造山带那丹哈达地体四平山金矿床成因与构造背景:锆石U-Pb年代学、岩石和流体地球化学制约[J]. 现代地质, 2024, 38(01): 128-153. |
[3] | 刘青占, 蒋孝君, 王果, 李天瑜, 李东鹏. 内蒙古南炮台花岗斑岩成因与构造环境:锆石U-Pb年代学、Hf同位素和全岩元素组成制约[J]. 现代地质, 2024, 38(01): 154-168. |
[4] | 陈耀新, 刘文恒, 王凯兴, 刘晓东, 孙立强, 尹冬华. 甘肃青山堡中牌细粒花岗岩成因与构造环境:锆石U-Pb年龄和全岩元素组成制约[J]. 现代地质, 2024, 38(01): 169-182. |
[5] | 胡生平, 韩善楚, 张洪求, 张勇, 潘家永, 钟福军, 卢建研, 李惟鑫. 庐枞盆地西湾铅锌矿床黄铁矿微量元素组成特征及成矿启示[J]. 现代地质, 2024, 38(01): 183-197. |
[6] | 刘金波, 张德贤, 胡子奇, 陈绍炜, 谢小雨. 豫西熊耳山蒿坪沟Ag-Au-Pb-Zn多金属矿床闪锌矿矿物学和微量元素组成特征及其成矿启示[J]. 现代地质, 2024, 38(01): 198-213. |
[7] | 周延, 范飞鹏, 康丛轩, 赵希林, 肖凡, 徐敏成, 沈莽庭, 朱意萍. 闽西南地区天池塘花岗闪长岩地质年代学和地球化学特征:对区域成矿作用的指示[J]. 现代地质, 2023, 37(06): 1467-1481. |
[8] | 宋彦博, 王建平, 沈存利, 车东, 杨文华, 郭海蛟. 内蒙古扎拉格阿木铜矿床成矿岩体地质地球化学及其成矿学意义[J]. 现代地质, 2023, 37(06): 1482-1494. |
[9] | 张靓, 陈奇, 高添, 李雯, 钱金龙, 刘俐君, 王长明. 三江特提斯马厂箐斑岩铜钼矿床成矿时间尺度探讨:来自石英中Ti-Al扩散年代学的约束[J]. 现代地质, 2023, 37(06): 1509-1523. |
[10] | 苏惠, 曾认宇, 甘德斌, 严杰. 阿拉善北大山地区花岗斑岩岩石成因及构造启示:元素地球化学、锆石U-Pb年代学及Hf同位素约束[J]. 现代地质, 2023, 37(06): 1580-1596. |
[11] | 杨元江, 邓昌州, 李成禄, 杨文鹏, 符安宗, 郑博, 袁茂文, 张立东. 小兴安岭翠峦地区早侏罗世A型花岗岩成因与动力学背景[J]. 现代地质, 2023, 37(06): 1597-1608. |
[12] | 师良, 范柏江, 王霞, 李亚婷, 黄飞飞, 戴欣洋. 鄂尔多斯盆地长9页岩烃源岩的元素组成及其古沉积环境[J]. 现代地质, 2023, 37(05): 1254-1263. |
[13] | 陈全红, 阳怀忠, 赵红岩, 张科, 黄海滨, 郭家铭, 刘新颖, 袁野. 加蓬盆地盐下裂谷期碎屑岩储层地球化学特征及物源分析[J]. 现代地质, 2023, 37(05): 1385-1397. |
[14] | 梁乾坤, 陈岳龙, 王善辉, 于洋, 杨帆. 嫩江河漫滩沉积物碎屑锆石U-Pb年龄、Hf同位素组成及其地质意义[J]. 现代地质, 2023, 37(03): 529-546. |
[15] | 韩飞, 宋元宝, 张伟, 李道凌, 黄永高, 李应栩, 贾小川, 杨学俊, 杨青松, 宋旭波, 卢柳. 西藏冈底斯南木林地区晚三叠世中酸性岩浆作用及构造意义[J]. 现代地质, 2023, 37(03): 547-561. |
阅读次数 | ||||||
全文 |
|
|||||
摘要 |
|
|||||
