嫩江河漫滩沉积物碎屑锆石U-Pb年龄、Hf同位素组成及其地质意义

doi:10.19657/j.geoscience.1000-8527.2022.036

摘要/Abstract

摘要：

利用LA-(MC)-ICP-MS技术,对嫩江河漫滩沉积物碎屑锆石进行了U-Pb定年和Hf同位素组成分析研究。结果显示,293颗碎屑锆石多为岩浆成因锆石,其U-Pb年龄主要分为4组:2300~1746 Ma、363~331 Ma、316~260 Ma和252~86 Ma。中生代碎屑锆石占到全部数量的80.9%,说明该时期源区岩浆活动强烈。嫩江流域不同时代地层的相对出露面积不同:侏罗系—白垩系约占72%,石炭系—二叠系约占13%,三叠系约占8%,前寒武系约占5%,寒武系—志留系约占1%。结合Lu-Hf同位素分析结果进一步分析嫩江流域大陆地壳的形成与演化历史。嫩江流域大陆地壳主要以新生地壳的产生为主,1200~400 Ma时期是嫩江流域地壳强烈增生阶段,构成了现今地壳的98.8%,可能与古亚洲洋的发展与关闭等过程有关;400~100 Ma时期嫩江流域发生了壳内再循环的岩浆作用。依据前人公式计算了嫩江河漫滩沉积物源区不同时期大陆地壳的重熔/增生比例。中生代锆石重熔比例较低,含有约70%的新生物质。该现象与蒙古—鄂霍次克洋和古太平洋俯冲引起地幔物质的部分熔融有关。

关键词: 嫩江, 碎屑锆石, U-Pb年龄, Hf同位素

Abstract:

In this study, we conducted LA-(MC)-ICP-MS U-Pb dating and Hf isotope analysis on detrital zircons from the Nenjiang River floodplain sediments. The results show that the U-Pb ages of 293 detrital zircons can be divided into four major groups, i.e., 2,300-1,746 Ma, 363-331 Ma, 316-260 Ma, and 252-86 Ma. Mesozoic detrital zircons account for 80.9% of the total amount, indicating strong magmatism in the source region during this period. The relative outcrop size of strata (of different ages) is different in the basin: Jurassic-Cretaceous (~72%), Carboniferous-Permian (~13%), Triassic (~8%), Precambrian (~5%), and Cambrian-Silurian (~1%). The Hf isotope composition may reflect the formation and evolution of continental crust in the Nenjiang River catchment. Continental crust in the Nenjiang River basin is mainly produced by juvenile crust formation. The ca. 1,200-400 Ma period likely represents a major continental growth event in NE China, which formed 98.8% crustal components of the present crust, which may be related to the Paleo-Asian Ocean development and subduction. During ca. 400-100 Ma, the Nenjiang Basin may have experienced intense intra-continental crustal recycling. Furthermore, using the formula of recycling ratio, the remelting vs. juvenile crust ratios have been calculated. The Mesozoic zircon have a low remelting ratio and contain about 70% juvenile crust. This phenomenon is related to the partial melting of mantle material caused by subduction of the Mongol-Okhotsk Ocean and Paleo-Pacific Ocean.

Key words: Nenjiang River, detrital zircon, U-Pb age, Hf isotope

中图分类号:

P512.2
P597

梁乾坤, 陈岳龙, 王善辉, 于洋, 杨帆. 嫩江河漫滩沉积物碎屑锆石U-Pb年龄、Hf同位素组成及其地质意义[J]. 现代地质, 2023, 37(03): 529-546.

LIANG Qiankun, CHEN Yuelong, WANG Shanhui, YU Yang, YANG Fan. Detrital Zircon U-Pb Age and Hf Isotopes and Their Geological Significance of the Nenjiang River Floodplain Sediments[J]. Geoscience, 2023, 37(03): 529-546.

图/表 12

图1 中国东北地区地质简图(据文献[29??-32]) F1.新林—喜桂图; F2.二连浩特—黑河; F3.索伦—西拉木伦—长春—延吉; F4.嘉荫—牡丹江; Ⅰ.额尔古纳地块; Ⅱ.兴安地块; Ⅲ.松嫩地块; Ⅳ.华北克拉通; Ⅴ.佳木斯地块

Fig.1 Simplified geological map of NE China (from refs.[29??-32])

表1 嫩江河流沉积物碎屑锆石U-Pb同位素分析数据

Table 1 U-Pb isotope data of detrital zircons from the Nenjiang River sediments

测点	质量分数 (10^-6)			Th/U	同位素比值			年龄(Ma)			谐和度 (%)
测点	Pb	Th	U	Th/U	²⁰⁷Pb/²⁰⁶Pb (1σ)	²⁰⁷Pb/²³⁵U (1σ)	²⁰⁶Pb/²³⁸U (1σ)	²⁰⁷Pb/ ²⁰⁶Pb(1σ)	²⁰⁷Pb/ ²³⁵U(1σ)	²⁰⁶Pb/ ²³⁸U(1σ)	谐和度 (%)
NJ-1	4	183	168	1.09	0.0537(0.0042)	0.1370(0.0098)	0.0186(0.0006)	367(178)	130(9)	119(4)	90
NJ-2	3	102	139	0.73	0.0509(0.0033)	0.1245(0.0082)	0.0177(0.0004)	235(155)	119(7)	113(3)	95
NJ-3	20	1711	932	1.84	0.0495(0.0010)	0.1526(0.0022)	0.0224(0.0003)	172(46)	144(2)	143(2)	99
NJ-4	3	172	134	1.28	0.0507(0.0024)	0.1279(0.0028)	0.0184(0.0006)	228(107)	122(3)	118(4)	96
NJ-5	4	155	212	0.73	0.0542(0.0024)	0.3077(0.0129)	0.0412(0.0004)	389(98)	272(10)	260(3)	95
NJ-6	4	225	126	1.79	0.0550(0.0074)	0.1335(0.0105)	0.0177(0.0010)	413(304)	127(9)	113(6)	88
NJ-7	3	190	169	1.12	0.0508(0.0014)	0.1286(0.0034)	0.0184(0.0002)	232(63)	123(3)	118(1)	95
NJ-8	3	58	55	1.05	0.0522(0.0020)	0.3032(0.0108)	0.0422(0.0007)	295(86)	269(8)	266(4)	99
NJ-9	10	861	551	1.56	0.0520(0.0014)	0.1336(0.0026)	0.0187(0.0002)	287(56)	127(2)	119(1)	93
NJ-10	4	290	147	1.97	0.0486(0.0027)	0.1233(0.0084)	0.0184(0.0008)	132(122)	118(8)	117(5)	99
NJ-11	2	55	59	0.93	0.0527(0.0040)	0.1315(0.0099)	0.0184(0.0006)	317(176)	125(9)	117(4)	93
NJ-12	2	99	110	0.90	0.0505(0.0023)	0.2264(0.0081)	0.0327(0.0006)	220(99)	207(7)	207(4)	99
NJ-13	6	365	242	1.51	0.0509(0.0031)	0.1260(0.0089)	0.0179(0.0005)	239(136)	121(8)	115(3)	94
NJ-14	3	63	90	0.70	0.0519(0.0026)	0.3018(0.0110)	0.0423(0.0015)	280(115)	268(9)	267(9)	99
NJ-15	9	1119	450	2.49	0.0522(0.0011)	0.1228(0.0039)	0.0170(0.0003)	295(44)	118(4)	109(2)	92
NJ-16	2	63	42	1.51	0.0490(0.0037)	0.1225(0.0095)	0.0182(0.0005)	146(176)	117(9)	116(3)	99
NJ-17	7	606	341	1.78	0.0509(0.0010)	0.1540(0.0027)	0.0220(0.0002)	235(43)	145(2)	140(1)	96
NJ-18	1	64	44	1.45	0.0500(0.0027)	0.1239(0.0063)	0.0182(0.0004)	195(126)	119(6)	116(3)	97
NJ-19	2	136	128	1.06	0.0485(0.0019)	0.1199(0.0045)	0.0180(0.0002)	124(93)	115(4)	115(1)	99
NJ-20	0	19	19	1.05	0.0500(0.0032)	0.1439(0.0086)	0.0214(0.0005)	195(153)	136(8)	136(3)	99
NJ-21	7	276	153	1.81	0.0522(0.0017)	0.1213(0.0071)	0.0168(0.0004)	295(74)	116(6)	108(3)	92
NJ-22	6	282	262	1.08	0.0524(0.0032)	0.1330(0.0087)	0.0184(0.0004))	302(136)	127(8)	118(3)	92
NJ-23	2	207	192	1.08	0.0510(0.0009)	0.1312(0.0022)	0.0187(0.0002)	239(34)	125(2)	119(1)	95
NJ-24	2	119	134	0.89	0.0498(0.0075)	0.1516(0.0146)	0.0224(0.0011)	187(315)	143(13)	143(7)	99
NJ-25	2	147	110	1.33	0.0495(0.0024)	0.1201(0.0060)	0.0177(0.0003)	169(115)	115(5)	113(2)	97
NJ-26	1	22	34	0.65	0.0512(0.0052)	0.2299(0.0290)	0.0321(0.0021)	250(215)	210(24)	204(13)	96
NJ-27	6	668	305	2.19	0.0510(0.0018)	0.1282(0.0041)	0.0183(0.0005)	243(77)	122(4)	117(3)	95
NJ-28	1	53	48	1.12	0.0497(0.0022)	0.1271(0.0051)	0.0188(0.0004)	189(104)	121(5)	120(2)	98
NJ-29	7	625	421	1.48	0.0510(0.0019)	0.1322(0.0051)	0.0188(0.0002)	243(89)	126(5)	120(1)	95
NJ-30	1	75	38	1.97	0.0502(0.0044)	0.1210(0.0092)	0.0180(0.0008)	211(183)	116(8)	115(5)	98
NJ-31	2	151	89	1.70	0.0510(0.0021)	0.1293(0.0052)	0.0186(0.0004)	243(101)	123(5)	119(3)	95
NJ-32	9	284	297	0.96	0.0542(0.0008)	0.3140(0.0047)	0.0420(0.0004)	389(31)	277(4)	265(2)	95
NJ-33	1	96	93	1.03	0.0492(0.0019)	0.1266(0.0044)	0.0188(0.0005)	167(82)	121(4)	120(3)	99
NJ-34	1	138	63	2.18	0.0500(0.0033)	0.1223(0.0078)	0.0180(0.0003)	195(152)	117(7)	115(2)	97
NJ-35	3	232	142	1.64	0.0495(0.0061)	0.1270(0.0186)	0.0185(0.0004)	172(267)	121(17)	118(3)	97
NJ-36	3	206	189	1.09	0.0509(0.0024)	0.1324(0.0053)	0.0189(0.0003)	235(107)	126(5)	121(2)	95
NJ-37	4	221	185	1.19	0.0535(0.0018)	0.3991(0.0204)	0.0540(0.0014)	350(78)	341(15)	339(8)	99
NJ-38	2	120	84	1.42	0.0492(0.0030)	0.1274(0.0053)	0.0190(0.0007)	167(145)	122(5)	121(4)	99
NJ-39	1	47	45	1.04	0.0571(0.0021)	0.5034(0.0216)	0.0639(0.0013)	494(80)	414(15)	399(8)	96
NJ-40	0	17	16	1.04	0.0520(0.0089)	0.1464(0.0220)	0.0216(0.0018)	287(352)	139(19)	138(11)	99
NJ-41	2	103	85	1.21	0.0501(0.0020)	0.1285(0.0050)	0.0188(0.0003)	198(93)	123(4)	120(2)	97
NJ-42	2	67	57	1.18	0.0495(0.0024)	0.1445(0.0070)	0.0213(0.0005)	172(115)	137(6)	136(3)	99
NJ-43	2	48	33	1.46	0.0528(0.0084)	0.1262(0.0129)	0.0182(0.0018)	320(335)	121(12)	116(12)	96
NJ-44	3	54	47	1.15	0.0542(0.0031)	0.3121(0.0165)	0.0420(0.0012)	389(130)	276(13)	265(7)	96
NJ-45	3	141	131	1.08	0.0500(0.0020)	0.1298(0.0045)	0.0189(0.0004)	195(94)	124(4)	121(3)	97
NJ-46	3	99	121	0.82	0.0498(0.0061)	0.1477(0.0134)	0.0219(0.0008)	183(272)	140(12)	140(5)	99
NJ-47	3	285	174	1.63	0.0489(0.0014)	0.1239(0.0034)	0.0184(0.0003)	143(69)	119(3)	118(2)	99
NJ-48	4	302	135	2.23	0.0485(0.0045)	0.1116(0.0077)	0.0168(0.0005)	120(207)	107(7)	107(3)	99
NJ-49	6	237	122	1.94	0.0489(0.0020)	0.1489(0.0049)	0.0221(0.0003)	146(90)	141(4)	141(2)	99
NJ-50	11	351	338	1.04	0.0534(0.0015)	0.3073(0.0127)	0.0416(0.0010)	346(61)	272(10)	263(6)	96
NJ-51	10	274	227	1.21	0.0544(0.0015)	0.3945(0.0078)	0.0526(0.0008)	391(63)	338(6)	331(5)	97
NJ-52	0	33	21	1.60	0.0530(0.0090)	0.1308(0.0194)	0.0188(0.0009)	328(348)	125(17)	120(6)	96
NJ-53	2	149	171	0.87	0.0489(0.0019)	0.1281(0.0063)	0.0190(0.0004)	143(88)	122(6)	121(3)	99
NJ-54	3	89	71	1.24	0.0499(0.0026)	0.1269(0.0111)	0.0184(0.0011)	191(124)	121(10)	118(7)	96
NJ-55	29	518	211	2.45	0.0683(0.0006)	1.1091(0.0200)	0.1178(0.0018)	876(19)	758(10)	718(11)	94
NJ-56	6	227	141	1.61	0.0484(0.0034)	0.1245(0.0085)	0.0187(0.0007)	120(156)	119(8)	120(5)	99
NJ-57	1	99	84	1.17	0.0507(0.0020)	0.1291(0.0058)	0.0185(0.0003)	233(61)	123(5)	118(2)	95
NJ-58	7	312	347	0.90	0.0520(0.0011)	0.1928(0.0041)	0.0269(0.0003)	283(46)	179(4)	171(2)	95
NJ-59	3	41	24	1.72	0.0492(0.0001)	0.1284(0.0212)	0.0189(0.0031)	167(6)	123(19)	121(20)	98
NJ-60	2	121	113	1.06	0.0515(0.0017)	0.1563(0.0053)	0.0220(0.0004)	265(76)	147(5)	140(3)	95
NJ-61	2	45	42	1.05	0.0521(0.0113)	0.2957(0.0522)	0.0415(0.0017)	300(420)	263(41)	262(11)	99
NJ-62	1	139	92	1.51	0.0506(0.0052)	0.1306(0.0090)	0.0191(0.0009)	220(222)	125(8)	122(6)	97
NJ-63	2	29	29	1.00	0.0547(0.0031)	0.3063(0.0155)	0.0413(0.0016)	467(95)	271(12)	261(10)	96
NJ-64	0	49	25	1.93	0.0509(0.0063)	0.1246(0.0130)	0.0184(0.0007)	235(263)	119(12)	118(4)	98
NJ-65	2	33	33	0.99	0.0512(0.0080)	0.1321(0.0205)	0.0189(0.0013)	250(326)	126(18)	121(8)	95
NJ-66	17	1074	368	2.92	0.0530(0.0013)	0.2357(0.0089)	0.0322(0.0007)	328(25)	215(7)	204(4)	95
NJ-67	15	750	448	1.68	0.0528(0.0030)	0.3011(0.0094)	0.0414(0.0011)	320(134)	267(7)	261(7)	97
NJ-68	2	93	81	1.14	0.0491(0.0016)	0.1227(0.0040)	0.0182(0.0001)	154(76)	117(4)	116(1)	98
NJ-69	2	84	110	0.76	0.0494(0.0023)	0.1506(0.0076)	0.0221(0.0004)	169(109)	142(7)	141(3)	98
NJ-70	4	161	151	1.06	0.0490(0.0020)	0.1264(0.0046)	0.0188(0.0003)	150(94)	121(4)	120(2)	99
NJ-71	8	786	259	3.03	0.0509(0.0025)	0.1295(0.0034)	0.0186(0.0012)	235(111)	124(3)	119(7)	95
NJ-72	3	92	106	0.87	0.0502(0.0031)	0.1274(0.0059)	0.0187(0.0005)	206(146)	122(5)	119(3)	97
NJ-73	8	578	235	2.46	0.0505(0.0037)	0.1264(0.0066)	0.0183(0.0006)	217(177)	121(6)	117(4)	96
NJ-74	4	143	139	1.03	0.0498(0.0014)	0.1278(0.0048)	0.0187(0.0007)	183(68)	122(4)	119(5)	97
NJ-75	2	104	86	1.21	0.0488(0.0027)	0.1233(0.0075)	0.0184(0.0005)	200(68)	118(7)	117(3)	99
NJ-76	3	419	280	1.50	0.0490(0.0015)	0.1258(0.0035)	0.0186(0.0004)	150(72)	120(3)	119(3)	98
NJ-77	1	93	88	1.05	0.0490(0.0050)	0.1262(0.0124)	0.0188(0.0006)	146(226)	121(11)	120(4)	99
NJ-78	28	2338	1429	1.64	0.0496(0.0045)	0.1295(0.0084)	0.0190(0.0005)	176(200)	124(8)	121(3)	98
NJ-79	9	374	260	1.44	0.0540(0.0005)	0.3166(0.0125)	0.0425(0.0014)	369(22)	279(10)	268(9)	96
NJ-80	4	121	87	1.40	0.0529(0.0001)	0.1344(0.0157)	0.0184(0.0022)	324(4)	128(14)	118(14)	91
NJ-81	3	192	126	1.53	0.0561(0.0014)	0.2430(0.0060)	0.0315(0.0004)	457(28)	221(5)	200(3)	90
NJ-82	8	353	275	1.29	0.0563(0.0008)	0.3228(0.0067)	0.0418(0.0011)	461(31)	284(5)	264(7)	92
NJ-83	12	1410	366	3.85	0.0475(0.0030)	0.1212(0.0076)	0.0185(0.0007)	76(141)	116(7)	118(4)	98
NJ-84	8	519	481	1.08	0.0507(0.0020)	0.1301(0.0075)	0.0186(0.0006)	228(58)	124(7)	119(4)	95
NJ-85	4	176	87	2.02	0.0530(0.0016)	0.3483(0.0093)	0.0478(0.0014)	328(69)	303(7)	301(8)	99
NJ-86	9	600	627	0.96	0.0473(0.0004)	0.1223(0.0024)	0.0187(0.0002)	65(14)	117(2)	120(1)	97
NJ-87	1	11	23	0.49	0.0532(0.0052)	0.2334(0.0119)	0.0327(0.0029)	339(222)	213(10)	208(18)	97
NJ-88	4	27	20	1.39	0.0509(0.0091)	0.1256(0.0211)	0.0186(0.0011)	235(376)	120(19)	119(7)	98
NJ-D-1	82	75	82	0.90	0.0520(0.0007)	0.2211(0.0036)	0.0309(0.0004)	287(31)	203(3)	196(2)	103
NJ-D-2	245	31	241	0.13	0.1151(0.0006)	4.9660(0.0382)	0.3147(0.0032)	1883(10)	1814(7)	1764(16)	107
NJ-D-3	53	69	36	1.89	0.0518(0.0009)	0.1786(0.0037)	0.0251(0.0003)	276(41)	167(3)	160(2)	105
NJ-D-4	15	29	20	1.46	0.0505(0.0012)	0.1286(0.0030)	0.0186(0.0002)	217(56)	123(3)	119(1)	103
NJ-D-5	15	19	13	1.52	0.0494(0.0013)	0.1329(0.0034)	0.0197(0.0002)	169(61)	127(3)	126(1)	101
NJ-D-6	63	149	72	2.05	0.0508(0.0007)	0.1410(0.0019)	0.0202(0.0001)	232(33)	134(2)	129(1)	104
NJ-D-7	38	26	34	0.75	0.0592(0.0005)	0.6498(0.0065)	0.0796(0.0005)	576(14)	508(4)	494(3)	103
NJ-D-8	27	47	39	1.20	0.0514(0.0007)	0.1909(0.0026)	0.0270(0.0002)	261(36)	177(2)	172(1)	103
NJ-D-9	57	164	89	1.82	0.0505(0.0005)	0.1296(0.0014)	0.0187(0.0001)	217(24)	124(1)	119(1)	104
NJ-D-10	61	75	122	0.62	0.0692(0.0008)	0.4178(0.0051)	0.0438(0.0004)	906(24)	354(4)	276(2)	128
NJ-D-11	33	73	76	0.96	0.0491(0.0006)	0.1355(0.0017)	0.0200(0.0001)	154(30)	129(2)	128(1)	101
NJ-D-12	36	104	67	1.55	0.0513(0.0005)	0.1412(0.0015)	0.0200(0.0001)	254(22)	134(1)	128(1)	105
NJ-D-13	40	105	68	1.54	0.0498(0.0006)	0.1275(0.0015)	0.0186(0.0001)	183(30)	122(1)	119(1)	102
NJ-D-14	18	62	39	1.59	0.0511(0.0008)	0.1319(0.0020)	0.0188(0.0001)	256(35)	126(2)	120(1)	105
NJ-D-15	66	214	90	2.36	0.0496(0.0005)	0.1271(0.0012)	0.0186(0.0001)	189(29)	121(1)	119(1)	102
NJ-D-16	43	104	71	1.45	0.0520(0.0007)	0.1810(0.0023)	0.0253(0.0002)	287(30)	169(2)	161(1)	105
NJ-D-17	22	74	58	1.26	0.0504(0.0009)	0.1513(0.0030)	0.0218(0.0002)	213(43)	143(3)	139(1)	103
NJ-D-18	44	147	54	2.68	0.0498(0.0009)	0.1373(0.0024)	0.0200(0.0002)	187(43)	131(2)	128(1)	102
NJ-D-19	31	39	41	0.95	0.0516(0.0019)	0.1776(0.0058)	0.0250(0.0004)	333(81)	166(5)	159(2)	104
NJ-D-20	181	211	139	1.51	0.0545(0.0003)	0.3774(0.0029)	0.0502(0.0003)	394(8)	325(2)	316(2)	103
NJ-D-21	18	78	50	1.53	0.0504(0.0007)	0.1296(0.0018)	0.0187(0.0001)	213(33)	124(2)	120(1)	104
NJ-D-22	10	55	34	1.61	0.0486(0.0016)	0.1235(0.0040)	0.0185(0.0003)	128(75)	118(4)	118(2)	100
NJ-D-23	429	51	26	1.93	0.1744(0.0007)	11.2815(0.0797)	0.4690(0.0032)	2611(6)	2547(7)	2479(14)	105
NI-D-24	1	21	26	0.82	0.0500(0.0016)	0.1704(0.0049)	0.0249(0.0004)	198(106)	160(4)	159(2)	101
NJ-D-25	183	227	256	0.88	0.0535(0.0002)	0.2815(0.0025)	0.0382(0.0003)	350(14)	252(2)	241(2)	104
NJ-D-26	33	132	125	1.05	0.0465(0.0070)	0.1523(0.0238)	0.0237(0.0001)	20(330)	144(21)	151(1)	95
NJ-D-27	20	19	25	0.76	0.0540(0.0008)	0.3305(0.0046)	0.0445(0.0004)	372(64)	290(3)	281(2)	103
NJ-D-28	43	0	64	1.13	0.0506(0.0008)	0.1398(0.0020)	0.0201(0.0001)	233(37)	133(2)	128(1)	104
NJ-D-29	214	396	414	0.95	0.0506(0.0002)	0.1404(0.0008)	0.0201(0.0001)	220(11)	133(1)	129(1)	104
NJ-D-30	1521	204	143	1.42	0.1164(0.0037)	5.0668(0.0942)	0.3251(0.0059)	1902(58)	1831(16)	1815(29)	105
NJ-D-31	17	51	67	0.76	0.0525(0.0005)	0.1448(0.0015)	0.0201(0.0001)	306(22)	137(1)	128(1)	107
NJ-D-32	250	369	379	0.97	0.0514(0.0003)	0.1801(0.0014)	0.0254(0.0001)	261(8)	168(1)	162(1)	104
NJ-D-33	19	30	18	1.66	0.0503(0.0022)	0.1389(0.0064)	0.0201(0.0004)	209(102)	132(6)	128(3)	103
NJ-D-34	42	73	48	1.52	0.0496(0.0007)	0.1276(0.0017)	0.0187(0.0001)	172(31)	122(2)	120(1)	102
NJ-D-35	943	1328	989	1.33	0.0509(0.0002)	0.2044(0.0013)	0.0291(0.0001)	235(14)	189(1)	185(1)	102
NJ-D-36	32	36	29	1.26	0.0786(0.0030)	0.3932(0.0445)	0.0331(0.0005)	0(75)	337(32)	210(3)	160
NJ-D-37	36	59	60	0.97	0.0510(0.0012)	0.1308(0.0031)	0.0186(0.0002)	239(56)	125(3)	119(1)	105
NJ-D-38	466	60	65	0.92	0.1173(0.0003)	5.2467(0.0316)	0.3245(0.0019)	1915(5)	1860(5)	1812(9)	106
NJ-D-39	29	44	40	1.10	0.0500(0.0017)	0.1692(0.0050)	0.0247(0.0003)	195(106)	159(4)	157(2)	101
NJ-D-40	96	177	120	1.47	0.0498(0.0007)	0.1379(0.0019)	0.0201(0.0002)	183(31)	131(2)	128(1)	102
NJ-D-41	0	4	4	0.92	0.2579(0.0516)	3.1440(1.1425)	0.0575(0.0111)	3235(321)	1444(287)	361(68)	400
NJ-D-42	230	463	417	1.10	0.0506(0.0003)	0.1524(0.0013)	0.0219(0.0002)	220(13)	144(1)	139(1)	103
NJ-D-43	3	8	12	0.57	0.0502(0.0031)	0.1000(0.0057)	0.0150(0.0004)	211(143)	97(5)	96(2)	101
NJ-D-44	130	257	311	0.82	0.0506(0.0002)	0.1751(0.0011)	0.0251(0.0001)	233(11)	164(1)	160(1)	103
NJ-D-45	423	68	69	0.99	0.1167(0.0002)	5.2114(0.0239)	0.3240(0.0015)	1905(4)	1854(4)	1809(7)	105
NJ-D-46	60	109	131	0.83	0.0511(0.0003)	0.2229(0.0017)	0.0316(0.0002)	256(15)	204(1)	201(1)	102
NJ-D-47	36	53	44	1.19	0.0528(0.0006)	0.3234(0.0036)	0.0445(0.0003)	320(24)	284(3)	281(2)	101
NI-D-48	29	61	79	0.76	0.0532(0.0006)	0.2903(0.0030)	0.0396(0.0002)	339(19)	259(2)	250(1)	103
NJ-D-49	3	0	12	0.95	0.0512(0.0012)	0.2311(0.0063)	0.0328(0.0005)	256(54)	211(5)	208(3)	102
NJ-D-50	18	31	49	0.63	0.0546(0.0006)	0.3346(0.0035)	0.0445(0.0003)	398(24)	293(3)	281(2)	104
NJ-D-51	206	38	260	0.14	0.1067(0.0005)	4.3381(0.0787)	0.2947(0.0052)	1746(9)	1701(15)	1665(26)	105
NJ-D-52	54	243	455	0.53	0.0498(0.0006)	0.1089(0.0013)	0.0159(0.0002)	187(26)	105(1)	101(1)	103
NJ-D-53	23	7	10	0.75	0.0584(0.0026)	0.3823(0.0161)	0.0479(0.0013)	543(97)	329(12)	302(8)	109
NJ-D-54	63	127	78	1.62	0.0503(0.0012)	0.1999(0.0044)	0.0289(0.0004)	209(54)	185(4)	184(2)	101
NJ-D-55	80	81	106	0.76	0.0537(0.0003)	0.3279(0.0034)	0.0443(0.0004)	361(13)	288(3)	279(3)	103
NJ-D-56	106	237	224	1.05	0.0506(0.0003)	0.1526(0.0012)	0.0219(0.0002)	233(15)	144(1)	140(1)	103
NJ-D-57	39	47	38	1.22	0.0528(0.0006)	0.2287(0.0030)	0.0316(0.0003)	320(23)	209(3)	200(2)	104
NJ-D-58	53	47	38	1.22	0.0810(0.0017)	0.4130(0.0081)	0.0372(0.0004)	1220(37)	351(6)	235(2)	149
NJ-D-59	37834	63	131	0.48	0.1120(0.0003)	5.0017(0.0489)	0.3242(0.0034)	1832(4)	1820(8)	1810(17)	101
NJ-D-60	85	28	51	0.53	0.1343(0.0052)	0.8693(0.0475)	0.0464(0.0013)	2155(68)	635(26)	292(8)	217
NJ-D-61	139	497	989	0.50	0.0493(0.0003)	0.0908(0.0011)	0.0134(0.0002)	161(15)	88(1)	86(1)	103
NJ-D-62	8	29	20	1.47	0.0491(0.0021)	0.1251(0.0048)	0.0187(0.0004)	154(100)	120(4)	120(3)	100
NJ-D-63	122	171	59	2.91	0.0557(0.0008)	0.2844(0.0048)	0.0372(0.0006)	439(34)	254(4)	235(4)	108
NJ-D-64	46	91	67	1.35	0.0499(0.0005)	0.1373(0.0019)	0.0200(0.0002)	191(26)	131(2)	128(1)	102
NJ-D-65	37	63	70	0.89	0.0510(0.0005)	0.1763(0.0021)	0.0251(0.0002)	243(22)	165(2)	160(2)	103
NJ-D-66	67	179	211	0.84	0.0505(0.0004)	0.1396(0.0016)	0.0201(0.0002)	217(12)	133(1)	128(1)	103
NJ-D-67	136	142	56	2.52	0.0554(0.0009)	0.4134(0.0106)	0.0542(0.0013)	428(33)	351(8)	340(8)	103
NJ-D-68	49	69	52	1.33	0.0542(0.0005)	0.2944(0.0039)	0.0395(0.0005)	389(19)	262(3)	250(3)	105
NJ-D-69	826	195	117	1.65	0.1117(0.0004)	4.3492(0.0617)	0.2825(0.0043)	1828(7)	1703(12)	1604(21)	114
NI-D-70	45	114	136	0.83	0.0564(0.0005)	0.1563(0.0020)	0.0201(0.0002)	478(16)	147(2)	128(1)	115
NJ-D-71	112	311	291	1.06	0.0507(0.0003)	0.1401(0.0015)	0.0201(0.0002)	228(13)	133(1)	128(1)	104
NJ-D-72	29	58	60	0.96	0.0492(0.0008)	0.1356(0.0033)	0.0200(0.0003)	167(41)	129(3)	128(2)	101
NJ-D-73	25	50	25	1.96	0.0499(0.0019)	0.1145(0.0033)	0.0171(0.0003)	191(89)	110(3)	110(2)	100
NJ-D-74	18	25	18	1.41	0.0547(0.0015)	0.3356(0.0125)	0.0445(0.0011)	398(58)	294(10)	281(7)	105
NJ-D-75	47	110	100	1.09	0.0498(0.0005)	0.1380(0.0019)	0.0201(0.0002)	183(22)	131(2)	129(1)	102
NJ-D-76	21	48	32	1.51	0.0518(0.0013)	0.2352(0.0073)	0.0332(0.0009)	276(64)	214(6)	210(6)	102
NJ-D-77	327	38	33	1.16	0.1938(0.0007)	13.6144(0.2343)	0.5091(0.0084)	2776(6)	2723(16)	2653(36)	105
NJ-D-78	17	32	23	1.40	0.0498(0.0010)	0.1633(0.0034)	0.0241(0.0004)	183(16)	154(3)	153(2)	100
NJ-D-79	14	15	13	1.09	0.0582(0.0024)	0.2359(0.0088)	0.0301(0.0009)	600(95)	215(7)	191(5)	112
NJ-D-80	131	146	124	1.17	0.0542(0.0008)	0.3368(0.0177)	0.0449(0.0021)	389(35)	295(13)	283(13)	104
NJ-D-81	32	64	147	0.44	0.0530(0.0013)	0.1759(0.0073)	0.0240(0.0007)	332(54)	165(6)	153(4)	108
NJ-D-82	29	55	39	1.42	0.0499(0.0009)	0.1488(0.0029)	0.0218(0.0003)	187(43)	141(3)	139(2)	101
NJ-D-83	41	123	47	2.58	0.0483(0.0010)	0.1236(0.0034)	0.0187(0.0004)	122(50)	118(3)	119(2)	99
NJ-D-84	91	150	133	1.12	0.0511(0.0006)	0.1947(0.0043)	0.0276(0.0005)	256(26)	181(4)	175(3)	103
NJ-D-85	74	179	151	1.17	0.0498(0.0004)	0.1375(0.0020)	0.0201(0.0003)	183(23)	131(2)	128(2)	102
NJ-D-86	73	178	225	0.79	0.0498(0.0003)	0.1497(0.0019)	0.0218(0.0002)	183(13)	142(2)	139(2)	102
NJ-D-87	157	189	281	0.67	0.0558(0.0018)	0.2866(0.0240)	0.0374(0.0034)	456(72)	256(19)	237(21)	108
NJ-D-88	27	37	44	0.84	0.0486(0.0008)	0.1123(0.0023)	0.0168(0.0002)	128(41)	108(2)	108(1)	101
NJ-D-89	88	151	116	1.29	0.0491(0.0006)	0.1695(0.0032)	0.0251(0.0005)	154(32)	159(3)	160(3)	99
NJ-D-90	737	99	156	0.63	0.1451(0.0005)	8.3586(0.1320)	0.4187(0.0073)	2300(6)	2271(14)	2254(33)	102
NJ-D-91	74	180	186	0.96	0.0499(0.0004)	0.1376(0.0017)	0.0200(0.0002)	191(19)	131(2)	128(1)	102
NJ-D-92	58	136	74	1.81	0.0494(0.0007)	0.1052(0.0018)	0.0155(0.0002)	169(1)	102(2)	99(1)	102
NJ-D-93	272	738	381	1.92	0.0504(0.0004)	0.1390(0.0021)	0.0201(0.0003)	213(17)	132(2)	128(2)	103
NJ-D-94	174	28	26	1.07	0.1192(0.0011)	5.3258(0.1192)	0.3244(0.0074)	1946(16)	1873(18)	1811(36)	107
NJ-D-95	81	110	89	1.23	0.0543(0.0006)	0.3306(0.0065)	0.0443(0.0008)	389(19)	290(5)	279(5)	104
NJ-D-96	25	28	32	0.89	0.0510(0.0008)	0.2504(0.0049)	0.0356(0.0005)	243(35)	227(4)	225(3)	101
NJ-D-97	29	59	45	1.29	0.0510(0.0008)	0.1675(0.0031)	0.0239(0.0003)	243(37)	157(3)	152(2)	103
NJ-D-98	229	50	33	1.48	0.1150(0.0008)	5.0313(0.1116)	0.3177(0.0073)	1881(12)	1825(19)	1778(36)	106
NJ-D-99	699	144	134	1.06	0.1681(0.0010)	7.3363(0.1740)	0.3179(0.0084)	2539(10)	2153(21)	1779(41)	143
NJ-D-100	37	136	124	1.09	0.0498(0.0004)	0.1280(0.0016)	0.0186(0.0002)	187(19)	122(1)	119(1)	103

表1 嫩江河流沉积物碎屑锆石U-Pb同位素分析数据

Table 1 U-Pb isotope data of detrital zircons from the Nenjiang River sediments

测点	质量分数 (10^-6)			Th/U	同位素比值			年龄(Ma)			谐和度 (%)
测点	Pb	Th	U	Th/U	²⁰⁷Pb/²⁰⁶Pb (1σ)	²⁰⁷Pb/²³⁵U (1σ)	²⁰⁶Pb/²³⁸U (1σ)	²⁰⁷Pb/ ²⁰⁶Pb(1σ)	²⁰⁷Pb/ ²³⁵U(1σ)	²⁰⁶Pb/ ²³⁸U(1σ)	谐和度 (%)
NJ-1	4	183	168	1.09	0.0537(0.0042)	0.1370(0.0098)	0.0186(0.0006)	367(178)	130(9)	119(4)	90
NJ-2	3	102	139	0.73	0.0509(0.0033)	0.1245(0.0082)	0.0177(0.0004)	235(155)	119(7)	113(3)	95
NJ-3	20	1711	932	1.84	0.0495(0.0010)	0.1526(0.0022)	0.0224(0.0003)	172(46)	144(2)	143(2)	99
NJ-4	3	172	134	1.28	0.0507(0.0024)	0.1279(0.0028)	0.0184(0.0006)	228(107)	122(3)	118(4)	96
NJ-5	4	155	212	0.73	0.0542(0.0024)	0.3077(0.0129)	0.0412(0.0004)	389(98)	272(10)	260(3)	95
NJ-6	4	225	126	1.79	0.0550(0.0074)	0.1335(0.0105)	0.0177(0.0010)	413(304)	127(9)	113(6)	88
NJ-7	3	190	169	1.12	0.0508(0.0014)	0.1286(0.0034)	0.0184(0.0002)	232(63)	123(3)	118(1)	95
NJ-8	3	58	55	1.05	0.0522(0.0020)	0.3032(0.0108)	0.0422(0.0007)	295(86)	269(8)	266(4)	99
NJ-9	10	861	551	1.56	0.0520(0.0014)	0.1336(0.0026)	0.0187(0.0002)	287(56)	127(2)	119(1)	93
NJ-10	4	290	147	1.97	0.0486(0.0027)	0.1233(0.0084)	0.0184(0.0008)	132(122)	118(8)	117(5)	99
NJ-11	2	55	59	0.93	0.0527(0.0040)	0.1315(0.0099)	0.0184(0.0006)	317(176)	125(9)	117(4)	93
NJ-12	2	99	110	0.90	0.0505(0.0023)	0.2264(0.0081)	0.0327(0.0006)	220(99)	207(7)	207(4)	99
NJ-13	6	365	242	1.51	0.0509(0.0031)	0.1260(0.0089)	0.0179(0.0005)	239(136)	121(8)	115(3)	94
NJ-14	3	63	90	0.70	0.0519(0.0026)	0.3018(0.0110)	0.0423(0.0015)	280(115)	268(9)	267(9)	99
NJ-15	9	1119	450	2.49	0.0522(0.0011)	0.1228(0.0039)	0.0170(0.0003)	295(44)	118(4)	109(2)	92
NJ-16	2	63	42	1.51	0.0490(0.0037)	0.1225(0.0095)	0.0182(0.0005)	146(176)	117(9)	116(3)	99
NJ-17	7	606	341	1.78	0.0509(0.0010)	0.1540(0.0027)	0.0220(0.0002)	235(43)	145(2)	140(1)	96
NJ-18	1	64	44	1.45	0.0500(0.0027)	0.1239(0.0063)	0.0182(0.0004)	195(126)	119(6)	116(3)	97
NJ-19	2	136	128	1.06	0.0485(0.0019)	0.1199(0.0045)	0.0180(0.0002)	124(93)	115(4)	115(1)	99
NJ-20	0	19	19	1.05	0.0500(0.0032)	0.1439(0.0086)	0.0214(0.0005)	195(153)	136(8)	136(3)	99
NJ-21	7	276	153	1.81	0.0522(0.0017)	0.1213(0.0071)	0.0168(0.0004)	295(74)	116(6)	108(3)	92
NJ-22	6	282	262	1.08	0.0524(0.0032)	0.1330(0.0087)	0.0184(0.0004))	302(136)	127(8)	118(3)	92
NJ-23	2	207	192	1.08	0.0510(0.0009)	0.1312(0.0022)	0.0187(0.0002)	239(34)	125(2)	119(1)	95
NJ-24	2	119	134	0.89	0.0498(0.0075)	0.1516(0.0146)	0.0224(0.0011)	187(315)	143(13)	143(7)	99
NJ-25	2	147	110	1.33	0.0495(0.0024)	0.1201(0.0060)	0.0177(0.0003)	169(115)	115(5)	113(2)	97
NJ-26	1	22	34	0.65	0.0512(0.0052)	0.2299(0.0290)	0.0321(0.0021)	250(215)	210(24)	204(13)	96
NJ-27	6	668	305	2.19	0.0510(0.0018)	0.1282(0.0041)	0.0183(0.0005)	243(77)	122(4)	117(3)	95
NJ-28	1	53	48	1.12	0.0497(0.0022)	0.1271(0.0051)	0.0188(0.0004)	189(104)	121(5)	120(2)	98
NJ-29	7	625	421	1.48	0.0510(0.0019)	0.1322(0.0051)	0.0188(0.0002)	243(89)	126(5)	120(1)	95
NJ-30	1	75	38	1.97	0.0502(0.0044)	0.1210(0.0092)	0.0180(0.0008)	211(183)	116(8)	115(5)	98
NJ-31	2	151	89	1.70	0.0510(0.0021)	0.1293(0.0052)	0.0186(0.0004)	243(101)	123(5)	119(3)	95
NJ-32	9	284	297	0.96	0.0542(0.0008)	0.3140(0.0047)	0.0420(0.0004)	389(31)	277(4)	265(2)	95
NJ-33	1	96	93	1.03	0.0492(0.0019)	0.1266(0.0044)	0.0188(0.0005)	167(82)	121(4)	120(3)	99
NJ-34	1	138	63	2.18	0.0500(0.0033)	0.1223(0.0078)	0.0180(0.0003)	195(152)	117(7)	115(2)	97
NJ-35	3	232	142	1.64	0.0495(0.0061)	0.1270(0.0186)	0.0185(0.0004)	172(267)	121(17)	118(3)	97
NJ-36	3	206	189	1.09	0.0509(0.0024)	0.1324(0.0053)	0.0189(0.0003)	235(107)	126(5)	121(2)	95
NJ-37	4	221	185	1.19	0.0535(0.0018)	0.3991(0.0204)	0.0540(0.0014)	350(78)	341(15)	339(8)	99
NJ-38	2	120	84	1.42	0.0492(0.0030)	0.1274(0.0053)	0.0190(0.0007)	167(145)	122(5)	121(4)	99
NJ-39	1	47	45	1.04	0.0571(0.0021)	0.5034(0.0216)	0.0639(0.0013)	494(80)	414(15)	399(8)	96
NJ-40	0	17	16	1.04	0.0520(0.0089)	0.1464(0.0220)	0.0216(0.0018)	287(352)	139(19)	138(11)	99
NJ-41	2	103	85	1.21	0.0501(0.0020)	0.1285(0.0050)	0.0188(0.0003)	198(93)	123(4)	120(2)	97
NJ-42	2	67	57	1.18	0.0495(0.0024)	0.1445(0.0070)	0.0213(0.0005)	172(115)	137(6)	136(3)	99
NJ-43	2	48	33	1.46	0.0528(0.0084)	0.1262(0.0129)	0.0182(0.0018)	320(335)	121(12)	116(12)	96
NJ-44	3	54	47	1.15	0.0542(0.0031)	0.3121(0.0165)	0.0420(0.0012)	389(130)	276(13)	265(7)	96
NJ-45	3	141	131	1.08	0.0500(0.0020)	0.1298(0.0045)	0.0189(0.0004)	195(94)	124(4)	121(3)	97
NJ-46	3	99	121	0.82	0.0498(0.0061)	0.1477(0.0134)	0.0219(0.0008)	183(272)	140(12)	140(5)	99
NJ-47	3	285	174	1.63	0.0489(0.0014)	0.1239(0.0034)	0.0184(0.0003)	143(69)	119(3)	118(2)	99
NJ-48	4	302	135	2.23	0.0485(0.0045)	0.1116(0.0077)	0.0168(0.0005)	120(207)	107(7)	107(3)	99
NJ-49	6	237	122	1.94	0.0489(0.0020)	0.1489(0.0049)	0.0221(0.0003)	146(90)	141(4)	141(2)	99
NJ-50	11	351	338	1.04	0.0534(0.0015)	0.3073(0.0127)	0.0416(0.0010)	346(61)	272(10)	263(6)	96
NJ-51	10	274	227	1.21	0.0544(0.0015)	0.3945(0.0078)	0.0526(0.0008)	391(63)	338(6)	331(5)	97
NJ-52	0	33	21	1.60	0.0530(0.0090)	0.1308(0.0194)	0.0188(0.0009)	328(348)	125(17)	120(6)	96
NJ-53	2	149	171	0.87	0.0489(0.0019)	0.1281(0.0063)	0.0190(0.0004)	143(88)	122(6)	121(3)	99
NJ-54	3	89	71	1.24	0.0499(0.0026)	0.1269(0.0111)	0.0184(0.0011)	191(124)	121(10)	118(7)	96
NJ-55	29	518	211	2.45	0.0683(0.0006)	1.1091(0.0200)	0.1178(0.0018)	876(19)	758(10)	718(11)	94
NJ-56	6	227	141	1.61	0.0484(0.0034)	0.1245(0.0085)	0.0187(0.0007)	120(156)	119(8)	120(5)	99
NJ-57	1	99	84	1.17	0.0507(0.0020)	0.1291(0.0058)	0.0185(0.0003)	233(61)	123(5)	118(2)	95
NJ-58	7	312	347	0.90	0.0520(0.0011)	0.1928(0.0041)	0.0269(0.0003)	283(46)	179(4)	171(2)	95
NJ-59	3	41	24	1.72	0.0492(0.0001)	0.1284(0.0212)	0.0189(0.0031)	167(6)	123(19)	121(20)	98
NJ-60	2	121	113	1.06	0.0515(0.0017)	0.1563(0.0053)	0.0220(0.0004)	265(76)	147(5)	140(3)	95
NJ-61	2	45	42	1.05	0.0521(0.0113)	0.2957(0.0522)	0.0415(0.0017)	300(420)	263(41)	262(11)	99
NJ-62	1	139	92	1.51	0.0506(0.0052)	0.1306(0.0090)	0.0191(0.0009)	220(222)	125(8)	122(6)	97
NJ-63	2	29	29	1.00	0.0547(0.0031)	0.3063(0.0155)	0.0413(0.0016)	467(95)	271(12)	261(10)	96
NJ-64	0	49	25	1.93	0.0509(0.0063)	0.1246(0.0130)	0.0184(0.0007)	235(263)	119(12)	118(4)	98
NJ-65	2	33	33	0.99	0.0512(0.0080)	0.1321(0.0205)	0.0189(0.0013)	250(326)	126(18)	121(8)	95
NJ-66	17	1074	368	2.92	0.0530(0.0013)	0.2357(0.0089)	0.0322(0.0007)	328(25)	215(7)	204(4)	95
NJ-67	15	750	448	1.68	0.0528(0.0030)	0.3011(0.0094)	0.0414(0.0011)	320(134)	267(7)	261(7)	97
NJ-68	2	93	81	1.14	0.0491(0.0016)	0.1227(0.0040)	0.0182(0.0001)	154(76)	117(4)	116(1)	98
NJ-69	2	84	110	0.76	0.0494(0.0023)	0.1506(0.0076)	0.0221(0.0004)	169(109)	142(7)	141(3)	98
NJ-70	4	161	151	1.06	0.0490(0.0020)	0.1264(0.0046)	0.0188(0.0003)	150(94)	121(4)	120(2)	99
NJ-71	8	786	259	3.03	0.0509(0.0025)	0.1295(0.0034)	0.0186(0.0012)	235(111)	124(3)	119(7)	95
NJ-72	3	92	106	0.87	0.0502(0.0031)	0.1274(0.0059)	0.0187(0.0005)	206(146)	122(5)	119(3)	97
NJ-73	8	578	235	2.46	0.0505(0.0037)	0.1264(0.0066)	0.0183(0.0006)	217(177)	121(6)	117(4)	96
NJ-74	4	143	139	1.03	0.0498(0.0014)	0.1278(0.0048)	0.0187(0.0007)	183(68)	122(4)	119(5)	97
NJ-75	2	104	86	1.21	0.0488(0.0027)	0.1233(0.0075)	0.0184(0.0005)	200(68)	118(7)	117(3)	99
NJ-76	3	419	280	1.50	0.0490(0.0015)	0.1258(0.0035)	0.0186(0.0004)	150(72)	120(3)	119(3)	98
NJ-77	1	93	88	1.05	0.0490(0.0050)	0.1262(0.0124)	0.0188(0.0006)	146(226)	121(11)	120(4)	99
NJ-78	28	2338	1429	1.64	0.0496(0.0045)	0.1295(0.0084)	0.0190(0.0005)	176(200)	124(8)	121(3)	98
NJ-79	9	374	260	1.44	0.0540(0.0005)	0.3166(0.0125)	0.0425(0.0014)	369(22)	279(10)	268(9)	96
NJ-80	4	121	87	1.40	0.0529(0.0001)	0.1344(0.0157)	0.0184(0.0022)	324(4)	128(14)	118(14)	91
NJ-81	3	192	126	1.53	0.0561(0.0014)	0.2430(0.0060)	0.0315(0.0004)	457(28)	221(5)	200(3)	90
NJ-82	8	353	275	1.29	0.0563(0.0008)	0.3228(0.0067)	0.0418(0.0011)	461(31)	284(5)	264(7)	92
NJ-83	12	1410	366	3.85	0.0475(0.0030)	0.1212(0.0076)	0.0185(0.0007)	76(141)	116(7)	118(4)	98
NJ-84	8	519	481	1.08	0.0507(0.0020)	0.1301(0.0075)	0.0186(0.0006)	228(58)	124(7)	119(4)	95
NJ-85	4	176	87	2.02	0.0530(0.0016)	0.3483(0.0093)	0.0478(0.0014)	328(69)	303(7)	301(8)	99
NJ-86	9	600	627	0.96	0.0473(0.0004)	0.1223(0.0024)	0.0187(0.0002)	65(14)	117(2)	120(1)	97
NJ-87	1	11	23	0.49	0.0532(0.0052)	0.2334(0.0119)	0.0327(0.0029)	339(222)	213(10)	208(18)	97
NJ-88	4	27	20	1.39	0.0509(0.0091)	0.1256(0.0211)	0.0186(0.0011)	235(376)	120(19)	119(7)	98
NJ-D-1	82	75	82	0.90	0.0520(0.0007)	0.2211(0.0036)	0.0309(0.0004)	287(31)	203(3)	196(2)	103
NJ-D-2	245	31	241	0.13	0.1151(0.0006)	4.9660(0.0382)	0.3147(0.0032)	1883(10)	1814(7)	1764(16)	107
NJ-D-3	53	69	36	1.89	0.0518(0.0009)	0.1786(0.0037)	0.0251(0.0003)	276(41)	167(3)	160(2)	105
NJ-D-4	15	29	20	1.46	0.0505(0.0012)	0.1286(0.0030)	0.0186(0.0002)	217(56)	123(3)	119(1)	103
NJ-D-5	15	19	13	1.52	0.0494(0.0013)	0.1329(0.0034)	0.0197(0.0002)	169(61)	127(3)	126(1)	101
NJ-D-6	63	149	72	2.05	0.0508(0.0007)	0.1410(0.0019)	0.0202(0.0001)	232(33)	134(2)	129(1)	104
NJ-D-7	38	26	34	0.75	0.0592(0.0005)	0.6498(0.0065)	0.0796(0.0005)	576(14)	508(4)	494(3)	103
NJ-D-8	27	47	39	1.20	0.0514(0.0007)	0.1909(0.0026)	0.0270(0.0002)	261(36)	177(2)	172(1)	103
NJ-D-9	57	164	89	1.82	0.0505(0.0005)	0.1296(0.0014)	0.0187(0.0001)	217(24)	124(1)	119(1)	104
NJ-D-10	61	75	122	0.62	0.0692(0.0008)	0.4178(0.0051)	0.0438(0.0004)	906(24)	354(4)	276(2)	128
NJ-D-11	33	73	76	0.96	0.0491(0.0006)	0.1355(0.0017)	0.0200(0.0001)	154(30)	129(2)	128(1)	101
NJ-D-12	36	104	67	1.55	0.0513(0.0005)	0.1412(0.0015)	0.0200(0.0001)	254(22)	134(1)	128(1)	105
NJ-D-13	40	105	68	1.54	0.0498(0.0006)	0.1275(0.0015)	0.0186(0.0001)	183(30)	122(1)	119(1)	102
NJ-D-14	18	62	39	1.59	0.0511(0.0008)	0.1319(0.0020)	0.0188(0.0001)	256(35)	126(2)	120(1)	105
NJ-D-15	66	214	90	2.36	0.0496(0.0005)	0.1271(0.0012)	0.0186(0.0001)	189(29)	121(1)	119(1)	102
NJ-D-16	43	104	71	1.45	0.0520(0.0007)	0.1810(0.0023)	0.0253(0.0002)	287(30)	169(2)	161(1)	105
NJ-D-17	22	74	58	1.26	0.0504(0.0009)	0.1513(0.0030)	0.0218(0.0002)	213(43)	143(3)	139(1)	103
NJ-D-18	44	147	54	2.68	0.0498(0.0009)	0.1373(0.0024)	0.0200(0.0002)	187(43)	131(2)	128(1)	102
NJ-D-19	31	39	41	0.95	0.0516(0.0019)	0.1776(0.0058)	0.0250(0.0004)	333(81)	166(5)	159(2)	104
NJ-D-20	181	211	139	1.51	0.0545(0.0003)	0.3774(0.0029)	0.0502(0.0003)	394(8)	325(2)	316(2)	103
NJ-D-21	18	78	50	1.53	0.0504(0.0007)	0.1296(0.0018)	0.0187(0.0001)	213(33)	124(2)	120(1)	104
NJ-D-22	10	55	34	1.61	0.0486(0.0016)	0.1235(0.0040)	0.0185(0.0003)	128(75)	118(4)	118(2)	100
NJ-D-23	429	51	26	1.93	0.1744(0.0007)	11.2815(0.0797)	0.4690(0.0032)	2611(6)	2547(7)	2479(14)	105
NI-D-24	1	21	26	0.82	0.0500(0.0016)	0.1704(0.0049)	0.0249(0.0004)	198(106)	160(4)	159(2)	101
NJ-D-25	183	227	256	0.88	0.0535(0.0002)	0.2815(0.0025)	0.0382(0.0003)	350(14)	252(2)	241(2)	104
NJ-D-26	33	132	125	1.05	0.0465(0.0070)	0.1523(0.0238)	0.0237(0.0001)	20(330)	144(21)	151(1)	95
NJ-D-27	20	19	25	0.76	0.0540(0.0008)	0.3305(0.0046)	0.0445(0.0004)	372(64)	290(3)	281(2)	103
NJ-D-28	43	0	64	1.13	0.0506(0.0008)	0.1398(0.0020)	0.0201(0.0001)	233(37)	133(2)	128(1)	104
NJ-D-29	214	396	414	0.95	0.0506(0.0002)	0.1404(0.0008)	0.0201(0.0001)	220(11)	133(1)	129(1)	104
NJ-D-30	1521	204	143	1.42	0.1164(0.0037)	5.0668(0.0942)	0.3251(0.0059)	1902(58)	1831(16)	1815(29)	105
NJ-D-31	17	51	67	0.76	0.0525(0.0005)	0.1448(0.0015)	0.0201(0.0001)	306(22)	137(1)	128(1)	107
NJ-D-32	250	369	379	0.97	0.0514(0.0003)	0.1801(0.0014)	0.0254(0.0001)	261(8)	168(1)	162(1)	104
NJ-D-33	19	30	18	1.66	0.0503(0.0022)	0.1389(0.0064)	0.0201(0.0004)	209(102)	132(6)	128(3)	103
NJ-D-34	42	73	48	1.52	0.0496(0.0007)	0.1276(0.0017)	0.0187(0.0001)	172(31)	122(2)	120(1)	102
NJ-D-35	943	1328	989	1.33	0.0509(0.0002)	0.2044(0.0013)	0.0291(0.0001)	235(14)	189(1)	185(1)	102
NJ-D-36	32	36	29	1.26	0.0786(0.0030)	0.3932(0.0445)	0.0331(0.0005)	0(75)	337(32)	210(3)	160
NJ-D-37	36	59	60	0.97	0.0510(0.0012)	0.1308(0.0031)	0.0186(0.0002)	239(56)	125(3)	119(1)	105
NJ-D-38	466	60	65	0.92	0.1173(0.0003)	5.2467(0.0316)	0.3245(0.0019)	1915(5)	1860(5)	1812(9)	106
NJ-D-39	29	44	40	1.10	0.0500(0.0017)	0.1692(0.0050)	0.0247(0.0003)	195(106)	159(4)	157(2)	101
NJ-D-40	96	177	120	1.47	0.0498(0.0007)	0.1379(0.0019)	0.0201(0.0002)	183(31)	131(2)	128(1)	102
NJ-D-41	0	4	4	0.92	0.2579(0.0516)	3.1440(1.1425)	0.0575(0.0111)	3235(321)	1444(287)	361(68)	400
NJ-D-42	230	463	417	1.10	0.0506(0.0003)	0.1524(0.0013)	0.0219(0.0002)	220(13)	144(1)	139(1)	103
NJ-D-43	3	8	12	0.57	0.0502(0.0031)	0.1000(0.0057)	0.0150(0.0004)	211(143)	97(5)	96(2)	101
NJ-D-44	130	257	311	0.82	0.0506(0.0002)	0.1751(0.0011)	0.0251(0.0001)	233(11)	164(1)	160(1)	103
NJ-D-45	423	68	69	0.99	0.1167(0.0002)	5.2114(0.0239)	0.3240(0.0015)	1905(4)	1854(4)	1809(7)	105
NJ-D-46	60	109	131	0.83	0.0511(0.0003)	0.2229(0.0017)	0.0316(0.0002)	256(15)	204(1)	201(1)	102
NJ-D-47	36	53	44	1.19	0.0528(0.0006)	0.3234(0.0036)	0.0445(0.0003)	320(24)	284(3)	281(2)	101
NI-D-48	29	61	79	0.76	0.0532(0.0006)	0.2903(0.0030)	0.0396(0.0002)	339(19)	259(2)	250(1)	103
NJ-D-49	3	0	12	0.95	0.0512(0.0012)	0.2311(0.0063)	0.0328(0.0005)	256(54)	211(5)	208(3)	102
NJ-D-50	18	31	49	0.63	0.0546(0.0006)	0.3346(0.0035)	0.0445(0.0003)	398(24)	293(3)	281(2)	104
NJ-D-51	206	38	260	0.14	0.1067(0.0005)	4.3381(0.0787)	0.2947(0.0052)	1746(9)	1701(15)	1665(26)	105
NJ-D-52	54	243	455	0.53	0.0498(0.0006)	0.1089(0.0013)	0.0159(0.0002)	187(26)	105(1)	101(1)	103
NJ-D-53	23	7	10	0.75	0.0584(0.0026)	0.3823(0.0161)	0.0479(0.0013)	543(97)	329(12)	302(8)	109
NJ-D-54	63	127	78	1.62	0.0503(0.0012)	0.1999(0.0044)	0.0289(0.0004)	209(54)	185(4)	184(2)	101
NJ-D-55	80	81	106	0.76	0.0537(0.0003)	0.3279(0.0034)	0.0443(0.0004)	361(13)	288(3)	279(3)	103
NJ-D-56	106	237	224	1.05	0.0506(0.0003)	0.1526(0.0012)	0.0219(0.0002)	233(15)	144(1)	140(1)	103
NJ-D-57	39	47	38	1.22	0.0528(0.0006)	0.2287(0.0030)	0.0316(0.0003)	320(23)	209(3)	200(2)	104
NJ-D-58	53	47	38	1.22	0.0810(0.0017)	0.4130(0.0081)	0.0372(0.0004)	1220(37)	351(6)	235(2)	149
NJ-D-59	37834	63	131	0.48	0.1120(0.0003)	5.0017(0.0489)	0.3242(0.0034)	1832(4)	1820(8)	1810(17)	101
NJ-D-60	85	28	51	0.53	0.1343(0.0052)	0.8693(0.0475)	0.0464(0.0013)	2155(68)	635(26)	292(8)	217
NJ-D-61	139	497	989	0.50	0.0493(0.0003)	0.0908(0.0011)	0.0134(0.0002)	161(15)	88(1)	86(1)	103
NJ-D-62	8	29	20	1.47	0.0491(0.0021)	0.1251(0.0048)	0.0187(0.0004)	154(100)	120(4)	120(3)	100
NJ-D-63	122	171	59	2.91	0.0557(0.0008)	0.2844(0.0048)	0.0372(0.0006)	439(34)	254(4)	235(4)	108
NJ-D-64	46	91	67	1.35	0.0499(0.0005)	0.1373(0.0019)	0.0200(0.0002)	191(26)	131(2)	128(1)	102
NJ-D-65	37	63	70	0.89	0.0510(0.0005)	0.1763(0.0021)	0.0251(0.0002)	243(22)	165(2)	160(2)	103
NJ-D-66	67	179	211	0.84	0.0505(0.0004)	0.1396(0.0016)	0.0201(0.0002)	217(12)	133(1)	128(1)	103
NJ-D-67	136	142	56	2.52	0.0554(0.0009)	0.4134(0.0106)	0.0542(0.0013)	428(33)	351(8)	340(8)	103
NJ-D-68	49	69	52	1.33	0.0542(0.0005)	0.2944(0.0039)	0.0395(0.0005)	389(19)	262(3)	250(3)	105
NJ-D-69	826	195	117	1.65	0.1117(0.0004)	4.3492(0.0617)	0.2825(0.0043)	1828(7)	1703(12)	1604(21)	114
NI-D-70	45	114	136	0.83	0.0564(0.0005)	0.1563(0.0020)	0.0201(0.0002)	478(16)	147(2)	128(1)	115
NJ-D-71	112	311	291	1.06	0.0507(0.0003)	0.1401(0.0015)	0.0201(0.0002)	228(13)	133(1)	128(1)	104
NJ-D-72	29	58	60	0.96	0.0492(0.0008)	0.1356(0.0033)	0.0200(0.0003)	167(41)	129(3)	128(2)	101
NJ-D-73	25	50	25	1.96	0.0499(0.0019)	0.1145(0.0033)	0.0171(0.0003)	191(89)	110(3)	110(2)	100
NJ-D-74	18	25	18	1.41	0.0547(0.0015)	0.3356(0.0125)	0.0445(0.0011)	398(58)	294(10)	281(7)	105
NJ-D-75	47	110	100	1.09	0.0498(0.0005)	0.1380(0.0019)	0.0201(0.0002)	183(22)	131(2)	129(1)	102
NJ-D-76	21	48	32	1.51	0.0518(0.0013)	0.2352(0.0073)	0.0332(0.0009)	276(64)	214(6)	210(6)	102
NJ-D-77	327	38	33	1.16	0.1938(0.0007)	13.6144(0.2343)	0.5091(0.0084)	2776(6)	2723(16)	2653(36)	105
NJ-D-78	17	32	23	1.40	0.0498(0.0010)	0.1633(0.0034)	0.0241(0.0004)	183(16)	154(3)	153(2)	100
NJ-D-79	14	15	13	1.09	0.0582(0.0024)	0.2359(0.0088)	0.0301(0.0009)	600(95)	215(7)	191(5)	112
NJ-D-80	131	146	124	1.17	0.0542(0.0008)	0.3368(0.0177)	0.0449(0.0021)	389(35)	295(13)	283(13)	104
NJ-D-81	32	64	147	0.44	0.0530(0.0013)	0.1759(0.0073)	0.0240(0.0007)	332(54)	165(6)	153(4)	108
NJ-D-82	29	55	39	1.42	0.0499(0.0009)	0.1488(0.0029)	0.0218(0.0003)	187(43)	141(3)	139(2)	101
NJ-D-83	41	123	47	2.58	0.0483(0.0010)	0.1236(0.0034)	0.0187(0.0004)	122(50)	118(3)	119(2)	99
NJ-D-84	91	150	133	1.12	0.0511(0.0006)	0.1947(0.0043)	0.0276(0.0005)	256(26)	181(4)	175(3)	103
NJ-D-85	74	179	151	1.17	0.0498(0.0004)	0.1375(0.0020)	0.0201(0.0003)	183(23)	131(2)	128(2)	102
NJ-D-86	73	178	225	0.79	0.0498(0.0003)	0.1497(0.0019)	0.0218(0.0002)	183(13)	142(2)	139(2)	102
NJ-D-87	157	189	281	0.67	0.0558(0.0018)	0.2866(0.0240)	0.0374(0.0034)	456(72)	256(19)	237(21)	108
NJ-D-88	27	37	44	0.84	0.0486(0.0008)	0.1123(0.0023)	0.0168(0.0002)	128(41)	108(2)	108(1)	101
NJ-D-89	88	151	116	1.29	0.0491(0.0006)	0.1695(0.0032)	0.0251(0.0005)	154(32)	159(3)	160(3)	99
NJ-D-90	737	99	156	0.63	0.1451(0.0005)	8.3586(0.1320)	0.4187(0.0073)	2300(6)	2271(14)	2254(33)	102
NJ-D-91	74	180	186	0.96	0.0499(0.0004)	0.1376(0.0017)	0.0200(0.0002)	191(19)	131(2)	128(1)	102
NJ-D-92	58	136	74	1.81	0.0494(0.0007)	0.1052(0.0018)	0.0155(0.0002)	169(1)	102(2)	99(1)	102
NJ-D-93	272	738	381	1.92	0.0504(0.0004)	0.1390(0.0021)	0.0201(0.0003)	213(17)	132(2)	128(2)	103
NJ-D-94	174	28	26	1.07	0.1192(0.0011)	5.3258(0.1192)	0.3244(0.0074)	1946(16)	1873(18)	1811(36)	107
NJ-D-95	81	110	89	1.23	0.0543(0.0006)	0.3306(0.0065)	0.0443(0.0008)	389(19)	290(5)	279(5)	104
NJ-D-96	25	28	32	0.89	0.0510(0.0008)	0.2504(0.0049)	0.0356(0.0005)	243(35)	227(4)	225(3)	101
NJ-D-97	29	59	45	1.29	0.0510(0.0008)	0.1675(0.0031)	0.0239(0.0003)	243(37)	157(3)	152(2)	103
NJ-D-98	229	50	33	1.48	0.1150(0.0008)	5.0313(0.1116)	0.3177(0.0073)	1881(12)	1825(19)	1778(36)	106
NJ-D-99	699	144	134	1.06	0.1681(0.0010)	7.3363(0.1740)	0.3179(0.0084)	2539(10)	2153(21)	1779(41)	143
NJ-D-100	37	136	124	1.09	0.0498(0.0004)	0.1280(0.0016)	0.0186(0.0002)	187(19)	122(1)	119(1)	103

图2 碎屑锆石CL图像(样品NJ-D) (红色为U-Pb分析点,蓝色为Hf分析点;白色数字为年龄,单位Ma)

Fig.2 CL images of detrital zircons (sample NJ-D)

图3 嫩江河漫滩沉积物碎屑锆石U-Pb年龄谐和图

Fig.3 U-Pb ages concordia of detrital zircons from the Nenjiang River floodplain sediments

图4 嫩江河漫滩沉积物碎屑锆石U-Pb年龄分布直方图与概率密度曲线

Fig.4 Histogram and probability density plot for detrital zircon U-Pb ages of the Nenjiang River floodplain sediments

表2 嫩江碎屑锆石Lu-Hf同位素组成

Table 2 Detrital zircon Lu-Hf isotope compositions of the Nenjiang River sediments

测点号	锆石年龄(Ma)	¹⁷⁶Yb/¹⁷⁷Hf(2σ)	¹⁷⁶Lu/¹⁷⁷Hf(2σ)	¹⁷⁶Hf/¹⁷⁷Hf(2σ)	ε_Hf(t)	$T D M C$ (Ma)
NJ-07	118	0.032730(0.000419)	0.000718(0.000007)	0.282828(0.000020)	4.50	885
NJ-10	117	0.157368(0.001319)	0.003479(0.000035)	0.282855(0.000032)	5.26	823
NJ-16	116	0.053218(0.000247)	0.000904(0.000003)	0.282785(0.000030)	2.95	982
NJ-18	116	0.075926(0.000331)	0.001343(0.000006)	0.282889(0.000035)	6.58	748
NJ-19	115	0.051674(0.001128)	0.000892(0.000025)	0.282862(0.000025)	5.65	809
NJ-23	119	0.065877(0.000506)	0.001406(0.000017)	0.282960(0.000024)	9.16	585
NJ-25	113	0.143935(0.002974)	0.002497(0.000038)	0.282896(0.000032)	6.69	733
NJ-27	117	0.090761(0.001463)	0.001937(0.000020)	0.282882(0.000026)	6.29	764
NJ-28	120	0.033992(0.000417)	0.000750(0.000006)	0.282885(0.000021)	6.58	754
NJ-29	120	0.068680(0.001215)	0.001413(0.000026)	0.282875(0.000024)	6.16	778
NJ-30	115	0.061531(0.001064)	0.001318(0.000015)	0.282900(0.000031)	6.95	724
NJ-31	119	0.081627(0.000883)	0.001714(0.000013)	0.282961(0.000025)	9.16	583
NJ-33	120	0.030676(0.000100)	0.000698(0.000002)	0.282898(0.000022)	7.04	725
NJ-35	118	0.118465(0.000762)	0.002514(0.000022)	0.282899(0.000025)	6.89	724
NJ-37	339	0.042523(0.000774)	0.000878(0.000015)	0.282756(0.000024)	6.69	908
NJ-41	120	0.074821(0.001057)	0.001402(0.000014)	0.282844(0.000019)	5.08	846
NJ-43	116	0.056838(0.001075)	0.001436(0.000041)	0.282818(0.000020)	4.06	909
NJ-45	121	0.072733(0.000633)	0.001709(0.000013)	0.282835(0.000020)	4.73	867
NJ-55	718	0.088233(0.000233)	0.001913(0.000010)	0.282405(0.000022)	1.93	1462
NJ-56	120	0.075837(0.001041)	0.001818(0.000018)	0.282759(0.000024)	2.02	1039
NJ-59	121	0.097512(0.000409)	0.001790(0.000013)	0.283010(0.000025)	10.93	470
NJ-64	118	0.039363(0.000545)	0.000949(0.000016)	0.282849(0.000025)	5.23	838
NJ-65	121	0.067336(0.000460)	0.001583(0.000015)	0.282847(0.000019)	5.18	840
NJ-71	119	0.509304(0.001425)	0.009209(0.000126)	0.283196(0.000036)	16.89	46
NJ-76	119	0.106907(0.001521)	0.002821(0.000036)	0.282883(0.000019)	6.31	760
NJ-80	118	0.083004(0.001039)	0.001708(0.000019)	0.282979(0.000017)	9.77	543
NJ-83	118	0.358390(0.009002)	0.007780(0.000237)	0.283213(0.000035)	17.59	8
NJ-84	119	0.066329(0.000372)	0.001496(0.000015)	0.282972(0.000026)	9.57	558
NJ-86	120	0.075673(0.000228)	0.001741(0.000005)	0.282938(0.000020)	8.34	636
NJ-87	208	0.025012(0.000902)	0.000553(0.000020)	0.282892(0.000022)	8.72	684
NJ-88	119	0.071376(0.001073)	0.001615(0.000027)	0.282890(0.000030)	6.64	745
NJ-D-05	126	0.071416(0.000619)	0.001224(0.000013)	0.282911(0.000031)	7.59	691
NJ-D-07	494	0.046082(0.000294)	0.000856(0.000002)	0.282431(0.000020)	-1.48	1544
NJ-D-11	128	0.101078(0.001022)	0.001739(0.000012)	0.282978(0.000024)	9.95	538
NJ-D-13	119	0.095065(0.000314)	0.001779(0.000014)	0.283016(0.000028)	11.08	459
NJ-D-18	128	0.133382(0.000478)	0.002195(0.000007)	0.282916(0.000033)	7.71	680
NJ-D-20	316	0.065044(0.000369)	0.001067(0.000002)	0.282865(0.000026)	10.00	676
NJ-D-24	159	0.062205(0.000380)	0.001101(0.000008)	0.282970(0.000029)	10.35	539
NJ-D-30	1902	0.062508(0.000401)	0.001037(0.000002)	0.281381(0.000022)	-8.17	2993
NJ-D-33	128	0.057320(0.008539)	0.000987(0.000003)	0.283000(0.000037)	10.80	488
NJ-D-35	185	0.382157(0.008539)	0.006773(0.000102)	0.283264(0.000041)	20.65	153
NJ-D-37	119	0.070128(0.000205)	0.001164(0.000001)	0.282901(0.000035)	7.06	720
NJ-D-42	139	0.040356(0.000040)	0.000676(0.000001)	0.282869(0.000022)	6.44	778
NJ-D-48	250	0.030679(0.000188)	0.000585(0.000003)	0.282425(0.000026)	-6.87	1707
NJ-D-49	208	0.046690(0.000079)	0.000837(0.000003)	0.282825(0.000034)	6.32	835
NJ-D-50	281	0.069303(0.000217)	0.001174(0.000005)	0.282933(0.000031)	11.66	543
NJ-D-51	1746	0.004890(0.000215)	0.000084(0.000004)	0.281542(0.000021)	-4.76	2735
NJ-D-54	184	0.136684(0.004217)	0.002539(0.000073)	0.282930(0.000033)	9.31	613
NJ-D-59	1832	0.020238(0.000584)	0.000341(0.000009)	0.281442(0.000022)	-6.67	2901
NJ-D-61	86	0.124682(0.000922)	0.002141(0.000008)	0.282940(0.000025)	7.69	652
NJ-D-62	120	0.058337(0.000474)	0.001071)(0.000005)	0.282805(0.000033)	3.71	935
NJ-D-65	160	0.035812(0.000150)	0.000632(0.000001)	0.282912(0.000031)	8.40	668
NJ-D-73	110	0.105028(0.000608)	0.001750(0.000001)	0.282967(0.000041)	9.17	575
NJ-D-75	129	0.030787(0.000283)	0.000508(0.000002)	0.282773(0.000029)	2.81	1002
NJ-D-78	153	0.019994(0.000561)	0.000353(0.000008)	0.282556(0.000026)	-4.31	1473
NJ-D-80	283	0.176350(0.008070)	0.002866(0.000129)	0.282927(0.000048)	11.16	557
NJ-D-83	119	0.230327(0.001490)	0.003440(0.000031)	0.282922(0.000042)	7.65	671
NJ-D-85	128	0.030803(0.000456)	0.000480(0.000005)	0.282812(0.000029)	4.18	915
NJ-D-88	108	0.137407(0.000753)	0.002160(0.000011)	0.283038(0.000039)	11.63	414
NJ-D-89	160	0.129446(0.000771)	0.002033(0.000017)	0.282941(0.000028)	9.26	603
NJ-D-90	2300	0.049999(0.001285)	0.000795(0.000017)	0.281366(0.000023)	0.50	2754
NJ-D-96	225	0.031706(0.000325)	0.000475(0.000002)	0.282933(0.000025)	10.56	580

表2 嫩江碎屑锆石Lu-Hf同位素组成

Table 2 Detrital zircon Lu-Hf isotope compositions of the Nenjiang River sediments

测点号	锆石年龄(Ma)	¹⁷⁶Yb/¹⁷⁷Hf(2σ)	¹⁷⁶Lu/¹⁷⁷Hf(2σ)	¹⁷⁶Hf/¹⁷⁷Hf(2σ)	ε_Hf(t)	$T D M C$ (Ma)
NJ-07	118	0.032730(0.000419)	0.000718(0.000007)	0.282828(0.000020)	4.50	885
NJ-10	117	0.157368(0.001319)	0.003479(0.000035)	0.282855(0.000032)	5.26	823
NJ-16	116	0.053218(0.000247)	0.000904(0.000003)	0.282785(0.000030)	2.95	982
NJ-18	116	0.075926(0.000331)	0.001343(0.000006)	0.282889(0.000035)	6.58	748
NJ-19	115	0.051674(0.001128)	0.000892(0.000025)	0.282862(0.000025)	5.65	809
NJ-23	119	0.065877(0.000506)	0.001406(0.000017)	0.282960(0.000024)	9.16	585
NJ-25	113	0.143935(0.002974)	0.002497(0.000038)	0.282896(0.000032)	6.69	733
NJ-27	117	0.090761(0.001463)	0.001937(0.000020)	0.282882(0.000026)	6.29	764
NJ-28	120	0.033992(0.000417)	0.000750(0.000006)	0.282885(0.000021)	6.58	754
NJ-29	120	0.068680(0.001215)	0.001413(0.000026)	0.282875(0.000024)	6.16	778
NJ-30	115	0.061531(0.001064)	0.001318(0.000015)	0.282900(0.000031)	6.95	724
NJ-31	119	0.081627(0.000883)	0.001714(0.000013)	0.282961(0.000025)	9.16	583
NJ-33	120	0.030676(0.000100)	0.000698(0.000002)	0.282898(0.000022)	7.04	725
NJ-35	118	0.118465(0.000762)	0.002514(0.000022)	0.282899(0.000025)	6.89	724
NJ-37	339	0.042523(0.000774)	0.000878(0.000015)	0.282756(0.000024)	6.69	908
NJ-41	120	0.074821(0.001057)	0.001402(0.000014)	0.282844(0.000019)	5.08	846
NJ-43	116	0.056838(0.001075)	0.001436(0.000041)	0.282818(0.000020)	4.06	909
NJ-45	121	0.072733(0.000633)	0.001709(0.000013)	0.282835(0.000020)	4.73	867
NJ-55	718	0.088233(0.000233)	0.001913(0.000010)	0.282405(0.000022)	1.93	1462
NJ-56	120	0.075837(0.001041)	0.001818(0.000018)	0.282759(0.000024)	2.02	1039
NJ-59	121	0.097512(0.000409)	0.001790(0.000013)	0.283010(0.000025)	10.93	470
NJ-64	118	0.039363(0.000545)	0.000949(0.000016)	0.282849(0.000025)	5.23	838
NJ-65	121	0.067336(0.000460)	0.001583(0.000015)	0.282847(0.000019)	5.18	840
NJ-71	119	0.509304(0.001425)	0.009209(0.000126)	0.283196(0.000036)	16.89	46
NJ-76	119	0.106907(0.001521)	0.002821(0.000036)	0.282883(0.000019)	6.31	760
NJ-80	118	0.083004(0.001039)	0.001708(0.000019)	0.282979(0.000017)	9.77	543
NJ-83	118	0.358390(0.009002)	0.007780(0.000237)	0.283213(0.000035)	17.59	8
NJ-84	119	0.066329(0.000372)	0.001496(0.000015)	0.282972(0.000026)	9.57	558
NJ-86	120	0.075673(0.000228)	0.001741(0.000005)	0.282938(0.000020)	8.34	636
NJ-87	208	0.025012(0.000902)	0.000553(0.000020)	0.282892(0.000022)	8.72	684
NJ-88	119	0.071376(0.001073)	0.001615(0.000027)	0.282890(0.000030)	6.64	745
NJ-D-05	126	0.071416(0.000619)	0.001224(0.000013)	0.282911(0.000031)	7.59	691
NJ-D-07	494	0.046082(0.000294)	0.000856(0.000002)	0.282431(0.000020)	-1.48	1544
NJ-D-11	128	0.101078(0.001022)	0.001739(0.000012)	0.282978(0.000024)	9.95	538
NJ-D-13	119	0.095065(0.000314)	0.001779(0.000014)	0.283016(0.000028)	11.08	459
NJ-D-18	128	0.133382(0.000478)	0.002195(0.000007)	0.282916(0.000033)	7.71	680
NJ-D-20	316	0.065044(0.000369)	0.001067(0.000002)	0.282865(0.000026)	10.00	676
NJ-D-24	159	0.062205(0.000380)	0.001101(0.000008)	0.282970(0.000029)	10.35	539
NJ-D-30	1902	0.062508(0.000401)	0.001037(0.000002)	0.281381(0.000022)	-8.17	2993
NJ-D-33	128	0.057320(0.008539)	0.000987(0.000003)	0.283000(0.000037)	10.80	488
NJ-D-35	185	0.382157(0.008539)	0.006773(0.000102)	0.283264(0.000041)	20.65	153
NJ-D-37	119	0.070128(0.000205)	0.001164(0.000001)	0.282901(0.000035)	7.06	720
NJ-D-42	139	0.040356(0.000040)	0.000676(0.000001)	0.282869(0.000022)	6.44	778
NJ-D-48	250	0.030679(0.000188)	0.000585(0.000003)	0.282425(0.000026)	-6.87	1707
NJ-D-49	208	0.046690(0.000079)	0.000837(0.000003)	0.282825(0.000034)	6.32	835
NJ-D-50	281	0.069303(0.000217)	0.001174(0.000005)	0.282933(0.000031)	11.66	543
NJ-D-51	1746	0.004890(0.000215)	0.000084(0.000004)	0.281542(0.000021)	-4.76	2735
NJ-D-54	184	0.136684(0.004217)	0.002539(0.000073)	0.282930(0.000033)	9.31	613
NJ-D-59	1832	0.020238(0.000584)	0.000341(0.000009)	0.281442(0.000022)	-6.67	2901
NJ-D-61	86	0.124682(0.000922)	0.002141(0.000008)	0.282940(0.000025)	7.69	652
NJ-D-62	120	0.058337(0.000474)	0.001071)(0.000005)	0.282805(0.000033)	3.71	935
NJ-D-65	160	0.035812(0.000150)	0.000632(0.000001)	0.282912(0.000031)	8.40	668
NJ-D-73	110	0.105028(0.000608)	0.001750(0.000001)	0.282967(0.000041)	9.17	575
NJ-D-75	129	0.030787(0.000283)	0.000508(0.000002)	0.282773(0.000029)	2.81	1002
NJ-D-78	153	0.019994(0.000561)	0.000353(0.000008)	0.282556(0.000026)	-4.31	1473
NJ-D-80	283	0.176350(0.008070)	0.002866(0.000129)	0.282927(0.000048)	11.16	557
NJ-D-83	119	0.230327(0.001490)	0.003440(0.000031)	0.282922(0.000042)	7.65	671
NJ-D-85	128	0.030803(0.000456)	0.000480(0.000005)	0.282812(0.000029)	4.18	915
NJ-D-88	108	0.137407(0.000753)	0.002160(0.000011)	0.283038(0.000039)	11.63	414
NJ-D-89	160	0.129446(0.000771)	0.002033(0.000017)	0.282941(0.000028)	9.26	603
NJ-D-90	2300	0.049999(0.001285)	0.000795(0.000017)	0.281366(0.000023)	0.50	2754
NJ-D-96	225	0.031706(0.000325)	0.000475(0.000002)	0.282933(0.000025)	10.56	580

图5 嫩江河漫滩沉积物碎屑锆石εHf(t)-年龄关系图 DM.亏损地幔;CHUR. 球粒陨石

Fig.5 Detrital zircon εHf(t) vs U-Pb age plot for the Nenjiang River floodplain sediments

图6 嫩江河漫滩沉积物碎屑锆石Hf亏损地幔模式年龄分布直方图

Fig.6 Histogram of detrital zircon Hf model ages of the Nenjiang River floodplain sediments

图7 嫩江河漫滩沉积物物源对比图

Fig.7 Provenance comparison plots for the Nenjiang River floodplain sediments

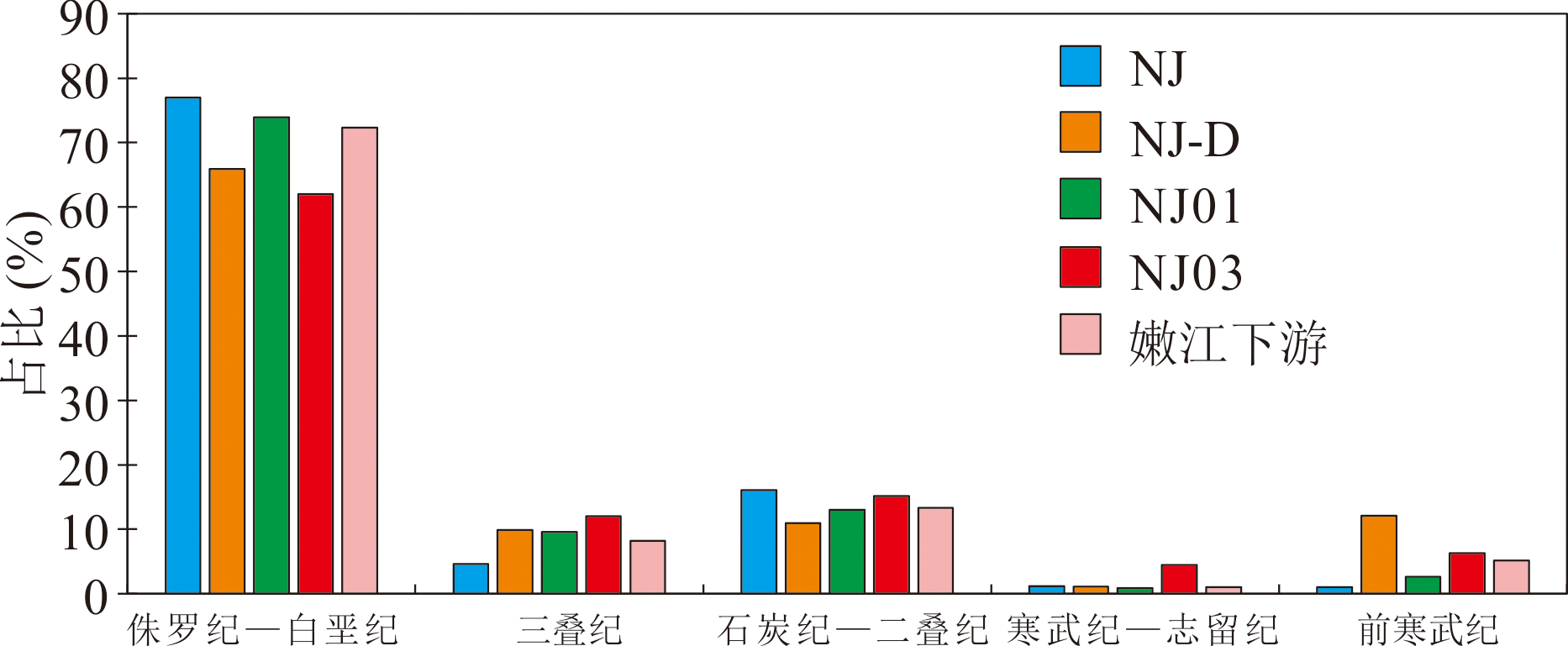

图8 嫩江沉积物不同时代碎屑锆石U-Pb年龄分布 (嫩江下游由NJ、NJ-D和NJ01组成)

Fig.8 Detrital zircon U-Pb age statistics for the Nenjiang River sediments of different periods

图9 嫩江河漫滩沉积物碎屑锆石U-Pb年龄与Hf亏损地幔模式年龄累积概率曲线

Fig.9 Cumulative probability curves for detrital zircon U-Pb age and Hf model age of the Nenjiang River floodplain sediments

图10 嫩江河漫滩沉积物源区地壳各时段重熔率

Fig.10 Remelting rate for each period of the Nenjiang River floodplain sediment source region

参考文献 89

[1]	XIAO W, SONG D, WINDLEY B F, et al. Accretionary processes and metallogenesis of the Central Asian Orogenic Belt: Advances and perspectives[J]. Science China Earth Sciences, 2020, 63(3): 329-361. DOI
[2]	KHAIN E V, BIBIKOVA E V, KRÖNER A, et al. The most ancient ophiolite of the Central Asian fold belt: U-Pb and Pb-Pb zircon ages for the Dunzhugur Complex, Eastern Sayan, Siberia, and geodynamic implications[J]. Earth and Planetary Science Letters, 2002, 199(3/4): 311-325. DOI URL
[3]	李锦轶, 张进, 杨天南, 等. 北亚造山区南部及其毗邻地区地壳构造分区与构造演化[J]. 吉林大学学报(地球科学版), 2009, 39(4): 584-605.
[4]	刘永江, 冯志强, 蒋立伟, 等. 中国东北地区蛇绿岩[J]. 岩石学报, 2019, 35(10): 3017-3047.
[5]	许文良, 王枫, 孟恩, 等. 黑龙江省东部古生代—早中生代的构造演化:火成岩组合与碎屑锆石U-Pb年代学证据[J]. 吉林大学学报(地球科学版), 2012, 42(5): 1378-1389.
[6]	王成文, 孙跃武, 李宁, 等. 中国东北及邻区晚古生代地层分布规律的大地构造意义[J]. 中国科学D辑, 2009, 39(10): 1429-1437.
[7]	OUYANG H, MAO J, SANTOSH M, et al. Geodynamic setting of Mesozoic magmatism in NE China and surrounding regions: Perspectives from spatio-temporal distribution patterns of ore deposits[J]. Journal of Asian Earth Sciences, 2013, 78: 222-236. DOI URL
[8]	葛茂卉, 张进江, 刘恺, 等. 黑龙江杂岩中蓝片岩的地球化学特征和云母片岩的⁴⁰Ar-³⁹Ar年龄对佳木斯地块晚古生代至中生代构造演化的制约[J]. 地质科学, 2020, 55(4): 1179-1201.
[9]	包创, 陈岳龙, 步小飞, 等. 云南怒江河流沉积物碎屑锆石LA-ICP-MS U-Pb年龄和Hf同位素组成及其地质意义[J]. 地质通报, 2015, 34(8): 1413-1425.
[10]	DUCEA M N, GIOSAN L, CARTER A, et al. U-Pb Detrital zircon geochronology of the lower Danube and its tributaries: Implications for the geology of the carpathians[J]. Geochemistry, Geophysics, Geosystems, 2018, 19(9): 3208-3223. DOI URL
[11]	佘宏全, 李进文, 向安平, 等. 大兴安岭中北段原岩锆石U-Pb测年及其与区域构造演化关系[J]. 岩石学报, 2012, 28(2): 571-594.
[12]	SAYLOR J E, KNOWLES J N, HORTON B K, et al. Mixing of source populations recorded in detrital zircon U-Pb age spectra of modern river sands[J]. Journal of Geology, 2013(1): 17-33.
[13]	BAO C, CHEN Y, GUO R, et al. Growth rate of continental crust in the northeast margin of the North China Craton: Constraints from the U-Pb dating and Lu-Hf isotopes of detrital zircons from the Laoha River[J]. Geochemical Journal, 2013, 47(5): 547-565. DOI URL
[14]	陈岳龙, 李大鹏, 包创, 等. 碎屑沉积岩/沉积物Sm-Nd、U-Pb与Hf同位素的化学地球动力学意义[J]. 中国地质, 2016, 43(4):1200-1215.
[15]	IIZUKA T, KOMIYA T, RINO S, et al. Detrital zircon evidence for Hf isotopic evolution of granitoid crust and continental growth[J]. Geochimica et Cosmochimica Acta, 2010, 74(8): 2450-2472. DOI URL
[16]	陈岳龙, 李大鹏, 刘长征, 等. 大兴安岭的形成与演化历史:来自河漫滩沉积物地球化学及其碎屑锆石U-Pb年龄、Hf同位素组成的证据[J]. 地质学报, 2014, 88(1): 1-14.
[17]	李兆, 陈岳龙, 刘长征, 等. 北祁连的形成与演化历史:来自河流沉积物地球化学及其碎屑锆石U-Pb年龄、Hf同位素组成的证据[J]. 地质学报, 2016, 90(2): 267-283.
[18]	高志勇, 石雨昕, 毛治国, 等. 河流沉积学研究热点与进展——第11届国际河流沉积学大会综述[J]. 沉积学报, 2017, 35(6):1097-1109.
[19]	张梅生, 彭向东, 孙晓猛. 中国东北区古生代构造古地理格局[J]. 辽宁地质, 1998(2): 12-17.
[20]	张兴洲, 杨宝俊, 吴福元, 等. 中国兴蒙—吉黑地区岩石圈结构基本特征[J]. 中国地质, 2006, 33(4): 816-823.
[21]	赵芝, 迟效国, 刘建峰, 等. 内蒙古牙克石地区晚古生代弧岩浆岩:年代学及地球化学证据[J]. 岩石学报, 2010, 26(11): 3245-3258.
[22]	王五力, 李永飞, 郭胜哲. 中国东北地块群及其构造演化[J]. 地质与资源, 2014, 23(1): 4-24.
[23]	徐备, 赵盼, 鲍庆中, 等. 兴蒙造山带前中生代构造单元划分初探[J]. 岩石学报, 2014, 30(7): 1841-1857.
[24]	李锦轶, 刘建峰, 曲军峰, 等. 中国东北地区古生代构造单元:地块还是造山带?[J]. 地球科学, 2019, 44(10): 3157-3177.
[25]	SUN Y, LI B, SUN F, et al. Geochronology, geochemistry, and Hf isotopic compositions of early Permian syenogranite and diabase from the northern Great Xing’an Range, northeastern China: petrogenesis and tectonic implications[J]. Canadian Journal of Earth Sciences, 2020, 57(12): 1478-1491. DOI URL
[26]	FENG Z, LI W, LIU Y, et al. Early Carboniferous tectonic evolution of the northern Heihe-Nenjiang-Hegenshan suture zone, NE China: Constraints from the mylonitized Nenjiang rhyolites and the Moguqi gabbros[J]. Geological Journal, 2018, 53(3): 1005-1021. DOI URL
[27]	WU F Y, SUN D S, GE W C, et al. Geochronology of the Phanerozoic granitoids in northeastern China[J]. Journal of Asian Earth Sciences, 2011, 41(1): 1-30. DOI URL
[28]	李伟民, 刘永江, 赵英利, 等. 佳木斯地块构造演化[J]. 岩石学报, 2020, 36(3): 665-684.
[29]	许文良, 孙晨阳, 唐杰, 等. 兴蒙造山带的基底属性与构造演化过程[J]. 地球科学, 2019, 44(5): 1620-1646.
[30]	许文良, 王枫, 裴福萍, 等. 中国东北中生代构造体制与区域成矿背景:来自中生代火山岩组合时空变化的制约[J]. 岩石学报, 2013, 29(2): 339-353.
[31]	王善辉. 嫩江河漫滩碎屑锆石U-Pb年代学和Hf同位素分析及其地球化学意义[D]. 北京: 中国地质大学(北京), 2013.
[32]	李明. 中国东北现代河流碎屑锆石U-Pb年代学和Hf同位素研究及大陆生长与演化[D]. 武汉: 中国地质大学(武汉), 2010.
[33]	黑龙江省地质矿产局. 中华人民共和国地质矿产部地质专报1区域地质第33号黑龙江省区域地质志[M]. 北京: 地质出版社, 1993: 736.
[34]	内蒙古自治区地质矿产局. 中华人民共和国地质矿产部地质专报1区域地质第25号内蒙古自治区区域地质志[M]. 北京: 地质出版社, 1991: 727.
[35]	苗来成, 范蔚茗, 张福勤, 等. 小兴安岭西北部新开岭—科洛杂岩锆石SHRIMP年代学研究及其意义[J]. 科学通报, 2003, 48(22): 2315-2323.
[36]	苗来成, 刘敦一, 张福勤, 等. 大兴安岭韩家园子和新林地区兴华渡口群和扎兰屯群锆石SHRIMP U-Pb年龄[J]. 科学通报, 2007, 52(5): 591-601.
[37]	吴福元. 松辽盆地基底岩石的锆石U-Pb年龄[J]. 科学通报, 2000, 45(6): 656-660.
[38]	孙巍, 迟效国, 宋维民, 等. 对兴安地块前寒武纪变质基底的质疑——来自大兴安岭地区“前寒武纪”变质岩系锆石LA-ICP-MS U-Pb年代学证据[J]. 地质论评, 2017, 63(S1):293-294.
[39]	SUN W, CHI X G, ZHAO Z, et al. Zircon geochronology constraints on the age and nature of ‘Precambrian metamorphic rocks’ in the Xing’an block of Northeast China[J]. International Geology Review, 2014, 56(6): 672-694. DOI URL
[40]	HAN G, LIU Y, NEUBAUER F, et al. U-Pb age and Hf isotopic data of detrital zircons from the Devonian and Carboniferous sandstones in Yimin area, NE China: new evidences to the collision timing between the Xing’an and Erguna blocks in eastern segment of Central Asian Orogenic Belt[J]. Journal of Asian Earth Sciences, 2015, 97: 211-228. DOI URL
[41]	LIU Y J, LI W M, FENG Z Q, et al. A review of the Paleozoic tectonics in the eastern part of Central Asian Orogenic Belt[J]. Gondwana Research, 2017, 43: 123-148. DOI URL
[42]	ZHAO P, XU B, ZHANG C H. A rift system in southeastern Central Asian Orogenic Belt: Constraint from sedimentological, geochronological and geochemical investigations of the Late Carboniferous-Early Permian strata in northern Inner Mongolia (China)[J]. Gondwana Research, 2017, 47: 342-357. DOI URL
[43]	赵芝, 迟效国, 刘建峰, 等. 内蒙古牙克石地区晚古生代弧岩浆岩:年代学及地球化学证据[J]. 岩石学报, 2010, 26(11): 3245-3258.
[44]	LI Y, XU W L, TANG J, et al. Late Paleozoic igneous rocks in the Xing’an Massif and its amalgamation with the Songnen Massif, NE China[J]. Journal of Asian Earth Sciences, 2020, 197: 104407. DOI URL
[45]	MA Y F, LIU Y J, WANG Y, et al. Geochronology and geochemistry of the Carboniferous felsic rocks in the central Great Xing’an Range, NE China: Implications for the amalgamation history of Xing’an and Songliao-Xilinhot blocks[J]. Geological Journal, 2019, 54(1): 482-513. DOI URL
[46]	LI Y, XU W L, TANG J, et al. Late Paleozoic igneous rocks in the Xing’an Massif and its amalgamation with the Songnen Massif, NE China[J]. Journal of Asian Earth Sciences, 2020, 197: 104407. DOI URL
[47]	LI Y, XU W L, WANG F, et al. Geochronology and geochemistry of late Paleozoic volcanic rocks on the western margin of the Songnen-Zhangguangcai Range Massif, NE China: Implications for the amalgamation history of the Xing’an and Songnen-Zhangguangcai Range massifs[J]. Lithos, 2014, 205: 394-410. DOI URL
[48]	张超, 吴新伟, 刘永江, 等. 大兴安岭中段早二叠世A型花岗岩成因及对扎兰屯地区构造演化的制约[J]. 岩石学报, 2020, 36(4): 1091-1106.
[49]	XU G Z, DENG C Z, LI C L, et al. Petrogenesis of Late Carboniferous A-type granites and Early Cretaceous adakites of the Songnen Block, NE China: Implications for the geodynamic evolution of the Paleo-Asian and Paleo-Pacific oceans[J]. Lithos, 2020, 366: 105575.
[50]	隋振民, 葛文春, 徐学纯, 等. 大兴安岭十二站晚古生代后造山花岗岩的特征及其地质意义[J]. 岩石学报, 2009, 25(10): 2679-2686.
[51]	TANG J, XU W L, WANG F, et al. Geochronology and geochemistry of Early-Middle Triassic magmatism in the Erguna Massif, NE China: Constraints on the tectonic evolution of the Mongol-Okhotsk Ocean[J]. Lithos, 2014, 184: 1-16.
[52]	MI K F, LIU Z J, LIU R B, et al. U-Pb zircon, geochemical and Sr-Nd-Hf isotopic constraints on age and origin of the intrusions from Wunugetushan porphyry deposit, Northeast China: Implication for Triassic-Jurassic Cu-Mo mineralization in Mongolia-Erguna metallogenic belt[J]. International Geology Review, 2018, 60(4): 496-512. DOI URL
[53]	LI Y, XU W L, WANG F, et al. Geochronology and geochemistry of Late Paleozoic-Early Mesozoic igneous rocks of the Erguna Massif, NE China: Implications for the early evolution of the Mongol-Okhotsk tectonic regime[J]. Journal of Asian Earth Sciences, 2017, 144: 205-224. DOI URL
[54]	YANG J S, LÜ X B, GUN M S, et al. Early Mesozoic subduction of the Mongol-Okhotsk Ocean and its effect on the central Great Xing’an Range: Insights from the monzodiorite in the Erdaohe deposit[J]. Geological Journal, 2021, 56(3): 1604-1624. DOI URL
[55]	TANG Z Y, SUN D Y, GOU J, et al. Geochronology, petrogenesis, and tectonic setting of Late Triassic volcanic rocks of the Hadataolegai Formation, central Great Xing’an Range, Northeast China[J]. Island Arc, 2018, 27(5): e12260. DOI URL
[56]	XU J L, ZHENG C Q, SHI L, et al. Late Triassic adakite-like volcanic rocks in Moguqi area in the central Great Xing’an Range, NE China: implications for partial melting of delaminated thickened crust[J]. Geological Journal, 2018, 53(3): 820-834. DOI URL
[57]	孟凡超, 刘嘉麒, 崔岩, 等. 中国东北地区中生代构造体制的转变:来自火山岩时空分布与岩石组合的制约[J]. 岩石学报, 2014, 30(12): 3569-3586.
[58]	DONG Y, GE W C, YANG H, et al. Geochemical and SIMS U-Pb rutile and LA-ICP-MS U-Pb zircon geochronological evidence of the tectonic evolution of the Mudanjiang Ocean from amphibolites of the Heilongjiang Complex, NE China[J]. Gondwana Research, 2019, 69: 25-44. DOI URL
[59]	LONG X Y, XU W L, GUO P, et al. Opening and closure history of the Mudanjiang Ocean in the eastern Central Asian Orogenic Belt: Geochronological and geochemical constraints from early Mesozoic intrusive rocks[J]. Gondwana Research, 2020, 84: 111-130. DOI URL
[60]	GUO F, LI H X, FAN W M, et al. Early Jurassic subduction of the Paleo-Pacific Ocean in NE China: Petrologic and geochemical evidence from the Tumen mafic intrusive complex[J]. Lithos, 2015, 224: 46-60.
[61]	TANG J, XU W L, WANG F, et al. Early Mesozoic southward subduction history of the Mongol-Okhotsk oceanic plate: Evidence from geochronology and geochemistry of Early Mesozoic intrusive rocks in the Erguna Massif, NE China[J]. Gondwana Research, 2016, 31: 218-240. DOI URL
[62]	LI H N, HAN J, YIN Z G. Early Cretaceous arc-related volcanic rocks in the northern Great Xing’an Range, NE China: records of Paleo-Pacific ocean subduction[J]. International Journal of Earth Sciences, 2021, 110(4): 1233-1263. DOI
[63]	唐杰, 许文良, 王枫, 等. 古太平洋板块在欧亚大陆下的俯冲历史:东北亚陆缘中生代—古近纪岩浆记录[J]. 中国科学(地球科学), 2018, 48(5): 549-583.
[64]	ZHOU J B, WILDE S A, ZHAO G C, et al. Nature and assembly of microcontinental blocks within the Paleo-Asian Ocean[J]. Earth-Science Reviews, 2018, 186: 76-93. DOI URL
[65]	侯可军, 李延河, 田有荣. LA-MC-ICP-MS锆石微区原位U-Pb定年技术[J]. 矿床地质, 2009, 28(4): 481.
[66]	侯可军, 李延河, 邹天人, 等. LA-MC-ICP-MS锆石Hf同位素的分析方法及地质应用[J]. 岩石学报, 2007, 23(10): 2595-2604.
[67]	Ji Z, Zhang Y L, Wan C B, et al. Recycling of crustal materials and implications for lithospheric thinning: Evidence from Mesozoic volcanic rocks in the Hailar-Tamtsag Basin, NE China[J]. Geoscience Frontiers, 2021, 12(5): 101184. DOI URL
[68]	孙明道. 中国东北及邻区白垩纪岩浆活动与古太平洋板块俯冲的关系[J]. 矿物岩石地球化学通报, 2016, 35(6): 1090-1097.
[69]	GE W C, CHEN JS, YANG H, et al. Tectonic implications of new zircon U-Pb ages for the Xinghuadukou Complex, Erguna Massif, northern Great Xing’an Range, NE China[J]. Journal of Asian Earth Sciences, 2015, 106: 169-185. DOI URL
[70]	周建波, 王斌, 曾维顺, 等. 大兴安岭地区扎兰屯变质杂岩的碎屑锆石U-Pb年龄及其大地构造意义[J]. 岩石学报, 2014, 30(7): 1879-1888.
[71]	WU X W, ZHANG C, ZHANG Y J, et al. 2.7 Ga monzogranite on the Songnen massif and its geological Implications[J]. Acta Geologica Sinica, 2018, 92: 801-802. DOI URL
[72]	YIN Y K, GAO Y F, WANG P J, et al. Discovery of Triassic volcanic-sedimentary strata in the basement of Songliao Basin[J]. Science Bulletin, 2019, 64(10): 644-646. DOI PMID
[73]	高福红, 王磊, 许文良, 等. 小兴安岭“晚古生代”地层的时代与物源:地质与碎屑锆石U-Pb年代学证据[J]. 吉林大学学报(地球科学版), 2016, 46(2): 469-481.
[74]	杨福深, 高朋, 林泽付. 黑龙江小兴安岭—张广才岭地区元古宙地(岩)层特征及成岩时代[J]. 地质与资源, 2014, 23(6): 505-510.
[75]	FENG Z Q, ZHANG Q H, LIU Y J, et al. Reconstruction of Rodinia supercontinent: Evidence from the Erguna Block (NE China) and adjacent units in the eastern Central Asian orogenic Belt[J]. Precambrian Research, 2022, 368: 106467. DOI URL
[76]	SUN C Y, XU W L, CAWOOD P A, et al. Crustal growth and reworking: A case study from the Erguna Massif, eastern Central Asian Orogenic Belt[J]. Scientific Reports, 2019, 9(1): 17671. DOI PMID
[77]	ZHOU J B, WANG B, WILDE S A, et al. Geochemistry and U-Pb zircon dating of the Toudaoqiao blueschists in the Great Xing’an Range, northeast China, and tectonic implications[J]. Journal of Asian Earth Sciences, 2015, 97:197-210. DOI URL
[78]	XU B, ZHAO P, WANG Y Y, et al. The pre-Devonian tectonic framework of Xing’an-Mongolia orogenic belt (XMOB) in north China[J]. Journal of Asian Earth Sciences, 2015, 97: 183-196. DOI URL
[79]	TANG J, XU W L, WANG F, et al. Geochronology and geochemistry of Neoproterozoic magmatism in the Erguna Massif, NE China: Petrogenesis and implications for the breakup of the Rodinia supercontinent[J]. Precambrian Research, 2013, 224: 597-611. DOI URL
[80]	孙立新, 任邦方, 赵凤清, 等. 额尔古纳地块太平川巨斑状花岗岩的锆石U-Pb年龄和Hf同位素特征[J]. 地学前缘, 2012, 19(5): 114-122.
[81]	RUDNICK R L, GAO S, HOLLAND H D, et al. Composition of the continental crust[J]. The Crust, 2003, 3: 1-64.
[82]	张超, 吴新伟, 刘正宏, 等. 松嫩地块西缘前寒武岩浆事件——来自龙江地区古元古代花岗岩锆石LA-ICP-MS U-Pb年代学证据[J]. 岩石学报, 2018, 34(10): 3137-3152.
[83]	LI G Y, ZHOU J B, LI L, et al. Paleoproterozoic basement of the Xing’an Block in the eastern Central Asian Orogenic Belt: Evidence from the geochemistry and zircon U-Pb geochronology of granitic gneisses[J]. Precambrian Research, 2019, 331:105372. DOI URL
[84]	陈岳龙, 李大鹏, 刘长征, 等. 中亚造山带的形成与演化历史:来自锆石U-Pb年龄与Hf同位素及全岩Nd同位素组成的证据[J]. 地质学报, 2013, 87(增):374-376.
[85]	KANG H, CHEN Y L, LI D P, et al. Zircon U-Pb ages and Hf isotopic compositions of fluvial sediments from the Huangshui, Beichuan, and Xichuan rivers, Northwest China: Constraints on the formation and evolution history of the Central Qilian Block[J]. Geochemical Journal, 2018, 52(1): 37-57. DOI URL
[86]	VERVOORT J D, PATCHETT P J. Behavior of hafnium and neodymium isotopes in the crust: Constraints from Precambrian crustally derived granites[J]. Geochimica et Cosmochimica Acta, 1996, 60(19): 3717-3733. DOI URL
[87]	RUDNICK R L, FOUNTAIN D M. Nature and composition of the continental crust: A lower crustal perspective[J]. Reviews of Geophysics, 1995, 33(3): 267-309. DOI URL
[88]	SÖDERLUND U, PATCHETT P J, VERVOORT J D, et al. The decay constant of ¹⁷⁶Lu determined from Lu-Hf and U-Pb isotope systematics of terrestrial Precambrian high-temperature mafic intrusions[J]. Earth and Planetary Science Letters, 2004, 219: 311-324. DOI URL
[89]	GRIFFIN W L, PEARSON N J, BELOUSOVA E, et al. The Hf isotope composition of cratonic mantle: LAM-MC-ICP-MS analysis of zircon megacrysts in kimberlites[J]. Geochimica et Cosmochimica Acta, 2000, 64(1): 133-147. DOI URL
