云南老厂雨汪煤层气区块气水成因及产能响应

doi:10.19657/j.geoscience.1000-8527.2021.076

摘要/Abstract

摘要：

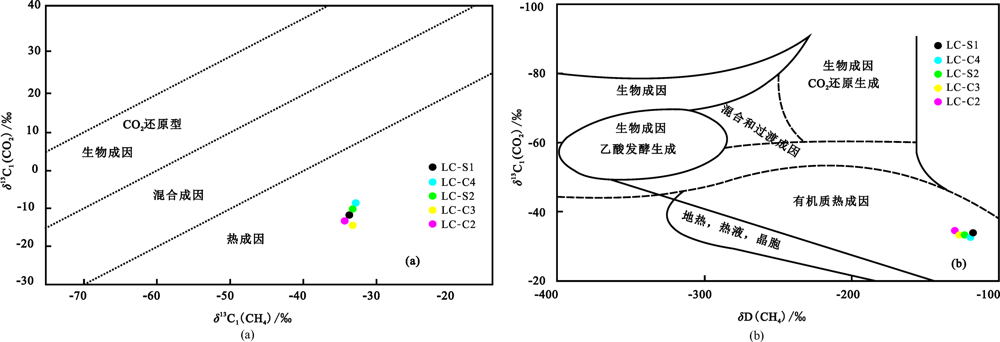

为提高云南老厂雨汪区块煤层气(CBM)产能,基于6口煤层气先导试验井的气体样品组分、甲烷碳同位素、产出水氢氧同位素及微量元素测试结果,结合研究区煤层气地质条件和产能特征,分析了气体组分、水的氢氧同位素特征及微量元素成分对产能的指示意义。结果表明:研究区煤层气气体组分以CH₄为主,含少量C₂H₆、N₂和CO₂,不含重烃,为热成因气,并经过了后期的次生改造。煤层气井产出水的氢氧同位素特征说明产出水来源于大气降水,呈现明显的¹⁸O漂移特征。主成分分析结果显示产出水微量元素成分可以归纳为两个主成分,分别反映气井的产气和产水情况。根据煤层气井气水产出情况、产出水的氢氧同位素特征、微量元素成分综合分析表明,当前雨汪区块除LC-C3井外其他井产出水主要为压裂液,储层降压受限,导致气井产量较低。

关键词: 雨汪区块, 煤层气, 氢氧同位素, 微量元素, 产能

Abstract:

To improve the productivity of coalbed methane (CBM) in Yuwang Block at Laochang(Yunnan province), we analyzed the composition of gas samples, methane, carbon isotopes, hydrogen-oxygen (H-O) isotopes of produced water and trace elements in 6 CBM pilot test wells, combined with the geological conditions and productivity characteristics of CBM. And we discussed the productivity indicating significance from isotopes and trace elements of the gas and water. The results show that CH₄ is the main component of local CBM, which accounts for over 97%. There are minor amounts of C₂H₆, N₂ and CO₂ but no heavy hydrocarbons, and the coalbed methane is mainly of thermal origin and has undergone later-stage secondary transformation. The H-O isotope characteristics of the CBM produced water indicate that the produced water was sourced from meteoric water, which show a clear ¹⁸O drift. The result of principal component analysis shows that trace elements in the produced water can be divided into two principal components, which reflect the gas and water production of gas wells, respectively. Integrating the comprehensive gas and water production, hydrogen-oxygen isotopes and trace elements data of the produced water from CBM wells, we suggested that the produced water of other wells in the Yuwang block is mainly fracturing fluid (except LC-C3 well), and that the reservoir pressure drop is limited, causing low gas well production.

Key words: Yuwang block, coalbed methane, hydrogen and oxygen isotopes, trace element, productivity

中图分类号:

翟佳宇, 张松航, 唐书恒, 郭慧秋, 刘冰, 纪朝琪. 云南老厂雨汪煤层气区块气水成因及产能响应[J]. 现代地质, 2022, 36(05): 1341-1350.

ZHAI Jiayu, ZHANG Songhang, TANG Shuheng, GUO Huiqiu, LIU Bing, JI Chaoqi. Origin and Productivity Response of Gas and Water in Coalbed Methane Field of Yuwang Block at Laochang, Yunnan Province[J]. Geoscience, 2022, 36(05): 1341-1350.

图/表 10

参考文献 47

[1]	时伟, 唐书恒, 李忠城, 等. 沁水盆地南部山西组煤储层产出水的化学特征[J]. 煤炭科学技术, 2017, 45(3): 154-160.
[2]	时伟, 唐书恒, 李忠城, 等. 沁水盆地南部山西组煤储层产出水氢氧同位素特征[J]. 煤田地质与勘探, 2017, 45(2): 62-68.
[3]	WU Congcong, YANG Zhaobiao, QIN Yong, et al. Characteristics of hydrogen and oxygen isotopes in produced water and productivity response of coalbed methane wells in water and productivity response of coalbed methane wells in western Guizhou[J]. Energy Fuels, 2018, 32: 11203-11211. DOI URL
[4]	吴丛丛, 杨兆彪, 秦勇, 等. 贵州松河及织金煤层气产出水的地球化学对比及其地质意义[J]. 煤炭学报, 2018, 43(4): 1058-1064.
[5]	GUO Chen, QIN Yong, XIA Yucheng, et al. Geochemical characteristics of produced water from CBM wells and implications for commingling CBM production: A case study of the BideSantang Basin,western Guizhou,China[J]. Journal of Petroleum Science and Engineering, 2017, 159: 666-678. DOI URL
[6]	房孝杰, 吴财芳, 刘小磊, 等. 滇东黔西老厂矿区雨汪区块煤层气井产能特征及其影响因素[J]. 河南理工大学学报(自然科学版), 2020, 39(3): 11-16.
[7]	邢亚楠, 张松航, 唐书恒, 等. 滇东老厂矿区煤层气储层地应力特征研究[J]. 煤炭科学技术, 2020, 48(6): 199-206.
[8]	王进寿, 卢振权, 王富春, 等. 羌塘北缘开心岭-乌丽冻土区水溶烃组分及甲烷碳、氢同位素特征研究[J]. 现代地质, 2019, 33(6): 1306-1313.
[9]	刘永福, 桑洪, 孙雄伟, 等. 塔里木盆地东部震旦-寒武白云岩类型及成因[J]. 西南石油大学学报(自然科学版), 2008, 30(5): 27-31.
[10]	宋岩, 张新民, 柳少波, 等. 中国煤层气地质与开发基础理论[M]. 北京: 科学出版社, 2012: 14-15.
[11]	琚宜文, 李清光, 颜志丰, 等. 煤层气成因类型及其地球化学研究进展[J]. 煤炭学报, 2014, 39(5): 806-815.
[12]	王相业, 孙保平. 鄂尔多斯盆地兴县地区煤层气地球化学特征及成因[J]. 煤田地质与勘探, 2020, 48(4): 156-164,173.
[13]	戴金星. 云南省腾冲县硫磺塘天然气的碳同位素组成特征和成因[J]. 科学通报, 1988(15): 1168-1170.
[14]	戴金星. 各类烷烃气的鉴别[J]. 中国科学(B辑), 1992(2): 185-193.
[15]	戴金星. 天然气碳氢同位素特征和各类天然气鉴别[J]. 天然气地球科学, 1993(增): 1-40.
[16]	王先彬, 郭占谦, 妥进才, 等. 非生物成因天然气形成机制与资源前景[J]. 中国基础科学, 2006(4): 12-20.
[17]	于振锋, 郝春生, 杨昌永, 等. 阳泉矿区寺家庄井田9^#煤段煤层气地球化学特征及成因分析[J]. 矿业安全与环保, 2019, 46(3): 96-99.
[18]	WHITICAR M J. Carbon and hydrogen isotope systematics of bacterial formation and oxidation of methane[J]. Chemical Geo-logy, 1999, 161: 291-314.
[19]	李建军, 白培康, 毛虎平, 等. 郑庄-胡底煤层气地球化学特征机成因探讨[J]. 煤炭学报, 2014, 39(9): 1802-1811.
[20]	BAO Yuan, WEI Chongtao, WANG Chaoyong, et al. Geochemical characteristics and generation process of mixed biogenicand thermogenic coalbed methane in Luling Coalfield,China[J]. Energy Fuels, 2014, 28: 4392-4401. DOI URL
[21]	BAO,Yuan, WEI Chongtao, WANG Chaoyong, et al. Geochemical characteristics and identification of thermogenic CBM generated during the low and middle coalification stages[J]. Geochemical, 2013, 47(4): 451-458.
[22]	王相业, 孙保平. 鄂尔多斯盆地兴县地区煤层气地球化学特征及成因[J]. 煤田地质与勘探, 2020, 48(4): 156-164+173.
[23]	巢海燕, 王延斌. 鄂尔多斯盆地东南缘临汾区块煤层气成因及其影响[J]. 煤炭学报, 2016, 41(7): 1769-1777.
[24]	TEICHMULLER R U A. Das Kohlenst off-isotope-verhaltnis im methan von grubengas und Flozgas und seine Abhangigkeit von den Geologischen Verhaltnissen[J]. Mitt, 1970(9): 181-206.
[25]	高波, 陶明信, 张建博, 等. 煤层气甲烷碳同位素的分布特征与控制因素[J]. 煤田地质与勘探, 2002, 30(3): 14-17.
[26]	宋岩, 柳少波, 洪峰, 等. 中国煤层气地球化学特征及成因[J]. 石油学报, 2012, 33(增): 99-106.
[27]	SCOTT A R, KAISER W R, AYERS W B. Thermogenic and secondary biogenic gases San Juan Basin,Colorado and New Mexico-Implication for coalbed gas producibility[J]. AAPG Bulletin, 1994, 78(8): 1186-1209.
[28]	毛庆亚, 王建力, 王家录, 等. 贵州安顺与重庆北碚大气降水中δD和δ¹⁸O特征分析[J]. 西南大学学报, 2017, 39(2): 114-120.
[29]	吴丛丛. 贵州西部煤层气井排采水地球化学特征及其响应[D]. 徐州: 中国矿业大学(徐州), 2019.
[30]	胡菡, 王建力. 云南地区大气降水中氢氧同位素特征及水汽来源分析[J]. 西南师范大学学报(自然科学版), 2015, 40(5): 142-149.
[31]	张春潮, 李向全, 马剑飞, 等. 基于水化学及稳定同位素的西藏察雅地下热水成因研究[J]. 现代地质, 2021, 35(1): 199-208.
[32]	赵明坤, 王海泉, 段忠丰, 等. 河南漯河市明化镇组温热水地球化学特征[J]. 现代地质, 2022, 36(2): 1-11.
[33]	王善博, 唐书恒, 万毅, 等. 山西沁水盆地南部太原组煤储层产出水氢氧同位素特征[J]. 煤炭学报, 2015, 38(3): 449-453.
[34]	RICE C A, FLORES R M, STRICKER G D, et al. Chemical and stable isotope evidence for water/rock interaction and biogenic origin of coalbed methane,Fort Union Formation,Power River Basin,Wyoming and Montana USA[J]. International Journal of Coal Geology, 2008, 76(12): 76-85. DOI URL
[35]	DAI Jinxing, LI Jian, LUO Xia, et al. Stable carbon isotope composition and source rock geochemistry of the giant gas accumulations in the Ordos Basin,China[J]. Organic Geochemistry, 2005, 36(12): 1617-1635. DOI URL
[36]	TRIBOVILLARD N, ALGEO T J, LYONS T, et al. Trace metalsas paleoredox and paleoproductivity proxies:an update[J]. Chemical Geology, 2006, 232(12): 12-32. DOI URL
[37]	PI Daohui, LIU Congqiang, SHIELDS-ZHOU G A, et al. Traceand rare earth element geochemistry of black shale and kerogen in the Early Cambrian Niutitang Formation in Guizhou Province, South China:Constraints for redox environments and origin of metal enrichments[J]. Precambrian Research, 2013, 225: 218-229. DOI URL
[38]	HAMMOND D E, MCMANUS J, BERELSON W M, et al. Early diagenesis of organic material in equatorial pacific sediments:stpichiometry and kinetics[J]. Deep Sea Research Part Ⅱ:Topical Studies in Oceanography, 1996, 43: 1365-1412.
[39]	CHEN Fang, HU Yu, FENG Dong, et al. Evidence of intense methane seepages from molybdenum enrichments in gas hydrateBearing sediments of the Northern South China Sea[J]. Chemical Geology, 2016, 443: 173-181. DOI URL
[40]	GUO Qingjun, DENG Yinan, HIPPLER Dorothee, et al. REE and trace element patterns from organic rich rocks of the Ediacaran-Cambrian transitional interval[J]. Gondwana Research, 2016, 36: 94-106. DOI URL
[41]	宋晓梅, 桂和荣, 陈陆望. 皖北矿区主要含水层微量元素的地球化学特征研究[J]. 中国煤炭, 2004, 15(5): 38-40,42.
[42]	汪蕴璞, 林锦璇, 王翠霞, 等. 南海北部软泥水化学垂向剖面类型及其形成机制[J]. 水文地质工程地质, 1993, 20(5): 46-52.
[43]	卢思桥, 何超君, 刘敏, 等. 电感耦合等离子体发射光谱法测定海水中微量钡[J]. 吉林地质, 2010, 29(1): 142-143.
[44]	桂和荣, 陈陆望, 彭子成. 皖北矿区深层岩溶水微量元素主成分分析[J]. 煤田地质与勘探, 2004, 32(6): 31-34.
[45]	虞鸿, 吴中如, 包腾飞, 等. 基于主成分的大坝观测数据多效应量统计分析研究[J]. 中国科学:技术科学, 2010, 40(7) : 830-839.
[46]	张振国, 何江涛, 王磊, 等. 衡水地区深层地下水水化学特征及其演化过程[J]. 现代地质, 2018, 32(3): 565-573.
[47]	张二超. 老厂雨汪区块煤系气储层地质特征及有利区段优选[D]. 徐州: 中国矿业大学(徐州), 2020.

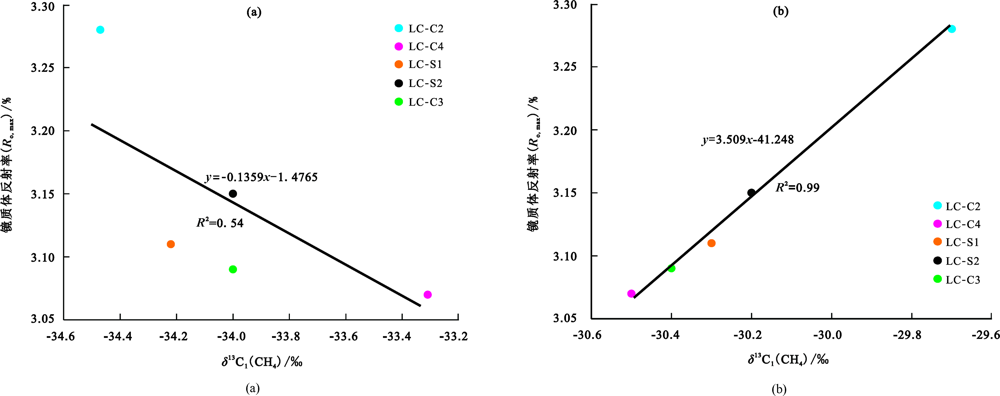

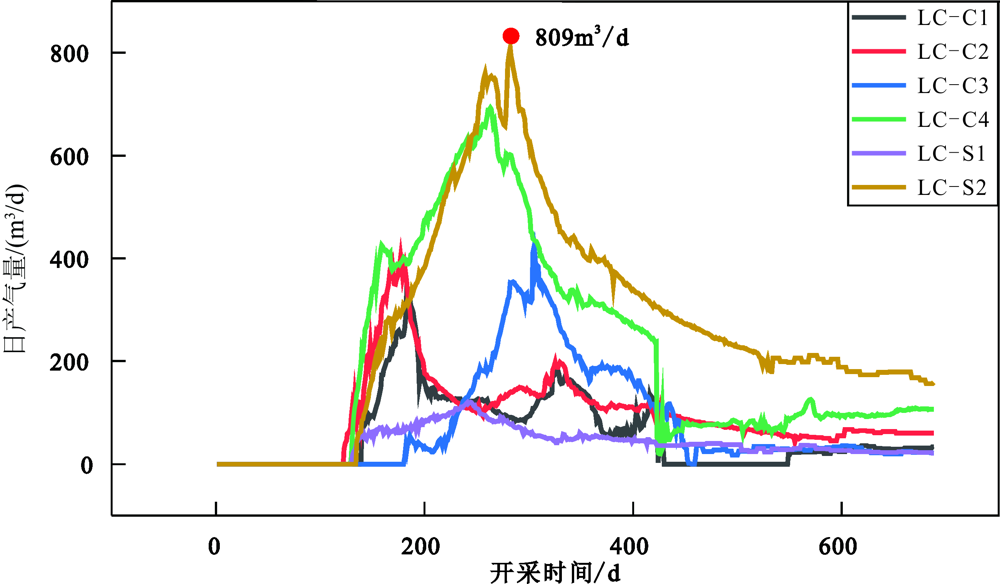

样号	最大日产气量 /(m³/d)	最大日产水量 /(m³/d)	累计产水量/ m³	压裂液量/ m³	气体组分/%				稳定同位素含量/‰				干燥系数	R_o/%
					气体组分/%				甲烷		二氧化碳
					CH₄	C₂H₆	N₂	CO₂	δ¹³C	δD	δ¹³C	δ¹⁸O
LC-S1	120.675	1.977	582.97	1 086.3	97.70	0.05	1.13	1.12	-34.2	-111.7	-11.7	-5.3	0.999	3.11
LC-C4	692.258	4.756	722.50	1 400^*	97.25	0.03	1.47	1.25	-33.3	-112.6	-10.0	-5.6	0.999	3.08
LC-S2	808.957	5.221	549.38	1 116.9	98.07	0.04	0.65	1.24	-34.0	-113.1	-10.4	-6.9	0.999	3.16
LC-C1	335.938	4.532	410.08	1 400^*	/	/	/	/	/	/	/	/	/	/
LC-C3	423.063	9.854	4133.03	1 400^*	98.33	0.04	1.09	0.24	-34.0	-113.5	-13.8	-6.7	0.996	3.09
LC-C2	402.429	5.381	537.53	1 400^*	95.84	0.06	1.78	2.32	-34.5	-117.3	-12.9	-7.0	0.999	3.28

样号	最大日产气量 /(m³/d)	最大日产水量 /(m³/d)	累计产水量/ m³	压裂液量/ m³	气体组分/%				稳定同位素含量/‰				干燥系数	R_o/%
					气体组分/%				甲烷		二氧化碳
					CH₄	C₂H₆	N₂	CO₂	δ¹³C	δD	δ¹³C	δ¹⁸O
LC-S1	120.675	1.977	582.97	1 086.3	97.70	0.05	1.13	1.12	-34.2	-111.7	-11.7	-5.3	0.999	3.11
LC-C4	692.258	4.756	722.50	1 400^*	97.25	0.03	1.47	1.25	-33.3	-112.6	-10.0	-5.6	0.999	3.08
LC-S2	808.957	5.221	549.38	1 116.9	98.07	0.04	0.65	1.24	-34.0	-113.1	-10.4	-6.9	0.999	3.16
LC-C1	335.938	4.532	410.08	1 400^*	/	/	/	/	/	/	/	/	/	/
LC-C3	423.063	9.854	4133.03	1 400^*	98.33	0.04	1.09	0.24	-34.0	-113.5	-13.8	-6.7	0.996	3.09
LC-C2	402.429	5.381	537.53	1 400^*	95.84	0.06	1.78	2.32	-34.5	-117.3	-12.9	-7.0	0.999	3.28

样号	微量元素含量/10^-6										水氢氧同位素/‰
样号	Li	Ba	Cu	Mn	Mo	Rb	Sr	Ti	W	Zn	δD	δ¹⁸O
LC-S1	320	670	3	16	3	17	3 140	86	5	3	-83.5	-9.7
LC-C4	430	1 920	5	22	3	35	5 680	116	7	4	-78.0	-9.6
LC-S2	620	1 090	5	9	5	28	4 140	111	8	4	-81.4	-10.2
LC-C1	480	250	3	0.8	9	58	3 520	75	3	4	-71.9	-9.4
LC-C3	160	10	1	26	5	5	750	49	2	3	-84.4	-10.8
LC-C2	290	440	3	8	7	39	4 380	84	7	5	-85.7	-10.5

样号	微量元素含量/10^-6										水氢氧同位素/‰
样号	Li	Ba	Cu	Mn	Mo	Rb	Sr	Ti	W	Zn	δD	δ¹⁸O
LC-S1	320	670	3	16	3	17	3 140	86	5	3	-83.5	-9.7
LC-C4	430	1 920	5	22	3	35	5 680	116	7	4	-78.0	-9.6
LC-S2	620	1 090	5	9	5	28	4 140	111	8	4	-81.4	-10.2
LC-C1	480	250	3	0.8	9	58	3 520	75	3	4	-71.9	-9.4
LC-C3	160	10	1	26	5	5	750	49	2	3	-84.4	-10.8
LC-C2	290	440	3	8	7	39	4 380	84	7	5	-85.7	-10.5

主成分	F₁	F₂	F₃	F₄	F₅
Li	0.801	0.166	-0.539	-0.137	0.148
Ba	0.788	-0.558	0.004	0.250	0.077
Cu	0.964	-0.205	-0.162	-0.012	0.049
Mn	-0.408	-0.843	0.202	0.191	0.215
Mo	-0.074	0.983	0.004	0.015	0.166
Rb	0.572	0.735	-0.036	0.358	-0.055
Sr	0.952	-0.018	0.194	0.203	-0.119
Ti	0.947	-0.311	-0.069	-0.023	-0.033
W	0.862	-0.236	0.255	-0.367	-0.034
Zn	0.625	0.525	0.557	-0.090	0.127
特征值	5.628	3.026	0.776	0.430	0.140
方差贡献率/%	56.277	30.264	7.757	4.304	1.398
累计方差贡献率/%	56.277	86.541	94.298	98.602	100.000
