新疆库拜煤田铁列克矿区地应力分布及其对煤层气开发的影响

doi:10.19657/j.geoscience.1000-8527.2022.021

现代地质 ›› 2022, Vol. 36 ›› Issue (05): 1324-1332.DOI: 10.19657/j.geoscience.1000-8527.2022.021

新疆库拜煤田铁列克矿区地应力分布及其对煤层气开发的影响

魏永恒¹(), 葛燕燕¹(), 王刚², 王文峰¹, 田继军¹, 李鑫¹, 吴斌³, 张晓¹

1.新疆大学地质与矿业工程学院,新疆乌鲁木齐 830047
2.新疆维吾尔自治区煤田地质局煤层气研究开发中心,新疆乌鲁木齐 830046
3.新疆维吾尔自治区煤田地质局一六一地质勘探队,新疆乌鲁木齐 830046

收稿日期:2021-08-27 修回日期:2022-04-18 出版日期:2022-10-10 发布日期:2022-11-03
通讯作者: 葛燕燕
作者简介:葛燕燕,女,副教授,硕士生导师,1981年出生,地质资源与地质工程专业,主要从事非常规天然气勘探开发。Email: gyyxjdxgbc@163.com。
魏永恒,男,硕士研究生,1992年出生,地质资源与地质工程专业,主要从事非常规天然气勘探开发。Email: alex13838279881@163.com。
基金资助:
新疆维吾尔自治区自然科学基金项目(2019D01B43);国家自然科学基金项目(U1903303);国家自然科学基金项目(42002188);国家自然科学基金项目(42062012)

In-situ Stress Distribution and Its Influence on Coalbed Methane Development in Tielieke Mining Area, Kubai Coalfield, Xinjiang

WEI Yongheng¹(), GE Yanyan¹(), WANG Gang², WANG Wenfeng¹, TIAN Jijun¹, LI Xin¹, WU Bin³, ZHANG Xiao¹

1. College of Geology and Mining Engineering, Xinjiang University, Urumqi,Xinjiang 830047, China
2. Coalbed Methane Research and Development Center of Xinjiang Coal Geological Exploration Bureau, Urumqi,Xinjiang 830046, China
3. No.161 Coal Exploration Team, Xinjiang Coal Geological Exploration Bureau, Urumqi,Xinjiang 830046, China

Received:2021-08-27 Revised:2022-04-18 Online:2022-10-10 Published:2022-11-03
Contact: GE Yanyan

摘要/Abstract

摘要：

地应力、煤储层渗透率和煤储层压力等是影响煤层气开发的重要因素。通过分析新疆库拜煤田铁列克矿区注入/压降试井及原地应力测试数据,结合铁列克矿区煤层气井日产气量分析,研究了新疆库拜煤田铁列克矿区地应力变化规律及其对煤层气开发的影响,分析了铁西矿区和铁东矿区煤储层地应力特征及其对煤储层物性的影响。结果表明:(1)地应力状态在垂向上发生变化,埋深处于550~650 m、650~850 m和850~1 200 m时,地应力状态类型依次为σ_H>σ_v>σ_h、σ_H≈σ_v>σ_h和σ_v>σ_H>σ_h;(2)埋深850 m处既是垂直主应力和最大水平主应力的转换点也是渗透率趋势变化点,指示了地应力对渗透率的控制作用;(3)渗透率和煤储层压力与地应力分别呈负相关和正相关关系;(4)地应力对产能的负效应大于地应力对产能的正效应,使典型日产气量随着地应力的增大而减小;(5)铁西矿区和铁东矿区中部煤储层碎粒煤较发育、吸附孔体积和含气量均较大,是煤层气开发的有利区带。研究成果可为库拜煤田下一步煤层气开发提供理论指导。

关键词: 煤层气, 地应力, 煤储层渗透率, 煤储层压力, 含气量, 铁列克矿区

Abstract:

In-situ stress, coal reservoir permeability and coal reservoir pressure are the important factors on coalbed methane development.Based on the analysis of injection/fall-off well analysis and in-situ stress measurement data, and combined with the analysis of daily gas production of coalbed methane wells in the Tielieke mining area (Kubai coalfield, Xinjiang), we study the characteristics of in-situ stress distribution at Tielieke and its influence on CBM development.The results show that: (1) the in-situ stress state changes vertically, with σ_H>σ_v>σ_h, σ_H≈σ_v>σ_h and σ_v>σ_H>σ_h at 550-650 m, 650-850 m and 850-1,200 m reservoir depth, respectively; (2) 850 m depth is not only the conversion point of the vertical principal stress and the maximum horizontal principal stress, but also the transition point of permeability trend. This demonstrates the in-situ stress the control on permeability; (3) the in-situ stress correlates negatively with permeability, but positively with coal reservoir pressure; (4) for the in-situ stress, its negative effect of on productivity is greater than its positive effect on productivity, and hence the typical daily gas production decrease with increasing in-situ stress; (5) the central coal reservoirs in Tiexi and Tiedong mining areas have relatively developed granular coal, large adsorption pore volume and gas content, which are favorable intervals for CBM development.Our results provide theoretical guidance for further CBM development in the Kubai coalfield.

Key words: coalbed methane, in-situ stress, coal reservoir permeability, coal reservoir pressure, gas content, Tielieke mining area

中图分类号:

P618.11
P553

魏永恒, 葛燕燕, 王刚, 王文峰, 田继军, 李鑫, 吴斌, 张晓. 新疆库拜煤田铁列克矿区地应力分布及其对煤层气开发的影响[J]. 现代地质, 2022, 36(05): 1324-1332.

WEI Yongheng, GE Yanyan, WANG Gang, WANG Wenfeng, TIAN Jijun, LI Xin, WU Bin, ZHANG Xiao. In-situ Stress Distribution and Its Influence on Coalbed Methane Development in Tielieke Mining Area, Kubai Coalfield, Xinjiang[J]. Geoscience, 2022, 36(05): 1324-1332.

图/表 12

图1 库拜煤田位置图(a)和铁列克矿区构造纲要图(b)

Fig.1 Location map of the Kubai coalfield (a) and tectonic outline map of the Tielieke mining area (b)

表1 铁列克矿区注入/压降试验及地应力测量试验参数

Table 1 Parameters of injection/fall-off well test and in-situ stress measurement test in the Tielieke mining area

参数	范围(均值)
埋深h/m	563.38~1 157.61(813.18)
破裂压力P_f/MPa	8.44~24.65(15.32)
破裂压力梯度G_f/(MPa·hm^-1)	0.46~2.54(1.85)
闭合压力P_c/MPa	8.14~22.30(14.15)
闭合压力梯度G_c/(MPa·hm^-1)	0.98~2.47(1.76)
储层压力P_o/MPa	4.62~11.39(7.57)
储层压力梯度G_o/(MPa·hm^-1)	0.78~1.07(0.93)
渗透率k/mD	0.008~3.930(0.630)
温度T/℃	17.90~33.56(27.01)
最大水平主应力σ_H/MPa	9.33~33.52(20.22)
最大水平主应力梯度 G_H/(MPa·hm^-1)	1.37~3.91(2.53)
最小水平主应力σ_h/MPa	8.05~22.30(14.48)
最小水平主应力梯度 G_h/(MPa·hm^-1)	1.19~2.43(1.80)
垂向主应力σ_v/MPa	15.21~31.26(21.99)

图2 铁列克矿区最大水平主应力梯度(GH)、最小水平主应力梯度(Gh)、储层压力梯度(Go)和煤层埋深关系

Fig.2 Relationship between maximum horizontal principal stress gradient (GH), minimum horizontal principal stress gradient (Gh), reservoir pressure gradient(Go)and burial depth in the Tielieke mining area

图3 研究区储层最大水平主应力(σH)、最小水平主应力(σh)、储层压力(Po)、垂直主应力(σv)和静水压力(Ph)随煤层埋深变化图

Fig.3 Relationship between the maximum horizontal principal stress (σH), minimum horizontal principal stress (σh), reservoir pressure (Po), vertical principal stress (σv) and hydrostatic pressure (Ph) and the burial depth of the reservoirs in the study area

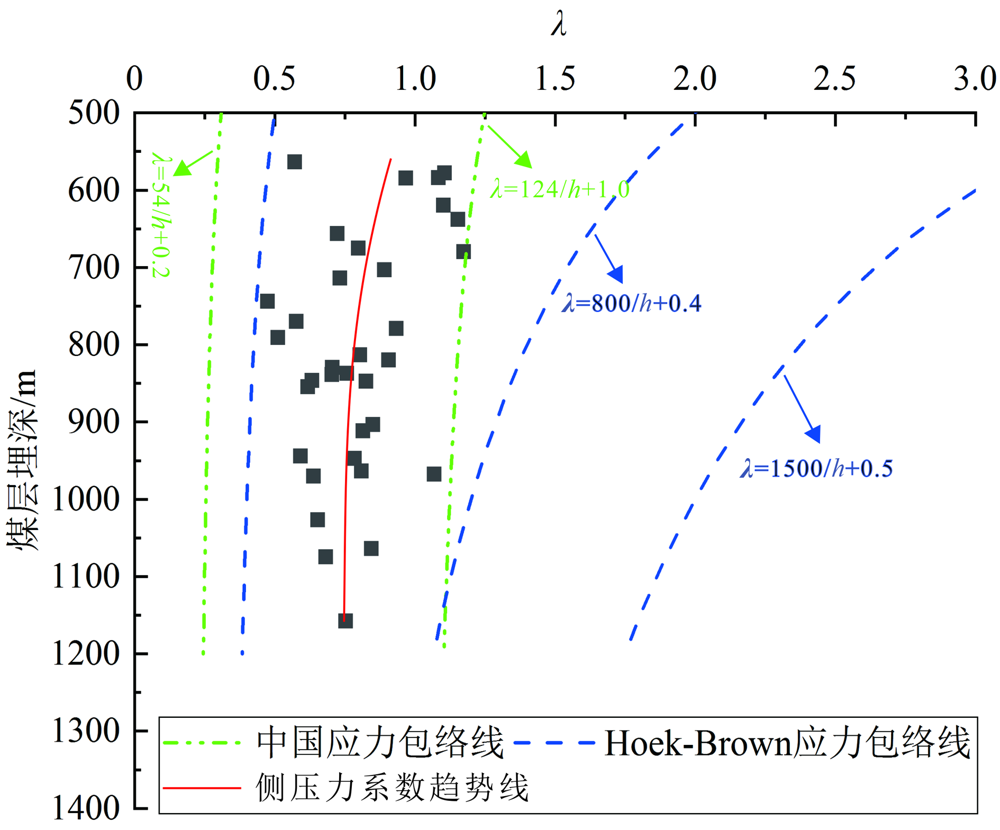

图4 铁列克矿区侧压力系数(λ)和深度(h)的关系

Fig.4 Relationship between λ and burial depth (h) in the Tielieke mining area

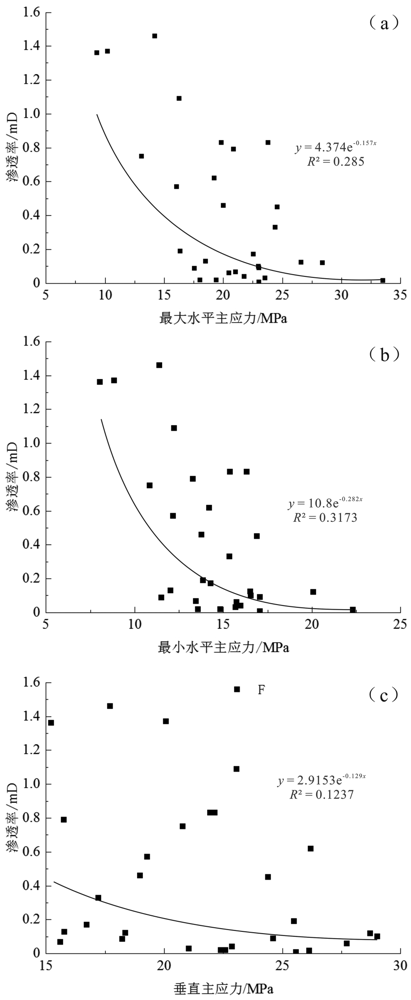

图5 铁列克矿区最大水平主应力和渗透率关系(a)、最小水平主应力和渗透率关系(b)和垂直主应力和渗透率关系(c)

Fig.5 Relationship between maximum horizontal principal stress and permeability (a), minimum horizontal principal stress and permeability (b), and vertical principal stress and permeability (c) in the Tielieke mining area

图6 铁列克矿区煤储层最大水平主应力-储层压力和渗透率关系(a)、最小水平主应力-储层压力和渗透率关系(b)以及垂直主应力-储层压力和渗透率关系(c)

Fig.6 Relationship between maximum horizontal principal stress-reservoir pressure and permeability (a), minimum horizontal principal stress-reservoir pressure and permeability (b), and vertical principal stress-reservoir pressure and permeability (c) in the Tielieke mining area

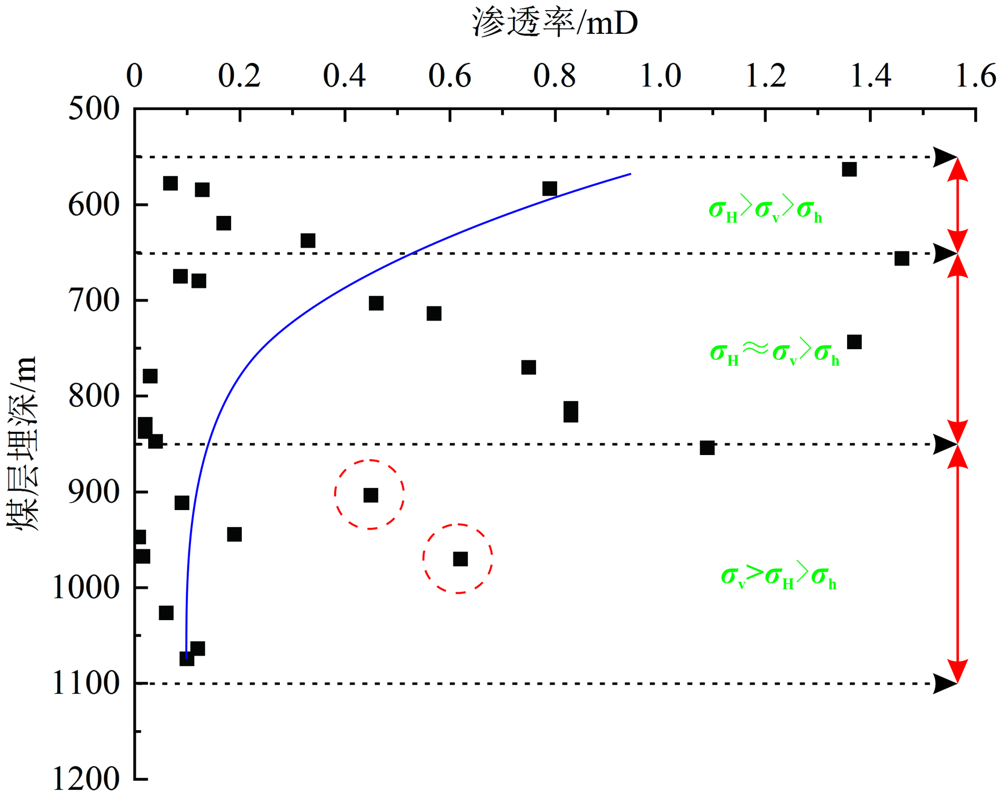

图7 铁列克矿区煤储层渗透率和深度关系

Fig.7 Relationship between coal reservoir permeability and burial depth in Tielieke mining area

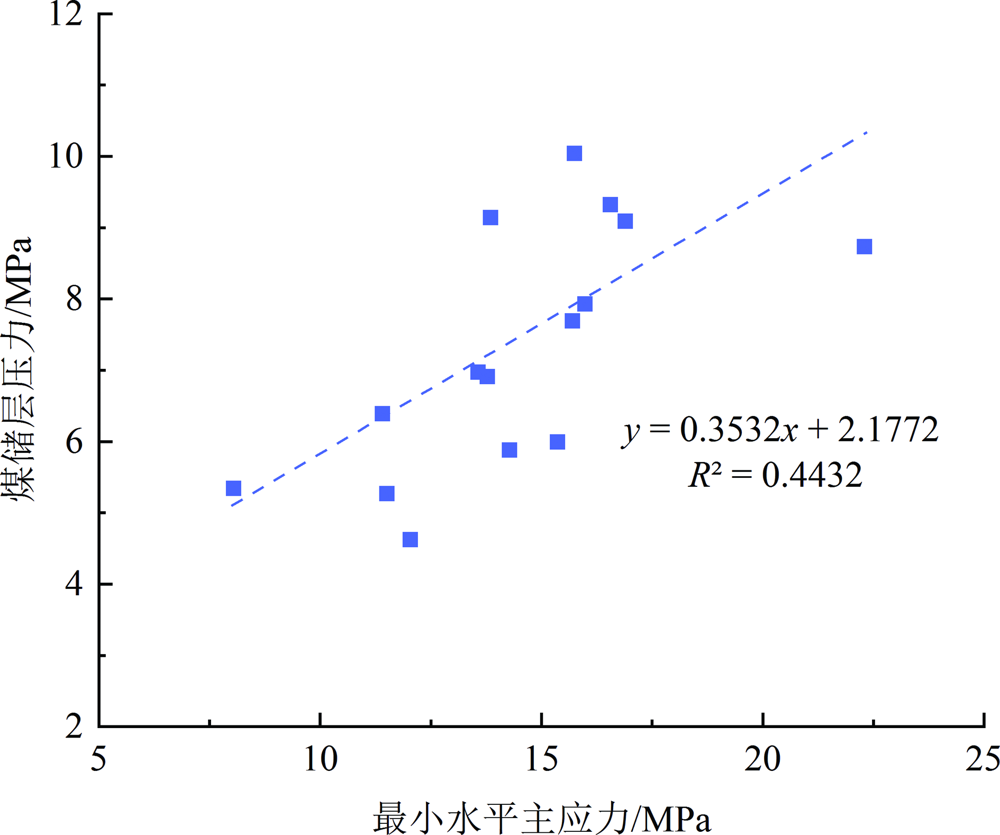

图8 铁列克矿区最小水平主应力和煤储层压力关系

Fig.8 Relationship between minimum horizontal principal stress and reservoir pressure in the Tielieke mining area

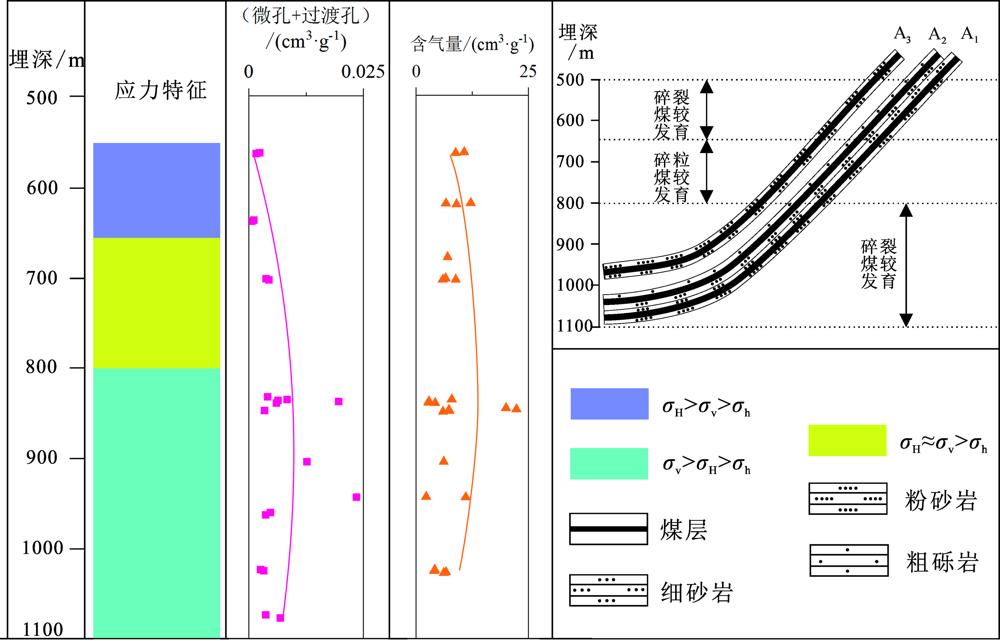

图9 铁西矿区不同埋深煤储层特征差异

Fig.9 Feature differences of coal reservoirs with different burial depths in the west Tielieke area

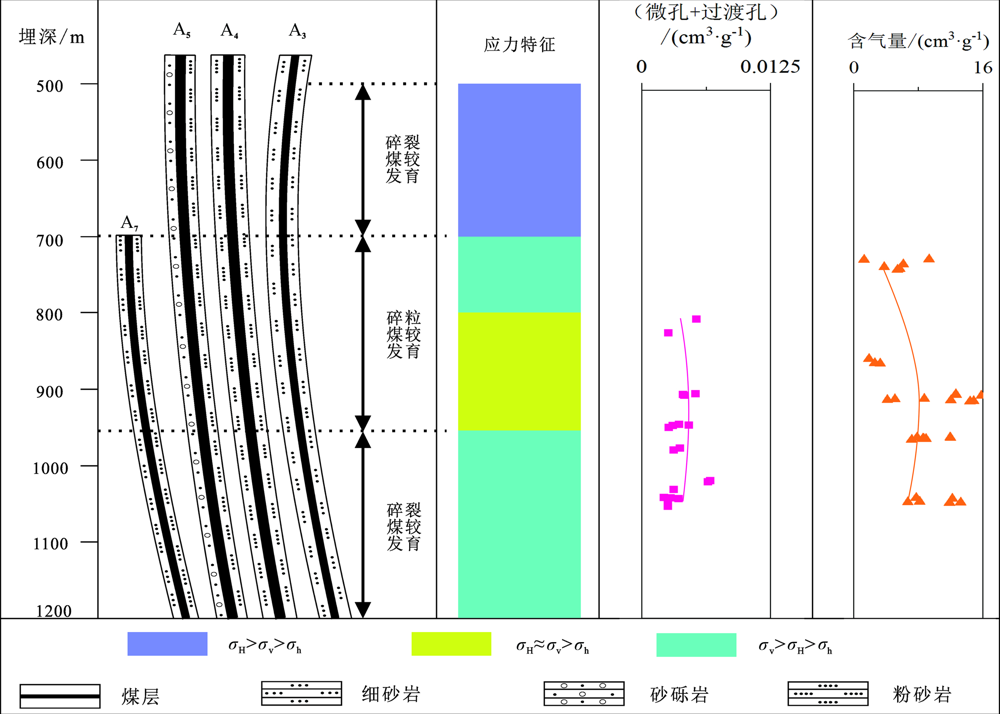

图10 铁东矿区不同埋深煤储层特征差异
