沁水盆地阳泉区块太原组煤系页岩孔隙结构特征

doi:10.19657/j.geoscience.1000-8527.2021.044

现代地质 ›› 2021, Vol. 35 ›› Issue (04): 1033-1042.DOI: 10.19657/j.geoscience.1000-8527.2021.044

沁水盆地阳泉区块太原组煤系页岩孔隙结构特征

李阳阳¹^,²(), 李贤庆¹^,²(), 张学庆¹^,², 杨经纬¹^,², 张博翔¹^,², 肖贤明³, 于振锋⁴

1.中国矿业大学(北京) 煤炭资源与安全开采国家重点实验室,北京 100083
2.中国矿业大学(北京) 地球科学与测绘工程学院,北京 100083
3.中国地质大学(北京) 能源学院,北京 100083
4.山西燃气集团蓝焰煤层气工程研究有限责任公司,山西晋城 048006

收稿日期:2020-12-20 修回日期:2021-03-15 出版日期:2021-08-10 发布日期:2021-09-08
通讯作者: 李贤庆
作者简介:李贤庆,男,教授,博士生导师,1967年出生,矿产普查与勘探专业,从事煤油气地质、有机地球化学、有机岩石学等方面的教学和科研工作。Email: Lixq@cumtb.edu.cn。
李阳阳,女,硕士研究生,1996年出生,地质工程专业,从事煤系非常规油气地质研究工作。Email: 995857507@qq.com。
基金资助:
国家自然科学基金项目(U1810201);国家自然科学基金项目(41572125);中央高校基本科研业务费专项资金项目(2020YJSMT02)

Pore Structure Characteristics of Taiyuan Formation Coal Measures Shale in the Yangquan Block of the Qinshui Basin

LI Yangyang¹^,²(), LI Xianqing¹^,²(), ZHANG Xueqing¹^,², YANG Jingwei¹^,², ZHANG Boxiang¹^,², XIAO Xianming³, YU Zhenfeng⁴

1. State Key Laboratory of Coal Resources and Safe Mining, China University of Mining and Technology, Beijing 100083,China
2. College of Geoscience and Surveying Engineering, China University of Mining and Technology, Beijing 100083,China
3. School of Energy, China University of Geosciences, Beijing 100083,China
4. Lanyan Coalbed Methane Engineering Research Co.Ltd., Shanxi Gas Group, Jincheng, Shanxi 048006,China

Received:2020-12-20 Revised:2021-03-15 Online:2021-08-10 Published:2021-09-08
Contact: LI Xianqing

摘要/Abstract

摘要：

页岩孔隙结构是影响页岩气赋存与储集的基本因素之一。为研究高演化海陆过渡相煤系页岩的孔隙结构和评价页岩气储集能力,主要运用扫描电子显微镜、高压压汞、低温N₂和CO₂气体吸附实验方法,对沁水盆地阳泉区块太原组海陆过渡相煤系页岩孔隙微观特征与孔隙结构进行了研究,并分析了太原组煤系页岩孔隙发育的影响因素。研究结果表明:沁水盆地阳泉区块太原组海陆过渡相煤系页岩孔隙度介于2.54%~12.03%之间,平均为6.61%;发育多种类型的孔隙,常见粒间孔、粒内孔和微裂缝,有机质孔不发育;太原组煤系页岩孔隙总孔容介于0.025 5~0.054 7 mL/g之间(平均0.040 1 mL/g),总比表面积介于12.34~43.38 m²/g之间(平均28.74 m²/g),微孔(<2 nm)和介孔(2~50 nm)是页岩气储集的主要载体;有机碳含量、成熟度R_o和黏土矿物含量均对煤系页岩孔隙发育产生积极影响。

关键词: 煤系页岩, 孔隙微观特征, 孔隙结构, 太原组, 阳泉区块, 沁水盆地

Abstract:

Pore structure of shale is one of the basic factors affecting shale gas occurrence and storage. In order to study the pore structure of highly evolved marine-continental transitional facies coal measures shale and to evaluate the storage capacity of shale gas, the scanning electron microscopy, high-pressure mercury intrusion, low-temperature N₂ and CO₂ gas adsorption experimental methods were mainly adopted in this paper. The microscopic characteristics of pores and pore structures of the marine-continental transitional facies shales from the Taiyuan Formation in the Yangquan Block of the Qinshui Basin were studied, and the factors affecting the pore development of the Taiyuan Formation shale were analyzed. The research results show that the porosity of the marine-continental transitional facies coal measures shale of the Taiyuan Formation in the Yangquan Block of the Qinshui Basin ranges from 2.54% to 12.03%, with an average of 6.61%. There are developed various types of pores. The inter-granular pore, intra-granular pore, and micro-crack are common. The organic pore is not developed. The total pore volume of the Taiyuan Formation coal measures shale is between 0.025,5 mL/g and 0.054,7 mL/g (average 0.040,1 mL/g), and the total specific surface area of pore is between 12.34 m²/g and 43.38 m²/g (average 28.74 m²/g). Micropore (<2 nm) and mesopore (2 nm to 50 nm) are the main carrier of shale gas storage. Organic carbon content, maturity R_o and clay mineral content all have a positive impact on the pore development of coal measures shale.

Key words: coal measures shale, microscopic characteristics of pores, pore structure, Taiyuan Formation, Yangquan Block, the Qinshui Basin

中图分类号:

TE132.2

李阳阳, 李贤庆, 张学庆, 杨经纬, 张博翔, 肖贤明, 于振锋. 沁水盆地阳泉区块太原组煤系页岩孔隙结构特征[J]. 现代地质, 2021, 35(04): 1033-1042.

LI Yangyang, LI Xianqing, ZHANG Xueqing, YANG Jingwei, ZHANG Boxiang, XIAO Xianming, YU Zhenfeng. Pore Structure Characteristics of Taiyuan Formation Coal Measures Shale in the Yangquan Block of the Qinshui Basin[J]. Geoscience, 2021, 35(04): 1033-1042.

图/表 11

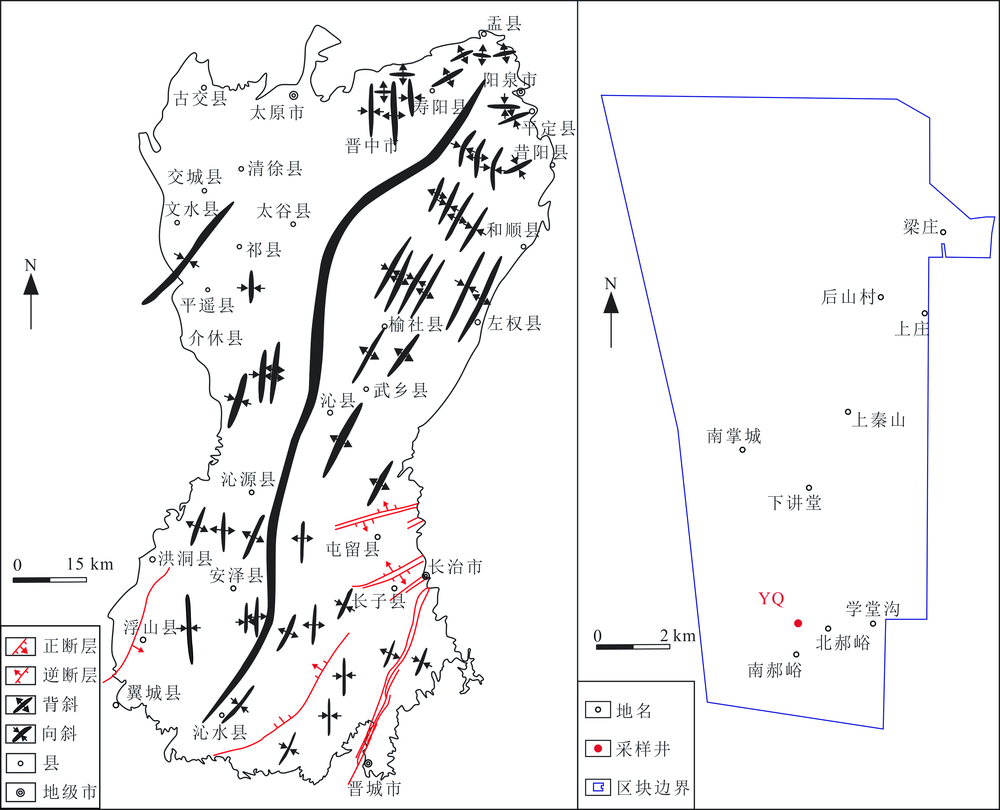

图1 沁水盆地区域构造及阳泉区块井位图

Fig.1 Regional structure of the Qinshui Basin and well location map of the Yangquan Block

表1 沁水盆地阳泉区块太原组煤系页岩样品的基本地球化学特征

Table 1 Basic geochemical characteristics of the Taiyuan Formation coal measures shale samples of the Yangquan Block in the Qinshui Basin

样品号	深度/m	有机碳含量 TOC/%	石英含量/%	碳酸盐矿物含量/%	黏土矿物含量/%	其他矿物含量/%	镜质体反射率R_o/%	最高峰温 T_max/℃
YQ-01	471.5	1.98	27.0	0.8	71.4	0.8	-	558
YQ-02	485.5	2.11	29.6	2.5	63.9	4.0	-	554
YQ-03	501.6	2.11	33.5	1.4	61.2	3.9	2.48	574
YQ-04	508.3	2.20	50.2	2.5	47.3	0.0	-	580
YQ-05	517.3	2.48	60.0	1.3	28.8	9.9	2.41	564
YQ-06	544.2	1.03	38.3	1.5	57.3	2.9	-	573
YQ-07	557.2	0.98	34.8	4.5	56.4	4.3	2.09	574
YQ-08	576.6	1.16	50.1	1.7	46.3	1.9	-	572
YQ-09	584.7	2.50	37.3	3.5	57.1	2.1	2.58	592
YQ-10	603.0	1.98	36.4	21.6	23.9	18.1	2.46	576
YQ-11	615.0	0.92	40.2	1.9	48.5	9.4	-	582
YQ-12	624.5	0.73	35.2	8.9	44.4	11.5	-	581
YQ-13	477.3	1.75	28.6	3.9	65.5	2.0	-	546
YQ-14	466.5	3.63	41.2	2.2	54.0	2.6	2.56	541
YQ-15	469.6	21.21	54.3	8.8	23.9	13.0	-	541

图2 沁水盆地阳泉区块太原组煤系页岩样品扫描电镜图像

Fig.2 Scanning electron microscope image of the Taiyuan Formation coal measures shale samples of the Yangquan Block in the Qinshui Basin

图3 沁水盆地阳泉区块太原组煤系页岩样品N2吸附-脱附曲线和CO2吸附-脱附曲线

Fig.3 N2 adsorption-desorption curve and CO2 adsorption-desorption curve of the Taiyuan Formation coal measures shale samples of the Yangquan Block in the Qinshui Basin

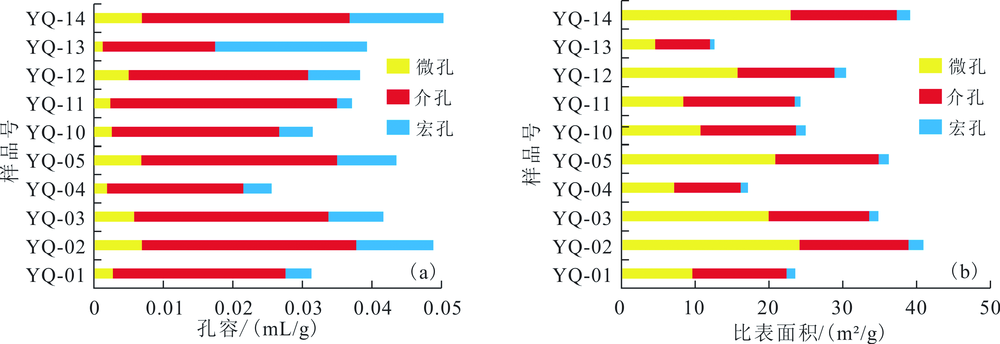

图4 沁水盆地阳泉区块太原组煤系页岩孔隙孔容和比表面积分布

Fig.4 Distribution of pore volume and specific surface area of the Taiyuan Formation coal measures shale of the Yangquan Block in the Qinshui Basin

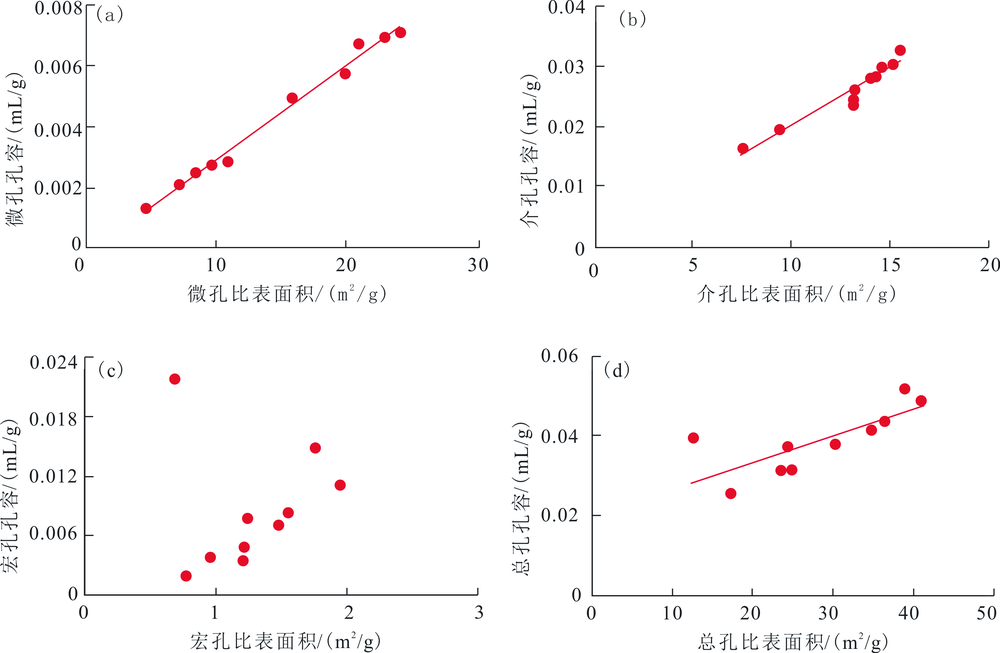

图5 沁水盆地阳泉区块太原组煤系页岩孔容与比表面积的关系

Fig.5 Relationship between pore volume and specific surface area of the Taiyuan Formation coal measures shale of the Yangquan Block in the Qinshui Basin

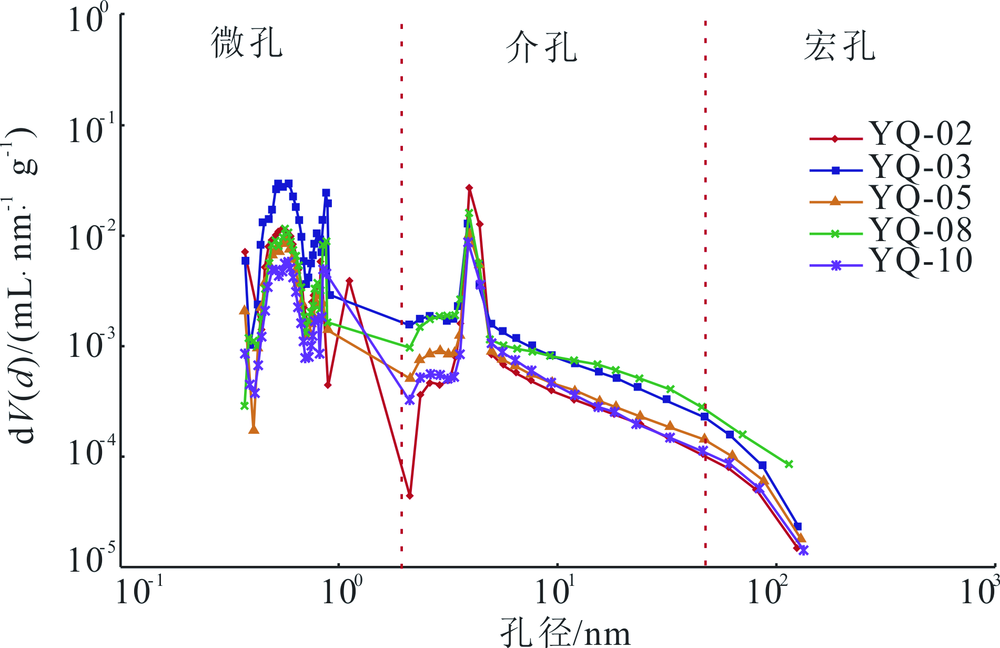

图6 沁水盆地阳泉区块太原组煤系页岩孔径分布

Fig.6 Pore size distribution of the Taiyuan Formation coal measures shale of the Yangquan Block in the Qinshui Basin

图7 沁水盆地阳泉区块太原组煤系页岩TOC与孔容、比表面积、孔隙度的关系

Fig.7 Relationship between TOC and pore volume, specific surface area and porosity of the Taiyuan Formation coal measures shale of the Yangquan Block in the Qinshui Basin

图8 沁水盆地阳泉区块太原组煤系页岩成熟度Ro与孔容、比表面积的关系

Fig.8 Relationship between maturity Ro and pore volume, specific surface area of the Taiyuan Formation coal measures shale of the Yangquan Block in the Qinshui Basin

图9 沁水盆地阳泉区块太原组煤系页岩矿物成分含量与孔容的关系

Fig.9 Relationship between mineral component content and pore volume of the Taiyuan Formation coal measures shale of the Yangquan Block in the Qinshui Basin

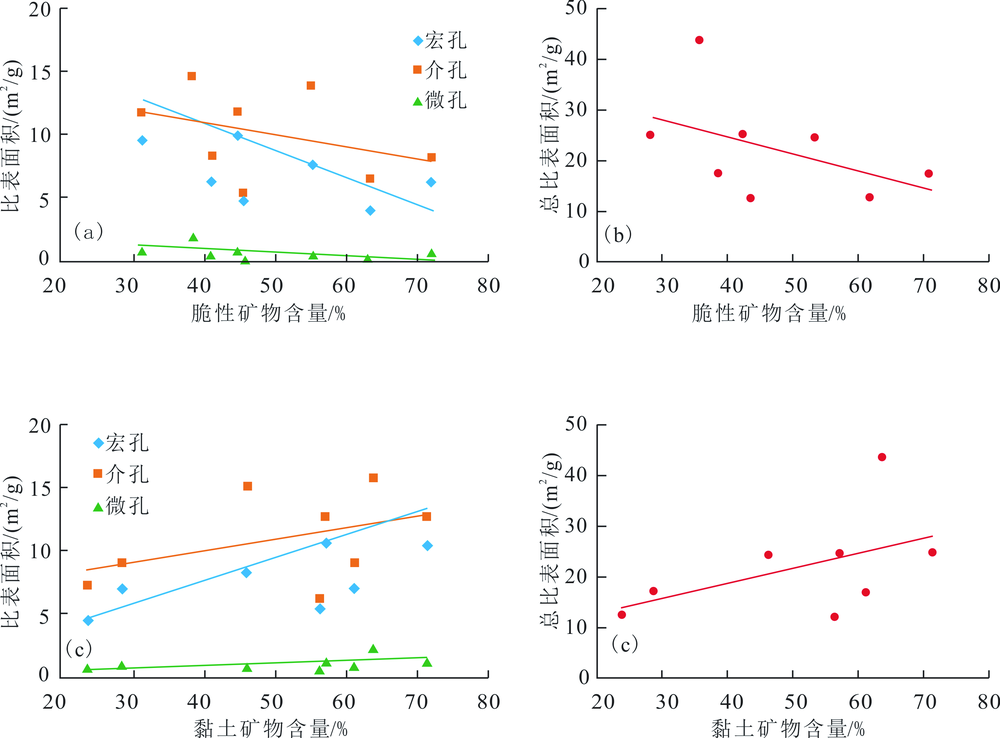

图10 沁水盆地阳泉区块太原组煤系页岩矿物成分含量与孔隙比表面积的关系

Fig.10 Relationship between mineral component content and pore specific surface area of the Taiyuan Formation coal measures shale of the Yangquan Block in the Qinshui Basin

参考文献 39

[1]	POLLASTRO R M, JARVIE D M, HILL R J, et al. Geologic framework of the Mississippian Barnett shale,Barnett-Paleozoic total petroleum system,Bend Arch Fort Worth Basin,Texas[J]. AAPG Bulletin, 2007, 91(4):405-436. DOI URL
[2]	CLARKSON C R, FREEMAN M, HE L, et al. Characterization of tight gas reservoir pore structure using USANS/SANS and gas adsorption analysis[J]. Fuel, 2012, 95:371-385. DOI URL
[3]	CLARKSON C R, JENSEN J L, PEDERSEN P K, et al. Innovative methods for flow unit and pore-structure analyses in a tight siltstone and shale gas reservoir[J]. AAPG Bulletin, 2012, 96(2):355-374. DOI URL
[4]	王阳, 朱炎铭, 陈尚斌, 等. 湘西北下寒武统牛蹄塘组页岩气形成条件分析[J]. 中国矿业大学学报, 2013, 42(4):586-594.
[5]	LOUCKS R G, REED R M, RUPPEL S C, et al. Morphology, genesis, and distribution of nanometer-scale pores in siliceous mudstones of the Mississippian Barnett shale[J]. Journal of Sedimentary Research, 2009, 79(12):848-861. DOI URL
[6]	PFEIFERPER P, AVNIR D. Chemistry non-integral dimensions between two and three[J]. J Chem Phys, 1983, 79(7):3369-3558.
[7]	杨峰, 宁正福, 张世栋, 等. 基于氮气吸附实验的页岩孔隙结构表征[J]. 天然气工业, 2013, 33(4):135-140.
[8]	CLARKSON C R, SOLANO N, BUSTIN R M, et al. Pore structure characterization of North American shale gas reservoirs using USANS/SANS, gas adsorption, and mercury intrusion[J]. Fuel, 2013, 103:606-616. DOI URL
[9]	魏祥峰, 刘若冰, 张廷山, 等. 页岩气储层微观孔隙结构特征及发育控制因素——以川南-黔北XX地区龙马溪组为例[J]. 天然气地球科学, 2013, 24(5):1048-1059.
[10]	陈磊, 姜振学, 纪文明, 等. 陆相页岩微观孔隙结构特征及对甲烷吸附性能的影响[J]. 高校地质学报, 2016, 22(2):335-343.
[11]	魏书宏, 申有义, 杨晓东. 沁水盆地榆社-武乡区块煤系页岩气储层特征评价[J]. 中国煤炭地质, 2017, 29(8):25-31.
[12]	郗兆栋, 唐书恒, 李俊, 等. 沁水盆地中东部海陆过渡相页岩孔隙结构及分形特征[J]. 天然气地球科学, 2017, 28(3):366-376.
[13]	和钰凯, 李贤庆, 魏强, 等. 淮南潘谢矿区石盒子组煤系页岩气储层孔隙结构特征及影响因素[J]. 科学技术与工程, 2020, 33:13618-13627.
[14]	崇璇, 赵迪斐, 郭英海, 等. 巢湖地区龙潭组过渡相煤系页岩储层纳米级孔隙发育特征与影响因素[J]. 煤炭技术, 2018, 37(12):94-97.
[15]	LI W, LI K J. Feasibility study on shale gas development in Qinshui Basin[J]. Inner Mongolia Petrochemical Industry, 2013, 21:142-144.
[16]	苏育飞, 张庆辉, 魏子聪. 沁水盆地石炭系-二叠系页岩气资源潜力评价[J]. 中国煤炭地质, 2016, 28(4):27-34.
[17]	贾俊杰. 沁水盆地上古生界海陆过渡相页岩气成藏条件研究[J]. 西部探矿工程, 2016, 28(2):47-50.
[18]	陈世悦, 刘焕杰. 华北晚古生代层序地层模式及其演化[J]. 煤田地质与勘探, 1995, 23(5) : 1-6.
[19]	李贤庆, 王元, 董泽亮, 等. 沁水盆地煤系气源岩地球化学特征与生气评价[J]. 长江大学学报(自科版), 2015(5):1-8.
[20]	刘焕杰, 秦勇, 桑树勋, 等. 山西南部煤层气地质[M]. 徐州: 中国矿业大学出版社, 1998: 1-81.
[21]	张大伟, 李玉喜, 张金川, 等. 全国页岩气资源潜力调查评价[M]. 北京: 地质出版社, 2012: 1-138.
[22]	邹才能, 董大忠, 杨桦, 等. 中国页岩气形成条件及勘探实践[J]. 天然气工业, 2011, 31(12):26-39.
[23]	张金川, 姜生玲, 唐玄, 等. 我国页岩气富集类型及资源特点[J]. 天然气工业, 2009, 29(12) : 109-114.
[24]	张吉振, 李贤庆, 张学庆, 等. 煤系页岩储层孔隙结构特征和演化[J]. 煤炭学报, 2019, 44(S₁):195-204.
[25]	ZHANG J Z, LI X Q, ZHANG X Q, et al. Geochemical and geological characterization of marine-continental transitional shales from Longtan Formation in Yangtze area,South China[J]. Marine & Petroleum Geology, 2018, 96:1-15.
[26]	陈尚斌, 秦勇, 王阳, 等. 中上扬子区海相页岩气储层孔隙结构非均质性特征[J]. 天然气地球科学, 2015, 26(8):1455-1463.
[27]	肖贤明, 王茂林, 魏强, 等. 中国南方下古生界页岩气远景区评价[J]. 天然气地球科学, 2015, 26(8):1433-1445.
[28]	CHALMERS G R, BUSTIN R M, POWER I M. Characterization of gas shale pore systems by porosimetry, pycnometry, surface area, and field emission scanning electron microscopy/transmission electron microscopy image analyses: Examples from the Barnett, Woodford, Haynesville, Marcellus, and Doig unit[J]. AAPG Bulletin, 2012, 96(6):1099-1119. DOI URL
[29]	ZHANG J Z, LI X Q, WEI Q, et al. Characterization of full-sized pore structure and fractal characteristics of marine-continental transitional Longtan formation shale of Sichuan Basin, South China[J]. Energy & Fuels, 2017, 31(10):10490-10504. DOI URL
[30]	ROGER M S, NEAL R O. Pore types in the Barnett and Woodford gas shales: Contribution to understanding gas storage and migration pathways in fine-grained rocks[J]. AAPG Bulletin, 2011, 95(12):2017-2030. DOI URL
[31]	陈磊, 姜振学, 邢金艳, 等. 川西坳陷新页HF-1井须五段泥页岩吸附气含量主控因素及其定量预测模型[J]. 现代地质, 2014, 28(4):824-831.
[32]	BOWKER K A. Barnett shale gas production,Fort Worth Basin: Issues and discussion[J]. AAPG Bulletin, 2007, 91(4):523-533. DOI URL
[33]	赵佩, 李贤庆, 田兴旺, 等. 川南地区龙马溪组页岩气储层微孔隙结构特征[J]. 天然气地球科学, 2014, 25(6):947-956.
[34]	张吉振, 李贤庆, 郭曼, 等. 川南地区二叠系龙潭组页岩微观孔隙特征及其影响因素[J]. 天然气地球科学, 2015, 26(8):1571-1578.
[35]	陈尚斌, 朱炎铭, 王红岩, 等. 川南龙马溪组页岩气储层纳米孔隙结构特征及其成藏意义[J]. 煤炭学报, 2012, 37(3):438-444.
[36]	田华, 张水昌, 柳少波, 等. 压汞法和气体吸附法研究富有机质页岩孔隙特征[J]. 石油学报, 2012, 33(3):419-427.
[37]	潘磊, 陈桂华, 徐强, 等. 下扬子地区二叠系富有机质泥页岩孔隙结构特征[J]. 煤炭学报, 2013, 38(5):787-793.
[38]	JAVADPOUR F. Nanopores and apparent permeability of gas flow in mudrocks (shales and siltstone)[J]. Journal of Canadian Petroleum Technology, 2009, 48(8):16-21.
[39]	王哲, 李贤庆, 祁帅, 等. 川南地区筇竹寺组页岩微观孔隙结构特征及其影响因素[J]. 高校地质学报, 2018, 24(2):273-284.
