生物地层格架下湘西北地区五峰组—龙马溪组孔隙结构特征

doi:10.19657/j.geoscience.1000-8527.2022.055

现代地质 ›› 2022, Vol. 36 ›› Issue (05): 1292-1303.DOI: 10.19657/j.geoscience.1000-8527.2022.055

生物地层格架下湘西北地区五峰组—龙马溪组孔隙结构特征

漆洋¹^,²^,³(), 吕春研¹^,²^,³, 王宇慧¹^,²^,³, 唐书恒¹^,²^,³, 郗兆栋¹^,²^,³()

1.中国地质大学(北京) 能源学院,北京 100083
2.海相储层演化与油气富集机理教育部重点实验室,北京 100083
3.非常规天然气地质评价与开发工程北京市重点实验室,北京 100083

收稿日期:2022-01-04 修回日期:2022-06-11 出版日期:2022-10-10 发布日期:2022-11-03
通讯作者: 郗兆栋
作者简介:郗兆栋,男,讲师,1991年出生,矿产普查与勘探专业,主要从事非常规天然气(页岩气)地质方面研究。Email: xizhaod@cugb.edu.cn。
漆洋,女,本科生,2000年出生,资源勘查工程(能源)专业,主要从事非常规天然气(页岩气)地质方面研究。Email: 1597657578@qq.com。
基金资助:
国家科技重大专项“四川盆地及周缘页岩气富集规律与重点目标评价”(2017ZX05035)

Pore Structural Characteristics of Wufeng-Longmaxi Formations Under Biostratigraphic Framework in Northwestern Hunan

QI Yang¹^,²^,³(), LÜ Chunyan¹^,²^,³, WANG Yuhui¹^,²^,³, TANG Shuheng¹^,²^,³, XI Zhaodong¹^,²^,³()

1. School of Energy Resources, China University of Geosciences, Beijing 100083, China
2. Key Laboratory of Marine Reservoir Evolution and Hydrocarbon Enrichment Mechanism, Ministry of Education, Beijing 100083, China
3. Beijing Key Laboratory of Unconventional Natural Gas Geological Evaluation and Development Engineering, Beijing 100083, China

Received:2022-01-04 Revised:2022-06-11 Online:2022-10-10 Published:2022-11-03
Contact: XI Zhaodong

摘要/Abstract

摘要：

为探究生物地层格架下五峰组—龙马溪组孔隙结构特征,在笔石带划分的基础上结合孔隙结构特征及其影响因素将SY-3井五峰组—龙马溪组划分为LM5—LM7、WF4—LM4、WF2—WF3三个笔石带,并基于扫描电镜、低温氮气吸附实验、高压压汞实验等技术手段,分别对这三个笔石带进行孔隙结构特征的研究和对比。结果表明:LM5—LM7富集黏土矿物,主要发育较大孔径孔隙,以黏土矿物粒间孔为主;WF4—LM4富集有机质,主要发育较小孔径孔隙,以有机质孔为主;WF2—WF3富集石英,主要发育小孔径孔隙,以石英粒间孔为主,但大部分石英粒间孔被黏土矿物和有机质充填。LM5—LM7孔隙发育主要受TOC含量和矿物含量的影响,WF4—LM4孔隙发育主要受TOC含量影响,而WF2—WF3受矿物组分、有机质赋存特征及成岩作用等因素共同影响。不同笔石带由于沉积环境的差异导致其具有不同的有机质丰度及矿物组分,从而导致了孔隙结构的差异。

关键词: 生物地层, 五峰组—龙马溪组, 孔隙结构, 低温氮气吸附实验, 高压压汞实验

Abstract:

To explore the pore structural characteristics of Wufeng-Longmaxi formations under the biostratigraphic framework, these formations in well SY-3 are divided into LM5-LM7, WF4-LM4 and WF2-WF3, based on the pore structural characteristics and influencing factors. The pore structural characteristics of these three graptolite zones are studied and compared by means of scanning electron microscope, low-temperature nitrogen adsorption, and high-pressure mercury injection experiment. The results show that LM5-LM7 is rich in clay minerals and develops mainly macropores (intergranular pores formed by clay minerals). WF4-LM4 is rich in organic matter and develops mainly micropores (organic pores). WF2-WF3 is rich in quartz and develops mainly micropores (intergranular pores formed by quartz). Most of the intergranular pores are filled with clay minerals and organic matter. TOC and mineral contents are the main influence factors of pore development in the LM5-LM7. TOC content is the main influence factor of pore development in the WF4-LM4, and the WF2-WF3 is affected by mineral constituent, organic matter occurrence and diagenesis. Different graptolite zones have different organic matter abundance and mineral constituents due to the different sedimentary environments, which leads to the pore structural difference.

Key words: biostratigraphy, Wufeng-Longmaxi formations, pore structure, low-temperature nitrogen adsorption, high-pressure mercury injection experiment

中图分类号:

漆洋, 吕春研, 王宇慧, 唐书恒, 郗兆栋. 生物地层格架下湘西北地区五峰组—龙马溪组孔隙结构特征[J]. 现代地质, 2022, 36(05): 1292-1303.

QI Yang, LÜ Chunyan, WANG Yuhui, TANG Shuheng, XI Zhaodong. Pore Structural Characteristics of Wufeng-Longmaxi Formations Under Biostratigraphic Framework in Northwestern Hunan[J]. Geoscience, 2022, 36(05): 1292-1303.

图/表 17

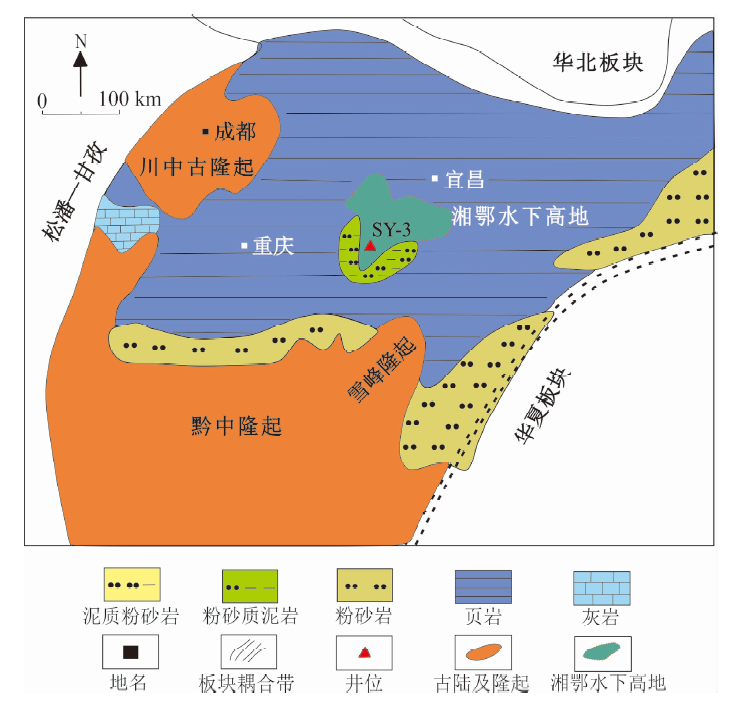

图1 上扬子地台五峰组—龙马溪组岩相古地理图及目标井位(据文献[9]修改)

Fig.1 Lithofacies paleogeographic map and target well location of Wufeng-Longmaxi formations in the upper Yangtze platform (modified from reference [9])

图2 SY-3井五峰组—龙马溪组生物地层格架的划分(据文献[9]修改)

Fig.2 Division of biostratigraphic framework of the Wufeng-Longmaxi formations in well SY-3 (modified from reference [9])

表1 研究区不同笔石带五峰组—龙马溪组有机碳及矿物组分含量

Table 1 Organic carbon and mineral contents of the Wufeng-Longmaxi formations in the different graptolite zones of the study area

笔石带	TOC平均含量/%	石英平均含量/%	黏土矿物平均含量/%
LM5-LM7	0.28	38.58	50.78
WF4-LM4	1.27	47.35	26.20
WF2-WF3	1.08	69.25	16.95
所有笔石带	1.02	50.12	29.43

图3 研究区页岩样品孔隙特征扫描电镜图像 (a)石英间发育的粒间孔;(b)黄铁矿间发育的粒间孔;(c)有机质中发育的有机质孔;(d)脆性矿物基质中发育的粒内孔;(e)黏土矿物间被有机质充填的粒间孔;(f)石英间被有机质充填的粒间孔

Fig.3 SEM images of pore characteristics of shale samples from the study area

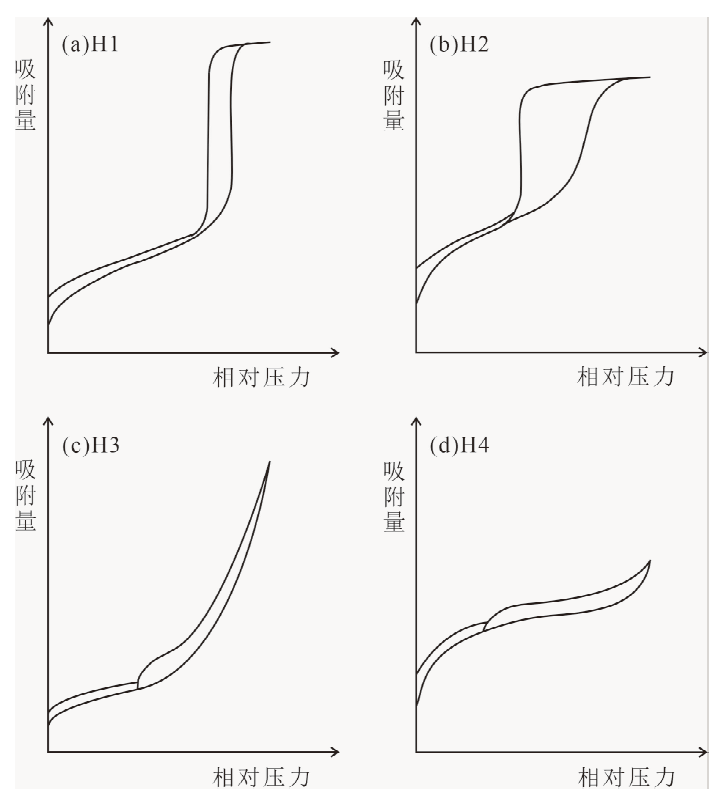

图4 滞后回环的分类(据文献[13]修改)

Fig.4 Types of hysteresis loops (modified from reference [13])

图5 不同笔石带页岩样品的氮气吸附-脱附曲线特征

Fig.5 Characteristics of nitrogen adsorption-desorption curves of shale samples in the different graptolitezones

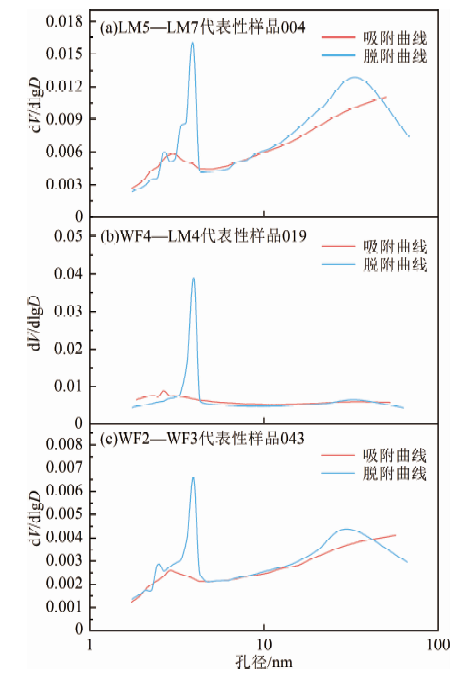

图6 不同笔石带的氮气吸附和脱附分支的孔径分布曲线

Fig.6 Pore size distribution curves of nitrogen adsorption and desorption branches in the different graptolitezones

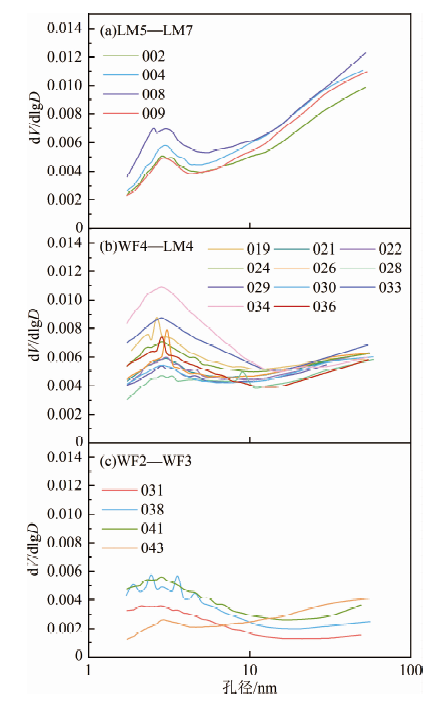

图7 基于BJH法对吸附分支计算得到的不同笔石带孔径分布曲线

Fig.7 Pore size distribution curves of the different graptolite zones calculated by the BJH method

图8 不同笔石带页岩样品的累积进汞量与孔径的关系

Fig.8 Relationship between cumulative mercury intake and pore size of shale samples in the different graptolitezones

表2 不同笔石带的孔隙结构参数

Table 2 Pore structure parameters of the different graptolite zones

笔石带	BET比表面积/ (m²/g)	BJH孔隙体积/ (cm³/g)	平均孔径/ nm
LM5—LM7	5.406 8	0.015 4	11.411 9
WF4—LM4	6.121 3	0.011 1	7.271 8
WF2—WF3	3.655 6	0.006 2	7.142 3
所有笔石带	5.451 8	0.011 0	8.116 1

图9 研究区页岩样品不同孔径比表面积、孔隙体积的百分含量分布

Fig.9 Percentage distribution of specific surface area and pore volume of shale samples with the different pore sizes in the study area

图10 不同笔石带页岩孔隙BET比表面积、BJH累积孔隙体积及平均孔径的相关性

Fig.10 Correlation of BET specific surface area, BJH cumulative pore volume and average pore size of shale pores in the different graptolite zones

图11 不同笔石带TOC含量与BET比表面积、BJH吸附累积孔隙体积的关系

Fig.11 Relationship between TOC content and BET specific surface area and BJH adsorbed cumulative pore volume in the different graptolite zones

图12 TOC含量与平均孔径的关系

Fig.12 Relationship between TOC content and average pore size

图13 不同笔石带黏土矿物含量与BET比表面积、BJH吸附累积孔隙体积的关系

Fig.13 Relationship between clay mineral content and BET specific surface area and BJH adsorbed accumulated pore volume in the different graptolite zones

图14 不同笔石带石英含量与BET比表面积、BJH吸附累积孔隙体积的关系

Fig.14 Relationship between quartz content and BET specific surface area and BJH adsorbed accumulated pore volume in the different graptolite zones

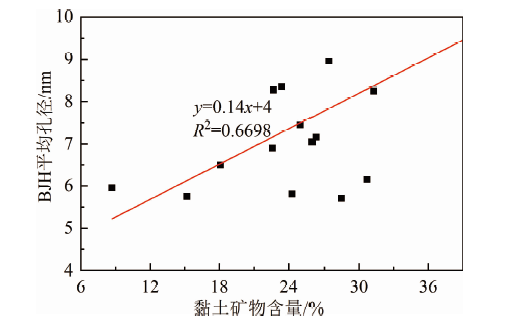

图15 黏土矿物含量与平均孔径的关系

Fig.15 Relationship between clay mineral content and average pore size
