鲕粒白云岩内部溶蚀及孔隙非均质性演化研究

doi:10.19657/j.geoscience.1000-8527.2019.06.04

现代地质 ›› 2019, Vol. 33 ›› Issue (06): 1174-1187.DOI: 10.19657/j.geoscience.1000-8527.2019.06.04

鲕粒白云岩内部溶蚀及孔隙非均质性演化研究

谢淑云¹(), 雷蕾¹^,², 焦存礼³, 何治亮³, 鲍征宇¹, 马佳怡¹, 张殿伟³, 彭守涛³

1.中国地质大学(武汉) 地球科学学院,湖北武汉 430074
2.东华理工大学地球科学学院,江西南昌 330013
3.中国石油化工股份有限公司石油勘探开发研究院,北京 100083

收稿日期:2018-12-26 修回日期:2019-04-05 出版日期:2019-12-26 发布日期:2019-12-27
作者简介:谢淑云,女,教授,1976年出生,地球化学专业,主要从事碳酸盐岩储层溶解动力学与覆盖区地球化学找矿及定量地球化学的研究工作。Email: tinaxie@cug.edu.cn。
基金资助:
国家科技重大专项“大型油气田及煤层气开发”(2008ZX05005);国家“973计划”项目 “中国早古生代海相碳酸盐岩层系大型油气田形成机理与分布规律”(2012CB214802);中国石油化工股份有限公司项目“塔里木盆地深层优质碳酸盐岩储层成因与分布”(P14038)

Internal Dissolution and Pore Structural Evolution of Oolitic Dolomite

XIE Shuyun¹(), LEI Lei¹^,², JIAO Cunli³, HE Zhiliang³, BAO Zhengyu¹, MA Jiayi¹, ZHANG Dianwei³, PENG Shoutao³

1. School of Earth Sciences, China University of Geosciences, Wuhan,Hubei 430074, China
2. School of Earth Sciences,East China University of Technology, Nanchang,Jiangxi 330013, China
3. Research Institute of Exploration & Production, SINOPEC, Beijing 100083, China

Received:2018-12-26 Revised:2019-04-05 Online:2019-12-26 Published:2019-12-27

摘要/Abstract

摘要：

在地表和埋藏条件下溶蚀作用形成的次生孔隙是碳酸盐岩油气储层重要的储集空间。为探究孔隙的溶蚀改造机理及其控制因素,通过柱塞样,开展了0.2%的乙酸环境中鲕粒白云岩的溶蚀实验,实验温度和压力范围分别为40~160 ℃和10~50 MPa。实验采取连续取样获得溶液中Ca²⁺与Mg²⁺离子含量,通过CT 成像技术获取溶蚀反应前后孔隙图像并运用分形与多重分形方法定量分析孔隙在二维和三维空间上的非均质性。研究表明,溶蚀过程中,鲕粒白云岩溶蚀液中[Ca²⁺+Mg²⁺]浓度在实验开始时最低,之后稳步上升并在120 ℃、40 MPa时达到最大值,而后缓慢下降,溶蚀窗范围出现在70 ℃(20 MPa)~120 ℃(40 MPa)之间。二维和三维微观孔隙结构在空间上的分布具有显著的多重分形特征,溶蚀作用使得孔隙的不规则性减少、孔隙的奇异范围缩减。这些结果对于认识近地表和深埋藏条件下溶蚀作用对碳酸盐岩储层孔隙的改造强度及孔隙的动态演化规律具有重要的理论及实际意义。

关键词: 内部溶蚀, 多重分形, 孔隙结构, 非均质性

Abstract:

Secondary pores formed by dissolution under surface and burial conditions are very important sites for carbonate reservoirs. To explore the pore erosion mechanism and its controlling factors, the dissolution experiments of oolitic dolomite in 0.2% acetic acid environment were carried out with one oolitic column sample. The experimental temperature and pressure were of 40-160 ℃ and 10-50 MPa, respectively. Continuous sampling was conducted to measure the Ca²⁺ and Mg²⁺ contents in the solution. Pore images before and after the dissolution reactions were obtained by CT imaging. Fractal and multifractal methods were used to quantify the pore heterogeneity in two-dimensional (2D) and three-dimensional (3D) space. The results show that the [Ca²⁺+ Mg²⁺] concentration of oolitic dolomite was the lowest at the beginning of the dissolution experiment, and then increased steadily and reached the maximum at 120 ℃ and 40 MPa, and subsequently decreased slowly with the dissolution window from 70 ℃ to 120 ℃. The 2D/3D spatial distribution of micro-pore structure has multifractal characteristics. This implies that the dissolution reduced the irregularity and singularity of the pores. These results are of great theoretical and practical significance to understand the dissolution effect on the pore structures, and the pore dynamic evolution in carbonate reservoirs under near-surface or deep-burial conditions.

Key words: internal dissolution, multifractal, pore structure, heterogeneity

中图分类号:

TE122.2

谢淑云, 雷蕾, 焦存礼, 何治亮, 鲍征宇, 马佳怡, 张殿伟, 彭守涛. 鲕粒白云岩内部溶蚀及孔隙非均质性演化研究[J]. 现代地质, 2019, 33(06): 1174-1187.

XIE Shuyun, LEI Lei, JIAO Cunli, HE Zhiliang, BAO Zhengyu, MA Jiayi, ZHANG Dianwei, PENG Shoutao. Internal Dissolution and Pore Structural Evolution of Oolitic Dolomite[J]. Geoscience, 2019, 33(06): 1174-1187.

图/表 14

图1 鲕粒白云岩实验样品光学显微镜下特征 (a)和(b)为鲕粒间填隙物亮晶白云岩胶结物;(c)为鲕粒中心部位白云石

Fig.1 Characteristics of the oolitic dolomite sample under the optical microscope

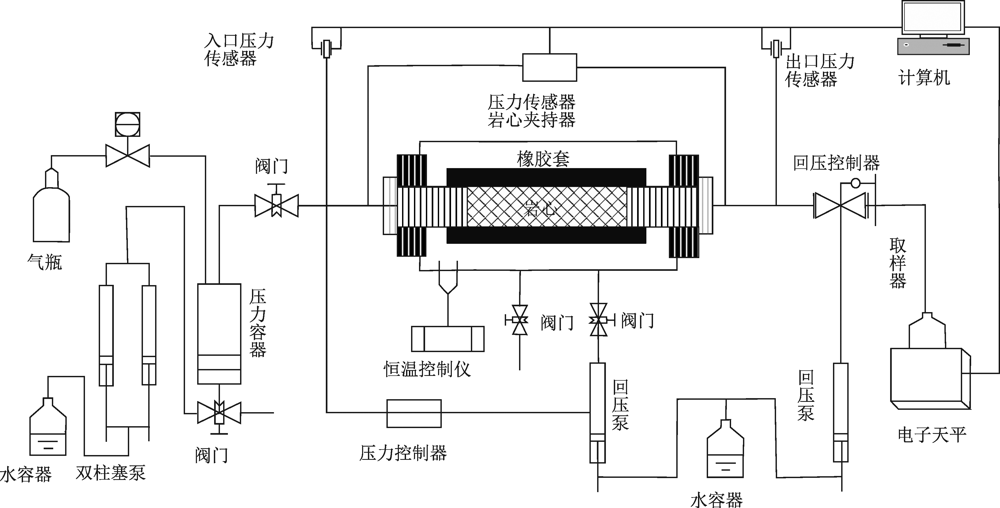

图2 溶解动力学模拟装置示意图[67]

Fig.2 Sketch diagram of the dissolution kinetics simulator

表1 反应溶液中Ca2+、Mg2+浓度及对应反应条件

Table 1 Concentrations of Ca2+ and Mg2+ in the solution and the corresponding reaction conditions

序号	温度/ ℃	压力/ bar	深度/ m	Ca²⁺/ (10^-3 mol/L)	Mg²⁺/ (10^-3 mol/L)	(Ca²⁺+Mg²⁺)/ (10^-3 mol/L)
1	40	100	1 333	4.28	4.33	8.61
2	40	100	1 333	4.35	4.38	8.73
3	70	200	2 333	6.28	6.38	12.65
4	70	200	2 333	6.25	6.33	12.58
5	90	300	3 000	6.45	6.58	13.03
6	90	300	3 000	6.33	6.46	12.78
7	120	400	4 000	6.55	6.63	13.18
8	120	400	4 000	6.48	6.58	13.06
9	140	500	4 667	6.25	6.33	12.58
10	140	500	4 667	6.23	6.33	12.56
11	160	500	5 333	5.95	6.04	11.99
12	160	500	5 333	5.90	6.04	11.94

图3 样品反应溶液中Ca2+、Mg2+浓度和Ca2+/Mg2+比值随温压变化规律(反应过程中温度与压力同时变化)

Fig.3 Variation of Ca2+ and Mg2+ contents in the solution and the corresponding Ca2+/Mg2+ values (the temperature and pressure changing simultaneously during the reaction process)

图4 CT图像灰度二值化 (a)、(b)分别为反应前后CT测试的灰度值f(i, j, k)图;(c)、(d)为对应二值化后灰度f'(i, j, k)图像;样品直径为2.5 cm

Fig.4 Typical grey-scale CT images with 2.5 cm sampling diameter

图5 二维孔隙度与分形和多重分形参数散点图(图6(a)、 (b)、 (c)、 (d)、 (e)、 (f)、 (g)、 (h)分别代表孔隙度与盒子维数Db、Δα、Δf、ΔαL、 ΔαR 、 ΔfL 、ΔfR、R参数之间的散点图,蓝色代表反应前参数点,红色代表反应后参数点)

Fig.5 Scatter plot of fractal and multifractal analysis parameters versus porosity value by 2D-imaging (blue and red dots represent the relationships before and after the dissolution experiment, respectively)

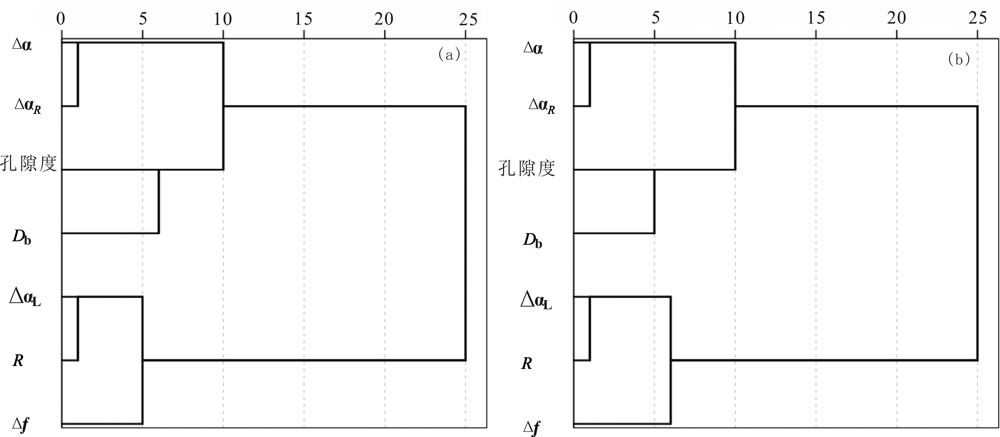

图6 分形和多重分形参数聚类分析树状图((a)为反应前,(b)为反应后)

Fig.6 Dendrogram of cluster analysis based on fractal and multifractal analysis parameters: (a) before and (b) after the dissolution experiment

图7 多重分形参数Δα和Δf散点图(蓝色为反应前,红色为反应后)

Fig.7 Scatter plot of Δα versus Δf by 2D-imaging (blue and red dots represent the relationships before and after the dissolution experiment, respectively)

图8 基于3DThroat反应前(a)后(b)孔隙三维可视化示意图

Fig.8 3D-visualization of pores before (a) and after (b) the dissolution experiment

图9 孔隙体积分布直方图(蓝色为反应前,红色为反应后,图(b)为图(a)宏孔隙区域部分)

Fig.9 Histograms of pore volumes (blue and red dots represent the relationships before and after the dissolution experiment, respectively, (b) is a zoom-in of (a))

表2 碳酸盐岩样品等效面积及累计概率分级一览表

Table 2 Equivalent sizes and classification cumulative frequency of the oolitic dolomite samples

条件		累计概率/%
条件		5	25	50	75	97.5	99.5	100
等效面积/ μm²	反应前	255.97	511.94	1 535.82	5 119.41	54 777.73	525 852.06	3.52×10⁸
等效面积/ μm²	反应后	255.97	255.97	511.94	1 791.80	19 453.78	73 609.78	5.76×10⁸

表3 碳酸盐岩样品孔隙空间等效面积分级累计概率统计表

Table 3 Cumulative frequency of pore space equivalent area classification for the oolitic dolomite samples

样品 (NSP-4)	累计概率/%
样品 (NSP-4)	a级	b级	c级	d级	e级	f级	g级
反应前	0	0	0	22.23	52.00	22.96	2.577
反应后	0	0	0	39.00	50.91	9.27	1.009

表4 三维孔隙分形与多重分形参数

Table 4 Fractal and multifractal parameters of 3D pore spaces

	渗透率/10^-3μm²	孔隙度/%	D_b	Δα	Δf	Δα_L	Δα_R	Δf_L	Δf_R	R
反应前	0.189 6	3.48	2.76	4.09	1.39	1.55	2.53	1.64	3.03	-0.24
反应后	35 207	6.67	2.98	2.35	2.12	0.62	1.73	0.56	2.68	-0.48

图10 反应前(a1、b1、c1)后(a2、b2、c2)孔隙分形与多重分形谱特征示意图

Fig.10 Fractal and multifractal spectrum sketch maps of the pore spaces before and after the dissolution experiment

参考文献 74

[1]	QIN R, LI X, LIU C, et al. Influential factors of pore structure and quantitative evaluation of reservoir parameters in carbonate reservoirs[J]. Earth Science Frontiers, 2015,22:251-259.
[2]	陈琳, 康志宏, 李鹏, 等. 塔河油田奥陶系岩溶型碳酸盐岩油藏储集空间发育特征及地质模式探讨[J]. 现代地质, 2013,27(2):356-365.
[3]	何治亮. 中国海相碳酸盐岩储层成因与分布[M]. 北京: 科学出版社, 2016: 1-300.
[4]	范明, 胡凯, 蒋小琼, 等. 酸性流体对碳酸盐岩储层的改造作用[J]. 地球化学, 2009,38(1):20-26.
[5]	郭振华, 李光辉, 吴蕾, 等. 碳酸盐岩储层孔隙结构评价方法——以土库曼斯坦阿姆河右岸气田为例[J]. 石油学报, 2011,32(3):459-465.
[6]	刘再华, DREYBRODT W. DBL理论模型及方解石溶解、沉积速率预报[J]. 中国岩溶, 1998(1):1-7.
[7]	POKROVSKY O S, GOLUBEV S V, SCHOTT J. Dissolution kinetics of calcite, dolomite and magnesite at 25 ℃ and 0 to 50 atm pCO₂[J]. Chemical Geology, 2005,217(3):239-255. DOI URL
[8]	张天付, 崔振昂, 钱一雄, 等. 塔中地区奥陶系海相碳酸盐岩储层的溶解动力学特征[J]. 地质科技情报, 2007,26(3):19-25.
[9]	张天付, 鲍征宇, 马明, 等. 鲕粒灰岩的溶解动力学特征和微观形貌的发育演化[J]. 沉积学报, 2009,27(6):1033-1042.
[10]	范明, 何治亮, 李志明, 等. 碳酸盐岩溶蚀窗的形成及地质意义[J]. 石油与天然气地质, 2011,32(4):499-505.
[11]	王炜, 黄康俊, 鲍征宇, 等. 不同类型鲕粒灰岩储集层溶解动力学特征[J]. 石油勘探与开发, 2011,38(4):29-30.
[12]	方旸, 谢淑云, 何治亮, 等. 基于岩石薄片的鲕粒碳酸盐岩地球化学溶蚀[J]. 地球科学——中国地质大学学报, 2016,41(5):779-791.
[13]	黄康俊, 王炜, 鲍征宇, 等. 埋藏有机酸性流体对四川盆地东北部飞仙关组储层的溶蚀改造作用:溶解动力学实验研究[J]. 地球化学, 2011,40(3):289-300.
[14]	TAYLOR K C, NASR-EL-DIN H AC. Measurement of acid reaction rates with the rotating disk apparatus[J]. Journal of Canadian Petroleum Technology, 2009,48(6):66-70.
[15]	RABIE A I, SHEDD D C, NASR-EL-DIN H A. Measuring the reaction rate of lactic acid with calcite and Dolomite by use of the rotating-disk apparatus[J]. SPE Journal, 2014,19(6):1192-1202. DOI URL
[16]	李卓, 姜振学, 唐相路, 等. 渝东南下志留统龙马溪组页岩岩相特征及其对孔隙结构的控制[J]. 地球科学——中国地质大学学报, 2017,42(7):1116-1123.
[17]	彭女佳, 何生, 郝芳, 等. 川东南彭水地区五峰组-龙马溪组页岩孔隙结构及差异性[J]. 地球科学——中国地质大学学报, 2017,42(7):1134-1146.
[18]	黄家国, 许开明, 郭少斌, 等. 基于SEM、NMR和X-CT的页岩储层孔隙结构综合研究[J]. 现代地质, 2015(1):198-205.
[19]	POLACCI M, MANCINI L, BAKER D R. The contribution of synchrotron X-ray computed microtomography to understanding volcanic processes[J]. Journal of Synchrotron Radiation, 2010,17(2):215-221. DOI URL
[20]	张天付, 谢淑云, 鲍征宇, 等. 基于高分辨率CT的孔隙型白云岩储层孔隙系统分形与多重分形研究[J]. 地质科技情报, 2016(6):55-62.
[21]	王朋飞, 姜振学, 李卓, 等. 渝东北下寒武统牛蹄塘组页岩微纳米孔隙结构特征[J]. 地球科学——中国地质大学学报, 2017,42(7):1147-1156.
[22]	LUQUOT L, GOUZE P. Experimental determination of porosity and permeability changes induced by injection of CO₂ into carbonate rocks[J]. Chemical Geology, 2009,265(1):148-159. DOI URL
[23]	QAJAR J, ARNS C H. Characterization of reactive flow-induced evolution of carbonate rocks using digital core analysis-part 1: Assessment of pore-scale mineral dissolution and deposition[J]. Journal of Contaminant Hydrology, 2016,192:60-86. DOI URL
[24]	LAMY-CHAPPUIS B, ANGUS D, FISHER Q, et al. Rapid porosity and permeability changes of calcareous sandstone due to CO₂ enriched brine injection[J]. Geophysical Research Letters, 2014,41(2):399-406. DOI URL
[25]	VIALLE S, CONTRAIRES S, ZINZSNER B, et al. Percolation of CO₂-rich fluids in a limestone sample: Evolution of hydraulic, electrical, chemical, and structural properties[J]. Journal of Geophysical Research:Solid Earth, 2014,119(4):2828-2847. DOI URL
[26]	佘敏, 寿建峰, 贺训云, 等. 碳酸盐岩溶蚀机制的实验探讨:表面溶蚀与内部溶蚀对比[J]. 海相油气地质, 2013,18(3):55-61.
[27]	谭飞, 张云峰, 王振宇, 等. 鄂尔多斯盆地奥陶系不同组构碳酸盐岩埋藏溶蚀实验[J]. 沉积学报, 2017,35(2):413-424.
[28]	YOON H, VALOCCHI A J, WERTH C J, et al. Pore-scale simulation of mixing-induced calcium carbonate precipitation and dissolution in a microfluidic pore network[J]. Water Resources Research, 2012,48(2):2478.
[29]	LI L, SALEHIKHOO F, BRANTLEY S L, et al. Spatial zonation limits magnesite dissolution in porous media[J]. Geochimica et Cosmochimica Acta, 2014,126(2):555-573. DOI URL
[30]	PANGA M, ZIAUDDIN M, BALAKOTAIAH V. Two-scale continuum model for simulation of wormholes in carbonate acidization[J]. Aiche Journal, 2005,51(12):3231-3248. DOI URL
[31]	MAHESHWARI P, RATNAKAR R R, KALIA N, et al. 3-D simulation and analysis of reactive dissolution and wormhole formation in carbonate rocks[J]. Chemical Engineering Science, 2013,90:258-274. DOI URL
[32]	RAFA S M, TREBOTICH D, STEEFEL C I, et al. An investigation of the effect of pore scale flow on average geochemical reaction rates using direct numerical simulation[J]. Water Resources Research, 2012,48(3):3527.
[33]	HAO L, CHENG P. Pore-scale simulations on relative permeabilities of porous media by lattice Boltzmann method[J]. Interna-tional Journal of Heat and Mass Transfer, 2010,53(9/10):1908-1913.
[34]	PAZDNIAKOU A, ADLER P M. Dynamic permeability of porous media by the lattice Boltzmann method[J]. Advances in Water Resources, 2013,62(12):292-302. DOI URL
[35]	GAO J, XING H, TIAN Z, et al. Lattice Boltzmann modeling and evaluation of fluid flow in heterogeneous porous media involving multiple matrix constituents[J]. Computers & Geosciences, 2014,62:198-207. DOI URL
[36]	MEHMANI Y, SUN T, BALHOFF M T, et al. Multiblock pore-scale modeling and upscaling of reactive transport: application to carbon sequestration[J]. Transport in Porous Media, 2012,95(2):305-326. DOI URL
[37]	TARTAKOVSKY A M, MEAKIN P, SCHEIBE T D, et al. A smoothed particle hydrodynamics model for reactive transport and mineral precipitation in porous and fractured porous media[J]. Water Resources Research, 2007,43(5):5437.
[38]	ALGIVE L, BEKRI S, VIZIKA O. Pore-network modeling dedicated to the determination of the petrophysical-property changes in the presence of reactive fluid[J]. SPE Journal, 2010,15(3):618-633. DOI URL
[39]	BUDEK A, SZYMCZAK P. Network models of dissolution of porous media[J]. Physical Review E Statistical Nonlinear & Soft Matter Physics, 2012,86:05631852.
[40]	HAO Y, SMITH M, SHOLOKHOVA Y, et al. CO₂-induced dissolution of low permeability carbonates. Part II: Numerical modeling of experiments[J]. Advances in Water Resources, 2013,62:388-408. DOI URL
[41]	SMITH M M, SHOLOKHOVAk Y, HAO Y, et al. CO₂-induced dissolution of low permeability carbonates. Part I: Characterization and experiments[J]. Advances in Water Resources, 2013,62:370-387. DOI URL
[42]	PEREIRA NUNES J P, BLUNT M J, BIJELJIC B. Pore-scale simulation of carbonate dissolution in micro-CT images[J]. Journal of Geophysical Research:Solid Earth, 2016,121(2):558-576. DOI URL
[43]	MANDELBROT B. How long is the coast of britain? Statistical self-similarity and fractional dimension.[J]. Science, 1967,156(3775):636-638. DOI URL
[44]	OLESCHKO K, FIGUEROA B S, MIRANDA M E, et al. Mass fractal dimensions and some selected physical properties of contrasting soils and sediments of Mexico[J]. Soil & Tillage Research, 2000,55(1):43-61.
[45]	MIRANDA J G V, MONTERO E, ALVES M C, et al. Multifractal characterization of saprolite particle-size distributions after topsoil removal[J]. Geoderma, 2006,134(3):373-385. DOI URL
[46]	MUNKHOLM L J, HECK R J, DEEN B. Soil pore characteristics assessed from X-ray micro-CT derived images and correlations to soil friability[J]. Geoderma, 2012,181/182:22-29. DOI URL
[47]	WANG D, FU B, ZHAO W, et al. Multifractal characteristics of soil particle size distribution under different land-use types on the Loess Plateau, China[J]. Catena, 2008,72(1):29-36. DOI URL
[48]	WANG J, ZHANG M, BAI Z, et al. Multi-fractal characteristics of the particle distribution of reconstructed soils and the relationship between soil properties and multi-fractal parameters in an opencast coal-mine dump in a loess area[J]. Environmental Earth Sciences, 2015,73(8):1-14. DOI URL
[49]	WANG J, GUO L, BAI Z, et al. Using computed tomography (CT) images and multi-fractal theory to quantify the pore distribution of reconstructed soils during ecological restoration in opencast coal-mine[J]. Ecological Engineering, 2016,92:148-157. DOI URL
[50]	王凤, 邓念东, 马逢清, 等. 基于CT的黄土大孔隙形态三维分形研究[J]. 计算机工程, 2014,40(7):217-220.
[51]	张松航, 唐书恒, 汤达祯, 等. 鄂尔多斯盆地东缘煤储层渗流孔隙分形特征[J]. 中国矿业大学学报, 2009,38(5):111-116.
[52]	XU S, ZHOU Z, YU G, et al. Effects of Pyrolysis on the Pore Structure of Four Chinese Coals[J]. Energy & Fuels, 2010,24(2):1114-1123. DOI URL
[53]	YAO Y B, LIU D M, CAI Y D, et al. Advanced characterization of pores and fractures in coals by nuclear magnetic resonance and X-ray computed tomography[J]. Science China Earth Sciences, 2010,53(6):854-862. DOI URL
[54]	ZHU J F, LIU J Z, YANG Y M, et al. Fractal characteristics of pore structures in 13 coal specimens: Relationship among fractal dimension, pore structure parameter, and slurry ability of coal[J]. Fuel Processing Technology, 2016,149:256-267. DOI URL
[55]	MULLER J, MCCAULEY J L. Implication of fractal geometry for fluid flow properties of sedimentary rocks[J]. Transport in Porous Media, 1992,8(2):133-147. DOI URL
[56]	KROHN C, THOMPSON A. Fractal sandstone pores: Automated measurements using scanning-electron-microscope images[J]. Physical Review B(Condensed Matter), 1986,33(9):6366-6374.
[57]	XIE S, CHENG Q, LING Q, et al. Fractal and multifractal analysis of carbonate pore-scale digital images of petroleum reservoirs[J]. Marine & Petroleum Geology, 2010,27(2):476-485.
[58]	JOUINI M S, VEGA S, MOKHTAR E A. Multiscale characterization of pore spaces using multifractals analysis of scanning electronic microscopy images of carbonates[J]. Nonlinear Processes in Geophysics, 2011,18(6):941-953. DOI URL
[59]	方海平, 谢淑云, 张天付, 等. 五大连池玄武岩三维孔隙组构的多重分形特征[J]. 地质科技情报, 2015(3):24-29.
[60]	谢淑云, 何治亮, 钱一雄, 等. 基于岩石CT图像的碳酸盐岩三维孔隙组构的多重分形特征研究[J]. 地质学刊, 2015,39(1):46-54.
[61]	向鼎璞. 四川盆地油气藏主要特征[J]. 石油实验地质, 1992,14(4):359-371.
[62]	姚建军, 陈孟晋, 华爱刚, 等. 川中乐山—龙女寺古隆起震旦系天然气成藏条件分析[J]. 石油勘探与开发, 2003,30(4):9-11.
[63]	许海龙, 魏国齐, 贾承造, 等. 乐山—龙女寺古隆起构造演化及对震旦系成藏的控制[J]. 石油勘探与开发, 2012,39(4):406-416.
[64]	韩晓涛, 鲍征宇, 谢淑云. 四川盆地西南中二叠统白云岩的地球化学特征及其成因[J]. 地球科学, 2016(1):167-176.
[65]	李宇翔. 川东南地区震旦系灯影组层序地层与储层特征研究[D]. 成都:成都理工大学, 2009.
[66]	王必金, 包汉勇, 郭战峰, 等. 湘鄂西区寒武系层序划分及其对油气勘探的意义[J]. 石油实验地质, 2013,35(4):372-377.
[67]	寿建峰, 佘敏, 沈安江. 深层条件下碳酸盐岩溶蚀改造效应的模拟实验研究[J]. 矿物岩石地球化学通报, 2016,35(5):860-867.
[68]	曾道富, 曾学思. 四川盆地古地温及古地温梯度的研究[J]. 天然气工业, 1987(4):5-21.
[69]	王兴志, 张帆, 蒋志斌, 等. 四川盆地东北部飞仙关组储层研究[J]. 地学前缘, 2008,15(1):117-122.
[70]	吴冰, 秦志远. 自动确定图像二值化最佳阈值的新方法[J]. 测绘科学技术学报, 2001,18(4):283-286.
[71]	TARQUIS A M, HECK R J, ANDINA D, et al. Pore network complexity and thresholding of 3D soil images[J]. Ecological Complexity, 2009,6(3):230-239. DOI URL
[72]	BIRD N, DIAZ M C, SAA A, et al. Fractal and multifractal analysis of pore-scale images of soil[J]. Journal of Hydrology, 2006,322(1/4):211-219. DOI URL
[73]	ANSELMETTI F S, LUTHI S, EBERLI G P. Quantitative characterization of carbonate pore systems by digital image analysis[J]. AAPG, 1998,82(10):1815-1836.
[74]	佘敏, 寿建峰, 郑兴平, 等. 基于CT成像的三维高精度储集层表征技术及应用[J]. 新疆石油地质, 2011(6):664-666.
