珠江口盆地文昌X-2油田新近系珠江组低阻油层成因机理

doi:10.19657/j.geoscience.1000-8527.2020.02.17

摘要/Abstract

摘要：

珠江口盆地文昌X-2油田珠江组发育一套低阻油层,该套油层电阻率与水层电阻率非常接近,给储层流体识别和含水饱和度计算带来较大困难,目前其低电阻率成因机理尚不够明确。基于铸体薄片、CT扫描、X衍射等实验分析资料,结合地质、测井资料和导电数值模拟技术,从宏观与微观角度对低阻油层的成因机理进行了详细分析。研究结果表明:若条带状分布的泥质含量高于20%,泥质在岩石中连续性较好,可提供较好的导电网络,因此油层电阻率仍然低于1.6 Ω·m,与水层差距不明显。低幅度构造和浅海沉积环境是低阻油层形成的主要宏观成因,复杂孔隙结构、细岩石粒度、高束缚水饱和度、高含量且条带状分布泥质是低阻油层形成的主要微观成因。

关键词: 珠江口盆地, 珠江组, 低阻油层, 泥质砂岩, 沉积环境, 孔隙结构

Abstract:

A set of low-resistivity oil reservoirs is developed in the Zhujiang Formation of Wenchang X-2 Oilfield in the Pearl River Estuary Basin. Resistivity of the oil reservoirs is very close to that of the water layers, which creates challenges in identifying reservoir fluids and calculating water saturation. At present, the genetic mechanism of these low resistivity oil reservoirs is yet to be clear. Based on mercury injection, nuclear magnetic resonance, casting thin section, CT scan, X-ray diffraction and other experimental analyses, and integrated with geological and well-log data and electrical conductivity numerical simulation technology, the genetic mechanism is analyzed from both macro- and micro-scale perspectives. The results show that if the banded shale content is above 20%, the rocks (with the shale) have a good continuity and can provide good conductive network. The resistivity of the oil reservoirs is below 1.6 Ω·m, and the resistivity differences between oil reservoirs and water layers are not distinct. Low-amplitude structures and shallow-sea sedimentary environment are the major macroscopic causes of the low-resistivity oil reservoirs. Complex pore structure, fine rock granularity, high irreducible water saturation, high banded-shale content are the major microscopic causes of low-resistivity oil reservoirs.

Key words: Pearl River Estuary Basin, Zhujiang Formation, low-resistivity oil reservoir, shaly sandstone, sedimentary environment, pore structure

中图分类号:

TE311

胡向阳, 梁玉楠, 吴丰, 廖明光, 张恒荣, 杨冬, 杨毅, 代槿, 钟华明, 吴一雄. 珠江口盆地文昌X-2油田新近系珠江组低阻油层成因机理[J]. 现代地质, 2020, 34(02): 390-398.

HU Xiangyang, LIANG Yunan, WU Feng, LIAO Mingguang, ZHANG Hengrong, YANG Dong, YANG Yi, DAI Jin, ZHONG Huaming, WU Yixiong. Genetic Mechanism of Low-Resistivity Neogene Zhujiang Formation in Wenchang X-2 Oilfield of Pearl River Estuary Basin[J]. Geoscience, 2020, 34(02): 390-398.

图/表 9

图1 珠江口盆地构造与研究区地层特征

Fig.1 Structures and stratigraphic characteristics of Pearl River Estuary Basin

图2 低阻油层和高阻油层的电阻率曲线对比

Fig.2 Resistivity curves of low-/high-resistivity oil reservoirs

图3 珠江组沉积环境与储层电阻率的关系

Fig.3 Relationship between sedimentary environment and reservoir resistivity in Zhujiang Formation

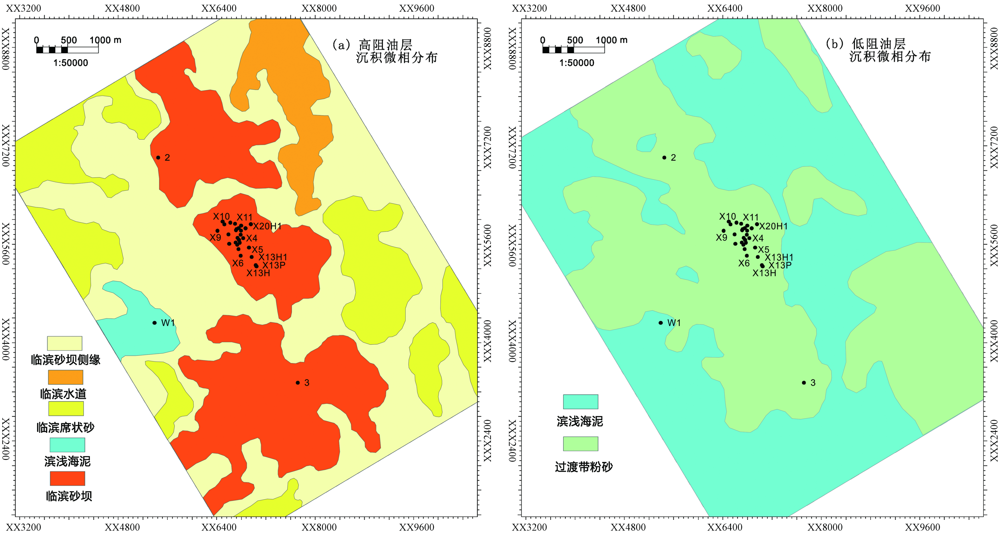

图4 高阻油层和低阻油层沉积微相分布

Fig.4 Sedimentary microfacies in low-/high-resistivity oil reservoirs

表1 低阻油层和高阻油层岩石颗粒粒度统计

Table 1 Rock grain-size statistics in low-/high-resistivity oil reservoirs

岩石颗粒	粒径/mm	低阻油层岩石颗粒相对含量/%	高阻油层岩石颗粒相对含量/%
粗砂	2.000 0~0.500 0	<0.005	0.001~14.43
中砂	0.500 0~0.250 0	0.005~3.47	0.001~26.71
细砂	0.250 0~0.062 5	7.25~25.60	12.00~57.90
粉砂	0.062 5~0.003 9	53.93~72.05	24.59~53.82
黏土	<0.003 9	11.92~25.23	9.39~16.30

图5 低阻油层、高阻油层的黏土矿物类型、含量及扫描电镜特征

Fig.5 Types and contents of clay minerals and their SEM imaging characteristics in low-/high-resistivity oil reservoirs

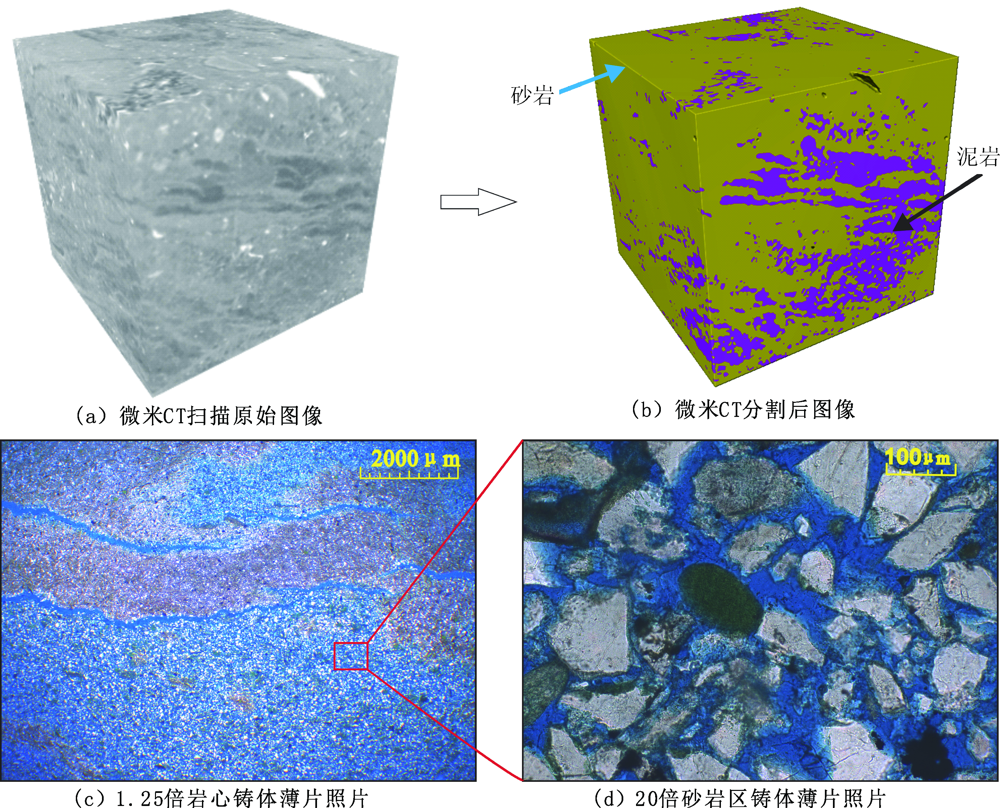

图6 低阻油层的微米CT图像及铸体薄片照片特征

Fig.6 Micro CT images and cast thin section images of low-resistivity oil reservoirs

图7 基于铸体薄片照片的低阻油层导电模型及电流密度分布结果

Fig.7 Thin section image-based conductivity models and electrical current density distributions in low-resistivity oil reservoirs

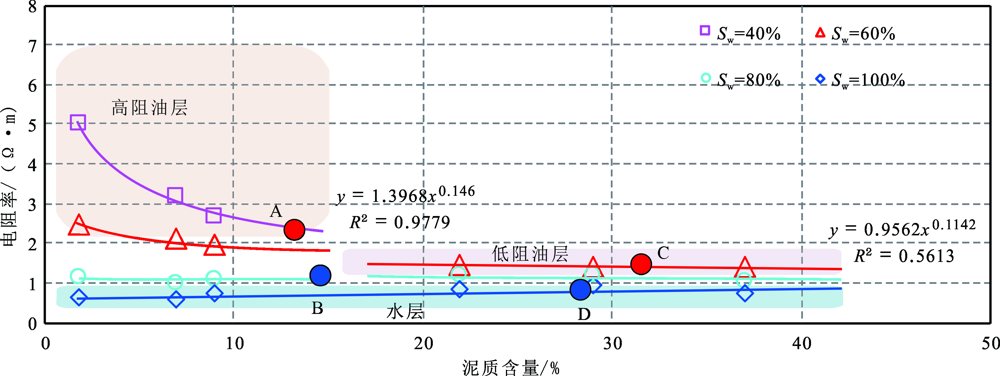

图8 低阻油层和高阻油层的电阻率模拟结果与测井曲线值的对比验证

Fig.8 Comparison of the simulation results in low-/high-resistivity oil reservoirs and well-log data

参考文献 14

[1]	徐锦绣, 吕洪志, 刘欢, 等. 渤海LD油田低阻油层成因机理与评价方法[J]. 中国海上油气, 2018,30(3):47-55.
[2]	CLAVIER C, COATES G, DUMANOIR J. Theoretical and experimental basis for the dual-water model for interpretation of shaly sands[J]. SPE, 1984,24(2):153-168.
[3]	DIEDERIX K M. Anomalous relationships between resistivity index and water saturation in the Rotligend Sandstone[M]//Society of Petrophysicists & Well Log Analysts.Expanded Abstracts of 23th Annual SPWLA Logging Mtg. Houston:SPWLA, 1984: 127-131.
[4]	闻磊, 谭守强, 潘保芝, 等. 低阻油层成因机理及测井评价方法——以港北南翼区块馆陶组为例[J]. 吉林大学学报(地球科学版), 2010,40(6):1456-1462.
[5]	黄家国, 许开明, 郭少斌, 等. 基于SEM、NMR和X-CT的页岩储层孔隙结构综合研究[J]. 现代地质, 2015,29(1):198-205.
[6]	苏崇华. 低阻低渗油藏薄油层测井识别技术及其应用[J]. 中国海上油气, 2009,21(5):320-323.
[7]	杨玉卿, 崔维平, 李俊良, 等. 电成像测井在珠江口盆地西部低阻油层研究中的应用[J]. 中国海上油气, 2011,23(6):369-373.
[8]	盛军, 杨晓菁, 李纲, 等. 基于多尺度X-CT成像的数字岩心技术在碳酸盐岩储层微观孔隙结构研究中的应用[J]. 现代地质, 2019,33(3):653-661+671.
[9]	师调调, 孙卫, 张创, 等. 鄂尔多斯盆地华庆地区延长组长6储层成岩相及微观孔隙结构[J]. 现代地质, 2012,26(4):769-777.
[10]	宋帆, 肖承文, 边树涛, 等. 轮南低幅度披覆构造低电阻率油层成因[J]. 石油勘探与开发, 2008(1):108-112.
[11]	罗水亮, 许辉群, 刘洪, 等. 柴达木盆地台南气田低阻气藏成因机理及测井评价[J]. 天然气工业, 2014,34(7):41-45.
[12]	郭顺, 王震亮, 张小莉, 等. 陕北志丹油田樊川区长6-1低阻油层成因分析与识别方法[J]. 吉林大学学报(地球科学版), 2012,42(1):18-24.
[13]	江艳平, 窦松江, 张东星, 等. 尼日尔Agadem油田E1油组低阻油层成因分析[J]. 断块油气田, 2017,24(5):628-631.
[14]	CLAVIER C, HEIM A, SCALA C. Effect of pyrite on resistivity and other logging measurements[M]//SPWLA. SPWLA Seventeenth Annual Logging Symposium.Denver:SPWLA, 1976: 129-135.
