柴达木盆地英雄岭构造带油气藏地质特征

doi:10.19657/j.geoscience.1000-8527.2020.02.16

现代地质 ›› 2020, Vol. 34 ›› Issue (02): 378-389.DOI: 10.19657/j.geoscience.1000-8527.2020.02.16

柴达木盆地英雄岭构造带油气藏地质特征

伍坤宇¹^,²(), 廖春¹, 李翔³, 张成娟¹, 张强¹, 李贵梅¹, 张静¹, 谭秀成²

1.中国石油天然气集团公司青海油田分公司,甘肃敦煌 736202
2.西南石油大学油气藏地质及开发工程国家重点实验室,四川成都 610500
3.中国石油勘探开发研究院西北分院,甘肃兰州 730020

收稿日期:2018-12-10 修回日期:2019-06-20 出版日期:2020-05-25 发布日期:2020-05-25
作者简介:伍坤宇,男,博士,工程师,1986年出生,油气勘探专业,主要从事沉积储层研究工作。Email: wukunyu1986@126.com。
基金资助:
中国石油天然气股份有限公司重大科技专项(2016E-0102);中国石油天然气股份有限公司重大科技专项(2016E-0105);国家科技重大专项(2016ZX05046);国家科技重大专项(0201001009269);青海油田科技项目(研2017-内部-勘探-07)

Geological Characteristics of Hydrocarbon Pool in Yingxiongling Structural Zone, Qaidam Basin

WU Kunyu¹^,²(), LIAO Chun¹, LI Xiang³, ZHANG Chengjuan¹, ZHANG Qiang¹, LI Guimei¹, ZHANG Jing¹, TAN Xiucheng²

1. Qinghai Oil Field Company, CNPC, Dunhuang,Gansu 736202, China
2. State Key Laboratory of Oil and Gas Reservoir Geology and Exploitation, Southwest Petroleum University, Chengdu,Sichuan 610500, China
3. Northwest Branch of Research Institute of Petroleum Exploration and Development, PetroChina, Lanzhou,Gansu 730020, China

Received:2018-12-10 Revised:2019-06-20 Online:2020-05-25 Published:2020-05-25

摘要/Abstract

摘要：

为总结柴英雄岭构造带油气藏地质特征和主控因素,以该区深层和浅层油气藏为研究对象,对油气藏的构造、储层、油气源和成藏演化模式等方面进行了对比研究。结果表明:(1)英雄岭构造带构造样式自西向东变化显著,英西—英中纵向上表现为“双层结构”,而英东构造样式相对简单;(2)英西—英中碳酸盐岩储层主要储集空间为白云岩晶间孔,局部发育溶蚀孔和裂缝集中区,英东碎屑岩储层,主要发育粒间孔、少量粒间溶孔和裂缝;(3)油源对比表明,下干柴沟组上段为区内主力烃源岩;(4)天然气组分及同位素指标表明英西和英中的CH₄主要来源于原油伴生气,而英东为凝析油伴生气;(5)由于岩盐层封盖作用,英西—英中深层形成自生自储的异常高压油气藏,而英东虽缺乏盐岩盖层,由深至浅地表现为幕式充注成藏。

关键词: 构造样式, 储层, 油气源, 油气藏地质特征, 英雄岭构造带

Abstract:

To understand the geological features and controlling factors on hydrocarbon accumulation in the Yingxiongling area, we systemically studied the structures, reservoir, and the oil & gas origin and accumulation evolution model. Our results showed that the structural styles of the Yingxiongling structural zone change significantly from west to east. The middle-western Yingxiongling area has a vertical ‘double-layer’ structure. The structural style in eastern Yingxiongling was simpler than that in middle-western Yingxiongling. The main pore type of carbonate reservoirs in middle-western Yingxiongling is inter-crystal pore, together with local development of dissolution pores and fracture aggregates. Pore space developed in clastic reservoirs in eastern Yingxiongling is mainly interparticle pore, with some interparticle dissolution pores and fractures. The upper member of the Xiaganchaigou Formation is the main source rock. The composition and isotopic factors of the natural gas indicated that the CH₄ in middle-western Yingxiongling was originated as crude oil associated gas, and the CH₄ in eastern Yingxiongling was associated gas of condensate oil. Due to the existence of halite seal layers, abnormally high-pressure hydrocarbon pools were formed in the deeper parts of middle-western Yingxiongling. In contrast, halite seal layers are absent in eastern Yingxiongling, and the hydrocarbon pool there is characterized by episodic accumulation from the deeper to the shallower parts.

Key words: structural style, reservoir, hydrocarbon source, geology of hydrocarbon pool, Yingxiongling structural zone

中图分类号:

TE122.3

伍坤宇, 廖春, 李翔, 张成娟, 张强, 李贵梅, 张静, 谭秀成. 柴达木盆地英雄岭构造带油气藏地质特征[J]. 现代地质, 2020, 34(02): 378-389.

WU Kunyu, LIAO Chun, LI Xiang, ZHANG Chengjuan, ZHANG Qiang, LI Guimei, ZHANG Jing, TAN Xiucheng. Geological Characteristics of Hydrocarbon Pool in Yingxiongling Structural Zone, Qaidam Basin[J]. Geoscience, 2020, 34(02): 378-389.

图/表 10

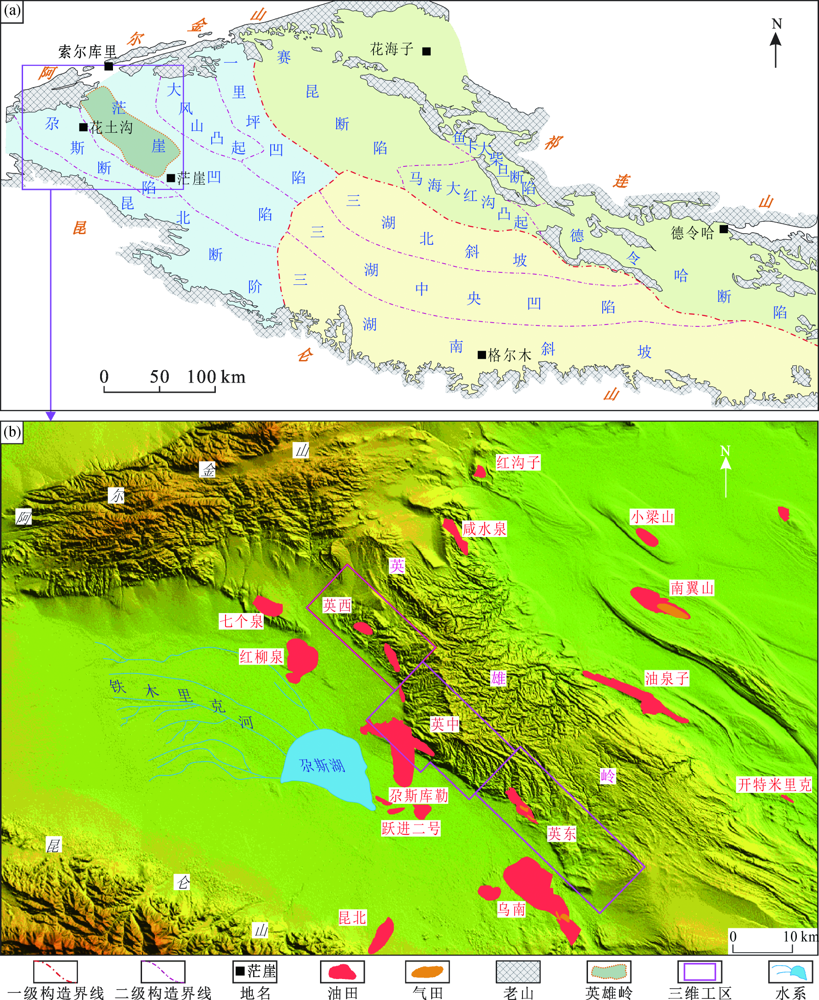

图1 英雄岭地区区域地质概况((a)柴达木盆地大地构造单元划分;(b)英雄岭构造带数字高程模型及油气田分布)

Fig.1 Regional geological setting of the Yingxiongling area

表1 柴西地区地层划分

Table 1 Stratigraphic division of western Qaidam Basin

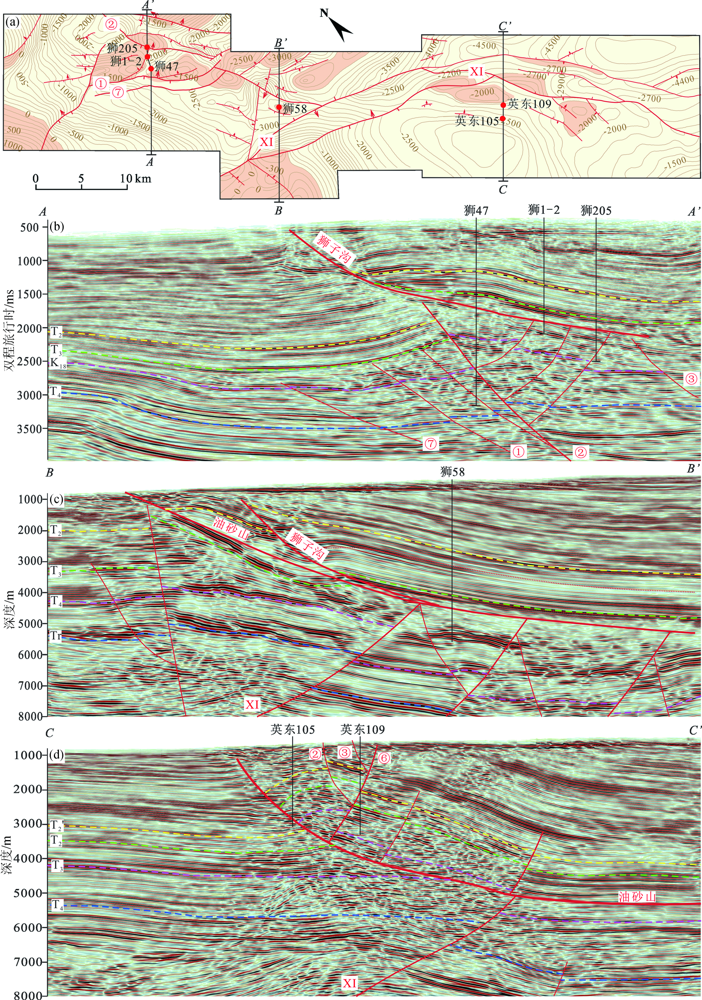

图2 研究区构造特征((a)T4构造图,(b)、 (c)、 (d)分别为英西、英中、英东构造解释剖面;文字和数字为断层编号))

Fig.2 Structural characteristics of study area: ((a)T4 structural map; (b), (c), (d) Seismic profiles of western, middle and eastern parts of the Yingxiongling structural zone, respectively. Words and numbers are ID of faults)

图3 英雄岭构造带储层岩石分类

Fig.3 Petrological classification of reservoirs in the Yingxiongling structural zone

图4 英雄岭构造带储层储集空间类型、成因及期次划分

Fig.4 Pore types, origin and formation periods of reservoirs in the Yingxiongling structural zone

图5 英雄岭构造带储层物性分布特征

Fig.5 Physical property distribution of reservoirs in the Yingxiongling structural zone

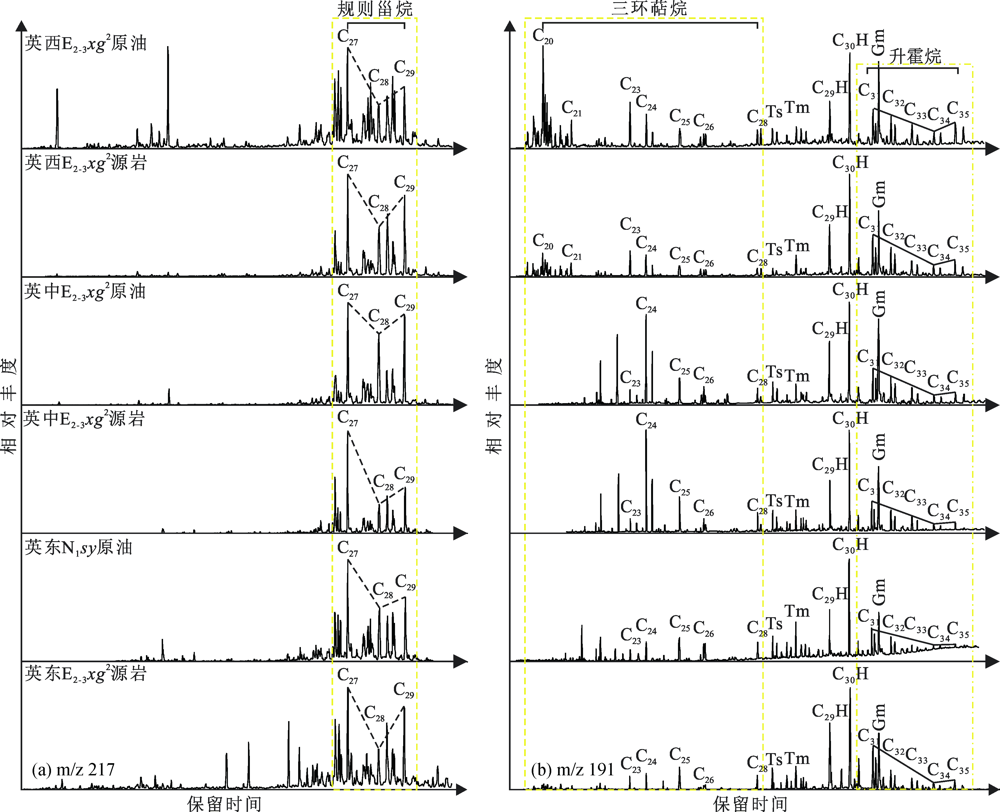

图6 英雄岭构造带原油和烃源岩抽提物m/z 217和m/z 191质量色谱图

Fig.6 m/z 217 and m/z 191 mass chromatogram of extracts from oil and source rock in the Yingxionging structural zone

表2 英雄岭构造带天然气组分及同位素特征

Table 2 Components and isotopic characteristics of natural gas in the Yingxiongling structural zone

油藏	井号	层位	CH₄	C₂H₆	C₃H₈	iC₄H₁₀	C₄H₁₀	干燥系数	δ¹³CH₄	δ¹³C₂H₆/	δ¹³C₃H₈
油藏	井号	层位			%			干燥系数		‰(PDB)
英西浅层	狮中18	E₃-N₁sg	77.25	17.92	0.98	0.12	0.51	79.82	-41.79	-28.6	-23.5
	狮中10	E₃-N₁sg	73.37	21.75	1.12	0.23	0.49	75.67	-40.58	-26.8	-23.0
	狮中13	E₃-N₁sg	85.73	12.22	0.32	0.08	0.16	87.03	-41.38	-33.2	-27.2
英西深层	狮新28	E_2-3xg²	88.4	9.12	0.93	0.11	0.32	89.40	-41.75	-30.6	-26.7
英西深层	狮29	E_2-3xg²	88.2	9.14	0.87	0.12	0.39	89.34	-41.54	-30.3	-25.9
英中	狮58	E_2-3xg²	78.77	5.98	3.54	0.79	1.92	86.56	-40	-27.7	-23.8
英东	砂40	N₁xy	91.31	8.02	0.25	0.02	0.05	91.63	-37.1	-27.7	-24.6
	砂40	N₁xy	90.84	8.51	0.21	0.00	0.02	91.22	-36.6	-27.8	-24.8
	砂37	N₁sy	89.46	10.04	0.12	0.00	0.00	89.80	-32.5	-25.6	-23.8
	英东105	N₁xy	92.55	7.01	0.31	0.00	0.01	92.66	-37	-27.3	-24.5

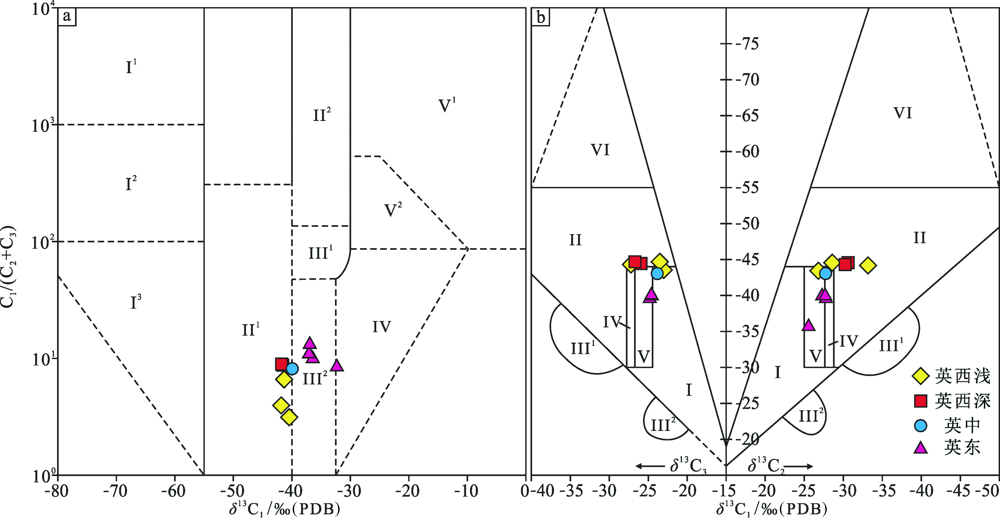

图7 英雄岭构造带天然气来源和成因判别图(图版据文献[29])

Fig.7 Origin and source discrimination diagrams of natural gas in the Yingxiongling structural zone (base map after reference[29])

图8 英雄岭构造带油气藏成藏演化模式

Fig.8 Evolution model of hydrocarbon pool accumulation in the Yingxiongling structural zone

参考文献 35

[1]	吴婵, 阎存凤, 李海兵, 等. 柴达木盆地西部新生代构造演化及其对青藏高原北部生长过程的制约[J]. 岩石学报, 2013,29(6):2211-2222.
[2]	潘家伟, 李海兵, 孙知明, 等. 阿尔金断裂带新生代活动在柴达木盆地中的响应[J]. 岩石学报, 2015,31(12):3701-3712.
[3]	付锁堂, 马达德, 陈琰, 等. 柴达木盆地油气勘探新进[J]. 石油学报, 2016,37(增刊):1-10.
[4]	张永庶, 伍坤宇, 姜营海, 等. 柴达木盆地英西深层碳酸盐岩油气藏地质特征[J]. 天然气地球科学, 2018,29(3):358-369.
[5]	YIN A, HARRISON T M. Geologic evolution of the Himalayan-Tibetan orogen[J]. Annual Review of Earth and Planetary Sciences, 2000,28(1):211-280.
[6]	TAPPONNIER P, XU Z Q, ROGER F, et al. Oblique stepwise rise and growth of the Tibet Plateau[J]. Science, 2001,294(5547):1671-1677. DOI URL PMID
[7]	ROYDEN L H, BURCHFIEL B C, VAN DER HILST R D . The geological evolution of the Tibetan Plateau[J]. Science, 2008,321(5892):1054-1058. DOI URL PMID
[8]	王金荣, 彭作林, 李益三. 柴达木盆地构造应力场及其地质意义[J]. 兰州大学学报(自然科学版), 1991,27(8):120-125.
[9]	张明利, 金之钧, 万天丰, 等. 柴达木盆地应力场特征与油气运聚关系[J]. 石油与天然气地质, 2005,26(5):674-679.
[10]	吕宝凤, 赵小花, 周莉, 等. 柴达木盆地新生代沉积转移及其动力学意义[J]. 沉积学报, 2008,26(4):553-558.
[11]	LU Haijian, XIONG Shangfa. Magnetostratigraphy of the Dahonggou section,northern Qaidam Basin and its bearing on Cenozoic tectonic evolution of the Qilian Shan and Altyn Tagh Fault[J]. Earth and Planetary Science Letters, 2009,288(3/4):539-550.
[12]	王泽九, 黄枝高, 姚建新, 等. 中国地层表及说明书的特点与主要进展[J]. 地球学报, 2014,35(3):271-276.
[13]	张伟林. 柴达木盆地新生代高精度磁性地层与青藏高原隆升[D]. 兰州: 兰州大学, 2006.
[14]	SUN Zhiming, YANG Zhenyu, PEI Junling, et al. Magnetostratigraphy of Paleogene sediments from northern Qaidam Basin,China: Implications for tectonic uplift and block rotation in northern Tibetan Plateau[J]. Earth and Planetary Science Letters, 2005,237(3/4):635-646.
[15]	徐凤银, 尹成明, 巩庆林, 等. 柴达木盆地中、新生代构造演化及其对油气的控制[J]. 中国石油勘探, 2006(6):9-16.
[16]	孙兆元. 压(扭)性垂向交叉断裂与柴达木盆地油气田的形成[J]. 石油学报, 1989,10(4):19-26.
[17]	王桂宏, 李永铁, 张敏, 等. 柴达木盆地英雄岭地区新生代构造演化动力学特征[J]. 地学前缘, 2004,11(4):417-423.
[18]	YU Xiangjiang, HUANG Baochun, GUAN Shuwei, et al. Anisotropy of magnetic susceptibility of Eocene and Miocene sediments in the Qaidam Basin,Northwest China: Implication for Cenozoic tectonic transition and depocenter migration[J]. Geochemistry, Geophysics, Geosystems, 2014,15(6):2095-2108.
[19]	ZHANG Peizhen, SHEN Zhengkang, WANG Min, et al. Continuous deformation of the Tibetan Plateau from global positioning system data[J]. Geology, 2004,32(9):809-812.
[20]	任纪舜, 王作勋, 陈炳蔚, 等. 从全球看中国大地构造——中国及邻区大地构造图简要说明[M]. 北京: 地质出版社, 1999: 6-9.
[21]	马丽芳. 中国地质图集[M]. 北京: 地质出版社, 2002: 348.
[22]	贾承造, 何登发, 陆洁民. 中国喜马拉雅运动的期次及其动力学背景[J]. 石油与天然气地质, 2004,25(2):121-125.
[23]	MOUNT J F. Mixing of siliciclastic and carbonate sediments in shallow shelf environments[J]. Geology, 1984,12:432-435.
[24]	MOUNT J F. Mixed siliciclastic and carbonates sediments: a proposed first-order textural and compositional classification[J]. Sedimentology, 1985,32:435-442.
[25]	张雄华. 混合沉积岩的分类和成因[J]. 地质科技情报, 2000,19(4) : 31-34.
[26]	刘宝珺. 沉积岩石学[M]. 北京: 地质出版社, 1980: 104-137.
[27]	CHOQUETTE P W, PRAY L C. Geologic nomenclature and classification of porosity in sedimentary carbonates[J]. AAPG Bulletin, 1970,54:207-250.
[28]	PETERS K E, WALTERS C C, MOLDOWAN J M. The Biomarker Guide (Vol. 2)[M]. Cambridge: Cambridge University Press, 2005: 1132.
[29]	戴金星. 天然气碳氢同位素特征和各类天然气鉴别[J]. 天然气地球科学, 1993,4(3):1-40.
[30]	VOLKMAN J K. A review of sterol markers for marine and terrigenous organic matter[J]. Organic Geochemistry, 1986,9:83-99.
[31]	VOLKMAN J K, BARRETT S M, DUNSTAN G A, et al. Sterol biomarkers for microalgae from the green algal class Prasinophyceae[J]. Organic Geochemistry, 1994,21:1211-1218.
[32]	GREENWOOD P F, AROURI K R, GEORGE S C. Tricyclic terpenoid composition of Tasmanites kerogen as determined by pyrolysis GC-MS[J]. Geochimica et Cosmochimica Acta, 2000,64:1249-1263.
[33]	DUTTA S, GREENWOOD P F, BROCKE R, et al. New insights into the relationship between Tasmanites and tricyclic terpenoids[J]. Organic Geochemistry, 2006,37:117-127.
[34]	CHEN J, SUMMONS R E. Complex patterns of steroidal biomarkers in Tertiary lacustrine sediments of the Biyang Basin, China[J]. Organic Geochemistry, 2001,32:115-26.
[35]	HUNT J M. Generation and migration of petroleum from abnormally pressured fluid compartments[J]. AAPG Bulletin, 1990,74(1):1-12.
