琼东南盆地中生界潜山天然气成藏模式

doi:10.19657/j.geoscience.1000-8527.2022.050

摘要/Abstract

摘要：

琼东南盆地基底潜山勘探面临地质年代不清、储层非均质性强及成藏条件复杂等难题。通过开展区域大地构造演化、基底锆石测年、潜山储层描述及成藏动力分析,明确潜山储层发育区及有利成藏区。研究表明,在印支运动、燕山运动及喜山运动叠加控制下,松南低凸起、陵南低凸起大面积发育印支期的花岗岩潜山储层,平面上北西、北东及近东西向三组断裂、裂缝交错切割成网,纵向上形成的风化带-裂缝带总厚度超300 m的双层结构,明确裂缝储层发育的关键因素为脆性矿物和双向流体改造。基于早渐新世古地貌及烃源岩沉积模拟实验研究,提高了崖城组陆源海相烃源岩TOC分布预测精度,明确了中央坳陷优质烃源灶分布规律。综合分析潜山-古近系储层、构造脊展布和崖城组烃源灶的时空配置关系,建立了“松南低凸起源外高潜山天然气长距离侧向有限运聚模式”及“陵南低凸起源边低潜山近距离高效运聚模式”,提出源边低潜山的L26-B是下步勘探的有利目标。

关键词: 印支期, 基底潜山, 裂缝储层, 陆源海相烃源岩, 成藏模式

Abstract:

The exploration of basement buried hill in Qiongdongnan basin is facing many problems, such as unclear geological age, strong reservoir heterogeneity and complex accumulation forming conditions. Through regional tectonic evolution, basement zircon dating, buried hill reservoir description and accumulation forming dynamic analysis, the development area and favorable accumulation area of buried hill reservoir are identified. The study shows that under the superimposed control of Indosinian, Yanshanian and Himalayan orogenic movements, Indosinian granite buried hill reservoirs are widely developed in Songnan low uplift and Lingnan low uplift. In plane view, three groups of faults and fractures in NW, NE and near EW directions are cut into a network, forming a double-layer structure with a total thickness of more than 300 m in weathering fracture zone vertically. It is clear that brittle minerals and bidirectional fluid transformation are the key factors for the development of fractured reservoirs. Based on the Early Oligocene paleogeomorphology and source rock sedimentary study, the accuracy of TOC distribution prediction of terrigenous marine source rocks in Yacheng Formation is improved, and the distribution law of high-quality hydrocarbon source in central depression is clarified. By comprehensive analysis of the relationship between the distribution of Paleogene burial hill reservoir and space-time configuration with Yacheng Formation hydrocarbon source stove, two natural gas accumulation models are established, which are “long-distance lateral migration and high buried hill limited-accumulation outside the source” and “short-distance migration and low buried hill efficient-accumulation alongside the source”.So L26-B is the the potential prospect.

Key words: Indosinian, basement buried hill, fractured reservoir, terrigenous marine source rock, hydrocarbon accumulation model

中图分类号:

甘军, 季洪泉, 梁刚, 何小胡, 熊小峰, 李兴. 琼东南盆地中生界潜山天然气成藏模式[J]. 现代地质, 2022, 36(05): 1242-1253.

GAN Jun, JI Hongquan, LIANG Gang, HE Xiaohu, XIONG Xiaofeng, LI Xing. Gas Accumulation Model of Mesozoic Buried Hill in Qiongdongnan Basin[J]. Geoscience, 2022, 36(05): 1242-1253.

图/表 11

图1 琼东南盆地构造纲要图[4]

Fig.1 Structural outline of Qiongdongnan basin[4]

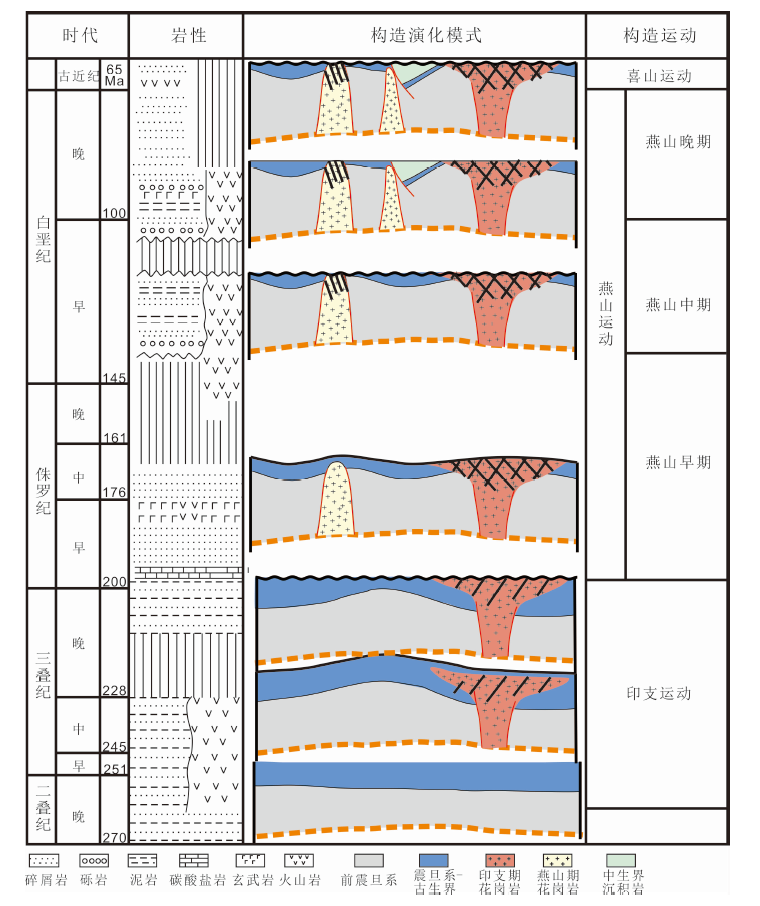

图2 琼东南盆地中生代构造演化模式

Fig.2 Mesozoic tectonic evolution model of Qiongdongnan basin

表1 琼东南盆地基底锆石测年数据[22-23]

Table 1 Zircon dating data of basement in Qiongdongnan Basin[22-23]

盆地	构造单元	井名	井段/m	地层时代	岩性	同位素年龄/Ma
琼东南盆地	松涛凸起	Y9	2 697~2 850	白垩纪	花岗岩	106.9±1.1
	松涛凸起	S34-A	2 736~2 753	白垩纪	花岗岩	98.4±1.7~100±1.6
	松南低凸起	Y8-1	2 948~3 088.62	三叠纪	花岗岩	239~250
		Y8-3	2 948~3 088.62	三叠纪	花岗岩	239~250
		Y1-1	3 768~3 826	三叠纪	花岗岩	241.7~261.7

图3 松南低凸起Y8区潜山裂缝发育应力模式与期次

Fig.3 Stress model and stages of buried hill fracture development in Y8 area of Songnan low uplift

图4 Y8-3井潜山储层薄片(蓝色充填为裂缝、孔隙)

Fig.4 Thin section of buried hill reservoir in well Y8-3

图5 琼东南盆地典型井基岩裂缝发育特征

Fig.5 Bedrock fracture development map of typical wells in deep and shallow water of Qiongdongnan Basin

图6 琼东南盆地崖城组三角洲、浅海沉积体系陆源有机质分布模式

Fig.6 Distribution pattern of terrigenous organic matter in delta, shallow marine facies system of Yacheng Formation, Qiongdongnan Basin

图7 中央坳陷崖城组烃源岩TOC分布预测图

Fig.7 TOC distribution prediction of Yacheng Formation source rocks in central depression

图8 松南、宝岛凹陷Y8区地震剖面图(剖面位置见图1)

Fig.8 Seismic profile of Y8 area in Songnan and Baodao sags

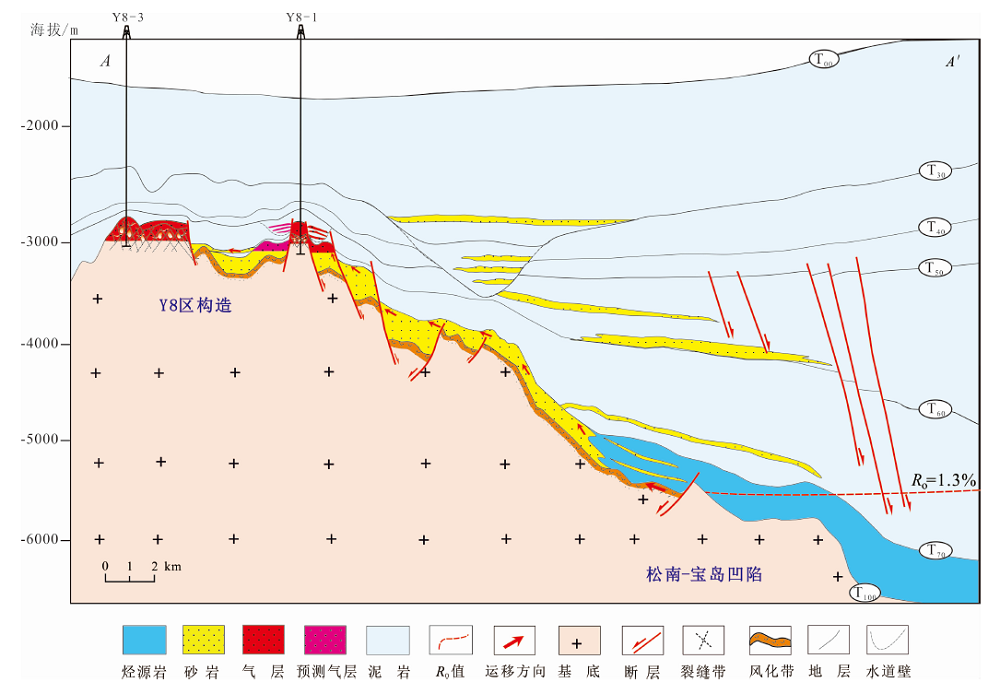

图9 松南低凸起Y8区高潜山成藏模式(剖面位置见图1)

Fig.9 Accumulation model of Y8 high buried hill in Songnan low uplift

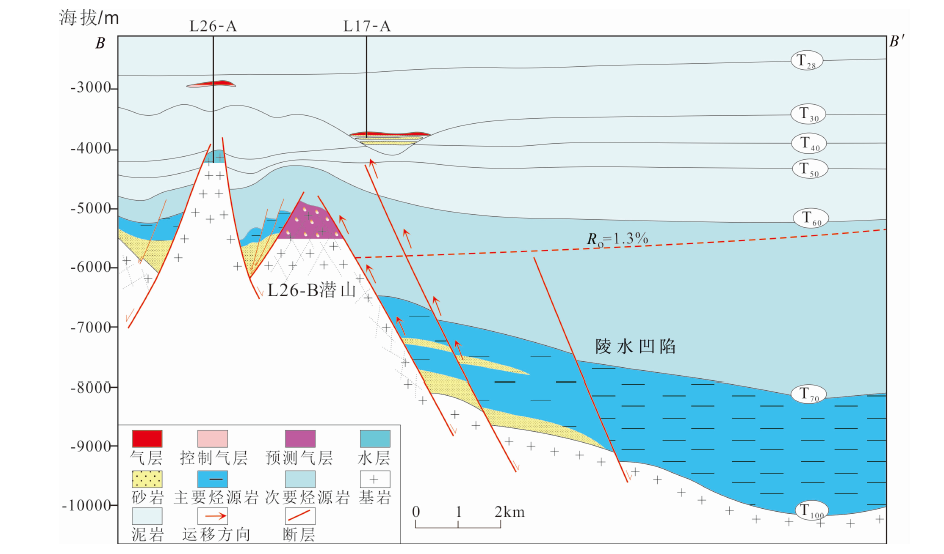

图10 陵南低凸起L26区低潜山成藏模式(剖面位置见图1)

Fig.10 Accumulation model of L26 low buried hill in Lingnan low uplift
