川西南喜德热田地下水水文地球化学特征

摘要/Abstract

摘要：

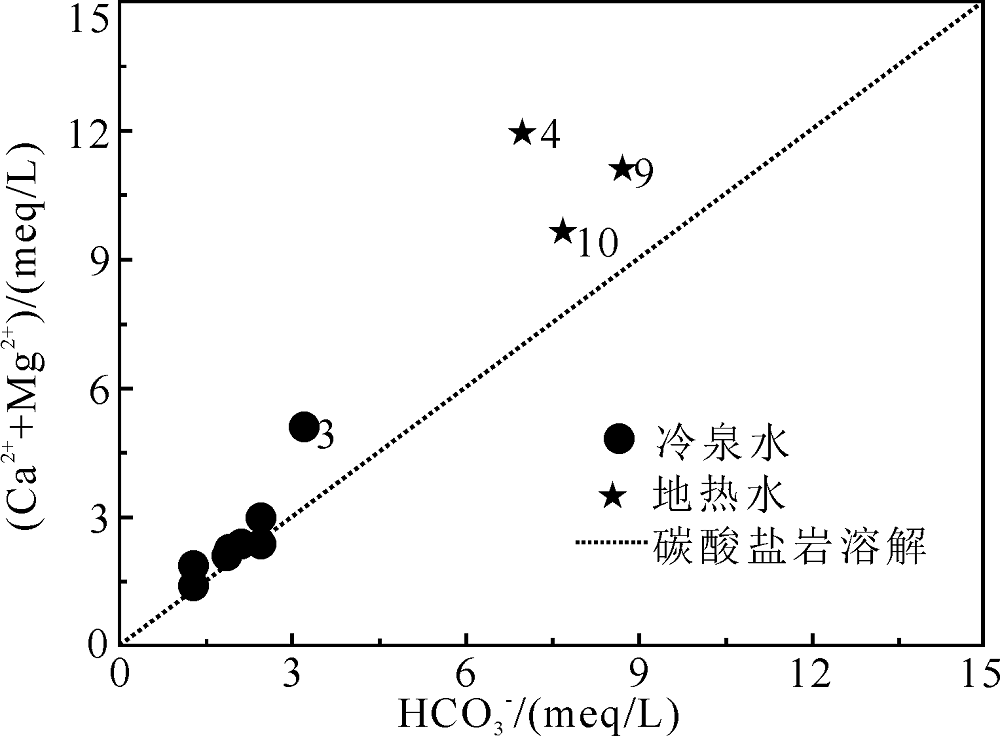

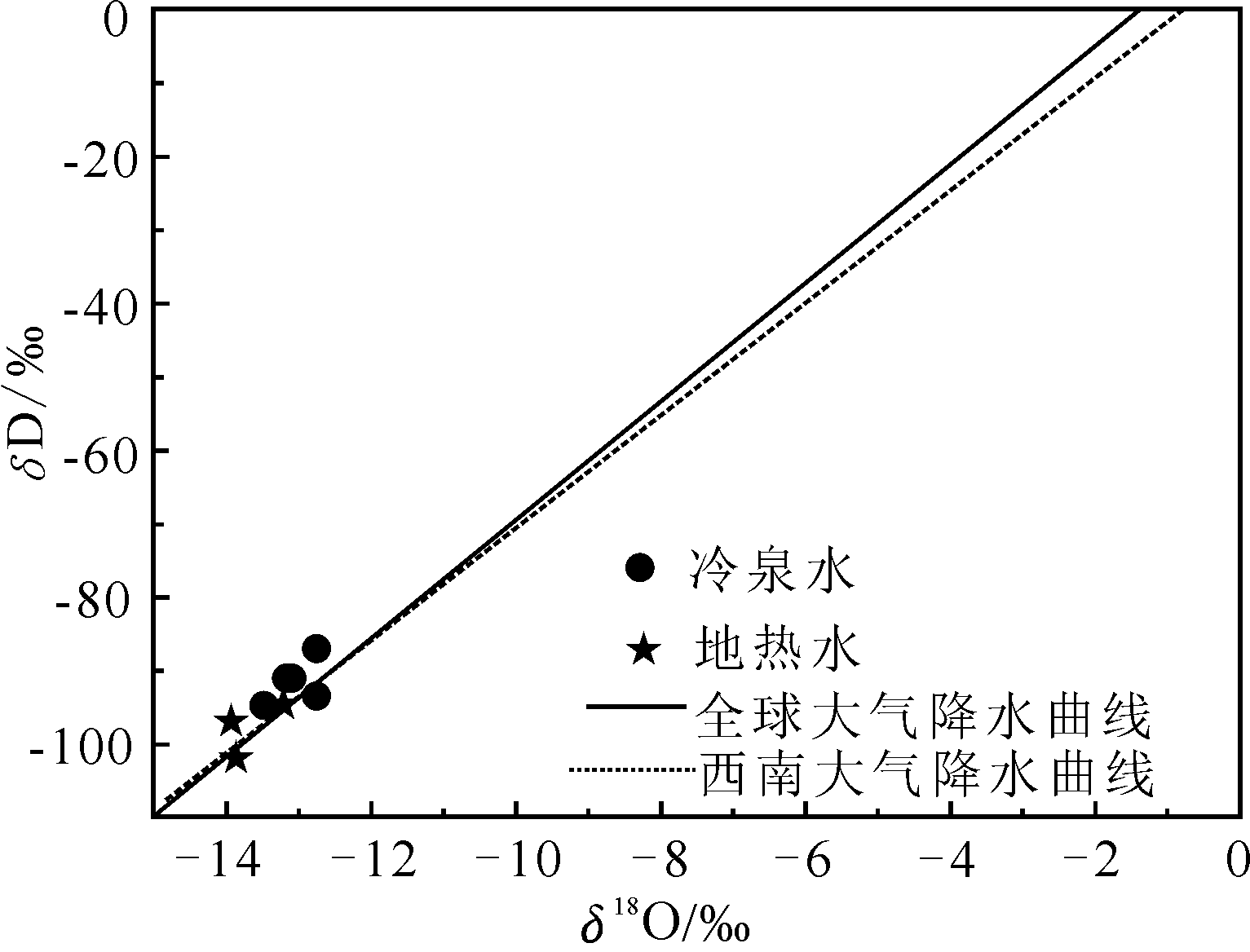

地下热水的形成和化学组分特征常受断裂构造和热储地层岩性的影响。川西南喜德地热田内出露的冷泉水和地热水严格受断裂控制,前者为主断裂控制的浅循环型碎屑岩或岩溶裂隙孔隙水;后者则为次级断裂所控制的深循环型裂隙水,其热储层为碳酸盐岩。基于喜德热田形成的地质构造背景,通过开展热田内地热水和冷泉水水化学指标的测试和分析及水岩相互作用模拟,对该热田水文地球化学特征进行了研究。结果表明:喜德热田地热水和冷泉水水源均为大气降水,补给高程分别为2 874~3 092 m和2 584~2 818 m。受温度、含水层矿物类型、水岩相互作用的影响,地热水和冷泉水水化学类型和各组分差别较大,前者为HCO₃·SO₄-Ca·Mg型水,后者为HCO₃-Ca·Mg型水。水岩相互作用模拟表明碳酸盐岩矿物、石膏矿物的溶解和沉淀及阳离子交换过程是导致地热水和冷泉水水化学组分差别较大的主要原因。此外,采用二氧化硅类温标计算喜德热田热储温度为56~90 ℃,循环深度为1 422~2 558 m。研究结果对阐明喜德热田的成因模式,地热水的进一步开发和热水资源的可持续利用具有重要意义。

关键词: 地热水, 冷泉水, 化学组分, 氢氧同位素, 喜德热田

Abstract:

The formation and chemical characteristics of thermal groundwater are commonly influenced by the fault structures and the strata lithology of geothermal reservoirs, such as Xide geothermal field. It is located in north shore of the Sunshui River of Xide town, Liangshan Prefecture, Sichuan Province, and belongs to low-medium temperature convective geothermal fluid system in carbonate aquifer. The hydrogeochemical characteristics of cold spring and thermal waters in this area are mainly affected by faults. The cold spring water derived from the shallow circulation clastic rock pore-fracture water or karstic fracture water, which was controlled by the main fault. The thermal water originated from deep cycle fissure water, which was significantly influenced by the secondary fault. In addition, the main reservoir of thermal water is carbonate rocks. Based on the local geological structure, hydrochemistry analysis of thermal and cold spring waters were incorporated with water-rock interaction simulation to analyze the hydrogeochemical characteristics of groundwater in this area. The results were shown as followings. Thermal and cold spring waters originated from meteoric water and the recharge elevation are of 2,874-3,092 m and 2,584-2,818 m, respectively. The hydrochemical type and chemical components are distinctive between thermal and cold spring waters due to reservoir temperature, aquifer types, and water-rock interactions. The thermal waters is of HCO₃·SO₄-Ca·Mg type, while the cold spring waters is of HCO₃-Ca·Mg type. The main cause for those differences is that the dissolution and precipitation of carbonate and gypsum, and cation ion exchange. In addition, the reservoir temperature and circulation depth calculated by silica geothermometer are 56-90 ℃ and 1,422-2,558 m, respectively. The results provide important insights into the genesis of the Xide geothermal field, and are instructive for further management and sustainable utilization of geothermal resource for local government.

Key words: thermal water, cold spring water, chemical component, hydrogen and oxygen isotopes, the Xide geothermal field

中图分类号:

P314.1

袁建飞, 邓国仕, 徐芬, 唐业旗, 李鹏岳. 川西南喜德热田地下水水文地球化学特征[J]. 现代地质, 2017, 31(01): 200-208.

YUAN Jianfei, DENG Guoshi, XU Fen, TANG Yeqi, LI Pengyue. Hydrogeochemical Characteristics of Groundwater in the Xide Geothermal Field, Southwest Sichuan, China[J]. Geoscience, 2017, 31(01): 200-208.

图/表 11

参考文献 38

[1]	袁建飞. 广东沿海地热系统水文地球化学研究[D]. 武汉: 中国地质大学, 2013:10-55.
[2]	张金华, 魏伟. 我国的地热资源分布特征及其利用[J]. 中国国土资源经济, 2011(8): 23-55.
[3]	伍坤宇, 沈立成, 王香桂, 等. 西藏朗久地热田及其温泉水化学特征研究[J]. 中国岩溶, 2011, 30(1): 1-8.
[4]	GUO Qinghai, WANG Yanxin. Geochemistry of hot springs in the Tengchong hydrothermal areas, Southwestern China[J]. Journal of Volcanology and Geothermal Research, 2012, 215/216: 61-73. DOI URL
[5]	WANG Yanxian, GUO Qinghai, SUN Chunli, et al. Strontium isotope characterization and major ion geochemistry of karst water flow, Shentou, northern China[J]. Journal of Hydrology, 2006, 328(3/4): 592-603. DOI URL
[6]	YUAN Jianfei, GUO Qinghai, WANG Yanxin. Geochemical behaviors of boron and its isotopes in aqueous environment of the Yangbajing and Yangyi geothermal fields, Tibet, China[J]. Journal of Geochemical Exploration, 2014, 140: 11-22. DOI URL
[7]	GUO Qinghai, NORDSTROM D K, MCCLESKEY R B. Towards understanding the puzzling lack of acid geothermal springs in Tibet (China): Insight from a comparison with Yellowstone (USA) and some active volcanic hydrothermal systems[J]. Journal of Volcanology and Geothermal Research, 2014, 288: 94-104. DOI URL
[8]	CHEN Zhi, DU Jianguo, ZHOU Xiaocheng, et al. Hydrochemistry of the hot springs in Western Sichuan Province related to the Wenchuan 8.0 earthquake[J]. The Scientific World Journal, 2014(1): 1-13.
[9]	CHEN Zhi, ZHOU Xiaocheng, DU Jianguo, et al. Hydrochemical characteristics of hot spring waters in the Kangding district related to the Lushan MS=7.0 earthquake in Sichuan, China[J]. Natural Hazards and Earth System Science, 2015, 15(6): 1149-1156. DOI URL
[10]	罗璐, 庞忠和, 杨峰田. 苏北盆地建湖隆起碳酸盐岩储层中的硫酸盐型热矿水成因[J]. 地学前缘, 2015, 22(2): 263-270. DOI
[11]	魏晓阳, 郭清海, 袁建飞, 等. 高温地热流体来源氟在环境中的分布特征——以西藏羊八井热田为例[J]. 东华理工大学学报(自然科学版), 2009(1): 38-44.
[12]	李明礼, 多吉, 王祝. 西藏日多温泉水化学特征及其物质来源[J]. 中国岩溶, 2015, 34(3): 209-216.
[13]	肖琼, 王鹏, 伍坤宇. 重庆三叠系碳酸盐岩热储热水水文地球化学特征[J]. 长江流域资源与环境, 2015, 24(8): 1351-1357.
[14]	MA Rui, WANG Yanxi, SUN Ziyong, et al. Geochemical evolution of groundwater in carbonate aquifers in Taiyuan, northern China[J]. Applied Geochemistry, 2011, 26(5): 884-897. DOI URL
[15]	张保健, 沈照理. 聊城市东部岩溶地热田地下热水水化学特征及成因分析[J]. 中国岩溶, 2009, 28(3): 263-268.
[16]	杨峰田, 庞忠和, 王彩会, 等. 苏北盆地老子山地热田成因模式[J]. 吉林大学学报(地球科学版), 2012 (2): 468-475.
[17]	周训, 曹琴, 尹菲, 等. 四川盆地东部高褶带三叠系地层卤水和温泉的地球化学特征及成因[J]. 地质学报, 2015, 89(11): 1908-1920.
[18]	肖琼, 沈立成, 杨蕾, 等. 重庆北温泉地热水碳硫同位素特征研究[J]. 水文地质工程地质, 2013, 40(4): 127-133.
[19]	王先彬, 徐践发, 徐胜. 地震区温泉气体的地球化学特征[J]. 中国科学(B辑), 1992(8): 850-854.
[20]	赵庆生. 喜德热田水热系统初步研究[J]. 成都科技大学学报, 1987, 34(2): 123-130.
[21]	PARKHURST D L, APPELO C A J. User’s Guide to PHREEQC (Verstion 2):A Computer Program for Speciation, Batch-reaction, One-dimensional Transport, and Inverse Geochemical Calculations[M]. Denver: U.S. Geological Survey, 1999: 99-143.
[22]	李攻科, 王卫星, 杨丰田, 等. 河北遵化汤泉地热田成因模式[J]. 现代地质, 2015, 29(1): 220-228.
[23]	赵振, 于漂罗, 陈惠娟, 等. 青海省西宁地热田成因分析及资源评价[J]. 中国地质, 2015, 42(3): 803-810.
[24]	袁建飞, 邓国仕, 徐芬, 等. 毕节市北部岩溶地下水水文地球化学特征[J]. 水文地质工程地质, 2016, 43(1): 12-21.
[25]	CRAIG H. Isotopic variations in meteoric waters[J]. Science, 1961, 133: 1702-1703. PMID
[26]	刘进达, 赵迎昌. 中国大气降水稳定同位素时空分布规律探讨[J]. 勘察科学技术, 1997(3): 34-39.
[27]	邹鹏飞, 邱杨, 王彩会. 南京汤山温泉区地热水成因模式分析[J]. 高校地质学报, 2015, 21(1): 155-162.
[28]	郝彦珍, 潘明, 吕勇, 等. 云南昌宁柯街断裂带温泉水化学特征[J]. 地质科技情报, 2014, 33(4): 191-196.
[29]	王恒纯. 同位素水文地质概论[M]. 北京: 地质出版社, 1991:1-100.
[30]	FOURNIER R O. Chemical geothermometers and mixing models for geothermal systems[J]. Geothermics, 1977, 5(1/4): 41-50. DOI URL
[31]	VERMA S P, SANTOYO E. New improved equations for Na-K, Na-Li and SiO₂ geothermometers by outlier detection and rejection[J]. Journal of Volcanology and Geothermal Research, 1997, 79(1/2): 9-23. DOI URL
[32]	GIBBS R J. Mechanisms controlling world water chemistry[J]. Science, 1970, 170: 1088-1090. DOI PMID
[33]	王尊波, 沈立成, 梁作兵, 等. 西藏搭格架地热区天然水的水化学组成与稳定碳同位素特征[J]. 中国岩溶, 2015, 34(3): 201-208.
[34]	HAN Zhiwei, TANG Changyuan, WU Pan, et al. Using stable isotopes and major ions to identify hydrological processes and geochemical characteristics in a typical karstic basin, Guizhou, southwest China[J]. Isotopes in Environmental and Health Studies, 2014, 50(1): 62-73. DOI PMID
[35]	HAN Yong, WANG Guangcai, CRAVOTTA C A. Hydrogeochemical evolution of Ordovician limestone groundwater in Yanzhou, North China[J]. Hydrological Processes, 2013, 27(16): 2247-2257. DOI URL
[36]	周训, 金晓媚, 梁四海. 地下水科学专论[M]. 北京: 地质出版社, 2010: 32-74.
[37]	龙汨, 周训, 李婷, 等. 北京延庆县松山温泉的特征与成因[J]. 现代地质, 2014, 28(5): 1053-1060.
[38]	宋小庆, 段启彬, 孟凡涛, 等. 贵州息烽温泉地质成因分析[J]. 地质科技情报, 2014, 33(5): 216-220.

编号	类型	含水层	温度 /℃	pH	TDS	Na⁺	K⁺	Ca²⁺	Mg²⁺	Cl^-	SO₄^2-	HCO₃^-	SiO₂	F^-	δD	δ¹⁸O	水化学类型
1	泉水	震旦系	12.8	7.18	132.6	7.4	1.3	21.8	12.3	7.9	22.0	109.7	2.5	0.2	-91.0	-13.10	HCO₃-Ca·Mg
2	泉水	震旦系	14.0	7.62	162.3	6.5	1.3	29.3	16.3	11.9	19.9	141.5	3.1	0.2	-86.9	-12.74	HCO₃-Ca·Mg
3	泉水	震旦系	21.0	6.65	351.2	20.1	10.5	58.6	25.2	47.6	80.1	187.5	8.5	0.6	-91.1	-13.16	HCO₃·SO₄-Ca·Mg
4	地热水	震旦系	42.0	6.68	847.4	51.4	25.6	131.9	64.3	127.0	203.1	424.5	15.3	0.9	-102.2	-13.91	HCO₃·SO₄-Ca·Mg
5	泉水	震旦系	11.5	7.15	102.1	0.6	0.7	20.9	11.2	6.0	5.3	106.1	2.3	-	-94.7	-13.46	HCO₃-Ca·Mg
6	泉水	震旦系	13.4	7.38	120.9	0.9	1.2	24.3	12.1	7.1	6.7	120.3	6.1	-	-93.4	-12.75	HCO₃-Ca·Mg
7	泉水	三叠系	14.2	7.25	85.9	3.0	1.7	18.2	4.4	6.0	5.6	70.7	9.9	-	-	-	HCO₃-Ca·Mg
8	泉水	三叠系	15.0	7.25	142.4	5.0	1.3	29.6	9.4	4.0	4.6	141.5	14.9	-	-	-	HCO₃-Ca·Mg
9	地热水	震旦系	62.0	6.94	815.1	45.4	28.4	129.4	56.6	31.7	205.0	530.6	37.4	2.3	-97.3	-13.99	HCO₃·SO₄-Ca·Mg
10	地热水	震旦系	45.0	6.95	647.7	33.4	22.9	115.0	46.5	24.3	162.5	467.0	19.1	-	-94.8	-13.29	HCO₃·SO₄-Ca·Mg
11	泉水	震旦系	15.0	7.01	128.9	4.1	4.4	21.9	7.9	20.0	13.3	71.6	-	-	-	-	HCO₃·Cl-Ca·Mg

编号	类型	含水层	温度 /℃	pH	TDS	Na⁺	K⁺	Ca²⁺	Mg²⁺	Cl^-	SO₄^2-	HCO₃^-	SiO₂	F^-	δD	δ¹⁸O	水化学类型
1	泉水	震旦系	12.8	7.18	132.6	7.4	1.3	21.8	12.3	7.9	22.0	109.7	2.5	0.2	-91.0	-13.10	HCO₃-Ca·Mg
2	泉水	震旦系	14.0	7.62	162.3	6.5	1.3	29.3	16.3	11.9	19.9	141.5	3.1	0.2	-86.9	-12.74	HCO₃-Ca·Mg
3	泉水	震旦系	21.0	6.65	351.2	20.1	10.5	58.6	25.2	47.6	80.1	187.5	8.5	0.6	-91.1	-13.16	HCO₃·SO₄-Ca·Mg
4	地热水	震旦系	42.0	6.68	847.4	51.4	25.6	131.9	64.3	127.0	203.1	424.5	15.3	0.9	-102.2	-13.91	HCO₃·SO₄-Ca·Mg
5	泉水	震旦系	11.5	7.15	102.1	0.6	0.7	20.9	11.2	6.0	5.3	106.1	2.3	-	-94.7	-13.46	HCO₃-Ca·Mg
6	泉水	震旦系	13.4	7.38	120.9	0.9	1.2	24.3	12.1	7.1	6.7	120.3	6.1	-	-93.4	-12.75	HCO₃-Ca·Mg
7	泉水	三叠系	14.2	7.25	85.9	3.0	1.7	18.2	4.4	6.0	5.6	70.7	9.9	-	-	-	HCO₃-Ca·Mg
8	泉水	三叠系	15.0	7.25	142.4	5.0	1.3	29.6	9.4	4.0	4.6	141.5	14.9	-	-	-	HCO₃-Ca·Mg
9	地热水	震旦系	62.0	6.94	815.1	45.4	28.4	129.4	56.6	31.7	205.0	530.6	37.4	2.3	-97.3	-13.99	HCO₃·SO₄-Ca·Mg
10	地热水	震旦系	45.0	6.95	647.7	33.4	22.9	115.0	46.5	24.3	162.5	467.0	19.1	-	-94.8	-13.29	HCO₃·SO₄-Ca·Mg
11	泉水	震旦系	15.0	7.01	128.9	4.1	4.4	21.9	7.9	20.0	13.3	71.6	-	-	-	-	HCO₃·Cl-Ca·Mg

矿物类别	SI
矿物类别	1	2	3	4	5	6	7	8	9	10	11
方解石	-0.84	-0.18	-0.80	-0.17	-0.88	-0.55	-1.00	-0.52	0.18	0.10	-1.17
白云石	-1.58	-0.27	-1.61	-0.32	-1.69	-1.04	-2.27	-1.19	0.33	0.16	-2.44
石膏	-2.61	-2.57	-1.78	-1.24	-3.23	-3.08	-3.21	-3.16	-1.23	-1.34	-2.80
硬石膏	-2.92	-2.87	-2.09	-1.54	-3.53	-3.38	-3.52	-3.46	-1.53	-1.64	-3.10
石英	-0.40	-0.31	0.13	0.39	-0.44	-0.01	0.20	0.37	0.78	0.48
玉髓	-0.83	-0.74	-0.30	-0.04	-0.87	-0.44	-0.23	-0.05	0.35	0.06

矿物类别	SI
矿物类别	1	2	3	4	5	6	7	8	9	10	11
方解石	-0.84	-0.18	-0.80	-0.17	-0.88	-0.55	-1.00	-0.52	0.18	0.10	-1.17
白云石	-1.58	-0.27	-1.61	-0.32	-1.69	-1.04	-2.27	-1.19	0.33	0.16	-2.44
石膏	-2.61	-2.57	-1.78	-1.24	-3.23	-3.08	-3.21	-3.16	-1.23	-1.34	-2.80
硬石膏	-2.92	-2.87	-2.09	-1.54	-3.53	-3.38	-3.52	-3.46	-1.53	-1.64	-3.10
石英	-0.40	-0.31	0.13	0.39	-0.44	-0.01	0.20	0.37	0.78	0.48
玉髓	-0.83	-0.74	-0.30	-0.04	-0.87	-0.44	-0.23	-0.05	0.35	0.06
