阿尔金造山带南缘蛇绿构造混杂岩带中晚奥陶世—早志留世二长花岗岩年代学、地球化学特征及地质意义

doi:10.19657/j.geoscience.1000-8527.2019.012

摘要/Abstract

摘要：

阿尔金造山带南缘玉苏普阿勒克塔格岩体大面积侵入于阿尔金南缘茫崖蛇绿构造混杂岩带,对玉苏普阿勒克塔格岩体中的二长花岗岩展开较详细的年代学及地球化学分析,LA-ICP-MS锆石U-Pb测年结果显示其形成年龄为(443.7±2.3) Ma,属晚奥陶世—早志留世。地球化学结果显示,主量元素具高SiO₂(73.72%~75.08%)、低TiO₂(0.11%~0.21%)、贫CaO(0.63%~1.45%)、富碱(N₂O+K₂O=7.19%~8.16%)、高钾(K₂O/Na₂O=1.32~1.56)、低镁值(Mg^#=15.95~28.94)特征,A/CNK值1.11~1.26,属过铝质高钾钙碱性岩类。轻稀土富集而重稀土平坦,具有负Eu异常,总体呈右倾的“V”型稀土分配模式,具有富集Cs、K、Pb等大离子亲石元素和Th、Nd,亏损Nb、Ce、Ti等高场强元素和Ba、P的特征。根据特征参数及判别图解推断该侵入体可能是中下地壳变质砂岩部分熔融的产物,形成于后碰撞初始伸展环境。结合区域地质背景,认为二长花岗岩形成于挤压体制向拉张体制转换的构造环境,晚于前人报道的阿尔金南缘后碰撞初始伸展阶段岩浆活动的时代报到。认为约在443 Ma,阿中地块和和柴达木地块之间俯冲碰撞已经结束,南阿尔金洋彻底闭合。

关键词: 二长花岗岩, LA-ICP-MS锆石U-Pb定年, 地球化学, 后碰撞初始伸展, 蛇绿构造混杂岩带

Abstract:

The large Yusupuleke Tagh batholiths intruded the Mangya ophiolite mélange belt in South Altyn Tagh. We carried out detailed geochronologic and geochemical analyses on the adamellite from the Yusupuleke Tagh batholiths. LA-ICP-MS zircon U-Pb dating yielded a Late Ordovician to Early Silurian weighted average age of (443.7±2.3) Ma. Geochemical analysis show that the rocks are characterized by high SiO₂(73.72%-75.08%), low TiO₂(0.11%-0.21%), low CaO (0.63%-1.45%), alkali-rich(N₂O+K₂O=7.19%-8.16%),high K₂O(K₂O/Na₂O=1.32-1.56) and low Mg^#(15.95-28.94) contents and A/CNK=1.11-1.26, suggesting high-K calc-alkaline and peraluminous affinities. REE distribution patterns show negative Eu anomalies, and distinctly high value of LREE/HREE. The chondrite-normalized REE patterns are right-inclined, with a clear V trough. The adamellite is rich in large ion lithophile elements (LILEs, e.g., Cs, K, Pb) as well as Th and Nd and depleted in high field strength elements (HFSEs, e.g., Nb, Ce, Ti) as well as Ba and P. Such geochemical features indicate that the rocks were formed by the partial melting of metamorphic sandstones in the middle-lower crust under a post-collisional setting. Considering the regional geology, the adamellite was likely formed in a compressional to extensional transition tectonic regime, younger than the previously reported ages in South Altyn Tagh. This suggests that the subduction and collision between the Azhong Block and Qaidam Block had occurred, and that the South Altyn Tagh ocean basin had completely closed at about 443 Ma.

Key words: adamellite, LA-ICP-MS zircon U-Pb dating, geochemistry, post-collisional tectonic, ophiolite mélange belt

中图分类号:

P588.12

李琦, 王疆涛, 曾忠诚, 石卫, 李惠, 郭倩怡. 阿尔金造山带南缘蛇绿构造混杂岩带中晚奥陶世—早志留世二长花岗岩年代学、地球化学特征及地质意义[J]. 现代地质, 2020, 34(01): 51-63.

LI Qi, WANG Jiangtao, ZENG Zhongcheng, SHI Wei, LI Hui, GUO Qianyi. Zircon U-Pb Ages, Geochemistry and Tectonic Implications of Adamellite in Ophiolite Mélange Belt in South Altyn Tagh[J]. Geoscience, 2020, 34(01): 51-63.

图/表 13

参考文献 39

[1]	王立社, 杨鹏飞, 段星星, 等. 阿尔金南缘中段清水泉斜长花岗岩同位素年龄及成因研究[J]. 岩石学报, 2016,32(3):759-774.
[2]	校培喜, 高晓峰, 胡云绪, 等. 阿尔金―东昆仑西段成矿带基础地质综合研究报告[M]. 北京: 地质出版社, 2014: 54-55.
[3]	康磊. 南阿尔金高压-超高压变质带早古生代多期花岗质岩浆作用及其地质意义[D]. 西安:西北大学, 2015: 69-79.
[4]	孙吉明, 马中平, 唐卓, 等. 阿尔金南缘鱼目泉岩浆混合花岗岩LA-ICP-MS测年与构造意义[J]. 地质学报, 2012,86(2):247-257.
[5]	马中平, 李向民, 孙吉明, 等. 阿尔金山南缘长沙沟镁铁-超镁铁质层状杂岩体的发现与地质意义——岩石学和地球化学初步研究[J]. 岩石学报, 2009,25(4):793-804.
[6]	曹玉亭, 刘良, 王超, 等. 阿尔金南缘塔特勒克布拉克花岗岩的地球化学特征、锆石U-Pb定年及Hf同位素组成[J]. 岩石学报, 2010,26(11) : 3259-3271.
[7]	康磊, 刘良, 曹玉亭, 等. 阿尔金南缘塔特勒克布拉克复式花岗质岩体东段片麻状花岗岩的地球化学特征、锆石U-Pb定年及其地质意义[J]. 岩石学报, 2013,29(9):3039-3048.
[8]	董增产, 校培喜, 奚仁刚, 等. 阿尔金南缘构造混杂岩带中角闪辉长岩地球化学特征及同位素测年[J]. 地质论评, 2011,57(2):207-215.
[9]	王超, 刘良, 张安达, 等. 阿尔金造山带南缘岩浆混合作用:玉苏普阿勒克塔格岩体岩石学和地球化学证据[J]. 岩石学报, 2008,24(12):2809-2819.
[10]	吴锁平, 吴才来, 陈其龙. 阿尔金断裂南侧吐拉铝质A型花岗岩的特征及构造环境[J]. 地质通报, 2007,26(10):1385-1392.
[11]	吴才来, 郜源红, 雷敏, 等. 南阿尔金茫崖地区花岗岩类锆石SHRIMP U-Pb定年、Lu-Hf同位素特征及岩石成因[J]. 岩石学报, 2014,30(8):2297-2323.
[12]	ANDERSON T. Correction of common Pb in U-Pb analyses that do not report ²⁰⁴Pb[J]. Chemical Geology, 2002,192(1/2):59-79. DOI URL
[13]	LUDWIG K R. Isoplot/Ex version 2.49: A Geochronological Toolkit for Microsoft Excel[M]. Berkeley: Berkeley Geochronology Center, 2003: 1-56.
[14]	YUAN Honglin, WU Fuyuan, GAO Shan. Cenozoic intrusive laser probe zircon U-Pb and rare earth element composition analysis determination in Northeast[J]. Science Bulletin, 2003,48(14):1511-1520.
[15]	吴元保, 郑永飞. 锆石成因矿物学研究及其对U-Pb年龄解释的制约[J]. 科学通报, 2004,49(16):1589-1604.
[16]	MIDDLEMOST E A K. Naming materials in the magma/igneous rock system[J]. Earth-Science Reviews, 1994,37(3/4):215-224.
[17]	RICKWOOD P C. Boundary lines within petrologic diagrams which use oxides of major and minor elements[J]. Lithos, 1989,22(4):247-263. DOI URL
[18]	TAYLOR S R, MCCLENNAN S M. The continental crust: Its composition and evolution[J]. The Journal of Geology, 1985,94(4):57-72.
[19]	葛小月, 李献华, 陈志刚, 等. 中国东部燕山期高Sr低Y型中酸性火成岩的地球化学特征及成因:对中国东部地壳厚度的制约[J]. 科学通报, 2002,47(6):474-479.
[20]	SUN S S, MCDONOUGH W F. Chemical and isotopic systematics of oceanic basalts: Implications for mantle composition and processes[M] //SAUNDERS A D, NORRY M J. Magmatism in the Ocean Basins. London: Geological Society of London, 1989: 313-345.
[21]	DOSTAL J, CHATTERJEE A K. Contrasting behavior of Nb/Ta and Zr/Hf ratios in a Peraluminous granitic pluton (Nova Scotia, Canada)[J]. Chemical Geology, 2000,163(1/4):207-218. DOI URL
[22]	ALLÈGRE C J, MINSTER J F. Quantitative models of trace element behavior in magmatic processes[J]. Earth and Planetary Science Letters, 1978,38(1) : 1-25. DOI URL
[23]	RUDNICK R L, GAO S. Composition of the continental crust[J]. Treatise on Geochemistry, 2003,3:1-64.
[24]	BARTH M G, MCDONOUGH W F, RUDNICK R L. Tracking the budget of Nb and Ta in the continental crust[J]. Chemical Geology, 2000,165(3/4):197-213.
[25]	HARRIS N B W, INGER S. Trace element modelling of pelite-derived granites[J]. Contributions to Mineralogy and Petrology, 1992,110:46-56.
[26]	ALTHER R, HOLL A, HEGNER E, et al. High-potassium, calc-alkaline I-type plutonism in the European Variscides: Northern Vosges (France) and northern Schwarzwald (Germany)[J]. Lithos, 2000,50(1/3):51-73.
[27]	BARBARIN B. A review of the relationships between granitoid types, their origins and their geodynamic environments[J]. Lithos, 1999,46(3):605-626.
[28]	PITCHER W S. Granite type and tectonic environment[M] //HSU K J.Mountain Building Processes. London:Academic Press, 1983: 19-40.
[29]	WHALEN J B, CURRIE K L, CHAPPELL B W. A-type granites: Geochemical characteristics discrimination and petrogenesis[J]. Contributions to Mineralogy and Petrology, 1987,95(4):407-419.
[30]	王涛, 张宗清, 王晓霞, 等. 秦岭造山带核部新元古代碰撞变形及其时代——强变形同碰撞花岗岩与弱变形脉体锆石SHRIMP年龄限定[J]. 地质学报, 2005,79(2):220-232.
[31]	HARRIS N B W, PEARCE J A, TINDLE A G. Geochemical characteristics of collision-zone magmatism[M] //COWARD M P, REIS A C. Collision Tectonics. London: Geological Society of London, 1986: 67-81.
[32]	郭金城, 徐旭明, 陈海燕, 等. 新疆阿尔金长沙沟超镁铁质岩锆石U-Pb年龄及其地质意义[J]. 西北地质, 2014,47(4):170-177.
[33]	李向民, 马中平, 孙吉明, 等. 阿尔金断裂南缘约马克其镁铁-超镁铁岩的性质和年代学研究[J]. 岩石学报, 2009,25(4):862-872.
[34]	KANG Lei, LIU Liang, CAO Yuting, et al. Geochemistry and zircon U-Pb dating of Changshagou Adakite from the South Altyn UHPM Terrane: Evidence of the partial melting of the lower crust[J]. Acta Geologica Sinica, 2014,88(5):1454-1465.
[35]	康磊, 校培喜, 高晓峰, 等. 茫崖二长花岗岩、石英闪长岩的年代学、地球化学及岩石成因:对阿尔金南缘早古生代构造-岩浆演化的启示[J]. 岩石学报, 2016,32(6):1731-1748.
[36]	杨文强, 刘良, 丁海波, 等. 南阿尔金迪木那里克花岗岩地球化学、锆石U-Pb年代学与Hf同位素特征及其构造地质意义[J]. 岩石学报, 2012,28(12):4139-4150.
[37]	吴才来, 雷敏, 吴迪, 等. 南阿尔金古生代花岗岩U-Pb定年及岩浆活动对造山带构造演化的响应[J]. 地质学报, 2016,90(9):2276-2315.
[38]	刘良, 康磊, 曹玉亭, 等. 南阿尔金早古生代俯冲碰撞过程中的花岗质岩浆作用[J]. 中国科学(地球科学), 2015,45(8):1126-1137.
[39]	康磊, 校培喜, 高晓峰, 等. 阿尔金南缘早古生代岩浆作用及碰撞造山过程[J]. 地质学报, 2016,90(10):2527-2550.

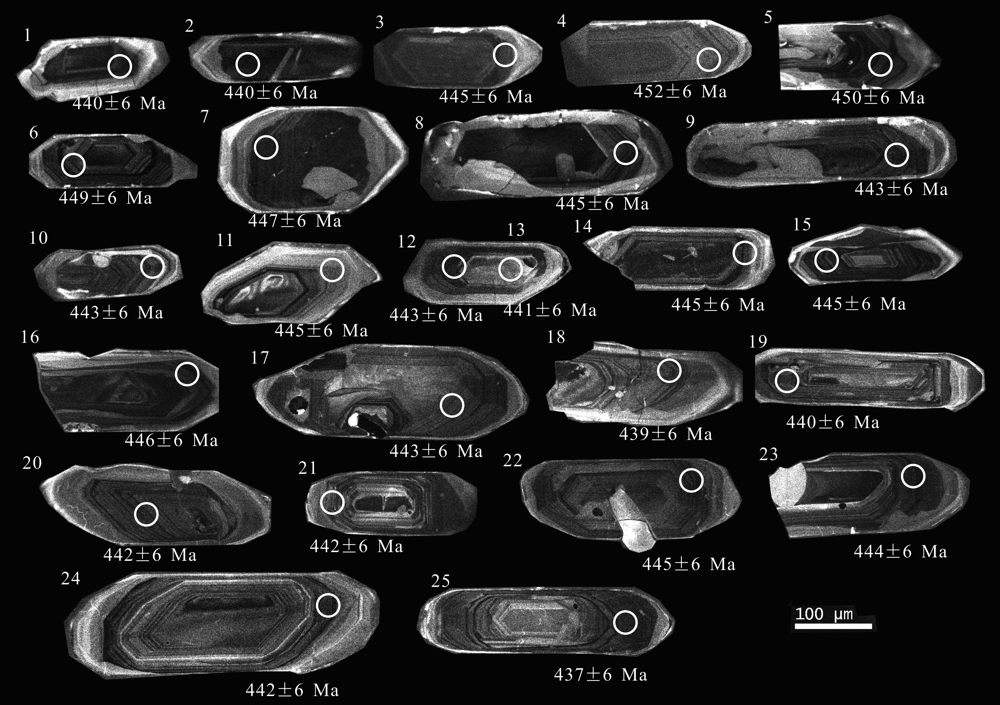

点号	Th/U	同位素比值									t/Ma
点号	Th/U	²⁰⁷Pb/²⁰⁶Pb	σ	²⁰⁷Pb/²³⁵U	σ	²⁰⁶Pb/²³⁸U	σ	²⁰⁸Pb/²³²Th	σ		²⁰⁷Pb/ ²⁰⁶Pb	σ	²⁰⁷Pb/ ²³⁵U	σ	²⁰⁶Pb/ ²³⁸U	σ	²⁰⁸Pb/ ²³²Th	σ
1	0.35	0.058 27	0.002 32	0.567 50	0.015 81	0.070 62	0.001 03	0.024 39	0.000 51	539		86	456	10	440	6	487	10
2	0.96	0.056 89	0.001 89	0.554 64	0.009 75	0.070 70	0.000 94	0.021 75	0.000 28	487		72	448	6	440	6	435	6
3	0.66	0.054 90	0.001 96	0.541 50	0.011 74	0.071 53	0.000 98	0.022 05	0.000 34	408		77	439	8	445	6	441	7
4	0.46	0.055 59	0.001 86	0.556 76	0.010 08	0.072 63	0.000 97	0.022 39	0.000 32	436		73	449	7	452	6	448	6
5	0.63	0.057 88	0.001 86	0.577 60	0.008 97	0.072 36	0.000 95	0.021 98	0.000 28	525		69	463	6	450	6	439	6
6	0.55	0.056 34	0.001 84	0.560 96	0.009 44	0.072 19	0.000 96	0.022 06	0.000 30	465		71	452	6	449	6	441	6
7	0.50	0.056 05	0.001 83	0.554 35	0.009 22	0.071 72	0.000 95	0.021 72	0.000 29	454		71	448	6	447	6	434	6
8	0.53	0.058 28	0.001 90	0.574 40	0.009 63	0.071 47	0.000 95	0.022 70	0.000 31	540		71	461	6	445	6	454	6
9	0.60	0.056 83	0.001 84	0.556 81	0.009 04	0.071 05	0.000 94	0.021 65	0.000 28	484		71	449	6	443	6	433	6
10	0.56	0.058 70	0.001 89	0.575 76	0.009 14	0.071 13	0.000 94	0.021 81	0.000 29	556		69	462	6	443	6	436	6
11	0.41	0.056 52	0.001 93	0.556 83	0.010 88	0.071 44	0.000 97	0.022 58	0.000 35	472		75	450	7	445	6	451	7
12	0.62	0.054 80	0.001 78	0.537 27	0.008 98	0.071 10	0.000 94	0.021 97	0.000 29	404		71	437	6	443	6	439	6
13	1.01	0.057 71	0.002 20	0.562 86	0.014 53	0.070 73	0.001 01	0.014 96	0.000 25	518		82	453	9	441	6	300	5
14	0.51	0.056 74	0.001 81	0.559 78	0.008 77	0.071 54	0.000 95	0.021 72	0.000 29	481		70	451	6	445	6	434	6
15	0.69	0.055 79	0.001 78	0.549 49	0.008 56	0.071 42	0.000 94	0.021 19	0.000 27	444		69	445	6	445	6	424	5
16	0.44	0.057 21	0.001 83	0.564 93	0.008 90	0.071 60	0.000 95	0.022 18	0.000 30	499		69	455	6	446	6	443	6
17	0.50	0.058 16	0.001 92	0.570 71	0.010 10	0.071 15	0.000 95	0.021 56	0.000 31	535		71	459	7	443	6	431	6
18	0.52	0.054 10	0.001 75	0.526 03	0.008 70	0.070 51	0.000 94	0.021 50	0.000 29	375		71	429	6	439	6	430	6
19	0.90	0.054 85	0.001 84	0.533 67	0.010 04	0.070 56	0.000 95	0.020 53	0.000 28	406		73	434	7	440	6	411	6
20	0.46	0.055 54	0.001 86	0.543 15	0.010 15	0.070 92	0.000 96	0.021 34	0.000 32	434		73	441	7	442	6	427	6
21	0.99	0.055 33	0.001 83	0.541 21	0.009 87	0.070 94	0.000 95	0.021 09	0.000 28	425		72	439	7	442	6	422	6
22	0.49	0.054 97	0.001 82	0.541 17	0.009 89	0.071 40	0.000 96	0.021 67	0.000 32	411		72	439	7	445	6	433	6
23	0.63	0.058 28	0.001 94	0.572 64	0.010 55	0.071 26	0.000 96	0.022 57	0.000 32	540		72	460	7	444	6	451	6
24	0.46	0.058 26	0.001 99	0.570 36	0.011 39	0.071 00	0.000 97	0.022 25	0.000 35	539		74	458	7	442	6	445	7
25	0.62	0.054 85	0.001 75	0.530 62	0.008 55	0.070 15	0.000 93	0.021 17	0.000 28	406		69	432	6	437	6	424	6

点号	Th/U	同位素比值									t/Ma
点号	Th/U	²⁰⁷Pb/²⁰⁶Pb	σ	²⁰⁷Pb/²³⁵U	σ	²⁰⁶Pb/²³⁸U	σ	²⁰⁸Pb/²³²Th	σ		²⁰⁷Pb/ ²⁰⁶Pb	σ	²⁰⁷Pb/ ²³⁵U	σ	²⁰⁶Pb/ ²³⁸U	σ	²⁰⁸Pb/ ²³²Th	σ
1	0.35	0.058 27	0.002 32	0.567 50	0.015 81	0.070 62	0.001 03	0.024 39	0.000 51	539		86	456	10	440	6	487	10
2	0.96	0.056 89	0.001 89	0.554 64	0.009 75	0.070 70	0.000 94	0.021 75	0.000 28	487		72	448	6	440	6	435	6
3	0.66	0.054 90	0.001 96	0.541 50	0.011 74	0.071 53	0.000 98	0.022 05	0.000 34	408		77	439	8	445	6	441	7
4	0.46	0.055 59	0.001 86	0.556 76	0.010 08	0.072 63	0.000 97	0.022 39	0.000 32	436		73	449	7	452	6	448	6
5	0.63	0.057 88	0.001 86	0.577 60	0.008 97	0.072 36	0.000 95	0.021 98	0.000 28	525		69	463	6	450	6	439	6
6	0.55	0.056 34	0.001 84	0.560 96	0.009 44	0.072 19	0.000 96	0.022 06	0.000 30	465		71	452	6	449	6	441	6
7	0.50	0.056 05	0.001 83	0.554 35	0.009 22	0.071 72	0.000 95	0.021 72	0.000 29	454		71	448	6	447	6	434	6
8	0.53	0.058 28	0.001 90	0.574 40	0.009 63	0.071 47	0.000 95	0.022 70	0.000 31	540		71	461	6	445	6	454	6
9	0.60	0.056 83	0.001 84	0.556 81	0.009 04	0.071 05	0.000 94	0.021 65	0.000 28	484		71	449	6	443	6	433	6
10	0.56	0.058 70	0.001 89	0.575 76	0.009 14	0.071 13	0.000 94	0.021 81	0.000 29	556		69	462	6	443	6	436	6
11	0.41	0.056 52	0.001 93	0.556 83	0.010 88	0.071 44	0.000 97	0.022 58	0.000 35	472		75	450	7	445	6	451	7
12	0.62	0.054 80	0.001 78	0.537 27	0.008 98	0.071 10	0.000 94	0.021 97	0.000 29	404		71	437	6	443	6	439	6
13	1.01	0.057 71	0.002 20	0.562 86	0.014 53	0.070 73	0.001 01	0.014 96	0.000 25	518		82	453	9	441	6	300	5
14	0.51	0.056 74	0.001 81	0.559 78	0.008 77	0.071 54	0.000 95	0.021 72	0.000 29	481		70	451	6	445	6	434	6
15	0.69	0.055 79	0.001 78	0.549 49	0.008 56	0.071 42	0.000 94	0.021 19	0.000 27	444		69	445	6	445	6	424	5
16	0.44	0.057 21	0.001 83	0.564 93	0.008 90	0.071 60	0.000 95	0.022 18	0.000 30	499		69	455	6	446	6	443	6
17	0.50	0.058 16	0.001 92	0.570 71	0.010 10	0.071 15	0.000 95	0.021 56	0.000 31	535		71	459	7	443	6	431	6
18	0.52	0.054 10	0.001 75	0.526 03	0.008 70	0.070 51	0.000 94	0.021 50	0.000 29	375		71	429	6	439	6	430	6
19	0.90	0.054 85	0.001 84	0.533 67	0.010 04	0.070 56	0.000 95	0.020 53	0.000 28	406		73	434	7	440	6	411	6
20	0.46	0.055 54	0.001 86	0.543 15	0.010 15	0.070 92	0.000 96	0.021 34	0.000 32	434		73	441	7	442	6	427	6
21	0.99	0.055 33	0.001 83	0.541 21	0.009 87	0.070 94	0.000 95	0.021 09	0.000 28	425		72	439	7	442	6	422	6
22	0.49	0.054 97	0.001 82	0.541 17	0.009 89	0.071 40	0.000 96	0.021 67	0.000 32	411		72	439	7	445	6	433	6
23	0.63	0.058 28	0.001 94	0.572 64	0.010 55	0.071 26	0.000 96	0.022 57	0.000 32	540		72	460	7	444	6	451	6
24	0.46	0.058 26	0.001 99	0.570 36	0.011 39	0.071 00	0.000 97	0.022 25	0.000 35	539		74	458	7	442	6	445	7
25	0.62	0.054 85	0.001 75	0.530 62	0.008 55	0.070 15	0.000 93	0.021 17	0.000 28	406		69	432	6	437	6	424	6

样品号	SiO₂	TiO₂	Al₂O₃	Fe₂O₃	FeO	MnO	MgO	CaO	Na₂O	K₂O
PM022/18-1	74.44	0.13	13.53	0.53	1.03	0.03	0.16	0.84	3.06	4.77
PM022/18-2	74.27	0.11	13.55	0.66	0.74	0.03	0.16	0.87	3.47	4.59
PM022/18-3	75.08	0.12	13.78	0.78	0.54	0.02	0.14	0.70	2.99	4.38
PM022/18-4	74.78	0.11	13.67	0.69	0.64	0.02	0.21	0.63	3.04	4.75
PM022/18-5	73.72	0.21	13.82	0.48	1.19	0.03	0.37	1.45	3.09	4.10
样品号	P₂O₅	烧失量	总量	AR	σ	A/NK	A/CNK	K₂O + Na₂O	Na₂O/K₂O	Mg^#
PM022/18-1	0.03	0.80	99.35	3.39	1.95	1.33	1.15	7.83	0.64	15.95
PM022/18-2	0.03	0.96	99.43	3.53	2.08	1.27	1.11	8.06	0.76	17.64
PM022/18-3	0.03	0.89	99.45	3.07	1.69	1.43	1.26	7.37	0.68	16.73
PM022/18-4	0.04	0.80	99.38	3.39	1.91	1.35	1.21	7.79	0.64	22.91
PM022/18-5	0.05	0.91	99.41	2.78	1.68	1.45	1.14	7.19	0.75	28.94

样品号	SiO₂	TiO₂	Al₂O₃	Fe₂O₃	FeO	MnO	MgO	CaO	Na₂O	K₂O
PM022/18-1	74.44	0.13	13.53	0.53	1.03	0.03	0.16	0.84	3.06	4.77
PM022/18-2	74.27	0.11	13.55	0.66	0.74	0.03	0.16	0.87	3.47	4.59
PM022/18-3	75.08	0.12	13.78	0.78	0.54	0.02	0.14	0.70	2.99	4.38
PM022/18-4	74.78	0.11	13.67	0.69	0.64	0.02	0.21	0.63	3.04	4.75
PM022/18-5	73.72	0.21	13.82	0.48	1.19	0.03	0.37	1.45	3.09	4.10
样品号	P₂O₅	烧失量	总量	AR	σ	A/NK	A/CNK	K₂O + Na₂O	Na₂O/K₂O	Mg^#
PM022/18-1	0.03	0.80	99.35	3.39	1.95	1.33	1.15	7.83	0.64	15.95
PM022/18-2	0.03	0.96	99.43	3.53	2.08	1.27	1.11	8.06	0.76	17.64
PM022/18-3	0.03	0.89	99.45	3.07	1.69	1.43	1.26	7.37	0.68	16.73
PM022/18-4	0.04	0.80	99.38	3.39	1.91	1.35	1.21	7.79	0.64	22.91
PM022/18-5	0.05	0.91	99.41	2.78	1.68	1.45	1.14	7.19	0.75	28.94

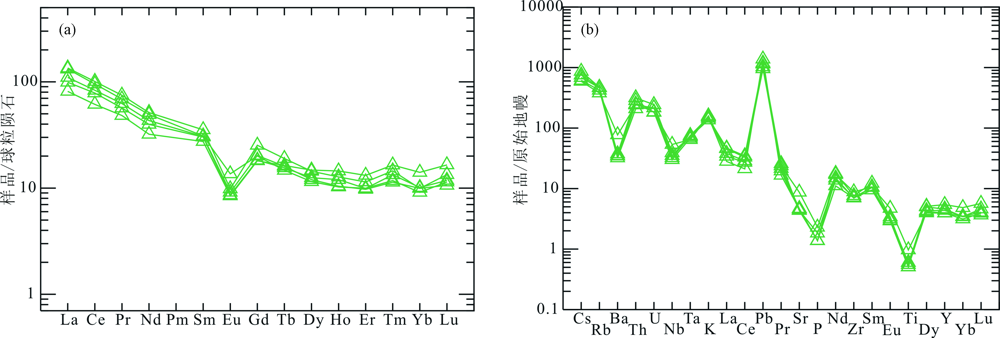

样品号	La	Ce	Pr	Nd	Sm	Eu	Gd	Tb	Dy	Ho	Er	Tm
PM022/18-1	26.1	51.0	5.93	20.2	4.68	0.53	4.17	0.60	3.05	0.59	1.61	0.29
PM022/18-2	19.3	37.6	4.58	15.0	4.20	0.49	3.71	0.61	3.75	0.82	2.18	0.42
PM022/18-3	32.0	61.7	7.11	24.0	5.41	0.57	5.20	0.71	3.66	0.72	1.89	0.37
PM022/18-4	23.5	48.1	5.39	18.6	4.63	0.50	3.76	0.58	3.18	0.68	1.64	0.34
PM022/18-5	31.3	58.4	6.55	23.0	4.73	0.79	4.12	0.55	2.92	0.58	1.65	0.30
样品号	Yb	Lu	Y	∑REE	LREE	HREE	LREE/HREE	δEu	δCe	(La/Yb)_N	(La/Sm)_N	(Gd/Yb)_N
PM022/18-1	0.11	0.020	0.88	138.51	108.44	30.07	3.61	0.36	0.95	10.41	3.51	1.99
PM022/18-2	0.11	0.021	0.85	120.16	81.17	39.00	2.08	0.37	0.93	5.44	2.89	1.25
PM022/18-3	0.11	0.020	0.87	166.27	130.79	35.48	3.69	0.32	0.95	12.77	3.72	2.48
PM022/18-4	0.11	0.020	0.87	132.72	100.72	32.00	3.15	0.36	0.99	9.21	3.19	1.76
PM022/18-5	0.11	0.020	0.88	154.63	124.77	29.86	4.18	0.54	0.93	13.61	4.16	2.14
