热释光:一种冻土区天然气水合物地球化学勘查新技术

张富贵¹^,²(), 王成文¹^,², 张舜尧¹^,², 周亚龙¹^,², 唐瑞玲¹()

1.中国地质科学院地球物理地球化学勘查研究所,河北廊坊 065000
2.中国地质科学院地球表层碳-汞地球化学循环重点实验室,河北廊坊 065000

收稿日期:2018-03-10 修回日期:2018-07-20 出版日期:2018-10-10 发布日期:2018-11-04
通讯作者: 唐瑞玲,女,工程师,硕士,1985年出生,沉积学专业,主要从事油气化探和分析测试方面的研究。Email:tangruiling@igge.com。
作者简介:张富贵,男,高级工程师,硕士,1980年出生,沉积学专业,主要从事油气和天然气水合物研究与勘查工作。Email:zhangfugui@igge.cn。
基金资助:
国家专项项目(GZHL20110324);国家专项项目(GZH201400302);中国地质调查局地质调查项目(DD20160224);中央级公益性科研院所基本科研业务费专项基金项目(AS2016Y01);中央级公益性科研院所基本科研业务费专项基金项目(AS2015J03)

Thermoluminescence:An New Tool for Natural Gas Hydrate Exploration

ZHANG Fugui¹^,²(), WANG Chengwen¹^,², ZHANG Shunyao¹^,², ZHOU Yalong¹^,², TANG Ruiling¹()

1. Institute of Geophysical and Geochemical Exploration, Chinese Academy of Geological Sciences, Langfang, Hebei 065000, China
2. Key Laboratory of Geochemical Cycling of Carbon and Mercury in the Earth’s Critical Zone, Chinese Academy of Geological Sciences, Langfang, Hebei 065000, China

Received:2018-03-10 Revised:2018-07-20 Online:2018-10-10 Published:2018-11-04

摘要/Abstract

摘要：

开发不受沼泽微生物影响的地球化学勘查技术是提高中纬度冻土区天然气水合物探井预测成功率的重要课题之一。选择在祁连山聚乎更天然气水合物已知区进行土壤热释光勘查技术实验。实验区为高寒沼泽景观,面积150 km²,采样密度2点/km²,采样深度60 cm,采集土壤样品300件,应用热释光测量仪对土壤样品进行了热释光分析。实验结果表明,天然气水合物矿藏上方出现天然热释光高值异常,与烃类异常浓度范围一致,为顶部异常模式。结合地质和地球化学勘查成果对异常进行了综合解释,认为祁连山聚乎更地区天然气热释光异常与天然气水合物矿藏关系密切,源于深部水合物矿藏。研究对天然气水合物的进一步调查具有重要的参考价值。

关键词: 热释光, 天然气水合物, 高寒沼泽, 冻土区, 祁连山

Abstract:

The development of geochemical exploration technologies unaffected by marsh microorganisms is necessary to improve the prediction of wells and to explore natural gas hydrates in mid-latitude permafrost areas. The potential of thermoluminescence as a new tool for the investigation of gas hydrates in permafrost areas was studied in this paper. The study area, 150 km² in size, is located in the alpine-arctic swamp landscape of the Qilian Mountains. The sampling density and depth were 2 points/km² and 60 cm, respectively. In total, 300 soil samples were collected and the Thermoluminescent Dosimeter (TLD) was used in measurement of soil natural thermoluminescence. The results indicated that thermoluminescence anomalies were identified in the gas hydrate deposits. A comprehensive interpretation was conducted based on geological and geochemical survey results. The relationship between the hydrocarbon of gas hydrates anomalies and thermoluminescence anomalies was further explored. We proposed a geogas migration mechanism of soil thermoluminescence in the soil above the natural gas hydrate deposits. The soil thermoluminescence anomalies near the ground surface of the Muli Coalfield in the Qilian Mountains, derived from the deep hydrate deposits and fault structure, are not affected by marsh microorganisms; they are effective tools for natural gas hydrate exploration in permafrost areas.

Key words: thermoluminescence, natural gas hydrate, alpine swamp, permafrost, Qilian mountains

中图分类号:

P595
P618.1

张富贵, 王成文, 张舜尧, 周亚龙, 唐瑞玲. 热释光:一种冻土区天然气水合物地球化学勘查新技术[J]. 现代地质, 2018, 32(05): 1080-1088.

ZHANG Fugui, WANG Chengwen, ZHANG Shunyao, ZHOU Yalong, TANG Ruiling. Thermoluminescence:An New Tool for Natural Gas Hydrate Exploration[J]. Geoscience, 2018, 32(05): 1080-1088.

图/表 7

图1 祁连山聚乎更矿区天然气水合物矿藏地质简图(根据青海煤炭地质105勘探队①修改,2006) ① 文怀军,邵龙义,张永红,等. 青海省天峻县木里煤田聚乎更矿区构造轮廓和地层格架成果报告.西宁:青海煤炭地质105勘探队. 2006

Fig.1 Geological map of the gas hydrate deposits in Juhugeng in the Qilian Mountains (modified from Qinghai No. 105 Coal Geological Exploration Team①, 2006)

图2 祁连山聚乎更矿区土壤热释光地球化学图

Fig.2 Contour map of thermoluminescence in Juhugeng in the Qilian Mountains

表1 研究区土壤地球化学指标特征值

Table 1 Values of soil geochemical indications of the study area

指标	位置	最大值	最小值	平均值	衬值	异常面积/km²	NAP
酸解烃甲烷	全区	1 687.86	1.17	55.5	—	—	—
酸解烃重烃	全区	487.39	5.45	29.35	—	—	—
热释光	全区	237.60	12.56	35.91	—	—	—
	水合物上方	79.82	50.86	65.21	1.32	1.9	2.51
	中部异常区	184.07	49.31	73.84	1.5	10.4	15.6

图3 祁连山聚乎更矿区土壤酸解烃甲烷地球化学图

Fig.3 Contour map of acid extracted methane in Juhugeng in the Qilian Mountains

图4 祁连山聚乎更矿区土壤酸解烃重烃地球化学图

Fig.4 Contour map of acid extracted heavy hydrocarbons in Juhugeng in the Qilian Mountains

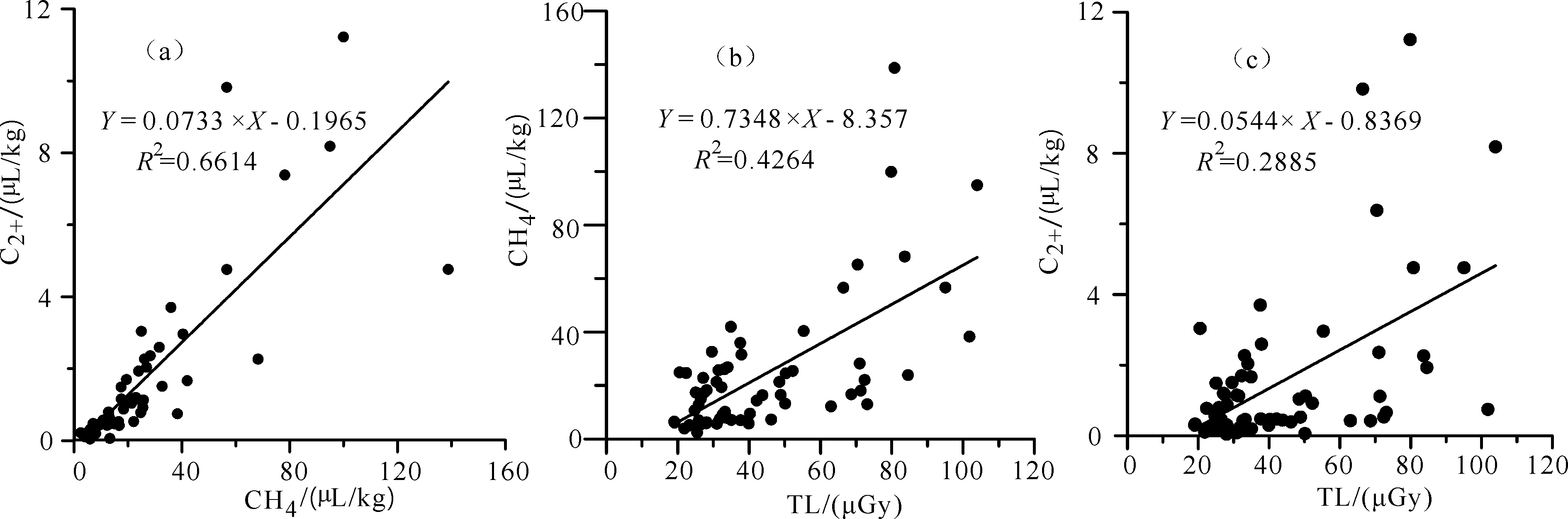

图5 异常区烃类气体和天然热释光相关图 (a)异常区酸解烃甲烷和重烃相关图;(b)异常区酸解烃甲烷和天然热释光相关图;(c)异常区酸解烃重烃和天然热释光相关图

Fig.5 Correlation between hydrocarbon and thermoluminescence in the abnormal area

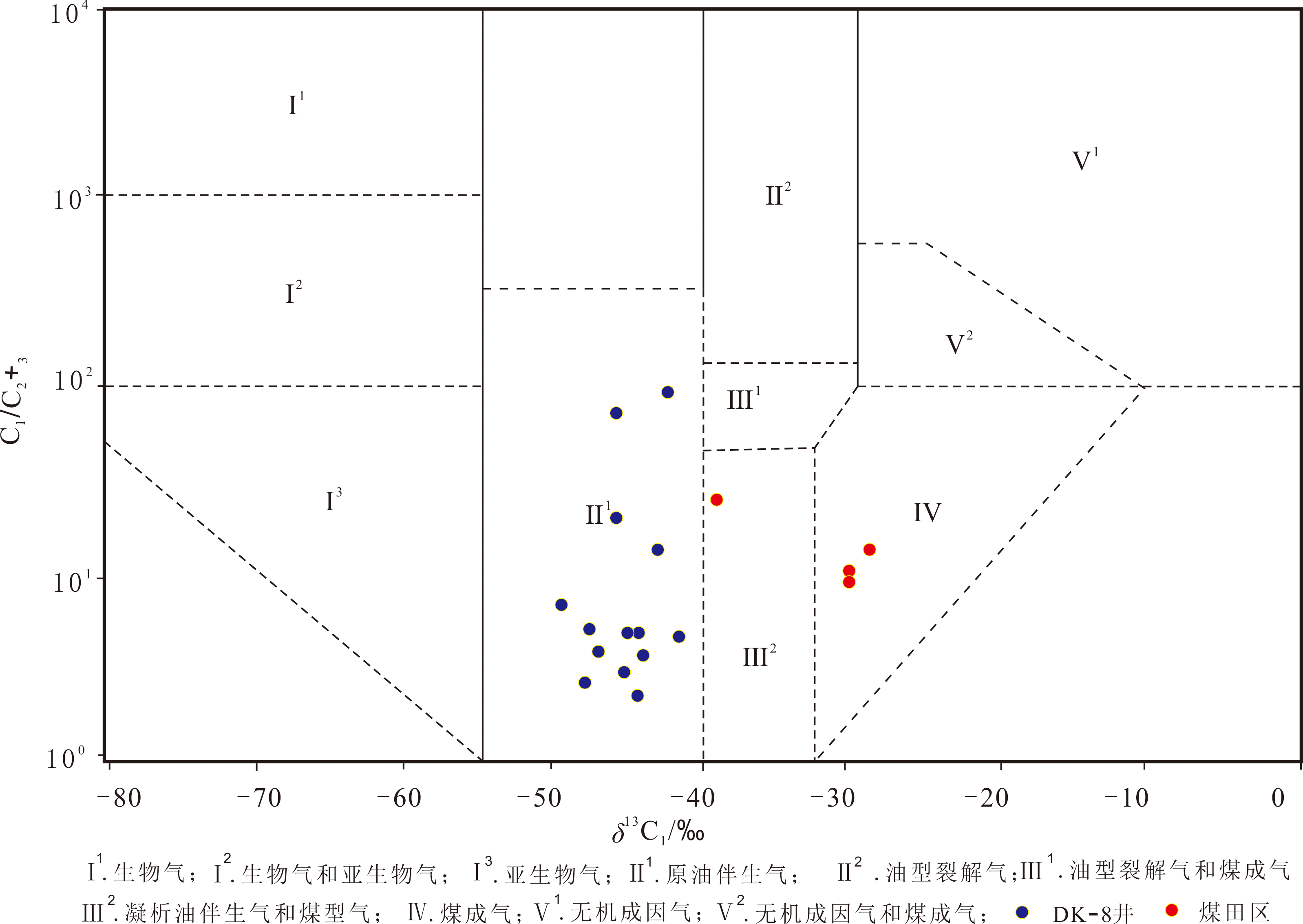

图6 研究区岩心样品不同成因烃类气体鉴别

Fig.6 Identification of hydrocarbon gases from cores samples in the study area
