Petrogenesis of the Concealed Monzogranite in the Bainiuchang Ag-polymetallic Deposit, Southeastern Yunnan, and Its Implications for Ag-polymetallic Mineralization: Constraints from U-Pb Geochronology, Geochemistry, and Hf Isotopes

doi:10.19657/j.geoscience.1000-8527.2024.119

Abstract

Abstract:

The Bainiuchang silver polymetallic deposit, one of the super-large deposits in southeastern Yunnan, is located in the northwestern part of Bozhu Mountain, southeastern Yunnan. Based on systematic fieldwork, this study conducted LA-ICP-MS zircon U-Pb dating, whole-rock geochemical analysis, and zircon Lu-Hf isotope analysis on the concealed monzogranite in Bainiuchang to determine the formation age, genesis, magma source, and alteration effects of the deep concealed granite. Combined with the tectonic setting, the relationship between the concealed granite and mineralization was analyzed. The results show that the zircon U-Pb ages of four monzogranite samples from Bainiuchang are (87.7±0.5) Ma, (87.34±0.4) Ma, (88.5±0.5) Ma, and (87.1±0.5) Ma, respectively, all belonging to the late Yanshanian period. The Bainiuchang monzogranite is characterized by high silicon (SiO₂=66.27%-73.77%) and high alkali (Na₂O+K₂O=6.17%-8.48%) contents, with high total rare earth elements (ΣREE=172.49×10^-6-333.22×10^-6, average 271.30×10^-6), obvious fractionation of light and heavy rare earth elements (LREE/HREE=12.74-20.47, average 16.76), and weak negative Eu anomalies (0.44-0.78). It is relatively enriched in large ion lithophile elements (Rb, K) and high field strength elements (Th, U, Ce, Zr, Hf, Ta), belonging to peraluminous high-K calc-alkaline S-type granite. The zircon ε_Hf(t) values of the Bainiuchang monzogranite range from -21.5 to -4.3, with corresponding two-stage Hf model ages of 1259-1614 Ma, indicating that the magma was derived from the melting of Mesoproterozoic-Neoproterozoic ancient crustal materials. Comprehensive analysis suggests that the formation of the Bainiuchang F3 fault provided migration channels and space for deep magmatic activity in the study area. The upwelling of granitic magma transported ore-forming elements such as Sn, Cu, and Zn, and consolidated to form the deep concealed granite. The formation of the deep concealed monzogranite in Bainiuchang is closely related to the tectonic transition from syn-collision to post-collision orogeny in the late Yanshanian period.

Key words: zircon U-Pb dating, LA-ICP-MS, monzogranite, deep concealed granite body, Bainiuchang

CLC Number:

P611

MI Xue, LIU Xuelong, ZHANG Shitao, CHEN Shufu, MENG Guangzhi, ZHANG Hong, CHENG Jialong, ZHOU Jiehu, LU Bode, DAO Junshan, SHI Nan, FAN Maohuang. Petrogenesis of the Concealed Monzogranite in the Bainiuchang Ag-polymetallic Deposit, Southeastern Yunnan, and Its Implications for Ag-polymetallic Mineralization: Constraints from U-Pb Geochronology, Geochemistry, and Hf Isotopes[J]. Geoscience, 2025, 39(04): 1016-1038.

Figures/Tables 16

Fig.1 Tectonic map and simplified geological map of the Bainiuchang mining area ((a) modified from Zhang Yahui [11]; (b), (c) modified from reference [12])

Fig.2 Exploration line profile of Line 74 in the Bainiuchang silver-polymetallic deposit (modified from Wang [10])

Fig.3 Typical photos and petrographic characteristics of the Bainiuchang granite mass under an orthogonal polarizing microscope

Fig.4 Typical zircon CL images of Bainiuchang (red circles indicate zircon U-Pb dating points; yellow circles indicate Hf isotope measurement points)

Table 1 LA-ICP-MS zircon U-Pb isotope analysis results of the Bainiuchang monzogranite

测点号	元素含量			Th/U	同位素比值			同位素年龄(Ma)			谐和度 (%)
测点号	Pb (10^-6)	Th (10^-6)	U (10^-6)	Th/U	²⁰⁷Pb/²³⁵U ±1σ	²⁰⁶Pb/²³⁸U ±1σ	²⁰⁷Pb/²⁰⁶Pb ±1σ	$207$ Pb/²⁰⁶Pb ±1σ	²⁰⁷Pb/²³⁵U ±1σ	²⁰⁶Pb/²³⁸U ±1σ	谐和度 (%)
BNC22-38二长花岗岩
BN22-38-1	28.2	1130.0	1621.0	0.7	0.0640± 0.0021	0.1242± 0.0041	0.0141± 0.0002	743.0±68.5	119.0±3.7	90.0±1.1	72
BN22-38-2	26.0	1137.0	1576.0	0.7	0.0505± 0.0018	0.0949± 0.0034	0.0136± 0.0001	220.0±85.2	92.1±3.2	87.1±0.9	94
BN22-38-3	28.5	760.0	1302.0	0.6	0.1186± 0.0044	0.2545± 0.0095	0.0155± 0.0002	1944.0±32.9	230.0±7.7	99.3±1.0	20
BN22-38-4	24.4	660.0	1532.0	0.4	0.0507± 0.0022	0.0972± 0.0038	0.0141± 0.0002	233.0±98.14	94.2±3.6	90.0±1.0	95
BN22-38-5	12.5	892.0	639.0	1.4	0.0520± 0.0031	0.0988± 0.0057	0.0139± 0.0002	287.0±135.2	95.7±5.3	89.2±1.3	92
BN22-38-6	19.3	437.0	1286.0	0.3	0.0468± 0.0020	0.0890± 0.0037	0.0139± 0.0002	35.3±103.7	86.6±3.4	88.8±1.0	97
BN22-38-7	27.4	1345.0	1601.0	0.8	0.0511± 0.0018	0.0977± 0.0032	0.0140± 0.0002	243.0±79.6	94.6±3.0	89.3±1.0	94
BN22-38-8	17.6	348.0	1195.0	0.3	0.0505± 0.0022	0.0951± 0.0041	0.0136± 0.0001	217.0±97.2	92.2±3.8	87.2±0.9	94
BN22-38-9	16.9	347.0	1124.0	0.3	0.0478± 0.0021	0.0916± 0.0040	0.0138± 0.0002	100.0±94.4	88.9±3.8	88.5±1.0	99
BN22-38-10	18.5	727.0	1169.0	0.6	0.0469± 0.0029	0.0861± 0.0044	0.0135± 0.0002	55.7±131.5	83.9±4.1	86.7±1.5	96
BN22-38-11	22.3	737.0	1417.0	0.5	0.0523± 0.0022	0.0989± 0.0039	0.0137± 0.0001	298.0±89.8	95.7±3.7	87.6±0.9	91
BN22-38-12	29.9	727.0	2066.0	0.4	0.0515± 0.0025	0.0979± 0.0054	0.0137± 0.0002	261.0±111.1	94.9±5.0	87.5±1.4	91
BN22-38-13	23.3	696.0	1509.0	0.5	0.0490± 0.0018	0.0928± 0.0035	0.0136± 0.0001	146.0±85.2	90.1±3.2	87.3±0.9	96
BN22-38-14	26.0	1441.0	1474.0	1.0	0.0491± 0.0017	0.0934± 0.0032	0.0137± 0.0001	154.0±76.8	90.7±3.00	88.0±0.8	97
BN22-38-15	16.7	528.0	1095.0	0.5	0.0476± 0.0021	0.0885± 0.0037	0.0135± 0.0002	79.7±103.7	86.1±3.5	86.7±1.0	99
BN22-38-16	20.4	564.0	1355.0	0.4	0.0474± 0.0020	0.0888± 0.0035	0.0136± 0.0002	77.9±87.0	86.4±3.3	87.1±1.00	99
BN22-38-17	20.5	766.0	1275.0	0.6	0.0508± 0.0021	0.0963± 0.0039	0.0137± 0.0002	232.0±62.0	93.3±3.6	87.9±1.0	93
BN22-38-18	27.7	1344.0	1642.0	0.8	0.0535± 0.0020	0.1002± 0.0036	0.0136± 0.0002	350.0±83.3	96.9±3.3	86.9±1.0	89
BN22-38-19	17.6	563.0	1148.0	0.5	0.0515± 0.0024	0.0953± 0.0045	0.0135± 0.0001	265.0±109.2	92.5±4.2	86.3±0.9	93
BN22-38-20	24.6	761.0	1643.0	0.5	0.0522± 0.0020	0.0980± 0.0041	0.0136± 0.0002	295.0±88.9	94.9±3.8	87.3±1.5	91
BNC22-39二长花岗岩
BN22-39-01	22.4	1105.0	1337.0	0.8	0.0498± 0.0019	0.0933± 0.0036	0.0135± 0.0001	187.0±88.0	90.5±3.4	86.7±0.8	95
BN22-39-02	17.5	973.0	976.0	1.0	0.0519± 0.0023	0.0991± 0.0043	0.0138± 0.0001	280.0±100.0	96.0±4.00	88.4±0.9	91
BN22-39-03	17.8	376.0	1205.0	0.3	0.0463± 0.0018	0.0879± 0.0034	0.0138± 0.0002	13.0±88.9	85.6±3.2	88.5±1.1	96
BN22-39-04	16.5	600.0	1066.0	0.6	0.0486± 0.0021	0.0889± 0.0037	0.0133± 0.0002	132.0±97.2	86.5±3.5	87.3±1.0	96
BN22-39-05	16.4	510.0	1038.0	0.5	0.0456± 0.0020	0.0870± 0.0037	0.0139± 0.0002	101.0±104.3	84.7±3.5	88±1.0	96
BN22-39-06	16.6	776.0	996.0	0.8	0.0506± 0.0023	0.0938± 0.0042	0.0135± 0.0002	220.0±109.2	91.0±3.9	87.5±1.00	96
BN22-39-07	14.5	476.0	937.0	0.5	0.0499± 0.0023	0.0917± 0.0042	0.0133± 0.0002	187.0±110.2	89.1±4.0	87.7±1.1	97
BN22-39-08	15.1	491.0	955.0	0.5	0.0494± 0.0021	0.0922± 0.0038	0.0135± 0.0001	169.0±98.1	89.6±3.5	87.1±0.9	97
BN22-39-09	13.7	481.0	875.0	0.6	0.0481± 0.0021	0.0879± 0.0037	0.0133± 0.0001	106.0±103.7	85.5±3.5	86.3±0.9	98
BN22-39-10	17.6	500.0	1146.0	0.4	0.0484± 0.0020	0.0899± 0.0038	0.0134± 0.0001	120.0±100.0	87.4±3.5	87.3±0.9	98
BN22-39-11	22.6	452.0	1652.0	0.3	0.0498± 0.0016	0.0868± 0.0027	0.0126± 0.0002	187.0±67.6	84.5±2.6	87.1±1.1	93
BN22-39-12	20.9	599.0	1368.0	0.4	0.0519± 0.0019	0.0964± 0.0036	0.0134± 0.0002	280.0±83.3	93.4±3.3	87.6±1.0	92
BN22-39-13	22.6	863.0	1383.0	0.6	0.0492± 0.0018	0.0933± 0.0035	0.0137± 0.0002	167.0±82.4	90.6±3.2	87.9±1.1	96
BN22-39-14	18.8	637.0	1230.0	0.5	0.0491± 0.0021	0.0905± 0.0038	0.0134± 0.0002	154.0±100.0	88.0±3.5	86.9±1.1	99
BN22-39-15	11.7	255.0	810.0	0.3	0.0512± 0.0026	0.0941± 0.0047	0.0135± 0.0002	250.0±114.8	91.4±4.4	87.4±1.3	94
BN22-39-16	16.3	497.0	1063.0	0.5	0.0481± 0.0020	0.0894± 0.0036	0.0134± 0.0001	106.0±4.4	86.9±3.4	87.4±0.85	97
BN22-39-17	15.5	506.0	1008.0	0.5	0.0498± 0.0025	0.0913± 0.0046	0.0133± 0.0001	183.0±118.5	88.7±4.3	86.4±0.9	97
BN22-39-18	18.6	704.0	1186.0	0.6	0.0499± 0.0018	0.0918± 0.0032	0.0133± 0.0001	191.0±81.5	89.2±3.0	86.8±0.9	99
BN22-39-19	13.2	348.0	865.0	0.4	0.0465± 0.0021	0.0873± 0.0038	0.0137± 0.0002	20.0±103.7	85.0±3.5	87.7±1.0	96
BN22-39-20	24.6	1129.0	1428.0	0.8	0.0483± 0.0016	0.0925± 0.0034	0.0138± 0.0002	122.0±81.5	89.8±3.2	88.6±1.2	98
BNC22-59二长花岗岩
BN22-59-1	19.6	531.0	1274.0	0.4	0.0487± 0.0019	0.0923± 0.0035	0.0139± 0.0002	132.0±92.6	89.7±3.3	88.7±1.0	98
BN22-59-2	22.5	609.0	1444.0	0.4	0.0490± 0.0017	0.0940± 0.0033	0.0138± 0.0001	150.0±75.0	91.2±3.1	88.6±0.9	97
BN22-59-3	29.0	900.0	1783.0	0.5	0.0517± 0.0019	0.1024± 0.0041	0.0143± 0.0002	272.0±83.3	99.0±3.7	91.4±1.4	92
BN22-59-4	17.1	276.0	1161.0	0.2	0.0488± 0.0020	0.0927± 0.0037	0.0138± 0.0001	200.0±94.4	90.0±3.4	88.4±0.8	98
BN22-59-5	35.5	1433.0	1999.0	0.7	0.0529± 0.0018	0.1083± 0.0037	0.0149± 0.0003	324.0±105.5	104.0±3.4	95.6±1.7	91
BN22-59-6	38.9	1263.0	2466.0	0.5	0.0523± 0.0018	0.1021± 0.0035	0.0142± 0.0002	302.0±77.8	98.7±3.2	90.6±1.3	91
BN22-59-7	19.7	737.0	1217.0	0.6	0.0497± 0.0020	0.0956± 0.0039	0.0139± 0.0002	189.0±94.4	92.7±3.6	89.2±1.1	96
BN22-59-8	18.1	632.0	1132.0	0.6	0.0479± 0.0020	0.0910± 0.0036	0.0138± 0.0002	94.5±92.6	88.5±3.3	88.6±1.1	99
BN22-59-9	37.9	751.0	2554.0	0.3	0.0646± 0.0240	0.1180± 0.0413	0.0137± 0.0002	761.0±634.9	113.0±37.5	87.5±1.0	74
BN22-59-10	20.3	770.0	1239.0	0.6	0.0487± 0.0018	0.0938± 0.0035	0.0139± 0.0001	132.0±87.0	91.0±3.2	89.1±0.9	97
BN22-59-11	30.8	1556.0	1859.0	0.8	0.0466± 0.0026	0.0898± 0.0055	0.0138± 0.0002	31.6±135.2	87.3±5.1	88.3±1.3	98
BN22-59-12	16.2	444.0	1047.0	0.4	0.0508± 0.0020	0.0972± 0.0039	0.0138± 0.0002	235.0±88.9	94.2±3.6	88.1±1.0	93
BN22-59-13	13.8	378.0	907.0	0.4	0.0472± 0.0025	0.0875± 0.0046	0.0135± 0.0001	61.2±127.8	85.2±4.3	86.5±1.0	98
BN22-59-14	20.7	885.0	1278.0	0.7	0.0469± 0.0018	0.0888± 0.0034	0.0137± 0.0002	42.7±88.9	86.4±3.2	87.9±1.1	98
BN22-59-15	25.2	374.0	1784.0	0.2	0.0474± 0.0020	0.0902± 0.0037	0.0138± 0.0002	77.9±87.0	87.7±3.5	88.2±1.3	99
BN22-59-16	18.4	637.0	1146.0	0.6	0.0515± 0.0022	0.0996± 0.0050	0.0139± 0.0003	265.0±100.0	96.4±4.6	88.8±1.9	91
BN22-59-17	12.0	282.0	812.0	0.3	0.0461± 0.0021	0.0871± 0.0041	0.0136± 0.0002	400.0±290.7	84.8±3.9	87.4±1.2	96
BN22-59-18	27.3	901.0	1725.0	0.5	0.0458± 0.0047	0.0929± 0.0127	0.0137± 0.0004	323.0±100.0	90.2±11.8	87.5±2.8	96
BN22-59-19	19.5	646.0	1067.0	0.6	0.0651± 0.0024	0.1360± 0.0057	0.0149± 0.0002	776.0±79.6	129.0±5.0	95.6±1.3	69
BN22-59-20	34.5	1371.0	1856.0	0.7	0.0871± 0.0022	0.1655± 0.0042	0.0139± 0.0002	1363.0±44.3	156.0±3.7	88.7±1.4	45
BNC22-64二长花岗岩
BN22-64-1	15.9	590.0	975.0	0.6	0.0517± 0.0022	0.0971± 0.0042	0.0136± 0.0002	272.0±98.1	94.1±3.9	86.8±1.0	91
BN22-64-2	17.9	299.0	1207.0	0.3	0.0465± 0.0020	0.0874± 0.0036	0.0137± 0.0001	33.4±87.0	85.1±3.4	87.7±0.8	97
BN22-64-3	32.4	900.0	2283.0	0.4	0.0461± 0.0038	0.0838± 0.0075	0.0137± 0.0005	400.0±205.6	81.7±7.0	87.5±3.2	93
BN22-64-4	30.8	768.0	2194.0	0.4	0.0533± 0.0069	0.0959± 0.0119	0.0133± 0.0006	343.0±298.1	93.0±11.0	85.3±3.8	91
BN22-64-5	23.4	741.0	1454.0	0.5	0.0523± 0.0018	0.0987± 0.0034	0.0137± 0.0001	302.0±84.3	95.6±3.1	87.7±0.9	91
BN22-64-6	20.8	699.0	1310.0	0.5	0.0506± 0.0016	0.0948± 0.0031	0.0136± 0.0001	233.0±74.1	91.9±2.9	87.0±0.9	94
BN22-64-7	21.4	713.0	1323.0	0.5	0.0504± 0.0019	0.0955± 0.0036	0.0137± 0.0002	213.0±85.2	92.6±3.3	88.0±1.0	94
BN22-64-8	25.0	413.0	1735.0	0.2	0.0481± 0.0033	0.0902± 0.0062	0.0135± 0.0002	102.0±155.5	87.7±5.8	86.7±1.2	98
BN22-64-9	26.2	749.0	1642.0	0.5	0.0510± 0.0018	0.0970± 0.0033	0.0139± 0.0002	239.0±83.3	94.0±3.1	88.7±1.1	94
BN22-64-10	17.4	545.0	1104.0	0.5	0.0478± 0.0019	0.0892± 0.0034	0.0136± 0.0002	87.1±88.9	86.7±3.2	86.9±1.0	99
BN22-64-11	24.1	422.0	1565.0	0.3	0.0526± 0.0018	0.0999± 0.0034	0.0138± 0.0002	322.0±77.8	96.6±3.1	88.1±1.1	90
BN22-64-12	22.8	608.0	1452.0	0.4	0.0487± 0.0019	0.0918± 0.0036	0.0137± 0.0001	132.0±92.6	89.2±3.4	87.5±0.9	98
BN22-64-13	27.5	834.0	1798.0	0.5	0.0478± 0.0048	0.0841± 0.0064	0.0140± 0.0005	100.0±209.2	82.0±6.0	89.6± 2.9	91
BN22-64-14	23.3	351.0	1590.0	0.2	0.0465± 0.0019	0.0875± 0.0037	0.0136± 0.0001	33.4±83.3	85.2±3.4	86.9±0.9	97
BN22-64-15	18.7	472.0	1214.0	0.4	0.0492± 0.0033	0.0889± 0.0046	0.0137± 0.0003	167.0±138.9	86.4±4.3	87.5±1.7	98
BN22-64-16	24.7	1065.0	1454.0	0.7	0.0501± 0.0022	0.0938± 0.0039	0.0137± 0.0002	211.0±103.7	91.0±3.6	87.7± 1.0	96
BN22-64-17	21.7	354.0	1486.0	0.2	0.0486± 0.0017	0.0898± 0.0033	0.0134± 0.0001	132.0±85.2	87.3±3.1	85.7± 0.9	98
BN22-64-18	11.9	392.0	756.0	0.5	0.0517± 0.0026	0.0952± 0.0048	0.0134± 0.0002	333.0±118.5	92.4±4.5	86.0±1.	92
BN22-64-19	23.0	715.0	1472.0	0.5	0.0506± 0.0020	0.0943± 0.0037	0.0135± 0.0001	233.0±95.4	91.5±3.4	86.7±0.9	94
BN22-64-20	14.7	445.0	963.0	0.5	0.0501± 0.0023	0.0919± 0.0041	0.0134± 0.0001	198.0±99.1	89.3±3.8	85.7± 0.9	95

Table 1 LA-ICP-MS zircon U-Pb isotope analysis results of the Bainiuchang monzogranite

测点号	元素含量			Th/U	同位素比值			同位素年龄(Ma)			谐和度 (%)
测点号	Pb (10^-6)	Th (10^-6)	U (10^-6)	Th/U	²⁰⁷Pb/²³⁵U ±1σ	²⁰⁶Pb/²³⁸U ±1σ	²⁰⁷Pb/²⁰⁶Pb ±1σ	$207$ Pb/²⁰⁶Pb ±1σ	²⁰⁷Pb/²³⁵U ±1σ	²⁰⁶Pb/²³⁸U ±1σ	谐和度 (%)
BNC22-38二长花岗岩
BN22-38-1	28.2	1130.0	1621.0	0.7	0.0640± 0.0021	0.1242± 0.0041	0.0141± 0.0002	743.0±68.5	119.0±3.7	90.0±1.1	72
BN22-38-2	26.0	1137.0	1576.0	0.7	0.0505± 0.0018	0.0949± 0.0034	0.0136± 0.0001	220.0±85.2	92.1±3.2	87.1±0.9	94
BN22-38-3	28.5	760.0	1302.0	0.6	0.1186± 0.0044	0.2545± 0.0095	0.0155± 0.0002	1944.0±32.9	230.0±7.7	99.3±1.0	20
BN22-38-4	24.4	660.0	1532.0	0.4	0.0507± 0.0022	0.0972± 0.0038	0.0141± 0.0002	233.0±98.14	94.2±3.6	90.0±1.0	95
BN22-38-5	12.5	892.0	639.0	1.4	0.0520± 0.0031	0.0988± 0.0057	0.0139± 0.0002	287.0±135.2	95.7±5.3	89.2±1.3	92
BN22-38-6	19.3	437.0	1286.0	0.3	0.0468± 0.0020	0.0890± 0.0037	0.0139± 0.0002	35.3±103.7	86.6±3.4	88.8±1.0	97
BN22-38-7	27.4	1345.0	1601.0	0.8	0.0511± 0.0018	0.0977± 0.0032	0.0140± 0.0002	243.0±79.6	94.6±3.0	89.3±1.0	94
BN22-38-8	17.6	348.0	1195.0	0.3	0.0505± 0.0022	0.0951± 0.0041	0.0136± 0.0001	217.0±97.2	92.2±3.8	87.2±0.9	94
BN22-38-9	16.9	347.0	1124.0	0.3	0.0478± 0.0021	0.0916± 0.0040	0.0138± 0.0002	100.0±94.4	88.9±3.8	88.5±1.0	99
BN22-38-10	18.5	727.0	1169.0	0.6	0.0469± 0.0029	0.0861± 0.0044	0.0135± 0.0002	55.7±131.5	83.9±4.1	86.7±1.5	96
BN22-38-11	22.3	737.0	1417.0	0.5	0.0523± 0.0022	0.0989± 0.0039	0.0137± 0.0001	298.0±89.8	95.7±3.7	87.6±0.9	91
BN22-38-12	29.9	727.0	2066.0	0.4	0.0515± 0.0025	0.0979± 0.0054	0.0137± 0.0002	261.0±111.1	94.9±5.0	87.5±1.4	91
BN22-38-13	23.3	696.0	1509.0	0.5	0.0490± 0.0018	0.0928± 0.0035	0.0136± 0.0001	146.0±85.2	90.1±3.2	87.3±0.9	96
BN22-38-14	26.0	1441.0	1474.0	1.0	0.0491± 0.0017	0.0934± 0.0032	0.0137± 0.0001	154.0±76.8	90.7±3.00	88.0±0.8	97
BN22-38-15	16.7	528.0	1095.0	0.5	0.0476± 0.0021	0.0885± 0.0037	0.0135± 0.0002	79.7±103.7	86.1±3.5	86.7±1.0	99
BN22-38-16	20.4	564.0	1355.0	0.4	0.0474± 0.0020	0.0888± 0.0035	0.0136± 0.0002	77.9±87.0	86.4±3.3	87.1±1.00	99
BN22-38-17	20.5	766.0	1275.0	0.6	0.0508± 0.0021	0.0963± 0.0039	0.0137± 0.0002	232.0±62.0	93.3±3.6	87.9±1.0	93
BN22-38-18	27.7	1344.0	1642.0	0.8	0.0535± 0.0020	0.1002± 0.0036	0.0136± 0.0002	350.0±83.3	96.9±3.3	86.9±1.0	89
BN22-38-19	17.6	563.0	1148.0	0.5	0.0515± 0.0024	0.0953± 0.0045	0.0135± 0.0001	265.0±109.2	92.5±4.2	86.3±0.9	93
BN22-38-20	24.6	761.0	1643.0	0.5	0.0522± 0.0020	0.0980± 0.0041	0.0136± 0.0002	295.0±88.9	94.9±3.8	87.3±1.5	91
BNC22-39二长花岗岩
BN22-39-01	22.4	1105.0	1337.0	0.8	0.0498± 0.0019	0.0933± 0.0036	0.0135± 0.0001	187.0±88.0	90.5±3.4	86.7±0.8	95
BN22-39-02	17.5	973.0	976.0	1.0	0.0519± 0.0023	0.0991± 0.0043	0.0138± 0.0001	280.0±100.0	96.0±4.00	88.4±0.9	91
BN22-39-03	17.8	376.0	1205.0	0.3	0.0463± 0.0018	0.0879± 0.0034	0.0138± 0.0002	13.0±88.9	85.6±3.2	88.5±1.1	96
BN22-39-04	16.5	600.0	1066.0	0.6	0.0486± 0.0021	0.0889± 0.0037	0.0133± 0.0002	132.0±97.2	86.5±3.5	87.3±1.0	96
BN22-39-05	16.4	510.0	1038.0	0.5	0.0456± 0.0020	0.0870± 0.0037	0.0139± 0.0002	101.0±104.3	84.7±3.5	88±1.0	96
BN22-39-06	16.6	776.0	996.0	0.8	0.0506± 0.0023	0.0938± 0.0042	0.0135± 0.0002	220.0±109.2	91.0±3.9	87.5±1.00	96
BN22-39-07	14.5	476.0	937.0	0.5	0.0499± 0.0023	0.0917± 0.0042	0.0133± 0.0002	187.0±110.2	89.1±4.0	87.7±1.1	97
BN22-39-08	15.1	491.0	955.0	0.5	0.0494± 0.0021	0.0922± 0.0038	0.0135± 0.0001	169.0±98.1	89.6±3.5	87.1±0.9	97
BN22-39-09	13.7	481.0	875.0	0.6	0.0481± 0.0021	0.0879± 0.0037	0.0133± 0.0001	106.0±103.7	85.5±3.5	86.3±0.9	98
BN22-39-10	17.6	500.0	1146.0	0.4	0.0484± 0.0020	0.0899± 0.0038	0.0134± 0.0001	120.0±100.0	87.4±3.5	87.3±0.9	98
BN22-39-11	22.6	452.0	1652.0	0.3	0.0498± 0.0016	0.0868± 0.0027	0.0126± 0.0002	187.0±67.6	84.5±2.6	87.1±1.1	93
BN22-39-12	20.9	599.0	1368.0	0.4	0.0519± 0.0019	0.0964± 0.0036	0.0134± 0.0002	280.0±83.3	93.4±3.3	87.6±1.0	92
BN22-39-13	22.6	863.0	1383.0	0.6	0.0492± 0.0018	0.0933± 0.0035	0.0137± 0.0002	167.0±82.4	90.6±3.2	87.9±1.1	96
BN22-39-14	18.8	637.0	1230.0	0.5	0.0491± 0.0021	0.0905± 0.0038	0.0134± 0.0002	154.0±100.0	88.0±3.5	86.9±1.1	99
BN22-39-15	11.7	255.0	810.0	0.3	0.0512± 0.0026	0.0941± 0.0047	0.0135± 0.0002	250.0±114.8	91.4±4.4	87.4±1.3	94
BN22-39-16	16.3	497.0	1063.0	0.5	0.0481± 0.0020	0.0894± 0.0036	0.0134± 0.0001	106.0±4.4	86.9±3.4	87.4±0.85	97
BN22-39-17	15.5	506.0	1008.0	0.5	0.0498± 0.0025	0.0913± 0.0046	0.0133± 0.0001	183.0±118.5	88.7±4.3	86.4±0.9	97
BN22-39-18	18.6	704.0	1186.0	0.6	0.0499± 0.0018	0.0918± 0.0032	0.0133± 0.0001	191.0±81.5	89.2±3.0	86.8±0.9	99
BN22-39-19	13.2	348.0	865.0	0.4	0.0465± 0.0021	0.0873± 0.0038	0.0137± 0.0002	20.0±103.7	85.0±3.5	87.7±1.0	96
BN22-39-20	24.6	1129.0	1428.0	0.8	0.0483± 0.0016	0.0925± 0.0034	0.0138± 0.0002	122.0±81.5	89.8±3.2	88.6±1.2	98
BNC22-59二长花岗岩
BN22-59-1	19.6	531.0	1274.0	0.4	0.0487± 0.0019	0.0923± 0.0035	0.0139± 0.0002	132.0±92.6	89.7±3.3	88.7±1.0	98
BN22-59-2	22.5	609.0	1444.0	0.4	0.0490± 0.0017	0.0940± 0.0033	0.0138± 0.0001	150.0±75.0	91.2±3.1	88.6±0.9	97
BN22-59-3	29.0	900.0	1783.0	0.5	0.0517± 0.0019	0.1024± 0.0041	0.0143± 0.0002	272.0±83.3	99.0±3.7	91.4±1.4	92
BN22-59-4	17.1	276.0	1161.0	0.2	0.0488± 0.0020	0.0927± 0.0037	0.0138± 0.0001	200.0±94.4	90.0±3.4	88.4±0.8	98
BN22-59-5	35.5	1433.0	1999.0	0.7	0.0529± 0.0018	0.1083± 0.0037	0.0149± 0.0003	324.0±105.5	104.0±3.4	95.6±1.7	91
BN22-59-6	38.9	1263.0	2466.0	0.5	0.0523± 0.0018	0.1021± 0.0035	0.0142± 0.0002	302.0±77.8	98.7±3.2	90.6±1.3	91
BN22-59-7	19.7	737.0	1217.0	0.6	0.0497± 0.0020	0.0956± 0.0039	0.0139± 0.0002	189.0±94.4	92.7±3.6	89.2±1.1	96
BN22-59-8	18.1	632.0	1132.0	0.6	0.0479± 0.0020	0.0910± 0.0036	0.0138± 0.0002	94.5±92.6	88.5±3.3	88.6±1.1	99
BN22-59-9	37.9	751.0	2554.0	0.3	0.0646± 0.0240	0.1180± 0.0413	0.0137± 0.0002	761.0±634.9	113.0±37.5	87.5±1.0	74
BN22-59-10	20.3	770.0	1239.0	0.6	0.0487± 0.0018	0.0938± 0.0035	0.0139± 0.0001	132.0±87.0	91.0±3.2	89.1±0.9	97
BN22-59-11	30.8	1556.0	1859.0	0.8	0.0466± 0.0026	0.0898± 0.0055	0.0138± 0.0002	31.6±135.2	87.3±5.1	88.3±1.3	98
BN22-59-12	16.2	444.0	1047.0	0.4	0.0508± 0.0020	0.0972± 0.0039	0.0138± 0.0002	235.0±88.9	94.2±3.6	88.1±1.0	93
BN22-59-13	13.8	378.0	907.0	0.4	0.0472± 0.0025	0.0875± 0.0046	0.0135± 0.0001	61.2±127.8	85.2±4.3	86.5±1.0	98
BN22-59-14	20.7	885.0	1278.0	0.7	0.0469± 0.0018	0.0888± 0.0034	0.0137± 0.0002	42.7±88.9	86.4±3.2	87.9±1.1	98
BN22-59-15	25.2	374.0	1784.0	0.2	0.0474± 0.0020	0.0902± 0.0037	0.0138± 0.0002	77.9±87.0	87.7±3.5	88.2±1.3	99
BN22-59-16	18.4	637.0	1146.0	0.6	0.0515± 0.0022	0.0996± 0.0050	0.0139± 0.0003	265.0±100.0	96.4±4.6	88.8±1.9	91
BN22-59-17	12.0	282.0	812.0	0.3	0.0461± 0.0021	0.0871± 0.0041	0.0136± 0.0002	400.0±290.7	84.8±3.9	87.4±1.2	96
BN22-59-18	27.3	901.0	1725.0	0.5	0.0458± 0.0047	0.0929± 0.0127	0.0137± 0.0004	323.0±100.0	90.2±11.8	87.5±2.8	96
BN22-59-19	19.5	646.0	1067.0	0.6	0.0651± 0.0024	0.1360± 0.0057	0.0149± 0.0002	776.0±79.6	129.0±5.0	95.6±1.3	69
BN22-59-20	34.5	1371.0	1856.0	0.7	0.0871± 0.0022	0.1655± 0.0042	0.0139± 0.0002	1363.0±44.3	156.0±3.7	88.7±1.4	45
BNC22-64二长花岗岩
BN22-64-1	15.9	590.0	975.0	0.6	0.0517± 0.0022	0.0971± 0.0042	0.0136± 0.0002	272.0±98.1	94.1±3.9	86.8±1.0	91
BN22-64-2	17.9	299.0	1207.0	0.3	0.0465± 0.0020	0.0874± 0.0036	0.0137± 0.0001	33.4±87.0	85.1±3.4	87.7±0.8	97
BN22-64-3	32.4	900.0	2283.0	0.4	0.0461± 0.0038	0.0838± 0.0075	0.0137± 0.0005	400.0±205.6	81.7±7.0	87.5±3.2	93
BN22-64-4	30.8	768.0	2194.0	0.4	0.0533± 0.0069	0.0959± 0.0119	0.0133± 0.0006	343.0±298.1	93.0±11.0	85.3±3.8	91
BN22-64-5	23.4	741.0	1454.0	0.5	0.0523± 0.0018	0.0987± 0.0034	0.0137± 0.0001	302.0±84.3	95.6±3.1	87.7±0.9	91
BN22-64-6	20.8	699.0	1310.0	0.5	0.0506± 0.0016	0.0948± 0.0031	0.0136± 0.0001	233.0±74.1	91.9±2.9	87.0±0.9	94
BN22-64-7	21.4	713.0	1323.0	0.5	0.0504± 0.0019	0.0955± 0.0036	0.0137± 0.0002	213.0±85.2	92.6±3.3	88.0±1.0	94
BN22-64-8	25.0	413.0	1735.0	0.2	0.0481± 0.0033	0.0902± 0.0062	0.0135± 0.0002	102.0±155.5	87.7±5.8	86.7±1.2	98
BN22-64-9	26.2	749.0	1642.0	0.5	0.0510± 0.0018	0.0970± 0.0033	0.0139± 0.0002	239.0±83.3	94.0±3.1	88.7±1.1	94
BN22-64-10	17.4	545.0	1104.0	0.5	0.0478± 0.0019	0.0892± 0.0034	0.0136± 0.0002	87.1±88.9	86.7±3.2	86.9±1.0	99
BN22-64-11	24.1	422.0	1565.0	0.3	0.0526± 0.0018	0.0999± 0.0034	0.0138± 0.0002	322.0±77.8	96.6±3.1	88.1±1.1	90
BN22-64-12	22.8	608.0	1452.0	0.4	0.0487± 0.0019	0.0918± 0.0036	0.0137± 0.0001	132.0±92.6	89.2±3.4	87.5±0.9	98
BN22-64-13	27.5	834.0	1798.0	0.5	0.0478± 0.0048	0.0841± 0.0064	0.0140± 0.0005	100.0±209.2	82.0±6.0	89.6± 2.9	91
BN22-64-14	23.3	351.0	1590.0	0.2	0.0465± 0.0019	0.0875± 0.0037	0.0136± 0.0001	33.4±83.3	85.2±3.4	86.9±0.9	97
BN22-64-15	18.7	472.0	1214.0	0.4	0.0492± 0.0033	0.0889± 0.0046	0.0137± 0.0003	167.0±138.9	86.4±4.3	87.5±1.7	98
BN22-64-16	24.7	1065.0	1454.0	0.7	0.0501± 0.0022	0.0938± 0.0039	0.0137± 0.0002	211.0±103.7	91.0±3.6	87.7± 1.0	96
BN22-64-17	21.7	354.0	1486.0	0.2	0.0486± 0.0017	0.0898± 0.0033	0.0134± 0.0001	132.0±85.2	87.3±3.1	85.7± 0.9	98
BN22-64-18	11.9	392.0	756.0	0.5	0.0517± 0.0026	0.0952± 0.0048	0.0134± 0.0002	333.0±118.5	92.4±4.5	86.0±1.	92
BN22-64-19	23.0	715.0	1472.0	0.5	0.0506± 0.0020	0.0943± 0.0037	0.0135± 0.0001	233.0±95.4	91.5±3.4	86.7±0.9	94
BN22-64-20	14.7	445.0	963.0	0.5	0.0501± 0.0023	0.0919± 0.0041	0.0134± 0.0001	198.0±99.1	89.3±3.8	85.7± 0.9	95

Fig.5 Zircon U-Pb weighted average age diagram and age concordia diagram of the Bainiuchang monzogranite

Fig.6 Classification and nomenclature diagram of the biotite monzogranite in Bainiuchang

Table 2 Major(%), trace(10-6) and rare earth element(10-6) contents of the Bainiuchang monzogranite

样品号	SiO₂	Al₂O₃		TiO₂		Fe₂O₃		FeO	CaO		MgO		MnO	K₂O		Na₂O		P₂O₅	LOI		总和
BNC22-38	73.77	12.69		0.33		0.85		0.75	1.49		0.69		0.04	5.66		2.11		0.110	1.57		100.05
BNC22-39	67.41	14.35		0.82		0.85		0.75	2.22		1.60		0.05	5.03		2.46		0.300	1.36		97.20
BNC22-46	68.28	14.85		0.53		0.88		2.23	2.83		1.17		0.05	4.90		2.59		0.240	1.26		99.81
BNC22-48	68.17	14.13		0.57		0.89		1.92	2.67		1.32		0.06	5.23		1.79		0.237	2.45		99.44
BNC22-50	68.72	11.28		0.37		0.88		2.8	2.99		1.58		0.35	5.71		0.46		0.180	4.10		99.43
BNC22-53-2	70.06	14.44		0.54		0.43		2.12	2.36		1.21		0.05	4.99		2.86		0.250	0.52		99.83
BNC22-55	70.42	14.13		0.48		0.53		1.94	2.14		0.98		0.04	5.39		2.64		0.210	0.64		99.56
BNC22-59	71.59	12.70		0.25		0.85		0.75	1.48		0.64		0.14	5.82		0.77		0.110	2.24		97.35
BNC22-60	66.27	14.19		0.54		0.72		3.16	2.69		0.9		0.17	5.88		0.54		0.250	3.71		99.01
BNC22-64	67.28	15.12		0.57		0.85		0.75	3.25		1.2		0.04	6.06		2.42		0.250	0.70		98.49
样品号	La	Ce		Pr		Nd		Sm	Eu		Gd		Tb	Dy		Ho		Er	Tm		Yb
BNC22-38	46.9	78.4		10.00		33.0		5.87	0.75		4.17		0.61	3.68		0.67		1.79	0.27		2.17
BNC22-39	69.5	117.0		14.20		47.1		7.64	1.46		5.47		0.74	4.39		0.78		2.00	0.28		2.10
BNC22-46	82.5	132.0		15.60		50.8		7.76	1.35		5.41		0.72	4.27		0.76		1.96	0.28		2.17
BNC22-48	90.5	146.0		17.50		54.0		8.28	1.41		5.67		0.71	4.08		0.75		1.79	0.26		1.94
BNC22-50	60.8	96.8		11.70		37.9		6.12	1.39		4.38		0.58	3.4		0.58		1.50	0.21		1.55
BNC22-53-2	79.1	132.0		15.80		50.4		8.18	1.29		5.84		0.78	4.63		0.83		2.09	0.31		2.27
BNC22-55	77.0	122.0		14.70		46.5		7.28	1.33		5.16		0.71	4.19		0.75		1.92	0.27		1.94
BNC22-59	44.3	71.9		8.87		29.2		5.3	0.86		3.85		0.54	3.31		0.61		1.55	0.23		1.71
BNC22-60	91.2	140.0		17.50		55.5		8.67	1.43		5.89		0.80	4.48		0.82		2.07	0.29		2.15
BNC22-64	75.8	124.0		16.00		50.2		8.52	1.44		5.66		0.77	4.39		0.82		2.01	0.29		2.21
样品号	Lu	Ta		Y		Cu		Pb	Rb		Sn		Th	U		Ta		Nb	Sr		Zn
BNC22-38	0.36	3.73		17.00		8.74		80.00	316.00		3.24		52.40	15.90		3.73		25.30	160.00		87.00
BNC22-39	0.34	2.61		20.00		10.20		34.00	285.00		3.93		33.20	7.21		2.61		29.90	268.00		58.40
BNC22-46	0.37	2.74		19.40		12.90		70.00	273.00		5.18		44.00	12.50		2.74		35.10	321.00		60.00
BNC22-48	0.32	2.06		18.40		29.30		57.20	348.00		24.60		44.60	10.50		2.06		30.30	264.00		267.6
BNC22-50	0.27	1.62		15.40		3.57		86.20	432.00		30.10		27.10	7.46		1.62		16.80	121.00		116.00
BNC22-53-2	0.38	2.69		21.20		7.16		54.70	288.00		6.66		41.10	13.60		2.69		35.90	305.00		39.60
BNC22-55	0.32	2.66		19.10		15.20		45.10	309.00		7.80		41.40	8.94		2.66		35.80	275.00		40.60
BNC22-59	0.30	1.77		15.30		402.00		44.40	388.00		63.00		32.30	10.60		1.77		20.10	109.00		289.00
BNC22-60	0.35	1.76		21.20		13.10		46.40	473.00		113.00		37.90	9.86		1.76		26.60	111.00		675.00
BNC22-64	0.36	2.76		21.00		12.50		30.00	330.00		18.90		40.10	10.80		2.76		36.30	400.00		46.20
样品号	ΣREE		LREE		HREE		LREE/HREE			δEu		δCe			La_N/Yb_N		A/CNK			分异指数(DI)
BNC22-38	188.66		174.93		13.73		12.74			0.44		0.85			15.47		1.03			88.26
BNC22-39	272.98		256.86		16.12		15.94			0.66		0.86			23.72		1.06			78.13
BNC22-46	305.99		290.05		15.94		18.19			0.61		0.84			27.31		1.01			77.96
BNC22-48	333.22		317.70		15.52		20.47			0.59		0.84			33.47		1.05			78.10
BNC22-50	227.17		214.71		12.47		17.22			0.78		0.83			28.10		0.91			75.39
BNC22-53-2	304.37		287.25		17.12		16.78			0.54		0.86			25.04		1.00			80.99
BNC22-55	284.02		268.78		15.25		17.63			0.63		0.81			28.53		1.01			82.83
BNC22-59	172.49		160.39		12.10		13.2			0.56		0.84			18.53		1.24			82.69
BNC22-60	331.30		314.45		16.85		18.67			0.58		0.81			30.40		1.17			74.84
BNC22-64	292.76		276.26		16.50		16.74			0.60		0.83			24.61		0.92			78.61

Table 2 Major(%), trace(10-6) and rare earth element(10-6) contents of the Bainiuchang monzogranite

样品号	SiO₂	Al₂O₃		TiO₂		Fe₂O₃		FeO	CaO		MgO		MnO	K₂O		Na₂O		P₂O₅	LOI		总和
BNC22-38	73.77	12.69		0.33		0.85		0.75	1.49		0.69		0.04	5.66		2.11		0.110	1.57		100.05
BNC22-39	67.41	14.35		0.82		0.85		0.75	2.22		1.60		0.05	5.03		2.46		0.300	1.36		97.20
BNC22-46	68.28	14.85		0.53		0.88		2.23	2.83		1.17		0.05	4.90		2.59		0.240	1.26		99.81
BNC22-48	68.17	14.13		0.57		0.89		1.92	2.67		1.32		0.06	5.23		1.79		0.237	2.45		99.44
BNC22-50	68.72	11.28		0.37		0.88		2.8	2.99		1.58		0.35	5.71		0.46		0.180	4.10		99.43
BNC22-53-2	70.06	14.44		0.54		0.43		2.12	2.36		1.21		0.05	4.99		2.86		0.250	0.52		99.83
BNC22-55	70.42	14.13		0.48		0.53		1.94	2.14		0.98		0.04	5.39		2.64		0.210	0.64		99.56
BNC22-59	71.59	12.70		0.25		0.85		0.75	1.48		0.64		0.14	5.82		0.77		0.110	2.24		97.35
BNC22-60	66.27	14.19		0.54		0.72		3.16	2.69		0.9		0.17	5.88		0.54		0.250	3.71		99.01
BNC22-64	67.28	15.12		0.57		0.85		0.75	3.25		1.2		0.04	6.06		2.42		0.250	0.70		98.49
样品号	La	Ce		Pr		Nd		Sm	Eu		Gd		Tb	Dy		Ho		Er	Tm		Yb
BNC22-38	46.9	78.4		10.00		33.0		5.87	0.75		4.17		0.61	3.68		0.67		1.79	0.27		2.17
BNC22-39	69.5	117.0		14.20		47.1		7.64	1.46		5.47		0.74	4.39		0.78		2.00	0.28		2.10
BNC22-46	82.5	132.0		15.60		50.8		7.76	1.35		5.41		0.72	4.27		0.76		1.96	0.28		2.17
BNC22-48	90.5	146.0		17.50		54.0		8.28	1.41		5.67		0.71	4.08		0.75		1.79	0.26		1.94
BNC22-50	60.8	96.8		11.70		37.9		6.12	1.39		4.38		0.58	3.4		0.58		1.50	0.21		1.55
BNC22-53-2	79.1	132.0		15.80		50.4		8.18	1.29		5.84		0.78	4.63		0.83		2.09	0.31		2.27
BNC22-55	77.0	122.0		14.70		46.5		7.28	1.33		5.16		0.71	4.19		0.75		1.92	0.27		1.94
BNC22-59	44.3	71.9		8.87		29.2		5.3	0.86		3.85		0.54	3.31		0.61		1.55	0.23		1.71
BNC22-60	91.2	140.0		17.50		55.5		8.67	1.43		5.89		0.80	4.48		0.82		2.07	0.29		2.15
BNC22-64	75.8	124.0		16.00		50.2		8.52	1.44		5.66		0.77	4.39		0.82		2.01	0.29		2.21
样品号	Lu	Ta		Y		Cu		Pb	Rb		Sn		Th	U		Ta		Nb	Sr		Zn
BNC22-38	0.36	3.73		17.00		8.74		80.00	316.00		3.24		52.40	15.90		3.73		25.30	160.00		87.00
BNC22-39	0.34	2.61		20.00		10.20		34.00	285.00		3.93		33.20	7.21		2.61		29.90	268.00		58.40
BNC22-46	0.37	2.74		19.40		12.90		70.00	273.00		5.18		44.00	12.50		2.74		35.10	321.00		60.00
BNC22-48	0.32	2.06		18.40		29.30		57.20	348.00		24.60		44.60	10.50		2.06		30.30	264.00		267.6
BNC22-50	0.27	1.62		15.40		3.57		86.20	432.00		30.10		27.10	7.46		1.62		16.80	121.00		116.00
BNC22-53-2	0.38	2.69		21.20		7.16		54.70	288.00		6.66		41.10	13.60		2.69		35.90	305.00		39.60
BNC22-55	0.32	2.66		19.10		15.20		45.10	309.00		7.80		41.40	8.94		2.66		35.80	275.00		40.60
BNC22-59	0.30	1.77		15.30		402.00		44.40	388.00		63.00		32.30	10.60		1.77		20.10	109.00		289.00
BNC22-60	0.35	1.76		21.20		13.10		46.40	473.00		113.00		37.90	9.86		1.76		26.60	111.00		675.00
BNC22-64	0.36	2.76		21.00		12.50		30.00	330.00		18.90		40.10	10.80		2.76		36.30	400.00		46.20
样品号	ΣREE		LREE		HREE		LREE/HREE			δEu		δCe			La_N/Yb_N		A/CNK			分异指数(DI)
BNC22-38	188.66		174.93		13.73		12.74			0.44		0.85			15.47		1.03			88.26
BNC22-39	272.98		256.86		16.12		15.94			0.66		0.86			23.72		1.06			78.13
BNC22-46	305.99		290.05		15.94		18.19			0.61		0.84			27.31		1.01			77.96
BNC22-48	333.22		317.70		15.52		20.47			0.59		0.84			33.47		1.05			78.10
BNC22-50	227.17		214.71		12.47		17.22			0.78		0.83			28.10		0.91			75.39
BNC22-53-2	304.37		287.25		17.12		16.78			0.54		0.86			25.04		1.00			80.99
BNC22-55	284.02		268.78		15.25		17.63			0.63		0.81			28.53		1.01			82.83
BNC22-59	172.49		160.39		12.10		13.2			0.56		0.84			18.53		1.24			82.69
BNC22-60	331.30		314.45		16.85		18.67			0.58		0.81			30.40		1.17			74.84
BNC22-64	292.76		276.26		16.50		16.74			0.60		0.83			24.61		0.92			78.61

Fig.7 Chondrite-normalized REE distribution patterns (a) and primitive mantle-normalized trace element spider diagrams (b) of the Bainiuchang monzogranite (normalization data from reference [26])

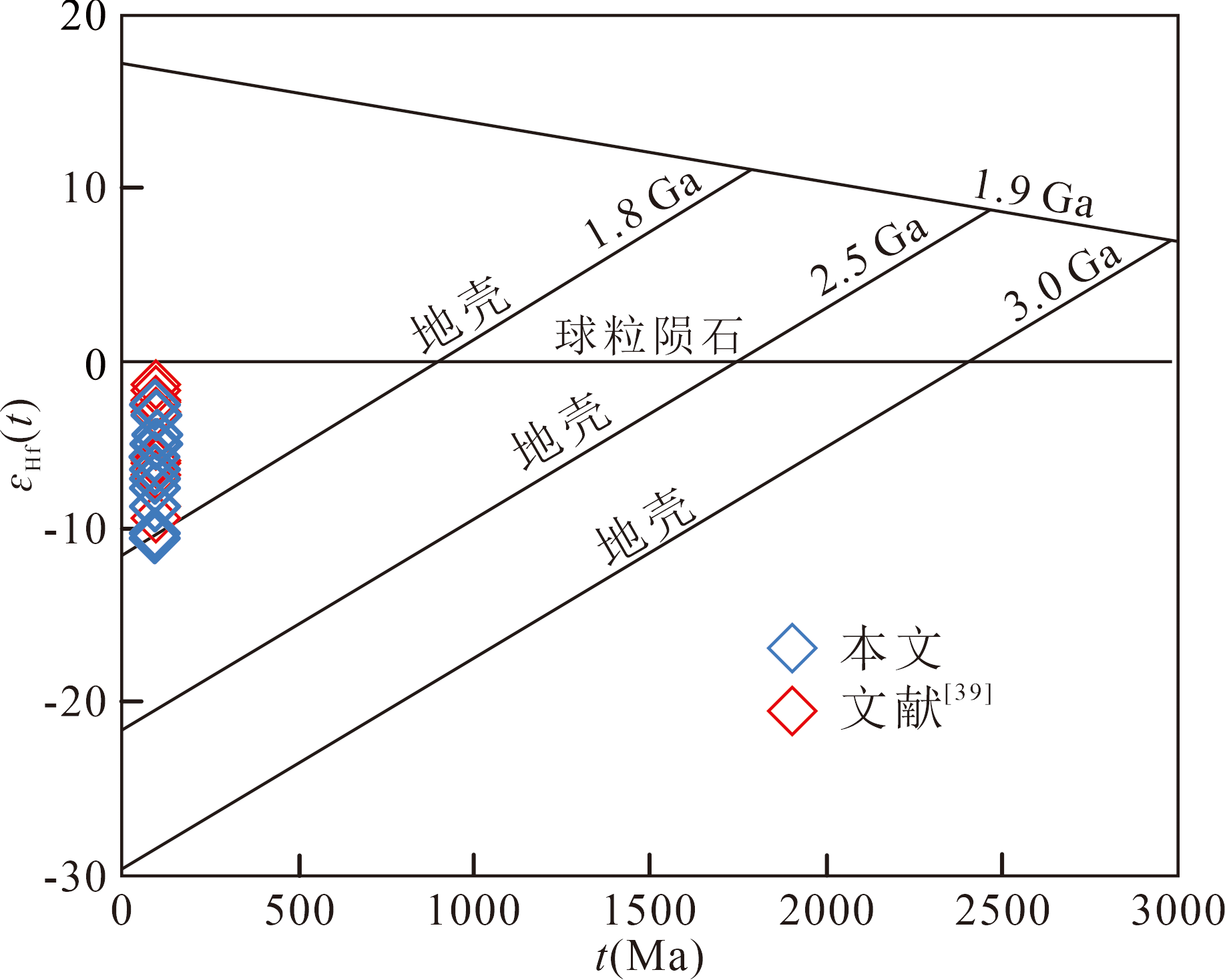

Table 3 Lu-Hf isotopic compositions of the Bainiuchang monzogranite

样品编号	¹⁷⁶Hf/¹⁷⁷Hf±1σ	¹⁷⁶Lu/¹⁷⁷Hf±1σ	¹⁷⁶Yb/¹⁷⁷Hf±1σ	年龄 (Ma)	ε_Hf(0)±1σ	ε_Hf(t)±1σ	T_DM1 (Ma)	T_DM2 (Ma)	f_Lu/Hf
BNC22-38-01	0.282582±0.000011	0.001122±0.000021	0.037755±0.000307	87.1	-6.6±0.6	-4.8±0.6	949	1286	-0.96
BNC22-38-02	0.282560±0.000012	0.001145±0.000025	0.038337±0.000530	90.0	-7.4±0.6	-5.5±0.6	982	1329	-0.96
BNC22-38-03	0.282596±0.000012	0.000895±0.000005	0.030512±0.000231	88.8	-6.2±0.6	-4.3±0.6	925	1259	-0.97
BNC22-38-04	0.282520±0.000012	0.000981±0.000004	0.033226±0.000322	89.3	-8.8±0.6	-6.9±0.6	1034	1407	-0.97
BNC22-38-05	0.282509±0.000011	0.000910±0.000002	0.031224±0.000379	87.2	-9.2±0.6	-7.4±0.6	1047	1430	-0.97
BNC22-38-06	0.282581±0.000011	0.000890±0.000013	0.03000±0.000126	88.5	-6.7±0.6	-4.8±0.6	945	1288	-0.97
BNC22-38-07	0.282525±0.000010	0.000834±0.000012	0.029195±0.000736	86.7	-8.7±0.6	-6.8±0.6	1023	1398	-0.97
BNC22-38-08	0.282512±0.000010	0.001003±0.000007	0.033553±0.000190	87.6	-9.1±0.6	-7.3±0.6	1046	1425	-0.96
BNC22-38-09	0.282499±0.000011	0.000964±0.000013	0.033340±0.000232	87.3	-9.6±0.6	-7.7±0.6	1063	1450	-0.97
BNC22-38-10	0.282462±0.000011	0.001070±0.000002	0.038408±0.000424	88.0	-10.9±0.6	-9.0±0.6	1118	1523	-0.96
BNC22-38-11	0.282502±0.000010	0.000803±0.000010	0.027571±0.000157	86.7	-9.5±0.6	-7.6±0.6	1054	1444	-0.97
BNC22-38-12	0.282454±0.000011	0.000866±0.000009	0.027867±0.000254	87.1	-11.2±0.6	-9.3±0.6	1123	1537	-0.97
BNC22-38-13	0.282439±0.000010	0.001014±0.000006	0.035248±0.000408	87.9	-11.7±0.6	-9.8±0.6	1148	1566	-0.96
BNC22-38-14	0.282481±0.000010	0.000518±0.000010	0.017864±0.000536	86.3	-10.2±0.6	-8.4±0.6	1075	1483	-0.98
BNC22-39-01	0.282541±0.000013	0.001167±0.000017	0.042449±0.000964	86.7	-8.2±0.7	-6.3±0.7	1010	1368	-0.96
BNC22-39-02	0.282547±0.000016	0.001182±0.000014	0.044312±0.000983	88.4	-7.9±0.8	-6.1±0.8	1002	1356	-0.96
BNC22-39-03	0.282548±0.000015	0.001053±0.000012	0.038065±0.000264	88.5	-7.9±0.7	-6.1±0.7	998	1355	-0.97
BNC22-39-04	0.282570±0.000014	0.001017±0.000004	0.036330±0.000199	87.3	-7.1±0.7	-5.3±0.7	965	1312	-0.97
BNC22-39-05	0.282528±0.000012	0.000796±0.000009	0.029936±0.000615	88.0	-8.6±0.7	-6.7±0.7	1019	1393	-0.98
BNC22-39-06	0.282534±0.000011	0.000880±0.000009	0.031676±0.000628	87.5	-8.4±0.6	-6.5±0.6	1013	1382	-0.97
BNC22-39-07	0.282550±0.000018	0.001186±0.000012	0.043169±0.000352	87.7	-7.9±0.8	-6.0±0.8	998	1352	-0.96
BNC22-39-08	0.282534±0.000011	0.000850±0.000005	0.029642±0.000205	87.1	-8.4±0.7	-6.6±0.7	1011	1382	-0.97
BNC22-39-09	0.282518±0.000013	0.000922±0.000016	0.032633±0.000832	87.3	-9.0±0.7	-7.1±0.7	1035	1413	-0.97
BNC22-39-10	0.282539±0.000012	0.001150±0.000005	0.041446±0.000144	87.1	-8.2±0.7	-6.4±0.7	1013	1373	-0.97
BNC22-39-11	0.282555±0.000014	0.001149±0.000003	0.041292±0.000219	87.6	-7.7±0.7	-5.8±0.7	991	1342	-0.97
BNC22-39-12	0.282551±0.000014	0.000921±0.000008	0.032492±0.000429	86.9	-7.8±0.7	-5.9±0.7	989	1348	-0.97
BNC22-59-01	0.282428±0.000012	0.001121±0.000006	0.036481±0.000227	88.7	-12.1±0.6	-10.2±0.6	1168	1589	-0.96
BNC22-59-02	0.282482±0.000010	0.001393±0.000002	0.048981±0.001172	91.4	-10.2±0.6	-8.3±0.6	1099	1482	-0.95
BNC22-59-03	0.282446±0.000011	0.000863±0.000005	0.029685±0.000206	88.4	-11.4±0.6	-9.6±0.6	1133	1552	-0.97
BNC22-59-04	0.282456±0.000012	0.001128±0.000010	0.038664±0.000807	90.6	-11.1±0.6	-9.2±0.6	1128	1533	-0.96
BNC22-59-05	0.282458±0.000012	0.001108±0.000007	0.037989±0.000332	89.2	-11.0±0.6	-9.1±0.6	1124	1529	-0.96
BNC22-59-06	0.282457±0.000012	0.000968±0.000006	0.033393±0.000244	88.6	-11.1±0.6	-9.2±0.6	1121	1530	-0.97
BNC22-59-07	0.282473±0.000012	0.000969±0.000005	0.032984±0.000241	89.1	-10.5±0.6	-8.6±0.6	1099	1499	-0.97
BNC22-59-08	0.282448±0.000014	0.001111±0.000004	0.03771±0.000165	88.3	-11.4±0.7	-9.5±0.7	1139	1550	-0.96
BNC22-59-09	0.282461±0.000011	0.000825±0.000002	0.027516±0.000135	88.1	-10.9±0.6	-9.0±0.6	1111	1522	-0.97
BNC22-59-10	0.282462±0.000013	0.000741±0.000008	0.024482±0.000282	86.5	-10.9±0.7	-9.0±0.7	1108	1521	-0.97
BNC22-59-11	0.282482±0.000012	0.000789±0.000009	0.026839±0.000602	87.9	-10.2±0.6	-8.3±0.6	1082	1483	-0.97
BNC22-59-12	0.282415±0.000011	0.001018±0.000007	0.033815±0.000349	88.2	-12.6±0.6	-10.7±0.6	1183	1614	-0.96
BNC22-64-01	0.282538±0.000013	0.001063±0.000003	0.033437±0.000859	86.8	-8.2±0.6	-6.4±0.7	1011	1374	-0.96
BNC22-64-02	0.282538±0.000014	0.000869±0.000003	0.026588±0.000234	87.7	-8.2±0.7	-6.3±0.7	1005	1373	-0.97
BNC22-64-03	0.282528±0.000013	0.001187±0.000002	0.042810±0.001014	87.5	-8.6±0.6	-6.7±0.6	1029	1394	-0.96
BNC22-64-04	0.282543±0.000016	0.000925±0.000002	0.030103±0.000187	87.7	-8.0±0.7	-6.2±0.7	1000	1363	-0.97
BNC22-64-05	0.282553±0.000014	0.000977±0.000004	0.031581±0.000058	87.0	-7.7±0.7	-5.8±0.7	988	1344	-0.97
BNC22-64-06	0.282535±0.000013	0.001156±0.000002	0.038150±0.000310	88.0	-8.3±0.7	-6.5±0.7	1018	1379	-0.96
BNC22-64-07	0.282523±0.000009	0.000890±0.000011	0.030219±0.000315	86.7	-8.7±0.6	-6.9±0.6	1027	1402	-0.97
BNC22-64-08	0.282515±0.000012	0.001214±0.000001	0.043321±0.000201	88.7	-9.0±0.6	-7.2±0.6	1048	1419	-0.96
BNC22-64-09	0.282556±0.000012	0.000759±0.000006	0.026551±0.000461	86.9	-7.6±0.6	-5.7±0.6	977	1337	-0.97
BNC22-64-10	0.282577±0.000012	0.000810±0.000012	0.026687±0.000344	88.1	-6.8±0.6	-4.9±0.6	949	1295	-0.97
BNC22-64-11	0.282540±0.000011	0.000871±0.000008	0.029890±0.000372	87.5	-8.1±0.6	-6.3±0.6	1003	1369	-0.97
BNC22-64-12	0.282541±0.000012	0.000973±0.000008	0.034298±0.000616	89.6	-8.1±0.6	-6.2±0.6	1004	1367	-0.97
BNC22-64-13	0.282536±0.000011	0.000960±0.000024	0.031967±0.000910	86.9	-8.3±0.6	-6.4±0.6	1011	1377	-0.97

Table 3 Lu-Hf isotopic compositions of the Bainiuchang monzogranite

样品编号	¹⁷⁶Hf/¹⁷⁷Hf±1σ	¹⁷⁶Lu/¹⁷⁷Hf±1σ	¹⁷⁶Yb/¹⁷⁷Hf±1σ	年龄 (Ma)	ε_Hf(0)±1σ	ε_Hf(t)±1σ	T_DM1 (Ma)	T_DM2 (Ma)	f_Lu/Hf
BNC22-38-01	0.282582±0.000011	0.001122±0.000021	0.037755±0.000307	87.1	-6.6±0.6	-4.8±0.6	949	1286	-0.96
BNC22-38-02	0.282560±0.000012	0.001145±0.000025	0.038337±0.000530	90.0	-7.4±0.6	-5.5±0.6	982	1329	-0.96
BNC22-38-03	0.282596±0.000012	0.000895±0.000005	0.030512±0.000231	88.8	-6.2±0.6	-4.3±0.6	925	1259	-0.97
BNC22-38-04	0.282520±0.000012	0.000981±0.000004	0.033226±0.000322	89.3	-8.8±0.6	-6.9±0.6	1034	1407	-0.97
BNC22-38-05	0.282509±0.000011	0.000910±0.000002	0.031224±0.000379	87.2	-9.2±0.6	-7.4±0.6	1047	1430	-0.97
BNC22-38-06	0.282581±0.000011	0.000890±0.000013	0.03000±0.000126	88.5	-6.7±0.6	-4.8±0.6	945	1288	-0.97
BNC22-38-07	0.282525±0.000010	0.000834±0.000012	0.029195±0.000736	86.7	-8.7±0.6	-6.8±0.6	1023	1398	-0.97
BNC22-38-08	0.282512±0.000010	0.001003±0.000007	0.033553±0.000190	87.6	-9.1±0.6	-7.3±0.6	1046	1425	-0.96
BNC22-38-09	0.282499±0.000011	0.000964±0.000013	0.033340±0.000232	87.3	-9.6±0.6	-7.7±0.6	1063	1450	-0.97
BNC22-38-10	0.282462±0.000011	0.001070±0.000002	0.038408±0.000424	88.0	-10.9±0.6	-9.0±0.6	1118	1523	-0.96
BNC22-38-11	0.282502±0.000010	0.000803±0.000010	0.027571±0.000157	86.7	-9.5±0.6	-7.6±0.6	1054	1444	-0.97
BNC22-38-12	0.282454±0.000011	0.000866±0.000009	0.027867±0.000254	87.1	-11.2±0.6	-9.3±0.6	1123	1537	-0.97
BNC22-38-13	0.282439±0.000010	0.001014±0.000006	0.035248±0.000408	87.9	-11.7±0.6	-9.8±0.6	1148	1566	-0.96
BNC22-38-14	0.282481±0.000010	0.000518±0.000010	0.017864±0.000536	86.3	-10.2±0.6	-8.4±0.6	1075	1483	-0.98
BNC22-39-01	0.282541±0.000013	0.001167±0.000017	0.042449±0.000964	86.7	-8.2±0.7	-6.3±0.7	1010	1368	-0.96
BNC22-39-02	0.282547±0.000016	0.001182±0.000014	0.044312±0.000983	88.4	-7.9±0.8	-6.1±0.8	1002	1356	-0.96
BNC22-39-03	0.282548±0.000015	0.001053±0.000012	0.038065±0.000264	88.5	-7.9±0.7	-6.1±0.7	998	1355	-0.97
BNC22-39-04	0.282570±0.000014	0.001017±0.000004	0.036330±0.000199	87.3	-7.1±0.7	-5.3±0.7	965	1312	-0.97
BNC22-39-05	0.282528±0.000012	0.000796±0.000009	0.029936±0.000615	88.0	-8.6±0.7	-6.7±0.7	1019	1393	-0.98
BNC22-39-06	0.282534±0.000011	0.000880±0.000009	0.031676±0.000628	87.5	-8.4±0.6	-6.5±0.6	1013	1382	-0.97
BNC22-39-07	0.282550±0.000018	0.001186±0.000012	0.043169±0.000352	87.7	-7.9±0.8	-6.0±0.8	998	1352	-0.96
BNC22-39-08	0.282534±0.000011	0.000850±0.000005	0.029642±0.000205	87.1	-8.4±0.7	-6.6±0.7	1011	1382	-0.97
BNC22-39-09	0.282518±0.000013	0.000922±0.000016	0.032633±0.000832	87.3	-9.0±0.7	-7.1±0.7	1035	1413	-0.97
BNC22-39-10	0.282539±0.000012	0.001150±0.000005	0.041446±0.000144	87.1	-8.2±0.7	-6.4±0.7	1013	1373	-0.97
BNC22-39-11	0.282555±0.000014	0.001149±0.000003	0.041292±0.000219	87.6	-7.7±0.7	-5.8±0.7	991	1342	-0.97
BNC22-39-12	0.282551±0.000014	0.000921±0.000008	0.032492±0.000429	86.9	-7.8±0.7	-5.9±0.7	989	1348	-0.97
BNC22-59-01	0.282428±0.000012	0.001121±0.000006	0.036481±0.000227	88.7	-12.1±0.6	-10.2±0.6	1168	1589	-0.96
BNC22-59-02	0.282482±0.000010	0.001393±0.000002	0.048981±0.001172	91.4	-10.2±0.6	-8.3±0.6	1099	1482	-0.95
BNC22-59-03	0.282446±0.000011	0.000863±0.000005	0.029685±0.000206	88.4	-11.4±0.6	-9.6±0.6	1133	1552	-0.97
BNC22-59-04	0.282456±0.000012	0.001128±0.000010	0.038664±0.000807	90.6	-11.1±0.6	-9.2±0.6	1128	1533	-0.96
BNC22-59-05	0.282458±0.000012	0.001108±0.000007	0.037989±0.000332	89.2	-11.0±0.6	-9.1±0.6	1124	1529	-0.96
BNC22-59-06	0.282457±0.000012	0.000968±0.000006	0.033393±0.000244	88.6	-11.1±0.6	-9.2±0.6	1121	1530	-0.97
BNC22-59-07	0.282473±0.000012	0.000969±0.000005	0.032984±0.000241	89.1	-10.5±0.6	-8.6±0.6	1099	1499	-0.97
BNC22-59-08	0.282448±0.000014	0.001111±0.000004	0.03771±0.000165	88.3	-11.4±0.7	-9.5±0.7	1139	1550	-0.96
BNC22-59-09	0.282461±0.000011	0.000825±0.000002	0.027516±0.000135	88.1	-10.9±0.6	-9.0±0.6	1111	1522	-0.97
BNC22-59-10	0.282462±0.000013	0.000741±0.000008	0.024482±0.000282	86.5	-10.9±0.7	-9.0±0.7	1108	1521	-0.97
BNC22-59-11	0.282482±0.000012	0.000789±0.000009	0.026839±0.000602	87.9	-10.2±0.6	-8.3±0.6	1082	1483	-0.97
BNC22-59-12	0.282415±0.000011	0.001018±0.000007	0.033815±0.000349	88.2	-12.6±0.6	-10.7±0.6	1183	1614	-0.96
BNC22-64-01	0.282538±0.000013	0.001063±0.000003	0.033437±0.000859	86.8	-8.2±0.6	-6.4±0.7	1011	1374	-0.96
BNC22-64-02	0.282538±0.000014	0.000869±0.000003	0.026588±0.000234	87.7	-8.2±0.7	-6.3±0.7	1005	1373	-0.97
BNC22-64-03	0.282528±0.000013	0.001187±0.000002	0.042810±0.001014	87.5	-8.6±0.6	-6.7±0.6	1029	1394	-0.96
BNC22-64-04	0.282543±0.000016	0.000925±0.000002	0.030103±0.000187	87.7	-8.0±0.7	-6.2±0.7	1000	1363	-0.97
BNC22-64-05	0.282553±0.000014	0.000977±0.000004	0.031581±0.000058	87.0	-7.7±0.7	-5.8±0.7	988	1344	-0.97
BNC22-64-06	0.282535±0.000013	0.001156±0.000002	0.038150±0.000310	88.0	-8.3±0.7	-6.5±0.7	1018	1379	-0.96
BNC22-64-07	0.282523±0.000009	0.000890±0.000011	0.030219±0.000315	86.7	-8.7±0.6	-6.9±0.6	1027	1402	-0.97
BNC22-64-08	0.282515±0.000012	0.001214±0.000001	0.043321±0.000201	88.7	-9.0±0.6	-7.2±0.6	1048	1419	-0.96
BNC22-64-09	0.282556±0.000012	0.000759±0.000006	0.026551±0.000461	86.9	-7.6±0.6	-5.7±0.6	977	1337	-0.97
BNC22-64-10	0.282577±0.000012	0.000810±0.000012	0.026687±0.000344	88.1	-6.8±0.6	-4.9±0.6	949	1295	-0.97
BNC22-64-11	0.282540±0.000011	0.000871±0.000008	0.029890±0.000372	87.5	-8.1±0.6	-6.3±0.6	1003	1369	-0.97
BNC22-64-12	0.282541±0.000012	0.000973±0.000008	0.034298±0.000616	89.6	-8.1±0.6	-6.2±0.6	1004	1367	-0.97
BNC22-64-13	0.282536±0.000011	0.000960±0.000024	0.031967±0.000910	86.9	-8.3±0.6	-6.4±0.6	1011	1377	-0.97

Fig.8 Statistical histogram of zircon Hf isotope compositions and model ages of the Bainiuchang monzogranite

Fig.9 Diagrams for determining the rock type of the biotite monzogranite in the Bainiuchang mining area

Fig.10 Harker diagrams of the biotite monzogranite in Bainiuchang (modified from reference [34])

Fig.11 Zircon t-εHf(t) diagram of the Bainiuchang monzo-granite (base map after Li et al.[40])

Fig.12 Tectonic setting discrimination diagrams of the Bainiuchang monzogranite

Fig.13 Metallogenic tectonic environment model of the Bainiuchang mining area (modified from reference [13])

References 55

[7]	忻建刚, 袁奎荣. 云南都龙隐伏花岗岩的特征及其成矿作用[J]. 桂林冶金地质学院学报, 1998, 13(2) : 121-129.
[8]	谈树成, 秦德先, 陈爱兵, 等. 个旧锡矿区域地壳演化与成矿探讨[J]. 矿物学报, 2004, 24(2) : 157-263.
[9]	卢耀. 云南个旧矿区西区成矿条件及找矿远景探讨[J]. 矿物岩石地球化学通报, 2004, 23(1) : 57-61.
[10]	王燕子. 云南蒙自白牛厂银多金属矿床地球化学特征及成因分析[D]. 昆明: 昆明理工大学, 2014.
[11]	张亚辉. 滇东南薄竹山晚燕山期酸性岩浆热液成矿作用研究[D]. 昆明: 昆明理工大学, 2013.
[12]	云南地质调查局. 云南省滇东南薄竹山地区钨铅锌银多金属矿整装勘查项目成果报告[R]. 2015.
[13]	张洪培. 云南蒙自白牛厂银多金属矿床—与花岗质岩浆作用有关的超大型矿床[D]. 长沙: 中南大学, 2007.
[14]	ZONG K, KLEMD R, YUAN Y, et al. The assembly of Rodinia: The correlation of early Neoproterozoic(ca. 900 Ma) high-grade metamorphism and continental arc formation in the southern Beishan Orogen, southern Central Asian Orogenic Belt(CAOB)[J]. Precambrian Research, 2017, 290 : 32-48.
[15]	HU Z, ZHANG W, LIU Y, et al. “Wave” signal-smoothing and mercury-removing device for laser ablation quadrupole and multiple collector ICPMS analysis: application to lead isotope analysis[J]. Analytical chemistry, 2015, 87(2): 1152-1157.
[16]	YONGSHENG L, ZHAOCHU H, SHAN G, et al. In suit analysis of major and trace elements of anhydrous minerals by LA-ICP-MS without applying an internal standard[J]. Chemical Geology, 2008, 257(1):34-43.
[17]	侯高阳, 张跃. 豫南团山花岗岩LA-MC-ICP-MS锆石U-Pb年龄及其地质意义[J]. 地质与勘探, 2023, 59(2):285-298.
[18]	LUDWING K R. User’s Manud for Isoplot Exrew 3.00: A Geochronological Toolkit for Microsoft Excel. Berkeley Geochronology Center Special Publication[J]. 2003(4): 1-70.
[1]	蹇龙. 云南蒙自白牛厂超大型银多金属矿床叠加成矿系统及成矿模式[D]. 昆明: 昆明理工大学, 2016.
[2]	张世涛, 陈国昌. 滇东南薄竹山复式岩体的地质特征及其演化规律[J]. 云南地质, 1997(3) : 222-232.
[3]	程彦博, 毛景文, 陈小林, 等. 滇东南薄竹山花岗岩的LA-ICP-MS锆石U-Pb定年及地质意义[J]. 吉林大学学报(地球科学版). 2010, 40(4) : 869-878.
[4]	解洪晶.滇东南薄竹山花岗岩岩石学、地球化学特征及其成矿关系[D], 贵阳: 中国科学院地球化学研究所, 2009.
[5]	付国辉. 云南都龙锡多金属矿床地质特征及成矿规律[J]. 西南矿产地质, 1992(2) : 26-37.
[6]	晏建国. 云南都龙锡多金属矿床及厚大矿体控矿地质特征[J]. 西南矿产地质, 1992(3) : 26-31.
[19]	HU Z C, LIU Y S, GAO S, et al. Improved in situ Hf isotope ratio analysis of zircon using newly designed X skimmer cone and Jet sample cone in combination with the addition of nitrogen by laser ablation multiple collector ICP-MS[J]. Journal of Analytical Atomic Spectrometry, 2012, 27: 1391-1399.
[20]	ZHANG W, HU Z, SPECTROSCOPY A. Estimation of Isotopic ReferenceValues for Pure Materials and Geological Reference Materials[J]. Atomic Spectroscopy, 2020, 41(3): 93-102.
[21]	李建德. 滇东南薄竹山矿集区花岗岩地球化学特征、锆石U-Pb定年及其构造意义[D]. 北京: 中国地质大学(北京), 2018.
[22]	MIDDLEMOST E A K. Naming materials in the magma igneous rocksystem[J]. Earth-Science Reviews. 1994, 37(3/4): 215-224.
[23]	MANIAR P D, PICCOLI P M. Tectonic discrimination of granitoids[J]. GeoScience World, 1989, 101(5): 635-643.
[24]	PECCERILLO R, TAYLOR S R. Geochemistry of eocene calc-alkaline volcanic rocks from the Kastamonu area, Northern Turkey[J]. Contrilutions to Mineralogy and Petrology, 1976, 58: 63-81.
[25]	MIDDLEMOST E A K. Magmas and Magmatic Rocks: An Introduction to Igneous Petrology[M]. London: Longman, 1985,1-266.
[26]	SUN S S, MCDONOUGH W F. Chemical and isotopic systematics of oceanic basalts: implications for mantle composition and processes[J]. Geological Society, London, Special Publications, 1989, 42(1): 313-345.
[27]	刘玉平, 李正祥, 李惠民, 等. 都龙锡锌矿床锡石和锆石U-Pb年代学:滇东南白垩纪大规模花岗岩成岩-成矿事件[J]. 岩石学报, 2007, 23(5): 967-976.
[28]	云南省地质矿产局. 中华人民共和国区域地质报告(1∶ 50000) 老寨街幅[R]. 1991.
[29]	袁建国, 任永健, 姜振宁, 等. 内蒙古锡林浩特毛登牧场早石炭世花岗岩锆石U-Pb年龄、地球化学特征及其地质意义[J]. 现代地质, 2017, 31(6) : 1131-1146.
[30]	陈学明, 林棕, 谢富昌. 云南白牛厂超大型银多金属矿床叠加成矿的地质地化特征[J]. 地质科学, 1998(1): 116-125.
[31]	张旗. 评花岗岩的哈克图解[J]. 岩石矿物学杂志, 2012, 31(3): 425-431.
[32]	COLLINS W, BEAMS S, WHITE A, et al. Nature and Origin of A-type Granites with Particular Reference to Southeastern Australia[J]. Contributions to Mineralogy and Petrology, 1982, 80(2): 189-200.
[33]	NAKADA S, TAKAHASHI M. Regional variationin chemistry of the Miocene intermediate to felsic magmas in the Outer Zone and the Setouchi Province of Southwest Japan[J]. The Geological Society of Japan, 1979, 85(9): 571-582
[34]	JIAN Z, YANCHEN Y, SHIJIONG H, et al. Geochronology, Geochemistry, and Lu-Hf Isotopic Compositions of Monzogranite Intrusion from the Chang’anpu Mo Deposit, NE China: Implications for Tectonic Setting and Mineralization[J]. Minerals, 2022, 12(8): 967-967.
[35]	刘彬, 徐雨, 马昌前. 北羌塘宁多地区三叠纪过铝质花岗岩的成因及其地球动力学背景[J]. 地球科学, 2023, 48(9): 3296-3311.
[36]	肖昌浩, 申玉科, 韦昌山, 等. 广西右江褶皱带东南缘西大明山矿集区燕山期酸性岩浆锆石U-Pb年龄、Hf同位素和Ce(Ⅳ)/Ce(Ⅲ)特征[J]. 现代地质, 2018, 32(2): 289-304.
[37]	巩鑫, 张志博, 杜蔺, 等. 上黑龙江盆地前哨林场黑云母二长花岗岩锆石U-Pb年龄、地球化学特征及地质意义[J]. 地球学报, 2023, 44(6): 1017-1035.
[38]	余超, 柳振江, 宓奎峰, 等. 内蒙古巴彦都兰铜矿地质特征及矿床成因——岩石地球化学、锆石U-Pb年代学及Hf同位素证据[J]. 现代地质, 2017, 31(6): 1095-1113.
[39]	李开文. 滇东南白牛厂多金属矿床成岩成矿地球化学及年代学[D]. 贵阳: 中国科学院地球化学研究所, 2013.
[40]	李秀章, 王立功, 李衣鑫, 等. 胶东艾山岩体二长花岗岩地球化学、锆石U-Pb年代学及Lu-Hf同位素特征研究[J]. 现代地质, 2022, 36(1): 333-346.
[41]	唐友军, 徐文畅, 王小娟, 等. 川中简阳须家河组地层水化学特征和成因——来自水化学和锶同位素的证据[J]. 断块油气田, 2024, 31(3):444-452.
[42]	祁进平, 宋要武, 李双庆. 河南省栾川县西沟铅锌银矿床单矿物铷-锶同位素组成特征[J]. 岩石学报, 2009, 25(11): 2843-2854.
[43]	解洪晶, 张乾, 祝朝辉, 等. 滇东南薄竹山花岗岩岩石学及其稀土-微量元素地球化学[J]. 矿物学报, 2009, 29(4):481-490.
[44]	李开文, 张乾, 王大鹏, 等. 滇东南白牛厂多金属矿床铅同位素组成及铅来源新认识[J]. 地球化学, 2013, 42(2): 116-130.
[45]	PEARCE J A, HARRIS N B W, TINDLE A G. Trace element discrimination diagrams for the tectonic interpretation of granitic rocks[J]. Journal of Petrology, 1984, 25: 956-983.
[46]	柏道远, 黄建中, 马铁球, 等. 湘东南志留纪彭公庙花岗岩体的地质地球化学特征及其构造环境[J]. 现代地质, 2006, 20(1): 130-140.
[47]	HARRIS N B W, PEARCE J A, TINDLE A G. Geochemical Characteristics of Collision-zone Magmatism[J]. Geological Society, London, Special Publications, 1986, 19(1): 67-81.
[48]	江鑫培. 蒙自白牛厂银—多金属矿矿床特征和成矿作用探讨[J]. 云南地质, 1990(4): 291-307.
[49]	李文昌, 尹光候, 卢映祥, 等.西南三江南段有色、贵金属成矿带成矿规律及矿产预测[M]. 北京: 地质出版社,2016:6-22.
[50]	王中良, 林木森, 周瑞辉. 滇东南荒田钨矿床白钨矿原位U-Pb年代学、Sr同位素组成及成矿启示[J]. 现代地质, 2025, 39(1):133-145.
[51]	李肖龙, 毛景文, 程彦博, 等. 云南个旧高峰山花岗岩成因:锆石 U-Pb 年代学及地球化学约束[J]. 岩石学报, 2012, 28(1): 183-198.
[52]	吴道文, 张世涛, 张磊, 等. 滇东南薄竹山菖蒲塘钨锡多金属矿床地质特征及成矿模型[J]. 科技通报, 2019, 35(5): 21-29.
[53]	于慧敏, 沈晓丽, 苏虎虎, 等. 滇西南哀牢山构造带李子冲矿区综合物探的应用研究[J]. 现代地质, 2024, 38(4):1054-1066.
[54]	刘学龙, 李文昌, 张世涛, 等. 滇东南薄竹山矿集区晚白垩世岩浆活动及锡银铅锌钨多金属成矿作用[J]. 沉积与特提斯地质, 2024, 44(2):437-453.
[55]	常华诚, 焦骞骞, 江小均, 等. 云南个旧芦塘坝—阿西寨地区深部矿化的浅部表征:构造蚀变与原生晕指示[J]. 现代地质, 2023, 37(6):1538-1552.
