四川盆地元坝地区下侏罗统介壳灰岩储层分布预测

摘要/Abstract

摘要：

四川盆地下侏罗统自流井组大安寨段一亚段(大一亚段)灰岩是元坝地区主要产气层。岩心、薄片、物性资料、试油、录井、测井、地震资料综合研究表明,大一亚段灰岩主要为介壳灰岩和含泥介壳灰岩,介壳灰岩平均孔隙度2.36%,平均渗透率为0.02×10^-3 μm²,含泥介壳灰岩平均孔隙度为4.59%,平均渗透率为0.21×10^-3 μm²。介壳灰岩为浅湖亚相高能滩微相沉积,含泥介壳灰岩为浅湖亚相次高能滩微相沉积。地震波形分类上,以介壳灰岩为主的高能滩微相为高连续低频中强波谷反射,以含泥介壳灰岩为主的次高能滩微相为高连续低频中弱振幅波谷反射。高连续低频中强振幅波谷反射和高连续低频中弱振幅波谷反射以SW-NE向分布于研究区中央地带。以伽马值大于46 API为门槛值剔除泥岩、泥质粉砂岩等,得到介壳灰岩和含泥介壳灰岩的伽马数据体。精细刻画了高能滩微相介壳灰岩和次高能滩微相含泥介壳灰岩的分布范围,新增天然气有利区面积518 km²,为元坝地区大安寨段天然气储量和产量的增加奠定了坚实的基础。

关键词: 四川盆地, 元坝地区, 大安寨段, 灰岩, 储层预测

Abstract:

The shell limestone in the first submember of the Da’anzhai member (D1sm) of the Lower Jurassic Ziliujing Formation is an important natural gas reservoir in Yuanba area, Sichuan Basin. In this paper, we conducted an integrated study based on cores, thin sections, porosity and permeability data, oil test data, well logging data, and seismic data in order to predict the distribution of the shell-shoal limestone reservoir in the D1sm. The D1sm are composed of mainly shelly limestones and argillaceous shelly limestones. The shelly limestones have an average of porosity of 2.36% and an average of permeability of 0.02×10^-3 μm², while the argillaceous shelly limestones have an average of porosity of 4.59% and an average of permeability of 0.21×10^-3 μm². The shelly limestones in the D1sm comprise the high-energy shoal microfacies that developed in the shallow lake subfacies, and the argillaceous shelly limestones are interpreted as moderate-energy or subhigh-energy shoal microfacies. The classification of seismic waveform shows that the reflection characteristics of the high-energy shoal microfacies are well continuity, low frequency, moderate to large amplitudes, and wave troughs in the seismic profiles, and that the reflection characteristics of the moderate-energy shoal microfacies are well continuity, low frequency, moderate to small amplitudes, and wave troughs. These two types of waveforms distributed from southwest to northeast along the central part of the study area. The natural gamma data cube of the shelly limestones and argillaceous shelly limestones was constructed after rejecting the mudstones and muddy siltstones by giving the threshold value of 46 API. The distribution of shelly limestones (high-energy shoal microfacies) and argillaceous shelly limestones (moderate-energy shoal microfacies) was precisely mapped; the result shows that the favorable exploration area of natural gas has enlarged by about 518 km². The conclusions of this study provide a solid foundation for the increase of the natural gas reserves and production of the Da’anzhai member in Yuanba aera.

Key words: Sichuan Basin, Yuanba area, Da’anzhai member, limestone, reservoir prediction

中图分类号:

何志勇, 刘海涛, 肖伟, 杜红权. 四川盆地元坝地区下侏罗统介壳灰岩储层分布预测[J]. 现代地质, 2017, 31(01): 142-149.

HE Zhiyong, LIU Haitao, XIAO Wei, DU Hongquan. Distribution Prediction of Lower Jurassic Shell Limestone Reservoir in Yuanba Area of Sichuan Basin[J]. Geoscience, 2017, 31(01): 142-149.

图/表 9

图1 两种不同类型储层井沉积层序综合柱状图

Fig.1 Sedimentary sequence comprehensive column of two different types of reservoir wells

图2 元坝地区大安寨段一亚段下部介壳滩储层特征图版 (a)元坝102井,3 922.59 m,介屑灰岩,介壳碎片破裂堆积;(b)元坝16井,3 967.74 m,含泥介壳灰岩,壳体较完整,呈薄层条带状;(c)元坝122井,3 563.10 m,介壳灰岩,粒内微孔;(d)元坝101井, 4 213.00 m,介壳灰岩,粒间溶孔;(e)元坝102井,3 922.6 m,粒间充填沥青、黏土矿物形成黏土杂基微孔;(f) 元坝104井,3 709.36 m,含泥介壳灰岩,微裂缝缝宽0.1~0.3 mm;(g) 元坝102井,3 922.6 m,含泥介壳灰岩,微裂隙发育;(h);元陆4井,3 741.30 m,含泥介壳灰岩,内部溶蚀缝

Fig.2 The reservoir characteristics diagram of the lower part of the 1st submember of Da’anzhai member in Yuanba area

图3 元坝地区大安寨段一亚段下部沉积模式图

Fig.3 Depositional model of the lower part of the 1st submember of Da’anzhai member in Yuanba area

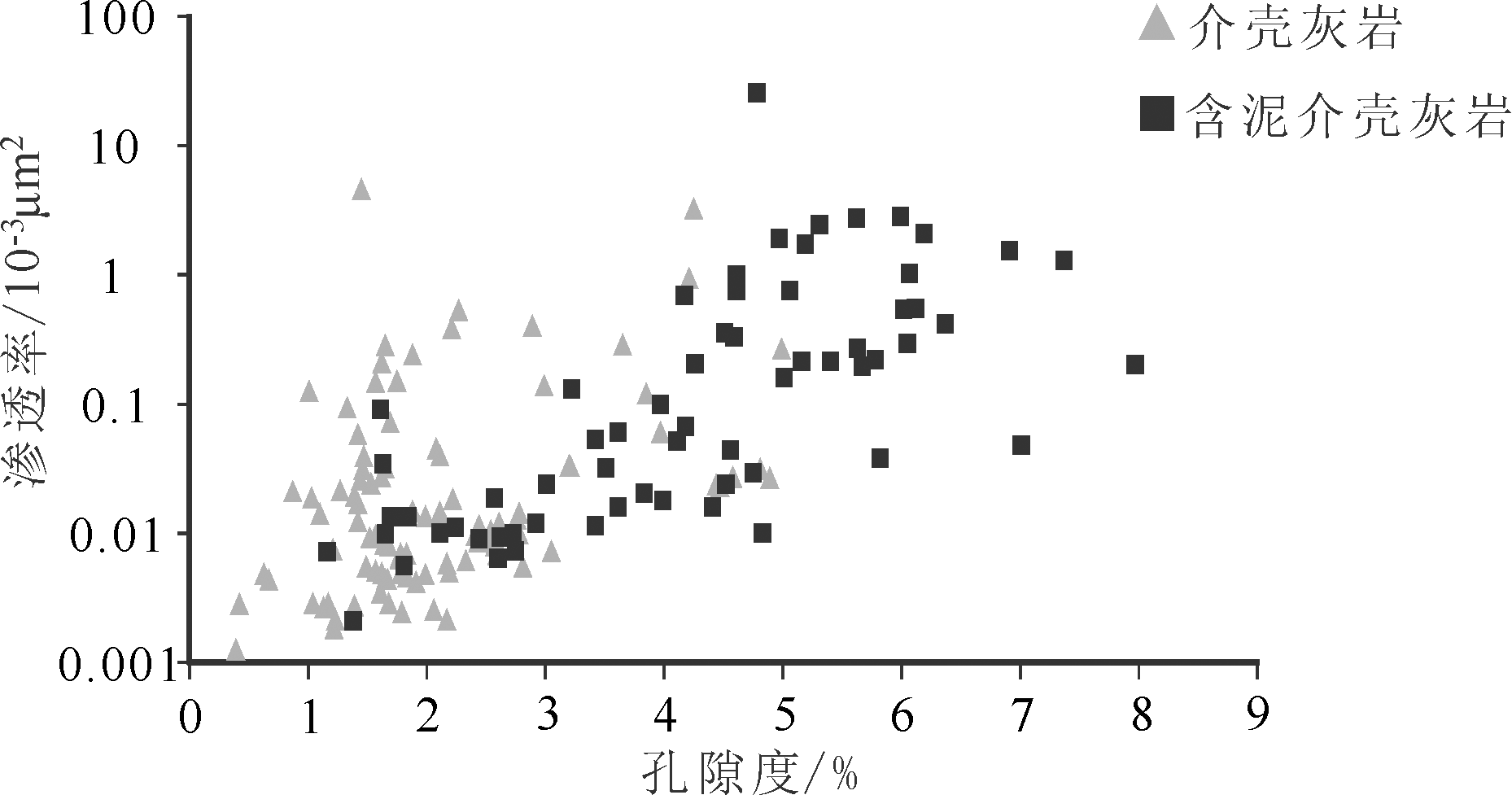

图4 不同类型介壳灰岩储层孔隙度渗透率交汇图

Fig.4 Cross plot porosity and permeability of different types of shelly limestone reservoir

图5 元坝地区大安寨段一亚段下部波形分类图

Fig.5 Waveform classification attribute map of the lower part of the 1st submember of Da’anzhai member in Yuanba area

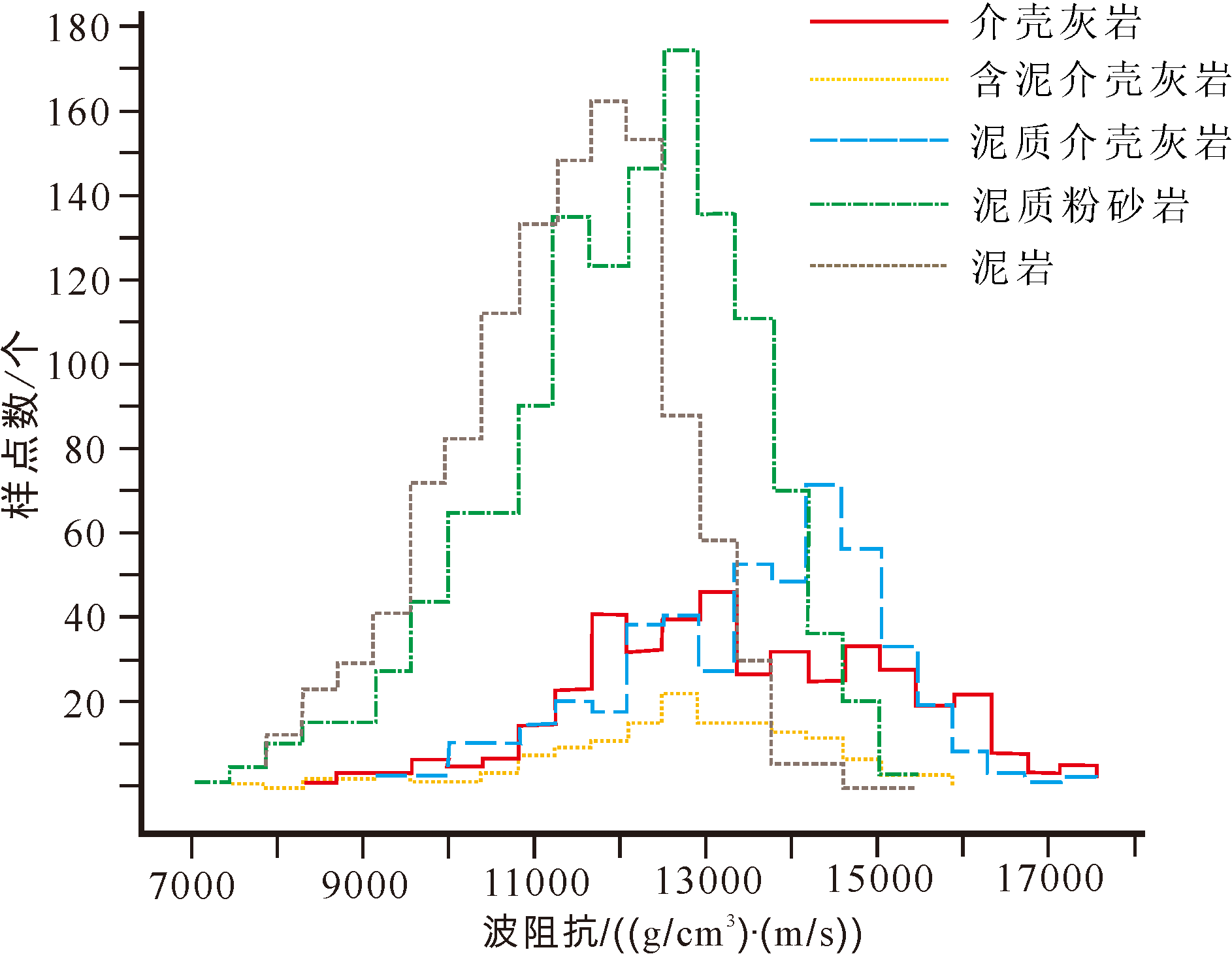

图6 元坝地区大一亚段下部岩性波阻抗统计直方图

Fig.6 Histogram of impedance distribution of the lower part of the 1st submember of Da’anzhai member in Yuanba area

图7 元坝地区大一亚段下部伽马与泥质含量交汇图

Fig.7 Cross plot of GR and shale content of the lower part of the 1st submember of Da’anzhai member in Yuanba area

图8 元坝101-元坝102-元坝11-元坝107井连井伽马反演剖面

Fig.8 Connected well’ GR inversion profile through YB101-YB102-YB11-YB107

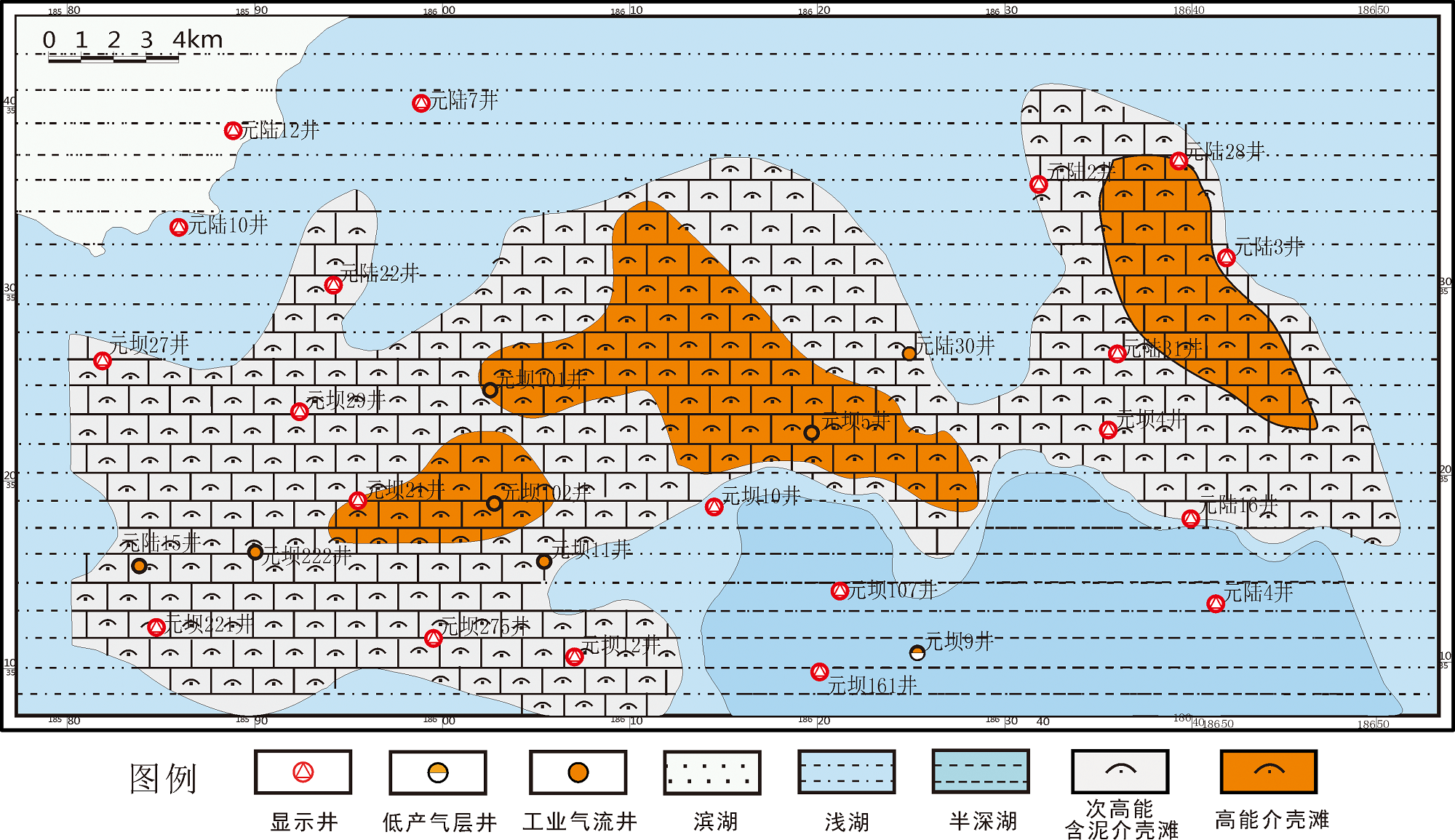

图9 元坝地区大一亚段下部沉积相图

Fig.9 Sedimentary facies of the lower part of the 1st submember of Da’anzhai member in Yuanba area

参考文献 23

[1]	邓康龄. 四川盆地柏垭—石龙场地区自流井组大安寨段油气成藏地质条件[J]. 油气地质与采收率, 2001, 8(2): 9-13.
[2]	李耀华. 川中金华油田大安寨段介壳灰岩储集空间演化与油气关系[J]. 成都理工学院学报, 1996, 23(增刊): 42-49.
[3]	梁狄刚, 冉隆辉, 戴弹申, 等. 四川盆地中北部侏罗系大面积非常规石油勘探潜力的再认识[J]. 石油学报, 2011, 32(1): 8-17. DOI
[4]	李军, 陶士振, 汪泽成, 等. 川东北地区侏罗系油气地质特征与成藏主控因素[J]. 天然气地球科学, 2010, 21(5): 732-741.
[5]	丁一, 李智武, 冯缝, 等. 川中龙岗地区下侏罗统自流井组大安寨段湖相混合沉积及其致密油勘探意义[J]. 地质论评, 2013, 59(2): 389-398.
[6]	张福宏, 邹定永, 陈玲, 等. 川中地区大安寨致密油储层预测技术研究[J]. 天然气勘探与开发, 2013, 36(4): 44-48.
[7]	张玺华, 陈洪德, 林良彪, 等. 湖泊相介壳滩分布的地震预测方法研究[J]. 科学技术与工程, 2013, 13(7): 24-28.
[8]	中国石油地质志编写组. 中国石油地质志(卷十):四川油气区[M]. 北京: 石油工业出版社, 1989: 65-88.
[9]	童崇光. 四川盆地构造演化与油气聚集[M]. 北京: 地质出版社, 1992: 101-132.
[10]	黄仁春. 川东北元坝地区雷口坡组天然气来源与成藏分析[J]. 现代地质, 2014, 28(2): 412-418.
[11]	杜韫华. 中国湖相碳酸盐岩油气储层[J]. 陆相石油地质, 1992, 3(6): 25-37.
[12]	黄棋棽, 林良彪, 赵军寿, 等. 川东北下侏罗统大安寨段沉积与储层特征[J]. 科学技术与工程, 2015, 15(5):17-23.
[13]	魏祥峰, 黄静, 李宇平, 等. 元坝地区大安寨段陆相页岩气富集高产主控因素[J]. 中国地质, 2014, 41(3): 970-981.
[14]	倪凯. 元坝地区大安寨段页岩气藏的形成条件[J]. 天然气技术与经济, 2012, 6(4): 13-16.
[15]	郑荣才, 刘文均, 李安仁, 等. 川北下侏罗统自流井组大安寨段灰岩非常规储层包裹体研究[J]. 地质论评, 1997, 43(5): 515-523.
[16]	倪超, 郝毅, 厚刚福, 等. 四川盆地中部侏罗系大安寨段含有机质泥质介壳灰岩储层的认识及其意义[J]. 海相油气地质, 2012, 17(2): 45-56.
[17]	何冰, 胡明, 罗玉宏, 等. 川中李渡—白庙地区大安寨段湖相碳酸盐岩油藏裂缝发育特征分析[J]. 复杂油气藏, 2010, 3(1): 23-27.
[18]	叶泰然, 张虹. 川西裂缝性致密碎屑岩气藏高渗区成因机理及预测[J]. 现代地质, 2013, 27(2): 339-345.
[19]	高小跃, 刘洛夫, 姜振学, 等. 库车坳陷东部YN5井下侏罗统致密储层特征及主控因素[J]. 现代地质, 2013, 27(5): 1100-1108.
[20]	江青春, 王海, 李丹, 等. 地震波形分类技术应用条件及其在葡北地区沉积微相研究中的应用[J]. 石油与天然气地质, 2012, 33(1): 135-140.
[21]	张帅, 祝有海, 刘豪, 等. 地震波形分类技术在浅水湖盆砂体预测中的应用[J]. 地球物理学进展, 2013, 28(5): 2618-2625.
[22]	郭太现, 赵春明. 基于地震信息的岐口18-1稀井网区储层预测[J]. 现代地质, 2013, 27(3): 704-709.
[23]	赖维成, 宋章强, 周心怀, 等. 地质-地震储层预测技术及其在渤海湾海域的应用[J]. 现代地质, 2009, 23(5): 933-939.
