陕西省安康市瀛湖镇滑坡灾害分布特征与易发性分析

doi:10.19657/j.geoscience.1000-8527.2023.067

摘要/Abstract

摘要：

开展滑坡易发性评价是防灾减灾工作的基础科学前提。陕西省安康市汉滨区是滑坡灾害多发区,为研究滑坡提供了良好的窗口。本文以汉滨区瀛湖镇为典例,综合选取高程、地形起伏度、斜坡结构、坡向、高程变异系数、覆盖层厚度、坡度、归一化植被系数 (NDVI)、距道路距离和距河流距离等10项影响因子,以斜坡单元为评价依据,采用频率比 (FR)分析了滑坡分布特征。进一步基于逻辑回归-频率比组合法 (LR-FR)开展研究区的滑坡易发性评价,并对结果进行检验与分析。结果显示高程变异系数、地形起伏度、坡向和距道路距离为研究区影响滑坡发育的主控因子;LR-FR的成功率和预测率分别为0.804、0.843;极高易发区与高易发区主要分布在瀛湖水库两岸以及道路和河流附近,两区占斜坡总面积的33.66%,其中滑坡发育面积为1.08 km²,占滑坡总面积的84.36%,与实际滑坡的分布具有良好的一致性,表明易发性评价结果可靠。研究成果为汉滨区瀛湖镇地质灾害风险管控以及类似地区滑坡易发性评价研究工作提供了新的基础参考依据。

关键词: 滑坡, 易发性评价, 斜坡单元, 频率比, 逻辑回归

Abstract:

Landslide susceptibility assessment is a basic scientific prerequisite for hazard prevention and mitigation efforts. The Hanbin District in Ankang, Shaanxi, is a landslide disaster-prone area, and provides an ideal opportunity to study landslides. In this study, the Yinghu Town in Hanbin was selected as the study object, and 10 impact factors were selected, which includes elevation, relief, slope structure, aspect, elevation variation coefficient, cover layer thickness, slope, normalized vegetation coefficient (NDVI), distance from roads and distance from rivers. Based on the slope unit, frequency ratio (FR) was used to analyze the distribution characteristics of the landslides. Landslide susceptibility assessment in the study area was performed based on the logistic regression frequency-ratio method (LR-FR), and further the results were analyzed and validated. The results show that the elevation variation coefficient, relief, aspect and distance from roads were the main controlling factors of the landslide in the study area; the success and prediction rates of LR-FR were 0.804 and 0.843, respectively; the area with extremely high susceptibility is mainly distributed on both sides of Yinghu Reservoir, near roads, and rivers, which accounts for about 33.66% of all slope areas, includes landslide areas of 1.08 km², 84.36% of all landslide areas. There is a satisfactory agreement between the susceptibility map and the existing data on landslide distributions, indicating that the susceptibility assessment results are acceptable. The results of the study provide an important scientific reference for the control of geologic hazards in Yinghu Town of Hanbin District, as well as for the landslide susceptibility assessment in other areas.

Key words: landslide, susceptibility assessment, slope unit, frequency ratio, logistic regression

中图分类号:

P642.22
P694

麻晟, 陈剑, 吴赛儿. 陕西省安康市瀛湖镇滑坡灾害分布特征与易发性分析[J]. 现代地质, 2024, 38(02): 437-450.

MA Sheng, CHEN Jian, WU Sai’er. Distribution Characteristics and Susceptibility Assessment of Landslide Hazards in Yinghu Town, Ankang, Shaanxi[J]. Geoscience, 2024, 38(02): 437-450.

图/表 17

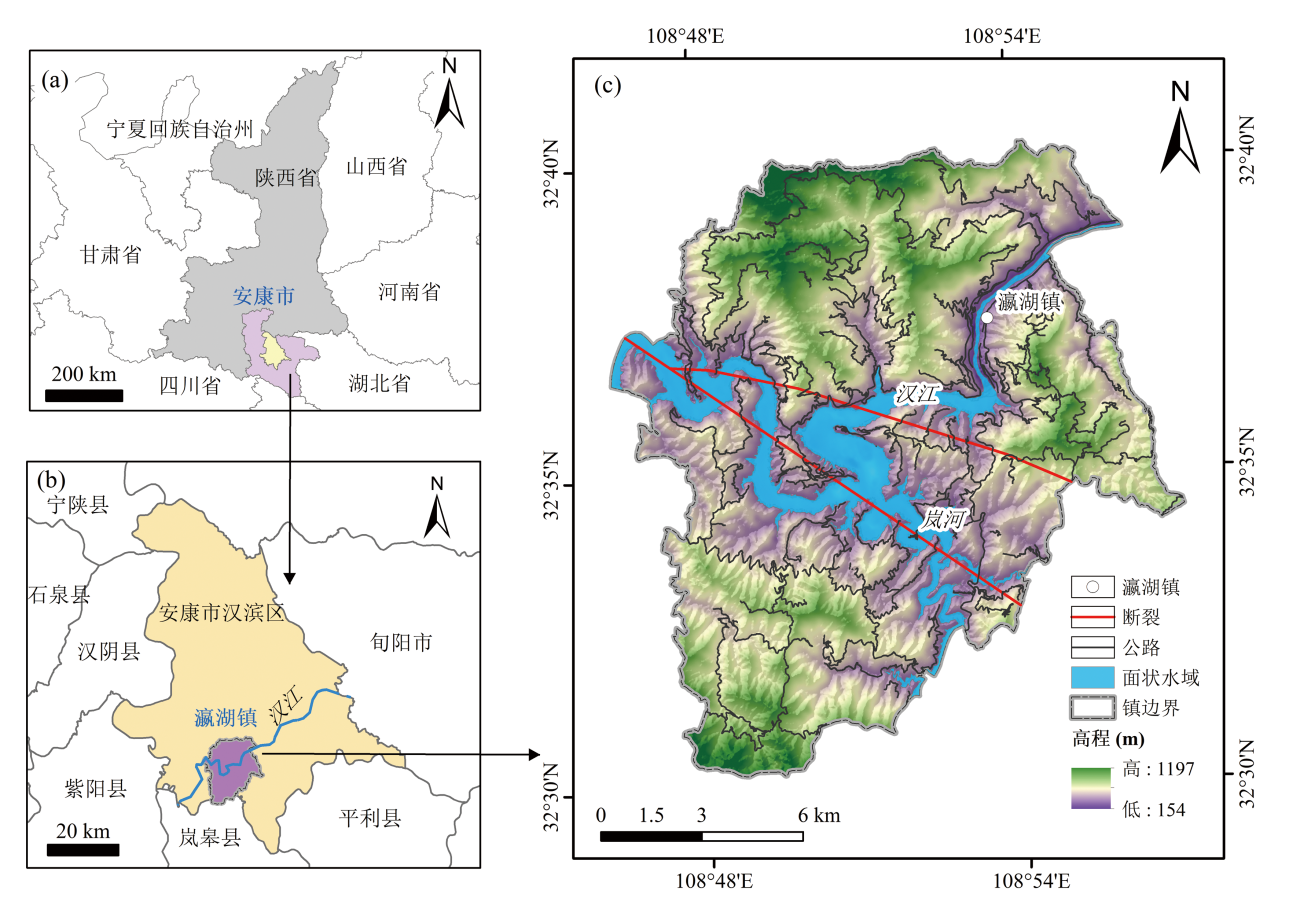

图1 瀛湖镇位置(a)(b)与地理和地质概况(c)

Fig.1 Location of the Yinghu Town (a)(b) and geographic and geologic profile (c)

表1 瀛湖镇易发性评价数据源

Table 1 Data sources of the susceptibility assessment in Yinghu Town

数据集	分辨率	数据用途
DEM	30 m	高程等地形因子、水系和斜坡单元提取
Sentinel-2影像 2022/03/09	10 m、20 m和 60 m	归一化植被系数 (NDVI)提取
道路	—	距道路距离因子获取

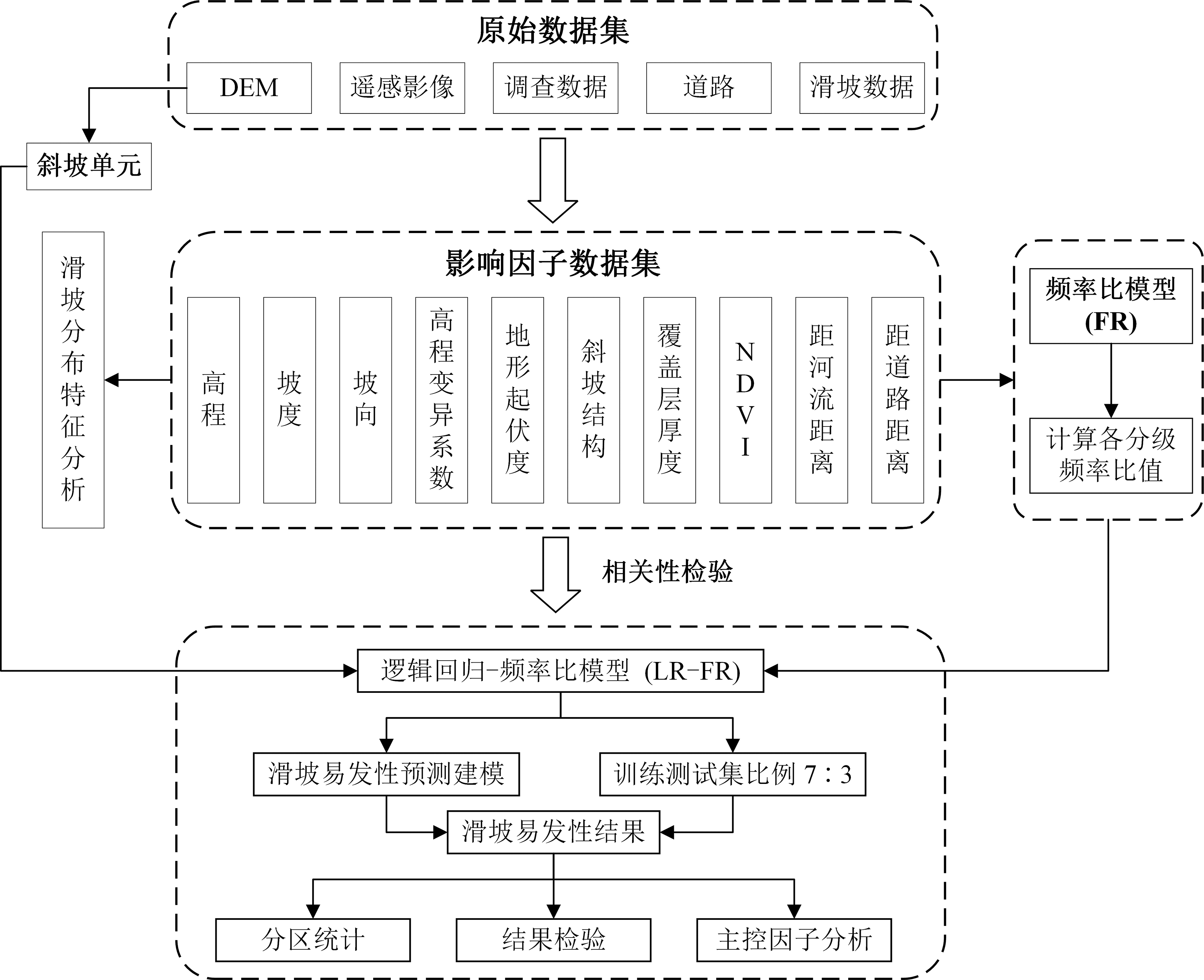

图2 瀛湖镇滑坡易发性评价技术路线

Fig.2 Technical route of the landslide susceptibility assessment in Yinghu Town

图3 瀛湖镇水文分析法斜坡单元划分步骤(菱形框内文字表示数据,长方形框内文字表示操作)(据文献[21]修改)

Fig.3 Steps of slope unit division in hydrological analysis for Yinghu Town (Diamond boxes represent data, rectangular boxes represent operations) (modified after reference [21])

图4 瀛湖镇斜坡单元划分 (a) (b)与面积分布统计 (c)

Fig.4 Slope unit division (a) (b) and area distribution statistics (c) in Yinghu Town

图5 瀛湖镇滑坡影响因子图集 (a) 高程;(b) 地形起伏度;(c) 斜坡结构;(d) 坡向;(e) 高程变异系数;(f) 覆盖层厚度;(g) 坡度;(h) NDVI;(i) 距道路距离;(j) 距河流距离

Fig.5 Atlas of impact factors for landslides in Yinghu Town

图6 瀛湖镇滑坡分布

Fig.6 Landslide distribution in Yinghu Town

图7 瀛湖镇滑坡面积分布特征

Fig.7 Distribution characteristics of the landslide areas in Yinghu Town

图8 瀛湖镇滑坡照片 (a) 方家坡滑坡;(b)胡家田坝滑坡;(c) 朱家窝子滑坡;(d) 闫家山滑坡

Fig.8 Photos of the landslides in Yinghu Town

表2 瀛湖镇滑坡影响因子分级及频率比计算统计

Table 2 Impact factor grading and frequency ratio calculation statistics for landslides in Yinghu Town

评价因子	分级	分级面积 (km²)	滑坡面积 (km²)	频率比	评价因子	分级	分级面积 (km²)	滑坡面积 (km²)	频率比
高程(m)	285~413	37.03	0.44	1.60	覆盖层厚度(m)	2.90~4.10	83.83	0.59	0.95
	413~510	44.26	0.52	1.59		4.10~4.70	48.29	0.39	1.09
	510~623	45.22	0.13	0.40		4.70~5.10	16.88	0.18	1.41
	623~762	33.08	0.16	0.66		5.10~7.62	12.49	0.08	0.81
	762~1073	14.98	0.04	0.35	斜坡结构	顺向坡	30.32	0.32	1.42
地形起伏度(m)	5~96	17.68	0.01	0.08		斜向坡	58.83	0.45	1.03
	96~155	41.49	0.32	1.05		横向坡	56.53	0.36	0.85
	155~218	46.61	0.34	0.99		逆向坡	28.89	0.17	0.79
	218~297	42.19	0.44	1.41	坡向	北	14.01	0.02	0.16
	297~450	26.61	0.18	0.90		东北	18.83	0.25	1.77
高程变异系数	0.004~0.049	17.47	0.01	0.09		东	27.55	0.44	2.15
	0.049~0.078	45.57	0.08	0.25		东南	30.64	0.28	1.23
	0.078~0.109	51.88	0.54	1.39		南	18.40	0.11	0.80
	0.109~0.154	43.69	0.50	1.53		西南	22.15	0.07	0.45
	0.154~0.248	15.85	0.17	1.42		西	21.88	0.09	0.57
坡度 (°)	5~15	6.01	0.01	0.21		西北	21.10	0.04	0.24
	15~19	34.37	0.43	1.69	距道路距离 (m)	0~200	106.61	1.04	1.31
	19~23	64.68	0.52	1.08		200~400	44.18	0.25	0.77
	23~27	52.98	0.25	0.62		400~600	16.50	0	0
	27~38	16.51	0.09	0.73		600~800	5.83	0.01	0.14
NDVI	0.031~0.161	7.11	0.02	0.37		>800	1.44	0	0
	0.161~0.183	34.29	0.16	0.62	距河流距离 (m)	0~200	77.58	0.82	1.42
	0.183~0.201	49.13	0.29	0.79		200~300	53.92	0.34	0.86
	0.201~0.222	57.57	0.61	1.43		300~400	26.13	0.06	0.32
	0.222~0.288	26.49	0.22	1.13		400~500	10.38	0	0.04
覆盖层厚度 (m)	0.99~2.90	13.08	0.07	0.69		>500	6.57	0.07	1.45

图9 瀛湖镇滑坡影响因子分区与滑坡分布关系图 (a) 高程;(b)地形起伏度;(c)高程变异系数;(d)坡度;(e) NDVI;(f) 覆盖层厚度;(g) 坡向;(h) 斜坡结构;(i) 距道路距离;(j) 距河流距离。PoA. 因子分区面积与总面积比值;PoLA. 因子分区内滑坡发育面积与总滑坡面积比值;FR. 频率比

Fig.9 Relationship between impact factor zoning for landslides and landslide distribution in Yinghu Town

表3 瀛湖镇斜坡结构划分依据与数量统计(据文献[24]修改)

Table 3 Classification of slope structure types and quantitative statistics in Yinghu Town (modified after reference[24])

斜坡结构类型	\|Q-C\|	斜坡数量(个)
顺向坡	0°~30°	273
斜向坡	30°~60°、120°~150°	541
横向坡	60°~120°	529
逆向坡	120°~180°	251

表4 瀛湖镇滑坡影响因子皮尔逊相关系数矩阵

Table 4 Pearson’s correlation matrix of the susceptibility impact factors for landslides in Yinghu Town

影响因子	斜坡结构	坡度	地形起伏度	高程	坡向	NDVI	距道路距离	距河流距离	高程变异系数	覆盖层厚度
斜坡结构	1.000
坡度	0.155	1.000
地形起伏度	-0.210	0.183	1.000
高程	-0.005	-0.072	-0.075	1.000
坡向	0.011	0.317	0.308	0.066	1.000
NDVI	-0.202	0.213	0.008	-0.041	-0.008	1.000
距道路距离	0.193	0.215	0.084	0.068	-0.005	0.224	1.000
距河流距离	-0.153	-0.004	-0.036	0.516^*	0.021	-0.023	-0.040	1.000
高程变异系数	-0.036	0.078	0.495	0.035	0.230	0.112	0.071	0.059	1.000
覆盖层厚度	-0.239	-0.269	0.214	-0.085	0.017	0.327	-0.053	-0.099	0.111	1.000

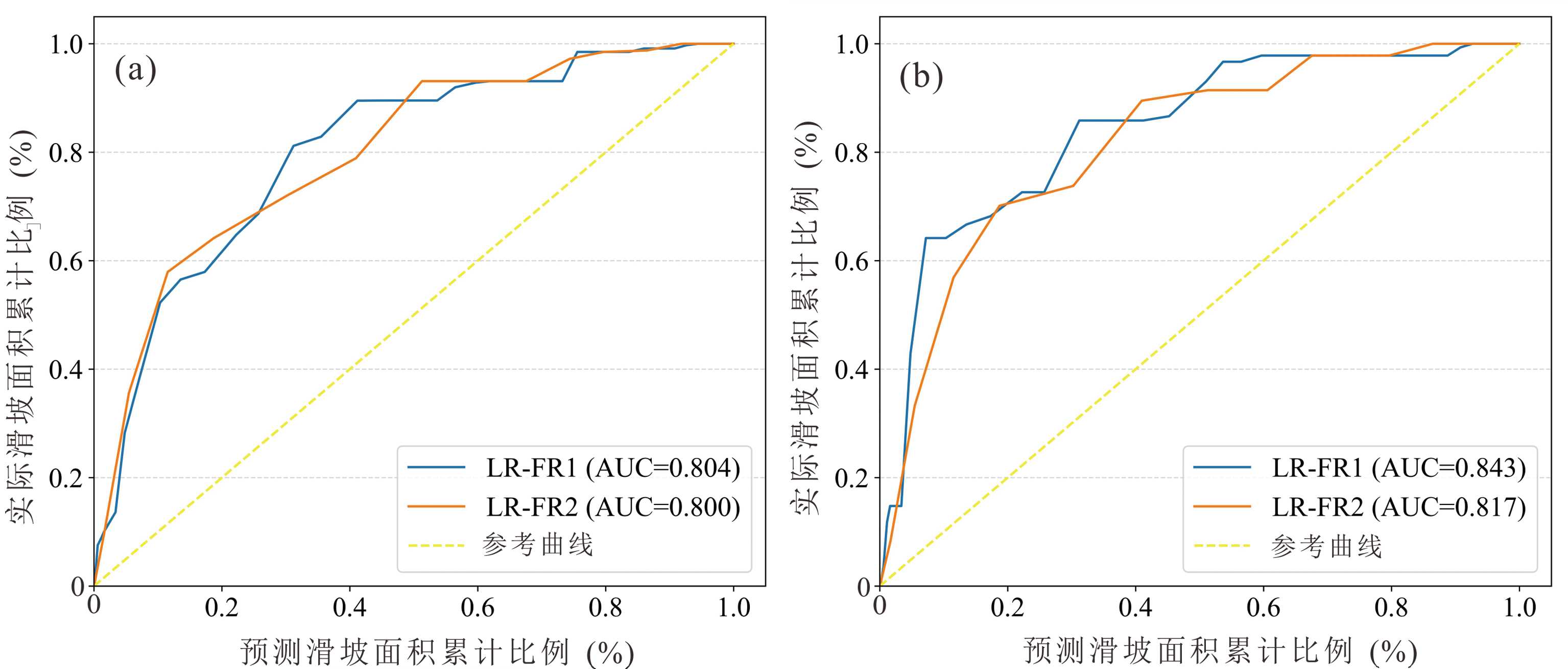

图10 瀛湖镇LR-FR模型ROC曲线 (a) 拟合曲线;(b) 预测曲线。LR-FR1指剔除高程的因子组合;LR-FR2指剔除距河流距离的因子组合;AUC为ROC曲线下面积

Fig.10 ROC curves of the LR-FR model in Yinghu Town

表5 瀛湖镇滑坡易发性统计

Table 5 Statistics of susceptibility of the landslide in Yinghu Town

易发性等级	分区面积 (km²)	分区面积占比(%)	分区滑坡面积(km²)	滑坡面积占比(%)	频率比
极高易发区	20.61	11.81	0.73	56.64	4.80
高易发区	37.62	21.55	0.35	26.68	1.24
中易发区	56.60	32.42	0.15	11.23	0.35
低易发区	39.27	22.50	0.05	4.20	0.19
极低易发区	20.46	11.72	0.02	1.26	0.11

图11 瀛湖镇滑坡易发性分布 (a)(b)与分区统计 (c) PoA. 易发性分区面积与研究区总面积比值;PoLA. 易发性分区内滑坡发育面积与总滑坡面积比值;FR. 频率比

Fig.11 Distribution of landslide susceptibility (a) (b) and regional statistics of landslides (c) in Yinghu Town

图12 瀛湖镇滑坡影响因子重要性排序

Fig.12 Ranking of importance of the landslide impact factor in Yinghu Town
