滨海平原区深层高氟地下水富集机理:以滦河三角洲为例

doi:10.19657/j.geoscience.1000-8527.2022.029

现代地质 ›› 2023, Vol. 37 ›› Issue (04): 925-932.DOI: 10.19657/j.geoscience.1000-8527.2022.029

滨海平原区深层高氟地下水富集机理:以滦河三角洲为例

张卓¹^,²(), 陈社明¹^,²(), 柳富田¹^,², 高志鹏³, 牛笑童¹

1.中国地质调查局天津地质调查中心,天津 300170
2.华北地质科技创新中心,天津 300170
3.中国地质大学(北京)生物地质与环境地质国家重点实验室,北京 100083

收稿日期:2022-02-18 修回日期:2022-06-20 出版日期:2023-08-10 发布日期:2023-09-02
通讯作者: 陈社明,男,博士,高级工程师,1985年出生,水文学及水资源专业,主要从事水资源及水文地质方面的研究。Email: tjdzdczx2013@126.com。
作者简介:陈社明,男,博士,高级工程师,1985年出生,水文学及水资源专业,主要从事水资源及水文地质方面的研究。Email: tjdzdczx2013@126.com。
张卓,男,博士,助理研究员,1991年出生,水文地质学专业,主要从事水文地球化学研究。Email: zhangzhuo@mail.cgs.gov.cn。
基金资助:
国家自然科学基金青年基金项目(42102298);中国地质调查局地质调查项目(DD20190338)

Enrichment Mechanism of Deep Groundwater with High Fluoride in Coastal Plains: A Case Study of the Luanhe Delta

ZHANG Zhuo¹^,²(), CHEN Sheming¹^,²(), LIU Futian¹^,², GAO Zhipeng³, NIU Xiaotong¹

1. Tianjin Center, China Geological Survey, Tianjin 300170, China
2. North China Geological Science and Technology Innovation Center, Tianjin 300170, China
3. State Key Laboratory of Biogeology and Environmental Geology, China University of Geosciences (Beijing), Beijing 100083, China

Received:2022-02-18 Revised:2022-06-20 Online:2023-08-10 Published:2023-09-02

摘要/Abstract

摘要：

河北滨海平原区深层含水层存在高氟地下水,严重威胁居民用水安全。为查明其富集机理,本研究在现场采集69个深层地下水样品,对比分析低氟和高氟地下水的水化学和同位素特征。结果表明,高氟地下水主要存在于HCO₃-Na型地下水中,而低氟地下水化学类型以HCO₃-Ca·Na为主。PHREEQC饱和指数计算结果表明,地下水中萤石多为不饱和状态,方解石多为过饱和状态,这说明Ca²⁺形成方解石沉淀有助于萤石的溶解,后者是地下水中F^-的主要来源。线性回归结果表明,深层地下水Ca²⁺和Na⁺之间发生阳离子交换作用,这一过程能够减少地下水中Ca²⁺含量,进一步促进CaF₂溶解。深层地下水中F^-与pH和 $HCO 3 -$ 有较好的正相关性,表明微碱性环境和高含量 $HCO 3 -$ 有利于F^-发生解吸附。此外,深层地下水中F^-和Li含量呈显著的正相关,说明研究区地热水的混合作用可能直接影响深层地下水F^-的富集。对比深层地下水与海水的水化学和同位素特征,发现研究区深层地下水氟富集不受海水入侵影响。

关键词: 滨海平原区, 高氟地下水, 分布特征, 水岩相互作用, 河北省

Abstract:

High F^- groundwater has been found in deep aquifers of the coastal plain region, which seriously threatens the domestic water safety. To ascertain its enrichment mechanism, sixty-nine groundwater samples on site were collected for hydrochemical and isotopic analyses of the low- and high-fluoride groundwater. The results show that high fluoride groundwater mainly exists in Na-HCO₃-type groundwater, while the chemical type of low-fluoride groundwater is mainly Ca·Na-HCO₃. Saturation index calculation shows that the groundwater samples are mostly fluorite undersaturated but calcite oversaturated. This indicates that fluorite dissolution is favored with precipitations of Ca²⁺ as calcite, thus leading to higher F^- level in the groundwater. The linear regression results show that cation exchange occurred between Ca²⁺ and Na⁺ in deep groundwater, which could decrease the groundwater Ca²⁺ content and further promote the CaF₂ dissolution. There is good positive correlations between F^- and pH and $HCO 3 -$ in deep groundwater, indicating that the slightly alkaline environment and high $HCO 3 -$ content are beneficial to F^- desorption. In addition, there is strong positive F^- vs. Li correlation in deep groundwater, which also indicates that the local mixing of geothermal water may directly affect the F^- enrichment in deep groundwater. Comparing the hydrochemical and isotopic characteristics of deep groundwater with seawater, we found that the local F^- enrichment of deep groundwater is unaffected by seawater intrusion.

Key words: coastal plain, fluoride groundwater, distribution characteristic, water-rock interaction, Hebei Province

中图分类号:

P641.1

张卓, 陈社明, 柳富田, 高志鹏, 牛笑童. 滨海平原区深层高氟地下水富集机理:以滦河三角洲为例[J]. 现代地质, 2023, 37(04): 925-932.

ZHANG Zhuo, CHEN Sheming, LIU Futian, GAO Zhipeng, NIU Xiaotong. Enrichment Mechanism of Deep Groundwater with High Fluoride in Coastal Plains: A Case Study of the Luanhe Delta[J]. Geoscience, 2023, 37(04): 925-932.

图/表 7

图1 地下水采样点分布

Fig.1 Distribution of groundwater sampling spots

图2 Piper三线图(单位: %)

Fig.2 Piper ternary diagrams(unit: %)

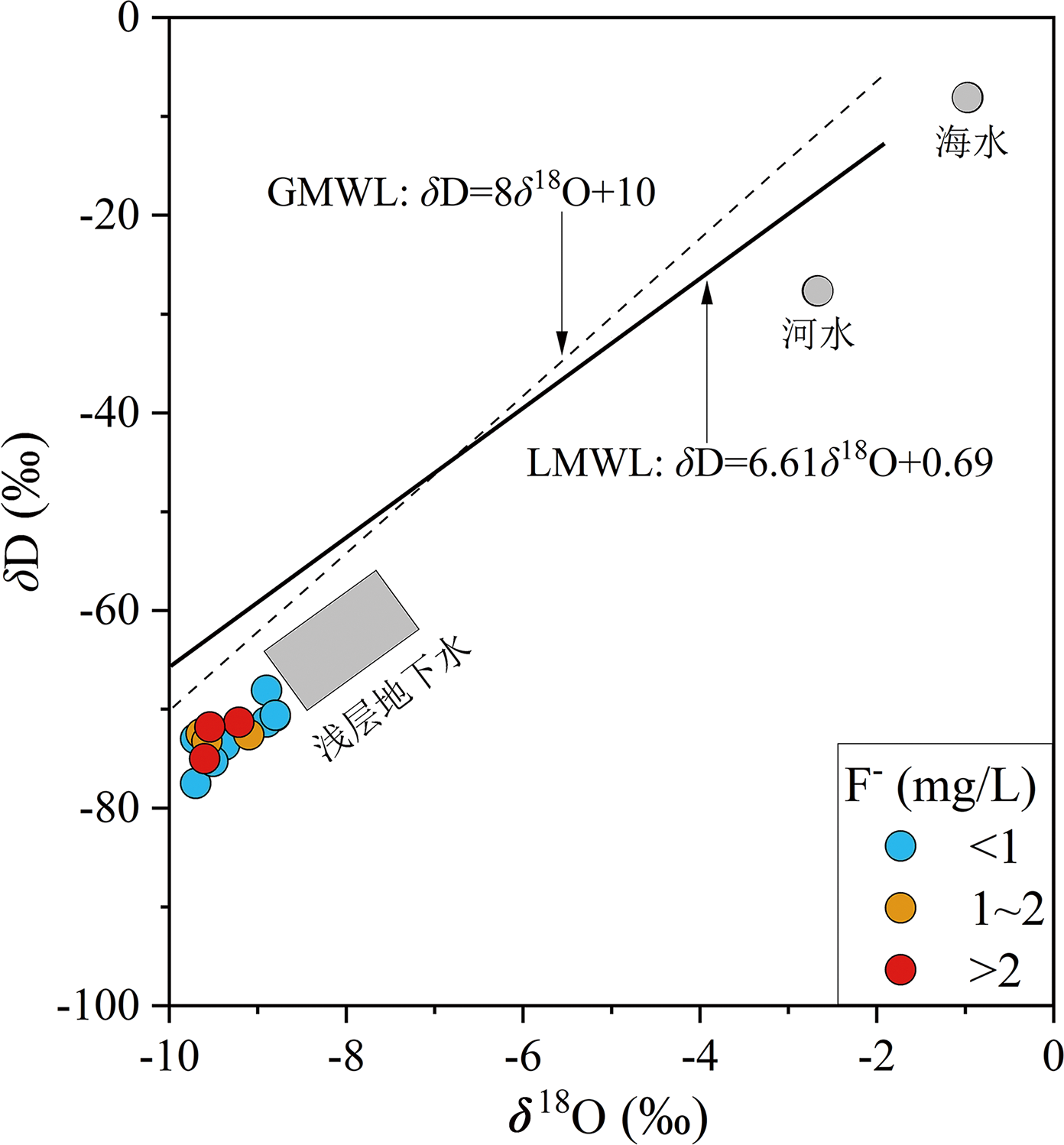

图3 δD-δ18O散点图

Fig.3 Bivariate plot of δD vs. δ18O

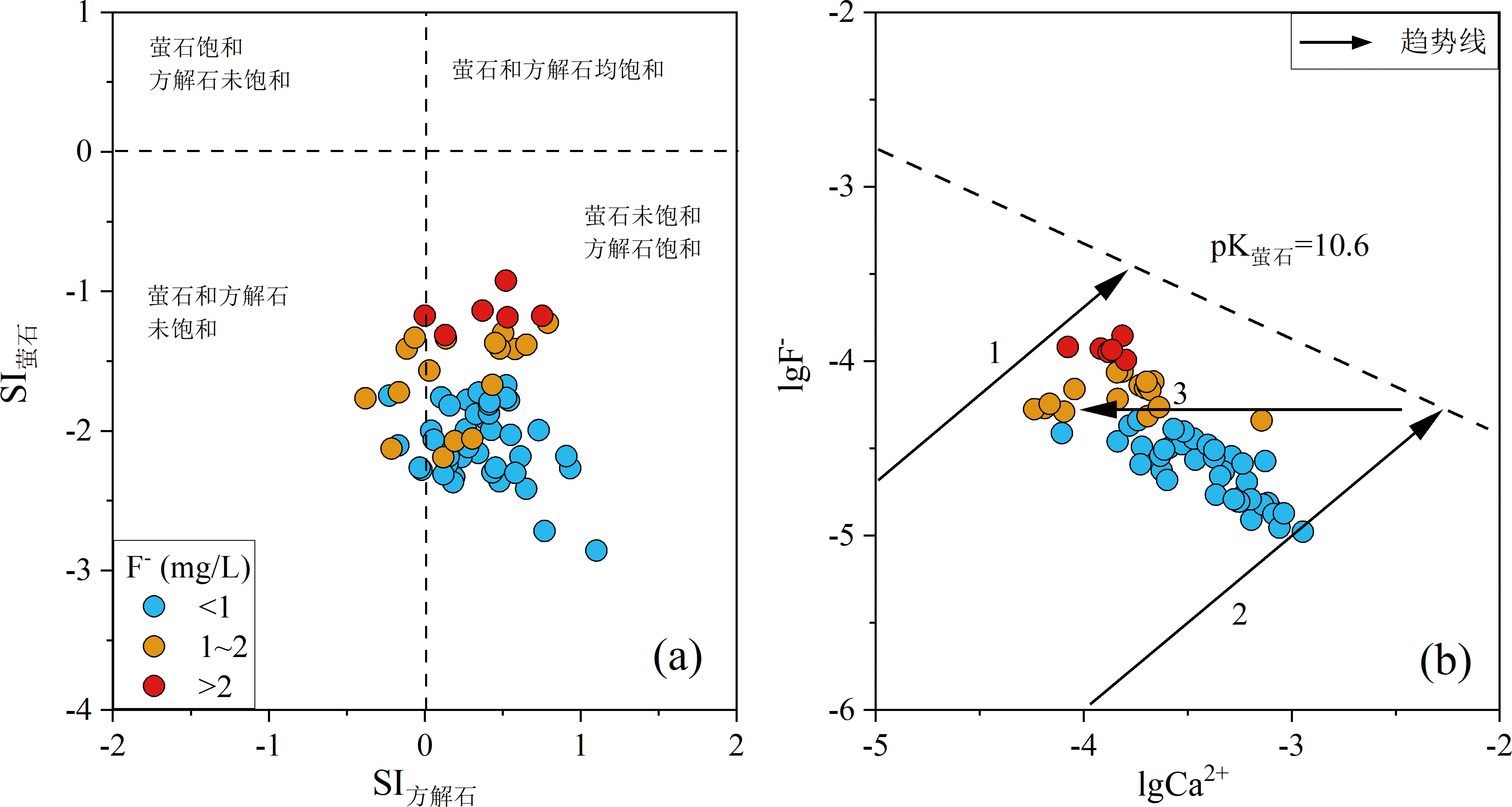

图4 地下水方解石和萤石饱和指数的关系图(a)、地下水中F-活度和Ca2+活度的关系图((b),底图据文献[16])

Fig.4 Plots of SIfluorite vs. SIcalcite(a)and activities of Ca2+ with F- concentrations((b), basemap after ref.[16])

图5 Ca2++Mg2+- SO 4 2 -- HCO 3 -和Na++K+-Cl-的散点图

Fig.5 Bivariate plot of Ca2++Mg2+- SO 4 2 -- HCO 3 - vs.Na++K+-Cl-

图6 地下水F-含量和Na+/(Ca2+)0.5(物质的量比)(a)、pH(b)、 HCO 3 -(c)以及Li(d)的关系图

Fig.6 Relationships between groundwater F- and Na+/(Ca2+)0.5 (a), pH (b), HCO 3 - (c), and Li (d)

图7 Cl-/ HCO 3 -质量浓度比值和Cl-质量浓度的散点图

Fig.7 Bivariate plot of the Cl-/ HCO 3 - vs. Cl-

参考文献 37

[1]	YADAV K K, KUMAR S, PHAM Q B, et al. Fluoride contamination, health problems and remediation methods in Asian groundwater: A comprehensive review[J]. Ecotoxicology and Environmental Safety, 2019, 182: 109362. DOI URL
[2]	MCMAHON P B, BROWN C J, JOHNSON T D, et al. Fluoride occurrence in United States groundwater[J]. Science of the Total Environment, 2020, 732: 139217. DOI URL
[3]	VIKAS C, KUSHWAHA R, AHMAD W, et al. Genesis and geochemistry of high fluoride bearing groundwater from a semi-arid-terrain of NW India[J]. Environmental Earth Sciences, 2013, 68(1): 289-305. DOI URL
[4]	DE SOUZA C F M, LIMA J F J, ADRIANO M S P F, et al. Assessment of groundwater quality in a region of endemic fluorosis in the northeast of Brazil[J]. Environmental Monitoring and Assessment, 2013, 185(6): 4735-4743. DOI PMID
[5]	RAFIQUE T, NASEEM S, USMANI T H, et al. Geochemical factors controlling the occurrence of high fluoride groundwater in the Nagar Parkar area, Sindh, Pakistan[J]. Journal of Hazar-dous Materials, 2009, 171(1/2/3): 424-430.
[6]	邢丽娜, 郭华明, 魏亮, 等. 华北平原浅层含氟地下水演化特点及成因[J]. 地球科学与环境学报, 2012, 34(4): 57-67.
[7]	冯海波, 董少刚, 史晓珑, 等. 内蒙古托克托县潜水与承压水中氟化物的空间分布特征及形成机理[J]. 现代地质, 2016, 30(3): 672-679.
[8]	苗晋杰, 靳继红, 杜东, 等. 首都副中心及重点区域地下水环境质量评价与问题成因[J]. 地质调查与研究, 2020, 43(3): 224-229, 286.
[9]	LI P Y, HE X D, LI Y, et al. Occurrence and health implication of fluoride in groundwater of loess aquifer in the Chinese Loess Plateau: A case study of Tongchuan, northwest China[J]. Exposure and Health, 2019, 11(2): 95-107. DOI
[10]	WANG Y X, LI J X, MA T, et al. Genesis of geogenic contaminated groundwater: As, F and I[J]. Critical Reviews in Environmental Science and Technology, 2021, 51(24): 2895-2933. DOI URL
[11]	2016年我国卫生和计划生育事业发展统计公报发布[J]. 健康管理, 2017(9): 22-30.
[12]	AYOOB S, GUPTA A K. Fluoride in drinking water: A review on the status and stress effects[J]. Critical Reviews in Environmental Science and Technology, 2006, 36(6): 433-487. DOI URL
[13]	SU C L, WANG Y X, XIE X J, et al. An isotope hydrochemical approach to understand fluoride release into groundwaters of the Datong Basin, Northern China[J]. Environmental Science(Processes and Impacts), 2015, 17(4): 791-801.
[14]	WANG Y X, SHVARTSEV S L, SU C L. Genesis of arsenic/fluoride-enriched soda water: A case study at Datong, Northern China[J]. Applied Geochemistry, 2009, 24(4): 641-649. DOI URL
[15]	王文祥, 何锦, 张梦南, 等. 张掖盆地龙首山山前高氟地下水的形成[J]. 现代地质, 2017, 31(2): 415-420.
[16]	LIU H Y, GUO H M, YANG L J, et al. Occurrence and formation of high fluoride groundwater in the Hengshui area of the North China Plain[J]. Environmental Earth Sciences, 2015, 74(3): 2329-2340. DOI URL
[17]	毛若愚, 郭华明, 贾永锋, 等. 内蒙古河套盆地含氟地下水分布特点及成因[J]. 地学前缘, 2016, 23(2): 260-268. DOI
[18]	GUO H M, ZHANG Y, XING L N, et al. Spatial variation in arsenic and fluoride concentrations of shallow groundwater from the town of Shahai in the Hetao Basin, Inner Mongolia[J]. Applied Geochemistry, 2012, 27(11): 2187-2196. DOI URL
[19]	李予红, 宋晓光, 胡斌, 等. 张家口坝上地区高氟地下水分布与成因分析[J]. 北京师范大学学报(自然科学版), 2021, 57(6): 745-755.
[20]	WEN D G, ZHANG F C, ZHANG E Y, et al. Arsenic, fluoride and iodine in groundwater of China[J]. Journal of Geochemical Exploration, 2013, 135: 1-21. DOI URL
[21]	WANG Z, GUO H M, XING S P, et al. Hydrogeochemical and geothermal controls on the formation of high fluoride groundwater[J]. Journal of Hydrology, 2021, 598: 126372. DOI URL
[22]	陈桥, 史文静, 芦清水, 等. 海水入侵对莱州湾地下水氟释放潜在影响研究[J]. 海洋科学进展, 2012, 30(2): 219-228.
[23]	CHEN Q, JIA C P, WEI J C, et al. Geochemical process of groundwater fluoride evolution along global coastal Plains: Evidence from the comparison in seawater intrusion area and soil salinization area[J]. Chemical Geology, 2020, 552: 119779. DOI URL
[24]	方成, 柳富田, 孟利山, 等. 氢氧同位素在曹妃甸地区水循环研究中的应用[J]. 地质调查与研究, 2014, 37(2): 102-107.
[25]	OZSVATH D L. Fluoride concentrations in a crystalline bedrock aquifer Marathon County, Wisconsin[J]. Environmental Geology, 2006, 50(1): 132-138. DOI URL
[26]	KIM S H, KIM K, KO K S, et al. Co-contamination of arsenic and fluoride in the groundwater of unconsolidated aquifers under reducing environments[J]. Chemosphere, 2012, 87(8): 851-856. DOI URL
[27]	PATEL S C, KHALKHO R, PATEL S K, et al. Fluoride contamination of groundwater in parts of eastern India and a preliminary experimental study of fluoride adsorption by natural hematite iron ore and synthetic magnetite[J]. Environmental Earth Sci-ences, 2014, 72(6): 2033-2049.
[28]	KUMAR M, DAS N, GOSWAMI R, et al. Coupling fractionation and batch desorption to understand arsenic and fluoride co-contamination in the aquifer system[J]. Chemosphere, 2016, 164: 657-667. DOI PMID
[29]	PI K F, WANG Y X, XIE X J, et al. Hydrogeochemistry of co-occurring geogenic arsenic, fluoride and iodine in groundwater at Datong Basin, Northern China[J]. Journal of Hazardous Materials, 2015, 300: 652-661. DOI PMID
[30]	GUO Q H, WANG Y X, MA T, et al. Geochemical processes controlling the elevated fluoride concentrations in groundwaters of the Taiyuan Basin, Northern China[J]. Journal of Geochemical Exploration, 2007, 93(1): 1-12. DOI URL
[31]	龚育龄. 中国东部渤海湾盆地热结构和热演化[D]. 南京: 南京大学, 2003.
[32]	董月霞, 黄红祥, 任路, 等. 渤海湾盆地北部新近系馆陶组地热田特征及开发实践: 以河北省唐山市曹妃甸地热供暖项目为例[J]. 石油勘探与开发, 2021, 48(3): 666-676. DOI
[33]	MAO X M, ZHU D B, NDIKUBWIMANA I, et al. The mechanism of high-salinity thermal groundwater in Xinzhou geothermal field, South China: Insight from water chemistry and stable isotopes[J]. Journal of Hydrology, 2021, 593: 125889. DOI URL
[34]	MAITY J P, LIU C C, NATH B, et al. Biogeochemical characteristics of Kuan-Tzu4 Ling, Chung-Lun and Bao-Lai hot springs in southern Taiwan: A possible sources of groundwater arsenic[J]. Journal of Environmental Science and Health, 2011, 46(11): 1207-1217.
[35]	李雪, 叶思源. 海水入侵调查方法研究进展[J]. 海洋地质与第四纪地质, 2016, 36(6): 211-217.
[36]	杨吉龙, 韩冬梅, 苏小四, 等. 环境同位素特征对滨海岩溶地区海水入侵过程的指示意义[J]. 地球科学进展, 2012, 27(12): 1344-1352. DOI
[37]	ZUO R, LIU X, YANG J, et al. Distribution, origin and key influencing factors of fluoride groundwater in the coastal area, NE China[J]. Human and Ecological Risk Assessment, 2019, 25(1/2): 104-119. DOI URL
