构造成矿作用的地应力分析:研究现状与思考

doi:10.19657/j.geoscience.1000-8527.2024.086

摘要/Abstract

摘要：

地下岩石的 “静岩压力”模型认为,地下岩石的静岩压力主要源于上覆岩石的重力。该模型要求岩石质量在内部是静态的,不存在剪切应力。“静岩压力”模型的前提是岩石在相对稳定的环境下长期存在。然而,地球是一个非稳态的动态系统,不同的构造环境控制着岩石的形成和演化,受到各种动态机制的影响。“静岩压力”模型的应用在不同程度上受到限制,特别是在压缩构造环境中,水平构造应力可能导致“静岩压力”的偏差。地下岩石的压力由两部分组成:重力应力和构造应力。深部地下岩石矿物的形成和演化受到形成环境的温度和压力的控制。构造动力学是控制固体岩石矿物内部压力的主要因素,同时也受到固体岩石的塑性、黏性强度以及岩石内部孔隙和裂缝中流体压力的影响。矿床形成过程受到构造环境的影响,并受到温度和压力条件的限制,矿床形成过程需要结合具体的构造环境进行分析。岩石内部孔隙流体随着构造作用的演化而发生相应的变化。当岩石孔隙裂缝在构造作用演化过程中的渗透性受阻时,就会形成一定程度的孔隙流体超压。不同构造环境下相同深度的孔隙流体超压和差应力是不同的,压缩性构造环境中的流体超压高于伸展性构造环境。“构造附加静岩压力”在地壳深部构造研究、构造控制岩石和矿石规律以及深部工程地质等方面的研究中具有重要的参考价值。

关键词: 构造成矿, 岩压力模型, 构造应力复合重力的地应力, 构造附加静岩压力, 有效应力

Abstract:

The “lithostatic pressure” model of underground rocks posits that the primary source of lithostatic stress in underground rocks is the gravitational force exerted by the overlying rocks.This model assumes that the rock mass is internally static and that no shear stress is present.The premise of the “lithostatic pressure” model is that rocks are in a relatively stable environment over a long period.However, the Earth is a dynamic and non-steady system, with different tectonic environments controlling the formation and evolution of rocks and subjecting them to various dynamic mechanisms.The application of the “lithostatic pressure” model is limited, especially in compressional tectonic environments where horizontal tectonic stress can cause deviations from “lithostatic pressure”.The stress in underground rocks can be composed of two parts: gravitational stress and tectonic stress.The formation and evolution of deep underground minerals are controlled by the temperature and pressure of the formation environment.Tectonic dynamics is the main factor controlling the internal pressure of solid minerals, while also being influenced by the plasticity, viscosity, and strength of the solid rocks, as well as the pressure of fluids in the pores and cracks within the rocks.The process of ore formation is influenced by the tectonic environment and constrained by temperature and pressure conditions.Therefore, the ore-forming process needs to be analyzed in conjunction with the specific tectonic environment.The internal pore fluid in the rocks undergoes corresponding changes with the evolution of tectonic activity.When the permeability of the rock pores and cracks is impeded during tectonic the evolution, a certain degree of pore fluid overpressure will develop.The pore fluid overpressure and differential stress at the same depth vary under different tectonic environments, with overpressure in compressive tectonic environments being higher than in extensional environments.“Tectonic additional lithostatic pressure” plays an important role in the study of deep geological structure, the tectonic control of rocks and ores, and deep engineering geology.

Key words: tectonic ore-forming, lithostatic pressure model, tectonic stress combined with gravitational stress, tectonic additional lithostatic pressure, effective stress

中图分类号:

范桃园, 吕承训, 吕古贤. 构造成矿作用的地应力分析:研究现状与思考[J]. 现代地质, 2024, 38(04): 865-872.

FAN Taoyuan, LÜ Chengxun, LÜ Guxian. Analysis of Crustal Stress in Tectonic Ore-forming Processes: Research Status and Thought[J]. Geoscience, 2024, 38(04): 865-872.

图/表 4

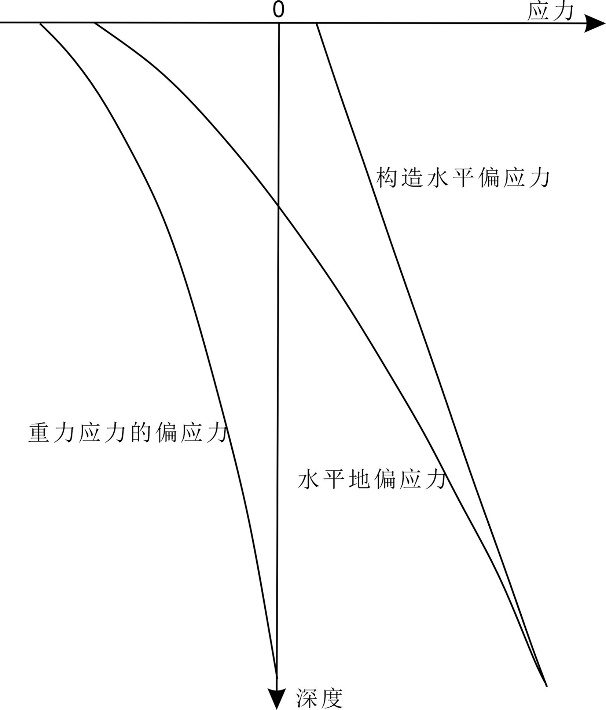

图1 地应力场水平应力组成示意图

Fig.1 Schematic diagram of horizontal stress composition in the geo-stressed field

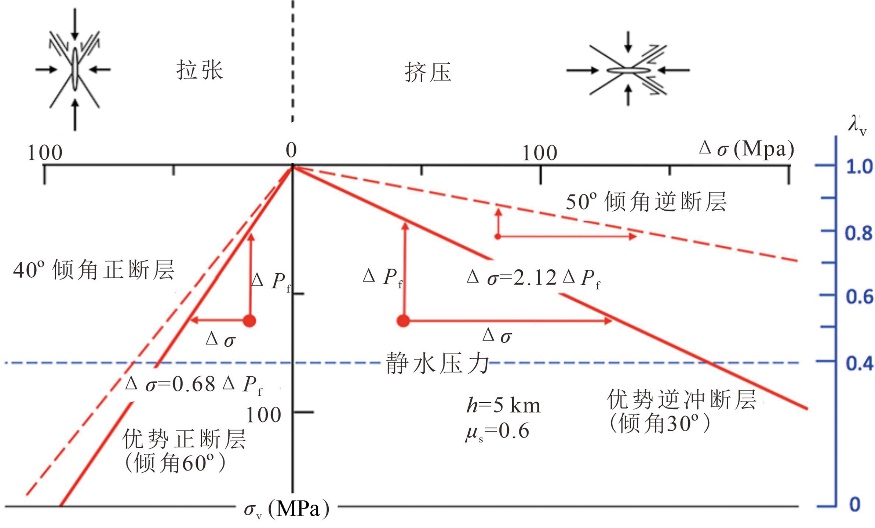

图2 在5 km深度下优势断层滑动极限条件下最大差应力与孔隙超压比的关系(λv=Pf/σv) (据文献[30]修改)

Fig.2 Relationship between the maximum differential stress and the pore overpressure ratio under optimal fault slip conditions (λv=Pf/σv) at a depth of 5 km (modified from reference [30])

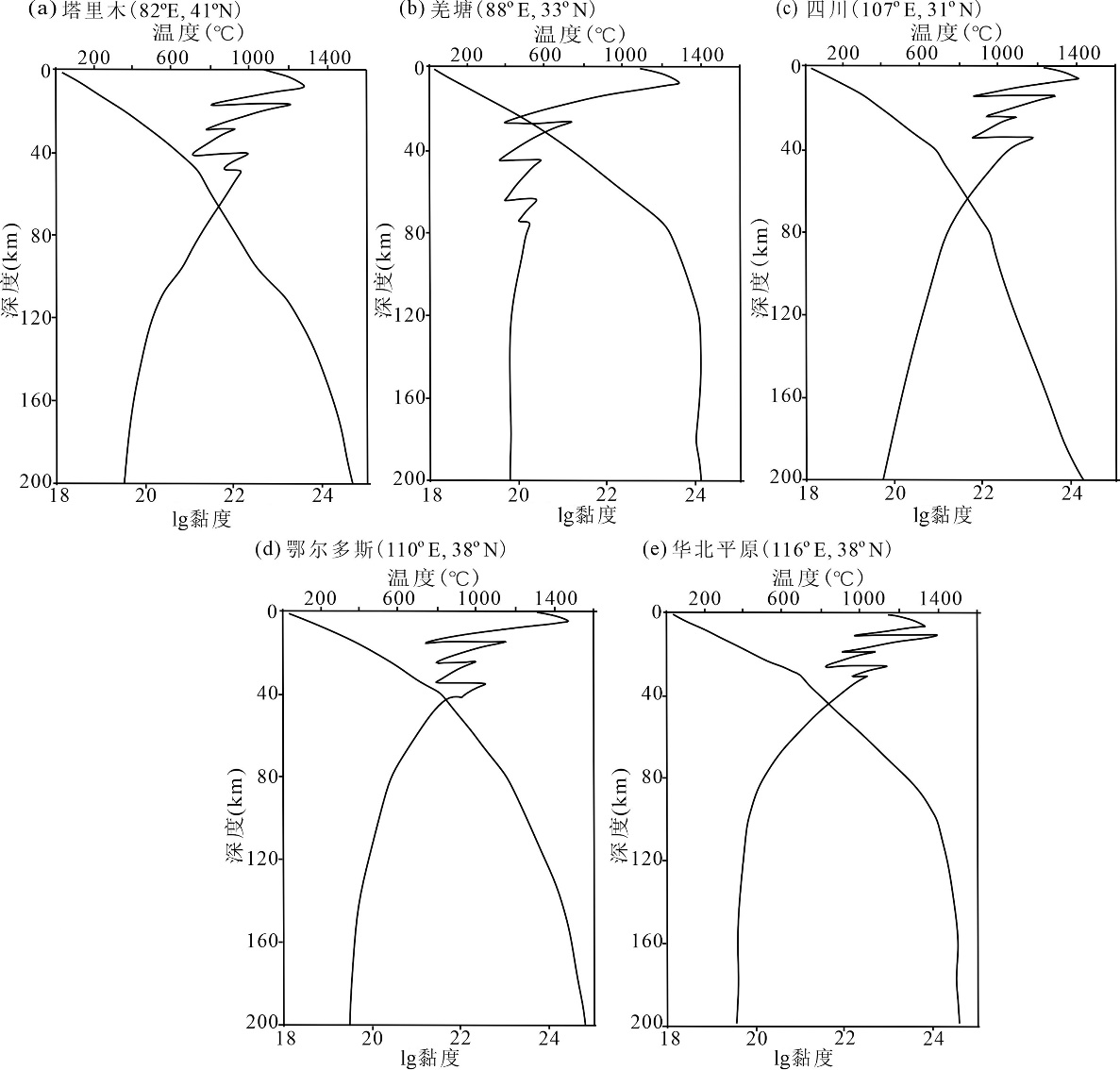

图3 中国大陆几个典型地区的一维等效黏滞系数剖面(自据文献[39]修改)

Fig.3 One-dimensional effective viscosity profiles of typical regions in Chinese mainland (modified after Shi[38])

图4 标准线性体模型(a)及其应变蠕变(b)和应力松弛曲线(c)(当ke=0是退化为Maxwell体) k1.Maxwell体的瞬时弹性模量;ke.完全弹性体的弹性模量;η.黏性系数

Fig.4 Standard linear solid (a), creep curves (b), and relaxation curves (c) (It degenerate into a Maxwell body when ke=0)

参考文献 53

[1]	SORBY H C. The Bakerian lecture:On the direct correlation of mechanical and chemical forces[J]. Proceedings of the Royal Society of London, 1863, 12: 538-550.
[2]	涂光炽. 脆云母热水综合试验的初步结果[J]. 地质学报, 1956, 30(2): 229-238.
[3]	CARON J M, POTDEVIN J L, SICARD E. Solution-deposition processes and mass transfer in the deformation of a minor fold[J]. Tectonophysics, 1987, 135(1/2/3): 77-86.
[4]	杨立强, 杨伟, 张良, 等. 热液成矿系统构造控矿理论[J]. 地学前缘, 2024, 31(1): 239-266. DOI
[5]	贺晓龙, 张达, 吴淦国, 等. 构造转换背景下应力与流体相互作用控制华南朱溪超大型W-Cu矿床成矿作用[J]. 矿床地质, 2021, 40(6): 1135-1159.
[6]	周济元, 余祖成. 浙江建德铜矿矿床特征及矿液运移理论的研究[J]. 成都地质学院学报, 1983, 10(4): 1-22.
[7]	西胁亲雄. 构造应力与斑岩铜矿形成作用的关系[J]. 金昌斗,译.国外地质科技, 1984(6): 97-111.
[8]	兰姆塞, 胡伯. 现代构造地质学方法第一卷应变分析[M].刘瑞询,译. 北京: 地质出版社, 1991: 1-37.
[9]	吕古贤. 构造动力成岩成矿和构造物理化学研究[J]. 地质力学学报, 2019, 25(5): 962-980.
[10]	吕古贤. 地壳异常压力学术研讨会会议纪要[J]. 地质论评, 2000, 46(6): 637-659.
[11]	潘立宙. 变形椭球的性质及其在地质应用中的一些问题[J]. 力学学报, 1976, 8(1): 6-17.
[12]	刘瑞珣. 显微构造地质学[M]. 北京: 北京大学出版社, 1988: 1-235.
[13]	王连捷, 武红岭, 王薇. 地球引力引起的地壳应力[J]. 地质力学学报, 1991, 7(1): 23-31.
[14]	吕古贤, 刘瑞珣, 蔡永恩, 等. 地壳的应力状态、构造附加静压力和岩石矿床形成深度的研究[J]. 高校地质学报, 2008, 14(3): 442-449.
[15]	刘瑞珣, 吕古贤, 任剑成, 等. 地下岩石构造力复合重力的压力状态分析[J]. 地学前缘, 2017, 24(2): 16-22. DOI
[16]	吕古贤, 郭涛, 舒斌, 等. 胶东金矿集中区构造控岩控矿地质特征研究[J]. 地球学报, 2006, 27(5): 471-478.
[17]	吕承训, 张达, 许亚青, 等. 胶东金矿成矿深度的构造校正测算及成矿预测[J]. 地学前缘, 2022, 29(1): 427-438. DOI
[18]	樊祺诚, 刘若新, 马宝林, 等. 大别山超高压变质带镁铁-超镁铁岩的岩石学与高压矿物组合[J]. 中国科学(D辑: 地球科学), 1996, 26(3): 265-270.
[19]	OKAY A I, XU S T, CELAL SENGÖR A M. Coesite from the Dabie Shan eclogites, central China[J]. European Journal of Mineralogy, 1989, 1(4): 595-598.
[20]	WANG X M, LIOU J G, MAO H K. Coesite-bearing eclogite from the Dabie Mountains in central China[J]. Geology, 1989, 17(12): 1085.
[21]	吕古贤, 陈晶, 李晓波, 等. 构造附加静水压力研究与含柯石英榴辉岩成岩深度测算[J]. 科学通报, 1998, 43(24): 2590-2602.
[22]	匡少平, 凌文黎, 张本仁. 大别造山带中镁铁质-超镁铁质岩石和榴辉岩有关问题的讨论[J]. 地质论评, 1999, 45(6): 584-595.
[23]	谢和平, 高峰, 鞠杨. 深部岩体力学研究与探索[J]. 岩石力学与工程学报, 2015, 34(11): 2161-2178.
[24]	HARRISON J P, HUDSON J A. Engineering Rock Mechanics: An Introduction to the Principles[M]. Netherland: Elsevier Science Ltd, 2000: 45-80.
[25]	周宏伟, 谢和平, 左建平. 深部高地应力下岩石力学行为研究进展[J]. 力学进展, 2005, 35(1): 91-99.
[26]	HEIM A. Untersuchungen über den Mechanismus der Gebirgsbildung im Auschluss an die geologische Monographie der Tödi-Windgällen-Gruppe[M]. Basel: Benno Schwabe, 1878.
[27]	滕吉文. 固体地球物理学概论[M]. 北京: 地震出版社, 2003.
[28]	刘瑞珣, 吕古贤. 影响地下应力状态的构造作用[J]. 地球学报, 2002, 23(2): 103-106.
[29]	HE Yongnian, LIN Chuanyong, SHI Lanbin. Microstructural features of deformed rocks across the brittle-ductile transition[J]. Physics and Chemistry of the Earth, 1990, 17: 11-15.
[30]	SIBSON R H. The edge of failure: Critical stress overpressure states in different tectonic regimes[J]. Geological Society, London, Special Publications, 2017, 458(1): 131-141.
[31]	TOWNEND J, ZOBACK M D. How faulting keeps the crust strong[J]. Geology, 2000, 28(5): 399.
[32]	BYERLEE J. Friction of rocks[J]. Pure and Applied Geophysics, 1978, 116(4): 615-626.
[33]	TOWNEND J, ZOBACK M D. Implications of earthquake focal mechanisms for the frictional strength of the San Andreas fault system[J]. Special Publication of the Geological Society of London, 2001,186:13-21.
[34]	TOWNEND J, ZOBACK M D. Regional tectonic stress near the San Andreas fault in central and southern California[J]. Geophysical Research Letters, 2004, 31(15), L15S11.
[35]	ITÔ H. Rheology of the crust based on long-term creep tests of rocks[J]. Tectonophysics, 1979, 52(1/2/3/4): 629-641.
[36]	ZHOU Y S, HE C R, HUANG X G, et al. Rheological complexity of mafic rocks and effect of mineral component on creep of rocks[J]. Earth Science Frontiers, 2009, 16(1): 76-87.
[37]	周永胜. 基性岩流变实验揭示出大陆下地壳流变的复杂性[J]. 地震地质, 2013, 35(2): 328-346. DOI
[38]	SHI X J, WEN D, BAO X Y, et al. Application of rock creep experiment in calculating the viscoelastic parameters of earth medium[J]. Science in China(Series D), 2006, 49(5): 492-498.
[39]	石耀霖, 曹建玲. 中国大陆岩石圈等效黏滞系数的计算和讨论[J]. 地学前缘, 2008, 15(3): 82-95.
[40]	范桃园, 龙长兴, 杨振宇, 等. 中国大陆现今地应力场黏弹性球壳数值模拟综合研究[J]. 地球物理学报, 2012, 55(4): 1249-1260.
[41]	王清晨, 刘景波, 从柏林. 构造超压能引起超高压变质作用吗?[J]. 科学通报, 1999, 44(21): 2346-2350.
[42]	嵇少丞, 许志琴, 金振民, 等. 石英-柯石英相变研究中若干问题的讨论[J]. 中国科学(地球科学), 2010, 40(7): 822-830.
[43]	吕古贤, 胡宝群, 罗毅甜, 等. 地壳深部“重力-构造力复合压力状态” 研究和大别: 苏鲁超高压变质形成深度的测算[J]. 地学前缘, 2017, 24(2): 1-15. DOI
[44]	武红岭. 高压-超高压变质岩的成岩深度: 争论及评述[J]. 地质论评, 2011, 57(4): 555-564.
[45]	石耀霖, 范桃园. 大洋岩石层拖曳窄条陆壳俯冲的极限尺度分析: 以新西兰南岛和大别山超高压变质带为例[J]. 地球物理学报, 2001, 44(6): 754-760.
[46]	石耀霖, 范桃园. 大洋板块拖曳窄条陆壳俯冲: 大规模超高压变质形成的构造条件[J]. 地质学报, 2002, 76(1): 77-82.
[47]	SIBSON R H. Brittle-failure controls on maximum sustainable overpressure in different tectonic regimes[J]. AAPG Bulletin, 2003, 87(6): 901-908.
[48]	NISHIYAMA N, SUMINO H, UJIIE K. Fluid overpressure in subduction plate boundary caused by mantle-derived fluids[J]. Earth and Planetary Science Letters, 2020, 538: 116199.
[49]	AUDET P, BOSTOCK M G, CHRISTENSEN N I, et al. Seismic evidence for overpressured subducted oceanic crust and megathrust fault sealing[J]. Nature, 2009, 457: 76-78.
[50]	王庆飞, 邓军, 赵鹤森, 等. 造山型金矿研究进展: 兼论中国造山型金成矿作用[J]. 地球科学, 2019, 44(6): 2155-2186.
[51]	SIBSON R. Arterial faults and their role in mineralizing systems[J]. Geoscience Frontiers, 2019, 10(6): 2093-2100. DOI
[52]	舒斌, 郭涛, 吕古贤, 等. 构造应力对焦家金矿床的成矿控制[J]. 现代地质, 1999, 13(4):425-431.
[53]	邓军, 徐守礼, 吕古贤, 等. 胶东西北部断裂构造与成矿作用研究[J]. 现代地质, 1996, 10(4): 502-511.
