再生铅工业园周边土壤重金属分布特征及来源解析

doi:10.19657/j.geoscience.1000-8527.2020.04.03

摘要/Abstract

摘要：

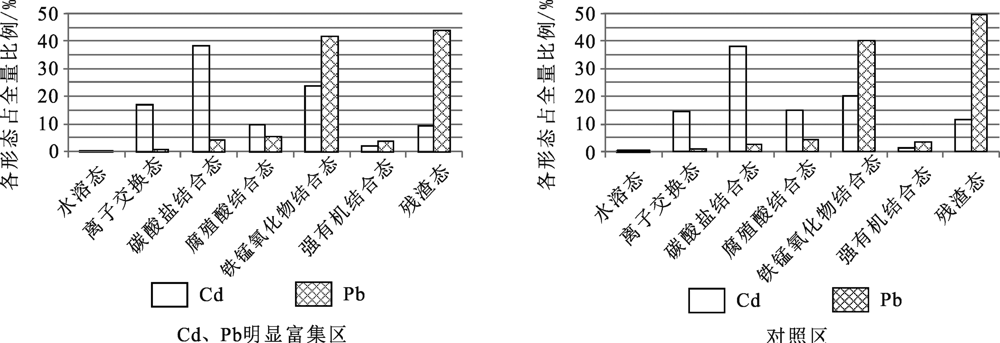

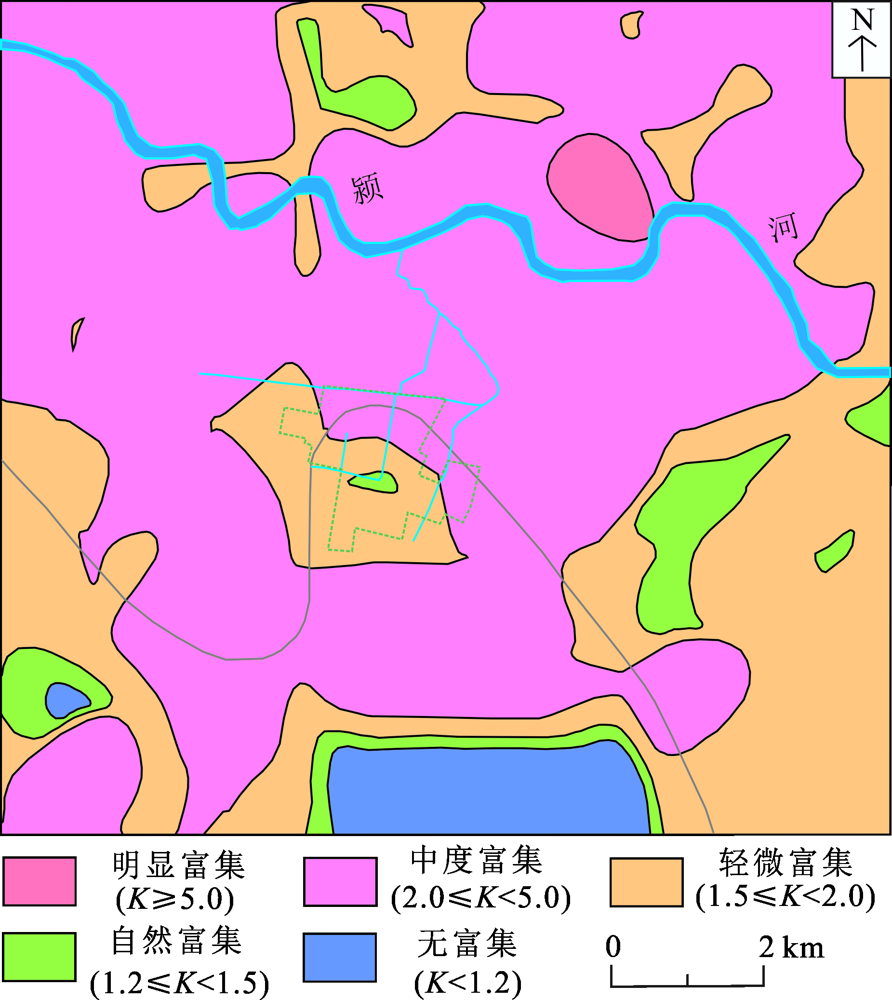

通过对安徽再生铅工业园周边0~20 cm深度的表层土壤及0~300 cm深度的剖面土壤中重金属含量、分布特征、赋存形态的研究及来源解析,发现土壤中Cd、Hg、As、Pb、Cr、Cu、Ni及Zn含量平均值分别为300.4 ng/g、39.45 ng/g、12.22 mg/kg、42.5 mg/kg、75.4 mg/kg、28.5 mg/kg、33.5 mg/kg、74.1 mg/kg,富集元素主要有Cd、Pb及Hg,其中土壤Cd、Pb富集明显受工业活动影响,Hg富集与工业活动无关。土壤Cd明显富集面积为21 km²,影响深度为65 cm。土壤Pb明显富集面积为12 km²,影响深度为20 cm。土壤Hg普遍为中度富集,富集深度为0~65 cm。土壤中Cd以碳酸盐结合态为主,其次为铁锰氧化物结合态,Pb以残渣态、铁锰氧化物结合态为主。Cd的碳酸盐结合态和铁锰氧化物结合态、Pb的残渣态和铁锰氧化物结合态均与其全量呈显著正相关。研究区土壤环境质量较好,仅有9.5%样点Cd含量与5.4%样点Pb含量超过了《GB 15618—2018土壤环境质量农用地土壤污染风险管控标准(试行)》规定的污染风险筛选值。

关键词: 土壤重金属, 富集因子, 赋存形态, 再生铅工业园, 来源解析

Abstract:

In this study, the concentration, spatial distribution, occurrence and sources were analyzed in the top 20 cm soil and two 300 cm soil profiles in and around recycled lead industrial park in Anhui. The results suggest that the average content of Cd, Hg, As, Pb, Cr, Cu, Ni and Zn were 300.4 ng/g, 39.45 ng/g, 12.22 mg/kg, 42.5 mg/kg, 75.4 mg/kg, 28.5 mg/kg, 33.5 mg/kg and 74.1 mg/kg respectively. The most polluted heavy metals were Cd, Pb and Hg. Apart from Hg, Cd and Pb in the top soil mainly came from industrial activity. The Cd polluted soil covered an area of 21 km² with 65 cm depth. Pb polluted soil covered an area of 12 km² with 20 cm depth. Mercury in soil was moderately enriched in the top section of 65 cm. As to the occurrence, Cd were mainly bounded to carbonate, and secondly with iron-manganese oxides. Pb was mainly bound to residual and iron-manganese oxides. The content of Cd in carbonate and iron-manganese oxides and Pb in residual and iron-manganese oxides are positively correlated to their total concentration respectively. The soil quality of the study area is relatively good, as only a few samples (Cd: 9.5%; Pb: 5.4%) with the metal concentration are beyond the GB 15618—2018 standards of soil environmental quality and soil pollution risk control standard for agricultural land.

Key words: soil heavy metal, enrichment factor, speciation, recycled lead industrial park, source analysis

中图分类号:

P595
X142

李朋飞, 刘超, 陶春军, 汪晶, 吴正. 再生铅工业园周边土壤重金属分布特征及来源解析[J]. 现代地质, 2020, 34(04): 663-671.

LI Pengfei, LIU Chao, TAO Chunjun, WANG Jing, WU Zheng. Spatial Distribution and Source Analysis of Heavy Metal Pollution in Soils Around Recycled Lead Industrial Park[J]. Geoscience, 2020, 34(04): 663-671.

图/表 13

参考文献 34

[1]	马溪平, 李法云, 肖鹏飞, 等. 典型工业区周围土壤重金属污染评价及空间分布[J]. 哈尔滨工业大学学报, 2007,39(2):326-329.
[2]	傅倩倩, 王广才. 华北地区某工业场地土壤重金属分布特征[J]. 现代地质, 2012,26(4):829-836.
[3]	尹国庆, 江宏, 王强, 等. 安徽省典型区农用地土壤重金属污染成因及特征分析[J]. 农业环境科学学报, 2018,37(1):96-104.
[4]	ZHANG H, WANG Z F, ZHANG Y L, et al. The effects of the Qinghai-Tibet railway on heavy metals enrichment in soils[J]. Science of the Total Environment, 2012,439:240-248.
[5]	RODRIGUEZ M J A, RAMOS-MIRAS J J, BOLUDA R, et al. Spatial relations of heavy metals in arable and greenhouse soils of a Mediterranean environment region (Spain)[J].Geoderma, 2013,200/201:180-188.
[6]	WU W, WU P, YANG F, et al. Assessment of heavy metal pollution and human health risks in urban soils around an electronics manufacturing facility[J]. Science of the Total Environment, 2018,630:53-61.
[7]	ABRAHIM G M S, PARKER R J. Assessment of heavy metal enrichment factors and the degree of contamination in marine sediments from Tamaki Estuary,Auckland,New Zealand[J]. Environmental Monitoring and Assessment, 2008,136(1/3):227-238.
[8]	吴彦瑜, 胡小英, 彭晓春, 等. 电路板生产厂区土壤重金属垂向分布特征[J]. 中国环境科学, 2013,33(S1):160-164.
[9]	仝双梅, 连国奇, 杨琴, 等. 矿区农田土壤重金属污染评价与研究[J].金属矿山, 2019(6):189-194.
[10]	任文会, 吴文涛, 陈玉, 等. 某废弃化工厂场地土壤重金属污染评价[J]. 合肥工业大学学报(自然科学版), 2017,40(4):533-538.
[11]	图雅日拉, 黄道友, 许超, 等. 废弃冶炼厂重金属镉向周边的扩散及其风险评价[J]. 生态学杂志, 2019,38(10):3086-3092.
[12]	曹恩伟, 王宾, 王敏, 等. 再生铅企业土壤—地下水中重金属污染迁移特征[J]. 环境监控与预警, 2016,8(5):54-58.
[13]	ZHANG K, QIANG C D, LIU J. Spatial distribution characteri-stics of heavy metals in the soil of coal chemical industrial areas[J]. Journal of Soils and Sediments, 2018,18(5):2044-2052.
[14]	ZHANG X Q, ZHAO T, XIAO C H, et al. Analysis of heavy metals in Guizhou soil planting Eucommia ulmoides[J]. China Journal of Chinese Materia Medica, 2019,44(17):3627-3632. DOI URL PMID
[15]	ALSHAHRI F, EL-TAHER A. Assessment of heavy and trace metals in surface soil nearby an oil refinery,Saudi Arabia,using geoaccumulation and pollution indices[J]. Archives of Environmental Contamination and Toxicology, 2018,75(3):390-401.
[16]	骆占斌, 陈浮, 张旺园, 等. 再生铅厂土壤重金属污染及健康风险评价[J]. 环境科学与技术, 2018,41(4):197-204.
[17]	彭怀银, 胡彦, 司友斌, 等. 某再生铅工业园周边土壤重金属的空间分布及来源分析[J]. 土壤, 2014,46(5):869-874.
[18]	常夏源, 童仁军, 司友斌, 等. 某再生铅工业园区周边土壤中铅和镉的生物可给性及其对人体的健康风险评价[J]. 安徽农业大学学报, 2014,41(6):1055-1060.
[19]	RIEUWERTS J S, FARAGO M, CIKRT M, et al. Heavy metal concentrations in and around households near a secondary lead smelter[J]. Environmental Monitoring and Assessment, 1999,58(3):317-335.
[20]	迟清华, 鄢明才. 应用地球化学元素丰度数据手册[M]. 北京: 地质出版社, 2007: 82-83.
[21]	张秀芝, 鲍征宇, 唐俊红. 富集因子在环境地球化学重金属污染评价中的应用[J]. 地质科技情报, 2006,25(1):65-72.
[22]	陈骏, 季峻峰, 仇纲, 等. 陕西洛川黄土化学风化程度的地球化学研究[J]. 中国科学:D辑, 1997,27(6):531-536.
[23]	LIAGHATI T, PREDA M, COX M. Heavy metal distribution and controlling factors within coastal plain sediments,Bells Creek Catchment,Southeast Queensland,Australia[J]. Environment International, 2003,29(7):935-948.
[24]	ZOLLER W H, GLADNEY E S, DUCE R A. Atmospheric concentrations and sources of trace metals at the South Pole[J]. Science, 1974,183(4121):198-200. URL PMID
[25]	刘智杰, 黄丽, 李峰, 等. 长期施肥对土壤颗粒粘粒矿物组成及其演变特征的影响[J]. 矿物学报, 2018,39(5):563-571.
[26]	余涛, 杨忠芳, 钟坚, 等. 土壤中重金属元素Pb、Cd地球化学行为影响因素研究[J]. 地学前缘, 2008,15(5):67-73.
[27]	曹人升, 范明毅, 黄先飞, 等. 金沙燃煤电厂周围土壤有机质与重金属分析[J]. 环境化学, 2017,36(2):397-407.
[28]	师荣光, 张又文, 许萌萌, 等. 天津市郊区土壤重金属的污染评价与来源解析[J]. 农业环境科学学报, 2019,38(5):1069-1078.
[29]	李志涛, 王夏晖, 何俊, 等. 四川省江安县某硫铁矿区周边农田土壤重金属来源解析及污染评价[J]. 农业环境科学学报, 2019,38(6):1272-1279.
[30]	湛天丽, 黄阳, 腾应, 等. 贵州万山汞矿区某农田土壤重金属污染特征及来源解析[J]. 土壤通报, 2017,48(2):474-480.
[31]	李伟迪, 崔云霞, 曾撑撑, 等. 太滆运河流域农田土壤重金属污染特征与来源解析[J]. 环境科学, 2019,40(11):5073-5081.
[32]	蔡奎, 段亚敏, 栾文楼, 等. 河北平原农田土壤重金属元素Pb、Hg地球化学行为的影响因素[J]. 中国地质, 2016,43(4):1420-1428.
[33]	陈江军, 刘波, 李智民, 等. 江汉平原典型场区土壤重金属赋存形态及其影响因素探讨[J]. 资源环境与工程, 2018,32(4):551-556.
[34]	李宗利, 薛澄泽. 污灌土壤中Pb、Cd形态的研究[J]. 农业环境保护, 1994,13(4):152-157.

形态	提取剂	操作条件
水溶态	蒸馏水(pH=7.0)	25 ℃±5 ℃振荡30 min,离心20 min
离子交换态	25 mL 1.0 mol/L MgCl₂溶液(pH=7.0)	25 ℃±5 ℃振荡30 min,离心20 min
碳酸盐结合态	25 mL 1.0 mol/L CH₃COONa溶液(pH=5.0)	25 ℃±5 ℃振荡1 h,离心20 min
腐殖酸结合态	50 mL 0.1 mol/L Na₄P₂O₇溶液(pH=10.0)	25 ℃±5 ℃振荡40 min,离心20 min
铁锰氧化物结合态	50 mL 0.25 mol/L HONH₃Cl-HCl混合溶液	25 ℃±5 ℃振荡1 h,离心20 min
强有机结合态	3 mL 0.02 mol/L HNO₃和5 mL 30%的H₂O₂(pH=2.0)	83 ℃±3 ℃水浴1.5 h,离心20 min
残渣态	盐酸、硝酸、高氯酸混合酸(1+1+1) 5 mL,氢氟酸 5 mL	先120 ℃电热板加热1.0 h,再350 ℃电热板加热3.0 h,3 mL(1+1)盐酸溶解

形态	提取剂	操作条件
水溶态	蒸馏水(pH=7.0)	25 ℃±5 ℃振荡30 min,离心20 min
离子交换态	25 mL 1.0 mol/L MgCl₂溶液(pH=7.0)	25 ℃±5 ℃振荡30 min,离心20 min
碳酸盐结合态	25 mL 1.0 mol/L CH₃COONa溶液(pH=5.0)	25 ℃±5 ℃振荡1 h,离心20 min
腐殖酸结合态	50 mL 0.1 mol/L Na₄P₂O₇溶液(pH=10.0)	25 ℃±5 ℃振荡40 min,离心20 min
铁锰氧化物结合态	50 mL 0.25 mol/L HONH₃Cl-HCl混合溶液	25 ℃±5 ℃振荡1 h,离心20 min
强有机结合态	3 mL 0.02 mol/L HNO₃和5 mL 30%的H₂O₂(pH=2.0)	83 ℃±3 ℃水浴1.5 h,离心20 min
残渣态	盐酸、硝酸、高氯酸混合酸(1+1+1) 5 mL,氢氟酸 5 mL	先120 ℃电热板加热1.0 h,再350 ℃电热板加热3.0 h,3 mL(1+1)盐酸溶解

	项目	Cd	Hg	As	Pb	Cr	Cu	Ni	Zn	pH
研究区表层土壤 (N=147)	最小值	74.5	16.15	7.99	23.2	62.7	20.1	24.9	56.4	5.60
	最大值	2 257.7	141.68	20.14	345.6	98.6	39.3	48.5	105.2	8.60
	中位数	284.1	36.63	11.76	38.3	73.9	27.7	32.7	72.4	8.36
	算术平均值	300.4	39.45	12.22	42.5	75.4	28.5	33.5	74.1
	标准离差	298.6	16.23	2.45	53.5	7.7	4.1	4.7	10.7	0.44
	变异系数	0.81	0.40	0.20	0.95	0.10	0.14	0.14	0.14	0.05
研究区深层土壤算术平均值		108.6	18.38	12.70	22.3	73.3	23.5	33.0	64.4
中国A层土壤算术平均值		97	65	11	26	61	23	27	74
表层土壤/深层土壤		2.77	2.15	0.96	1.91	1.03	1.21	1.02	1.15
表层土壤/全国土壤		3.10	0.61	1.11	1.63	1.24	1.24	1.24	1.00

	项目	Cd	Hg	As	Pb	Cr	Cu	Ni	Zn	pH
研究区表层土壤 (N=147)	最小值	74.5	16.15	7.99	23.2	62.7	20.1	24.9	56.4	5.60
	最大值	2 257.7	141.68	20.14	345.6	98.6	39.3	48.5	105.2	8.60
	中位数	284.1	36.63	11.76	38.3	73.9	27.7	32.7	72.4	8.36
	算术平均值	300.4	39.45	12.22	42.5	75.4	28.5	33.5	74.1
	标准离差	298.6	16.23	2.45	53.5	7.7	4.1	4.7	10.7	0.44
	变异系数	0.81	0.40	0.20	0.95	0.10	0.14	0.14	0.14	0.05
研究区深层土壤算术平均值		108.6	18.38	12.70	22.3	73.3	23.5	33.0	64.4
中国A层土壤算术平均值		97	65	11	26	61	23	27	74
表层土壤/深层土壤		2.77	2.15	0.96	1.91	1.03	1.21	1.02	1.15
表层土壤/全国土壤		3.10	0.61	1.11	1.63	1.24	1.24	1.24	1.00

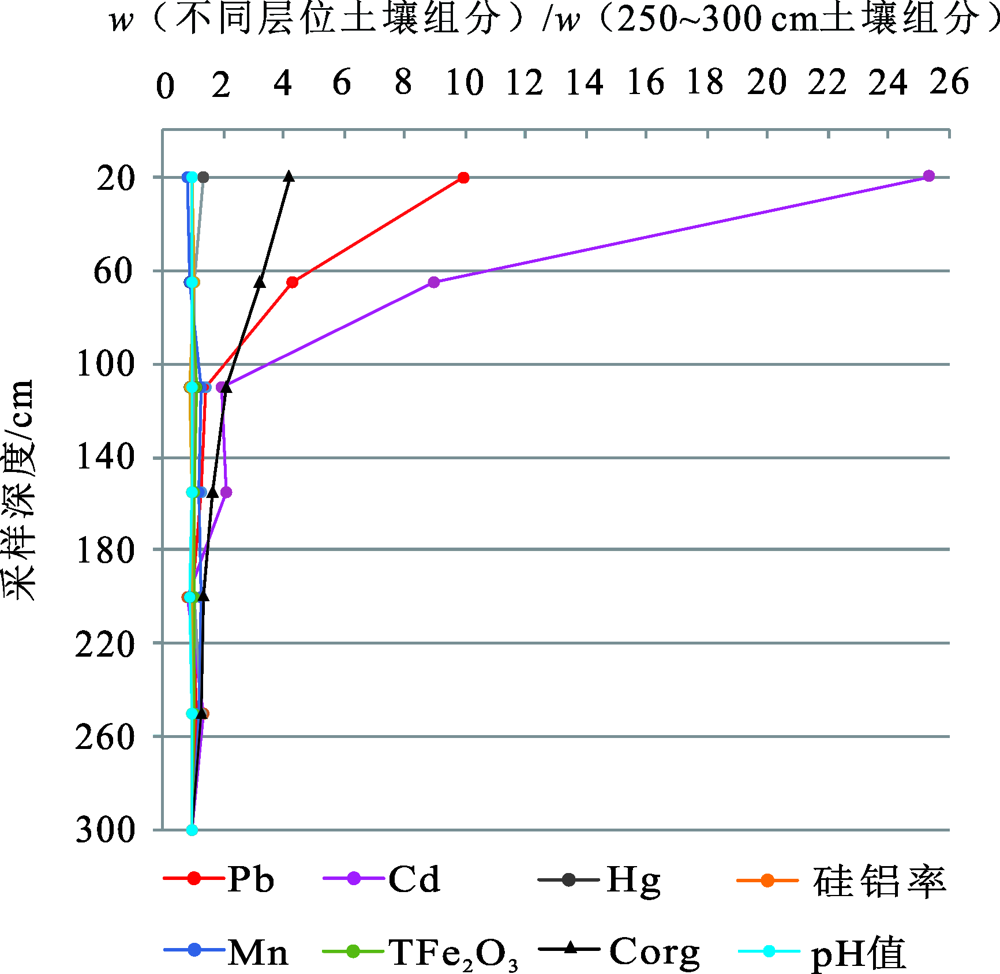

采样深度/cm	Cd(02)	Cd(01)	Pb(02)	Pb(01)	Corg(02)	Corg(01)	Hg(02)	Hg(01)
0~20	25.3	11.8	9.9	8.9	4.2	17.0	1.4	4.1
20~65	9.0	5.5	4.3	3.5	3.3	8.3	1.1	2.2
65~110	2.0	1.0	1.4	1.1	2.1	3.7	1.1	1.3
110~155	2.1	1.2	1.3	1.1	1.6	4.3	1.0	1.2
155~200	0.8	1.0	1.0	1.1	1.4	2.3	1.1	1.0
200~250	1.3	0.8	1.1	1.1	1.3	2.3	1.3	1.0
250~300	1.0	1.0	1.0	1.0	1.0	1.0	1.0	1.0
