Technology of Fine Characterization of Lower-class Fault Based on Seismic Forward Modeling and Well-seismic Combination

Abstract

Abstract:

The development practice of complex fault block reservoir shows that, the lower-class fault controls the distribution of remaining oil obviously, therefore, the fine description of the low-class faults is a key to the research of different types of fault block reservoir development technology. Meanwhile, the development of fault block reservoir is facing more and more complicated geological conditions, that is, the faults, erosion, overlap and syndeposition and other geological phenomena often coexist, which have caused complex stratigraphic contact relationship and fracture system. Aiming at solving this problem, a technology of fine characterization of the lower-class fault and its combination has been formed based on seismic forward modeling and well-seismic combination, such as reconstruction of the stratum contrast pattern by well-seismic combination to guide the accurate fault ridge identification, establishment of lower-class fault seismic identification by the combination of multi-well integrated calibration and seismic forward modeling, well-seismic multi-attribute analysis, and well-control multi-horizon tracking for the fine description of fault edge. Then, a new complex fracture system has been rebuilt in Shahejie Formation of region 2 & 6, Gudong Oilfield, based on this method, which has screened out the confusing relationship between oil and water, and achieved high development performance.

Key words: lower-class fault, seismic forward modeling, well-seismic combination, complex fault blockreservoir

CLC Number:

TE122.1

SHU Ningkai, SONG Li, WANG Xinwen. Technology of Fine Characterization of Lower-class Fault Based on Seismic Forward Modeling and Well-seismic Combination[J]. Geoscience, 2017, 31(02): 338-347.

Figures/Tables 11

Fig.1 Genetic types and geometric features of lower-class fault

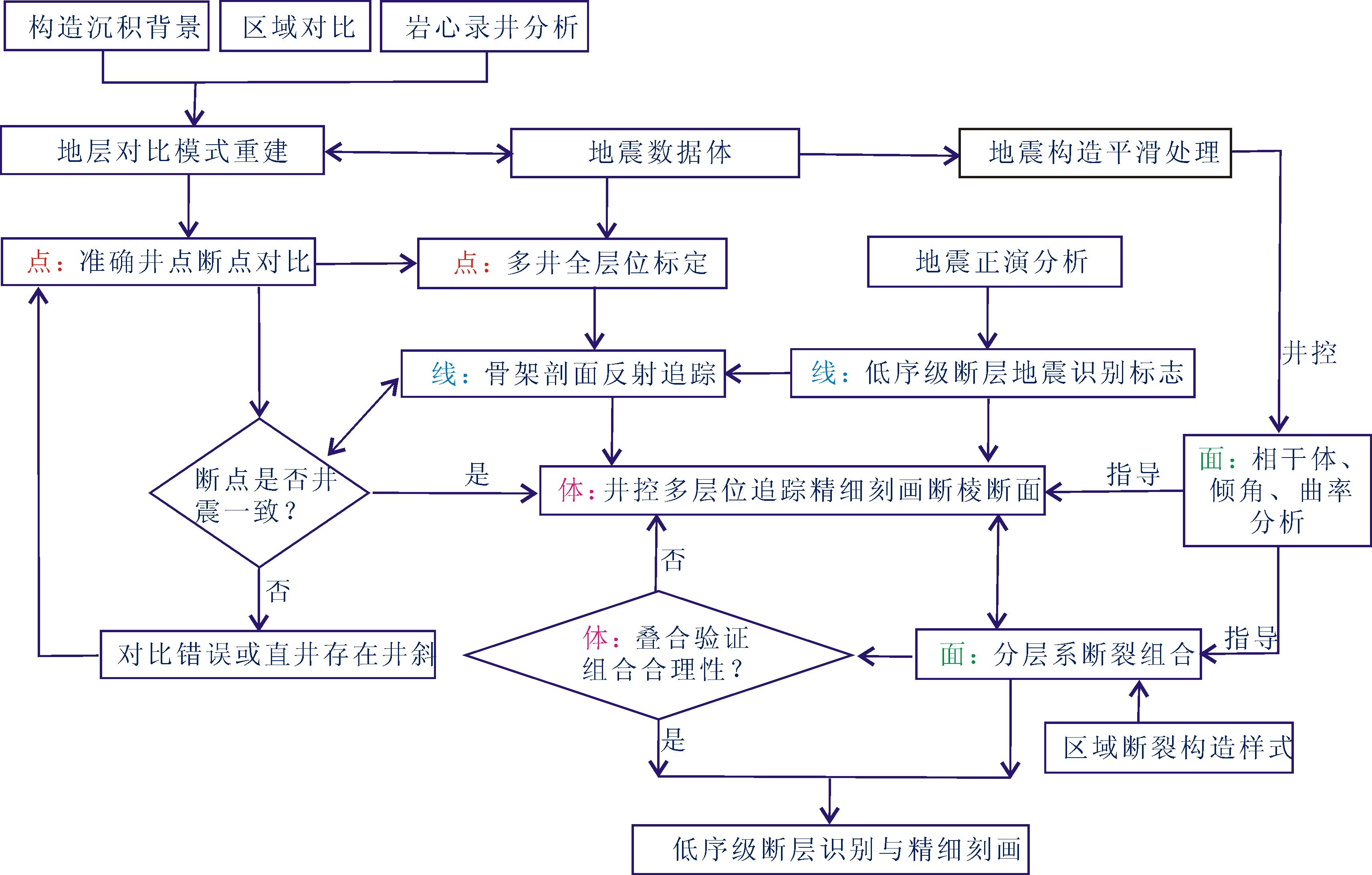

Fig.2 Roadmap of well-controlled seismic analysis for fine characterization of lower-class fault

Fig.3 Stratum contrast pattern in Shahejie Formation of region 2 & 6, Gudong Oilfield

Fig.4 Stratum contrast patterns of fault, overlap, erosion and their identification

Fig.5 Seismic identification of lower-class fault in Shahejie Formation of region 2 & 6, Gudong Oilfield

Fig.6 Identification of lower-class fault in Shahejie Formation of region 2 & 6, Gudong Oilfield

Fig.7 Well-control seismic attribute analysis in Shahejie formation of region 2 & 6, Gudong Oilfield

Fig.8 Well-seismic multi-horizon tracking for the fine description of fault edge

Fig.9 Old-new fracture system comparison in Shahejie Formation of region 2 & 6, Gudong Oilfield

Table 1 Reserve parameters after fault reidentification

断块	地质储量/万吨	采出程度/%	油水界面/m
GD68-X8	11.2	28.5	-2 479
GD69-1	45.7	35.1	-2 470
GD62	63.9	33.5	-2 322
GD62-1	52.5	34.7	-2 331
GD59-3	11.2	33.1	-2 287
GO6-30-1454	31.5	30.8	-2 254
合计	216	32.6

Table 2 Reserve parameters of Closed small fault block formed in fault reidentification

断块	位置	预测地质储量/万吨	油水界面/m
1	GD13-5北	13.1	-2 329
2	GD68-1西	6.5	-2 519
3	GD65-4西	5.1	-2 355
合计		24.7

References 12

[1]	罗群, 黄悍东, 王保华, 等. 低序级断层的成因类型特征与地质意义[J]. 油气地质与采收率, 2007, 14(3):19-21.
[2]	李宏义, 姜振学, 董月霞, 等. 渤海湾盆地南堡凹陷断层对油气运聚的控制作用[J]. 现代地质, 2008, 24(4):755-761.
[3]	王端平, 柳强. 复杂断块油田精细油藏描述[J]. 石油学报, 2000, 21(6):111-116. DOI
[4]	王端平, 杨勇, 许坚, 等. 复杂断块油藏立体开发技术[J]. 油气地质与采收率, 2011, 18(5):54-57.
[5]	陈昭年, 陈发景, 周建生, 等. 黄骅坳陷中北区和歧口凹陷断裂构造特征及古应力分析[J]. 现代地质, 1997, 11(4):472-477.
[6]	陈发景, 逆牵引背斜构造特征和成因[J]. 现代地质, 2008, 22(4):665-668
[7]	马玉歌, 崔世凌, 陈海云. 复杂断块精细构造解释技术与效果[J]. 华北地震科学, 2011, 29(1):10-14.
[8]	张昕, 甘利灯, 刘文岭, 等. 密井网条件下井震联合低序级断层识别方法[J]. 石油地球物理勘探, 2012, 47(3):462-468.
[9]	李占东, 刘义坤, 海东明. 油藏地球物理技术在大庆长垣LS油田的应用[J]. 现代地质, 2013, 27(3):695-718.
[10]	徐亮. 低序级断层的地震识别技术在惠民凹陷辛34断块中的应用[J]. 矿物岩石, 2007, 27(2):86-93.
[11]	甘利灯, 戴晓峰, 张昕, 等. 高含水油田地震油藏描述关键技术[J]. 石油勘探与开发, 2012, 39(3):365-377.
[12]	张亚中. 高精度三维地震精细解释技术在丘陵油田二次开发中的应用[D]. 北京: 中国地质大学(北京), 2010.
