Fe/Ag催化臭氧氧化降解苯酚的研究

doi:10.19657/j.geoscience.1000-8527.2020.061

现代地质 ›› 2021, Vol. 35 ›› Issue (03): 711-719.DOI: 10.19657/j.geoscience.1000-8527.2020.061

Fe/Ag催化臭氧氧化降解苯酚的研究

侯颖¹(), 徐锦明²(), 李平¹, 毛君妍³, 张原浩¹, 宿俊杰¹, 陈男¹, 胡伟武¹

1.中国地质大学(北京) 水资源与环境学院,北京 100083
2.中国地质大学(北京) 数理学院,北京 100083
3.南京理工大学材料科学与工程学院,江苏南京 210094

收稿日期:2019-01-18 修回日期:2020-06-23 出版日期:2021-06-23 发布日期:2021-06-24
通讯作者: 徐锦明
作者简介:徐锦明,男,讲师,1975年出生,应用化学专业,主要从事基础化学课程教学与教育研究。Email: xujm@cugb.edu.cn。
侯颖,女,本科生,1998年出生,水文与水资源工程专业,主要从事水文学的研究。Email: hyymsh@foxmail.com。
基金资助:
中国地质大学(北京)大学生创新创业训练计划项目(2018AX101)

Fe/Ag Catalytic Ozonation for the Degradation of Phenol

HOU Ying¹(), XU Jinming²(), LI Ping¹, MAO Junyan³, ZHANG Yuanhao¹, SU Junjie¹, CHEN Nan¹, HU Weiwu¹

1. School of Water Resources and Environment, China University of Geosciences, Beijing 100083, China
2. School of Science, China University of Geosciences, Beijing 100083, China
3. School of Materials Science and Engineering, Nanjing University of Science and Technology, Nanjing,Jiangsu 210094, China

Received:2019-01-18 Revised:2020-06-23 Online:2021-06-23 Published:2021-06-24
Contact: XU Jinming

摘要/Abstract

摘要：

为研究双金属催化剂去除有机污染物的效果,采用自制Fe/Ag催化剂对模拟苯酚废水进行了臭氧催化氧化处理。通过扫描电子显微镜(SEM)、比表面积分析仪(BET)和X射线衍射(XRD)对催化剂进行表征,并考察了催化剂类型、催化剂投加量和溶液初始pH值对降解效果的影响规律。结果表明:与Fe相比,Fe/Ag比表面积减少了22.8%,在Fe/Ag/O₃与含苯酚废水的反应体系中,反应遵循臭氧直接作用和活性自由基(·OH、·O₂、H₂O₂)共同作用的机理;Fe/Ag在反应过程中体现出良好的协同作用;300 mg/L的苯酚模拟废水在pH=6.3、Fe/Ag投加量为1.00 g的最优反应条件下经60 min反应,苯酚与化学需氧量(COD)去除率比单独臭氧氧化分别提高了18.4%和29.4%。

关键词: 臭氧催化氧化, Fe/Ag, 苯酚, 协同作用, 自由基

Abstract:

To study the effect of bimetallic catalysts on the removal of organic pollutants, the simulated phenol wastewater was subjected to Fe/Ag catalytic ozonation treatment. The catalyst was characterized by various characterization methods (SEM, BET and XRD), and the degradation effects due to the different catalyst types and dosages and initial pH were evaluated. The results show that compared with Fe, the specific surface area of Fe/Ag is reduced by 22.8%. In the reaction system of Fe/Ag/O₃ and phenol-containing wastewater, the reaction follows the mechanism of direct action of ozone and the free radicals (·OH, ·O₂, H₂O₂). Fe/Ag and ozone show good synergistic effects in the reaction. The phenol and COD removal rate were, respectively, 18.4% and 29.4% higher than that of ozone oxidation alone (initial phenol concentration=300 mg/L, catalysts dosage=1.00 g, and initial solution pH=6.3).

Key words: Catalytic ozonation, Fe/Ag, phenol degradation, synergistic effect, free radical

中图分类号:

侯颖, 徐锦明, 李平, 毛君妍, 张原浩, 宿俊杰, 陈男, 胡伟武. Fe/Ag催化臭氧氧化降解苯酚的研究[J]. 现代地质, 2021, 35(03): 711-719.

HOU Ying, XU Jinming, LI Ping, MAO Junyan, ZHANG Yuanhao, SU Junjie, CHEN Nan, HU Weiwu. Fe/Ag Catalytic Ozonation for the Degradation of Phenol[J]. Geoscience, 2021, 35(03): 711-719.

图/表 10

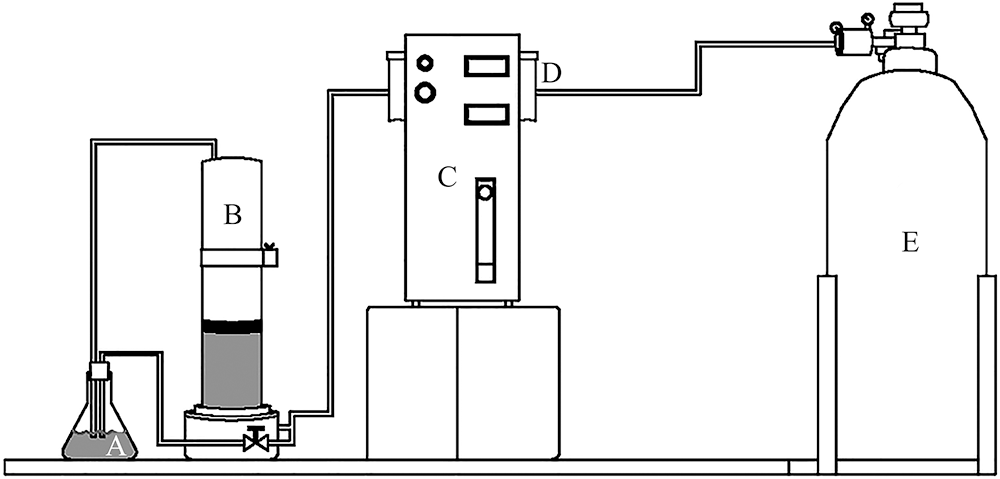

图1 臭氧化反应装置图 A.尾气吸收装置;B.反应发生器;C.臭氧发生器;D.流量计;E.氧气瓶

Fig.1 Schematic diagram showing the ozonation reactor setup

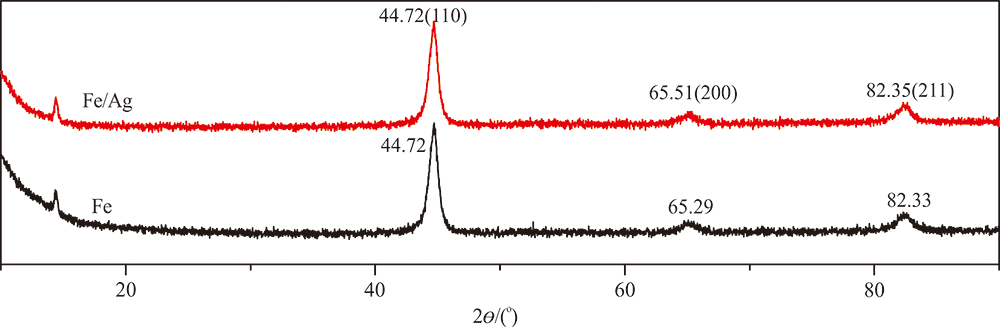

图2 Fe/Ag和Fe的XRD衍射图

Fig.2 XRD pattern of Fe/Ag and Fe

表1 Fe和Fe/Ag的BET数据

Table 1 BET data of Fe and Fe/Ag

催化剂类型	比表面积/(m²/g)	孔隙体积/(cm²/g)	孔径/nm
Fe	5.159	0.012	2.708
Fe/Ag	3.985	0.006	2.708

图3 Fe和Fe/Ag的SEM图像 (a)Fe,5 000倍;(b)Fe/Ag,5 000倍

Fig.3 SEM images of Fe and Fe/Ag

表2 单独臭氧氧化与催化臭氧化影响下去除苯酚和COD的反应速率常数(K)

Table 2 Reaction rate constant (K) for the removal of phenol and COD, with added catalyst and ozone alone

类型	苯酚		COD
类型	K/min^-1	R²	K/min^-1	R²
单独臭氧	0.027	0.990	0.010	0.940
Fe	0.037	0.994	0.016	0.935
Fe/Ag	0.098	0.973	0.022	0.952

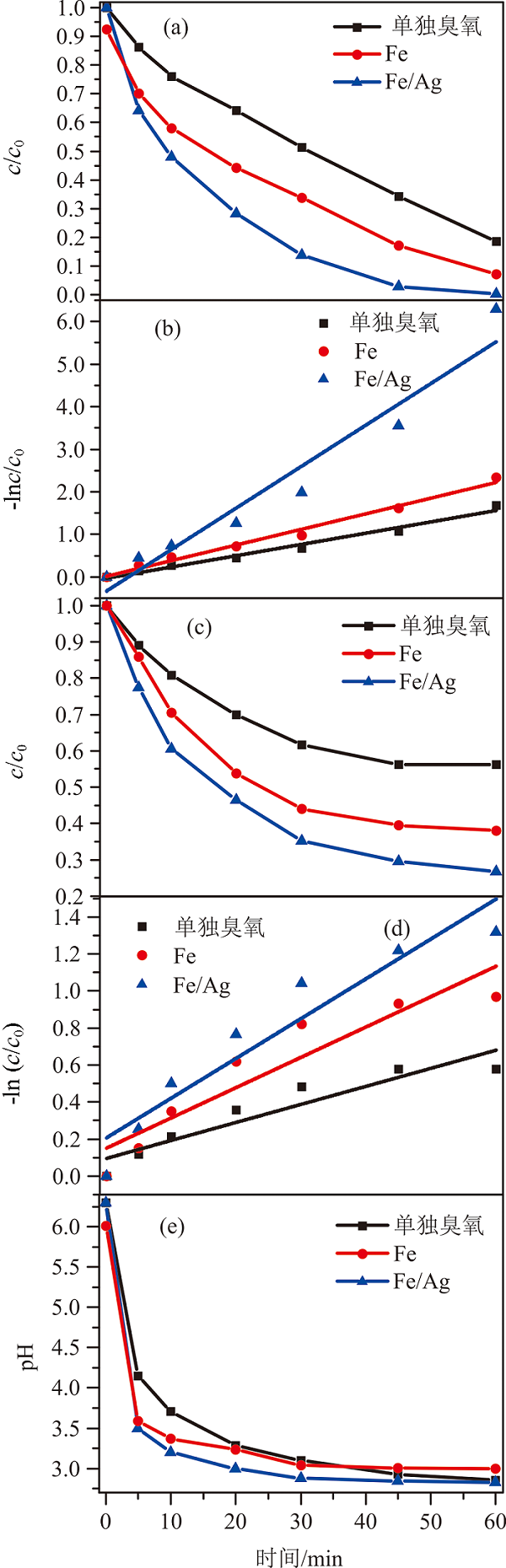

图4 单独臭氧氧化与催化臭氧化的影响 (a)对苯酚去除率的影响;(b)苯酚降解反应动力学;(c)对COD去除率的影响;(d)COD降解反应动力学;(e)对pH的影响

Fig.4 Effects of ozone oxidation alone and catalyst ozonation

表3 Fe/Ag投加量影响下去除苯酚和COD的反应速率常数(K)

Table 3 Fe/Ag ozonation reaction rate constant (K) for the removal of phenol and COD with different catalyst dosage

投加量/g	苯酚		COD
投加量/g	K/min^-1	R²	K/min^-1	R²
0.25	0.086	0.971	0.012	0.902
0.50	0.065	0.977	0.016	0.928
1.00	0.098	0.973	0.022	0.952
2.50	0.061	0.985	0.022	0.936

图5 Fe/Ag投加量的影响 (a)对苯酚去除率的影响;(b)苯酚降解反应动力学;(c)对COD去除率的影响;(d)COD降解反应动力学;(e)对pH的影响

Fig.5 Effect of Fe/Ag dosage

图6 初始pH对苯酚和COD去除效果的影响 (a)对苯酚去除率的影响;(b)苯酚降解反应动力学;(c)对COD去除率的影响;(d)COD降解反应动力学;(e)对pH的影响

Fig.6 Effect of initial pH on the removal of phenol and COD

图7 投加自由基捕获剂对苯酚和COD去除率的影响

Fig.7 Removal of phenol and COD by three different radical traps

参考文献 34

[1]	RIBEIRO A R, NUNES O C, PEREIRA M F R, , et al. An overview on the advanced oxidation processes applied for the treatment of water pollutants defined in the recently launched Directive 2013/39/EU[J]. Environment International, 2015, 75:33-51. DOI URL
[2]	HUANOSTA-GUTIÉRREZ T, DANTAS R F, RAMÍREZ-ZAMORA R M, et al. Evaluation of copper slag to catalyze advanced oxidation processes for the removal of phenol in water[J]. Journal of Hazardous Materials, 2012, 213:325-330.
[3]	杨琦, 尚海涛, 王雪莲, 等. Fenton 氧化膜-生物反应器出水中丙烯腈的实验研究[J]. 现代地质, 2004, 18(4): 586-590.
[4]	盛益之, 张旭, 翟晓波, 等. 化学氧化技术异位处理地下水非水相有机污染物中试研究[J]. 现代地质, 2019, 33(2): 422-430.
[5]	CHAICHANAWONG J, YAMAMOTO T, OHMORI T. Enhancement effect of carbon adsorbent on ozonation of aqueous phenol[J]. Journal of Hazardous Materials, 2010, 175(1/3): 673-679. DOI URL
[6]	IKHLAQ A, BROWN D R, KASPRZYK-HORDERN B. Catalytic ozonation for the removal of organic contaminants in water on ZSM-5 zeolites[J]. Applied Catalysis B: Environmental, 2014, 154:110-122.
[7]	WANG J, BAI Z. Fe-based catalysts for heterogeneous catalytic ozonation of emerging contaminants in water and wastewater[J]. Chemical Engineering Journal, 2017, 312:79-98. DOI URL
[8]	SCAFETTA M D, MAY S J. Effect of cation off-stoichiometry on optical absorption in epitaxial LaFeO₃ films[J]. Physical Chemistry Chemical Physics, 2017, 19(16): 10371-10376. DOI URL
[9]	HE H, LIU Y, WU D, et al. Ozonation of dimethyl phthalate catalyzed by highly active Cu_xO-Fe₃O₄ nanoparticles prepared with zero-valent iron as the innovative precursor[J]. Environmental Pollution, 2017, 227:73-82. DOI URL
[10]	XIAO J, XIE Y, CAO H. Organic pollutants removal in wastewater by heterogeneous photocatalytic ozonation[J]. Chemosphere, 2015, 121:1-17. DOI URL
[11]	李来胜, 祝万鹏. 催化臭氧化——一种有前景的水处理高级氧化技术[J]. 给水排水, 2001, 27(6): 26-29.
[12]	宋明光, 王筠松, 郭耘, 等. 改性二氧化钛负载贵金属Ru催化剂催化降解苯胺溶液[J]. 催化学报, 2017, 38(7): 1155-1165.
[13]	许珊珊, 林存旺, 丁亚磊, 等. MgO/活性炭催化臭氧化降解有机物的作用机制[J]. 环境科学, 2018, 39(2): 838-843.
[14]	胡应模, 李梦灿, 安文峰, 等. 新型高分子改性剂的合成及含电气石功能聚合物的制备[J]. 现代地质, 2019, 33(1): 246-250.
[15]	蒲清三, 张祝豪, 史硕, 等. COD快速消解法测定地表水体中的总氮[J]. 三峡生态环境监测, 2017, 2(1): 58-63.
[16]	陈东洋, 冯家力, 张昊, 等. 固相萃取/高效液相色谱法测定饮用水中苯并(a)芘及双酚A[J]. 分析测试学报, 2015, 34(7): 848-851.
[17]	LUO J, WU J, LIU Z, et al. Controlled synjournal of porous Co₃O₄ nanostructures for efficient electrochemical sensing of glucose[J]. Journal of Nanomaterials, 2019, 19:1-7.
[18]	KANDAMBETH S, VENKATESH V, SHINDE D B, et al. Self-templated chemically stable hollow spherical covalent organic framework[J]. Nature Communications, 2015, 6:6786. DOI URL
[19]	HAMMOUDA S B, ZHAO F, SAFAEI Z, et al. Degradation and mineralization of phenol in aqueous medium by heterogeneous monopersulfate activation on nanostructured cobalt based-perovskite catalysts ACoO₃(A=La, Ba, Sr and Ce): Characterization, kinetics and mechanism study[J]. Applied Catalysis B: Environmental, 2017, 215:60-73. DOI URL
[20]	陈昕海, 陈星, 王小丽, 等. Nd-Er/ZnO-TiO₂光催化剂制备及对酸性品红的光催化降解效应[J]. 三峡生态环境监测, 2018, 3(1): 41-46.
[21]	王益平, 蓝月存, 饶义飞, 等. NiO/AC催化臭氧氧化去除水中的苯酚[J]. 环境工程学报, 2010, 4(11): 2441-2445.
[22]	HUANG C P, HUANG Y H. Comparison of catalytic decomposition of hydrogen peroxide and catalytic degradation of phenol by immobilized iron oxides[J]. Applied Catalysis A: General, 2008, 346(1/2): 140-148. DOI URL
[23]	XU B, QI F, ZHANG J, et al. Cobalt modified red mud catalytic ozonation for the degradation of bezafibrate in water: catalyst surface properties characterization and reaction mechanism[J]. Chemical Engineering Journal, 2016, 284:942-952. DOI URL
[24]	SUN J, MENG X, SHI Y, et al. A novel catalyst of Cu-Bi-V-O complex in phenol hydroxylation with hydrogen peroxide[J]. Journal of Catalysis, 2000, 193(2): 199-206. DOI URL
[25]	董玉明, 王光丽, 蒋平平, 等. 陶瓷粉体催化臭氧化降解水中苯酚[J]. 水处理技术, 2010, 36(10): 28-31.
[26]	贾彦博, 王红青, 韩里明. 液相色谱-串联质谱法快速测定饮用水中6种雌激素[J]. 分析测试学报, 2011, 30(7): 808-812.
[27]	KASPRZYK-HORDERN B, ZIÓŁEK M, NAWROCKI J. Catalytic ozonation and methods of enhancing molecular ozone reactions in water treatment[J]. Applied Catalysis B: Environmental, 2003, 46(4): 639-669. DOI URL
[28]	SCHMITT G L, PIETRZYK D J. Liquid chromatographic separation of inorganic anions on an alumina column[J]. Analytical Chemistry, 1985, 57(12): 2247-2253. DOI URL
[29]	BAI Z, YANG Q, WANG J. Catalytic ozonation of sulfamethazine antibiotics using Fe₃O₄/multiwalled carbon nanotubes[J]. Environmental Progress & Sustainable Energy, 2018, 37(2): 678-685.
[30]	SUH M, BAGUS P S, PAK S, et al. Reactions of hydroxyl radicals on titania, silica, alumina, and gold surfaces[J]. The Journal of Physical Chemistry B, 2000, 104(12): 2736-2742. DOI URL
[31]	VALDÉS H, TARDÓN R F, ZAROR C A. Methylene blue removal from contaminated waters using heterogeneous catalytic ozonation promoted by natural zeolite: mechanism and kinetic approach[J]. Environmental Technology, 2012, 33(16): 1895-1903. DOI URL
[32]	HOIGNÉ J, BADER H. Rate constants of reactions of ozone with organic and inorganic compounds in water—I: non-dissociating organic compounds[J]. Water Research, 1983, 17(2): 173-183. DOI URL
[33]	MA J, SUI M, ZHANG T, et al. Effect of pH on MnO_x/GAC catalyzed ozonation for degradation of nitrobenzene[J]. Water Research, 2005, 39(5): 779-786. DOI URL
[34]	VON GUNTEN U. Ozonation of drinking water: Part I. Oxidation kinetics and product formation[J]. Water Research, 2003, 37(7): 1443-1467. DOI URL
