鲁西地区新太古代晚期正长-二长花岗岩成因及地质意义

doi:10.19657/j.geoscience.1000-8527.2022.04.18

摘要/Abstract

摘要：

鲁西地区位于华北克拉通东部,是研究区域太古宙演化的重要地区。以鲁西地区西南部出露的正长-二长花岗岩为研究对象,系统开展了岩石学、地球化学、锆石U-Pb年龄与Hf同位素组成研究。结果表明,该正长-二长花岗岩为钙碱性、过铝质。锆石U-Pb年龄揭示正长-二长花岗岩侵位于~2 540~2 530 Ma;锆石Hf同位素组成表明其主体由~2.70 Ga的TTG类岩石熔融形成,但再循环的古老地壳组分也参与了岩浆产生过程。微量元素和同位素组成模拟计算结果表明,正长-二长花岗岩是由97%的新生TTG地壳组分部分熔融和3%的变质表壳岩部分熔融物混合形成。结合区域特征,我们认为正长-二长花岗岩形成于伸展构造环境中,该区新太古代晚期岩浆作用与板片俯冲后回撤作用有关,板片回撤过程所致的软流圈上涌为此类岩石的岩浆产生提供了热源。

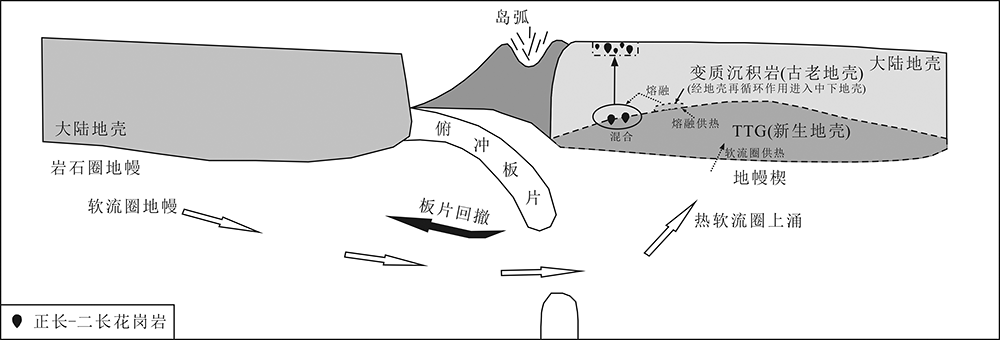

关键词: 华北克拉通, 正长-二长花岗岩, 新太古代晚期, 板片回撤, 鲁西地区

Abstract:

The Western Shandong is located in the east of North China Craton, which is an important area to study the Archean evolution.Petrology, geochemistry and zircon U-Pb dating and Hf isotopic composition were studied on the syeno-monzogranite in the southwest of Western Shandong Province.The syeno-monzogranite is characterized by calc-alkaline and peraluminous affinities.Zircon U-Pb dating shows that the syeno-monzogra-nite emplaced at~2 540 Ma to~2 530 Ma.Zircon Hf isotopic compositions show that they were primarily molten by TTG rocks of~2.70 Ga, and there is recycled ancient crustal component. The mixing calculation results under constraints of isotopic and trace element compositions confirm that the primary magma of syeno-monzogranite is composed of the mixing of 97% of the juvenile TTG crustal material after partial melting and 3% of metamorphic supracrustal rocks after partial melting.Combined with previous studies, we propose that the syeno-monzogranite was formed in an extensional tectonic environment.The late Neoarchean magmatism in Western Shandong was related to slab rollback.The upwelling of asthenosphere caused by the rollback provided heat source for the formation of this group of rocks.

Key words: North China Craton, syeno-monzogranite, late Neoarchean, rollback, Western Shandong

中图分类号:

P597
P588.12

杨帆, 陈岳龙, 于洋. 鲁西地区新太古代晚期正长-二长花岗岩成因及地质意义[J]. 现代地质, 2022, 36(04): 1155-1172.

YANG Fan, CHEN Yuelong, YU Yang. Genesis and Geological Significance of Late Archean Syeno-monzogranite in Western Shandong Province[J]. Geoscience, 2022, 36(04): 1155-1172.

图/表 14

参考文献 97

[1]	FU J H, LIU S W, CAWOOD P A, et al. Neoarchean magmatic arc in the Western Liaoning Province, northern North China Craton: Geochemical and isotopic constraints from sanukitoids and associated granitoids[J]. Lithos, 2018, 322:296-311. DOI URL
[2]	LAURENT O, DOUCELANCE R, MARTIN H, et al. Differentiation of the late-Archaean sanukitoid series and some implications for crustal growth: Insights from geochemical modelling on the Bulai pluton, Central Limpopo Belt, South Africa[J]. Precambrian Research, 2013, 227(3):186-203. DOI URL
[3]	MOYEN J F, LAURENT O. Archaean tectonic systems: A view from igneous rocks[J]. Lithos, 2018, 302:99-125.
[4]	SUN G Z, LIU S W, GAO L, et al. Neoarchean sanukitoids and associated rocks from the Tengzhou-Pingyi intrusive complex, North China Craton: Insights into petrogenesis and crust-mantle interactions[J]. Gondwana Research, 2019, 68:50-68. DOI URL
[5]	LAURENT O, MARTIN H, MOYEN J F, et al. The diversity and evolution of late-Archean granitoids: Evidence for the onset of “modern-style” plate tectonics between 3.0 and 2.5 Ga[J]. Lithos, 2014, 205:208-235. DOI URL
[6]	LAURENT O, ZEH A. A linear Hf isotope-age array despite different granitoid sources and complex Archean geodynamics: Example from the Pietersburg block (South Africa)[J]. Earth and Planetary Science Letters, 2015, 430:326-338. DOI URL
[7]	LIU S W, PAN Y M, LI J H, et al. Geological and isotopic geochemical constraints on the evolution of the Fuping Complex, North China Craton[J]. Precambrian Reach, 2002, 117(1/2):41-56.
[8]	LIU S W, LI J H, PAN Y M, et al. An Archean continental block in the Taihangshan and Hengshan regions: Constraints from geochronology and geochemistry[J]. Progress in Natural Science-Materials International, 2002, 12(8):568-576.
[9]	LIU S W, PAN Y M, XIE Q L, et al. Archean geodynamics in the Central Zone, North China Craton: constraints from geochemistry of two contrasting series of granitoids in the Fuping and Wutai complexes[J]. Precambrian Research, 2004, 130(1/2/3/4):229-249. DOI URL
[10]	LIU S W, TIAN W, LU Y J, et al. Geochemistry, Nd isotopic characteristics of metamorphic complexes in northern Hebei: Implications for crustal accretion[J]. Acta Geologica Sinica, 2006, 80(6):807-818. DOI URL
[11]	LIU S W, WANG W, BAI X. Geological events of Early Precambrian complex in North Chaoyang area, Liaoning Province[J]. Acta Petrologica Sinica, 2010, 26(7):1993-2004.
[12]	LIU S W, SANTOSH M, WANG W, et al. Zircon U-Pb chronology of the Jianping Complex: Implications for the Precambrian crustal evolution history of the northern margin of North China Craton[J]. Gondwana Research, 2011, 20(1):48-63. DOI URL
[13]	LIU S W, LU Y J, WANG W, et al. Petrogenesis of the Neoarchean granitoid gneisses in northern Hebei Province[J]. Acta Petrologica Sinica, 2011, 27(4):909-921.
[14]	WAN Y S, LIU D Y, WANG S J, et al. Juvenile magmatism and crustal recycling at the end of the Neoarchean in Western Shandong Province, North China Craton: Evidence from SHRIMP zircon dating[J]. American Journal of Science, 2010, 310(10):1503-1552. DOI URL
[15]	WAN Y S, DONG C Y, LIU D Y, et al. Zircon ages and geochemistry of late Neoarchean syenogranites in the North China Craton: A review[J]. Precambrian Research, 2012, 222:265-289.
[16]	WANG M J, LIU S W, WANG W, et al. Petrogenesis and tectonic implications of the Neoarchean North Liaoning tonalitic-trondhjemitic gneiss complex of the North China Craton, North China[J]. Journal of Asian Earth Sciences, 2016, 131:12-39. DOI URL
[17]	WANG M J, LIU S W, FU J H, et al. Neoarchean DTTG gneisses in southern Liaoning Province and their constraints on crustal growth and the nature of the Liao-Ji Belt in the Eastern Block[J]. Precambrian Research, 2017, 303:183-207. DOI URL
[18]	WANG W, LIU S W, CAWOOD P A, et al. Late Neoarchean subduction-related crustal growth in the Northern Liaoning region of the North China Craton: evidence from 2.55-2.50 Ga granitoid gneisses[J]. Precambrian Research, 2016, 281:200-223. DOI URL
[19]	WANG W, LIU S W, CAWOOD P A, et al. Late Neoarchean crust-mantle geodynamics: Evidence from Pingquan Complex of the Northern Hebei Province, North China Craton[J]. Precambrian Research, 2017, 303:470-493. DOI URL
[20]	WU M L, ZHAO G C, SUN M, et al. A synthesis of geochemistry and Sm-Nd isotopes of Archean granitoid gneisses in the Jiaodong terrane: Constraints on petrogenesis and tectonic evolution of the Eastern Block, North China Craton[J]. Precambrian Research, 2014, 255:885-899. DOI URL
[21]	BREAKS F W, MOORE J M. The Ghost Lake Batholith, Superior Province of northwestern Ontario; a fertile, S-type, peraluminous granite-rare-element pegmatite system[J]. Canadian Mineralogist, 1992, 30:835-875.
[22]	FENG R, KERRICH R. Geodynamic evolution of the southern Abitibi and Pontiacterranes: evidence from geochemistry of grani-toid magma series (2 700-2 630 Ma)[J]. Canadian Journal of Earth Science, 1992, 29(10):2266-2286. DOI URL
[23]	SISSON T W, RATAJESKI K, HANKINS W B, et al. Voluminous granitic magmas from common basaltic sources[J]. Contributions to Mineralogy and Petrology, 2005, 148(6):635-661. DOI URL
[24]	FROST C D, FROST B R, KIRKWOOD R, et al. The tonalite-trondhjemite-granodiorite (TTG) to granodiorite-granite (GG) transition in the late Archean plutonic rocks of the central Wyoming Province[J]. Canadian Journal of Earth Sciences, 2006, 43(10):1419-1444. DOI URL
[25]	WATKINS J M, CLEMENS J D, TRELOAR P J. Archaean TTGs as sources of younger granitic magmas: melting of sodic metatonalites at 0.6-1.2 GPa[J]. Contributions to Mineralogy and Petrology, 2007, 154(1):91-110. DOI URL
[26]	DE ALMEIDA J D C, DALL’AGNOL R, Leite A A D. Geochemistry and zircon geochronology of the Archean granite suites of the Rio Maria granite-greenstone terrane, Carajás Province, Brazil[J]. Journal of South American Earth Sciences, 2013, 42:103-126. DOI URL
[27]	WAN Y S, DONG C Y, WANG S J, et al. Middle Neoarchean magmatism in Western Shandong, North China Craton: SHRIMP zircon dating and LA-ICP-MS Hf isotope analysis[J]. Precambrian Research, 2014, 255:865-884. DOI URL
[28]	HU Y L, LIU S W, SUN G Z, et al. Petrogenesis of the Neoarchean granitoids and crustal oxidation states in the Western Shandong Province, North China Craton[J]. Precambrian Research, 2019, 334:105446. DOI URL
[29]	WAN Y S, DONG C Y, REN P, et al. Spatial and temporal distribution, compositional characteristics and formation and evolution of Archean TTG rocks in the North China Craton: A synthesis[J]. Acta Petrologica Sinica, 2017, 33(5):1405-1419.
[30]	LIU D Y, NUTMAN A P, COMPSTON W, et al. Remnants of ≥3 800 Ma crust in the Chinese part of the Sino-Korean craton[J]. Geology, 1992, 20(4):339-342. DOI URL
[31]	LONG Y J, YANG W, LIN Y T, et al. Sub-micron trace elemental distributions and U-Pb dating of zircon from the oldest rock in the Anshan area, North China Craton[J]. Precambrian Research, 2018, 322:1-17. DOI URL
[32]	WAN Y S, LIU D Y, NUTMAN A, et al. Multiple 3.8-3.1 Ga tectono-magmatic events in a newly discovered area of ancient rocks (the Shengousi Complex), Anshan, North China Craton[J]. Journal of Asian Earth Sciences, 2012, 54/55:18-30. DOI URL
[33]	ZHAO G C, SUN M, WILDE S A, et al. Late Archean to Paleoproterozoic evolution of the North China Craton: Key issues revisited[J]. Precambrian Research, 2005, 136(2):177-202. DOI URL
[34]	ZHAI M G, SANTOSH M. The early Precambrian odyssey of the North China Craton: A synoptic overview[J]. Gondwana Research, 2011, 20(1):6-25. DOI URL
[35]	ZHAI M G, SANTOSH M. Metallogeny of the North China Craton: Link with secular changes in the evolving Earth[J]. Gondwana Research, 2013, 24(1):275-297. DOI URL
[36]	ZHAO G C, SUN M, WILDE S A, et al. A Paleo-Mesoproterozoic supercontinent: assembly, growth and breakup[J]. Earth-Science Reviews, 2004, 67(1/2):91-123. DOI URL
[37]	CONDIE K C. Episodic continental growth models: afterthoughts and extensions[J]. Tectonophysics, 2000, 322(1/2):153-162. DOI URL
[38]	CONDIE K C, BELOUSOVA E, GRIFFIN W L, et al. Granitoid events in space and time: Constraints from igneous and detrital zircon age spectra[J]. Gondwana Research, 2009, 15(3/4):228-242. DOI URL
[39]	WAN Y S, LIU D Y, WANG W, et al. Provenance of Meso-to Neoproterozoic cover sediments at the Ming Tombs, Beijing, North China Craton: An integrated study of U-Pb dating and Hf isotopic measurement of detrital zircons and whole-rock geochemistry[J]. Gondwana Research, 2011, 20(1):219-242. DOI URL
[40]	GAO L, LIU S W, SUN G Z, et al. Petrogenesis of late Neoarchean high-K granitoids in the Western Shandong terrane, North China Craton, and their implications for crust-mantle interactions[J]. Precambrian Research, 2018, 315:138-161. DOI URL
[41]	WANG W, ZHANG X, WANG S J, et al. Geochronology and geochemistry of Neoarchean granitoids from the Western Shandong Province, North China Craton, implications for crustal evolution and cratonization[J]. Precambrian Research, 2017, 303:749-763. DOI URL
[42]	WANG W, ZHAI M G, WANG S J, et al. Neoarchean crustal evolution in Western Shandong Province of the North China Craton: The role of 2.7-2.6 Ga magmatism[J]. Precambrian Research, 2016, 285:170-185. DOI URL
[43]	PENG T P, WILDE S A, FAN W M, et al. Neoarchean siliceous high-Mg basalt (SHMB) from the Taishan granite-greenstone terrane, Eastern North China Craton: Petrogenesis and tectonic implications[J]. Precambrian Research, 2013, 228:233-249. DOI URL
[44]	WANG Y J, ZHANG Y Z, ZHAO G C, et al. Zircon U-Pb geochronological and geochemical constraints on the petrogenesis of the Taishan sanukitoids (Shandong): Implications for Neoarchean subduction in the Eastern Block, North China Craton[J]. Precambrian Research, 2009, 174(3/4):273-286. DOI URL
[45]	PENG T P, FAN W M, PENG B X. Geochronology and geochemistry of late Archean adakitic plutons from the Taishan granite-greenstone Terrain: Implications for tectonic evolution of the eastern North China Craton[J]. Precambrian Research, 2012, 208:53-71
[46]	万渝生, 董春艳, 颉颃强, 等. 华北克拉通太古宙研究若干进展[J]. 地球学报, 2015, 36(6):685-700.
[47]	STRECKEISEN A. Classification and nomenclature of plutonic rocks recommendations of the IUGS subcommission on the syste-matics of igneous rocks[J]. Geologische Rundschau, 1974, 63: 773-786. DOI URL
[48]	宋彪, 张玉海, 万渝生, 等. 锆石SHRIMP样品靶制作、年龄测定及有关现象讨论[J]. 地质论评, 2002, 48(S1):26-30.
[49]	侯可军, 李延河, 邹天人, 等. LA-MC-ICP-MS锆石Hf同位素的分析方法及地质应用[J]. 岩石学报, 2007, 23(10):2595-2604.
[50]	JACKSON S E, PEARSON N J, GRIFFIN W L, et al. The application of laser ablation-inductively coupled plasma-mass spectrometry to in situ U-Pb zircon geochronology[J]. Chemical Geo-logy, 2004, 211(1/2): 47-69.
[51]	LIU Y S, GAO S, GAO C G, et al. Garnet-rich granulite xenoliths from the Hannuoba basalts, North China: Petrogenesis and implications for the Mesozoic crust-mantle interaction[J]. Journal of Earth Science, 2010, 21(5):669-691. DOI URL
[52]	SLÁMA J, KOLER J, CONDON D J, et al. Plešovice zircon-A new natural reference material for U-Pb and Hf isotopic microanalysis[J]. Chemical Geology, 2008, 249(1/2):1-35. DOI URL
[53]	LUDWIG K R. ISOPLOT v. 3.0: A Geochronological Toolkit for Microsoft Excel[M]. Berkeley: Berkeley Geochronology Center, 2003, 39:1-70.
[54]	GENG J Z, QIU K F, GOU Z Y, et al. Tectonic regime switchover of Triassic Western Qinling Orogen: Constraints from LA-ICP-MS zircon U-Pb geochronology and Lu-Hf isotope of Dangchuan intrusive complex in Gansu, China[J]. Chemie Der Erde-Geochemistry, 2017, 77(4):637-651. DOI URL
[55]	CHU N C, TAYLOR R N, CHAVAGNAC V, et al. Hf isotope ratio analysis using multi-collector inductively coupled plasma mass spectrometry: an evaluation of isobaric interference corrections[J]. Journal of Analytical Atomic Spectrometry, 2002, 17(12):1567-1574. DOI URL
[56]	ELHLOU S, BELOUSOVA E, GRIFFIN W L, et al. Trace element and isotopic composition of GJ-red zircon standard by laser ablation[J]. Geochimica et Cosmochimica Acta, 2006, 70(18):A158-A158.
[57]	RUDNICK R L, GAO S. Composition of the Continental Crust[M]. Amsterdam: Elsevier Science Ltd, 2003, 3:1-64.
[58]	SUN W D, MCDONOUGH W F. Chemical and isotopic systematics of oceanic basalts: Implications for mantle composition and processes[J]. Geological Society London, Special Publications, 1989, 42(1):313-345. DOI URL
[59]	HOSKIN P W O, Schaltegger U. The composition of zircon and igneous and metamorphic petrogenesis[J]. Reviews in Mineralogy and Geochemistry, 2003, 53(1):27-62. DOI URL
[60]	MOYEN J F, MARTIN H, JAYANANDA M, et al. Late Archaean granites: a typology based on the Dharwar Craton (India)[J]. Precambrian Research, 2003, 127(1/2/3):103-123. DOI URL
[61]	ROLLINSON H R. Using Geochemical Data:Evaluation, Presentation, Interpretation[M]. London: Longman Scientific and Technical, 1993, 1-344.
[62]	MANIAR P D, PICCOLI P M. Tectonic discrimination of granitoids[J]. Geological Society of American Bulletin, 1989, 101(5):635-643. DOI URL
[63]	TAYLOR S R, MCLENNAN S M. The continental crust: Its composition and evolution[J]. The Journal of Geology, 1985, 94(4):57-72.
[64]	JAHN B M, AUVRAY B, SHEN Q H, et al. Archean crustal evolution in China: The Taishan complex, and evidence for juvenile crustal addition from long-term depleted mantle[J]. Precambrian Research, 1988, 38(4):381-403. DOI URL
[65]	WAN Y S, LIU D Y, WANG S J, et al. Similar to 2.7 Ga ju-venile crust formation in the North China Craton (Taishan-Xintai area, Western Shandong Province): Further evidence of an understated event from U-Pb dating and Hf isotopic composition of zircon[J]. Precambrian Research, 2011, 186(1/2/3/4):169-180. DOI URL
[66]	SUN G Z, LIU S W, SANTOSH M, et al. Thickness and geothermal gradient of Neoarchean continental crust: Inference from the southeastern North China Craton[J]. Gondwana Research, 2019, 73:16-31. DOI URL
[67]	YU Y, LI D P, CHEN Y L, et al. Mantle cooling and cratonization of Archean lithosphere by continuous plate subduction: Constraints from TTGs, sanukitoids, and high-K granites, eastern North China Craton[J]. Precambrian Research, 2021, 353:106042. DOI URL
[68]	BLICHERT-TOFT J, ALBARÈDE F. The Lu-Hf isotope geochemistry of chondrites and the evolution of the mantle-crust system[J]. Earth and Planetary Science Letters, 1998, 148(1/2):243-258. DOI URL
[69]	GRIFFIN W L, PEARSON N J, BELOUSOVA E, et al. The Hf isotope composition of cratonic mantle: LAM-MC-ICPMS analysis of zircon megacrysts in kimberlites[J]. Geochimica et Cosmochimica Acta, 2000, 64(1):133-147. DOI URL
[70]	SÖDERLUND U, PATCHETT P J, VERVOORT J D, et al. The ¹⁷⁶Lu decay constant determined from Lu-Hf and U-Pb isotope systematics of Precambrian mafic intrusions[J]. Earth and Pla-netary Science Letters, 2004, 219(3/4):311-324.
[71]	HU Y L, LIU S W, GAO L, et al. Diverse middle Neoarchean granitoids and the delamination of thickened crust in the Western Shandong terrane, North China Craton[J]. Lithos, 2019, 348/349:105178. DOI URL
[72]	曹国权. 鲁西早前寒武纪地质[M]. 北京: 地质出版社, 1996: 1-210.
[73]	POLAT A, HOFMANN A W, ROSING M T. Boninite-like volcanic rocks in the 3.7-3.8 Ga Isua greenstone belt, West Greenland: geochemical evidence for intra-oceanic subduction zone processes in the early Earth[J]. Chemical Geology, 2002, 184(3/4):231-254. DOI URL
[74]	POLAT A, HOFMANN A W. Alteration and geochemical patterns in the 3.7-3.8 Ga Isua greenstone belt, West Greenland[J]. Precambrian Research, 2003, 126(3/4):197-218. DOI URL
[75]	WINCHESTER J A, FLOYD P A. Geochemical discrimination of different magma series and their differentiation products using immobile elements[J]. Chemical Geology, 1977, 20(4):325-343. DOI URL
[76]	FOWLER M B, KOCKS H, DARBYSHIRE D P F, et al. Petrogenesis of high Ba-Sr plutons from the Northern highlands terrane of the British Caledonian Province[J]. Lithos, 2008, 105(1/2):129-148. DOI URL
[77]	MARTIN H, SMITHIES R H, RAPP R, et al. An overview of adakite, tonalite-trondhjemite-granodiorite (TTG), and sanukitoid: relationships and some implications for crustal evolution[J]. Lithos, 2005, 79(1/2):1-24. DOI URL
[78]	GAO P, ZHENG Y F, ZHAO Z F. Experimental melts from crustal rocks: A lithochemical constraint on granite petrogenesis[J]. Lithos, 2016, 266/267:133-157. DOI URL
[79]	CHAPPELL B W. Aluminium saturation in I-and S-type granites and the characterization of fractionated haplogranites[J]. Lithos, 1999, 46(3):535-551. DOI URL
[80]	万渝生, 刘敦一, 殷小艳, 等. 鞍山地区铁架山花岗岩及表壳岩的锆石SHRIMP年代学和Hf同位素组成[J]. 岩石学报, 2007, 23(2):241-252.
[81]	张德会, 赵伦山. 地球化学[M]. 北京: 地质出版社, 2013: 1-364.
[82]	WU M L, ZHAO G C, SUN M, et al. Petrology and P-T path of the Yishui mafic granulites: Implications for tectonothermal evolution of the Western Shandong Complex in the Eastern Block of the North China Craton[J]. Precambrian Research, 2012, 222:312-324.
[83]	ZHAO G C, WILDE S A, CAWOOD P A, et al. Thermal evolution of Archean basement rocks from the eastern part of the North China Craton and its bearing on tectonic setting[J]. International Geology Review, 1998, 40(8):706-721. DOI URL
[84]	ZHAO G C, WILDE S A, CAWOOD P A, et al. Archean blocks and their boundaries in the North China Craton: lithological, geochemical, structural and P-T path constraints and tectonic evolution[J]. Precambrian Research, 2001, 107(1/2):45-73. DOI URL
[85]	GAO L, LIU S W, SUN G Z, et al. Neoarchean crust-mantle interactions in the Yishui terrane, south-eastern margin of the North China Craton: Constraints from geochemistry and zircon U-Pb-Hf isotopes of metavolcanic rocks and high-K granitoids[J]. Gondwana Research, 2019, 65:97-124. DOI URL
[86]	LI S S, SANTOSH M, CEN K, et al. Neoarchean convergent margin tectonics associated with microblock amalgamation in the North China Craton: Evidence from the Yishui Complex[J]. Gondwana Research, 2016, 38:113-131. DOI URL
[87]	BOHLEN S R. On the formation of granulites[J]. Journal of Metamorphic Geology, 2007, 9(3):223-229. DOI URL
[88]	LIOU P, SHAN H X, LIU F, et al. Petrogenesis of Neoarchean metavolcanic rocks in Changyukou, Northwestern Hebei: Implications for the transition stage from a compressional to an extensional regime for the North China Craton[J]. Lithos, 2017, 274:53-72.
[89]	ZHANG Z M, DONG X, XIANG H, et al. Building of the deep Gangdese arc, South Tibet: Paleocene plutonism and granulite-facies metamorphism[J]. Journal of Petrology, 2013, 54(12):2547-2580. DOI URL
[90]	YU Y, LI D P, CHEN Y L, et al. Late Neoarchean slab rollback in the Jiaoliao microblock, North China Craton: Constraints from zircon U-Pb geochronology and geochemistry of the Yishui complex, Western Shandong Province[J]. Lithos, 2019, 342:315-332.
[91]	GAO L, LIU S W, HU Y L, et al. Late Neoarchean geodynamic evolution: Evidence from the metavolcanic rocks of the Western Shandong terrane, North China Craton[J]. Gondwana Research, 2019, 80:303-320. DOI URL
[92]	YANG L H, HOU G T, GAO L, et al. Neoarchaean subduction tectonics in Western Shandong Province, China: Evidence from geochemistry and zircon U-Pb-Hf isotopes of metabasalts[J]. Geological Journal, 2019, 55(5):3575-3600. DOI URL
[93]	PEARCE J A, HARRIS N B W, TINDLE A G. Traceelement discrimination diagrams for the tectonic interpretation of granitic rocks[J]. Journal of Petrology, 1984, 25(4):956-983. DOI URL
[94]	WAN Y S, WANG S J, LIU D Y, et al. Redefinition of depositional ages of Neoarchean supracrustal rocks in Western Shandong Province, China: SHRIMP U-Pb zircon dating[J]. Gondwana Research, 2012, 21(4)768-784. DOI URL
[95]	LIU S, FENG C X, SANTOSH M, et al. Origin and geodynamics of Neoarchean mafic dikes in Western Shandong, Northeastern North China Craton: Geochronological, geochemical, and Nd-Hf isotopic evidence[J]. Journal of Geology, 2019, 127(1):61-79. DOI URL
[96]	WANG W, LIU S W, SANTOSH M, et al. Neoarchean intra-oceanic arc system in the Western Liaoning Province: Implications for Early Precambrian crustal evolution in the Eastern Block of the North China Craton[J]. Earth-Science Reviews, 2015, 150:329-364. DOI URL
[97]	WYMAN D A, KERRICH R, POLAT A. Assembly of Archean cratonic mantle lithosphere and crust: plume-arc interaction in the Abitibi-Wawa subduction-accretion complex[J]. Precambrian Research, 2002, 115(1/2/3/4):37-62. DOI URL

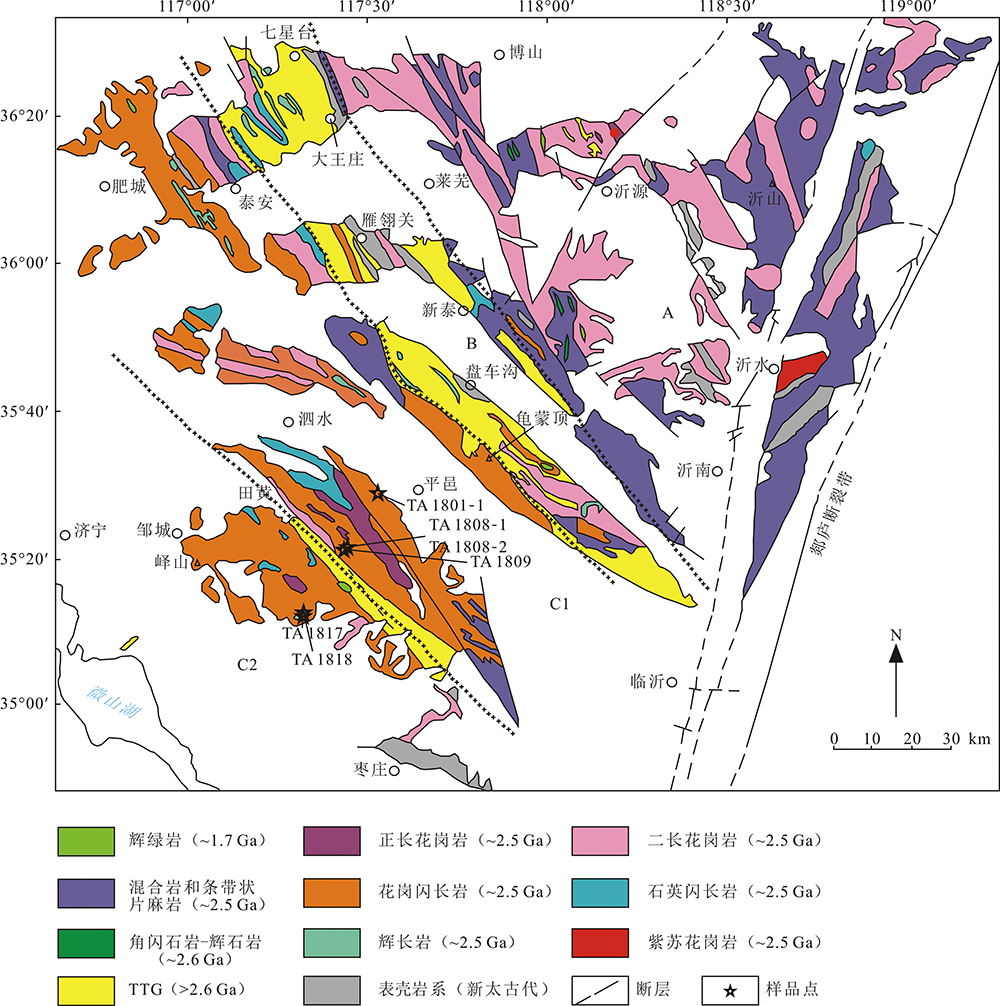

序号	样品号	岩性	采样位置	经度	纬度
1	TA1801-1	中细粒正长花岗岩	花果峪村(平邑—郑家峪剖面)	E117°31.746'	N35°28.811'
2	TA1808-1	细粒正长花岗岩	庞庄—城前镇剖面	E117°26.631'	N35°21.618'
3	TA1808-2	弱片麻状似斑状二长花岗岩	庞庄—城前镇剖面	E117°26.631'	N35°21.618'
4	TA1809	片麻状二长花岗岩	庞庄—城前镇剖面	E117°26.164'	N35°21.319'
5	TA1817	细粒二长花岗岩	东郭镇—店子镇—城前镇	E117°19.281'	N35°12.237'
6	TA1818	细粒正长花岗岩	东郭镇—店子镇—城前镇	E117°19.378'	N35°12.745'

序号	样品号	岩性	采样位置	经度	纬度
1	TA1801-1	中细粒正长花岗岩	花果峪村(平邑—郑家峪剖面)	E117°31.746'	N35°28.811'
2	TA1808-1	细粒正长花岗岩	庞庄—城前镇剖面	E117°26.631'	N35°21.618'
3	TA1808-2	弱片麻状似斑状二长花岗岩	庞庄—城前镇剖面	E117°26.631'	N35°21.618'
4	TA1809	片麻状二长花岗岩	庞庄—城前镇剖面	E117°26.164'	N35°21.319'
5	TA1817	细粒二长花岗岩	东郭镇—店子镇—城前镇	E117°19.281'	N35°12.237'
6	TA1818	细粒正长花岗岩	东郭镇—店子镇—城前镇	E117°19.378'	N35°12.745'

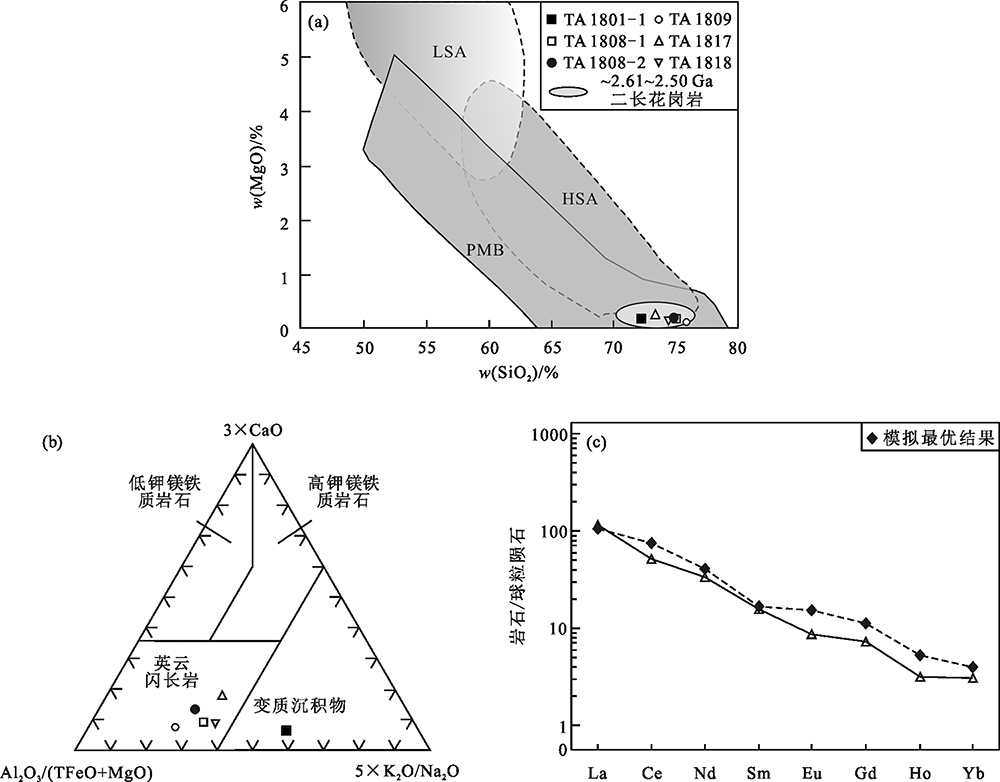

样品号	SiO₂	TiO₂	Al₂O₃	TFe₂O₃	MnO	MgO	CaO	Na₂O	K₂O		P₂O₅	烧失量		总量	K₂O/Na₂O
TA1801-1	72.16	0.34	14.3	1.42	0.01	0.19	0.55	2.60	7.67		0.02	0.60		102.81	2.95
TA1808-1	75.92	0.07	12.96	0.72	<0.01	0.14	0.85	3.08	5.41		0.02	0.43		101.36	1.76
TA1808-2	74.47	0.08	13.78	0.89	<0.01	0.20	1.02	3.68	4.64		0.02	0.61		100.65	1.26
TA1809	76.64	0.06	13.04	0.73	0.01	0.12	0.61	3.80	4.61		0.01	0.50		101.34	1.21
TA1817	73.00	0.16	14.26	1.45	0.01	0.29	1.08	3.87	4.56		0.05	0.86		100.77	1.18
TA1818	74.44	0.10	13.57	1.11	0.01	0.16	0.61	3.60	5.32		0.03	0.71		101.14	1.48
样品号	A/CNK	A/NK	Mg^#	Li	Be	Sc	Ti	V	Cr		Mn	Co		Ni	Cu
TA1801-1	1.09	1.13	21	6.25	1.00	3.36	2 113.57	13.16	6.44		113.48	1.27		4	4.66
TA1808-1	1.11	1.18	28	2.73	1.58	0.98	522.45	11.75	4.38		31.01	1.13		3	17.8
TA1808-2	1.15	1.24	31	2.96	0.84	0.89	534.65	7.50	2.67		52.76	1.10		2	1.93
TA1809	1.11	1.16	25	4.93	1.87	1.31	452.95	6.20	1.23		85.33	0.75		1	4.95
TA1817	1.16	1.26	28	22.96	1.77	1.95	974.31	11.09	2.72		113.67	1.48		2	5.05
TA1818	1.11	1.16	22	7.04	1.90	1.65	669.47	9.02	0.50		122.68	1.08		1	3.7
样品号	Zn	Ga	As	Se	Rb	Sr	Y	Zr	Nb		Mo	Sn		Cs	Ba
TA1801-1	15.60	15.94	1.60	0.73	229	142	14.5	354	19.3		0.82	2.39		3.39	578
TA1808-1	6.95	13.06	0.43	0.13	175	276	3.53	78.6	7.12		4.9	0.53		2.44	386
TA1808-2	10.85	12.03	0.41	0.08	146	304	2.79	70.8	2.25		0.17	0.26		2.44	1 179
TA1809	11.86	14.90	0	0.12	156	102	3.93	58.3	5.99		0.07	0.59		2.70	266
TA1817	26.54	15.50	1.16	0.31	196	206	4.95	133	6.77		0.09	1.00		2.87	839
TA1818	21.47	14.95	1.03	0.3	282	135	7.57	123	10.5		0.22	1.30		5.11	712
样品号	La	Ce	Pr	Nd	Sm	Eu	Gd	Tb	Dy		Ho	Er		Tm	Yb
TA1801-1	26.50	83.1	7.44	26.8	4.99	0.71	3.39	0.54	3.11		0.62	1.82		0.31	2.07
TA1808-1	5.05	15.6	1.17	4.36	0.8	0.20	0.65	0.09	0.56		0.11	0.36		0.06	0.44
TA1808-2	13.60	15.5	2.08	6.85	0.95	0.41	0.62	0.08	0.43		0.09	0.28		0.05	0.35
TA1809	4.18	14.0	1.02	3.87	0.69	0.17	0.61	0.09	0.52		0.11	0.35		0.06	0.48
TA1817	27.30	31.7	4.94	15.5	2.3	0.50	1.48	0.2	0.96		0.18	0.52		0.08	0.52
TA1818	20.10	41.5	3.70	12.5	2.08	0.42	1.65	0.24	1.28		0.25	0.70		0.11	0.74
样品号	Lu	Hf	Ta	Pb	Th	U	REE	(La/Yb)_N		(La/Sm)_N			(Gd/Yb)_N			δEu
TA1801-1	0.27	8.84	2.1	19.6	10.9	3.28	161.69	9.18		3.43			1.35			0.53
TA1808-1	0.07	3.21	0.71	18.8	22.5	6.00	29.54	8.23		4.08			1.22			0.85
TA1808-2	0.06	1.80	0.24	15.3	17.7	1.99	41.33	27.9		9.24			1.47			1.63
TA1809	0.08	2.69	0.64	20.6	18.7	3.54	26.24	6.25		3.91			1.05			0.80
TA1817	0.08	3.38	0.63	16.0	15.3	1.60	86.16	37.66		7.66			2.35			0.83
TA1818	0.11	3.51	1.48	13.3	19.6	2.62	85.41	19.48		6.24			1.84			0.69

样品号	SiO₂	TiO₂	Al₂O₃	TFe₂O₃	MnO	MgO	CaO	Na₂O	K₂O		P₂O₅	烧失量		总量	K₂O/Na₂O
TA1801-1	72.16	0.34	14.3	1.42	0.01	0.19	0.55	2.60	7.67		0.02	0.60		102.81	2.95
TA1808-1	75.92	0.07	12.96	0.72	<0.01	0.14	0.85	3.08	5.41		0.02	0.43		101.36	1.76
TA1808-2	74.47	0.08	13.78	0.89	<0.01	0.20	1.02	3.68	4.64		0.02	0.61		100.65	1.26
TA1809	76.64	0.06	13.04	0.73	0.01	0.12	0.61	3.80	4.61		0.01	0.50		101.34	1.21
TA1817	73.00	0.16	14.26	1.45	0.01	0.29	1.08	3.87	4.56		0.05	0.86		100.77	1.18
TA1818	74.44	0.10	13.57	1.11	0.01	0.16	0.61	3.60	5.32		0.03	0.71		101.14	1.48
样品号	A/CNK	A/NK	Mg^#	Li	Be	Sc	Ti	V	Cr		Mn	Co		Ni	Cu
TA1801-1	1.09	1.13	21	6.25	1.00	3.36	2 113.57	13.16	6.44		113.48	1.27		4	4.66
TA1808-1	1.11	1.18	28	2.73	1.58	0.98	522.45	11.75	4.38		31.01	1.13		3	17.8
TA1808-2	1.15	1.24	31	2.96	0.84	0.89	534.65	7.50	2.67		52.76	1.10		2	1.93
TA1809	1.11	1.16	25	4.93	1.87	1.31	452.95	6.20	1.23		85.33	0.75		1	4.95
TA1817	1.16	1.26	28	22.96	1.77	1.95	974.31	11.09	2.72		113.67	1.48		2	5.05
TA1818	1.11	1.16	22	7.04	1.90	1.65	669.47	9.02	0.50		122.68	1.08		1	3.7
样品号	Zn	Ga	As	Se	Rb	Sr	Y	Zr	Nb		Mo	Sn		Cs	Ba
TA1801-1	15.60	15.94	1.60	0.73	229	142	14.5	354	19.3		0.82	2.39		3.39	578
TA1808-1	6.95	13.06	0.43	0.13	175	276	3.53	78.6	7.12		4.9	0.53		2.44	386
TA1808-2	10.85	12.03	0.41	0.08	146	304	2.79	70.8	2.25		0.17	0.26		2.44	1 179
TA1809	11.86	14.90	0	0.12	156	102	3.93	58.3	5.99		0.07	0.59		2.70	266
TA1817	26.54	15.50	1.16	0.31	196	206	4.95	133	6.77		0.09	1.00		2.87	839
TA1818	21.47	14.95	1.03	0.3	282	135	7.57	123	10.5		0.22	1.30		5.11	712
样品号	La	Ce	Pr	Nd	Sm	Eu	Gd	Tb	Dy		Ho	Er		Tm	Yb
TA1801-1	26.50	83.1	7.44	26.8	4.99	0.71	3.39	0.54	3.11		0.62	1.82		0.31	2.07
TA1808-1	5.05	15.6	1.17	4.36	0.8	0.20	0.65	0.09	0.56		0.11	0.36		0.06	0.44
TA1808-2	13.60	15.5	2.08	6.85	0.95	0.41	0.62	0.08	0.43		0.09	0.28		0.05	0.35
TA1809	4.18	14.0	1.02	3.87	0.69	0.17	0.61	0.09	0.52		0.11	0.35		0.06	0.48
TA1817	27.30	31.7	4.94	15.5	2.3	0.50	1.48	0.2	0.96		0.18	0.52		0.08	0.52
TA1818	20.10	41.5	3.70	12.5	2.08	0.42	1.65	0.24	1.28		0.25	0.70		0.11	0.74
样品号	Lu	Hf	Ta	Pb	Th	U	REE	(La/Yb)_N		(La/Sm)_N			(Gd/Yb)_N			δEu
TA1801-1	0.27	8.84	2.1	19.6	10.9	3.28	161.69	9.18		3.43			1.35			0.53
TA1808-1	0.07	3.21	0.71	18.8	22.5	6.00	29.54	8.23		4.08			1.22			0.85
TA1808-2	0.06	1.80	0.24	15.3	17.7	1.99	41.33	27.9		9.24			1.47			1.63
TA1809	0.08	2.69	0.64	20.6	18.7	3.54	26.24	6.25		3.91			1.05			0.80
TA1817	0.08	3.38	0.63	16.0	15.3	1.60	86.16	37.66		7.66			2.35			0.83
TA1818	0.11	3.51	1.48	13.3	19.6	2.62	85.41	19.48		6.24			1.84			0.69

样品分析点号	w_B/(μg/g)			同位素比值						年龄/Ma
样品分析点号	Th	U	Th/U	²⁰⁷Pb/ ²⁰⁶Pb	1σ	²⁰⁷Pb/ ²³⁵U	1σ	²⁰⁶Pb/ ²³⁸U	1σ	²⁰⁷Pb/ ²⁰⁶Pb	1σ	²⁰⁷Pb/ ²³⁵U	1σ	²⁰⁶Pb/ ²³⁸U	1σ
TA1808-2-01	983	1 557	0.631 3	0.211 5	0.005 5	1.260 0	0.070 0	0.043 2	0.003 0	2 917	39	828	32	273	19
TA1808-2-02	1 173	840	1.396 4	0.191 5	0.004 3	1.880 0	0.050 0	0.071 2	0.001 2	2 755	39	1 074	19	443	7
TA1808-2-03	4 770	3 420	1.394 7	0.258 9	0.003 4	1.235 0	0.025 5	0.034 6	0.000 9	3 240	21	817	12	219	6
TA1808-2-04	461	656	0.702 7	0.173 3	0.002 8	7.480 0	0.130 0	0.313 0	0.003 6	2 590	28	2 171	16	1 755	18
TA1808-2-05	3 450	4 570	0.754 9	0.224 2	0.003 2	1.487 0	0.027 5	0.048 1	0.001 2	3 011	24	925	11	303	7
TA1808-2-06	2 060	3 110	0.662 4	0.245 7	0.004 1	0.935 0	0.045 0	0.027 6	0.001 4	3 157	26	670	23	176	9
TA1808-2-07	3 190	3 770	0.846 2	0.201 5	0.003 6	1.420 0	0.050 0	0.051 1	0.002 5	2 839	28	897	21	321	15
TA1808-2-08	244	283	0.862 2	0.169 5	0.002 6	8.310 0	0.130 0	0.355 5	0.003 7	2 553	26	2 265	15	1 961	17
TA1808-2-09	704	1 184	0.594 6	0.180 0	0.004 0	1.420 0	0.050 0	0.057 2	0.002 0	2 653	38	897	21	359	12
TA1808-2-10	3 460	1 700	2.035 3	0.240 0	0.003 2	1.671 0	0.046 0	0.050 5	0.001 5	3 120	24	998	18	318	9
TA1808-2-11	6 180	6 800	0.908 8	0.219 8	0.003 5	1.170 0	0.065 0	0.038 6	0.002 6	2 979	31	787	31	244	16
TA1808-2-12	1 221	1 460	0.836 3	0.218 6	0.003 7	1.519 0	0.045 0	0.050 4	0.001 8	2 970	31	938	19	317	11
TA1808-2-13	228	228	1.000 0	0.205 2	0.006 0	3.400 0	0.125 0	0.120 2	0.003 9	2 868	48	1 504	31	732	22
TA1808-2-14	3 030	2 720	1.114 0	0.202 8	0.002 9	1.560 0	0.050 0	0.055 8	0.001 9	2 849	22	954	20	350	12
TA1808-2-15	345	799	0.431 8	0.168 5	0.003 2	2.590 0	0.055 0	0.111 5	0.002 1	2 543	31	1 298	16	681	12
TA1808-2-16	760	864	0.879 6	0.172 3	0.002 7	2.770 0	0.060 0	0.116 6	0.002 3	2 580	29	1 347	16	711	13
TA1808-2-17	308	486	0.633 7	0.173 0	0.002 7	5.740 0	0.095 0	0.240 6	0.004 8	2 587	26	1 937	15	1 390	25
TA1808-2-18	4 400	2 810	1.565 8	0.208 7	0.003 5	2.250 0	0.060 0	0.078 2	0.001 5	2 895	28	1 197	19	485	9
TA1808-2-19	6 090	2 410	2.527 0	0.195 0	0.002 9	1.960 0	0.060 0	0.072 9	0.002 5	2 785	24	1 102	20	454	15
TA1808-2-20	262 0	290 0	0.903 4	0.218 8	0.002 4	1.810 0	0.050 0	0.060 0	0.001 9	2 972	19	1 049	20	376	12
TA1817-01	787	661	1.190 6	0.173 2	0.001 4	5.040 0	0.150 0	0.211 0	0.006 0	2 589	14	1 826	28	1 234	33
TA1817-02	162	254	0.637 8	0.198 1	0.006 0	6.310 0	0.220 0	0.231 0	0.011 0	2 811	43	2 020	31	1 340	55
TA1817-03	860	1 020	0.843 1	0.232 4	0.002 6	5.410 0	0.150 0	0.168 8	0.003 8	3 069	20	1 886	21	1 005	21
TA1817-04	417	574	0.726 5	0.173 7	0.001 7	6.540 0	0.150 0	0.273 0	0.006 5	2 594	16	2 051	21	1 556	33
TA1817-05	990	970	1.020 6	0.191 3	0.005 0	5.250 0	0.335 0	0.199 0	0.011 5	2 754	42	1 861	46	1 170	55
TA1817-06	287	484	0.593 0	0.191 0	0.003 6	7.320 0	0.150 0	0.278 0	0.007 5	2 751	28	2 151	19	1 581	39
TA1817-07	1 100	1 039	1.058 7	0.176 6	0.001 7	3.370 0	0.110 0	0.138 4	0.004 8	2 621	18	1 497	26	836	27
TA1817-08	313	402	0.778 6	0.181 2	0.002 8	7.320 0	0.230 0	0.293 0	0.008 5	2 664	25	2 151	24	1 657	40
TA1817-09	167	306	0.545 8	0.171 1	0.001 8	8.800 0	0.215 0	0.373 0	0.009 0	2 569	18	2 317	22	2 044	41
TA1817-10	340	1 050	0.323 8	0.185 8	0.003 4	2.990 0	0.060 0	0.116 7	0.001 8	2 706	27	1 405	17	712	11
TA1817-11	1 320	1 110	1.189 2	0.178 0	0.003 0	4.600 0	0.080 0	0.187 4	0.002 3	2 635	28	1 749	15	1 107	13
TA1817-12	230	303	0.759 1	0.172 3	0.002 2	8.480 0	0.290 0	0.357 0	0.013 0	2 580	20	2 284	37	1 968	65
TA1817-13	640	352	1.818 2	0.171 0	0.003 9	8.040 0	0.375 0	0.341 0	0.018 0	2 567	32	2 236	50	1 891	90
TA1817-14	6 400	1 700	3.764 7	0.201 1	0.003 1	3.410 0	0.385 0	0.123 0	0.015 5	2 835	22	1 507	60	748	75
TA1817-15	512	776	0.659 8	0.158 5	0.001 2	5.130 0	0.105 0	0.234 7	0.004 4	2 440	13	1 841	18	1 359	24
TA1817-16	215	278	0.773 4	0.172 6	0.002 6	8.780 0	0.285 0	0.369 0	0.012 5	2 583	24	2 315	33	2 025	60
TA1817-17	301	359	0.838 4	0.166 7	0.001 7	8.410 0	0.245 0	0.366 0	0.010 5	2 524	18	2 276	33	2 011	50
TA1817-18	153	131	1.167 9	0.171 9	0.002 9	11.260 0	0.245 0	0.475 0	0.005 5	2 576	27	2 545	20	2 505	24
TA1817-19	750	580	1.293 1	0.164 9	0.002 0	6.410 0	0.175 0	0.282 0	0.008 0	2 506	20	2 034	26	1 601	41
TA1817-20	3 090	2 210	1.398 2	0.163 9	0.001 6	2.700 0	0.050 0	0.119 5	0.001 9	2 496	17	1 328	15	728	11
