北京西郊丁家滩剖面寒武系第二统昌平组核形石特征及成因

doi:10.19657/j.geoscience.1000-8527.2019.03.11

摘要/Abstract

摘要：

核形石是微生物岩的一种,长期受到地质学家的广泛关注。目前在核形石的展布模式、沉积环境以及微生物特征和形成机制方面的研究仍显不足。北京西郊丁家滩剖面地层出露良好且保存完整,其寒武系昌平组的早期高位体系域主要沉积在潮下-潟湖环境中。受控于三级以下海平面以及水动力条件,早期高位体系域自下而上发育了三套形态各异的核形石层。第一套毫米级核形石零星分布于早期高位体系域下部,不具明显核心,包壳内见大量泥晶物质及砂屑、生屑。第二套厘米级-亚厘米级椭球状核形石集中分布于早期高位体系域中部,具有明显核心,包壳主要由亮纹层、菌纹层、生屑层和包壳层组成。第三套厘米级椭球/叶状核形石集中分布于早期高位体系域上部,具有明显核心,包壳主要由亮纹层组成,菌纹层含量较少。镜下鉴定结果表明由亮/暗纹层交互而成的核形石包壳具有不同的显微/超微结构,代表了微生物席与沉积环境的不同互动方式。分析其形成环境可知,北京西郊丁家滩剖面寒武系昌平组以核形石为主的微生物岩,生物灭绝事件是其直接成因,但也许不是决定性因素。

关键词: 核形石, 昌平组, 寒武系第二统, 北京

Abstract:

Oncolite, a main kind of microbialite, has long attracted much scientific attention. Until now, uncertainties remain on the distribution model, sedimentary environment, microbial characteristics and formation mechanisms of oncolite. In the western suburbs of Beijing, the Dingjiatan section contains well-preserved Cambrian sequences. Controlled by the 4^th order sea-level change and hydrodynamic characteristics, the EHST of Changping Formation, Cambrian deposits in subtidal-lagoon environments, including three sets of oncolites with different shapes. The first set of mm-scale oncolite is scattered in the lower part of EHST, whose envelope contains plenty of mud debris, sand-/bio-clastics. The second set of (sub-)cm-scale oncolite concentrates in the middle part of EHST. Axiolitic oncolite has obvious core, and its envelope includes light/bacterial/bioclastic/coated lamina. The third set of cm-scale oncolite is distributed in the upper central part of EHST, with obvious core and envelope of many light lamina and few bacterial lamina. Microscopic identification results show that the oncolite envelope consists of light and dark lamina. Their different ultra-/micro-structures stand for various forms of interactions between microbial mats and sedimentary environment. Through studying the formation environment, this microbial set is related to the biological extinction, although that may not have been decisive.

Key words: oncolite, Changping Formation, Series 2 of Cambrian, Beijing

中图分类号:

P534
P539

白莹, 罗平, 刘伟, 徐安娜, 赵振宇, 王珊, 龚骥遥. 北京西郊丁家滩剖面寒武系第二统昌平组核形石特征及成因[J]. 现代地质, 2019, 33(03): 587-597.

BAI Ying, LUO Ping, LIU Wei, XU Anna, ZHAO Zhenyu, WANG Shan, GONG Jiyao. Characteristics and Origin of Oncolite from Changping Formation in the Series 2 of Cambrian in Western Beijing[J]. Geoscience, 2019, 33(03): 587-597.

图/表 4

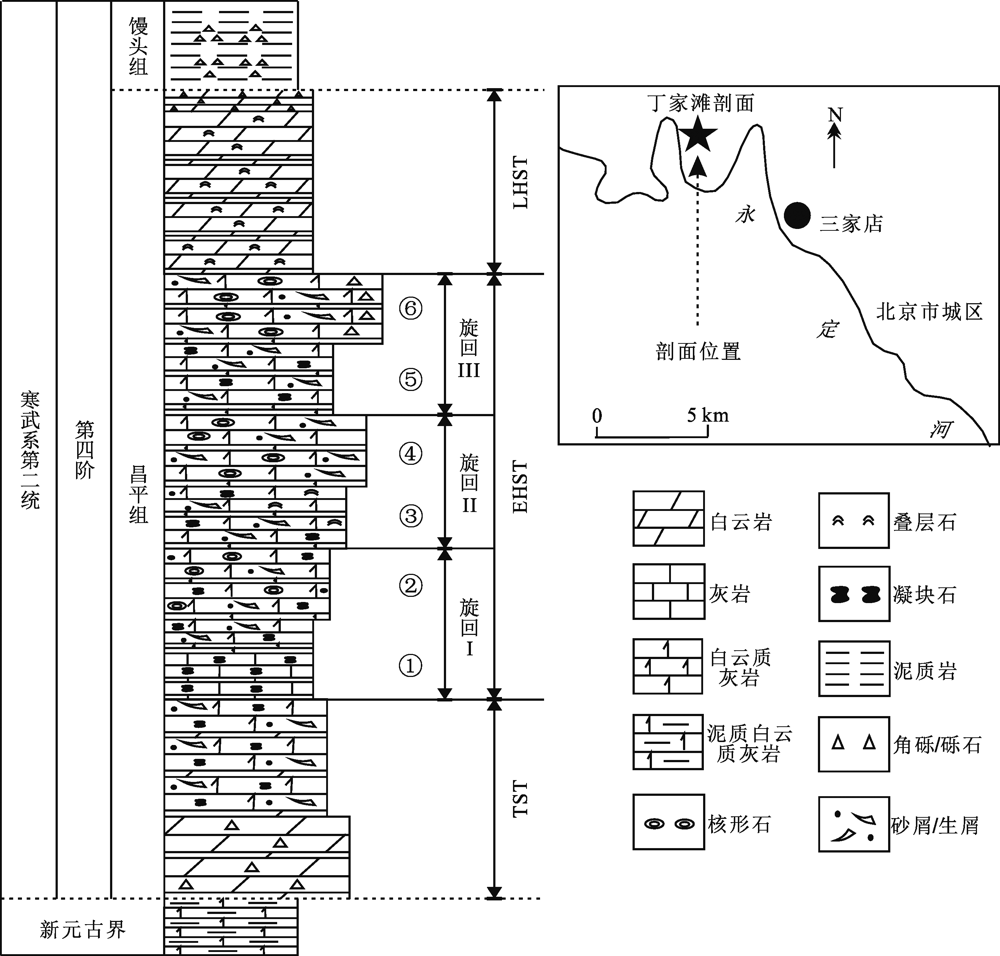

图1 丁家滩剖面位置及昌平组层序地层划分示意图

Fig.1 Location and stratigraphic division of Changping Formation, Dingjiatan cross-section

图2 旋回I和第一套核形石特征 (a)旋回I第①层深灰色厚层状凝块泥晶灰岩;(b)具有包壳结构的凝块;(c)旋回I第②层深灰色厚层状核形石凝块砂屑泥亮晶白云质灰岩;(d)弥散状核形石

Fig.2 Characteristics of cycle I and the first set of oncolites

图3 旋回II和第二套核形石特征 (a)旋回II第③层深灰色厚层状叠层凝块白云质灰岩;(b)暗色泥质纹层;(c)旋回II第④层浅灰色核形石砂屑生屑泥亮晶白云质灰岩;(d)多核心核形石及基质;(e)菌纹层中的黄铁矿集合体;(f)生屑层;(g)包壳层;(h)核形石雏形;(i)螺旋状钙化壳;(j)球状白云石集合体与菌丝;(k)黄铁矿与微晶环边;(l)蜂窝状EPS(胞外聚合物)与正常白云石

Fig.3 Characteristics of cycle II and the second set of oncolites

图4 旋回III和第三套核形石特征 (a)旋回III第⑤层中灰色厚层状凝块含砾泥亮晶白云质灰岩;(b)包壳与生屑;(c)旋回III第⑥层中灰色厚层状核形石砂屑砾屑泥亮晶白云质灰岩;(d)椭球/叶状核形石及其间的砂屑和生屑;(e)菌纹层与筒/穴状亮晶充填;(f)菌纹层与云雾状黄铁矿;(g)云雾状黄铁矿;(h)黄铁矿化的葛万菌丝状体

Fig.4 Characteristics of cycle III and the third set of oncolite

参考文献 82

[1]	FLÜGEL E. Microfacies of Carbonate Rocks: Analysis, Interpretation and Application[M]. Berlin, Heidelberg: Springer-Verlag, 2004: 100-125.
[2]	LOGAN B W, REZARK R, GINSBURG R N. Classification and environmental significance of algal stromatolites[J]. Journal of Geology, 1964,72:68-83. DOI URL
[3]	WOLF K H. Petrogenesis and paleoenvironment of Devonian algal limestones of New South Wales[J]. Sedimentology, 1965,4:113-178. DOI URL
[4]	DAHANAYAKE K. Classification of oncoids from the Upper Jurassic carbonates of the French Jura[J]. Sedimentary Geology, 1977,18:337-353. DOI URL
[5]	GLASS S W. The Peterson limestone-Early Cretaceous lacustrine carbonate deposition in western Wyoming and south-eastern Idaho[J]. Sedimentary Geology, 1980,27(2):143-160. DOI URL
[6]	梅冥相, 马永生, 周丕康, 等. 碳酸盐沉积学导论[M]. 北京: 地震出版社, 1997: 32-36.
[7]	赵澄林, 朱筱敏. 沉积岩石学[M]. 北京: 石油工业出版社, 2001: 155.
[8]	PERYT T M. Oncoids-a comment to recent developments[M] //PERYT T M. Coated Grains. Berlin, Heidelberg: Springer-Verlag, 1983: 273-275.
[9]	杜汝霖. 前寒武纪古生物学与地史学[M]. 北京: 地质出版社, 1992: 1-193.
[10]	陈晋镳. 叠层石研究的进展和回顾[M] //朱士兴, 梁玉左, 杜汝霖, 等. 中国叠层石. 天津: 天津大学出版社, 1993: 205-214.
[11]	RIDING R. Microbial carbonates: the geological record of calcified bacterial-algal mats and biofilms[J]. Sedimentology, 2000,47:179-214. DOI URL
[12]	梅冥相. 微生物碳酸盐岩分类体系的修订: 对灰岩成因结构分类体系的补充[J]. 地学前缘, 2007,14(5):222-234.
[13]	罗平, 王石, 李朋威, 等. 生物碳酸盐岩油气储层研究现状与展望[J]. 沉积学报, 2013,31(5):807-823.
[14]	梅冥相. 华北寒武系二级海侵背景下的沉积趋势及层序地层序列: 以北京西郊下苇甸剖面为例[J]. 中国地质, 2011,38(2):317-337.
[15]	冯增昭, 王英华, 张吉森, 等. 华北地台早古生代岩相古地理[M]. 北京: 地质出版社, 1990: 3-49.
[16]	王宗起, 丁孝忠. 北京西山昌平组成因地层学研究[J]. 中国地质科学院地质研究所所刊, 1990,22(1):8-22.
[17]	项礼文, 李善姬, 南润善, 等. 中国的寒武系[M]. 北京: 地质出版社, 1981: 1-198.
[18]	项礼文, 朱兆玲, 李善姬, 等. 中国地层典: 寒武系[M]. 北京: 地质出版社, 1999: 1-95.
[19]	王鸿祯, 史晓颖, 王训练, 等. 中国层序地层研究[M]. 广州: 广东科技出版社, 2000: 1-457.
[20]	卢衍豪, 张文堂, 朱兆玲, 等. 关于我国寒武系建阶的建议[J]. 地层学杂志, 1994,18(4):318-328.
[21]	卢衍豪. 中国的寒武系[M]. 北京: 科学出版社, 1962: 1-119.
[22]	卢衍豪, 朱兆玲, 钱义元, 等. 中国寒武纪地层对比表及说明书[M] //中国科学院南京地质古生物研究所. 中国各纪地层对比表及说明书. 北京: 科学出版社, 1982: 28-54.
[23]	彭善池, BOBCOCK L E. 全球寒武系年代地层再划分的建议[J]. 地层学杂志, 2005,29(1):92-93, 96.
[24]	彭善池. 全球寒武系四统划分框架正式确立[J]. 地层学杂志, 2006,30(2):147-148.
[25]	章森桂, 张允白, 严蔧君. “国际地层表(2008)简介”[J]. 地层学杂志, 2009,33(1):1-10.
[26]	邢裕盛, 高振家, 王自强, 等. 中国地层典:新元古界[M]. 北京: 地质出版社, 1996: 1-117.
[27]	安太痒, 张放, 向维达, 等. 华北及邻区牙形石[M]. 北京: 科学出版社, 1983: 1-223.
[28]	史晓颖, 陈建强, 梅仕龙. 华北地台东部寒武系层序地层年代格架[J]. 地学前缘, 1997,4(3/4):161-173.
[29]	PENG S. The newly-developed Cambrian biostratigraphic succession and chronostratigraphic scheme for South China[J]. Chinese Science Bulletin, 2009,54(22):4161-4170. DOI URL
[30]	朱传庆, 罗杨, 杨帅, 等. 北京西山寒武系层序地层[J]. 中国地质, 2009,36(1):120-130.
[31]	VAIL P R, MITCHUM J R M, THOMPSON S. Seismic stratigraphy and global changes of sea level, part 3: relative changes of sea level from coastal onlap[M] //PAYTON C. Seismic Stratigraphy:Application to Hydrocarbon Exploration. Tulsa: AAPG Memoir, 1977: 63-81.
[32]	MITCHUM R, VAIL P, THOMPSON S. Seismic stratigraphy and global changes in sea level, part 2: the depositional sequence as the basic unit for stratigraphic analysis[M] //PAYTON C. Seismic Stratigraphy:Application to Hydrocarbon Exploration. Tulsa: AAPG Memoir, 1977: 53-62.
[33]	李全, 林畅松, 吴伟, 等. 地震沉积学方法在确定沉积相边界方面的应用[J]. 西南石油大学学报(自然科学版), 2010,32(4):50-55.
[34]	杨仁超, 樊爱萍, 韩作振, 等. 核形石研究现状与展望[J]. 地球科学进展, 2011,26(5):465-474.
[35]	韩作振, 陈吉涛, 迟乃杰, 等. 微生物碳酸盐岩研究: 回顾与展望[J]. 海洋地质与第四纪地质, 2009,29(4):29-38.
[36]	唐鑫萍, 黄文辉, 邓宏文, 等. 山东平邑盆地古近系湖相核形石的沉积环境分析[J]. 现代地质, 2011,25(3):456-463.
[37]	成晓雨, 李凤杰, 荆锡贵, 等. 四川龙门山区中泥盆统金宝石组核形石岩石学特征及其成因[J]. 古地理学报, 2018,20(2):207-218.
[38]	张文浩, 史晓颖, 汤冬杰, 等. 华北地台西缘早—中寒武世过渡期核形石: 微生物群落对浅海缺氧环境的影响[J]. 古地理学报, 2014,16(3):305-318.
[39]	张文浩, 史晓颖, 汤冬杰, 等. 华北地台西缘早—中寒武世之交的核形石: 微组构与生物矿化机制研究[J]. 现代地质, 2014,28(1):1-15.
[40]	ARP G, REIMER A, REITNER J. Photosynjournal-induced biofilm calcification and calcium concentrations in Phanerozoic oceans[J]. Science, 2001,292:1701-1704. DOI URL
[41]	GLUNK C, DUPRAZ C, BRAISSANT O, et al. Microbially mediated carbonate precipitation in a hypersaline lake, Big Pond (Eleuthera, Bahamas)[J]. Sedimentology, 2011,58:720-736. DOI URL
[42]	HICKS M, ROWLAND S M. Early Cambrian microbial reefs,archaeocyathan inter-reef communities, and associated facies of the Yangtze Platform[J]. Palaeogeography, Palaeoclimatology, Palaeoecology, 2009,281:137-153. DOI URL
[43]	WOO J, CHOUGH S K, HAN Z. Chambers of epiphyton thalli in microbial buildups, Zhangxia Formation (Middle Cambrian), Shandong Province, China[J]. Palaios, 2008,23:55-64. DOI URL
[44]	LABRENZ M, DRUSCHEL G K, THOMSEN-EBERT T, et al. Formation of sphalerite (ZnS) deposits in natural biofilms of sulfate-reducing bacteria[J]. Science, 2000,290:1744-1747. DOI URL
[45]	BERELSON W M, CORSETTI F A, PEPE-RANNEY C, et al. Hot spring siliceous stromatolites from Yellowstone National Park: assessing growth rate and laminae formation[J]. Geobiology, 2011,9:411-424.
[46]	POWER I M, WILSON S A, DIPPLE G M, et al. Modern carbonate microbialites from an asbestos open pit pond, Yukon, Canada[J]. Geobiology, 2011,9:180-195.
[47]	SÁNCHEZ-ROMÁN M, VASCONCELOS C, SCHMID T, et al. Aerobic microbial dolomite at the nanometer scale: implications for the geologic record[J]. Geology, 2008,36:879-882. DOI URL
[48]	PACTON M, GORIN G, VASCONCELOS C, et al. Structural arrangement of sedimentary organic matter: Nanometer-scale spheroids as evidence of a microbial signature in early diagenetic processes[J]. Journal of Sedimentary Research, 2010,80(10):919-932. DOI URL
[49]	PERRI E, SPADAFORA A. Evidence of microbial biominera-lization in modern and ancient stromatolites[M] //SECKBACH J, TEWARI V.The Stromatolites: Interaction of Microbes with Sediments: Cellular Origin, Life in Extreme Habitats and Astrobiology. Berlin: Springer-Verlag, 2011: 631-649.
[50]	YOUNG J D, MARTEL J. The rise and fall of nanobacteria[J]. Scientific American Magazine, 2010,302:52-59. DOI URL
[51]	BOSAK T, SOUZA-EGIPSY V, CORSETTI F A, et al. Micro-meter-scale porosity as a biosignature in carbonate crusts[J]. Geology, 2004,32:781-784. DOI URL
[52]	PINCKNEY J L, REID R P. Productivuty and community composition of stromatolitic microbial mats in the Exuma Cays, Bahamas[J]. Facies, 1997,36:204-207.
[53]	REID R P, MACINTYRE I G. Microboring versus recrystallization: further insight into the micritization process[J]. Journal of Sedimentary Research, 2000,70:24-28. DOI URL
[54]	GERDES G, DUNAJTSCHIK-PIEWAK K, RIEGE H, et al. Structural diversity of biogenic carbonate particles in microbial mats[J]. Sedimentology, 1994,41:1273-1294. DOI URL
[55]	SHAPIRO R S, FRICKE H C, FOX K. Dinosaur-bearing oncoids from ephemeral lakes of the Lower Cretaceous Cedar Mountain Formation, Utah[J]. Palaios, 2009,24:51-58. DOI URL
[56]	VÉDRINE S, STRASSER A, HUG W. Oncoid growth and distribution controlled by sea-level fluctuations and climate (Late Oxfordian, Swiss Jura Mountains)[J]. Facies, 2007,53:535-552. DOI URL
[57]	白莹, 罗平, 周川闽, 等. 塔西北下寒武统肖尔布拉克组层序划分及台地沉积演化模式[J]. 石油与天然气地质, 2017,38(1):152-164.
[58]	白莹, 罗平, 王石, 等. 台缘微生物礁结构特点及储集层主控因素——以塔里木盆地阿克苏地区下寒武统肖尔布拉克组为例[J]. 石油勘探与开发, 2017,44(3):349-358.
[59]	DUPRAZ C, VISSCHER P, BAUMGARTNER L, et al. Microbe-mineral interactions: early carbonate precipitation in a hypersaline lake(Eleuthera Island, Bahamas)[J]. Sedimentology, 2004,51:745-765. DOI URL
[60]	DUPRAZ C, REID R P, BRAISSANT O, et al. Processes of carbonate precipitation in modern microbial mats[J]. Earth-Science Reviews, 2009,96:141-162. DOI URL
[61]	VISSCHER P T, STOLZ J F. Micobial mats as bioreactors: po-pulations, processes, and products[J]. Palaeogeography, Palaeoclimatology, Palaeoecology, 2005,219:87-100. DOI URL
[62]	OHFUJI H, RICKARD D. Experimental syntheses of framboids-a review[J]. Earth-Science Reviews, 2005,71:147-170. DOI URL
[63]	MACLEAN L, TYLISZCZAK T, GILBERT P, et al. A high-resolution chemical and structural study of framboidal pyrite formed within a low-temperature bacterial biofilm[J]. Geobiology, 2008,6:471-480. DOI URL
[64]	BARTLEY J K. Actualistic taphonomy of cyanobacteria: implications for the Precambrian fossil record[J]. Palaios, 1996,11:571-586. DOI URL
[65]	JONES B, RENAUT R W. Crystal fabrics and microbiota in large pisoliths from Laguna Pastos Grandes, Bolivia[J]. Sedi-mentology, 1994,41(6) : 1171-1202.
[66]	PRATT B R. Calcification of cyanobacterial filaments:Girvanella and the origin of Lower Paleozoic lime mud[J]. Geology, 2001,29:763-766. DOI URL
[67]	OBST M, WEHRLI B, DITTRICH M. CaCO₃ nucleation by cyanobacteria: laboratory evidence for a passive, surface-induced mechanism[J]. Geobiology, 2009,7:324-347. DOI URL
[68]	RIDING R. Cyanobacterial calcification,carbon dioxide concentrating mechanisms, and Proterozoic-Cambrian changes in atmospheric composition[J]. Geobiology, 2006,4:299-316. DOI URL
[69]	KAH L C, RIDING R. Mesoproterozoic carbon dioxide levels inferred from calcified cyanobacteria[J]. Geology, 2007,35:799-802. DOI URL
[70]	ZHURAVLEV A Y, WOOD R A. Anoxia as the cause of the Mid-Early Cambrian (Botomian) extinction event[J]. Geology, 1996,24(4):311-314. DOI URL
[71]	樊茹, 邓胜徽, 张学磊. 寒武系碳同位素漂移事件的全球对比性分析[J]. 中国科学: 地球科学, 2011,41(2):1829-1839.
[72]	POWELL W G, JOHNSTON P A, COLLOM C J, et al. Middle Cambrian brine seeps on the Kicking Horse Rim and their relationship to talc and magnesite mineralization and associated dolomitization , British, Columbia, Canada[J]. Economic Geology, 2006,101(2) : 431-451. DOI URL
[73]	LVARO J J, VENNIN E, MORENO-EIRIS E, et al. Sedimentary patterns across the Lower-Middle Cambrian transition in the Esla nappe( Cantabrian Mountains,northern Spain)[J]. Sedimentary Geology, 2000,137(1):43-61. DOI URL
[74]	ELICK O, SCHNEIDER J, SHINAQ R. Prominent facies from the Lower /Middle Cambrian of the Dead Sea area (Jordan) and their palaeodepositional significance[J]. Bulletin de la Société Géologique de France, 2002,173(6) : 547-552. DOI URL
[75]	RIDING R. Classification of microbial carbonates[M] //RIDING R. Calcareous Algae and Stromatolites. Berlin: Springer-Verlag, 1991: 21-51.
[76]	RIDING R. Ordovician calcified algae and cyanobacteria, nor-thern Tarim Basin subsurface, China[J]. Palaeontology, 2001,44(4):783-810. DOI URL
[77]	RIDING R. Microbial carbonate abundance compared with fluctuations in metazoan diversity over geological time[J]. Sedimentary Geology, 2006,185(3):229-238. DOI URL
[78]	RIDING R, LIANG L. Geobiology of microbial carbonates: Metazoan and seawater saturation state influences on secular trends during the Phanerozoic[J]. Palaeogeography, Palaeoclimatology, Palaeoecology, 2005,219(1/2):101-115. DOI URL
[79]	沈树忠, 张华. 什么引起五次生物大灭绝[J]. 科学通报, 2017,62(11):1119-1135.
[80]	KIESSLING W, SIMPSON C. On the potential for ocean acidification to be a general cause of ancient reef crises[J]. Global Change Biology, 2011,17(1) : 56-67. DOI URL
[81]	梅冥相. 显生宙罕见的巨鲕及其鲕粒形态多样性的意义:以湖北利川下三叠统大冶组为例[J]. 现代地质, 2008,22(5):683-698.
[82]	景民昌, 孙镇城, 李东明, 等. 柴达木盆地3万年左右Ilyocypris inermis灭绝事件及其古环境意义[J]. 现代地质, 2001,15(1):49-52.
