南盘江盆地石炭系沉积体系及页岩气有利区带

doi:10.19657/j.geoscience.1000-8527.2018.04.14

摘要/Abstract

摘要：

综合利用重点剖面实测资料、区域地质调查资料,结合公开发表的成果,讨论了南盘江盆地石炭系沉积体系类型、特征及其分布规律,基于深水沉积相带的分布,预测了南盘江盆地石炭系页岩气有利区。南盘江盆地石炭系发育三角洲—碎屑滨岸、滨海沼泽、陆源碎屑陆架、碎屑陆坡、局限海台地、开阔海台地、台地边缘、深水盆地8种沉积体系。石炭纪,马关隆起、康滇隆起、江南隆起及云开隆起为暴露剥蚀区,但陆源碎屑供应较弱,陆源碎屑沉积主要发育于石炭纪早期,整个石炭纪以内源沉积占优势。早石炭世,云开隆起周边发育陆源碎屑滨岸沉积,在江南隆起南缘发育碎屑滨岸和滨海沼泽沉积,主体为局限台地—开阔台地—孤立台地—台地边缘—深海的沉积格局。晚石炭世,隆起区和深海区均有所缩小,开阔台地范围显著扩大,隆起周缘主要发育局限台地。南丹—河池、罗甸西、柳城—鹿寨—平乐地区、象州—武宣—桂平等地区上古生界出露地表,石炭系埋藏浅,且以深海沉积为主,是寻找石炭系页岩气最为有利的地区。

关键词: 南盘江盆地, 石炭系, 沉积体系, 深水沉积, 页岩气有利区带

Abstract:

Synthetically utilized the data of key profiles and regional geological survey data, combined with published research results,the sedimentary system types, characteristics and distribution of the Carboniferous in the Nanpanjiang Basin have been discussed, and based on the distribution of deep-water facies, the shale gas favorable areas of the Carboniferous in the Nanpanjiang Basin have been predicted. There were 8 sedimentary systems, such as river delta-clastic littoral, coastal marsh, terrigenous shelf, terrigenous slope, restricted platform, open platform, platform margin, slope and deep sea, developed during Carboniferous in the Nanpanjiang Basin. During Carboniferous, the exposed or denuded area located the uplifts of Maguan, Kangdian, Jiangnan and Yunkai, but the terrigenous supply is relatively small, the terrigenous sediments mainly developed in Early Carboniferous, the carbonate and mud sediments dominated in Carboniferous. During Early Carboniferous, the clastic littoral deposits developed surrounding the Yunkai Uplift, the clastic littoral and the coastal marsh develo-ped in the south margin of the Jiangnan Uplift, the main sedimentary systems consisted of the restricted platform, open platform, platform margin, slope and deep sea. During Late Carboniferous, both the uplift and the deep sea depositional areas are reduced, the open platform range significantly expanded, the restricted platform developed nearby the uplifts. The regions of Nandan-Hechi, western Luodian,Liucheng-Luzai-Pingle and Xiang-zhou-Wuxuan-Guiping, the Upper Paleozoic exposed surface, the Carboniferous shallow buried and dominated by deep sea sediments, are the most favorable areas for the exploration of shale-gas of the Carboniferous in the Nanpanjiang Basin.

Key words: Nanpanjiang Basin, Carboniferous, sedimentary system, deep-water deposition, favorable areas of shale-gas

中图分类号:

辛云路, 王劲铸, 金春爽. 南盘江盆地石炭系沉积体系及页岩气有利区带[J]. 现代地质, 2018, 32(04): 774-785.

XIN Yunlu, WANG Jinzhu, JIN Chunshuang. Sedimentary System and the Shale-gas Favorable Area of the Carboniferous in the Nanpanjiang Basin[J]. Geoscience, 2018, 32(04): 774-785.

图/表 8

图1 南盘江盆地区域构造-地层格架及矿点分布 1.省会城市; 2.市; 3.县; 4.省界; 5.隆起边界; 6.海岸线; 7.主要断层; 8.盆内断层; 9.古油藏; 10.金矿; 11.锑矿; 12.汞矿; 13.锰矿; 14.隆起区(出露下古生界及以老地层); 15.上古生界出露区; 16.中生界出露区;区域构造-地层格架据1∶50万地质图简化;矿点分布据文献[21??????-28]编绘

Fig.1 Tectonic stratigraphic framework and the distribution of deposits of the Nanpanjiang Basin

表1 南盘江盆地及邻区石炭系地层对比

Table 1 Carboniferous stratigraphic chart of the Nanpanjiang Basin and its adjacent areas

图2 广西罗城县天水下石炭统剖面沉积体系分析柱状图(据文献[33]和实测资料编绘)

Fig.2 Histogram of Lower Carboniferous sedimentary systems analysis in Tianshui of Luocheng County, Guangxi

图3 广西桂平县峡湾大塘组底部砂质灰岩发育的冲洗交错层理

Fig.3 Swash cross bedding of the sandy limestone at the bottom of Datang Formation, Guiping County, Guangxi

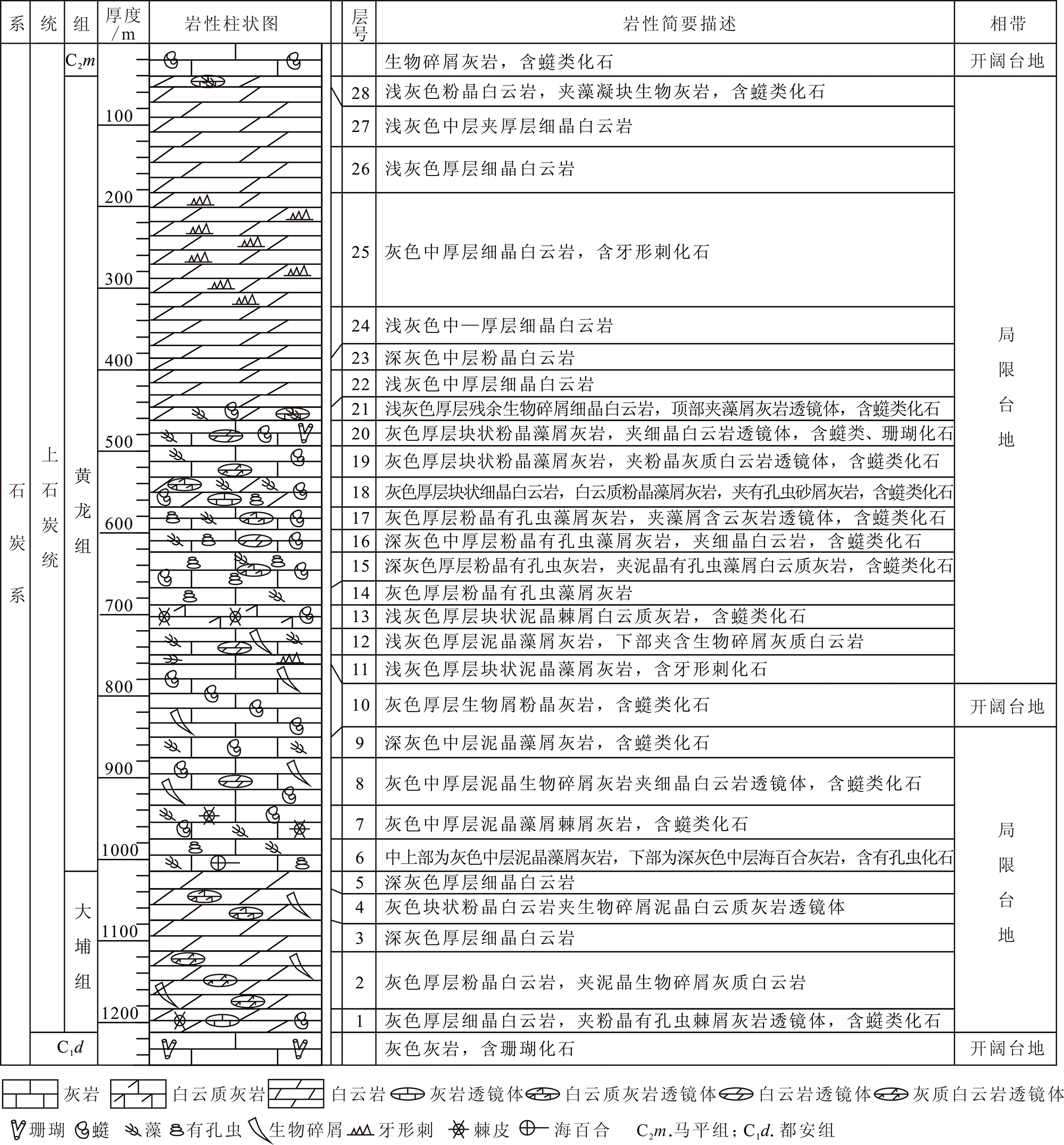

图4 广西柳州市桥头村上石炭统剖面沉积体系分析柱状图(据文献[33]和实测资料编绘)

Fig.4 Histogram of Upper Carboniferous sedimentary system analysis at Qiaotou Village of Liuzhou, Guangxi

图5 南盘江盆地下石炭统沉积体系平面图 1.省会城市; 2.市; 3.县; 4.省界; 5.主要同沉积断裂及倾向; 6.海岸线; 7.地层缺失线; 8.相带分界线; 9.隆起区; 10.三角洲-碎屑滨岸; 11.陆架; 12.陆坡; 13.局限台地; 14.开阔台地; 15.台地边缘; 16. 深海; 17.滨海沼泽

Fig.5 Sedimentary system distribution of the Lower Carboniferous in the Nanpanjiang Basin

图6 南盘江盆地及邻区晚石炭世沉积体系平面图 1.省会城市; 2.市; 3.县; 4.省界; 5.主要同沉积断裂及倾向; 6.海岸线; 7.地层缺失线; 8.相带分界线; 9.隆起区; 10.三角洲-碎屑滨岸; 11.陆架; 12.陆坡; 13.局限台地; 14.开阔台地; 15.台地边缘; 16.深海; 17.滨海沼泽

Fig.6 Sedimentary system distribution of the Upper Carboniferous in the Nanpanjiang Basin

图7 南盘江盆地石炭系页岩气有利区预测平面图 1.省会城市; 2.市; 3.县; 4.省界; 5.海岸线; 6.上石炭统深水沉积区边界; 7.下石炭统深水沉积区边界; 8.上石炭统深水沉积分布区; 9.下石炭统深水沉积分布区; 10.上古生界出露区

Fig.7 Predictive favorable areas of shale gas of the Carboniferous in the Nanpanjiang Basin
