鞍山—本溪地区眼前山铁矿床深(边)部错断隐伏矿体磁法和瞬变电磁法联合定位及预测

doi:10.19657/j.geoscience.1000-8527.2024.006

现代地质 ›› 2024, Vol. 38 ›› Issue (01): 35-45.DOI: 10.19657/j.geoscience.1000-8527.2024.006

• 中国东部富铁矿成矿机制与找矿预测 • 上一篇下一篇

鞍山—本溪地区眼前山铁矿床深(边)部错断隐伏矿体磁法和瞬变电磁法联合定位及预测

闫迪¹(), 付建飞¹(), 贾三石¹^,²^,³, 程浩¹, 王志猛⁴

1.东北大学资源与土木工程学院,辽宁沈阳 110819
2.东北大学秦皇岛分校资源与材料学院,河北秦皇岛 066004
3.海洋油气勘探国家工程研究中心,北京 100028
4.鞍钢集团矿业弓长岭有限公司井采分公司,辽宁辽阳 111000

收稿日期:2023-11-30 修回日期:2024-01-10 出版日期:2024-02-10 发布日期:2024-03-20
通讯作者: 付建飞,男,博士,副教授,1973年出生,地质学专业,主要从事资源环境探测与评价研究。Email:fujianfei@mail.neu.edu.cn。
作者简介:闫迪,男,硕士研究生,1994年出生,地质资源与地质工程专业,主要从事资源探测研究。Email:2100983@stu.neu.edu.cn。
基金资助:
国家重点研发计划项目(2022YFC2903701)

Combined Magnetic and Transient Electromagnetic Methods to Locate and Predict the Dislocated Concealed Orebody at the Deep Edge of Yanqianshan Iron Deposit in Anshan-Benxi Area

YAN Di¹(), FU Jianfei¹(), JIA Sanshi¹^,²^,³, CHENG Hao¹, WANG Zhimeng⁴

1. School of Resources and Civil Engineering,Northeastern University,Shenyang,Liaoning 110819,China
2. College of Resources and Materials, Qinhuangdao Campus, Northeastern University,Qinhuangdao, Hebei 066004,China
3. National Engineering Research Center for Offshore Oil and Gas Exploration, Beijing 100028, China
4. Well Mining Branch, Angang Group Mining Gongchangling Co., LTD.,Liaoyang,Liaoning 111000,China

Received:2023-11-30 Revised:2024-01-10 Online:2024-02-10 Published:2024-03-20

摘要/Abstract

摘要：

随着地表矿体开采殆尽,找矿需求日益增加,隐伏矿勘探尤其是已有矿山深(边)部的隐伏矿体定位识别成为当前地球物理探测研究的重点和难点问题。鉴于此,本文针对已有矿山深(边)部构造错断隐伏矿体的定位识别,以鞍山—本溪地区(鞍本地区)眼前山典型BIF型铁矿深(边)部隐伏铁矿体为研究对象,基于前期地质和地球物理研究成果,采用地面高精度磁法、基于大定源中心回线装置和多匝重叠回线装置的瞬变电磁法进行联合探测应用研究。探测研究成果表明,地面高精度磁法可以圈定隐伏铁矿体的平面边界,从而缩小找矿靶区,在眼前山铁矿东部及西部偏南区圈定了两处成矿预测区;其中东部异常区通过瞬变电磁法进行定位识别隐伏铁矿体的埋深及形态,并经过钻探验证,发现一处埋深320~410 m的厚大隐伏磁铁矿体,表现为向东稳定延伸并有逐渐增厚的趋势;据此推测具有相似异常特征表现的西部偏南异常区具有较大的找矿潜力。本研究为类似金属矿山常见的不同级别构造错断隐伏矿体的高效定位识别提供了理论支撑和应用依据。瞬变电磁法的多匝重叠回线装置比中心回线装置具有更高的分辨率,也更适合对盖层下隐伏金属矿体的探测定位。

关键词: 隐伏矿体, 眼前山铁矿, 构造错断, 高精度磁法, 瞬变电磁法

Abstract:

It’s becoming more and more challenging to find iron ores with economic values since all iron mines on the surface have been explored. The main directions of iron prospecting turn to the concealed orebodies. In particular, locating and identification of the concealed orebodies in deep (or periphery) parts of the existing mines have become the focus and main challenges of current geophysical exploration projects. With this view, we focus our study on locating and identifying the concealed orebodies in deep (or periphery) structural faults of the existing mines by taking the concealed iron orebodies in Yanqianshan, Anshan-Benxi area as a study case. Based on the previous geology and geophysical studies, we conducted the joint detection application studies by using the ground-based high-precision magnetic method and the transient electromagnetic method, which is based on large fixed source central loop devices and multi-turn overlapping loop devices.The research findings indicate that high-precision ground magnetic methods can delineate the planar boundaries of concealed iron ore bodies, thereby narrowing down prospective mining areas. In the eastern and southwestern sectors of the Yanqianshan Mountain iron ore deposit, two mineralization prediction zones have been identified. In the eastern anomaly zone, transient electromagnetic methods were employed to locate and identify the depth and morphology of concealed iron ore bodies. Through drilling verification, a substantial concealed magnetic iron ore body with a depth of 320 to 410 meters was discovered, exhibiting a stable eastward extension and a gradual thickening trend. Based on these findings, it is inferred that the southwestern anomaly zone, exhibiting similar anomalous characteristics, holds significant exploration potential. The multi-turn overlapping loop device of the transient electromagnetic method has higher resolution than the center loop device and is more suitable for detecting and locating concealed metal ore bodies under the cap layer.

Key words: concealed ore bodies, Yanqianshan Iron Mine, construction error, high-precision magnetic me-thod, transient electromagnetism

中图分类号:

闫迪, 付建飞, 贾三石, 程浩, 王志猛. 鞍山—本溪地区眼前山铁矿床深(边)部错断隐伏矿体磁法和瞬变电磁法联合定位及预测[J]. 现代地质, 2024, 38(01): 35-45.

YAN Di, FU Jianfei, JIA Sanshi, CHENG Hao, WANG Zhimeng. Combined Magnetic and Transient Electromagnetic Methods to Locate and Predict the Dislocated Concealed Orebody at the Deep Edge of Yanqianshan Iron Deposit in Anshan-Benxi Area[J]. Geoscience, 2024, 38(01): 35-45.

图/表 10

图1 研究区区域地质简图 (a)华北克拉通简图 [8];(b)鞍山地区地质简图 [21]

Fig.1 Regional geological maps of the study area

图2 研究区构造示意图[22]

Fig.2 Schematic geologic map showing the structures in the study area[22]

表1 眼前山铁矿床岩(矿)石地球物理参数

Table 1 Geophysical properties of rock ores in Yanqian-shan iron ore deposit

岩(矿) 石名称	块数	磁化率K(10^-5SI)		电阻率ρ(Ω·m)
岩(矿) 石名称	块数	范围	均值	范围	均值
磁铁矿	12	9614~25960	17747	448~3411		1722
假象赤铁矿	8	761~9529	4571	1036~7654		3277
闪长玢岩	8	6~930	229	2188~4971		3934
花岗岩	7	0.05~2	0.4	2256~6178		3500
千枚岩	10	1~17.7	5.3	796~3269		2583
石英片岩	5	0.5~0.7	0.6	1816~42908		13250

图3 眼前山铁矿床磁法测线布置示意图

Fig.3 Schematic diagram of magnetic survey line layout for Yanqianshan iron deposit

图4 眼前山铁矿床高精度磁测数据化极处理后的结果

Fig.4 Results of high-precision magnetic survey data polarity processing for Yanqianshan iron deposit

图5 眼前山铁矿床高精度磁测数据处理结果 (A)不同上延高度异常强度趋势结果对比图:(a)上延25 m;(b)上延100 m;(c)上延200 m;(d)上延300 m;(e)上延400 m;(f)上延600 m。(B)垂向1阶导数结果对比图:(g)上延25 m垂向1阶导数处理;(h)上延100 m垂向1阶导数处理;(i)上延200 m垂向1阶导数处理;(j)上延300 m垂向1阶导数处理;(k)上延400 m垂向1阶导数处理;(l)上延600 m垂向1阶导数处理

Fig.5 High precision magnetic survey data processing for Yanqianshan iron deposit

图6 磁异常场与叠加了-300 m标高矿体空间位置图

Fig.6 Magnetic anomaly field and spatial location map of ore bodies stacked at an elevation of -300 meters

图7 GDP-32的测线g1探测数据处理结果

Fig.7 Processing results of line g1 detection data for GDP-32

图8 TerraTEM的测线t1探测数据处理结果

Fig.8 TerraTEM line t1 detection data processing results

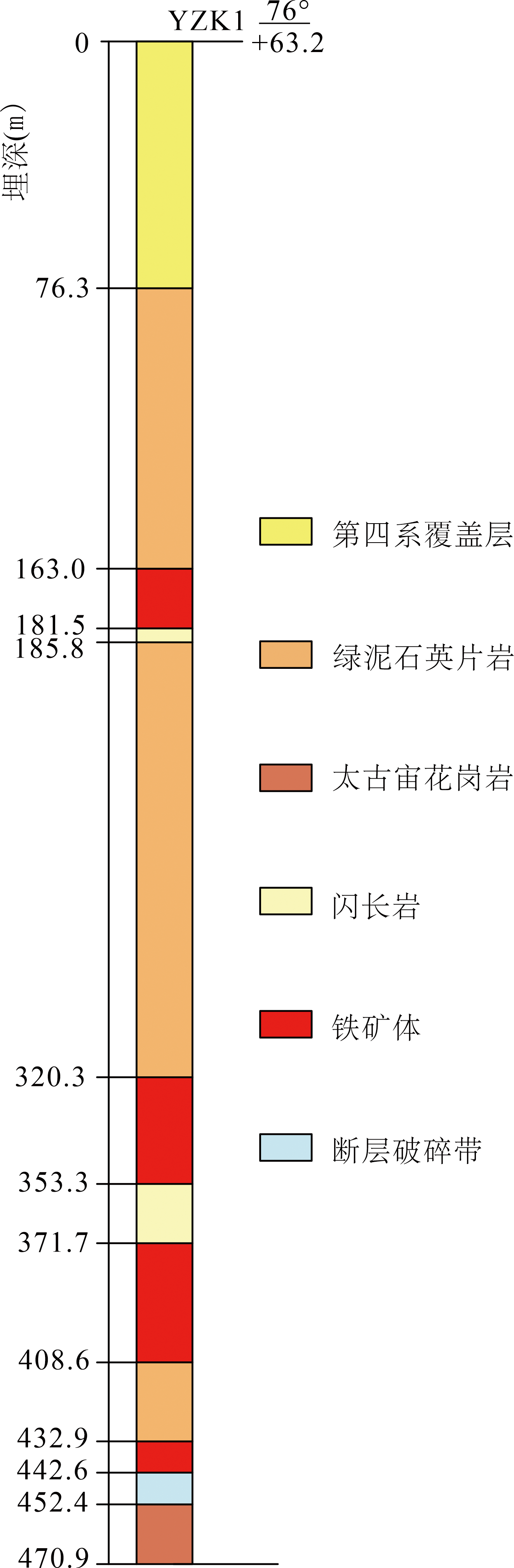

图9 YZK1钻孔验证剖面图

Fig.9 Diagrammatic cross-section from the validation by drilling YZK1

参考文献 39

[1]	周世泰. 鞍山—本溪地区条带状铁矿地质[M]. 北京: 地质出版社, 1994.
[2]	李厚民, 王登红, 李立兴, 等. 中国铁矿成矿规律及重点矿集区资源潜力分析[J]. 中国地质, 2012, 39(3):559-580.
[3]	沈保丰. 中国BIF型铁矿床地质特征和资源远景[J]. 地质学报, 2012, 86(9):1376-1395.
[4]	陈毓川, 毛景文. 加大矿业开发科技投入国内找矿大有可为[J]. 中国科技产业, 2022(8):6-10.
[5]	SUZUKI K, KUSANO Y, OCHI R, et al. Electromagnetic exploration in high-salinity groundwater zones: case studies from volcanic and soft sedimentary sites in coastal Japan[J]. Exploration Geophysics, 2016, 48(2):95-109. DOI URL
[6]	EL-KALIOUBY H. Mapping sea water intrusion in coastal area using time-domain electromagnetic method with different loop dimensions[J]. Journal of Applied Geophysics, 2020, 175:103963. DOI URL
[7]	BARNES H, HINOJOSA J R, SPINELLI G A, et al. Detecting fault zone characteristics and paleovalley incision using electrical resistivity: Loma Blanca Fault, New Mexico[J]. Geophysics, 2021(3):86.
[8]	王桥, 王绪本, 杨剑, 等. 基于多元信息约束的隐伏矽卡岩型铁矿床的定位——以云南北衙金矿区红泥塘矿段为例[J]. 地球物理学报, 2016, 59(12):4771-4781. DOI
[9]	杜瑞庆. 深部铁矿勘探的地球物理找矿模式研究[D]. 北京: 中国地质大学(北京), 2013.
[10]	吴明安, 汪青松, 郑光文, 等. 安徽庐江泥河铁矿的发现及意义[J]. 地质学报, 2011, 85(5):802-809.
[11]	SHAH A K, BEDROSIAN P A, ANDERSON E D, et al. Integrated geophysical imaging of a concealed mineral deposit: A case study of the world-class Pebble porphyry deposit in southwestern AlaskaImaging the concealed Pebble porphyry deposit[J]. So-ciety of Exploration Geophysicists, 2013, 78(5): 317-328.
[12]	孟贵祥, 吕庆田, 严加永, 等. “穿透性”探测技术在覆盖区地质矿产调查中的应用研究[J]. 地球学报, 2019, 40(5):637-650.
[13]	曹令敏. 地球物理方法在金属矿深部找矿中的应用及展望[J]. 地球物理学进展, 2011, 26(2):701-708.
[14]	袁桂琴, 熊盛青, 孟庆敏, 等. 地球物理勘查技术与应用研究[J]. 地质学报, 2011, 85(11):1744-1805.
[15]	YANG D, FOURNIER D, KANG S, et al. Deep mineral exploration using multi-scale electromagnetic geophysics: the Lalor massive sulphide deposit case study[J]. Canadian Journal of Earth Sciences, 2018, 56(5): 544-555. DOI URL
[16]	ZANG J, ZENG Z, ZHAO X, et al. Deep mineral exploration of the Jinchuan Cu-Ni Sulfide Deposit based on Aeromagnetic, Gravity, and CSAMT methods[J]. Minerals, 2020, 10(2):168. DOI URL
[17]	李玉录, 邢利娟, 拜占红, 等. 综合物探方法在青海省跃进山铁矿勘查中的应用[J]. 物探与化探, 2018, 42(5):889-895.
[18]	邰文星, 金尚刚, 何彦南, 等. 综合物探方法在湖北大冶鸡冠咀铜金矿深部及外围找矿中的应用[J]. 地质与勘探, 2019, 55(4):1010-1025.
[19]	赵建宇. 综合地球物理方法在金川铜镍硫化物矿床深部勘查中的应用[D]. 长春: 吉林大学, 2019.
[20]	HAN S, WANG S, TANG Z, et al. Integrated geophysical exploration of the coupling of a concealed rock body and metallogenic structures—Ag-Pb-Zn mining area case study in Jilinbaolige, Inner Mongolia, China[J]. Journal of Applied Geophysics, 2020, 178: 104048. DOI URL
[21]	付建飞, 王恩德, 夏建明, 等. 辽宁眼前山铁矿元素地球化学特征与沉积古环境研究[J]. 中国地质, 2014, 41(6):1929-1943.
[22]	陈慧钧. 辽宁眼前山铁矿床构造控矿规律研究[D]. 沈阳: 东北大学, 2018.
[23]	周平, 施俊法. 瞬变电磁法(TEM)新进展及其在寻找深部隐伏矿中的应用[J]. 地质与勘探, 2007(6):63-69.
[24]	李杨. 三维地质体的中心回线瞬变电磁响应特征[D]. 荆州: 长江大学, 2019.
[25]	王海龙, 贾三石, 张建明. 高精度磁法在齐大山铁矿床勘查中的应用[J]. 金属矿山, 2014(7): 118-121.
[26]	张春灌, 袁炳强, 李玉宏. 吐鲁番中南部地区航磁异常特征及其地质意义[J]. 地球物理学进展, 2019, 34(5):1811-1817.
[27]	付光明, 严加永, 张昆, 等. 信江盆地上饶段结构特征与成矿前景——来自大地电磁的证据[J]. 地球物理学进展, 2019, 34(2):537-544.
[28]	曾小牛, 李夕海, 贾维敏, 等. 位场各阶垂向导数换算的新正则化方法[J]. 地球物理学报, 2015, 58(4):1400-1410. DOI
[29]	WANG W, PAN Y, QIU Z. A new edge recognition technology based on the normalized vertical derivative of the total horizontal derivative for potential fi eld data[J]. Applied Geophysics, 2009, 6(3):226-233,299. DOI URL
[30]	曹华科, 戚志鹏, 李貅, 等. 考虑关断时间的瞬变电磁视电阻率计算及不同波形浅层分辨特征分析[J]. 地球物理学进展, 2022, 37(4):1704-1716.
[31]	屈奋雄. 辽宁鞍山地区元古宙岩群构造变形及其对铁矿床分布的控制规律[J]. 地质找矿论丛, 1988(2):22-37.
[32]	付海涛. 鞍本地区沉积变质型铁矿控矿条件与找矿模型[M]. 沈阳: 辽宁人民出版社, 2014.
[33]	范正国, 黄旭钊, 谭林, 等. 鞍山地区地质构造及深部铁矿[J]. 地质与勘探, 2013, 49(6):1153-1163.
[34]	张招崇, 李厚民, 李建威, 等. 我国铁矿成矿背景与富铁矿成矿机制[J]. 中国科学(地球科学), 2021, 51(6):827-852.
[35]	付海涛. 鞍本地区EW向深大断裂地质特征[J]. 地质找矿论丛, 2014, 29(4):471-479.
[36]	李厚民, 李延河, 李立兴, 等. 沉积变质型铁矿成矿条件及富铁矿形成机制[J]. 地质学报, 2022, 96(9):3211-3233.
[37]	刘如琦, 蔡一廷, 张宝华. 鞍山附近“樱桃园组”的构造样式及其时代讨论[J]. 地质科学, 1987(1):25-38.
[38]	杜庆丰. 瞬变电磁法工作装置、数据预处理及反演解释系统[D]. 北京: 中国地质大学(北京), 2008.
[39]	宋芳. 中心回线装置瞬变电磁法的正反演研究[D]. 重庆: 重庆大学, 2018.
