新型高分子改性剂的合成及含电气石功能聚合物的制备

doi:10.19657/j.geoscience.1000-8527.2019.01.24

现代地质 ›› 2019, Vol. 33 ›› Issue (01): 246-250.DOI: 10.19657/j.geoscience.1000-8527.2019.01.24

• 矿物材料学 • 上一篇

新型高分子改性剂的合成及含电气石功能聚合物的制备

胡应模¹^,²^,³(), 李梦灿¹^,², 安文峰¹^,², 侯春燕¹^,², 刘权¹^,²

1.中国地质大学(北京) 材料科学与工程学院,北京 100083
2.非金属矿物和固废资源材料化利用北京市重点实验室,北京 100083
3.岩石矿物材料国家专业实验室,北京 100083

收稿日期:2018-10-10 修回日期:2018-12-20 出版日期:2019-02-26 发布日期:2019-02-28
作者简介:胡应模,男,教授,博士生导师,1964年出生,材料科学专业,主要从事矿物功能复合材料的研究。Email:huyingmo@cugb.edu.cn。
基金资助:
国家自然科学基金项目(51372233)

Synthesis of New Polymer Modifier and Preparation of Tourmaline-containing Functional Polymer

HU Yingmo¹^,²^,³(), LI Mengcan¹^,², AN Wenfeng¹^,², HOU Chunyan¹^,², LIU Quan¹^,²

1. School of Materials Science and Technology, China University of Geosciences, Beijing 100083, China
2. Beijing Key Laboratory of Materials Utilization of Nonmetallic Minerals and Solid Wastes, Beijing 100083, China
3. National Laboratory of Mineral Materials, Beijing 100083, China

Received:2018-10-10 Revised:2018-12-20 Online:2019-02-26 Published:2019-02-28

摘要/Abstract

摘要：

采用丁二酸酐和乙酸乙烯酯进行共聚,制备了含有酸酐活性基团的高分子聚合物P(SA-VA);然后用该活性聚合物对电气石进行表面改性,制备了含电气石的功能聚合物。通过IR、XRD、SEM等对改性产物结构和形貌进行了表征。实验结果表明,P(SA-VA)的酸酐基团与电气石表面的羟基发生了反应,电气石粉体被成功地引入到共聚物中,得到了含电气石的功能聚合物。该功能聚合物具有优良的分散性和储存稳定性,且该含电气石的功能聚合物成膜后具有良好的力学性能和优异的负离子释放量、远红外辐射等性能。

关键词: 电气石, 表面改性, 远红外辐射, 负离子

Abstract:

In this paper, succinic anhydrides were copolymerized with vinyl acetate to get the p(SA-VA) with acid anhydride active group, and the surface modification of tourmaline was carried with p(SA-VA) as a modifier to prepare the tourmaline-containing functional polymer. The structure and morphology of the modified tourmaline and functional polymer were characterized by means of IR, XRD and SEM. The experimental results showed that the tourmaline was attached into the polymer by the reaction of the tourmaline surface hydroxyl groups with the anhydride group of P(SA-VA) to get tourmaline-containing functional copolymer, and it exhibited excellent dispersity and storage stability. And the membranes of the functional copolymer revealed good mechanical properties and excellent negative ion releasing, far infrared radiation performances.

Key words: tourmaline, surface modification, far infrared radiation, negative ion

中图分类号:

P579

胡应模, 李梦灿, 安文峰, 侯春燕, 刘权. 新型高分子改性剂的合成及含电气石功能聚合物的制备[J]. 现代地质, 2019, 33(01): 246-250.

HU Yingmo, LI Mengcan, AN Wenfeng, HOU Chunyan, LIU Quan. Synthesis of New Polymer Modifier and Preparation of Tourmaline-containing Functional Polymer[J]. Geoscience, 2019, 33(01): 246-250.

图/表 7

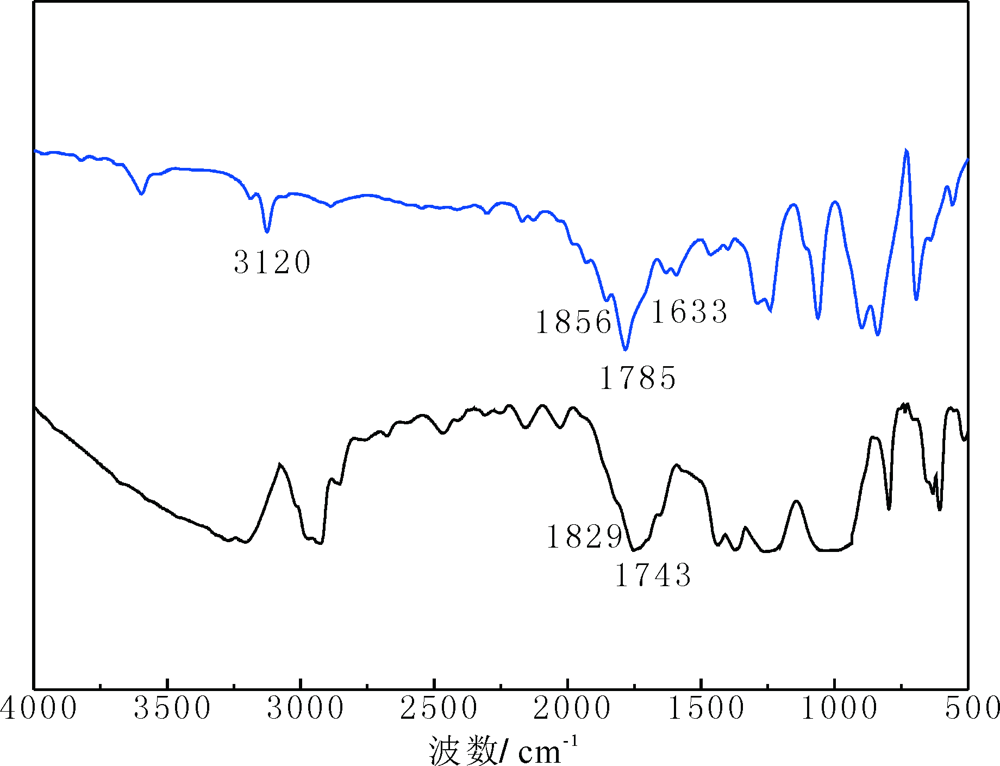

图1 丁二酸酐(蓝线)和共聚物P(SA-VA)(黑线)的红外光谱图

Fig.1 IR spectra of succinic anhydride and copolymer P(SA-VA)

图2 P(SA-VA)改性电气石的红外光谱图

Fig.2 IR spectra of modified tourmaline with P(SA-VA)

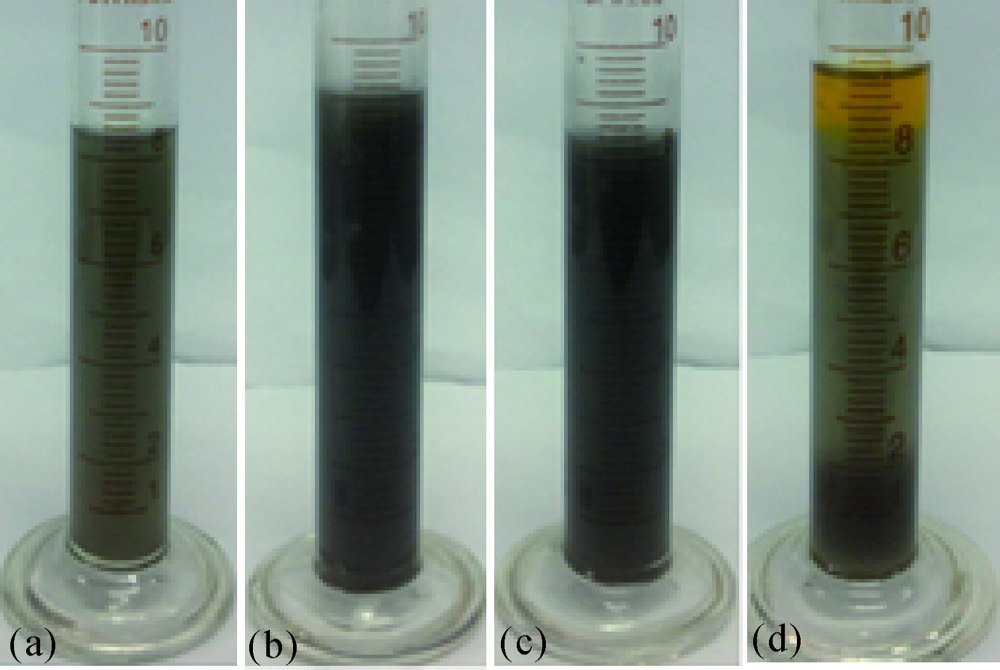

图3 不同电气石含量的功能聚合物贮存稳定性 (a)含电气石(1%)功能聚合物;(b)含电气石(3%)功能聚合物;(c)含电气石(5%)功能聚合物;(d)聚乙酸乙烯酯-电气石(2%)共混物

Fig.3 Storage stability of functional polymer with different tourmaline contents

图4 电气石功能聚合物的SEM和EDS分析 (a)聚乙酸乙烯酯与电气石共混物;(b)含电气石功能聚合物;(c)含电气石功能聚合物的EDS分析

Fig.4 SEM and EDS analysis of tourmaline-containing functional copolymer

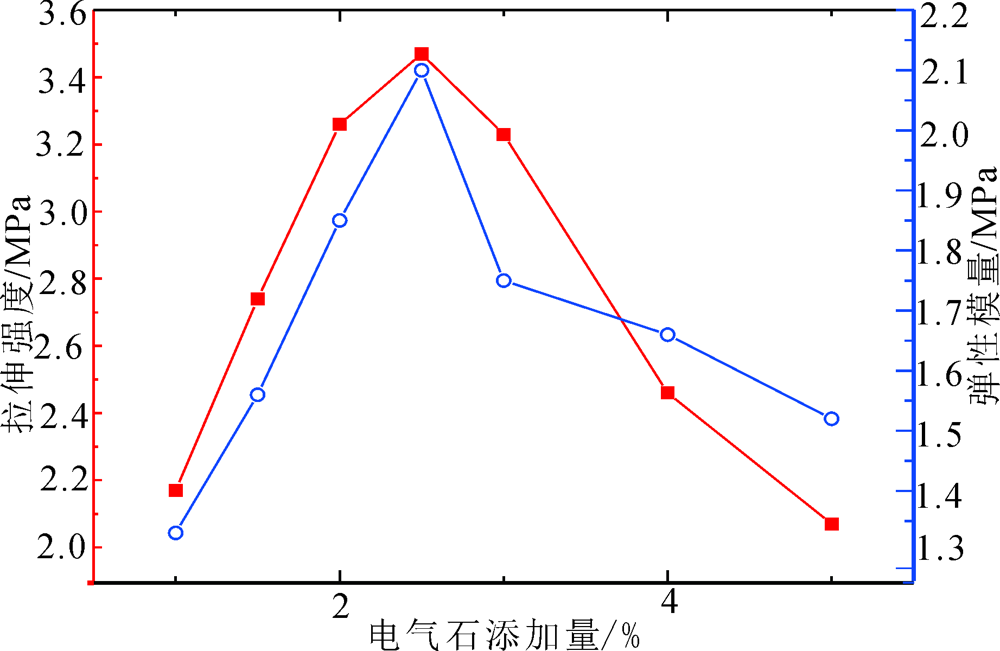

图5 含电气石功能共聚物的力学性能

Fig.5 Mechanical properties of tourmaline-containing functional copolymer

图6 电气石功能聚合物的负离子释放量

Fig.6 Negative ion releasing amount of tourmaline-containing functional copolymer

表1 电气石功能聚合物远红外辐射率

Table 1 Far infrared emissivity of tourmaline-containing functional copolymer

电气石添加量/%	远红外辐射率
1.0	0.939
1.5	0.945
2.0	0.946
2.5	0.949
3.0	0.954
4.0	0.955
5.0	0.957

参考文献 19

[1]	张英利, 王宗起, 贾晓彤, 等. 上扬子会泽地区晚三叠世须家河组砂岩物源特征:基于重矿物分析和碎屑锆石U-Pb测年[J]. 现代地质, 2018,32(2):213-226.
[2]	廖忠礼, 莫宣学, 潘桂棠, 等. 藏南过铝花岗岩中电气石的矿物化学特征及成因意义[J]. 现代地质, 2007,21(2):291-295.
[3]	张开永, 成学海, 曲鸿鲁. 国内外电气石开发研究现状及应用前景展望[J]. 矿冶, 2004,13(1):97-100.
[4]	冀志江. 电气石自极化及应用基础研究[D]. 北京:中国建筑材料科学研究总院, 2003.
[5]	巫静, 吴春龙, 黄绳纪, 等. 电气石性能与环保领域的产品开发应用[J]. 广州化工, 2006,34(4):69-70.
[6]	曹正端, 杨瑞东, 高军波, 等. 贵州紫云方解石矿床地球化学特征及成因研究[J]. 现代地质, 2017,31(4):757-767.
[7]	PAL D C, TRUMBULL R B, WIEDENBECK M. Chemical and boron isotope compositions of tourmaline from the Jaduguda U(-Cu-Fe) deposit,Singhbhum shear zone,India: Implications for the sources and evolution of mineralizing fluids[J]. Chemical Geology, 2010,277(3):245-260. DOI URL
[8]	FERLA P, MELI C. Petrogenesis of tourmaline rocks associated with Fe-carbonate-graphite metapelite,metabasite and strata-bound polymetallic sulphide mineralisation,Peloritani Mountains,Sicily,Southern Italy[J]. Lithos, 2007,3(3):266-288.
[9]	JIANG S Y, RADVANEC M, NAKAMURA E, et al. Chemical and boron isotopic variations of tourmaline in the Hnilec granite-related hydrothermal system,Slovakia: Constraints on magmatic and metamorphic fluid evolution[J]. Lithos, 2008,106(1):1-11. DOI URL
[10]	HINSBERG V J V, MARSCHALL H R. Boron isotope and light element sector zoning in tourmaline: Implications for the formation of B-isotopic signatures[J]. Chemical Geology, 2007,238(3/4):141-148. DOI URL
[11]	GARDA G M, TRUMBULL R B, BELJAVSKIS P, et al. Boron isotope composition of tourmalinite and vein tourmalines associated with gold mineralization,Serra do Itaberaba Group,central Ribeira Belt,SE Brazil[J]. Chemical Geology, 2009,264(1):207-220. DOI URL
[12]	胡应模, 卞江, 吴正明. 阳离子表面活性剂对电气石表面改性效果的探讨[J]. 中国非金属矿工业导刊, 2014,1(1):26-28.
[13]	苏玉柱, 杨静, 马鸿文, 等. 利用粉煤灰制备高强矿物聚合材料的实验研究[J]. 现代地质, 2006,20(2):354-360.
[14]	庄永涛, 刘鹏程, 郝明强. 高温高盐高黏油藏缔合聚合物-表面活性剂二元驱技术[J]. 现代地质, 2017,31(4):814-821.
[15]	ZHENG Y, WANG A. Removal of heavy metals using polyvinyl alcohol semi-IPN poly (acrylic acid)/tourmaline composite optimized with response surface methodology[J]. Chemical Engineering Journal, 2010,162(1):186-193. DOI URL
[16]	TIJING L D, AMARJARGAL A, ZHE J, et al. Antibacterial tourmaline nanoparticles/polyurethane hybrid mat decorated with silver nanoparticles prepared by electrospinning and UV photoreduction[J]. Current Applied Physics, 2013,13(1):205-210. DOI URL
[17]	FUCHS Y, LAGACHE M, LINARES J. Oxydation expérimentale de Fe-tourmalines et corrélation avec une déprotonation des groupes hydroxyleAnnealing in oxidising conditions of Fe-tourmalines and correlated deprotonation of OH groups[J]. Comptes Rendus-Géoscience, 2002,334(4):245-249. DOI URL
[18]	GARCES N Y, STEVENS K T, HALLIBURTON L E, et al. Optical absorption and electron paramagnetic resonance of Fe ions in KDP crystals[J]. Journal of Crystal Growth, 2001,225(2/4):435-439. DOI URL
[19]	周世一, 林金辉, 雷景新. 铝酸酯偶联剂表面改性微晶白云母/PVC复合材料的制备及力学性能[J]. 高分子材料科学与工程, 2012,28(3):153-155.
