中亚造山带东段岩石圈电性结构特征及其构造涵义

doi:10.19657/j.geoscience.1000-8527.2022.069

摘要/Abstract

摘要：

中亚造山带东段内蒙古中部地区一直是地球内部动力学和全球变化研究的热点地区。鉴于该地区的构造在理解中亚造山带的形成过程中起着重要作用,因此对该地区构造的研究具有重要意义。本文收集了中亚造山带东段一条长364 km的大地电磁测深(MT)剖面数据,该剖面西北起于内蒙古东乌旗内的国境线附近,向东南延伸,穿过北部造山带、索伦缝合带、南部造山带,在内蒙古翁牛特旗以西约30 km附近终止。根据数据的分析结果,对该剖面进行了二维反演。结果表明,剖面区段内岩石圈电性结构沿南北方向上整体表现为横向分块的特征。其中,北部造山带整体上以低阻为主要特征;索伦缝合带是整个剖面电性特征从低阻到高阻的过渡区;南部造山带整体上以高阻为主要特征。北部造山带的低阻特征表明该区域是不稳定的,可能是由古亚洲洋闭合后残留洋壳或者软流圈上升流引起的。索伦缝合带的电性结构特征表明该区域可能在缝合之后还发生了新的构造事件。南部造山带的高阻特征表明该区域基底是稳定的、“冷”的,且流体含量很低,电性结构的几何特征反映了该区域增厚的岩石圈。剖面所经过区域的电性结构特征表明,在西伯利亚板块与华北板块碰撞缝合之后研究区内可能还发生了诸如软流圈流体上升、岩石圈增厚等新的构造事件。此外,该区域的电性结构特征符合缝合带的特点,这为中亚造山带东段构造演化的连续增生模型提供了新的深部地球物理证据。

关键词: 大地电磁测深, 中亚造山带, 索伦缝合带, 构造演化

Abstract:

The eastern segment of the Central Asian Orogenic Belt (CAOB) in central Inner Mongolia has always been a hot research field in the Earth’s internal dynamics and global change. Tectonic study in this region is of great significance given its important role in understanding the CAOB formation. A 364 km-long magnetotelluric sounding (MT) profile in the eastern CAOB is collected in this study. The profile starts from the northwest near the national border in Dongwuqi of Inner Mongolia, and extends to the southeast through the Northern Orogenic Belt (NOB), Solonker Suture Zone (SSZ) and Southern Orogenic Belt (SOB), and terminates about 30 km west of Wengniuteqi of Inner Mongolia. Based on the data analysis results, 2D inversions were conducted on the dataset. Resulting model shows that the electrical structure of the lithosphere along the profile is characterized by NS-trending transverse blocking. The NOB is generally characterized by low resistivity; The SSZ is the transition zone of the electrical characteristics of the whole section from low to high resistivity; The SOB is mainly characterized by high resistivity. The low resistivity characteristics of NOB indicate that the region is unstable, which may be caused by the residual oceanic crust or asthenospheric upwelling after the Paleo-Asian Ocean closure. The SSZ electrical structure indicates that a new tectonic event may have occurred after the suturing. The high resistivity characteristics of the SOB indicate that the basement is stable and “cold”, and the fluid content is very low, with the geometric characteristics of the electrical structure reflecting the thickened lithosphere. The regional electrical structure characteristics along the profile indicate that new tectonic events, such as asthenospheric fluid ascent and lithospheric thickening, may have occurred after the collision between the Siberian and North China Cratons. In addition, the regional electrical structure is consistent with the suture zone characteristics, which provides new deep geophysical evidence for the continuous accretion model of tectonic evolution in the eastern CAOB.

Key words: magnetotellurics, Central Asian Orogenic Belt, Solonker suture zone, tectonic evolution

中图分类号:

P631.3

李波, 金胜, 叶高峰, 魏文博. 中亚造山带东段岩石圈电性结构特征及其构造涵义[J]. 现代地质, 2023, 37(01): 15-30.

LI Bo, JIN Sheng, YE Gaofeng, WEI Wenbo. Lithospheric Electrical Structure of Eastern Segment of Central Asian Orogenic Belt and Its Tectonic Implications[J]. Geoscience, 2023, 37(01): 15-30.

图/表 14

图1 研究区大地构造简图(修改自文献[13-14]) SC.西伯利亚板块; TC.塔里木板块; NCC.华北板块; IC.印度板块;SCC.华南板块;CAOB.中亚造山带;红色圆点为宽频MT测点;CHSP.地震折射和广角反射剖面[13,15];DMT与YMT为MT剖面

Fig.1 Tectonic subdivision of the study area (modified from refs.[13-14])

图2 研究区地质简图(修改自文献[13]; 二连盆地资料引自文献[16])

Fig.2 Geological map of the study area (modified from ref.[13]; data of Erlian Basin from ref.[16])

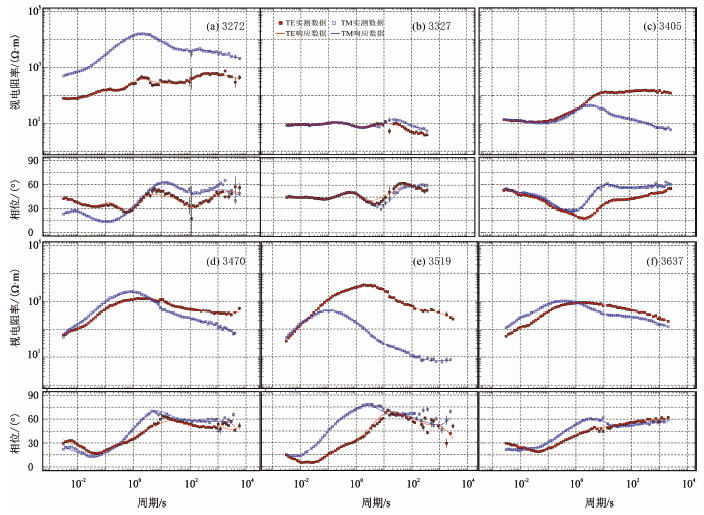

图3 典型MT测点测深曲线数据已旋转至构造走向N45°E:(a)3272点,位于乌里雅斯太陆块;(b)3327点,位于贺根山增生杂岩带;(c)3405点,位于宝力道弧增生杂岩带;(d)3470点,位于索伦缝合带;(e)3519点,位于温都尔庙俯冲-增生杂岩带;(f)3637点,位于白乃庙弧

Fig.3 Examples of MT sounding curves

图4 相位张量椭圆示意图

Fig.4 Schematic diagram of phase tensor ellipse

图5 MT剖面相位张量分析图

Fig.5 Phase tensor maps of MT profile

图6 北部造山带(NOB)、索伦缝合带(SSZ)以及南部造山带(SOB)构造走向分析结果图(0.1~1 s, 1~10 s, 10~100 s, 100~1000 s)

Fig.6 Rose diagrams of strike analysis results (0.1~1 s, 1~10 s, 10~100 s, 100~1000 s) for the NOB, SSZ and SOB

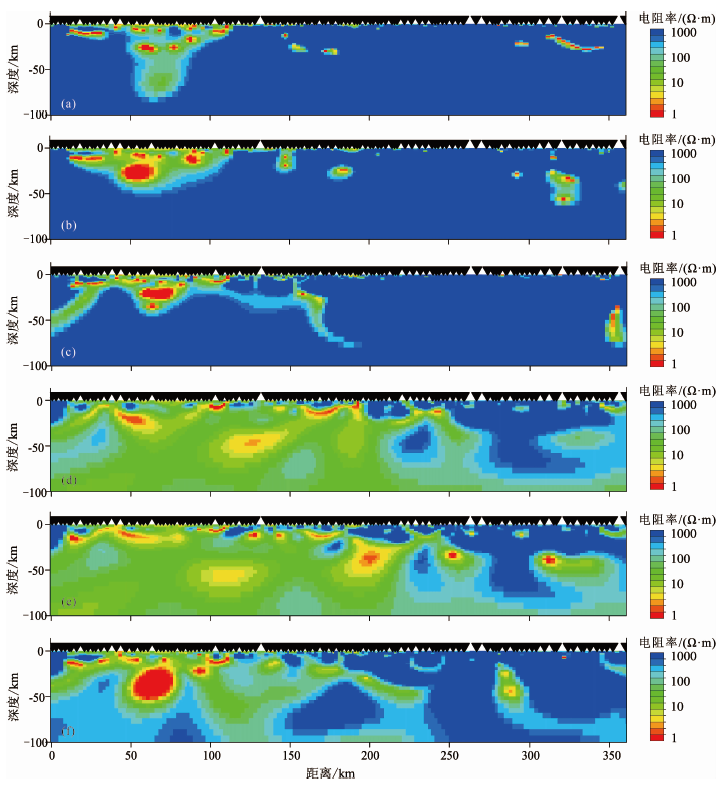

图7 采用了不同的极化模式组合数据的MT剖面二维反演结果对比图 (a) TE, RMS=10.4880; (b) TE+Hz, RMS=6.2506; (c) TE+TM, RMS=8.2160; (d) TM, RMS=2.0638; (e) TM+Hz, RMS=1.8648; (f) TE+TM+Hz, RMS=5.6441

Fig.7 MT profile 2D inversion comparison diagrams, using different polarization mode combination data

图8 剖面不同正则化因子反演得到的模型粗糙度与拟合误差曲线L

Fig.8 L-curve of roughness and RMS values for the profile with different τ

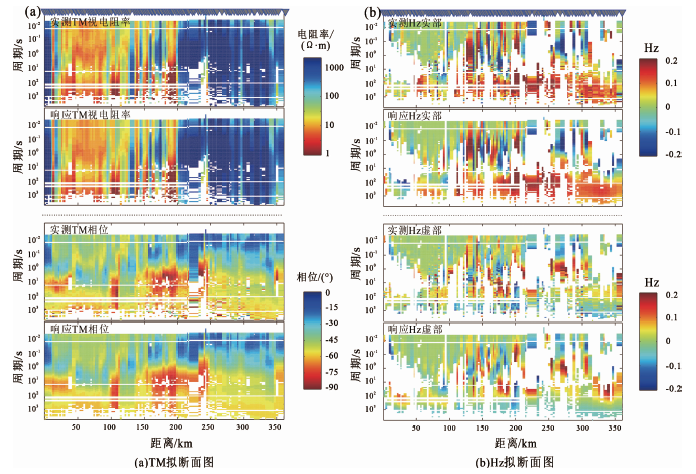

图9 TM(a)和Hz(b)的实测数据与响应数据拟断面图

Fig.9 Pseudosection of observed and modeled TM (a) and Hz (b) data

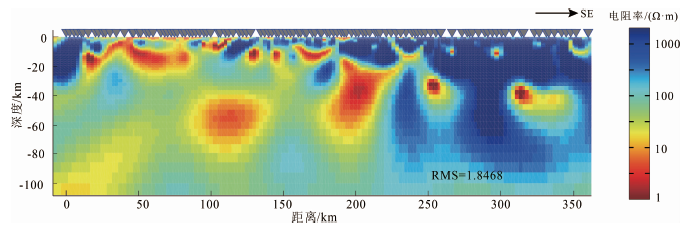

图10 MT剖面二维电性结构模型

Fig.10 2D electrical structure model of MT profile

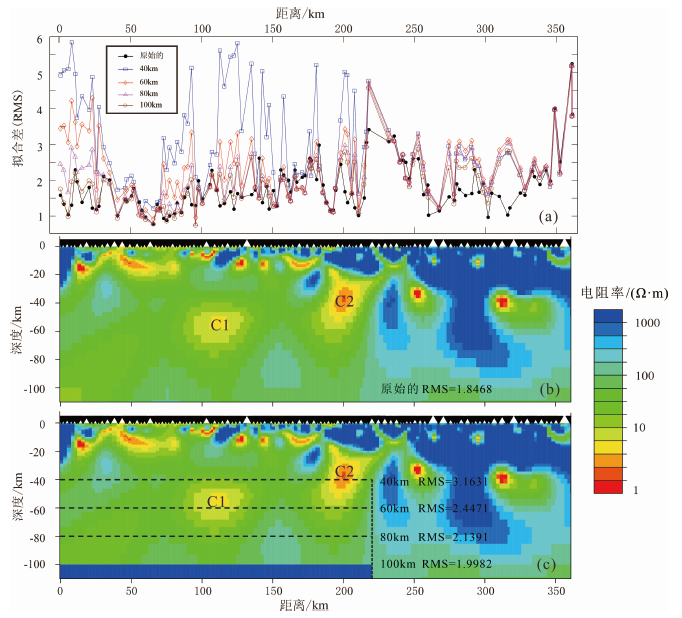

图11 初始二维反演模型和多个正演模型沿剖面的RMS分布(a)初始二维反演模型(b)和限制不同深度的正演模型(c)

Fig.11 RMS distribution along the profile (a) for the original 2D inversion model (b) and several forward modeling models (c)

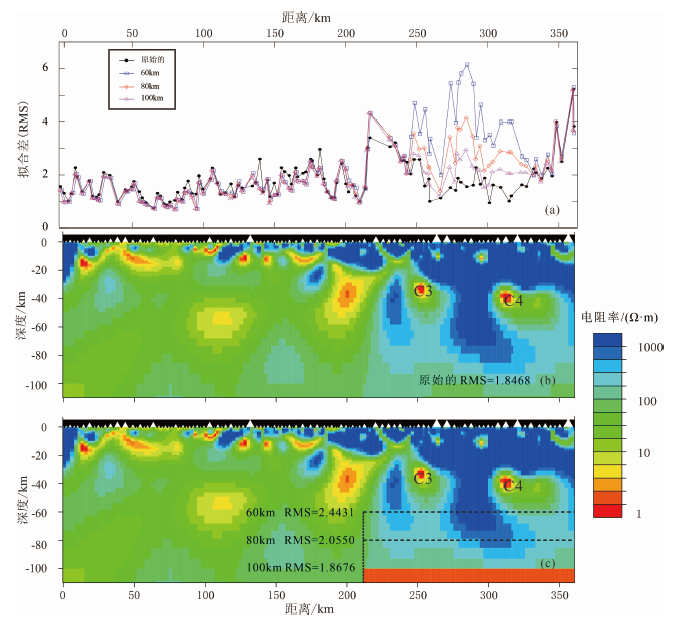

图12 初始二维反演模型和多个正演模型沿剖面的RMS分布(a)初始二维反演模型(b)和限制不同深度的正演模型(c)

Fig.12 RMS distribution along the profile (a) for the original 2D inversion model (b) and several forward modeling models (c)

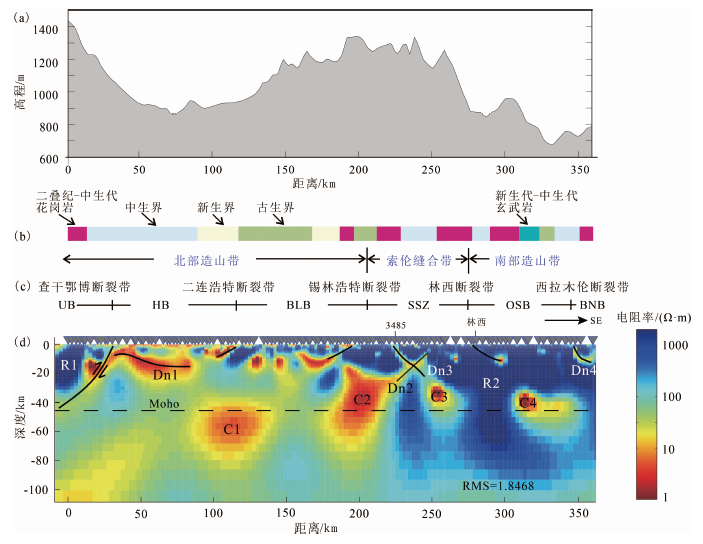

图13 MT剖面二维电性结构模型解释图 (a)沿剖面地形图; (b)根据图2简化的区域地质单元; (c)根据图1(b)简化的大地构造单元; (d)二维电阻率模型;UB.乌里雅斯太陆块;HB.贺根山增生杂岩带; BLB.宝力道弧增生杂岩带;SSZ.索伦缝合带;OSB.温都尔庙俯冲-增生杂岩带;BNB.白乃庙弧;Moho(莫霍面)深度据文献[13]

Fig.13 Tectonic interpretation of 2D MT inversion model

图14 中亚造山带东段演化的连续增生模型(修改自文献[14,63])

Fig.14 Continuous accretion model describing the tectonic evolution of the eastern CAOB (modified from refs.[14,63])
