Mineral Resource Spatial Association Analysis and Prediction:A Case Study in Western China

doi:10.19657/j.geoscience.1000-8527.2019.04.06

Abstract

Abstract:

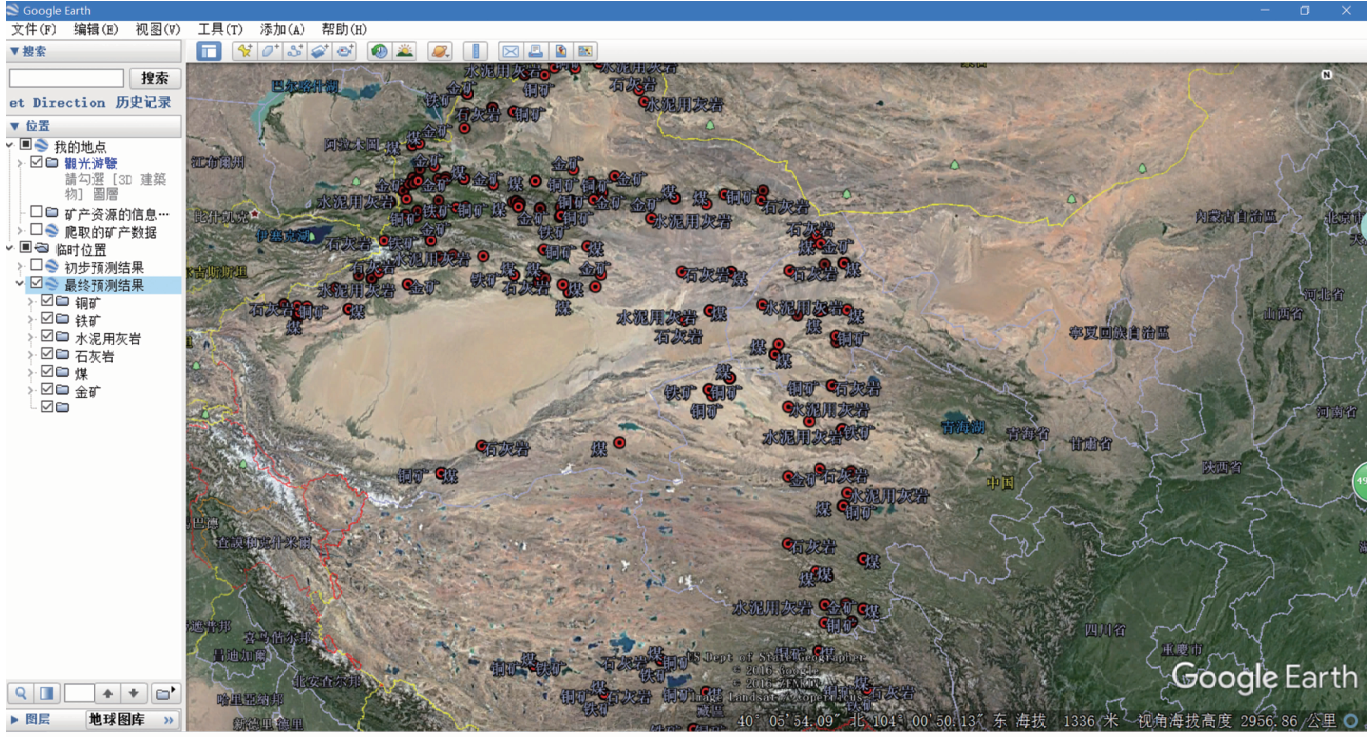

Based on the similarity-analogy theory of concealed orebody prediction, a method of spatial location correlation analysis and prediction is designed and developed. By analyzing the published spatial distribution data of mineral resources, correlation of known mineral occurrences is performed to analyze and predict the concealed orebodies. Taking some areas of Western China as an example, the Apriori algorithm is used to analyze the relationship between the spatial location of known mineral occurrences, and the relationship between the symbiosis and mineral association in that area. Consequently, prediction is made on the locations of concealed orebodies. Effectiveness and feasibility of this method are proven by comparing with the existing results. Visualization tools, such as GoogleEarth, are used to show the predicted results, and to make a better comparative study. This project has newly designed and developed a method based on spatial location correlation analysis and prediction.

Key words: mineral prediction, web crawl, association analysis, Apriori algorithm

CLC Number:

LIU Guo, WANG Yizhe, XUE Tao, WU Chenyao, XUE Bo, TANG Tiantian, LIU Shiming. Mineral Resource Spatial Association Analysis and Prediction:A Case Study in Western China[J]. Geoscience, 2019, 33(04): 751-758.

Figures/Tables 8

References 12

[1]	李文光. 中国西部地区矿产资源概况[J]. 吉林地质, 2002,21(3):106-112.
[2]	吴剑. 浅谈矿产预测[J]. 城市建设理论研究, 2011(15):1-3.
[3]	吴承栋. 当前国外成矿理论及矿产预测的研究现状和趋势[J]. 地质通报, 1983,2(1):115-122.
[4]	薛涛, 刁明光, 吕志成. 岩石地球化学图解辅助分析软件的关键问题及解决方法[J]. 现代地质, 2013,27(6):1316-1322.
[5]	于萍萍, 陈建平, 柴福山, 等. 基于地质大数据理念的模型驱动矿产资源定量预测[J]. 地质通报, 2015,34(7):1333-1343.
[6]	翟裕生, 彭润民, 邓军, 等. 区域成矿学与找矿新思路[J]. 现代地质, 2001,15(2):151-156.
[7]	吴俊华, 袁承先, 赵赣. 隐伏矿体的预测理论、探测方法及发展现状[J]. 地质找矿论丛, 2010,25(3):188-195.
[8]	陈建平. 矿产资源定量评价中文本数据挖掘研究[M]//中国地质学会数学地质与地学信息专业委员会.第七届全国数学地质与地学信息学术会议论文摘要汇编. 北京: 中国地质学会数学地质与地学信息专业委员会, 2004: 1.
[9]	刘光萍, 王京贵. 关联分析在矿产资源预测中的应用[J]. 地质科技情报, 1991,10(3):75-79.
[10]	颜雪松. 一种基于Apriori的高效关联规则挖掘算法的研究[J]. 计算机工程与应用, 2002,38(10):209-211.
[11]	刘华婷, 郭仁祥, 姜浩. 关联规则挖掘Apriori算法的研究与改进[J]. 计算机应用与软件, 2009,26(1):146-149.
[12]	王洪亮, 吴然, 张冀, 等. 新疆矿产资源勘查开发对策分析[J]. 资源与产业, 2014,16(3):66-72.

矿种组合	支持度/%	置信度/%
{A,C}	50	100.0
{B,C}	50	66.6
{B,E}	75	100.0
{C,E}	50	66.6
{B,C,E}	50	66.6

矿种组合	支持度/%	置信度/%
{A,C}	50	100.0
{B,C}	50	66.6
{B,E}	75	100.0
{C,E}	50	66.6
{B,C,E}	50	66.6

1	from bs4 import BeautifulSoup
2	import urllib.request,http.cookiejar
3	import math
4	import re
5	head=“http://219.142.81.85/arcgis/services/0refield/ MapServer/WMSServer?request=getfeatureinfo&transparent= true&format=xml%2Fhtml&version=1.1.1&layers= 0&query_layers=0&srs=EPSG%3A4326&”
6	tail=“&height=409&width=1366&bbox= 115.11282992829184%2C39.63686022517068% 2C116.9887454556356%2C40.198536250561304”
7	myset=set()
8	for x in range(546,804):
9	for y in range(126,388):
10	url=head+“X=”+str(x)+“&Y=”+str(y)+tail
11	request=urllib.request.Request(url)
12	request.add_header(“Origin”,“ngac.org.cn”)
13	request.add_header(“User-Agent”,“Mozilla/5.0 (Windows NT 10.0; WOW64; rv:49.0) Gecko/20100101 Firefox/49.0”)
14	#用带有cookie的urllib访问网页
15	try:
16	response=urllib.request.urlopen(request,timeout=10)
17	#print (response.getcode())
18	cont=response.read()
19	mycont=cont.decode(“utf8”)
20	if re.search(‘FIELDS’,mycont):myset.add(mycont)
21	time.sleep(0.1)
22	response.close()
23	except urllib.error.URLError as e:
24	print(“错误:”+e)
25	else:
26	print(“OK”)
27	print(myset)
28	print(“爬虫结束”)

1	from bs4 import BeautifulSoup
2	import urllib.request,http.cookiejar
3	import math
4	import re
5	head=“http://219.142.81.85/arcgis/services/0refield/ MapServer/WMSServer?request=getfeatureinfo&transparent= true&format=xml%2Fhtml&version=1.1.1&layers= 0&query_layers=0&srs=EPSG%3A4326&”
6	tail=“&height=409&width=1366&bbox= 115.11282992829184%2C39.63686022517068% 2C116.9887454556356%2C40.198536250561304”
7	myset=set()
8	for x in range(546,804):
9	for y in range(126,388):
10	url=head+“X=”+str(x)+“&Y=”+str(y)+tail
11	request=urllib.request.Request(url)
12	request.add_header(“Origin”,“ngac.org.cn”)
13	request.add_header(“User-Agent”,“Mozilla/5.0 (Windows NT 10.0; WOW64; rv:49.0) Gecko/20100101 Firefox/49.0”)
14	#用带有cookie的urllib访问网页
15	try:
16	response=urllib.request.urlopen(request,timeout=10)
17	#print (response.getcode())
18	cont=response.read()
19	mycont=cont.decode(“utf8”)
20	if re.search(‘FIELDS’,mycont):myset.add(mycont)
21	time.sleep(0.1)
22	response.close()
23	except urllib.error.URLError as e:
24	print(“错误:”+e)
25	else:
26	print(“OK”)
27	print(myset)
28	print(“爬虫结束”)

选择项	推荐	选择项数目	关联项数目	支持度 /%	置信度
云母	金矿	10	10	100.00	0.47
盐矿	铜矿	19	15	78.95	0.30
盐矿	铁矿	19	14	73.68	0.22
盐矿	煤	19	13	68.42	0.16
盐矿	金矿	19	11	57.89	0.23
铜矿	铁矿	42	28	66.67	0.27
铜矿	煤	42	27	64.29	0.21
铜矿	金矿	42	24	57.14	0.38
铜矿	水泥用灰岩	42	17	40.48	0.24
铁矿	煤	45	31	68.89	0.31
铁矿	铜矿	45	28	62.22	0.30
铁矿	金矿	45	26	57.78	0.44
铁矿	水泥用灰岩	45	18	40.00	0.25
水泥用灰岩	煤	28	22	78.57	0.30
水泥用灰岩	铁矿	28	18	64.29	0.17
水泥用灰岩	铜矿	28	17	60.71	0.18
水泥用灰岩	金矿	28	14	50.00	0.17
石灰岩	煤	23	16	69.57	0.19
石灰岩	金矿	23	14	60.87	0.28
石灰岩	铜矿	23	14	60.87	0.16
石灰岩	铁矿	23	13	56.52	0.07
石灰岩	水泥用灰岩	23	11	47.83	0.27
石膏(含泥膏矿)	铜矿	13	10	76.92	0.25
石膏(含泥膏矿)	铁矿	13	10	76.92	0.21
铅矿	铜矿	14	10	71.43	0.22
煤	铁矿	46	31	67.39	0.32
煤	铜矿	46	27	58.70	0.23
煤	金矿	46	24	52.17	0.31
煤	水泥用灰岩	46	22	47.83	0.51
芒硝	铁矿	19	15	78.95	0.26
芒硝	煤	19	14	73.68	0.20
芒硝	金矿	19	12	63.16	0.28
芒硝	铜矿	19	12	63.16	0.17
芒硝	水泥用灰岩	19	10	52.63	0.31
硫铁矿	铜矿	13	12	92.31	0.35
硫铁矿	铁矿	13	12	92.31	0.31
硫铁矿	煤	13	11	84.62	0.25
金矿	铁矿	35	26	74.29	0.33
金矿	铜矿	35	24	68.57	0.31
金矿	煤	35	24	68.57	0.23
金矿	石灰岩	35	14	40.00	0.37
金矿	水泥用灰岩	35	14	40.00	0.20
铬矿	铁矿	13	13	100.00	0.35
铬矿	煤	13	11	84.62	0.25
铬矿	金矿	13	10	76.92	0.35
