Experimental Study on the Solvent-Assisted Steam Gravity Drainage Process in Extra-heavy Oil Reservoirs

doi:10.19657/j.geoscience.1000-8527.2018.06.09

Abstract

Abstract:

Based on an extra-heavy oil reservoir in China, experiments of Steam Assisted Gravity Drainage (SAGD) were carried out with a two-dimensional apparatus. We present new findings on the effects of solvents on the characteristics of steam chamber development, production rate and oil recovery. Our results show that liquid and gaseous components in the solvent co-exist in the oil reservoir. The mass quantity of the gaseous components was higher when higher concentration of solvent was injected. The gaseous components in the reservoir are accumulated in the top of the reservoir, reducing the heat loss and improving the conformity of the steam chamber shape in the vertical plane. Solvent-assisted SAGD has greatly improved the peak oil rate with proper concentration. Energy consumption per unit oil production in the low concentration solvent assisted SAGD process is significantly lower than that in the pure SAGD process. This study shows that solvent-assisted SAGD has great potential in recovering extra-heavy oil reservoirs.

Key words: extra-heavy oil reservoir, solvent, Steam Assisted Gravity Drainage (SAGD), steam chamber, oil recovery

CLC Number:

TE33
TE345

WANG Liangang, SHI Lanxiang, YUAN Zhe, LI Xiuluan, LIU Pengcheng. Experimental Study on the Solvent-Assisted Steam Gravity Drainage Process in Extra-heavy Oil Reservoirs[J]. Geoscience, 2018, 32(06): 1203-1211.

Figures/Tables 14

Fig.1 Viscosity-temperature curve of the heavy oil sample

Fig.2 Mole fraction of the mixed-solvent components

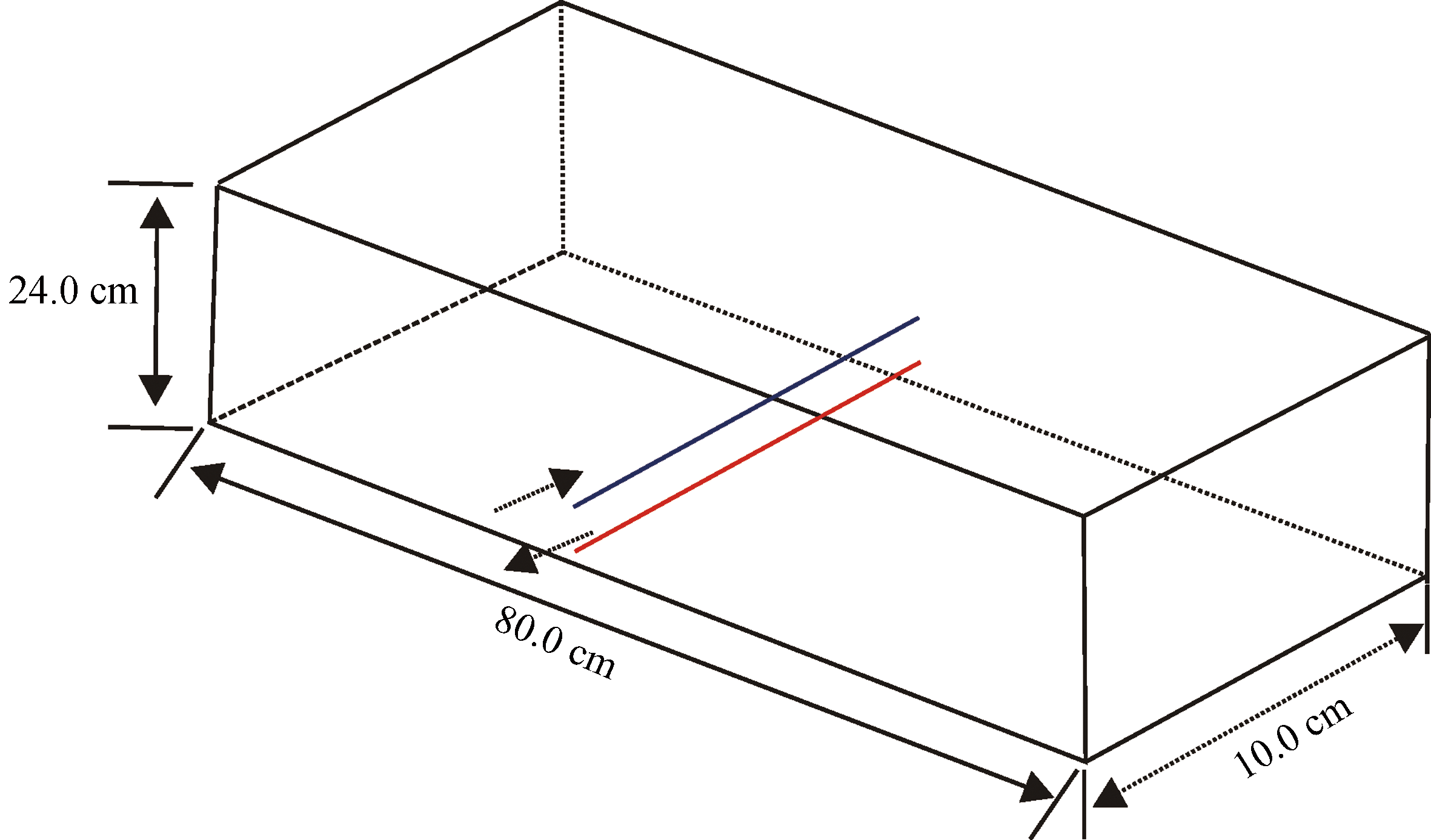

Fig.3 Schematic diagram of the experimental model

Fig.4 Schematic diagram of the temperature sensor distribution

Table 1 Physical parameters of the model

项目	孔隙体积/cm³	孔隙度/%	渗透率/μm²	初始含油饱和度
SAGD	5 910	31.85	120	0.926
低浓度溶剂辅助SAGD	6 110	32.6	120	0.959
高浓度溶剂辅助SAGD	5 879	31.7	120	0.942

Table 2 Injection parameters in the production period of SAGD experiments

项目	注入压力/MPa	注入温度/℃	蒸汽注入速率/(g/h)	溶剂注入速率/(g/h)	溶剂质量分数
SAGD	0.5	159	2.02×10³	/	/
低浓度溶剂辅助SAGD	0.5	159	2.06×10³	297.6	0.125 2
高浓度溶剂辅助SAGD	0.5	159	2.04×10³	1 188.8	0.356 5

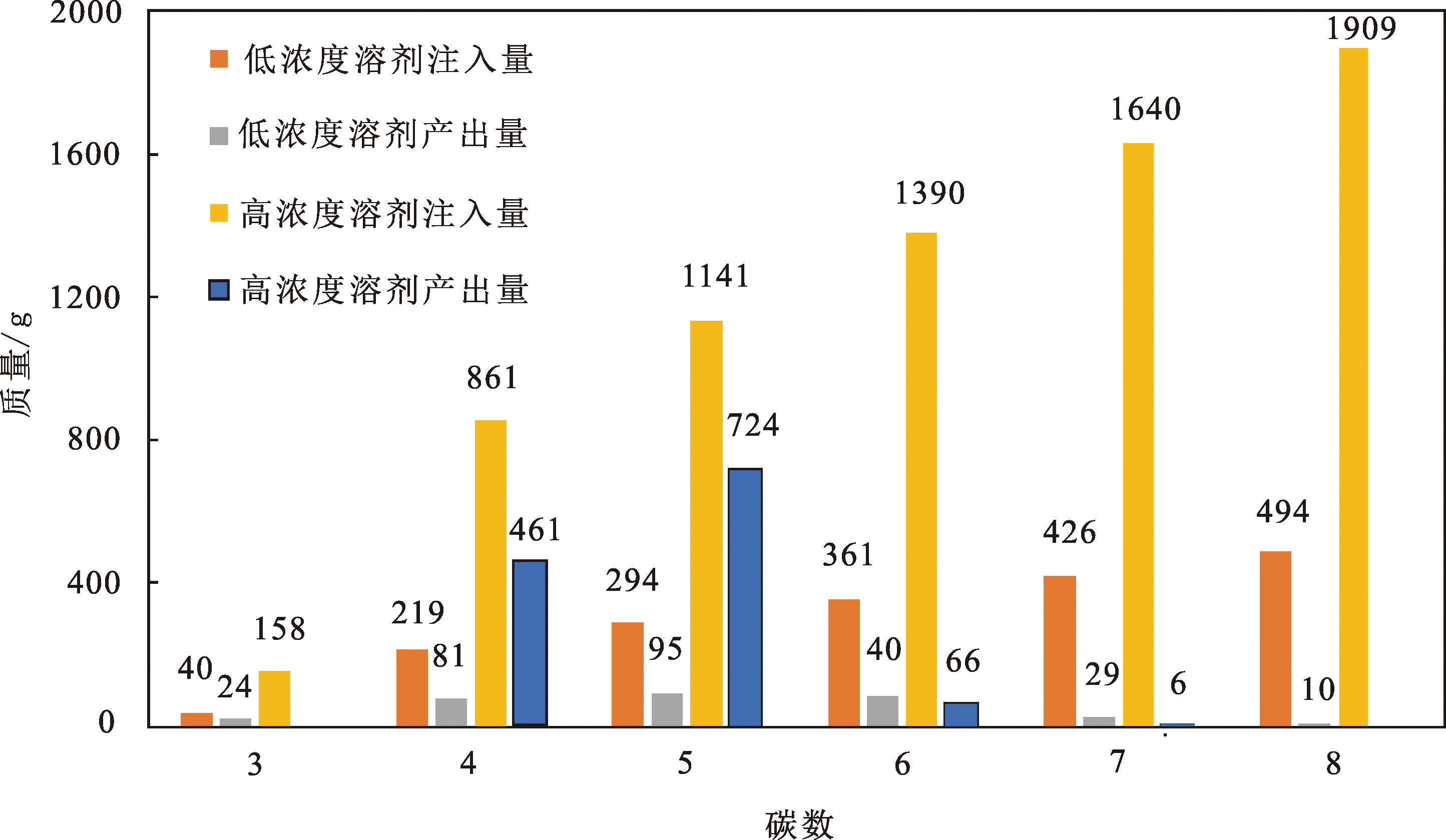

Fig.5 Total injection and production amount of C3-C8 under two different concentration conditions

Fig.6 Gas phase production amount of C1-C8 in the low-concentration experiment

Fig.7 Gas phase production amount of C1-C8 in high-concentration experiment

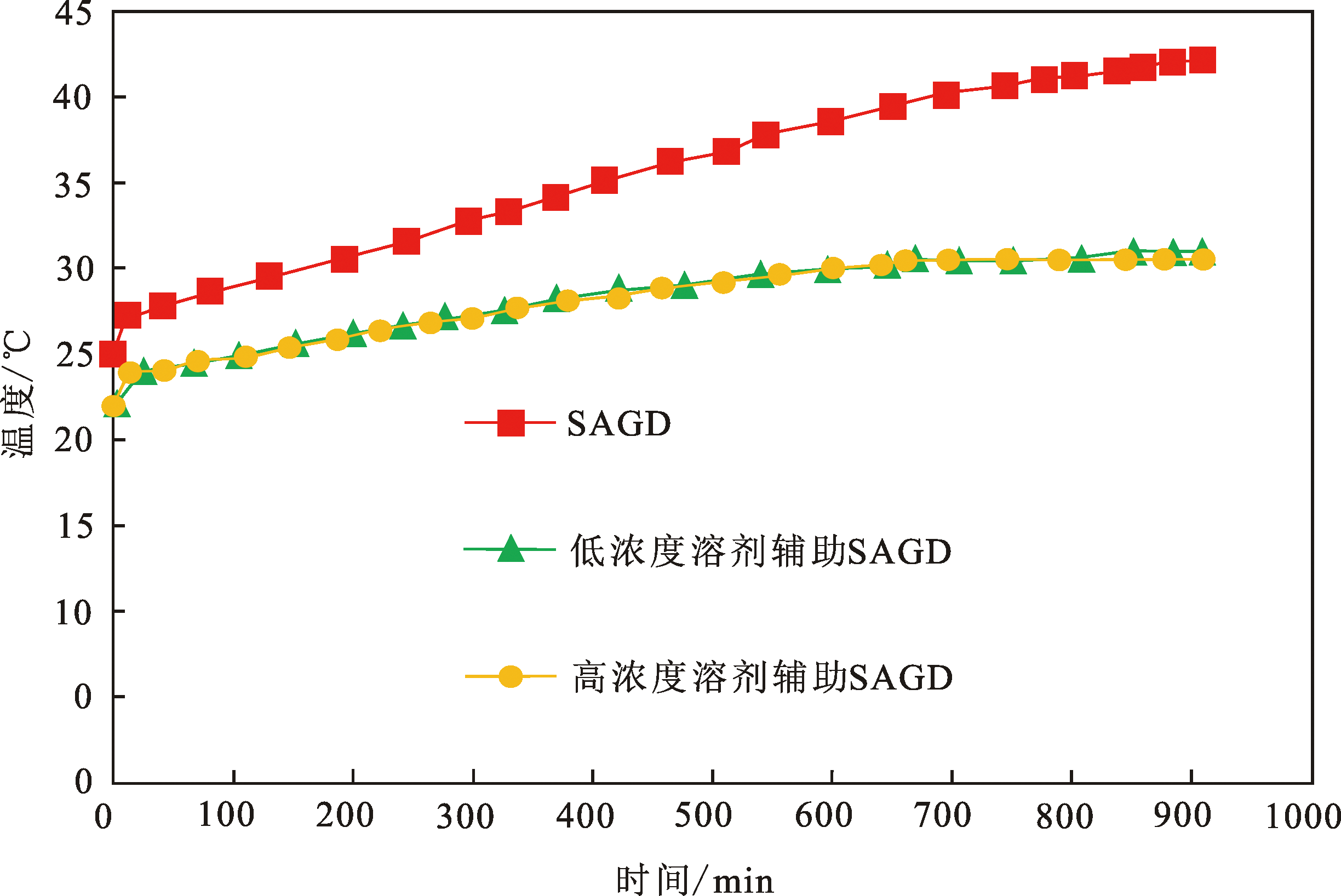

Fig.8 Contrast of the temperature profiles of the overlying rock

Fig.9 Change of the temperature profile of the model with time

Fig.10 Curves of the oil production

Fig.11 Comparison of the oil recovery

Table 3 Energy consumed per unit of produced oil

实验	单位原油能耗/(kJ/kg)
SAGD	26 400
低浓度溶剂辅助SAGD	20 098
高浓度溶剂辅助SAGD	22 576

References 22

[1]	BUTLER R M. Steam assisted gravity drainage: concept, development, performance and future[J]. Journal of Canadian Petroleum Technology, 1994, 32(2): 44-50.
[2]	陈月明. 注蒸汽热力采油[M]. 东营: 石油大学出版社, 1996:17-29.
[4]	BUTLER R. The steam and gas push (SAGP)[J]. Journal of Canadian Petroleum Technology, 1999, 38(3): 54-61.
[5]	石兰香, 李秀峦, 刘荣军, 等. 夹层对SAGD开发效果影响研究[J]. 特种油气藏, 2015, 22(5): 133-136+157-158.
[6]	郑贺梅, 刘鹏程, 郑舰. 特超稠油油藏水平井蒸汽驱油物理模拟实验[J]. 现代地质, 2015, 29(6): 1467-1474.
[7]	NASR T N, BEAULIEU G, GOLBECK H, et al. Novel expanding solvent-SAGD process: “ES-SAGD”[J]. Journal of Canadian Petroleum Technology, 2003, 42(1): 13-16.
[8]	ORR B. ES-SAGD:Past, present and future[J]. SPE129518, 2009.
[9]	GUPTA S, GITTINS S, PICHERACK P. Field implementation of solvent aided process[J]. Journal of Canadian Petroleum Technology, 2005, 44(11): 8-13.
[10]	GUPTA S C, GITTINS S D. Christina lake solvent aided process pilot[J]. Journal of Canadian Petroleum Technology, 2006, 45(9): 15-18.
[11]	AL-MURAYRI M T, MAINI B B, HARDING T H, et al. Multicomponent solvent co-injection with steam in heavy and extra-heavy oil reservoirs[J]. Energy Fuel, 2016, 30 (4): 2604-2616. DOI URL
[12]	BAYAT A E, JUNIN R, KHARAT R, et al. Optimization of solvent composition and injection rate in vapour extraction process[J]. Journal of Petroleum Science & Engineering, 2015, 128: 33-43.
[13]	JHA R K, KUMAR M, BENSON I, et al. New insights into steam/solvent conjection-process mechanism[J]. SPE Journal, 2013, 18(5): 867-877. DOI URL
[14]	JI D Q, DONG M Z, CHEN Z X. Analysis of steam-solvent-bitumen phase behavior and solvent mass transfer for improving the performance of the ES-SAGD process[J]. Journal of Petroleum Science & Engineering, 2015, 133: 826-837.
[15]	ZHAO DW, WANG J, GATES I D. Optimized solvent-aided steam-flooding strategy for recovery of thin heavy oil reservoirs[J]. Fuel, 2013, 112: 50-59. DOI URL
[16]	贾江涛, 施安峰, 王晓宏. 辅助溶剂对SAGD开采效率影响的数值研究[J]. 特种油气藏, 2014, 21(5): 99-102+156.
[17]	罗健, 李秀峦, 王红庄, 等. 溶剂辅助蒸汽重力泄油技术研究综述[J]. 石油钻采工艺, 2014, 36(3): 106-110.
[18]	范宁宁, 刘鹏程, 张胜飞, 等. 稠油油藏蒸汽蒸馏物理模拟实验[J]. 油气地质与采收率, 2016, 23(6): 70-75.
[19]	徐振华, 刘鹏程, 张胜飞, 等. 稠油油藏溶剂辅助蒸汽重力泄油启动物理实验和数值模拟研究[J]. 油气地质与采收率, 2017, 24(3): 110-115.
[20]	石兰香, 李秀峦, 马德胜, 等. 快速均匀启动技术改善蒸汽辅助重力泄油预热效果[J]. 油气地质与采收率, 2017, 24(4): 94-98.
[21]	唐帅, 刘鹏程, 潘莉莉, 等. 稠油油藏井间泥岩夹层对双水平井SAGD开发效果的影响[J]. 现代地质, 2016, 30(2): 388-393.
[22]	石兰香, 李秀峦, 马德胜, 等. SAGD 开发中突破夹层技术对策研究[J]. 现代地质, 2017, 31(5): 1079-1087.
