Analysis of Genetic Mechanism and Failure Mode of a Large Paleo-landslide in Sichuan-Tibet Railway Transportation Corridor

doi:10.19657/j.geoscience.1000-8527.2021.017

Abstract

Abstract:

Sichuan-Tibet railway is vulnerable to serious geological hazards, especially where the topography is complex and tectonic activities are intense. The reactivation of paleo-landslides is one of the serious threats to the construction and operation of the railway. A paleo-landslide is located in the Kangding city, only one hundred meters away from the proposed Sichuan-Tibet railway. On the basis of the analysis of characteristics and formation mechanism using engineering geological mapping and exploration drilling, this study predicts its potential failure mode. The results are listed as follows. The large-scale paleo-landslide mainly slides along the bedrock-overburden discontinuity with strong partial deformation and develops multi-level tensile cracks. The stability scale is stable in the natural and rainy condition, but becomes unstable when earthquake occurs. The potential landslide failure sites are the trailing edges of gravel soil in the middle of the slope, while the potential sliding surface is the interface between the debris rock soil and the fully-weathered rock body.

Key words: Sichuan-Tibet railway, paleo-landslide, failure mode, formation and evolution, alpine area

CLC Number:

P642

WANG Jiazhu, GAO Yanchao, RAN Tao, TIE Yongbo, ZHANG Fan. Analysis of Genetic Mechanism and Failure Mode of a Large Paleo-landslide in Sichuan-Tibet Railway Transportation Corridor[J]. Geoscience, 2021, 35(01): 18-25.

Figures/Tables 8

Fig.1 Geological structure and full view of the paleo-landslide in Kangding, Sichuan

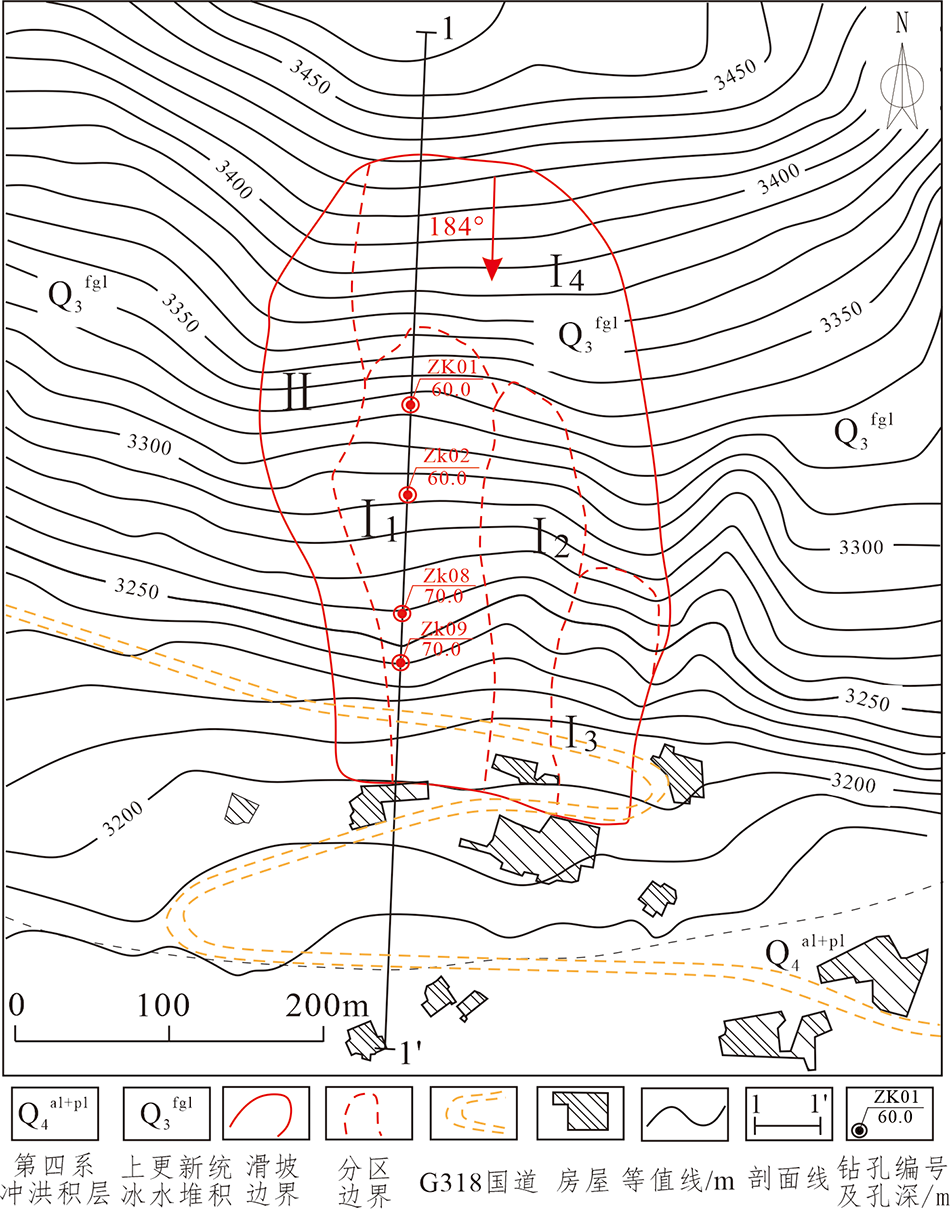

Fig.2 Engineering geologic plane of the paleo-landslide

Fig.3 Deformation and failure characteristics of the paleo-landslide

Fig.4 Engineering geologic profile of 1-1' (a) and its FEM model (b)

Table 1 Physical and mechanical parameters of the rock and soil

岩土材料	密度/ (kg/m³)	弹性模量 /MPa	泊松比	黏聚力 /MPa	内摩擦角 / (°)
碎块石土	2 100	350	0.30	0.05	38
卵砾质粉质黏土	2 000	300	0.32	0.1	37
全风化岩体	2 200	500	0.28	0.2	40
强风化岩体	2 300	2 000	0.25	1	45
弱风化岩体	2 600	5 000	0.23	2	55

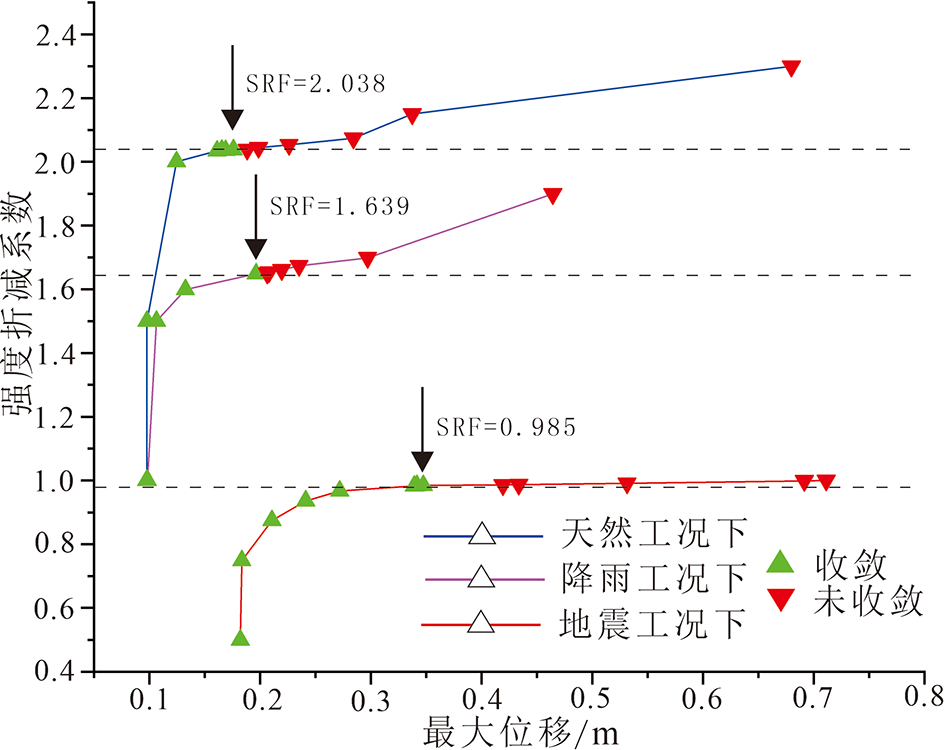

Fig.5 Stability of profile 1-1'

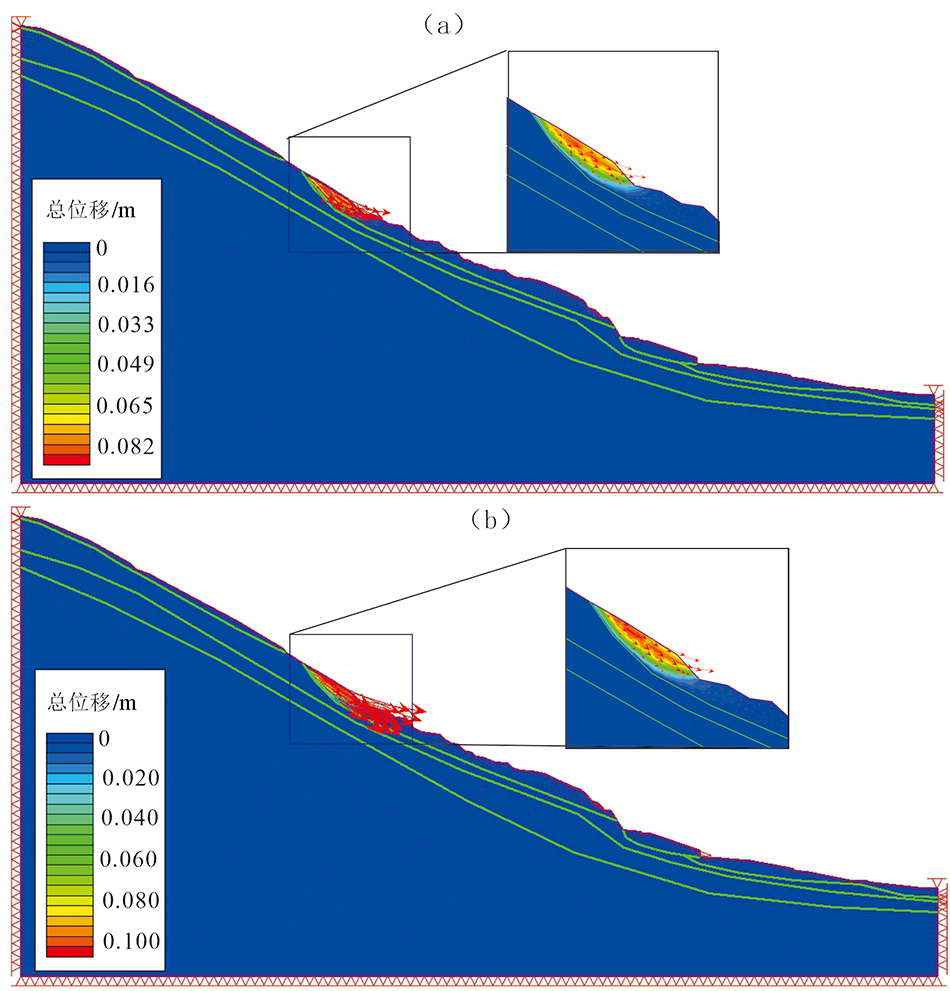

Fig.6 Slope displacement maps of profile 1-1' under natural and rain condition

Fig.7 Numerical simulation results of profile 1-1' under earthquake condition

References 26

[1]	郭长宝, 张永双, 蒋良文, 等. 川藏铁路沿线及邻区环境工程地质问题概论[J]. 现代地质, 2017,31(5):877-889.
[2]	李秀珍, 钟卫, 张小刚, 等. 藏交通廊道滑坡崩塌灾害对道路工程的危害方式分析[J]. 工程地质学报, 2017,25(5):1245-1251.
[3]	许佑顶, 姚令侃. 川藏铁路沿线特殊环境地质问题的认识与思考[J]. 铁道工程学报, 2017,34(1):1-5,59.
[4]	郑宗溪, 孙其清. 川藏铁路隧道工程[J]. 隧道建设, 2017,37(8):1049-1054.
[5]	詹美强, 葛永刚, 贾利蓉, 等. 藏东德弄弄巴古滑坡堆积体物理力学特征及稳定性分析[J]. 现代地质, 2019,33(5):1118-1127.
[6]	薛翊国, 孔凡猛, 杨为民, 等. 川藏铁路沿线主要不良地质条件与工程地质问题[J]. 岩石力学与工程学报, 2020,39(3):445-468.
[7]	彭建兵, 马润勇, 卢全中, 等. 青藏高原隆升的地质灾害效应[J]. 地球科学进展, 2004,19(3):457-466.
[8]	刘传正. 中国崩塌滑坡泥石流灾害成因类型[J]. 地质论评, 2014,60(4):858-868.
[9]	郭长宝, 杜宇本, 佟元清, 等. 青藏高原东缘理塘乱石包高速远程滑坡发育特征与形成机理[J]. 地质通报, 2016,35(8):1332-1345.
[10]	张永双, 郭长宝, 姚鑫, 等. 青藏高原东缘活动断裂地质灾害效应研究[J]. 地球学报, 2016,37(3):277-286.
[11]	宿方睿, 郭长宝, 张学科, 等. 基于面向对象分类法的川藏铁路沿线大型滑坡遥感解译[J]. 现代地质, 2017,31(5):930-942.
[12]	殷跃平. 西藏波密易贡高速巨型滑坡特征及减灾研究[J]. 水文地质工程地质, 2000,27(4):8-11.
[13]	XU Q, SHANG Y, VAN ASCH T, et al. Observations from the large, rapid Yigong rock slide-debris avalanche, southeast Tibet[J]. Canadian Geotechnical Journal, 2012,49(5):589-606.
[14]	SHAO C J, LI F Y, LI Y, et al. Sliding mechanism of Maoxian landslide and geological condition analysis of formation of post-earthquake landslide[J]. Journal of Chengdu University of Technology (Science & Technology), 2017,44(4) : 385-402.
[15]	许强, 李为乐, 董秀军, 等. 四川茂县叠溪镇新磨村滑坡特征与成因机制初步研究[J]. 岩石力学与工程学报, 2017,36(11):2612-2628.
[16]	SCARINGI G, FAN X M, XU Q, et al. Some considerations on the use of numerical methods to simulate past landslides and possible new failures: the case of the recent Xinmo landslide( Sichuan,China)[J]. Landslides, 2018,15(7):1359-1375.
[17]	邓建辉, 高云建, 余志球, 等. 堰塞金沙江上游的白格滑坡形成机制与过程分析[J]. 工程科学与技术, 2019,51(1):9-16.
[18]	冯文凯, 张国强, 白慧林, 等. 金沙江“10·11”白格特大型滑坡形成机制及发展趋势初步分析[J]. 工程地质学报, 2019,27(2):415-425.
[19]	FAN Xuanmei, XU Qiang, ALONSO-RODRIGUEZ Andres, et al. Successive landsliding and damming of the Jinsha River in eastern Tibet, China: prime investigation, early warning, and emergency response[J]. Landslides, 2019,16:1003-1020.
[20]	宋丙辉, 谌文武, 吴玮江, 等. 甘肃舟曲泄流坡滑坡滑带土的抗剪强度特性[J]. 兰州大学学报(自然科学版), 2011,47(6):7-12.
[21]	司海宝, 杨为民, 谢胜华, 等. 考虑时间效应的泄流坡滑坡变形特征[J]. 工程地质学报, 2017,25(2):463-471.
[22]	白永健, 郑万模, 邓国仕, 等. 四川丹巴甲居滑坡动态变形过程三维系统监测及数值模拟分析[J]. 岩石力学与工程学报, 2011,30(5):974-981.
[23]	张永双, 郭长宝, 周能娟. 金沙江支流冲江河巨型滑坡及其局部复活机理研究[J]. 岩土工程学报, 2013,35(3):445-453.
[24]	王丽黎. 冻融循环作用对土体边坡稳定性的影响研究[D]. 西安:长安大学, 2016.
[25]	王述红, 朱承金, 张紫杉, 等. 基于动态强度折减DDA法的边坡多滑面稳定性分析[J]. 煤炭学报, 2019,44(4):1084-1091.
[26]	MATSUI T, SAN K C. Finite element slope stability analysis by shear strength reduction technique[J]. Soils and Foundations, 1992,32(1):59-70.
