贵州官坝地区二叠系—三叠系地质界面黏土岩的火山岩特征、LA-ICP-MS 锆石U-Pb年龄及其地质意义

doi:10.19657/j.geoscience.1000-8527.2020.042

现代地质 ›› 2020, Vol. 34 ›› Issue (05): 1028-1042.DOI: 10.19657/j.geoscience.1000-8527.2020.042

贵州官坝地区二叠系—三叠系地质界面黏土岩的火山岩特征、LA-ICP-MS 锆石U-Pb年龄及其地质意义

何碧¹(), 张向文¹, 赵飞¹, 金灿海², 任光明², 王宁祖¹, 张文斌¹, 张志玺¹, 孙平原¹

1.甘肃省地质矿产勘查开发局第二地质矿产勘查院,甘肃兰州 730020
2.中国地质调查局成都地质调查中心,四川成都 610081

收稿日期:2018-09-12 修回日期:2020-06-16 出版日期:2020-10-28 发布日期:2020-10-29
作者简介:何碧,男,硕士,工程师,1990年出生,古生物学与地层学专业,主要从事区域地质与生态环境地质工作。Email: hebidzxgsw@163.com。
基金资助:
中国地质调查局地质调查项目“乌蒙山区地质矿产综合调查”项目(DD20160019);中国地质调查局成都地质调查中心项目“贵州乌蒙山区1∶5万店子场(G48E006018)、大关(G48E007017)、六厂(G48E0070183)幅区域地质调查”(DD20160019-04)

Volcanic Characteristics, LA-ICP-MS Zircon U-Pb Ages of Claystone at the Permian-Triassic Boundary, Guanba Area in Guizhou Province, South China and the Geological Implications

HE Bi¹(), ZHANG Xiangwen¹, ZHAO Fei¹, JIN Canhai², REN Guangming², WANG Ningzu¹, ZHANG Wenbin¹, ZHANG Zhixi¹, SUN Pingyuan¹

1. The Second Institute of Geology and Minerals Exploration Team,Gansu Provincial Bureau of Geology and Minerals Exploration and Development,Lanzhou,Gansu 730020,China
2. Chengdu Center,China Geological Survey,Chengdu,Sichuan 610081,China

Received:2018-09-12 Revised:2020-06-16 Online:2020-10-28 Published:2020-10-29

摘要/Abstract

摘要：

贵州省黔西县官坝地区位于华南板块西南部,其二叠系—三叠系界线剖面出露较好,界线处出露3层黏土岩。采集贵州黔西官坝地区二叠系—三叠系地质界面黏土岩1件U-Pb年龄样品、7件地球化学样品,对其锆石进行U-Pb定年以及主量、微量和稀土元素进行测试分析。锆石 LA-ICP-MS U-Pb分析结果表明,U和Th含量分别为60.26×10 ^-6~297.9×10 ^-6和46.14×10 ^-6~244.26×10 ^-6,Th/U比值介于0.76~1.55之间,为典型的岩浆锆石;获得 ²⁰⁶Pb/ ²³⁸U加权平均年龄为(252.6±1.4) Ma,谐和年龄为(252.7±0.6) Ma。地球化学分析结果显示,黏土岩属于高硅、铝、钾、镁,低铁、钛的钙碱质中酸性火山物质,具有稀土元素总量相对较高、相对富集轻稀土元素和轻、重稀土元素分馏程度高的特征,负Eu异常明显,δEu =0.19~0.45。上述岩石地球化学特征表明,贵州黔西官坝地区(华南板块西南)二叠系—三叠系界线位置总体上可与浙江长兴(华南板块东南)海相二叠系—三叠系界线(金钉子)相比较。

关键词: 二叠系—三叠系界线;, 黏土岩, LA-ICP-MS锆石 U-Pb年龄, 官坝地区

Abstract:

Three Permian-Triassic claystone are outcropped at Guanba (Qianxi County) in Guizhou Province, geologically in the southwestern South China block. One sample for zircon U-Pb dating and 7 samples for geochemical analysis were collected from the base of the claystone. LA-ICP-MS zircon U-Pb analysis shows that the zircons have 60.26×10 ^-6-297.90×10 ^-6 U and 46.14×10 ^-6-244.26×10 ^-6 Th, with Th/U value of 0.76-1.55, resembling typical igneous zircons. Zircon U-Pb dating yielded a ²⁰⁶Pb/ ²³⁸U weighted mean age of (252.6±1.4) Ma, and the concordant age of (252.7±0.6) Ma. Geochemical analysis shows that the tuff contains calc-alkaline volcanic materials with high Si-Al-K-Mg contents and low Fe-Ti contents. Additionally, the claystone has relatively high total REE contents, with elevated LREE enrichments and REE fractionation. Negative Eu anomaly is obvious (δEu=0.19-0.45). Geochemical characteristics indicate that the Permian-Triassic boundary at Guanba is comparable to the marine-facies Permian-Triassic boundary at Changhsing (GSSP, southeastern South China block).

Key words: Permian-Triassic boundary, claystone, LA-ICP-MS zircon U-Pb dating, Guanba area, Guizhou Province

中图分类号:

何碧, 张向文, 赵飞, 金灿海, 任光明, 王宁祖, 张文斌, 张志玺, 孙平原. 贵州官坝地区二叠系—三叠系地质界面黏土岩的火山岩特征、LA-ICP-MS 锆石U-Pb年龄及其地质意义[J]. 现代地质, 2020, 34(05): 1028-1042.

HE Bi, ZHANG Xiangwen, ZHAO Fei, JIN Canhai, REN Guangming, WANG Ningzu, ZHANG Wenbin, ZHANG Zhixi, SUN Pingyuan. Volcanic Characteristics, LA-ICP-MS Zircon U-Pb Ages of Claystone at the Permian-Triassic Boundary, Guanba Area in Guizhou Province, South China and the Geological Implications[J]. Geoscience, 2020, 34(05): 1028-1042.

图/表 12

参考文献 69

[1]	杨遵仪, 殷鸿福, 吴顺宝, 等. 华南二叠—三叠纪过渡期地质事件 [M]. 北京: 地质出版社, 1987: 1-379.
[2]	梅冥相, 李仲远. 滇黔桂地区晚古生代至三叠纪层序地层序列及沉积盆地演化[J]. 现代地质, 2004,18(4):555-563.
[3]	杨万容, 江纳言. 浙江长兴长兴组和二叠—三叠界面的沉积特征及微相[J]. 中国科学院南京古生物研究所丛刊, 1981(2):113-138.
[4]	赖旭龙, 杨逢清, 殷鸿福, 等. 西秦岭地区二叠—三叠系界线地层研究[J]. 现代地质, 1994,8(1):20-26.
[5]	王国庆, 夏文臣. 湖北黄石二门二叠系/三叠系界线剖面长兴阶牙形刺分带及有机碳同位素的变化[J]. 现代地质, 2003,17(4):378-386.
[6]	殷鸿福, 黄思骥, 张克信, 等. 华南二叠纪—三叠纪之交的火山活动及其对生物绝灭的影响[J]. 地质学报, 1989,63(2):169-180.
[7]	蔡厚安, 梁汉东, 李宝芳, 等. 浙江长兴煤山剖面P/T界线附近石膏的发现及古环境模拟[J]. 现代地质, 2007,21(增):12-16.
[8]	张凡, 冯庆来, 蒙有信, 等. 广西柳桥深水相二叠系/三叠系界线剖面有机碳同位素地层学对比研究及事件响应[J]. 现代地质, 2006,20(1):42-48.
[9]	王尚彦, 殷鸿福. 华南陆相二叠—三叠系界线地层研究新进展[J]. 中国地质, 2001,28(7):16-21.
[10]	杨遵仪, 吴顺宝, 殷鸿福, 等. 华南二叠—三叠纪过渡期地质事件 [M]. 北京: 地质出版社, 1991: 1-190.
[11]	张素新. 黔桂地区深水相二叠系—三叠系界线附近黏土岩研究[J]. 地质科技情报, 2006,25(1):9-13,26.
[12]	RETALLACK G J. P/T之交陆生生物危机[J]. 地质科学译丛, 1996,13(3):32-34.
[13]	MARC K R, ANDREW D S, ROSALIND V W, et al. ⁴⁰Ar/ ³⁹Ar dates from the West Siberian Basin: Siberian flood basalt province doubled [J]. Science, 2002,296:1846-1848. DOI URL PMID
[14]	ROLAND M, KENNETH R L. Age and timing of the permian mass extinctions:U/Pb dating of closed-system zircons[J]. Science, 2004,305:1760-1763. DOI URL PMID
[15]	王令占, 涂兵, 赵小明, 等. 湖北利川地区1∶5万区域地质调查成果与主要进展[J]. 华南地质与矿产, 2013,29(3):169-176.
[16]	杨逢清, 殷鸿福, 喻建新, 等. 贵州威宁岔河陆相二叠系—三叠系界线地层研究[J]. 中国科学( D辑), 2005,35(6):519-529.
[17]	黄虎, 杨江海, 杜远生, 等. 右江盆地上二叠统—中三叠统凝灰岩年龄及其地质意义[J]. 地球科学——中国地质大学学报, 2012,37(1):125-138.
[18]	邓煜霖, 郎兴海, 崔志伟, 等. 四川江油马角坝刺林包剖面二叠—三叠系间粘土岩研究[J]. 岩石矿物学杂志, 2018,37(3):417-433.
[19]	杨斌, 赵飞, 何碧, 等. 贵州省黔西县官坝地区二叠系—三叠系地质界面碳、氧同位素特征及意义[J]. 物探与化探, 2018,42(5):1081-1088.
[20]	贵州省地质矿产局. 息烽幅、毕节幅(1/20万)区域地质测量报告 [R]. 贵阳:贵州省地质矿产局, 1980.
[21]	贵州省地质矿产局. 贵州省区域地质志 [M]. 北京: 地质出版社, 2013.
[22]	卓皆文, 江新胜, 王剑, 等. 川西新元古界开建桥组底部沉凝灰岩锆石SHRIMP U-Pb年龄及其地质意义[J]. 矿物岩石, 2015,35(1):91-99.
[23]	WINCHESTER J A, FLOYD P A. Geochemical discrimination of different magma series and their differentiation products using immobile elements[J]. Chemical Geology, 1977,20:325-343. DOI URL
[24]	IRVINE T N, BARAGAR W R A. A guide to the chemical classification of the common volcanic rocks[J]. Canadian Journal of Earth Sciences, 1971,8:523-548. DOI URL
[25]	田和明, 代世峰, 李大华, 等. 重庆南川晚二叠世凝灰岩的元素地球化学特征[J]. 地质论评, 2014,60(1):169-177.
[26]	陈好寿. 同位素地球化学研究 [M]. 杭州: 浙江大学出版社, 1994: 330-333.
[27]	ADDISON R, HARRISON R K, LAND D H, et al. Volcanogenic tonsteins from tertiary coal measures,East Kalimantan,Indonesia[J]. International Journal of Coal Geology, 1983,3(1):1-30. DOI URL
[28]	SUN S S, MCDONOUGH W F. Chemical and isotopic systematics of oceanic basalts: implications for mantle composition and processes[J]. Geological Society of London Special Publications, 1989,42(1):313-345. DOI URL
[29]	MCLENNAN S M, TAYLOR S R. Sedimentary rocks and crustal evolution: tectonic setting and secular trends[J]. The Journal of Geology, 1991,99(1):1-21. DOI URL
[30]	RUDNICK R L, GAO S. Composition of the continental crust[J]. Treatise on Geochemistry, 2003,3(12):1-64.
[31]	WRONKIEWICZ D J, CONDIE K C. Geochemistry and mineralogy of sediments from the Ventersdorp and Transvaal Supergroups,South Africa: Cratonic evolution during the early Proterozoic[J]. Geochimica et Cosmochimica Acta, 1990,54(2):343-354. DOI URL
[32]	HE B, ZHONG Y T, XU Y G, et al. Triggers of Permo-Triassic boundary mass extinction in South China: The Siberian traps or Paleo-Tethys ignimbrite flare-up?[J]. Lithos, 2014,204(3):258-267. DOI URL
[33]	王松, 徐锦龙, 刘道彬, 等. 安徽泾县地区PTB界线粘土岩特征及其年代学意义[J]. 中国锰业, 2018,36(4):62-66.
[34]	赵天宇, 冯庆来, 刘嵘, 等. 广西东攀剖面粘土岩的火山岩特征及LA-ICP-MS锆石U-Pb年龄[J]. 地质通报, 2013,32(9):1402-1409.
[35]	SEPKOSKI J J. A compendium of fossil marine families[J]. Milwaukee Contribution(Biology and Geology), 1982,51:1-125.
[36]	谭聪, 袁选俊, 于炳松, 等. 鄂尔多斯盆地南缘上二叠统—中下三叠统地球化学特征及其古气候、古环境指示意义[J]. 现代地质, 2019,33(3):615-628.
[37]	BENTON M J, TWITCHETT R J. How to kill(almost)all life: The end-Permian extinction event[J]. Trends in Ecology Evolution, 2003,18:358-365. DOI URL
[38]	王尚彦, 殷鸿福. 滇东黔西陆相二叠纪—三叠纪界线地层研究 [M]. 武汉: 中国地质大学出版社, 2001: 12-74.
[39]	周刚, 郑荣才, 罗平, 等. 川东华蓥二叠系—三叠系界线地层地质事件与元素地球化学响应[J]. 地球科学——中国地质大学学报, 2012,37(增):101-110.
[40]	KAMO S L, CZAMANSKE G K, AMELIN Y, et al. Rapid eruption of Siberian flood-volcanic rocks and evidence for coincidence with the Permian-Triassic boundary and mass extinction at 251 Ma[J]. Earth and Planetary Science Letters, 2003,214(1/2):75-91. DOI URL
[41]	BECKER L, POREDA R J, HUNT A G, et al. Impact event at the Permian-Triassic boundary:Evidence from extraterrestrial noble gases in fullerenes[J]. Science, 2001,291:1530-1534. DOI URL PMID
[42]	WIGNALL P B, TWITCHETT R J. Extent,duration,and nature of the Permian-Triassic superanoxic event[M] //KOEBEL C,MACLEOD K G. Catastrophic Events and Mass Extinctions:Impacts and Beyond. Boulder: Geological Society of America Special Paper, 2002: 395-413.
[43]	LIANG H. End-Permian catastrophic event of marine acidificantion by hydrated sulfuric acid:mineralogical evidence from Meishan section of south China[J]. Chinese Science Bulletin, 2002,47(16):1393-1397. DOI URL
[44]	KAY S M, RAMOS V A, MPODOZIS C, et al. Late Paleozoic to Jurassic silicic magmatism at the Gondwana margin: Analogy to the Middle Proterozoic in North America?[J]. Geology, 1989,17(4):324-328. DOI URL
[45]	ROCHA C A C, BASEI M A, NUTMAN A P, et al. 30 million years of Permian volcanism recorded in the Choiyoi igneous province (W Argentina) and their source for younger ash fall deposits in the Parana Basin: SHRIMP U-Pb zircon geochronology evidence[J]. Gondwana Research, 2011,19(2):509-523. DOI URL
[46]	FILDANI A, HODGSON D, FLINT S, et al. U-Pb zircon ages from the southwestern Karoo Basin,South Africa:Implications for the Permian-Triassic boundary: Reply[J]. Geology, 2009,38(8):719-722. DOI URL
[47]	MICHAELSEN P, HENDERSON R A, CROSDALE P J, et al. Age and significance of the Platypus Tuff Bed,a regional reference horizon in the Upper Permian Moranbah Coal Measures,north Bowen Basin[J]. Australian Journal of Earth Sciences, 2015,48(2):183-192. DOI URL
[48]	GREVENITZ P, CARR P, HUTTON A. Origin,alteration and geochemical correlation of Late Permian airfall tuffs in coal measures,Sydney Basin,Australia[J]. International Journal of Coal Geology, 2003,55(1):27-46. DOI URL
[49]	LEPVRIER C, MALUSKI H, TICH V V, et al. The Early Triassic Indosinian orogeny in Vietnam(Truong Son Belt and Kontum Massif):Implications for the geodynamic evolution of Indochina[J]. Tectonophysics, 2004,393(1/4):87-118. DOI URL
[50]	GAO Q L, CHEN Z Q, ZHANG N, et al. Ages,trace elements and Hf-isotopic compositions of zircons from claystones around the Permian-Triassic boundary in the Zunyi Section,South China: Implications for nature and tectonic setting of the volcanism[J]. Journal of Earth Science, 2015,26(6):872-882. DOI URL
[51]	COURTILLOT V E, RENNE P R. On the ages of flood basalt events[J]. Comptes Rendus Geoscience, 2003,335(1):113-140. DOI URL
[52]	GRASBY S E, SANEI H, BEAUCHAMP B. Catastrophic dispersion of coal fly ash into oceans during the latest Permian extinction[J]. Nature, 2011,4(2):104-107. DOI URL
[53]	SANEI H, GRASBY S E, BEAUCHAMP B. Latest Permian mercury anomalies[J]. Geology, 2012,40(1):63-66. DOI URL
[54]	GAO Q L, ZHANG N, XIA W, et al. Origin of volcanic ash beds across the Permian-Triassic boundary,Daxiakou,South China: Petrology and U-Pb age,trace elements and Hf-isotope composition of zircon[J]. Chemical Geology, 2013,360/361(1):41-53. DOI URL
[55]	HONG H, FANG Q, ZHAO L, et al. Weathering and alteration of volcanic ashes in various depositional settings during the Permian-Triassic transition in South China: Mineralogical,elemental and isotopic approaches[J]. Palaeogeography,Palaeoclimatology,Palaeoecology, 2017,486:46-57. DOI URL
[56]	XIE S C, PANCOST R D, WANG Y B, et al. Cyanobacterial blooms tied to volcanism during the 5 m.y.Permo-Triassic biotic crisis[J]. Geology, 2010,39(9):248-252.
[57]	XU Y G, LUO Z Y, HUANG X L, et al. Zircon U-Pb and Hf isotope constraints on crustal melting associated with the Emeishan mantle plume[J]. Geochimica et Cosmochimica Acta, 2008,72(13):3084-3104. DOI URL
[58]	朱江, 张招崇, 侯通, 等. 贵州盘县峨眉山玄武岩系顶部凝灰岩LA-ICP-MS锆石U-Pb年龄: 对峨眉山大火成岩省与生物大规模灭绝关系的约束[J]. 岩石学报, 2011,27(9):2743-2751.
[59]	SPEARS D A, KANARIS S R. A geochemical and mineralogical investigation of some British and other European tonsteins[J]. Sedimentology, 1979,26:407-425. DOI URL
[60]	ZHOU Y P, REN Y L, BOHOR B F. Origin and distribution of tonsteins in Late Permian coal seams of southwestern China[J]. International Journal of Coal Geology, 1982,2:49-77. DOI URL
[61]	LOPEZ J M G, BAULUZ B, NIETO C F, et al. Factors controlling the trace-element distribution in fine-grained rocks: the Albian kaolinite-rich deposits of the Oliete Basin(NE Spain)[J]. Chemical Geology, 2005,214:1-19. DOI URL
[62]	ZHOU Y P, BOHOR B F, REN Y L. Trace element geochemistry of altered volcanic ash layers(tonsteins)in Late Permian coal-bearing formations of eastern Yunnan and western Guizhou Provinces,China[J]. International Journal of Coal Geology, 2000,44:305-324. DOI URL
[63]	MURRAY R W. Rare earth elements as indicators of different marine depositional environment in chert and shale[J]. Geology, 1990,18:268-271. DOI URL
[64]	CONDIE K C. Mantle Plumes and Their Record in Earth History [M]. Cambridge: Cambridge University Press, 2001: 306.
[65]	GAO S, LUO T H, ZHANG B R. Chemical composition of the continental crust as revealed by studies in East China[J]. Geochimica et Cosmochimica Acta, 1998,62:1959-1975. DOI URL
[66]	FARMER G L. Continental basaltic rocks[M] // HOLLAND H D,TUREKIAN K K. Treatise on Geochemistry. Amsterdam: Elsevier, 2004: 85-121.
[67]	KELEMEN P B, HANGHOJ K, GREENE A R. One view of the geochemistry of subduction-related magmatic arcs, with an emphasis on primitive andesite and lower crust[M]// HOLLAND H D, TUREKZAN K K. Treatise on Geochemistry. Amsterdam: Elsevier, 2003: 593-659.
[68]	WHITE R V. Earth’s biggest‘whodunnit’: unraveling the clues in the case of the end-Permian mass extinction[J]. Philosophical Transactions of the Royal Society of London, 2002,360:2963-2985.
[69]	ZHANG X H, ZHANG H F, TANG Y J, et al. Geochemistry of Permian bimodal volcanic rocks from central Inner Mongolia, North China: Implication for tectonic setting and Phanerozoic continental growth in Central Asian Orogenic Belt[J]. Chemical Geology, 2008,249:262-281. DOI URL

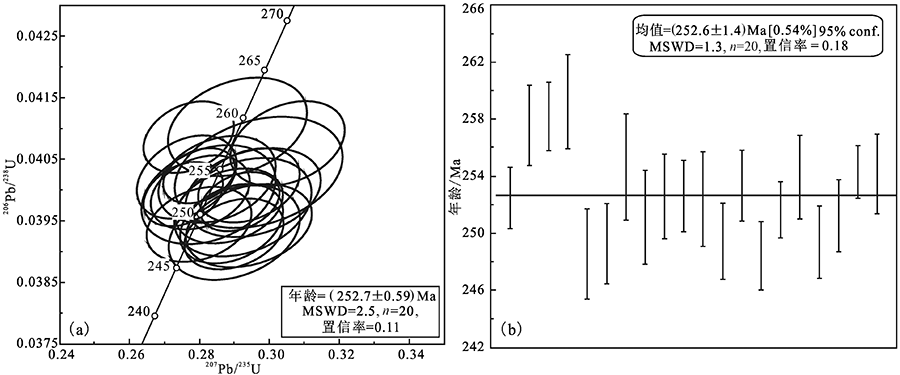

点号	含量/10^-6			Th/U	同位素比值				同位素年龄/Ma				谐和度/%
点号	Th	U	Pb	Th/U	²⁰⁷Pb/ ²⁰⁶Pb±1σ	²⁰⁷Pb/ ²³⁵U±1σ	²⁰⁶Pb/ ²³⁸U±1σ	²⁰⁸Pb/ ²³²Th±1σ	²⁰⁷Pb/ ²⁰⁶Pb±1σ	²⁰⁷Pb/ ²³⁵U±1σ	²⁰⁶Pb/ ²³⁸U±1σ	²⁰⁸Pb/ ²³²Th±1σ	谐和度/%
01	183.92	208.31	11.06	0.88	0.050 2±0.001 4	0.275±0.008	0.039 9±0.000 3	0.012 8±0.000 2	211.2±66.7	247.0±6.0	252.4±2.1	257.7±4.2	97
02	105.42	108.33	5.98	0.97	0.054 4±0.002 0	0.305±0.011	0.040 8±0.000 5	0.012 7±0.000 3	390.8±83.3	270.4±8.4	257.5±2.8	254.1±5.5	95
03	160.09	167.54	9.03	0.96	0.049 1±0.001 5	0.277±0.009	0.040 9±0.000 4	0.012 5±0.000 2	153.8±76.8	248.2±6.8	258.2±2.4	251.5±4.5	96
04	77.68	76.66	4.24	1.01	0.052 3±0.002 5	0.291±0.013	0.041 0±0.000 5	0.012 9±0.000 3	298.2±109.2	259.3±10.3	259.2±3.3	258.2±5.8	99
06	52.05	61.13	3.13	0.85	0.054 9±0.002 7	0.290±0.012	0.039 3±0.000 5	0.012 1±0.000 3	409.3±111.1	258.6±9.8	248.6±3.2	243.8±6.6	96
07	96.26	98.42	5.13	0.98	0.055 5±0.002 4	0.294±0.012	0.039 4±0.000 4	0.012 1±0.000 3	435.2±91.7	261.8±9.3	249.3±2.8	243.2±5.6	95
08	46.14	60.26	3.06	0.77	0.055 0±0.003 2	0.297±0.016	0.040 3±0.000 6	0.012 4±0.000 4	413.0±129.6	264.0±12.4	254.6±3.7	248.5±7.9	96
09	67.88	71.53	3.82	0.95	0.054 5±0.002 6	0.292±0.013	0.039 7±0.000 5	0.012 7±0.000 3	390.8±107.4	260.5±10.2	251.1±3.3	255.3±6.6	96
10	163.71	105.59	6.45	1.55	0.054 7±0.002 5	0.295±0.013	0.040 0±0.000 5	0.012 8±0.000 2	398.2±100.9	262.8±10.0	252.6±3.0	257.7±4.8	96
11	96.17	112.87	5.90	0.85	0.051 7±0.001 8	0.280±0.009	0.040 0±0.000 4	0.012 4±0.000 3	333.4±81.5	250.8±7.4	252.6±2.5	249.5±5.2	99
14	46.66	60.61	3.14	0.77	0.053 1±0.002 6	0.283±0.013	0.039 9±0.000 5	0.012 7±0.000 3	344.5±111.1	252.7±10.0	252.4±3.3	254.7±6.9	99
15	122.44	140.11	7.24	0.87	0.054 1±0.002 0	0.289±0.010	0.039 5±0.000 4	0.012 5±0.000 3	376.0±85.2	257.9±7.7	249.5±2.7	250.7±5.3	96
16	151.28	137.83	7.65	1.10	0.053 8±0.001 8	0.294±0.010	0.040 1±0.000 4	0.012 7±0.000 2	364.9±75.9	261.8±7.5	253.3±2.5	255.0±4.6	96
17	157.34	150.48	8.18	1.05	0.054 1±0.001 8	0.290±0.009	0.039 3±0.000 4	0.012 6±0.000 2	376.0±74.1	258.5±7.4	248.4±2.4	252.4±4.1	96
18	214.65	234.32	12.52	0.92	0.053 2±0.001 4	0.292±0.007	0.039 8±0.000 3	0.013 1±0.000 2	344.5±57.4	259.8±5.9	251.7±2.0	262.8±4.0	96
19	112.41	114.06	6.05	0.99	0.052 8±0.002 2	0.280±0.011	0.040 2±0.000 5	0.012 3±0.000 3	320.4±96.3	254.7±8.7	253.9±2.9	247.6±5.5	99
21	92.95	94.93	5.12	0.98	0.052 6±0.002 0	0.280±0.010	0.039 4±0.000 4	0.013 0±0.000 2	322.3±82.4	250.6±7.9	249.4±2.5	261.8±4.8	99
22	80.47	106.22	5.45	0.76	0.053 2±0.001 9	0.289±0.010	0.039 7±0.000 4	0.013 1±0.000 3	338.9±83.3	257.4±8.0	251.2±2.5	262.3±5.3	97
24	244.26	297.90	15.63	0.82	0.050 6±0.001 2	0.280±0.007	0.040 2±0.000 3	0.012 6±0.000 2	233.4±57.4	250.6±5.4	254.3±1.8	253.7±3.7	98
25	98.44	99.04	5.44	0.99	0.050 5±0.001 8	0.276±0.009	0.040 2±0.000 4	0.012 8±0.000 2	216.7±83.3	247.8±7.5	254.2±2.8	256.1±4.9	97

点号	含量/10^-6			Th/U	同位素比值				同位素年龄/Ma				谐和度/%
点号	Th	U	Pb	Th/U	²⁰⁷Pb/ ²⁰⁶Pb±1σ	²⁰⁷Pb/ ²³⁵U±1σ	²⁰⁶Pb/ ²³⁸U±1σ	²⁰⁸Pb/ ²³²Th±1σ	²⁰⁷Pb/ ²⁰⁶Pb±1σ	²⁰⁷Pb/ ²³⁵U±1σ	²⁰⁶Pb/ ²³⁸U±1σ	²⁰⁸Pb/ ²³²Th±1σ	谐和度/%
01	183.92	208.31	11.06	0.88	0.050 2±0.001 4	0.275±0.008	0.039 9±0.000 3	0.012 8±0.000 2	211.2±66.7	247.0±6.0	252.4±2.1	257.7±4.2	97
02	105.42	108.33	5.98	0.97	0.054 4±0.002 0	0.305±0.011	0.040 8±0.000 5	0.012 7±0.000 3	390.8±83.3	270.4±8.4	257.5±2.8	254.1±5.5	95
03	160.09	167.54	9.03	0.96	0.049 1±0.001 5	0.277±0.009	0.040 9±0.000 4	0.012 5±0.000 2	153.8±76.8	248.2±6.8	258.2±2.4	251.5±4.5	96
04	77.68	76.66	4.24	1.01	0.052 3±0.002 5	0.291±0.013	0.041 0±0.000 5	0.012 9±0.000 3	298.2±109.2	259.3±10.3	259.2±3.3	258.2±5.8	99
06	52.05	61.13	3.13	0.85	0.054 9±0.002 7	0.290±0.012	0.039 3±0.000 5	0.012 1±0.000 3	409.3±111.1	258.6±9.8	248.6±3.2	243.8±6.6	96
07	96.26	98.42	5.13	0.98	0.055 5±0.002 4	0.294±0.012	0.039 4±0.000 4	0.012 1±0.000 3	435.2±91.7	261.8±9.3	249.3±2.8	243.2±5.6	95
08	46.14	60.26	3.06	0.77	0.055 0±0.003 2	0.297±0.016	0.040 3±0.000 6	0.012 4±0.000 4	413.0±129.6	264.0±12.4	254.6±3.7	248.5±7.9	96
09	67.88	71.53	3.82	0.95	0.054 5±0.002 6	0.292±0.013	0.039 7±0.000 5	0.012 7±0.000 3	390.8±107.4	260.5±10.2	251.1±3.3	255.3±6.6	96
10	163.71	105.59	6.45	1.55	0.054 7±0.002 5	0.295±0.013	0.040 0±0.000 5	0.012 8±0.000 2	398.2±100.9	262.8±10.0	252.6±3.0	257.7±4.8	96
11	96.17	112.87	5.90	0.85	0.051 7±0.001 8	0.280±0.009	0.040 0±0.000 4	0.012 4±0.000 3	333.4±81.5	250.8±7.4	252.6±2.5	249.5±5.2	99
14	46.66	60.61	3.14	0.77	0.053 1±0.002 6	0.283±0.013	0.039 9±0.000 5	0.012 7±0.000 3	344.5±111.1	252.7±10.0	252.4±3.3	254.7±6.9	99
15	122.44	140.11	7.24	0.87	0.054 1±0.002 0	0.289±0.010	0.039 5±0.000 4	0.012 5±0.000 3	376.0±85.2	257.9±7.7	249.5±2.7	250.7±5.3	96
16	151.28	137.83	7.65	1.10	0.053 8±0.001 8	0.294±0.010	0.040 1±0.000 4	0.012 7±0.000 2	364.9±75.9	261.8±7.5	253.3±2.5	255.0±4.6	96
17	157.34	150.48	8.18	1.05	0.054 1±0.001 8	0.290±0.009	0.039 3±0.000 4	0.012 6±0.000 2	376.0±74.1	258.5±7.4	248.4±2.4	252.4±4.1	96
18	214.65	234.32	12.52	0.92	0.053 2±0.001 4	0.292±0.007	0.039 8±0.000 3	0.013 1±0.000 2	344.5±57.4	259.8±5.9	251.7±2.0	262.8±4.0	96
19	112.41	114.06	6.05	0.99	0.052 8±0.002 2	0.280±0.011	0.040 2±0.000 5	0.012 3±0.000 3	320.4±96.3	254.7±8.7	253.9±2.9	247.6±5.5	99
21	92.95	94.93	5.12	0.98	0.052 6±0.002 0	0.280±0.010	0.039 4±0.000 4	0.013 0±0.000 2	322.3±82.4	250.6±7.9	249.4±2.5	261.8±4.8	99
22	80.47	106.22	5.45	0.76	0.053 2±0.001 9	0.289±0.010	0.039 7±0.000 4	0.013 1±0.000 3	338.9±83.3	257.4±8.0	251.2±2.5	262.3±5.3	97
24	244.26	297.90	15.63	0.82	0.050 6±0.001 2	0.280±0.007	0.040 2±0.000 3	0.012 6±0.000 2	233.4±57.4	250.6±5.4	254.3±1.8	253.7±3.7	98
25	98.44	99.04	5.44	0.99	0.050 5±0.001 8	0.276±0.009	0.040 2±0.000 4	0.012 8±0.000 2	216.7±83.3	247.8±7.5	254.2±2.8	256.1±4.9	97

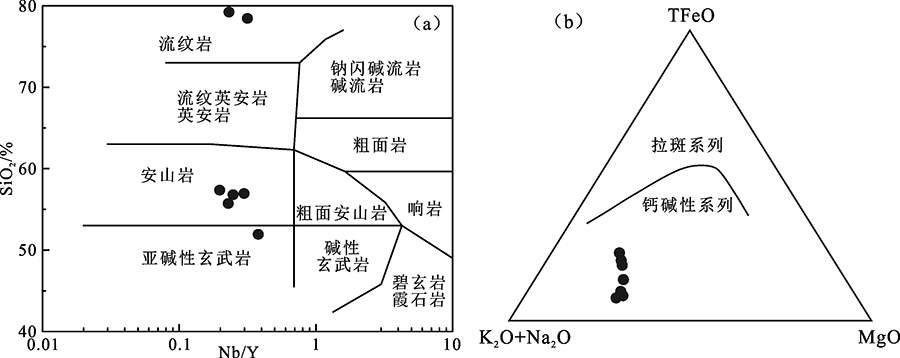

样品编号	SiO₂	TiO₂	Al₂O₃	Fe₂O₃	FeO	MnO	MgO	CaO	Na₂O	K₂O	P₂O₅	烧失量	总量	SiO₂/ Al₂O₃	TiO₂/ Al₂O₃	Al₂O₃ / TiO₂	Al₂O₃/(Al₂O₃ +TFe₂O₃)	Rb
PM315-DH5	55.78	0.27	22.85	1.03	0.09	0.009	3.06	1.03	0.55	6.68	0.096	8.52	99.97	2.44	0.012	84.63	0.75	226.0
PM315-DH6	56.65	0.28	22.74	0.94	0.09	0.010	3.02	0.59	0.51	6.72	0.066	8.32	99.94	2.49	0.012	81.21	0.77	217.8
PM315-DH7	56.12	0.26	22.88	0.90	0.13	0.008	3.02	0.74	0.85	6.65	0.071	8.30	99.93	2.45	0.011	88.00	0.77	220.5
PM315-DH9	78.45	0.27	11.12	1.03	0.40	0.006	1.15	0.25	0.27	3.16	0.039	3.78	99.93	7.05	0.024	41.19	0.59	91.2
PM315-DH10	79.89	0.27	10.18	0.74	0.45	0.012	1.15	0.37	0.33	2.92	0.085	3.56	99.96	7.85	0.027	37.70	0.65	95.4
PM315-DH11	52.11	0.43	25.65	1.36	0.40	0.008	3.08	0.32	0.48	7.07	0.091	8.96	99.96	2.03	0.017	59.65	0.72	245.7
PM315-DH13	56.12	0.45	22.64	1.96	0.40	0.031	2.45	0.56	0.42	6.24	0.100	8.56	99.93	2.48	0.020	50.31	0.61	191.7
样品编号	Ba	Th	U	Ta	Nb	Sr	Zr	Hf	Co	Ni	Ga	Pb	Cr	Sc	La	Ce	Pr	Nd
PM315-DH5	265.00	52.30	13.80	3.96	40.300	35.20	318.00	10.84	3.91	9.52	28.60	38.60	5.21	17.60	135.60	212.06	31.20	108.903
PM315-DH6	283.88	56.30	13.09	4.56	41.600	26.46	317.84	10.52	5.18	8.89	28.28	37.20	5.21	17.60	132.00	217.67	29.18	110.128
PM315-DH7	278.63	52.90	12.75	4.30	39.312	22.37	300.44	10.35	5.50	8.88	28.70	38.22	5.37	17.93	106.20	185.13	23.20	87.833
PM315-DH9	138.25	27.76	6.28	1.74	17.971	35.93	265.64	7.26	3.32	4.63	13.02	20.44	4.98	9.52	56.30	105.58	12.08	44.200
PM315-DH10	150.00	22.52	4.52	1.68	13.800	28.58	231.30	6.42	4.96	6.07	12.67	29.60	7.97	8.36	40.92	77.08	8.61	31.483
PM315-DH11	298.00	61.46	8.93	3.46	28.220	27.60	371.90	13.31	15.56	17.20	29.05	27.89	7.23	22.77	130.80	243.47	28.46	103.513
PM315-DH13	294.63	47.14	4.00	3.02	21.200	34.20	377.46	12.75	13.27	23.00	24.29	26.55	14.08	23.10	114.84	231.13	27.27	105.963
样品编号	Sm	Eu	Gd	Tb	Dy	Ho	Er	Tm	Yb	Lu	Y	ΣREE	LREE	HREE	LREE/ HREE	δEu	δCe	(La/ Yb)_N
PM315-DH5	22.60	1.420	20.20	3.82	24.23	5.41	16.70	2.78	18.60	2.57	163.00	606.09	511.78	94.31	5.43	0.20	0.77	5.23
PM315-DH6	23.70	1.320	18.16	3.34	21.60	4.73	14.28	2.51	15.79	2.27	134.60	596.68	514.00	82.68	6.22	0.19	0.82	6.00
PM315-DH7	18.90	1.147	17.11	3.49	23.05	5.30	16.47	2.71	17.26	2.46	155.25	510.26	422.41	87.85	4.81	0.19	0.87	4.41
PM315-DH9	8.11	1.059	7.23	1.32	8.20	1.87	5.76	0.96	6.36	0.94	48.60	259.97	227.33	32.64	6.96	0.41	0.95	6.35
PM315-DH10	6.33	0.946	6.46	1.28	7.99	1.73	5.10	0.85	5.32	0.77	48.50	194.87	165.37	29.50	5.61	0.45	0.96	5.52
PM315-DH11	17.50	1.835	14.04	2.25	12.11	2.56	7.57	1.27	8.12	1.14	68.58	574.64	525.58	49.06	10.71	0.35	0.93	11.55
PM315-DH13	19.90	2.600	16.05	2.68	15.05	3.20	9.11	1.41	8.60	1.21	101.93	559.01	501.70	57.31	8.75	0.43	0.98	9.58

样品编号	SiO₂	TiO₂	Al₂O₃	Fe₂O₃	FeO	MnO	MgO	CaO	Na₂O	K₂O	P₂O₅	烧失量	总量	SiO₂/ Al₂O₃	TiO₂/ Al₂O₃	Al₂O₃ / TiO₂	Al₂O₃/(Al₂O₃ +TFe₂O₃)	Rb
PM315-DH5	55.78	0.27	22.85	1.03	0.09	0.009	3.06	1.03	0.55	6.68	0.096	8.52	99.97	2.44	0.012	84.63	0.75	226.0
PM315-DH6	56.65	0.28	22.74	0.94	0.09	0.010	3.02	0.59	0.51	6.72	0.066	8.32	99.94	2.49	0.012	81.21	0.77	217.8
PM315-DH7	56.12	0.26	22.88	0.90	0.13	0.008	3.02	0.74	0.85	6.65	0.071	8.30	99.93	2.45	0.011	88.00	0.77	220.5
PM315-DH9	78.45	0.27	11.12	1.03	0.40	0.006	1.15	0.25	0.27	3.16	0.039	3.78	99.93	7.05	0.024	41.19	0.59	91.2
PM315-DH10	79.89	0.27	10.18	0.74	0.45	0.012	1.15	0.37	0.33	2.92	0.085	3.56	99.96	7.85	0.027	37.70	0.65	95.4
PM315-DH11	52.11	0.43	25.65	1.36	0.40	0.008	3.08	0.32	0.48	7.07	0.091	8.96	99.96	2.03	0.017	59.65	0.72	245.7
PM315-DH13	56.12	0.45	22.64	1.96	0.40	0.031	2.45	0.56	0.42	6.24	0.100	8.56	99.93	2.48	0.020	50.31	0.61	191.7
样品编号	Ba	Th	U	Ta	Nb	Sr	Zr	Hf	Co	Ni	Ga	Pb	Cr	Sc	La	Ce	Pr	Nd
PM315-DH5	265.00	52.30	13.80	3.96	40.300	35.20	318.00	10.84	3.91	9.52	28.60	38.60	5.21	17.60	135.60	212.06	31.20	108.903
PM315-DH6	283.88	56.30	13.09	4.56	41.600	26.46	317.84	10.52	5.18	8.89	28.28	37.20	5.21	17.60	132.00	217.67	29.18	110.128
PM315-DH7	278.63	52.90	12.75	4.30	39.312	22.37	300.44	10.35	5.50	8.88	28.70	38.22	5.37	17.93	106.20	185.13	23.20	87.833
PM315-DH9	138.25	27.76	6.28	1.74	17.971	35.93	265.64	7.26	3.32	4.63	13.02	20.44	4.98	9.52	56.30	105.58	12.08	44.200
PM315-DH10	150.00	22.52	4.52	1.68	13.800	28.58	231.30	6.42	4.96	6.07	12.67	29.60	7.97	8.36	40.92	77.08	8.61	31.483
PM315-DH11	298.00	61.46	8.93	3.46	28.220	27.60	371.90	13.31	15.56	17.20	29.05	27.89	7.23	22.77	130.80	243.47	28.46	103.513
PM315-DH13	294.63	47.14	4.00	3.02	21.200	34.20	377.46	12.75	13.27	23.00	24.29	26.55	14.08	23.10	114.84	231.13	27.27	105.963
样品编号	Sm	Eu	Gd	Tb	Dy	Ho	Er	Tm	Yb	Lu	Y	ΣREE	LREE	HREE	LREE/ HREE	δEu	δCe	(La/ Yb)_N
PM315-DH5	22.60	1.420	20.20	3.82	24.23	5.41	16.70	2.78	18.60	2.57	163.00	606.09	511.78	94.31	5.43	0.20	0.77	5.23
PM315-DH6	23.70	1.320	18.16	3.34	21.60	4.73	14.28	2.51	15.79	2.27	134.60	596.68	514.00	82.68	6.22	0.19	0.82	6.00
PM315-DH7	18.90	1.147	17.11	3.49	23.05	5.30	16.47	2.71	17.26	2.46	155.25	510.26	422.41	87.85	4.81	0.19	0.87	4.41
PM315-DH9	8.11	1.059	7.23	1.32	8.20	1.87	5.76	0.96	6.36	0.94	48.60	259.97	227.33	32.64	6.96	0.41	0.95	6.35
PM315-DH10	6.33	0.946	6.46	1.28	7.99	1.73	5.10	0.85	5.32	0.77	48.50	194.87	165.37	29.50	5.61	0.45	0.96	5.52
PM315-DH11	17.50	1.835	14.04	2.25	12.11	2.56	7.57	1.27	8.12	1.14	68.58	574.64	525.58	49.06	10.71	0.35	0.93	11.55
PM315-DH13	19.90	2.600	16.05	2.68	15.05	3.20	9.11	1.41	8.60	1.21	101.93	559.01	501.70	57.31	8.75	0.43	0.98	9.58

贵州官坝地区二叠系—三叠系地质界面黏土岩的火山岩特征、LA-ICP-MS 锆石U-Pb年龄及其地质意义

Volcanic Characteristics, LA-ICP-MS Zircon U-Pb Ages of Claystone at the Permian-Triassic Boundary, Guanba Area in Guizhou Province, South China and the Geological Implications

RichHTML

PDF (PC)

可视化

摘要/Abstract

引用本文

使用本文

图/表 12

参考文献 69

相关文章 5

编辑推荐

Metrics

本文评价

[1]	谭聪, 于炳松, 阮壮, 郝士龙, 李琨, 罗忠, 刘润达. 四川盆地上三叠统须家河组高分辨率层序地层研究[J]. 现代地质, 2017, 31(02): 290-301.
[2]	侯恩刚，高金汉，王根厚，王训练，徐涛，乔柏翰. 西藏改则地区上三叠统日干配错组鲕粒滩相灰岩沉积特征及其环境意义[J]. 现代地质, 2014, 28(2): 256-264.
[3]	侯恩刚，高金汉，王训练，王根厚，胡歆睿，马占川. 西藏改则热那错地区上三叠统日干配错组碳酸盐岩C、O同位素特征及其地质意[J]. 现代地质, 2013, 27(6): 1332-1339.
[4]	冯博，林晋炎，聂利，马尚伟，李莹. 新疆伊犁果子沟晚前寒武纪地层沉积特征及对比[J]. 现代地质, 2013, 27(4): 959-967.
[5]	初广震, 黄文辉, 于炳松, 樊太亮. 塔里木盆地巴楚地区T47界面生屑灰岩微相分析及成岩作用研究[J]. 现代地质, 2010, 24(2): 294-300.
